Higv Volt 768v 645kwh Solar Energy System 250kw Container Energy Storage Solar Photovoltaic System
- Category: >>>
- Supplier: Shenzhen Haisic Technology Co. Ltd.
Share on (1600985053054):
Product Overview
Description
Products Description

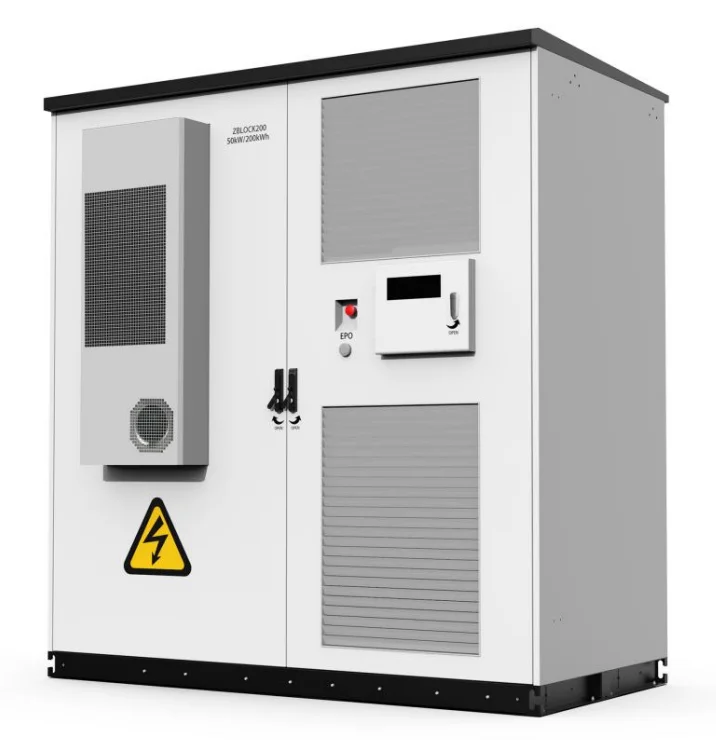

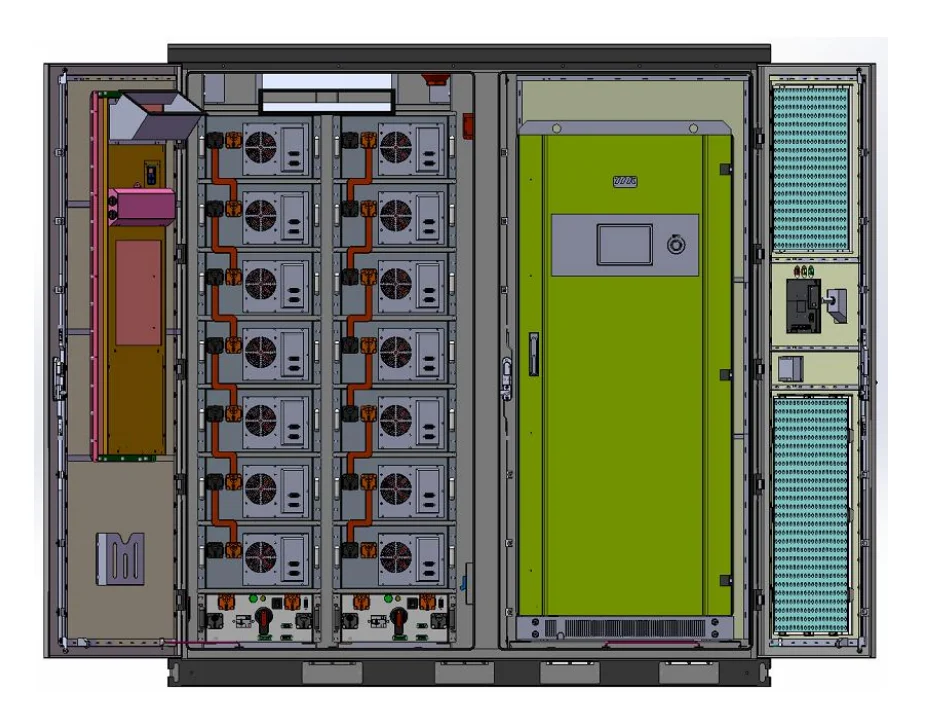

HS-EES series is Lithium iron phosphate battery system which designed for energy storage system. Thisbattery system consists of PCS, putdoor cabinet, battery racks and BMS, every cabinet integrates with intelligentHVAC inside. And this system has big advantages on safety, cycle life, energy density, fast charging, temperaturerange and environmental protection.

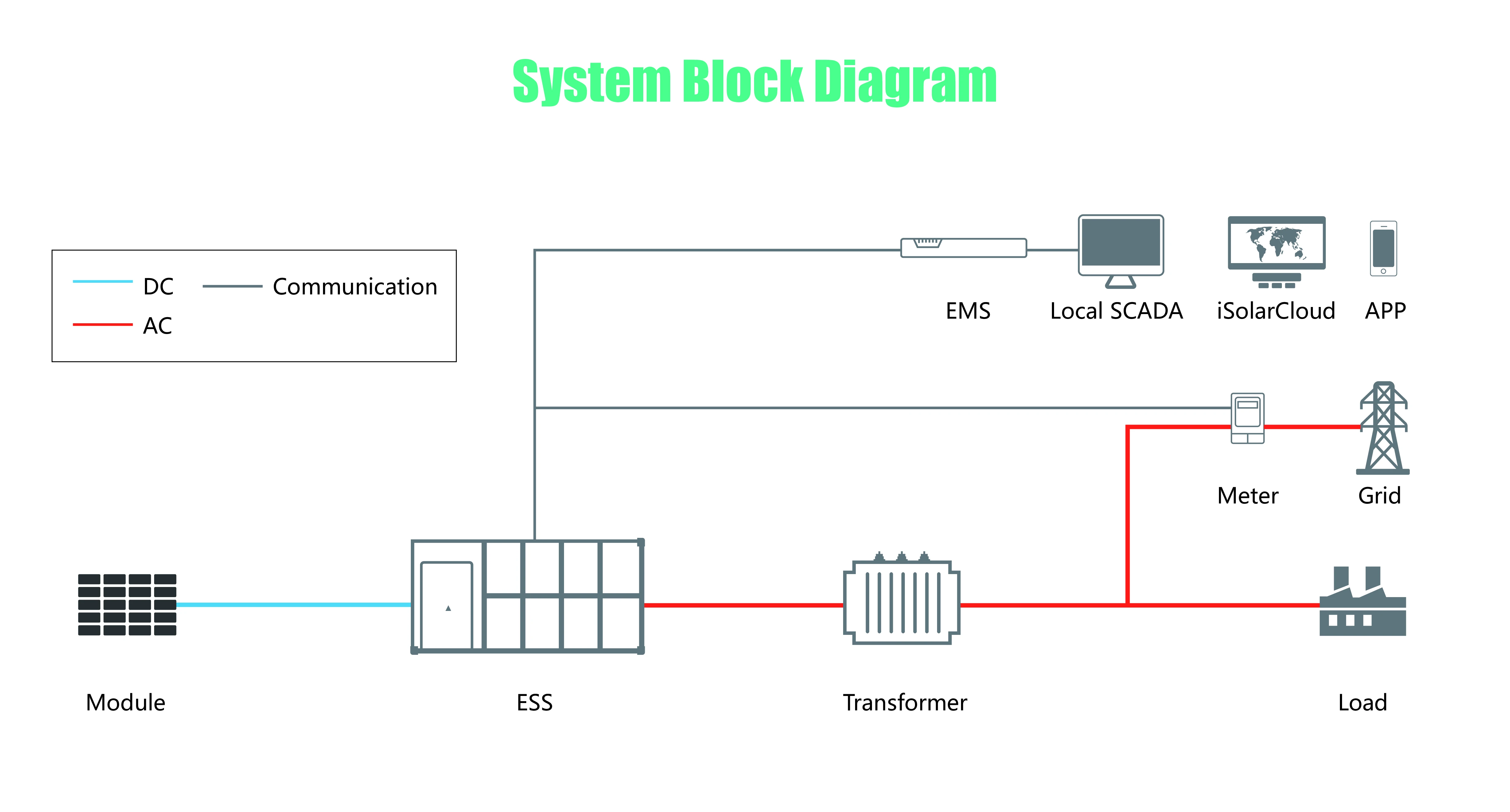

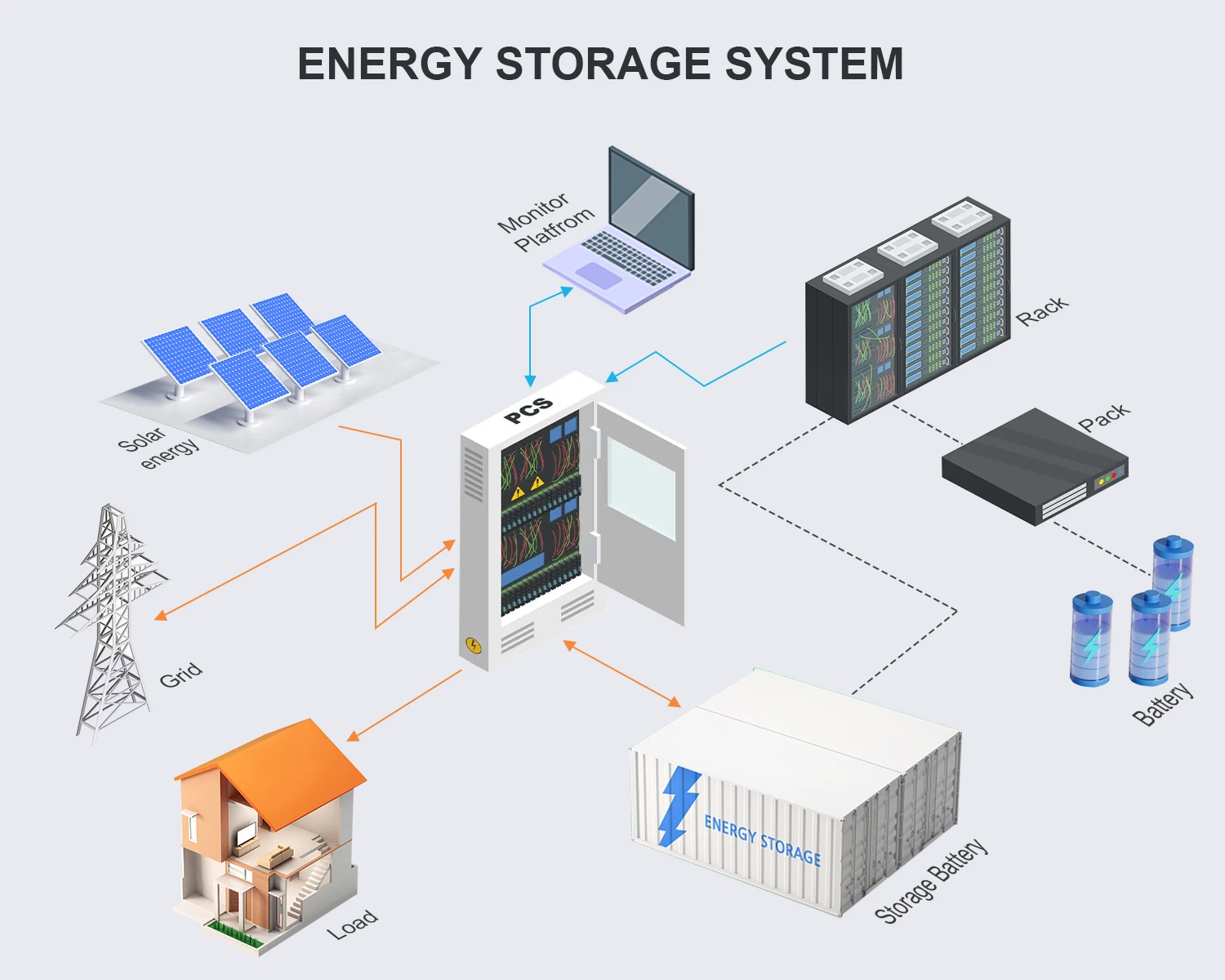

System Block Diagram
Application scenarios:
Self consumption of renewable energy
Power boost and EV charging optimization
Peak shaving
Back-up and foo-grid
Power boost and EV charging optimization
Peak shaving
Back-up and foo-grid
Power Conversion System And BMS
1.Built-in 250kw hybrid solar inverter.
2.Comprehensive WIFI monitor for electricity production and consumption data, to check your investment payment on time.
3.Automatic Switch to charge loads, batteries or from Grid backup with priority setting function.
Product basic functions
1.Digital O&MServices
24/7 monitoring for abnormalty alerts and automatic workorder dispatching.
2.Peak Shaving and ToU Arbitrage
Charges and discharges power base-don time-of-use pricing and peakflatterthe energy loadconsumption toprofile
3.Meter Tracking
Avoids demandpenalties andoptimizes both long-term contracted capacity and electricity costs
4.PV Self-Consumption
Utilizes surplusPY power andhelpsreduce the electricitybills
5.Backup Power
Maintains a stable powesupply in the event of anoutage
6.Support EV Charging Stations
Increases the charging capacity whileavoiding overload and safety issueson existing grid infrastructure
7.All-in-One Design
Integrated wiring and cabinets in the skid.Only communicationand DC lines need to be connected on-site.
Pre-assembly and testing before leavingthe factory,makingdeliveryinstallation.and maintenance easier.
Advantages
* Modular and flexibly expandable battery storage system at the power and capacity level※
* All-in-one design, AC-coupled solution
* Individual energy content-perfectly matched to your requirements
* Max. Battery cell life
* Lithium iron phosphate batteries for high operational & fire safety
* Outdoor housing for any installation site

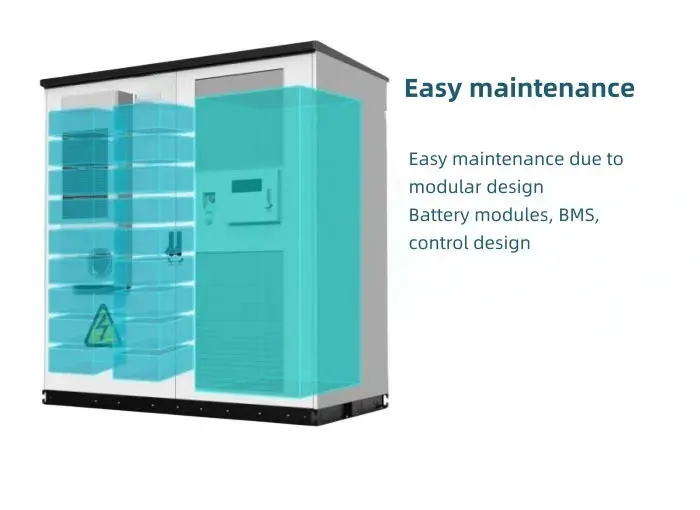

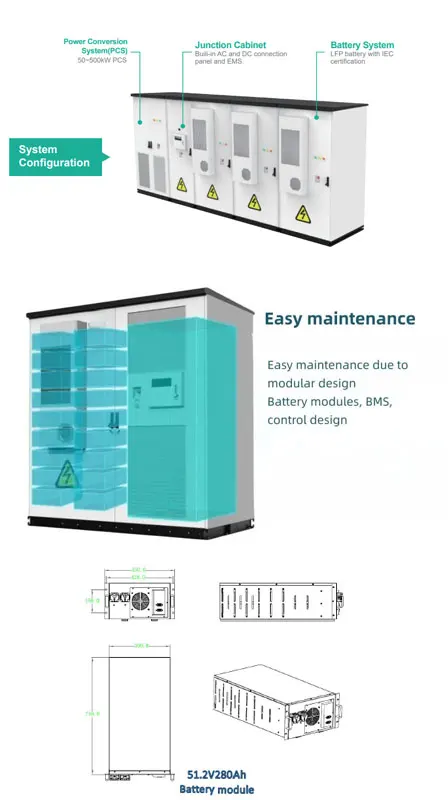

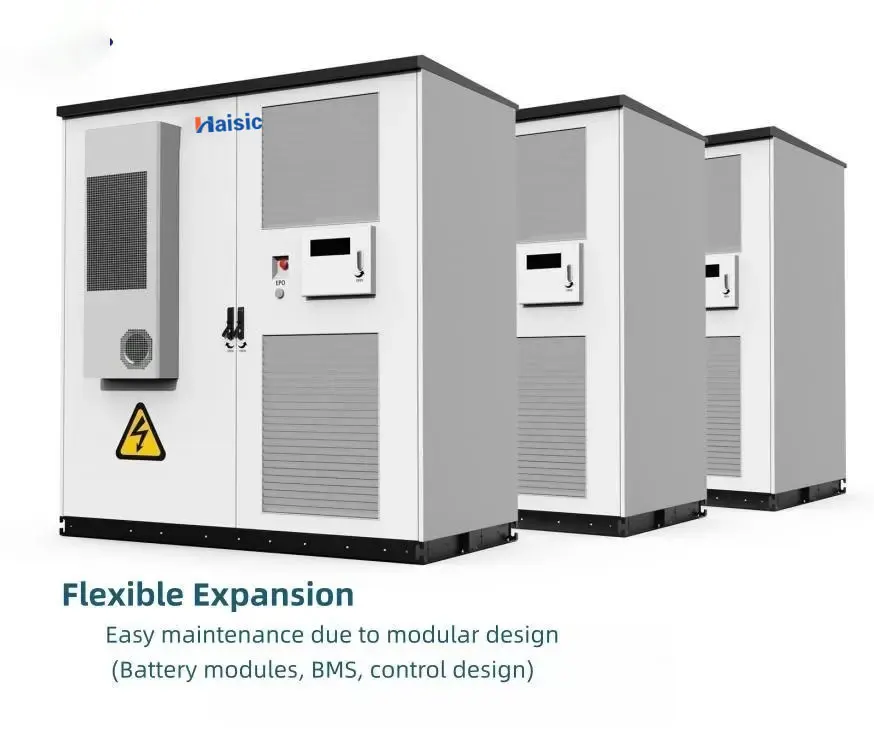

* Easy maintenance due to modular design(Battery modules, BMS, control design)
* Internal and external protection
* Suitable for series application such as control reserve, self-consumption increase
* 15 years design life, Stable performance, maintenance-free
* Maximum 5 cabinets parallel to support bigger power and capacity
* All-in-one design, AC-coupled solution
* Individual energy content-perfectly matched to your requirements
* Max. Battery cell life
* Lithium iron phosphate batteries for high operational & fire safety
* Outdoor housing for any installation site
* Easy maintenance due to modular design(Battery modules, BMS, control design)
* Internal and external protection
* Suitable for series application such as control reserve, self-consumption increase
* 15 years design life, Stable performance, maintenance-free
* Maximum 5 cabinets parallel to support bigger power and capacity
Product parameters
Type | 250kW/645kWh | |
Model | HS-EE250kW645kWh | |
Battery Parameters | ||
Cell | LFP280Ah | |
Pack | 51.2V 280Ah | |
Rated Voltage | 768V ( 15 modules series) | |
Battery capacity | 280Ah | |
Rated energy | 645.120kWh | |
Usable energy | 580.608kWh(90%DOD) | |
Voltage range | 672V~840V | |
Max.Charging power | 250kW | |
Specifications of each group | 768V 280Ah 215.040kWh * 3 Set 645.12kWh | |
AC On-grid parameters | ||
inverter | Off Grid | |
Grid Type | 3W+N+PE | |
Rated Charge/Discharge Power | 250kW | |
Rated Grid voltage | AC320V~460V | |
Applicable grid frequency | 50~60(-2.5~2.5)Hz | |
Rated current | 361A | |
THDi | <3% | |
Power factor | 1(Leading)~1(Lagging) | |
AC Off-grid parameters | ||
Rated Charge/Discharge Power | 250kW | |
Max Output power | 275KVA | |
Rated Grid voltage | AC400V | |
Rated Frequency | 50/60Hz | |
THDi | ≤1% linear; or≤5% nonlinear | |
Rated current | 361A | |
Photovoltaic input | ||
Max Input Power | 300kW | |
MPPT Voltage Range | 250~850V | |
General Parameter | ||
Dimension：W*D*H（mm） | 6450mm*1100mm*2340mm | |
Max. Weight | TBDkg | |
IP Degree | IP54 | |
Operating Temperature Range | 一20~50℃ | |
Relative Humidity | 0~95%(No condensation) | |
Attitude | <2000m | |
Cooling Method | Heat Ventilation Air Conditioner | |
Noise | ≤75dB | |
System Efficiency | ≥85% | |
Firefighting system | Integrated | |
Communication | Ethernet, Modbus TCP/IP | |
Packing List
No. | Item | Specification | Quantity | Remarks |
1 | LiFepo4 battery pack | HS-GS1500H 51.2V280Ah battery pack | 40 | |
2 | HS-EES250KW/215kwh cabinet | Battery cabinet,100KW/768V560AhIP55grade, 2pcs,1100 x 1100 x 2340(W*D*H, mm),including fire fighting and industrial air conditioner MPs cabinet, IP54 grade, 1pcs, 1600 x 1100 x2340(W*D*H, mm). | 1 | |
3 | PCS | MPs100, hybrid,100kw,400Vac | 1 | |
4 | EMS | HMl screen including remote control and platform | 1 | |
5 | Power cable | Power cable between battery racks and CBMS | 1Set | |
6 | communication cable | Communication cable between batterymodule and BMU | 1Set | |
7 | User manual | User manual | 1 |
About Safety
The HS-EE250kW645kWh is an all-in-one AC system, operated by skilled/qualified personnel only. Read all safety
instructions carefully prior to any work and observe them at all times when working on with the system.
instructions carefully prior to any work and observe them at all times when working on with the system.
✦Incorrect operation or work may cause:
✦injury or death to the operator or a third party;
damage to the system hardware and other properties belonging to the operator or a third party.
Skills of Qualified Personnel
Qualified personnel must have the following skills:
✔training in the installation and commissioning of the electrical system, as well as the dealing with hazards;
✔knowledge of this manual and other related documents;
✔ knowledge of the local regulations and directives.
✦injury or death to the operator or a third party;
damage to the system hardware and other properties belonging to the operator or a third party.
Skills of Qualified Personnel
Qualified personnel must have the following skills:
✔training in the installation and commissioning of the electrical system, as well as the dealing with hazards;
✔knowledge of this manual and other related documents;
✔ knowledge of the local regulations and directives.
