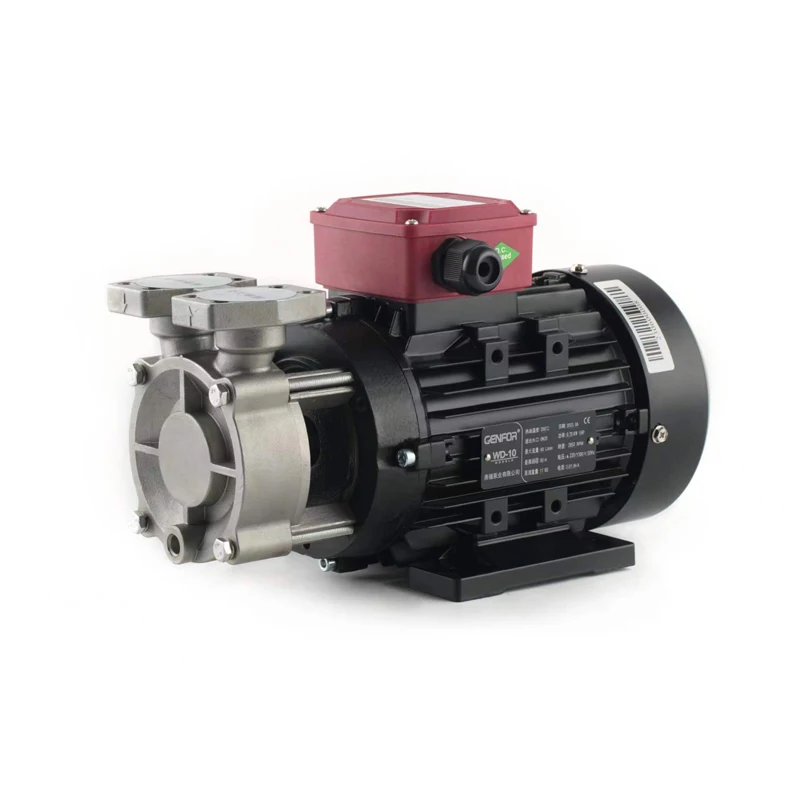

WD 05 0.5HP 0.37KW 380V 50HZ 40M Head 25LPM Stainless Steel High Temperature Self priming Votex Oil Pump

Product Overview

Description

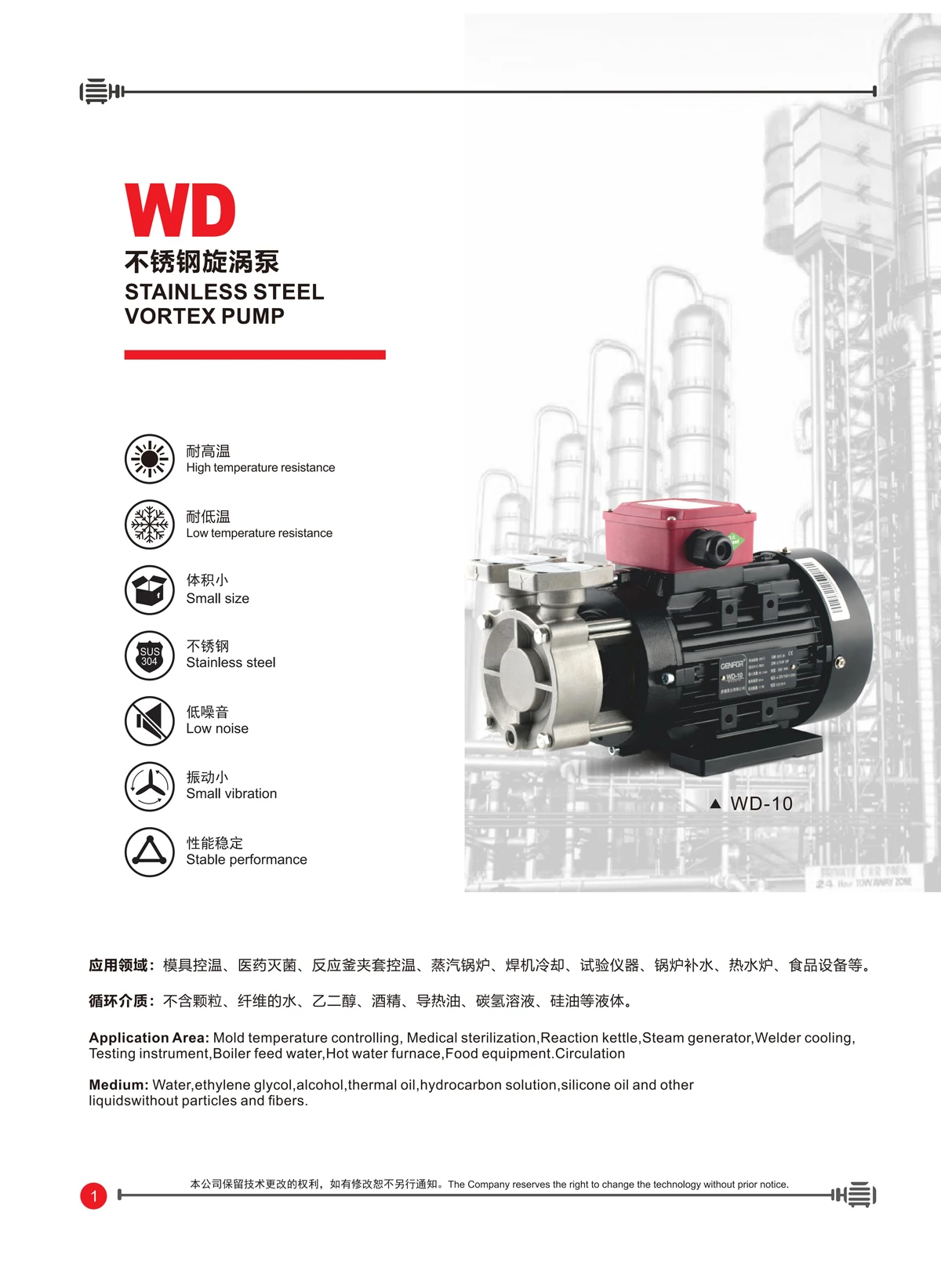

WD Stainless Steel Vortex Pump





Product Overview



High temperature resistance, Low temperature resistance, Small Size,Stainless steel, Low noise, Small vibration, Stable performance.



Application Area



Mold temperature controlling, Medical sterilization, Reaction kettle, Steam generator, Welder cooling, Testing instrument, Boiler feed water, Hot water furnace,Food equipment, Circulation.



Medium



Water, ethylene glycol, alcohol, thermal oil, hydrocarbon solution, silicone oil and other liquids without particles and fibers.

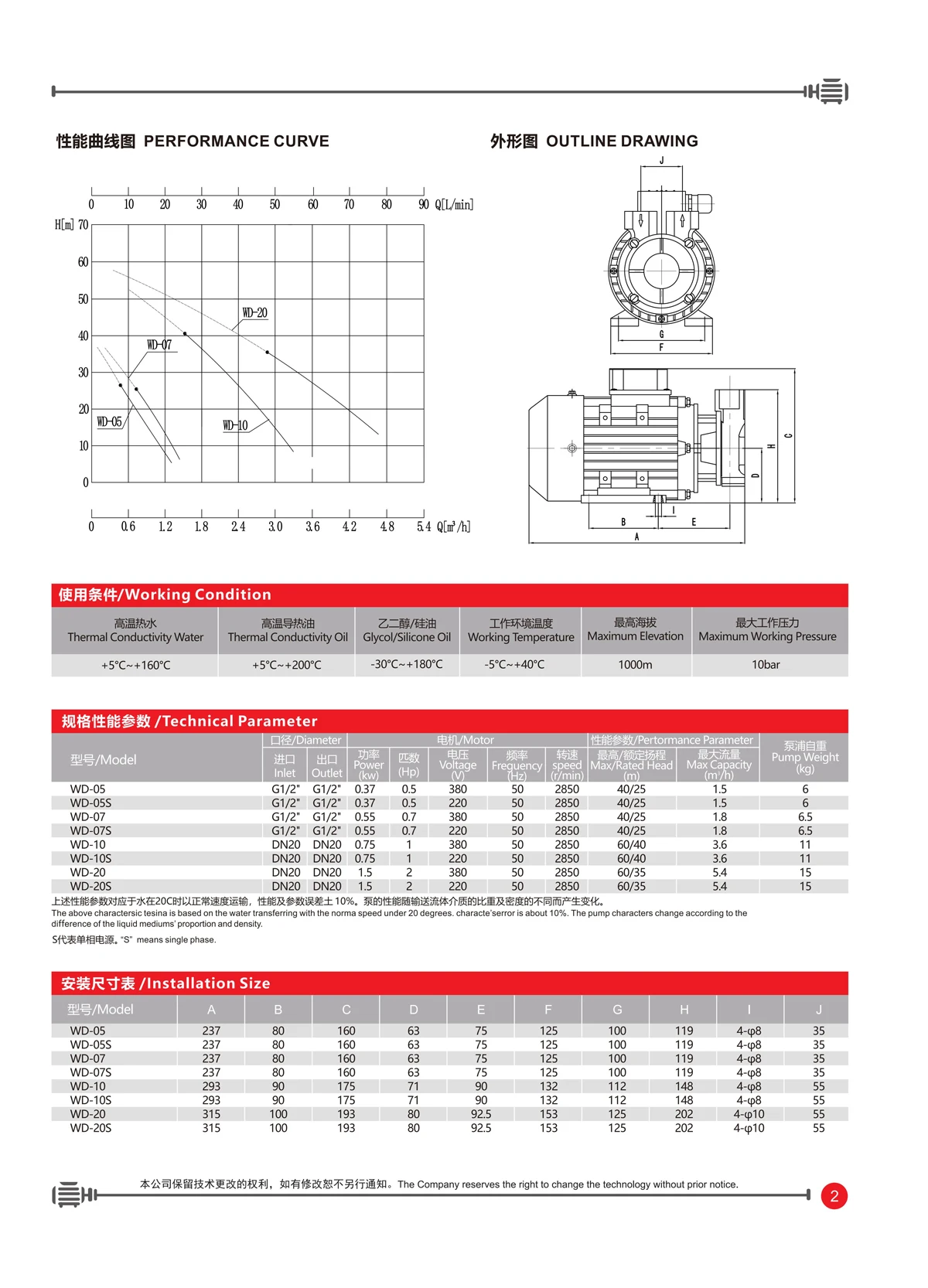

Model	Diameter		Motor					Performance Parameter		Pump Weight (kg)
	Inlet	Outlet	Power (kw)	HP	Voltage         (V)	Frequency      (HZ)	Speed (r/min)	Max/Rated Head(m)	MaxCapacity      (m/h)
WD-05	G1/2''	G1/2''	0.37	0.5	380	50	2850	40/25	1.5	6
WD-05S	G1/2''	G1/2''	0.37	0.5	220	50	2850	40/25	1.5	6

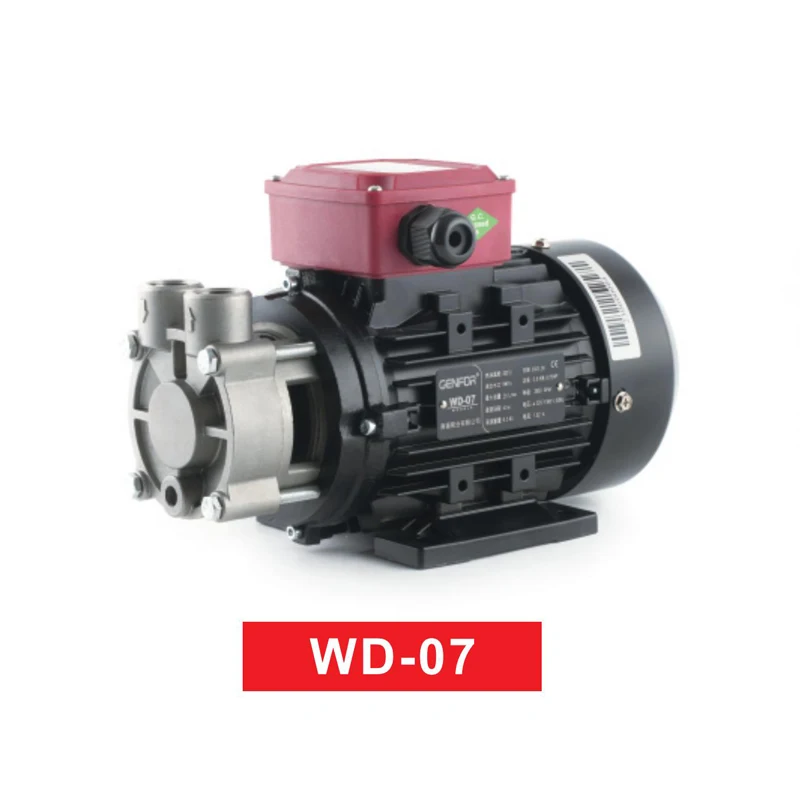

WD-07	G1/2''	G1/2''	0.55	0.7	380	50	2850	40/25	1.8	6.5
WD-07S	G1/2''	G1/2''	0.55	0.7	220	50	2850	40/25	1.8	6.5

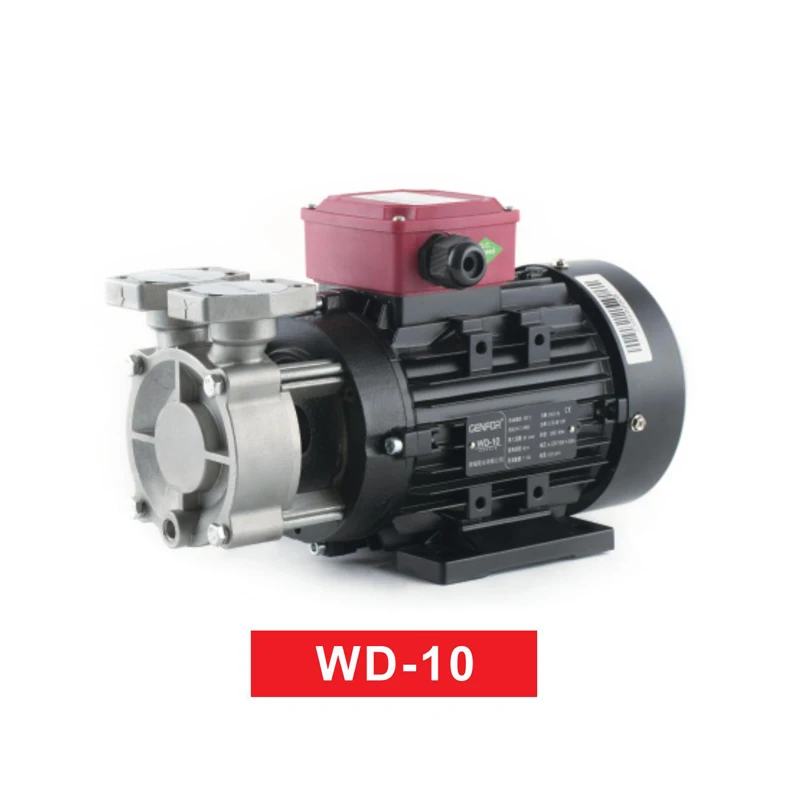

WD-10	DN20	DN20	0.75	1	380	50	2850	60/40	3.6	11
