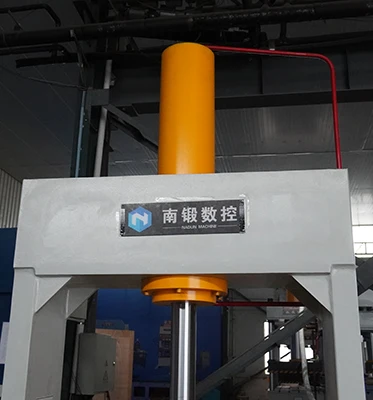

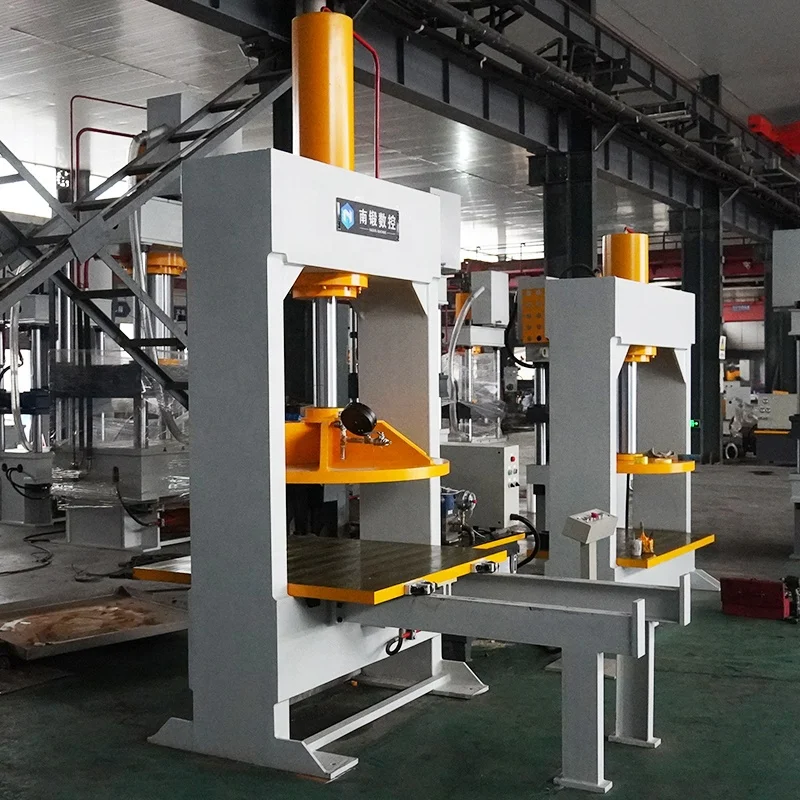

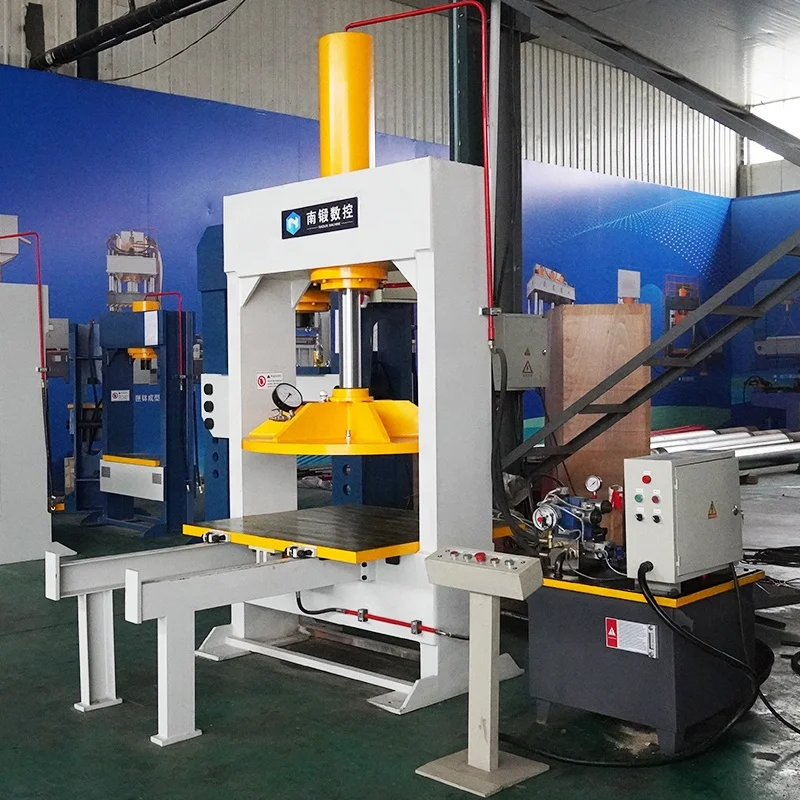

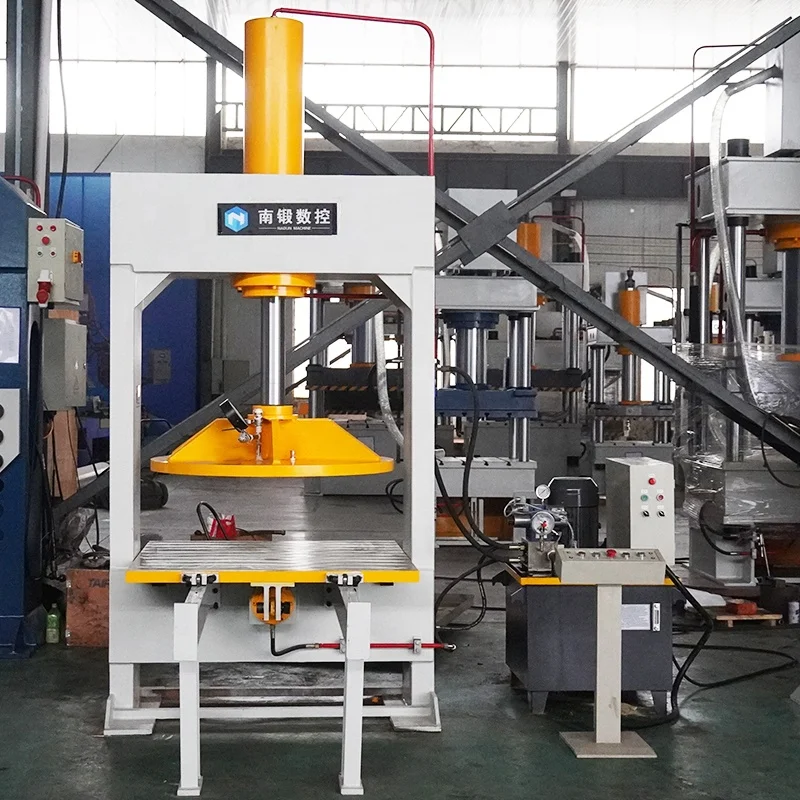

120 Ton Gantry Hydraulic Power Press Precision with Gantry Guided
Product Description
Precision in equipment manufacturing necessitates accuracy and consistency, highlighting the crucial role of a 120 Ton H Frame Hydraulic Press Machine. This equipment shapes and corrects workpieces by applying pressure, excelling in the assembly of components for precision and reproducibility. Additionally, it calibrates sheet metal profiles, enhancing overall precision and consistency. With the capacity to preset pressure and execute production tasks, this machine is a crucial multiplier in the precision equipment fabrication workflow.
Details Images

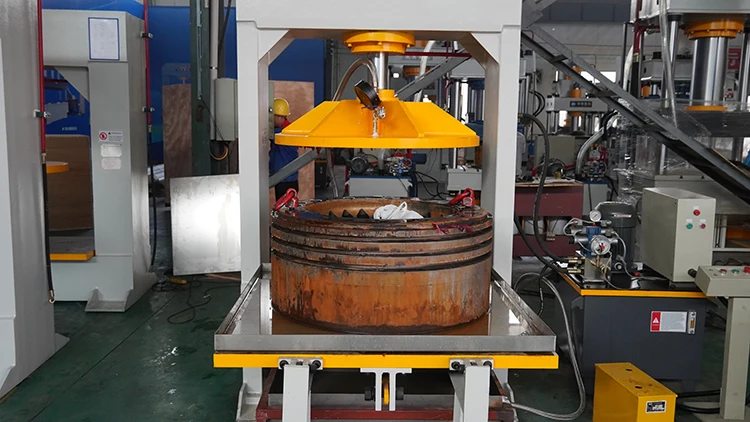

The primary objective of pressure testing the piston head in a container ship's diesel engine is to verify its integrity and identify potential damage or cracks.
The procedural steps are as follows:

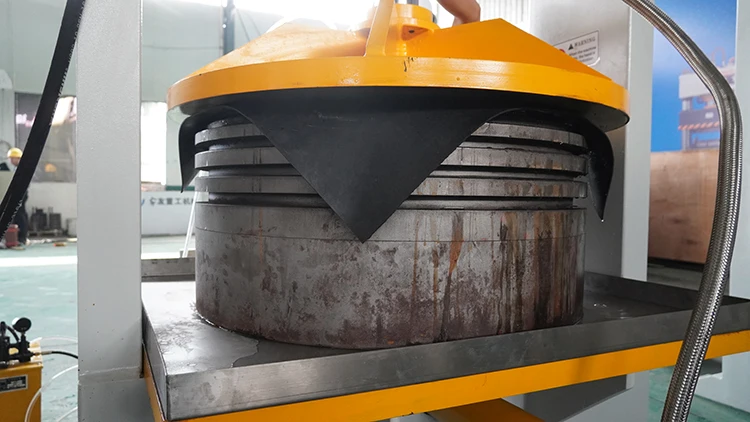

1) Inject water into the piston head to ensure complete filling, using a circular rubber pad as a sealing pad beneath the pressure-receiving surface.

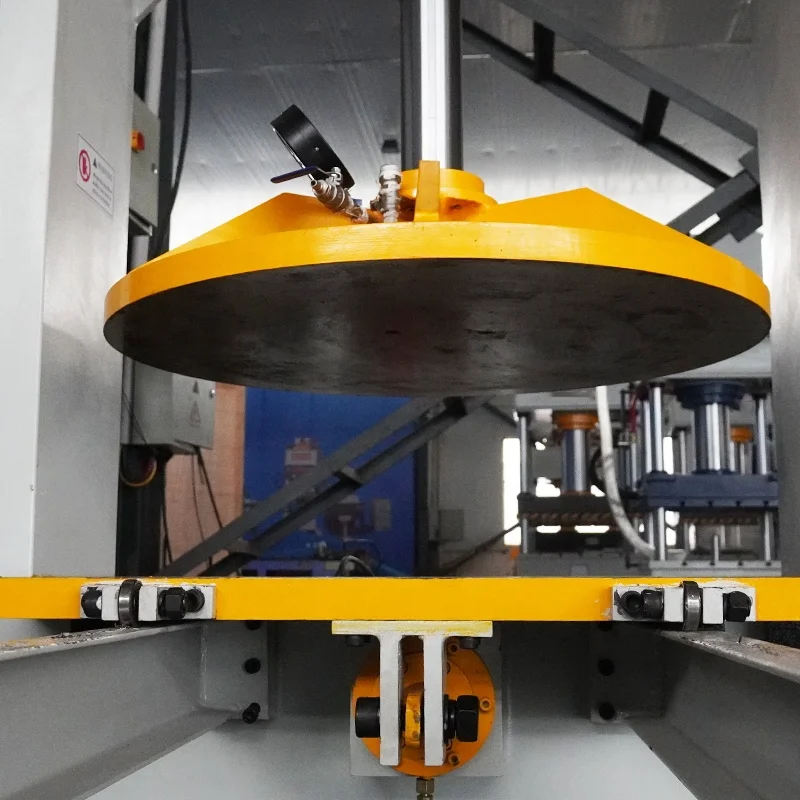

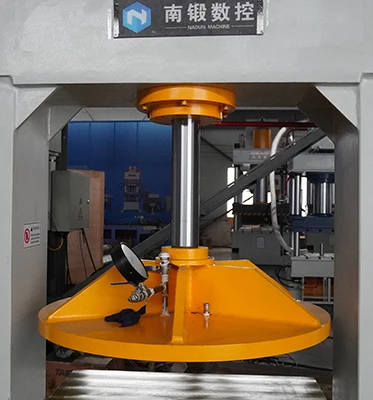

2) Utilize a hydraulic press to firmly unite the pressure plate and piston head, creating a sealed space.

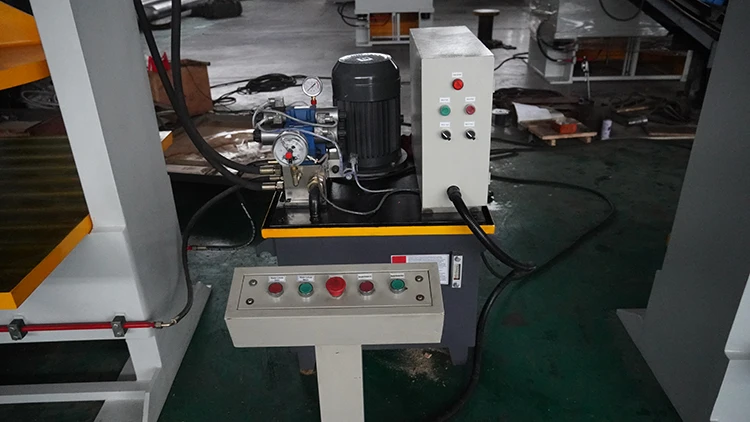

3) Connect a hand pump to the valve on the pressure plate to pressurize and ventilate the sealed space. Close the pressure valve once the predetermined pressure level is reached.

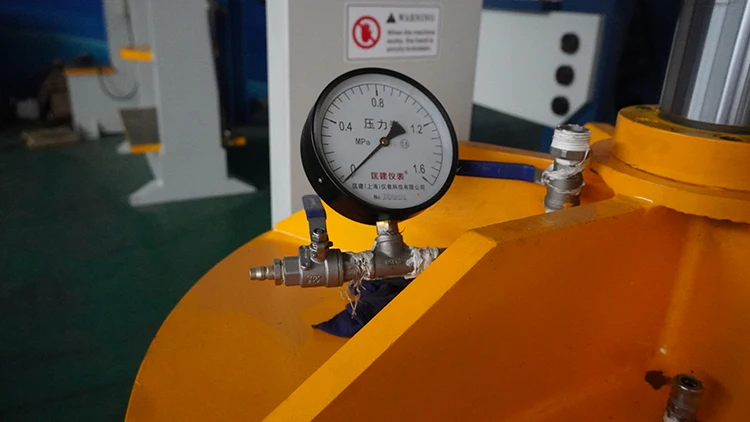

4) Maintain internal pressure for a specified duration. Examine changes in the pressure gauge and potential leakage points around the piston head to determine the presence of damage to the workpiece.
The procedural steps are as follows:
1) Inject water into the piston head to ensure complete filling, using a circular rubber pad as a sealing pad beneath the pressure-receiving surface.
2) Utilize a hydraulic press to firmly unite the pressure plate and piston head, creating a sealed space.
3) Connect a hand pump to the valve on the pressure plate to pressurize and ventilate the sealed space. Close the pressure valve once the predetermined pressure level is reached.
4) Maintain internal pressure for a specified duration. Examine changes in the pressure gauge and potential leakage points around the piston head to determine the presence of damage to the workpiece.
Product Paramenters
MODEL | UNIT | YM-20 | YM-40 | YM-63 | YM-100 |
Nominal force | KN | 200 | 400 | 630 | 1000 |
Max system pressure | Mpa | 31.5 | 31.5 | 31.5 | 31.5 |
Open height | mm | 560 | 560 | 560 | 600 |
Stroke | mm | 200 | 200 | 220 | 220 |
Table effective area | mm | 450x400 | 500x400 | 500x400 | 600x550 |
Blanking hole diameter | mm | Ф60 | Ф80 | Ф100 | Ф140 |
Attachment: The above table shows the parameters of our standard models. The 120-ton specification is customized specifically for our clients.
