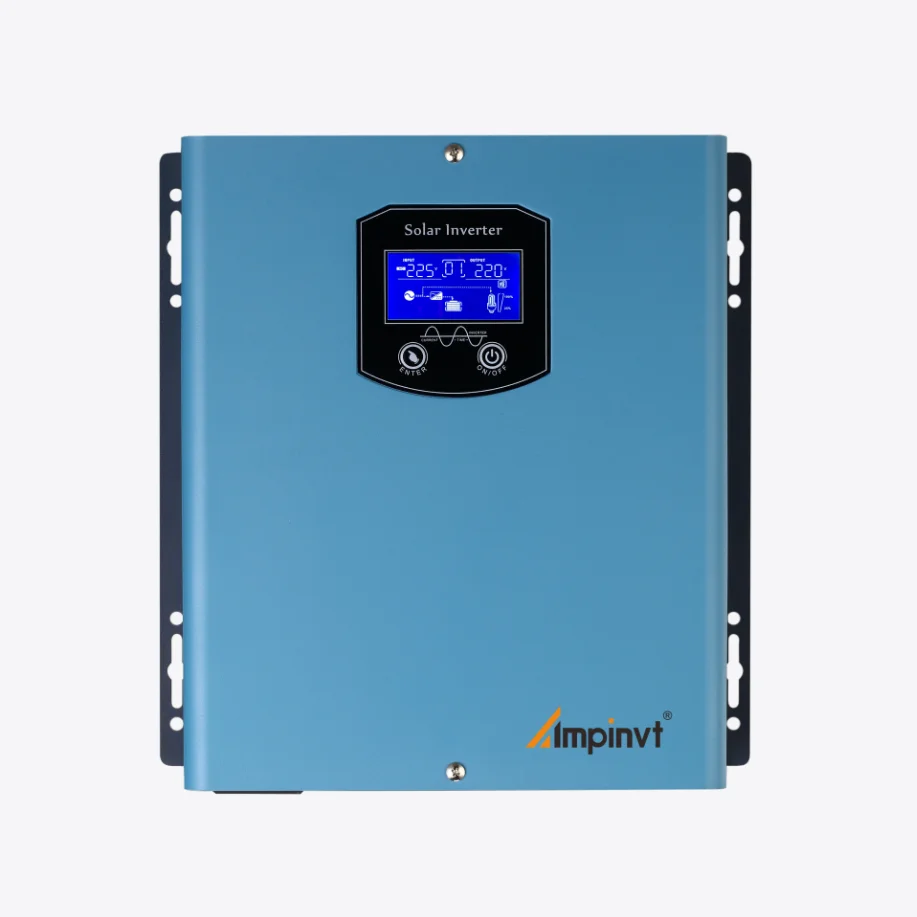

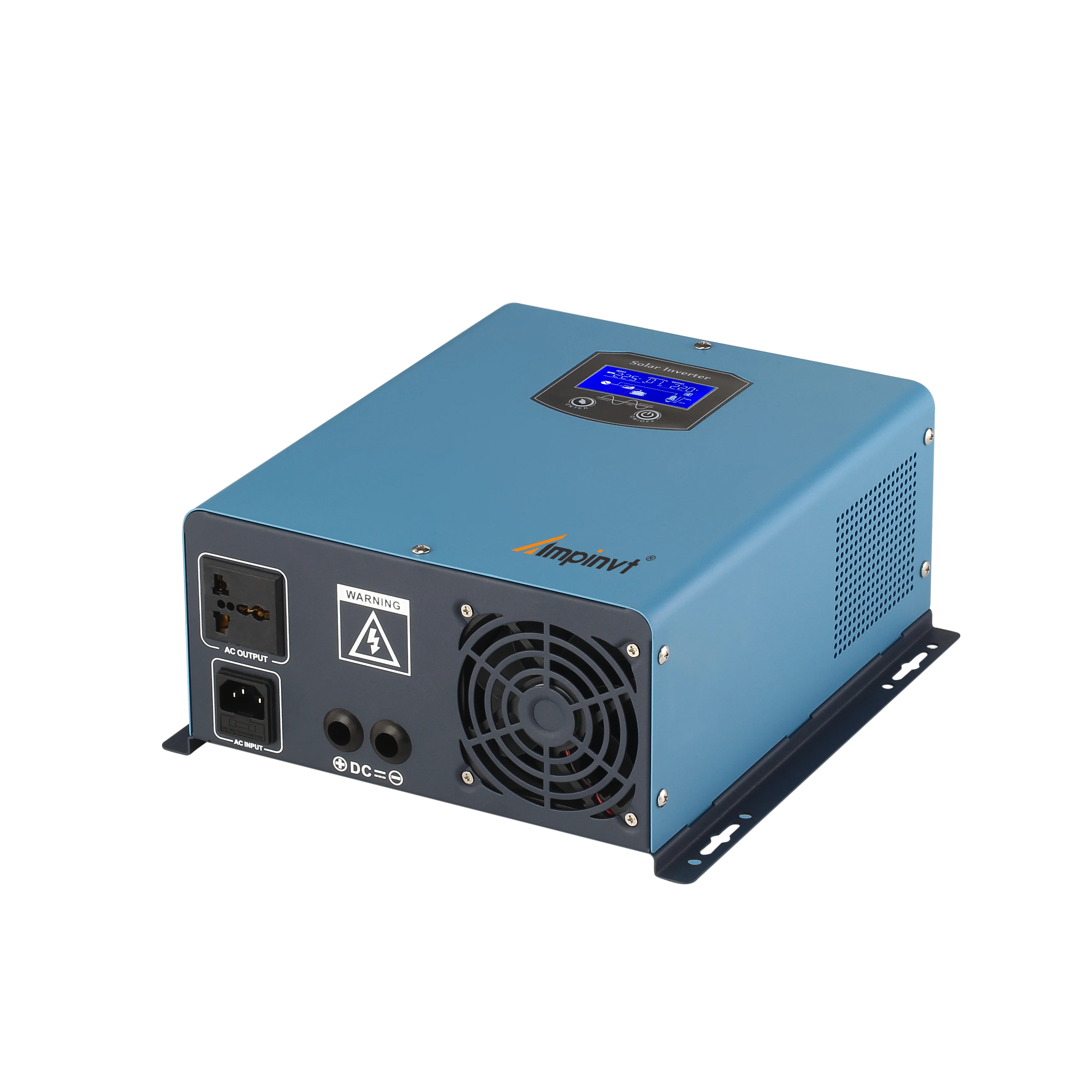

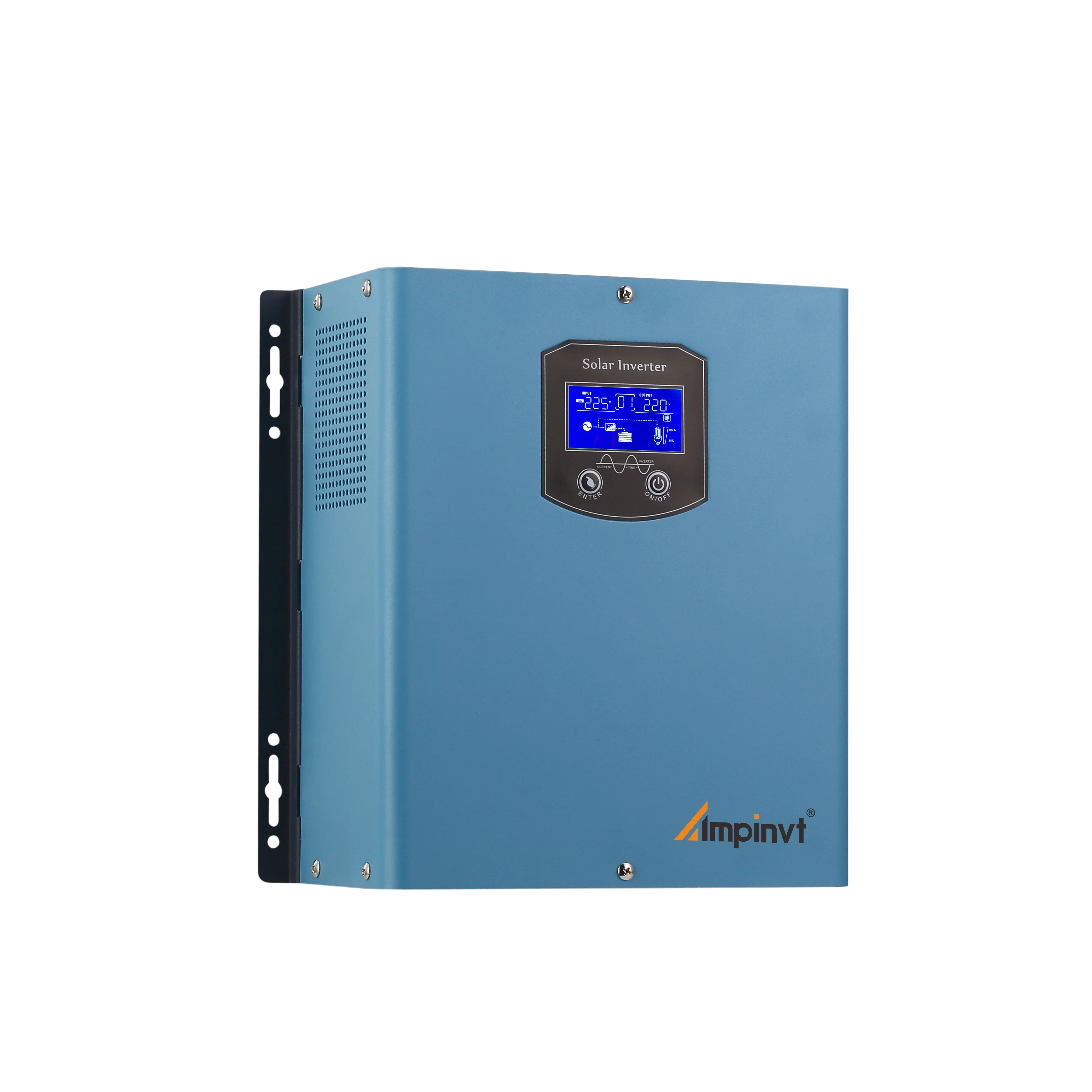

12V 24V UPS electric inverters for house car inverter
- Category: >>>
- Supplier: Foshan Top One Power Technology Co. Ltd.Foshan Ltd.
Share on (1600985273869):
Product Overview
Description
Products Description
Product Paramenters
Model | HI-351 | HI-501 | HI-601 | HI-801 | HI-102 | HI-122 | ||||||
Rated power | 350W | 500W | 600W | 800W | 1000W | 1200W | ||||||
Surge power | 1050W | 1500W | 1800W | 2400W | 3000W | 3600W | ||||||
AC Input & Output | ||||||||||||
Voltage | 220VAC | |||||||||||
Selectable Voltage Range | 165-275VAC (220VAC) | |||||||||||
Frequency Range | 50Hz/60Hz automatic recognition | |||||||||||
AC Voltage Regulation (BATT. Mode) | (DC Batt.mode)220vac±3% | |||||||||||
Transfer Time | ≤8ms | |||||||||||
Wave Form | Pure Sine Wave | |||||||||||
Transformer type | Toroidal | |||||||||||
Transfer efficiency | ≥85% | |||||||||||
Battery | ||||||||||||
Battery Voltage | 12V | 12V/24V | ||||||||||
Type | Gel/SLA/AGM/Water battery | |||||||||||
DC Charge Voltage | 13.8VDC(12V)/27.6VDC(24V) | |||||||||||
Overcharge Protection | Battery voltage ≧16VDC (12V) ≧32VDC (24V), stop charging after 60s alarm | |||||||||||
AC Charger | ||||||||||||
Maximum Ac Charge Current | 15A | |||||||||||
Working mode | ||||||||||||
01 mode | AC mains priority | |||||||||||
02 mode | ECO mode | |||||||||||
03 mode | DC battery priority | |||||||||||
Physical | ||||||||||||
Dimension, D*W*H(MM) | 360*33*215 | |||||||||||
G.W.(KGS) | 8.5 | 8.5 | 9 | 9 | 10 | 10 | ||||||
Environment | ||||||||||||
Humidity | 0~95%（NO CONDESNSATION) | |||||||||||
Operating Temperature | 0~60℃ | |||||||||||
Storage Temperature | 0~60℃ | |||||||||||
*Product Specifications Are Subject To Change Without Further Notice | ||||||||||||
