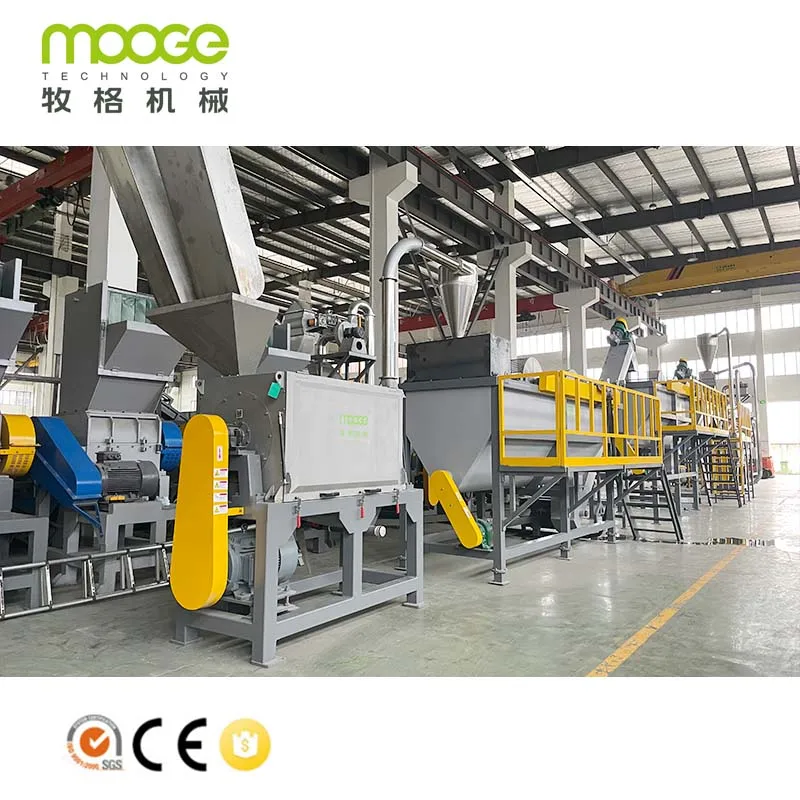

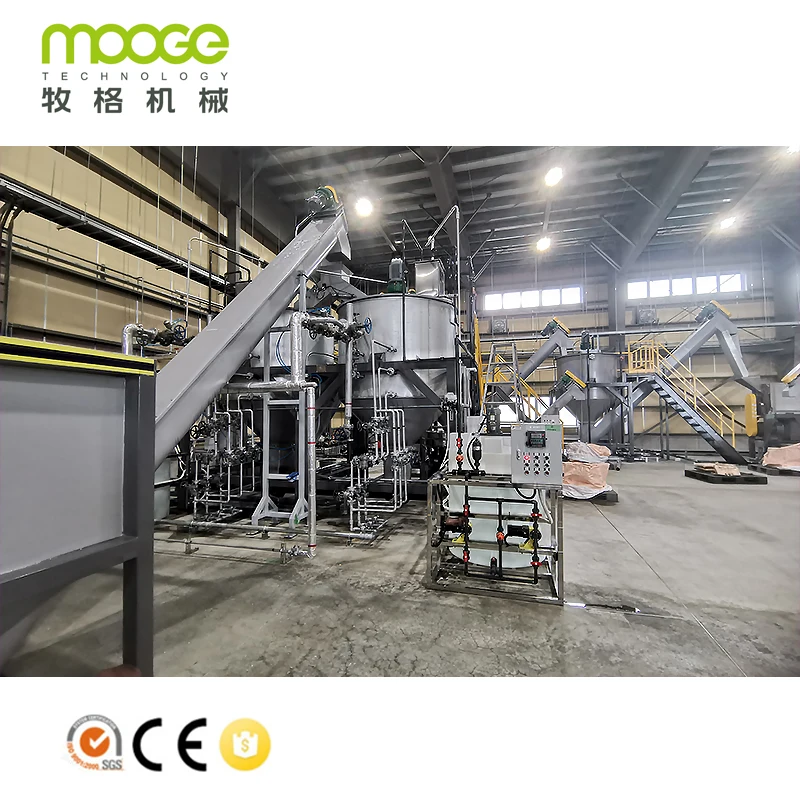

Mini PET Bottle Waste Polystar Plastic Recycling Machine
- Category: >>>
- Supplier: Jiangsu Mooge Machine Co. Ltd.
Share on (1600985306304):
Product Overview
Description
Products Description

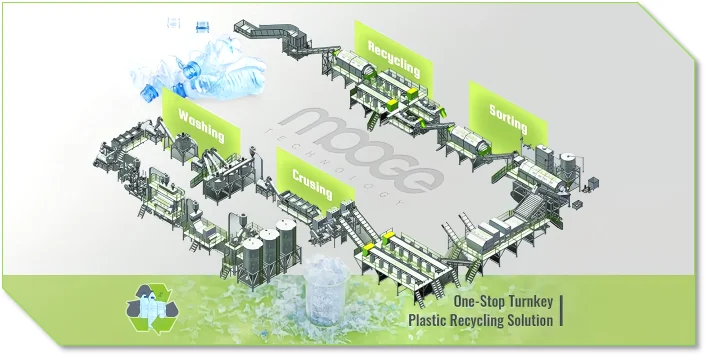

With more than 15 years of technology modification and process experience precipitation, MOOGETECH has a variety of different solutions for recycling PET scraps (PET Bottles, PET Sheets). With advanced modular design, MOOGETECH can freely combine each standard module to provide to customers specialized solutions.
Suitable Products
Product Specification
Model | Capacity | Installed Power | Steam Use | Water Supply | Main power | Area Required |
MT-500 | 500 kg/hr | 190 KW | Optional | 4-5 m3/hr | 4-6 Person | 60*5*5 m |
MT-1000 | 1000 kg/hr | 260 KW | Optional | 6-8 m3/hr | 8-10 Person | 80*8*5 m |
MT-2000 | 2000 kg/hr | 400 KW | Suggest Use | 10-15 m3/hr | 10-12 Person | 80*8*5 m |
MT-3000 | 3000 kg/hr | 600 KW | 80,000 Kcal | 20-30 m3/hr | 12-16 Person | 100*8*10 m |
MT-4000 | 4000 kg/hr | 800 KW | 100,000 Kcal | 30-40 m3/hr | 15-20 Person | 135*10*10 m |
MT-5000 | 5000 kg/hr | 1000 KW | 120,000 Kcal | 40-50 m3/hr | 15-20 Person | 135*10*10 m |
Unit Energy Consumption | ||
Content | Average energy consumption per ton of bottle | |
Electricity | 70-90KW | |
Water | 1-1.5T/hr | |
Compressed air | 0.5-1m3 | |
Steam (optional) | 250-400KG | |
Detergent (optional) | 4-8KG | |
Bottle Flakes Quality Reference | ||
Technical Parameter | Specifications | |
Flakes size | 12-14mm | |
Moisture Content | <1% | |
PVC Content | Less than 100 ppm | |
PH | 7.5 +/- 0.5 | |
Intrinsic Viscosity | > 0.70 | |
Non-PET | Less than 100 ppm | |
Color PET | Less than 150 ppm | |
Bulk density | 250-400 kg/m³ | |
Suitable to be used for | Polyester/ PET strapping/ Polyester Fiber/ PSF/ PET Sheet | |
Product Details

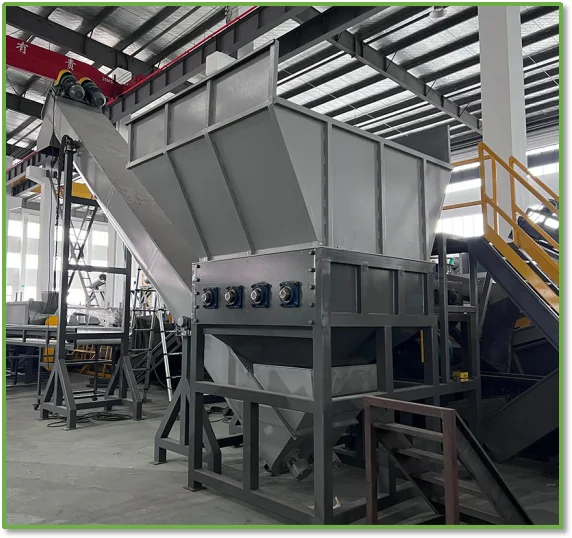

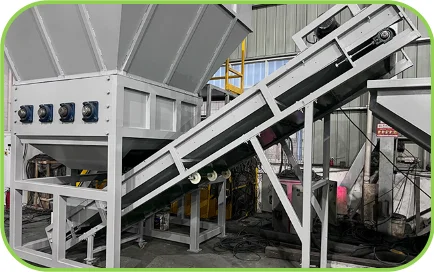

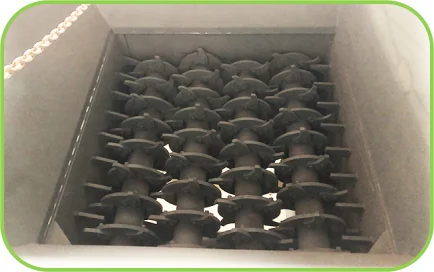

Bale Opener Machine
--With 4 roller cylinder to feeding the bottles equal.
--Machine chamber made by solid strong steel.
--Machine fixed with support over the conveyor.

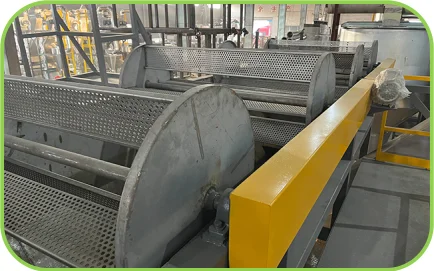

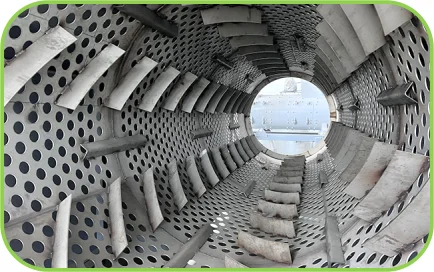

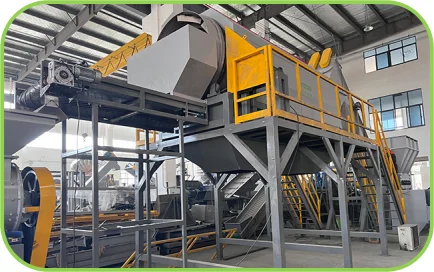

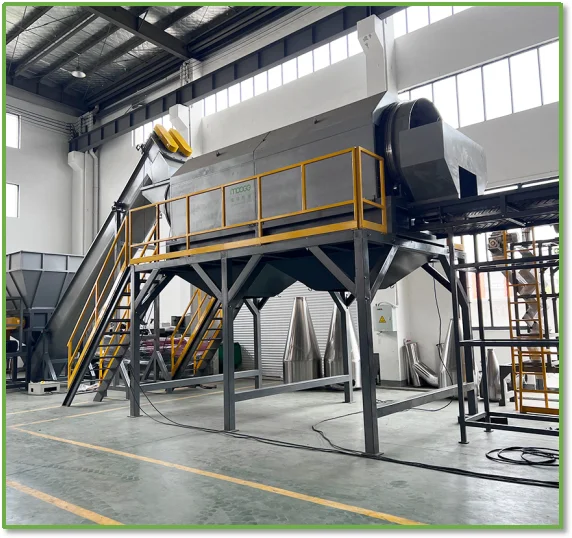

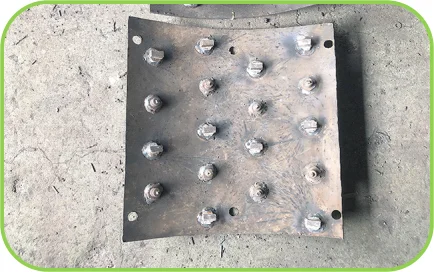

Trommel Machine
--Loose pet bottle and remove caps, sand, soil and feeding the bottles out constantly.
--Motor speed adjust by inverter.
--The track and gear made by one unit steel with forging steel strong and heating treatment.
--With high platform with dirty collecting chute, put the jumbo bags under the Trommel

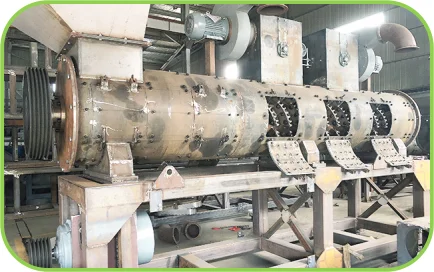

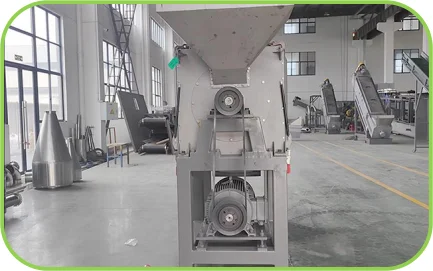

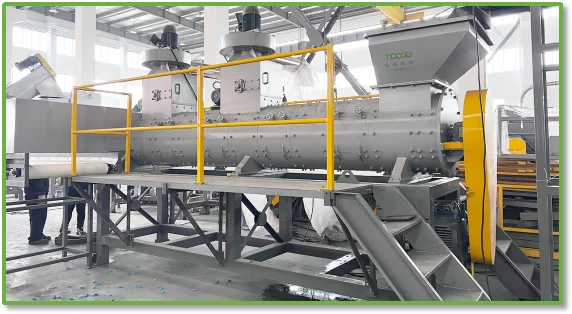

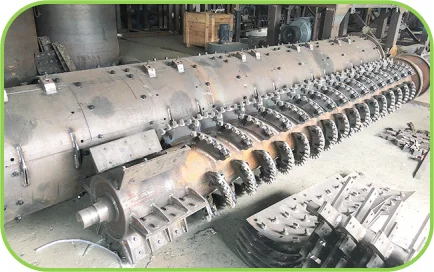

Label Remover Machine
--Dry type.
--Used to remove the labels from the bottle and separate label out from bottles.
--Label remove effective > 98%.
--Blade made by alloyed steel for long time use.
--Blade is fixed by screw on the rotor easy to adjustable and changeable, maintenance.

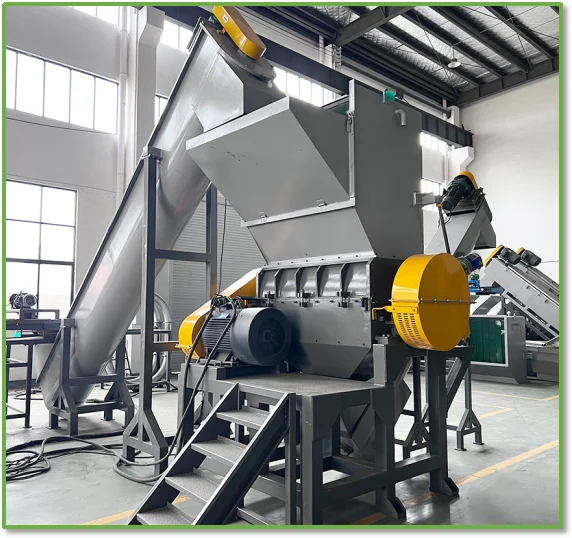

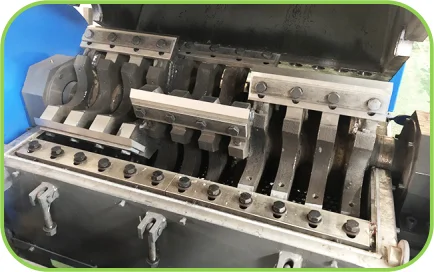

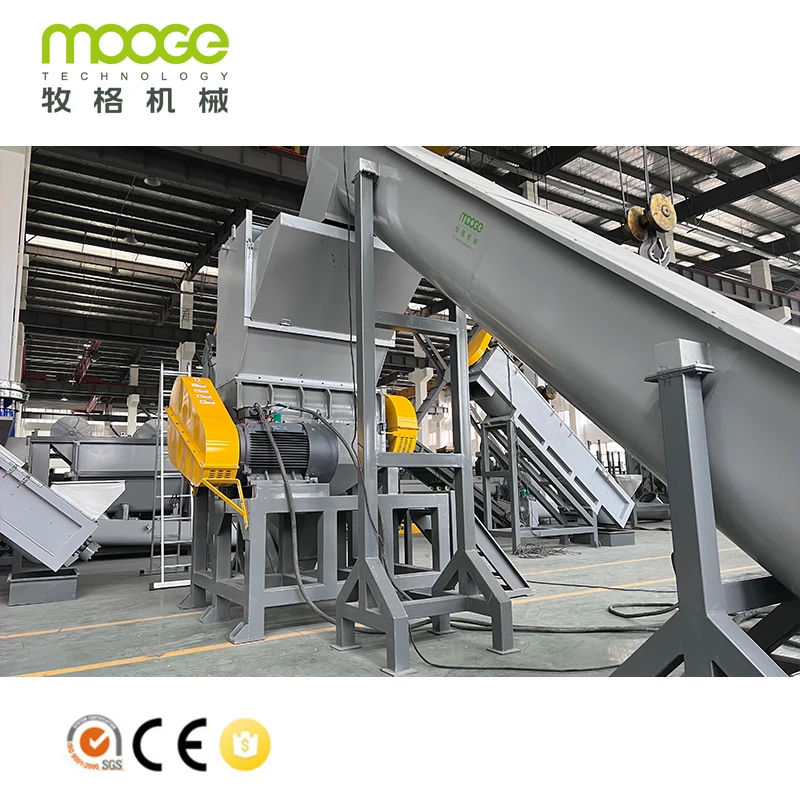

Plastic Crusher Machine
--With water inlet do wet crushing.
--The rotary and fixed blades fixed by screw inside the crusher are more wider and durable.
--Crusher hopper is open by screw motor which save manpower.
--Bearing house is installed outside of the crusher chamber so no dirty goes inside.

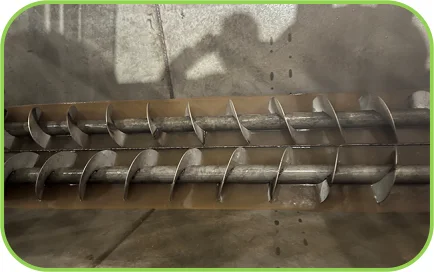

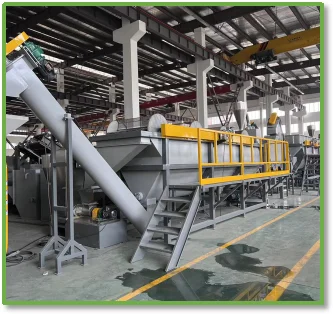

Floating Washing Tank
--With the top rollers automatic take out the caps/rings and other impurities, flakes sinking down and take out by bottom screw.
--With the rollers working will use less water to take out the caps/rings.
--The machine made by SUS 304.

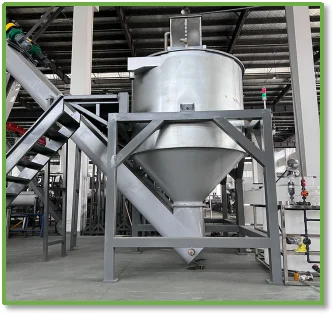

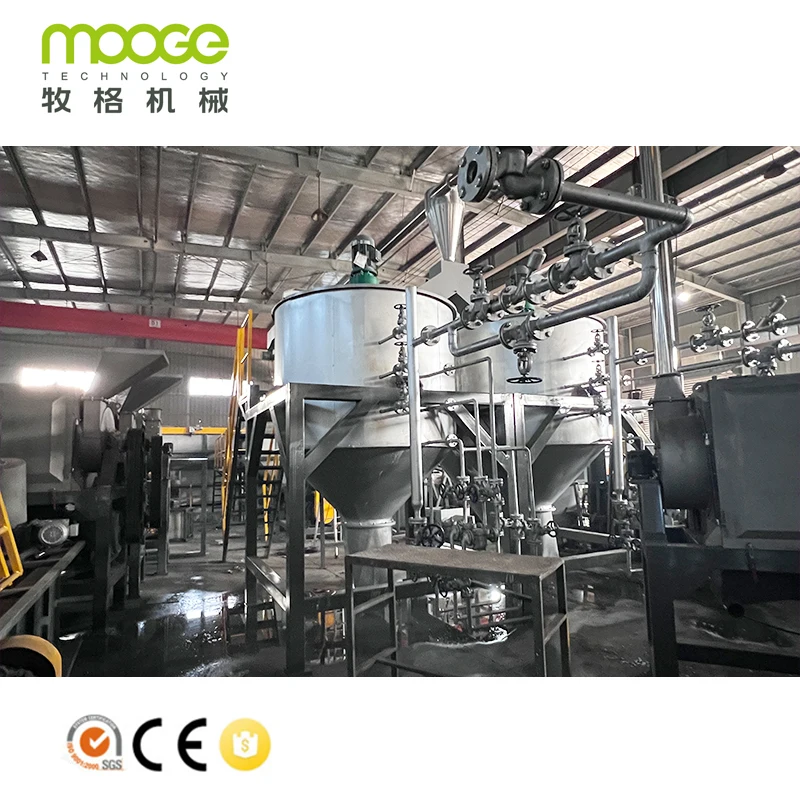

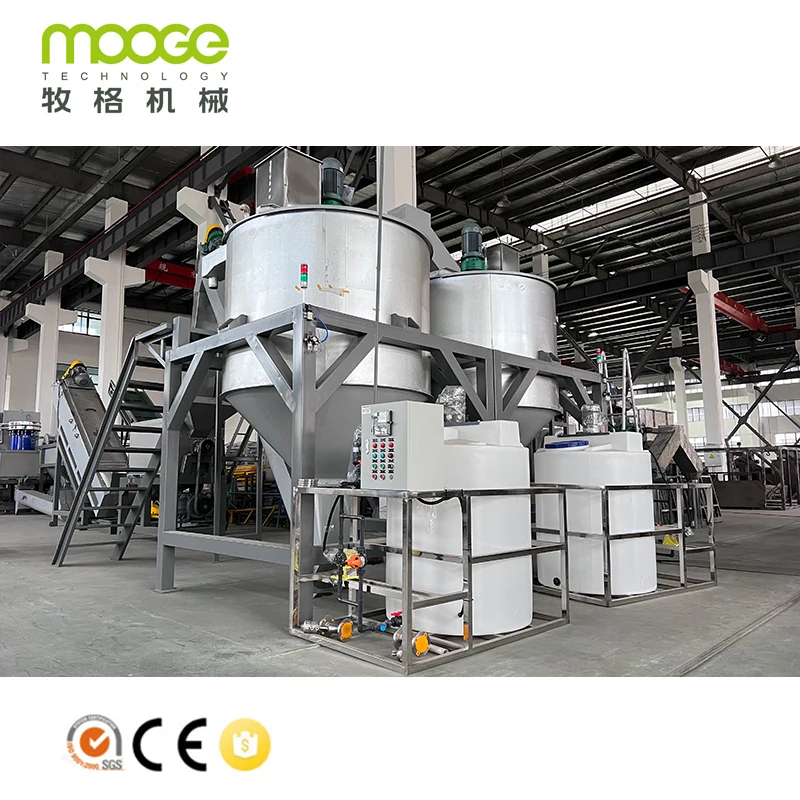

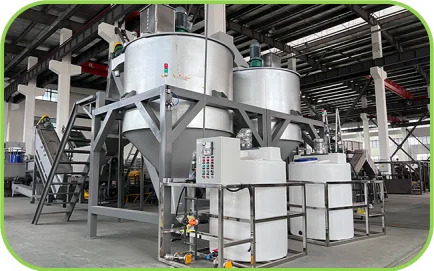

Hot Washing Tank
--With hot water washing to remove oil/glue and other dirt from the flakes.
--Heating method: by Steam or Electricity.
--The tank made with insulation layer to save energy.

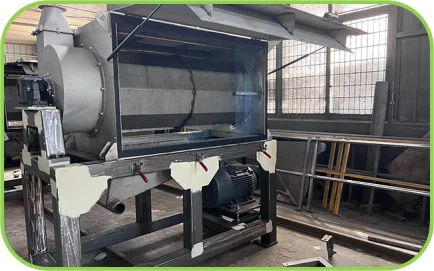

Horizontal Spin Dryer
--Friction washing the material and its running with high speed can remove the dirty, dust, sand out with the dirty water.
--With the roller bearing and fixed outside of rotor for long use life.
--With water spray system to clean the mesh.

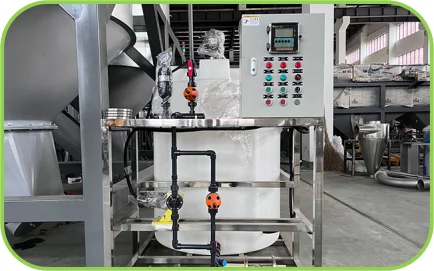

There are optional machines below:

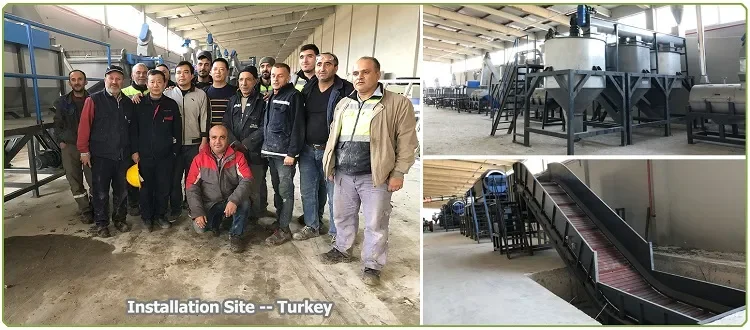

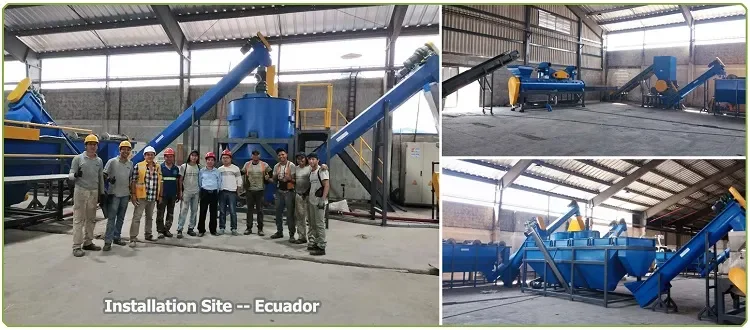

Customer Factory
Company Profile
Exhibition
CHINAPLAS EXHIBITION
We attend the CHINAPLAS every year and take with our machine to test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Sincerely welcome to our factory for visit and discuss technical issues.
