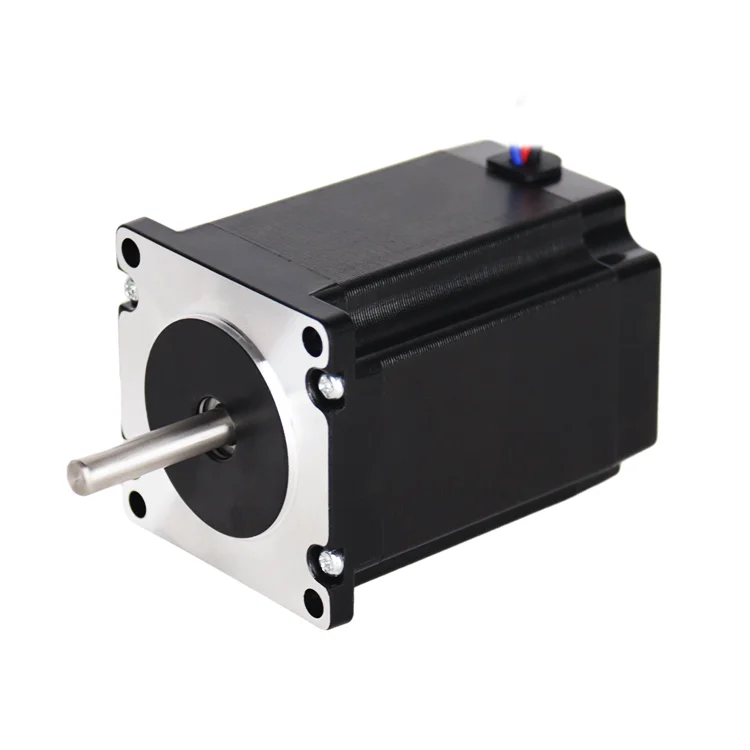

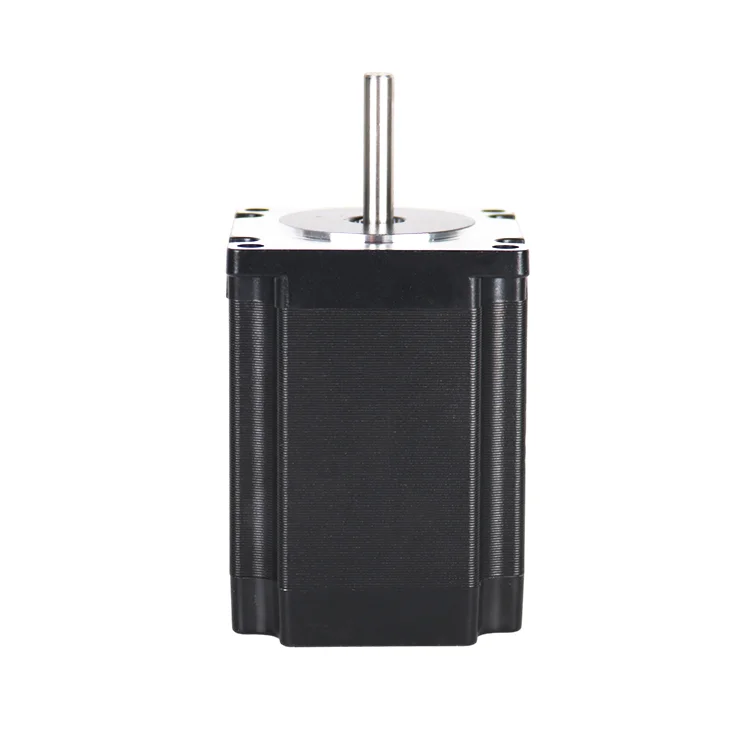

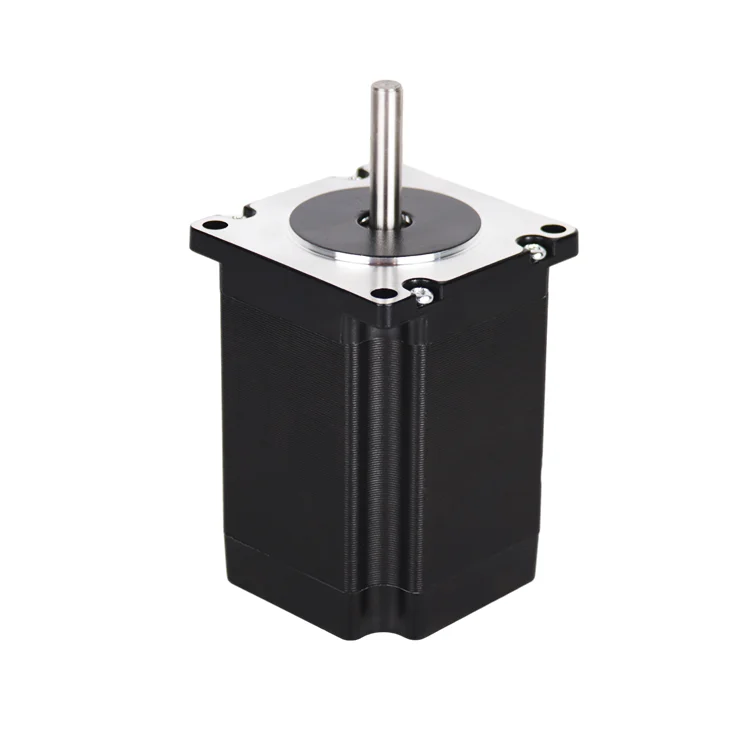

Kaihong High Torque 2 Phase 1.8 Degree Nema 23 DM542 Stepper Motor 1.8 Nm 3.0A 6.35 mm Shaft 57x57x76mm 4 Wires
Kaihong High Torque 2 Phase 1.8 Degree Nema 23 DM542 Stepper Motor 1.8 Nm 3.0A 6.35 mm Shaft 57x57x76mm 4 Wires
Kaihong High Torque 2 Phase 1.8 Degree Nema 23 DM542 Stepper Motor 1.8 Nm 3.0A 6.35 mm Shaft 57x57x76mm 4 Wires
Kaihong High Torque 2 Phase 1.8 Degree Nema 23 DM542 Stepper Motor 1.8 Nm 3.0A 6.35 mm Shaft 57x57x76mm 4 Wires
Kaihong High Torque 2 Phase 1.8 Degree Nema 23 DM542 Stepper Motor 1.8 Nm 3.0A 6.35 mm Shaft 57x57x76mm 4 Wires
Kaihong High Torque 2 Phase 1.8 Degree Nema 23 DM542 Stepper Motor 1.8 Nm 3.0A 6.35 mm Shaft 57x57x76mm 4 Wires
Kaihong High Torque 2 Phase 1.8 Degree Nema 23 DM542 Stepper Motor 1.8 Nm 3.0A 6.35 mm Shaft 57x57x76mm 4 Wires

Kaihong High Torque 2 Phase 1.8 Degree Nema 23 DM542 Stepper Motor 1.8 Nm 3.0A 6.35 mm Shaft 57x57x76mm 4 Wires

Share on (1600985344490):


Price:$8.14 - $9.14

Quantity:


Product Overview

Description



Best selling




Factory Video




Product Paramenters


Nema 23 Stepper Motor
Step angle 1.8 °
Flange side length 57 × 57mm
Step accuracy ± 5%
Ambient temperature - 20 ℃~+50 ℃
Maximum radial force 75N
Maximum axial force 15N


Model
(No.)
Motor length L(mm)
Moment (N.cm)
Current (A)
Resistance (Ω)
Moment of inertia (g.cm2)
Weight (kg)
57BYGH41-204
41
0.6
2.0
1.2
150
0.47
57BYGH45-254
45
0.7
2.5
1.0
190
0.52
57BYGH51-254
51
1.0
2.5
1.2
230
0.59
57BYGH56-304
56
1.2
3.0
0.8
280
0.68
57BYGH64-304
64
1.4
3.0
1.5
380
0.85
57BYGH76-404
76
2.0
4.0
0.7
480
1.05
57BYGH84-404
82
2.3
4.2
1.0
560
1.15
57BYGH100-424
100
2.6
4.2
0.8
680
1.4
57BYGH112-424
112
3.0
4.2
1.4
800
1.5


Motor Internal Details






Company Profile














FAQ


Q1.Are you a trading company or a manufacturer?
A1: Our factory is located in Building C82, Wanyang Zhongchuang City, Zhaoqing, Guangdong.Welcome to visit our factory！
Q2.What's the MOQ?
A2: 1 Pieces.
Q3.Are your delivery dates on time?
A3: Yes of course.We have our own factory so can ensure timely delivery.
Q4.Do you have any certificates?
A4:Yes, we have.All the motors have been approved by CE and Rohs.
Q5.Is this your final price?May i have the discount?
A5:Our price is the factory price, and if your quantity is larger, we will allow the discount for you.
Q6.What's the delivery time?
A6:Except special order.For samples usually 10-14 working days .For batch order .Usually 17-25days. For Stock motors usually 1~2 days.
