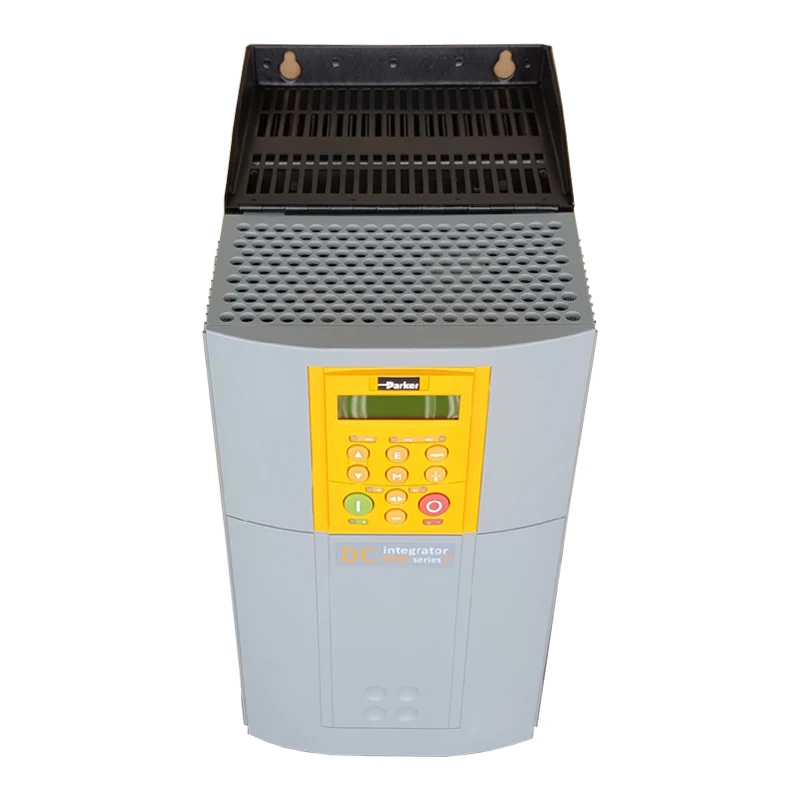

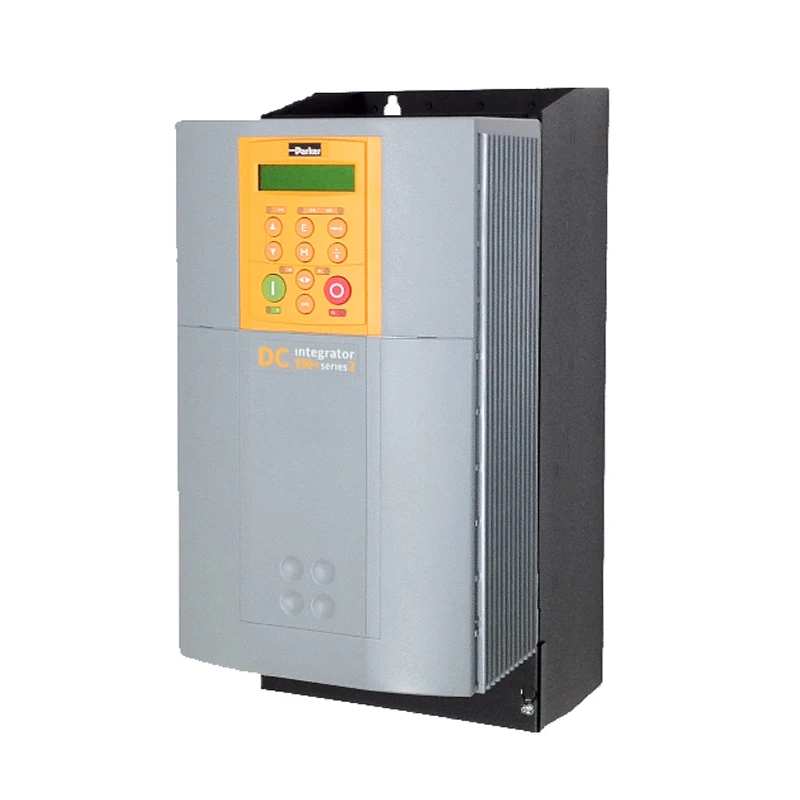

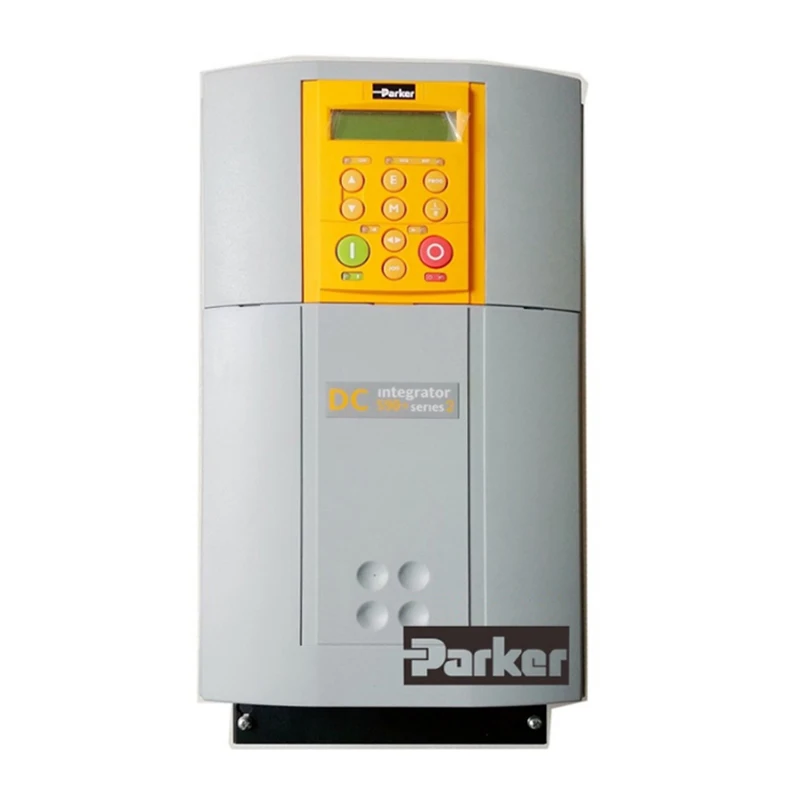

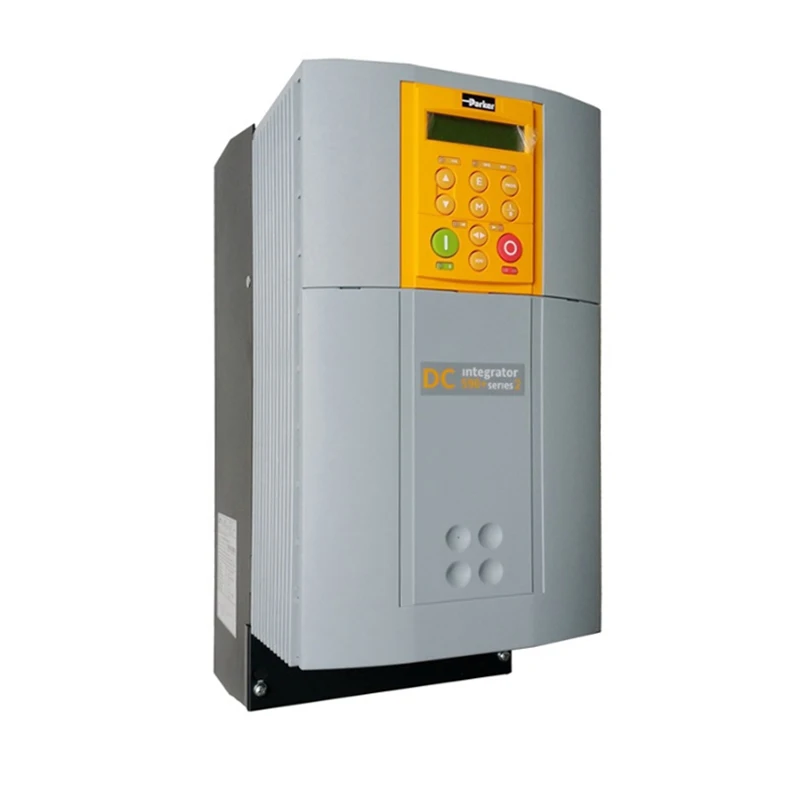

ParkerDC590 series DC digital drive 590P 53240020 PK0 U4A0, with sufficient inventory
- Category: >>>
- Supplier: Anhui Tailaide Automation Technology Co. Ltd.
Share on (1600985401147):
Product Overview
Description
Product Description
Title goes here.
The Integrator series is a single family of both AC drives (690+) and DC drives (590+) that provides the benefits of common
programming, set-up and communication across both technologies. The 590+ Integrator series highly advanced DC drive meets the
demands of the most complex motor control applications. Extensive application software (including winder control as standard)
together with Function Block Programming and configurable I/O creates a total drive system in a single module..
programming, set-up and communication across both technologies. The 590+ Integrator series highly advanced DC drive meets the
demands of the most complex motor control applications. Extensive application software (including winder control as standard)
together with Function Block Programming and configurable I/O creates a total drive system in a single module..
Specification

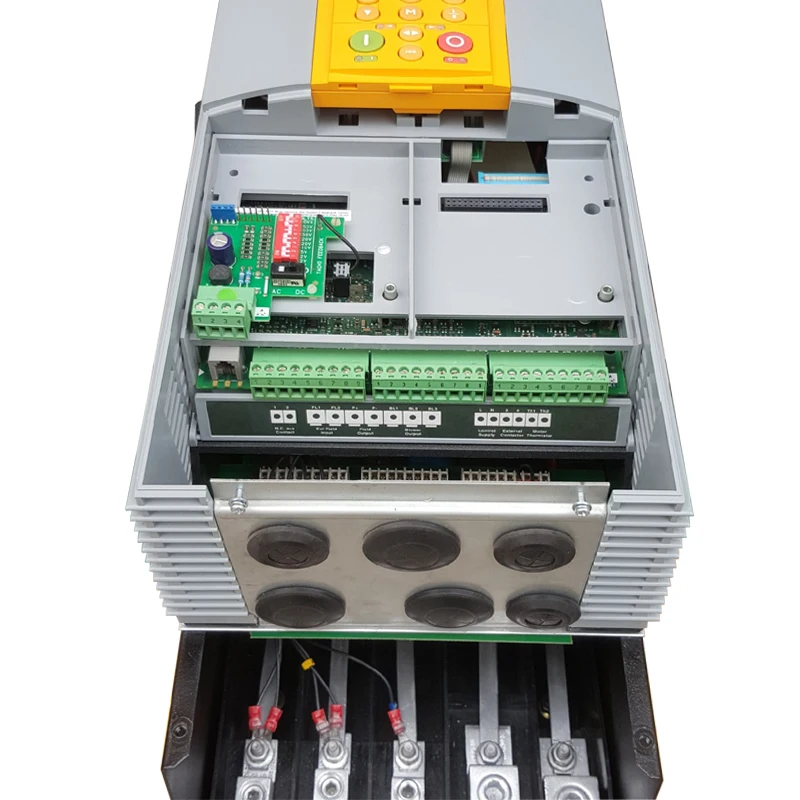

1. Main drive assembly | 9. Power terminal shield | ||||||
2. Child cover | 10. Power terminals | ||||||
3. Terminal cover retaining screw | 11. Control terminals | ||||||
4. Blank cover | 12. Earthing points | ||||||
5.6901 keypad (optional) | 13. Keypad port | ||||||
6. COMMS technology box (optional) | 14. RS232 programming port | ||||||
7. Speed feedback technology card (optional) | 15.Auxiliary power, external contactor and isolated thermistor terminals | ||||||
8. Gland plate | |||||||
parameter
TECHNICAL SPECIFICATIONS
Input Power 50-60Hz ±5%
Three Phase 110-220Vac ±10%
Three Phase 220-500Vac ±10%
Three Phase 500-690Vac ±10%
Ambient Temperature
0-45°C (Frame 15-165A)
0-35°C (Frame 180-800A)
0-40°C (Frame 900-2700A)
Overload for 15 to 450A Frame
150% for 60 sec.
115% for 10 sec.
Overload fro 720A and Higher
Refer to manual for options
Input Power 50-60Hz ±5%
Three Phase 110-220Vac ±10%
Three Phase 220-500Vac ±10%
Three Phase 500-690Vac ±10%
Ambient Temperature
0-45°C (Frame 15-165A)
0-35°C (Frame 180-800A)
0-40°C (Frame 900-2700A)
Overload for 15 to 450A Frame
150% for 60 sec.
115% for 10 sec.
Overload fro 720A and Higher
Refer to manual for options
TECHNICAL CHARACTERISTICS
590Plus 4 quadrant regenerative
Dual (2) Three Phase SCR bridgesi
591Plus non-regenerative 2 quadrant
Single (1) SCR bridge
Variable Field control with SCR's
Available frames by armature current rating
15, 35, 40, 70, 110, 165, 180,
270, 380, 500, 725, 830, 1200,
1580, 1700, 2200 and 2700 Ampere.
(DRV Version available only 15 to 165A frame)
Dual (2) Three Phase SCR bridgesi
591Plus non-regenerative 2 quadrant
Single (1) SCR bridge
Variable Field control with SCR's
Available frames by armature current rating
15, 35, 40, 70, 110, 165, 180,
270, 380, 500, 725, 830, 1200,
1580, 1700, 2200 and 2700 Ampere.
(DRV Version available only 15 to 165A frame)
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Anhui TLDE Automation TechnologyCo. , Ltd. is an automation manufacturing technology enterprise specializing in the development of motor drive control technology and related products. With more than 10 years of industry experience, Main busines: Self-produced and self-marketed TLDE DC900 series products, Products sold on commission ： oulu， Parker, Siemens and other brand products, the company has a number of invention patents, its leading products include DC/900 Chinese and British DC drive, AC980 high-end inverter, high-power expansion machine, DC transmission expansion cabinet, TL600 vector inverter, throughout Asia, Africa, Europe and other countries, Widely used in metallurgy, cable, paper, rubber, mining and other fields. It can meet different working conditions. The products are involved in automation control application, electromechanical transmission control, motor energy saving, industrial energy saving and other fields. The company has carried out industry-university-research cooperation with a number of universities, carried out a number of scientific research project exchanges, carried out in-depth cooperation in core technologies and other aspects of the enterprise, established long-term cooperative relations, and continuously deepened technological innovation capability. Through independent innovation, integrated innovation, introduction, digestion and absorption to achieve product technology upgrade. At present, the company's R & D technical personnel account for more than 30%, among which engineers and people with master's degree or above account for more than 50%. The company has an independent research and development center, covering an area of 300 square meters. Since its establishment, the company has been adhering to the "scientific and technological innovation, reputation based" for the purpose, adhere to the "quality first, pragmatic work, integrity management" concept, carry forward the continuous improvement, the pursuit of excellence of the professional spirit, down-to-earth, strict nor
