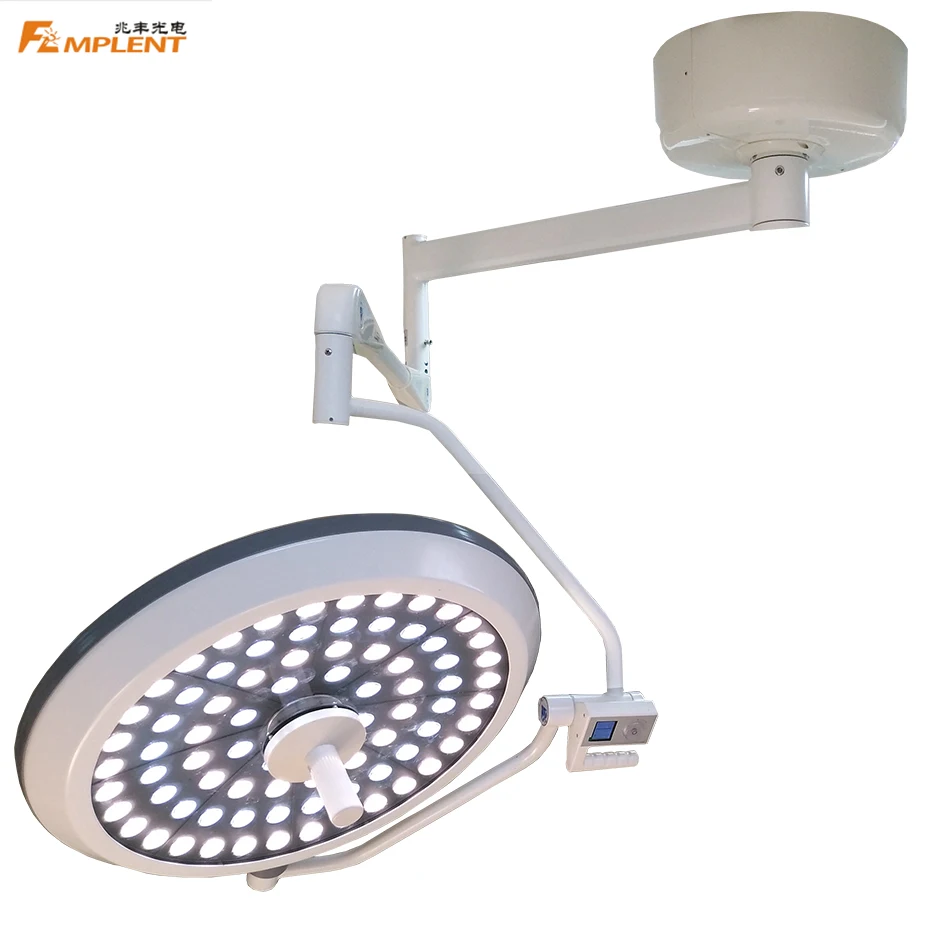

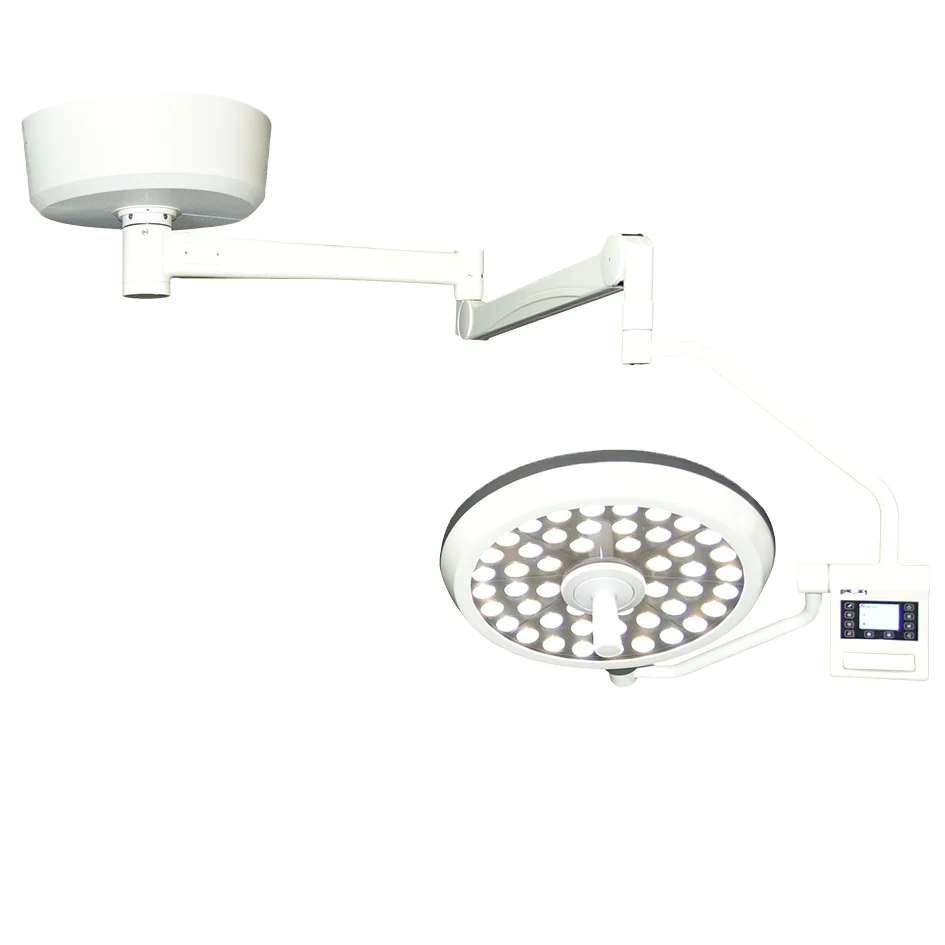

MEDICAL Beauty design Shadowless LED ceiling mounted hospital operating light theater surgical OT lamp

Product Overview

Description

Mplent ZW-500D best selling led operation theatre surgical lights

ZW series distributed light source LED operation shadowless lamp is a new product produced strictly according the standard , and . ZW series LED operating shadowless lamp is suitable for all kinds of surgical lighting, its full closed streamlined lamp body is with self balancing mechanism, which meets the requirements of the operating room disinfection and the high standard requirements of laminar flow. It adopts unique light-gathering technology, with deep focus depth; Microcomputer digital control and adjustable brightness and light spot, its also with the memory function and wide voltage working characteristics; high light efficiency and without any dazzle, that fully satisfy the requirementfor large comprehensive surgical operation and aesthetic surgery.

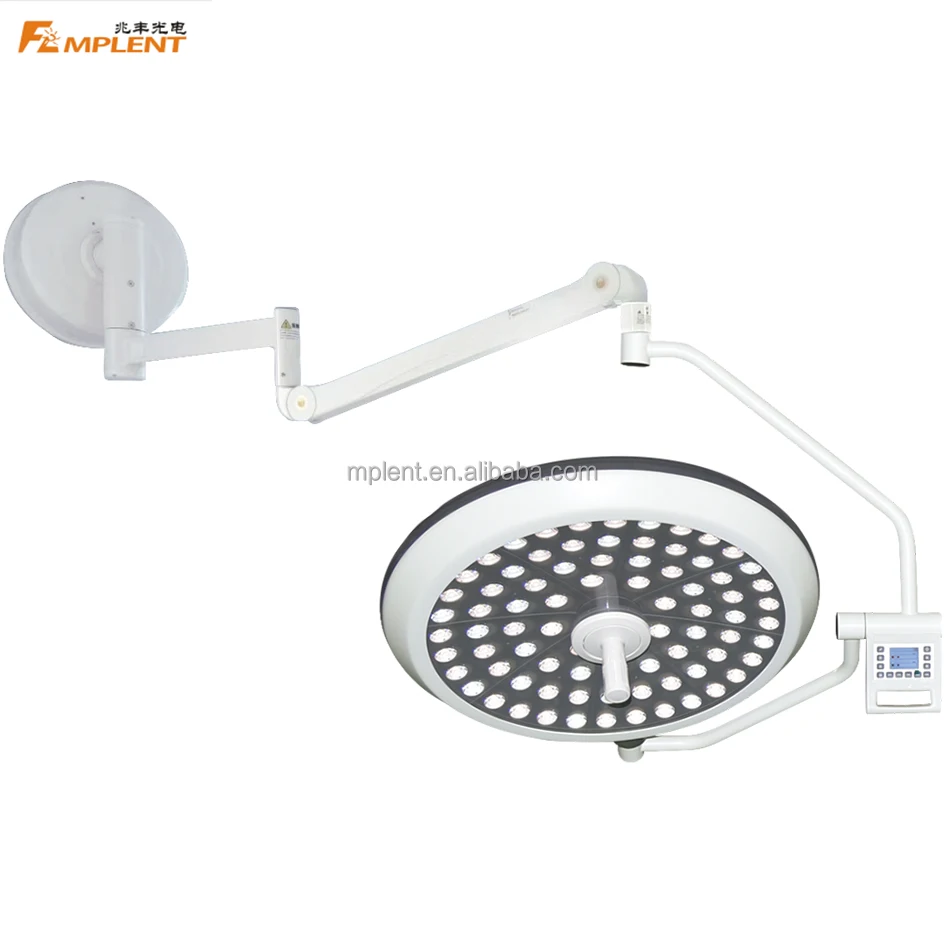

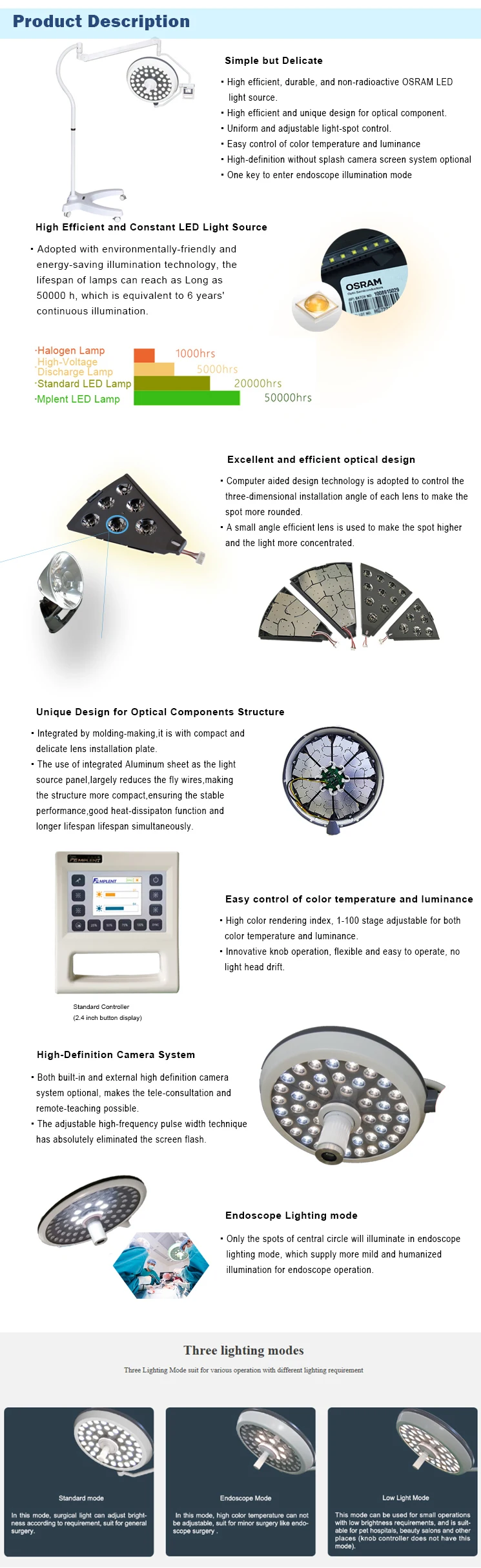

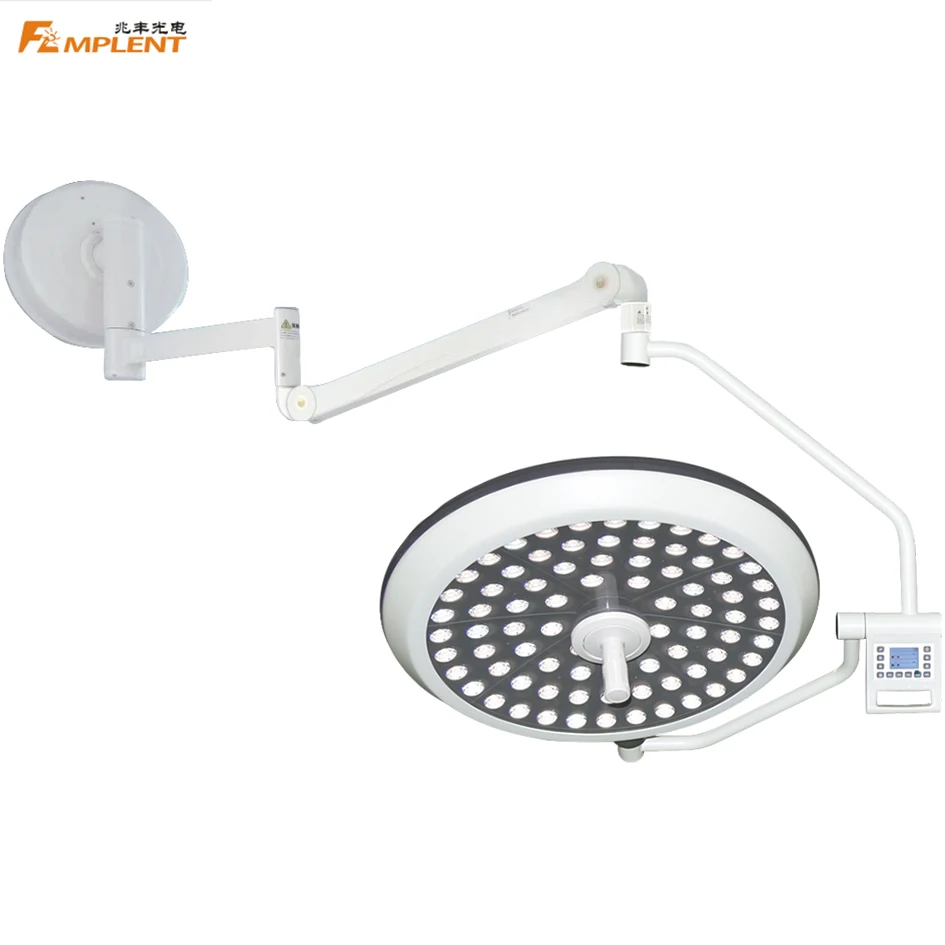

 Feature and Advantages of Mplent ZW-700D best selling led operation theatre surgical lights

• High efficient, durable, and non-radioactive LED light source.


• High efficient and unique design for optical component.


• Uniform and adjustable light-spot control.


• Easy control of color temperature and luminance


• High-definition without splash camera screen system optional


• One key to enter endoscope illumination mode







Specification

Distributed Light Source Shadowless Operation Room Lighting Souce
Technical Parameter	ZW-700D	ZW- 500D	ZW- 500D (L)
Supply Votage	110-240V	110-240V	110-240V
Power	60W/70W	60W/70W	70W
Light Spot Diameter (mm)	120-250mm	120-250mm	120-250mm
Luminance	40000-160000Lx	40000-120000Lx	40000-160000Lx
CRI Ra (%)	≥95%	≥95%	≥95%
Diameter of The Lamp Head	700mm	500mm	500mm
Color Temperature	4000K-5000K	4000K-5000K	4000K-5000K
LED Life	50, 000 HR	50, 000 HR	50, 000 HR
LED Source	Imported brand LED	Imported brand LED	Imported brand LED
Frequency	50-60HZ	50-60HZ	50-60HZ
Ilumination Range	≥800mm	≥1000mm	≥1000mm
Standard Installation Height	2700mm- 3200mm	2700mm- 3200mm	2700mm- 3200mm
Brightness Adjustable Range	1%-100% continuously	1%-100% continuously	1%-100% continuously
Standards and Compliance	IEC 328 YY0627-2008 GB9706.1-2007 YY0505-2012	IEC 328 YY0627-2008 GB9706.1-2007 YY0505-2012	IEC 328 YY0627-2008 GB9706.1-2007 YY0505-2012
