Good price Of Hopper brooms with bucket Skid loader attachments Skid Steer loader attachments high quality
- Category: >>>
- Supplier: Xuzhou Hcn Machinery Technology Co. ltd.
Share on (1600985535243):
Product Overview
Description
Product Overview

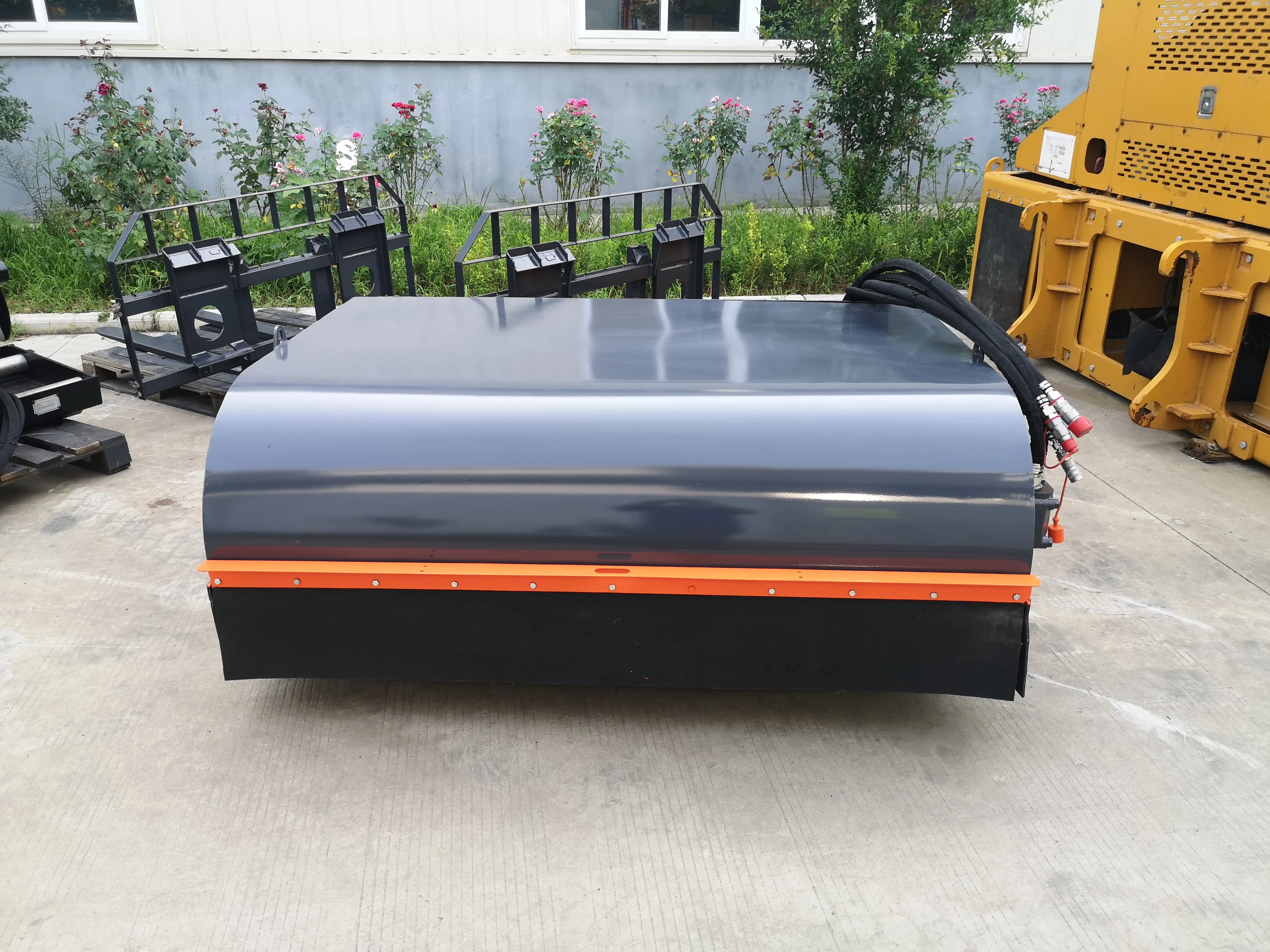

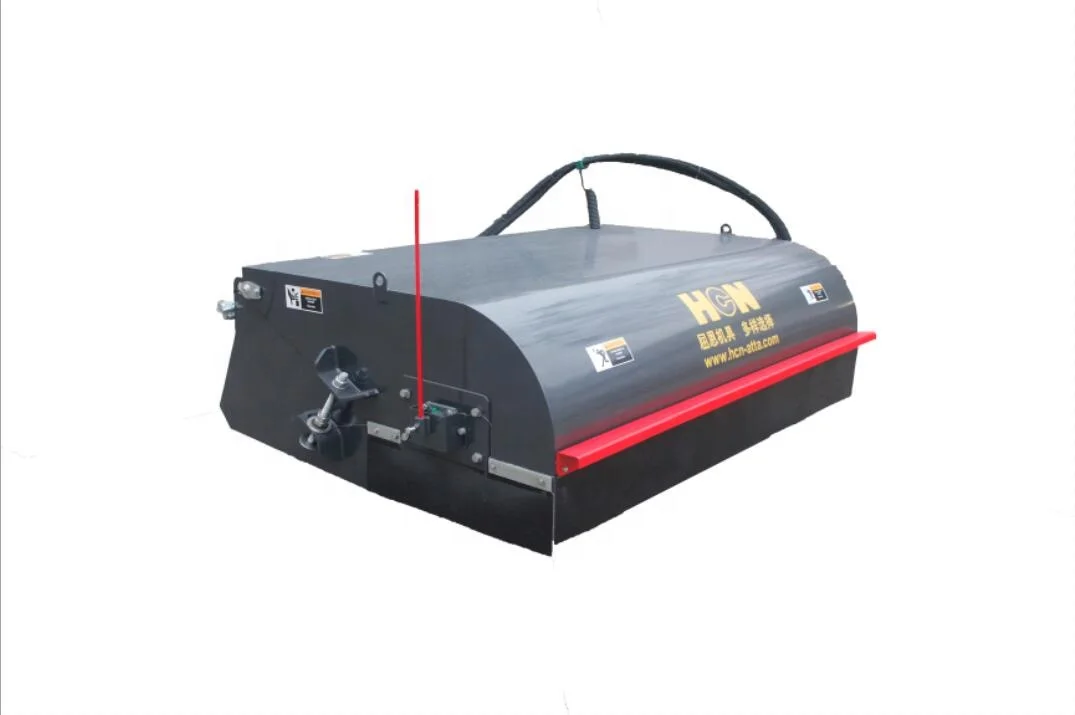

0202 Pick up sweeper

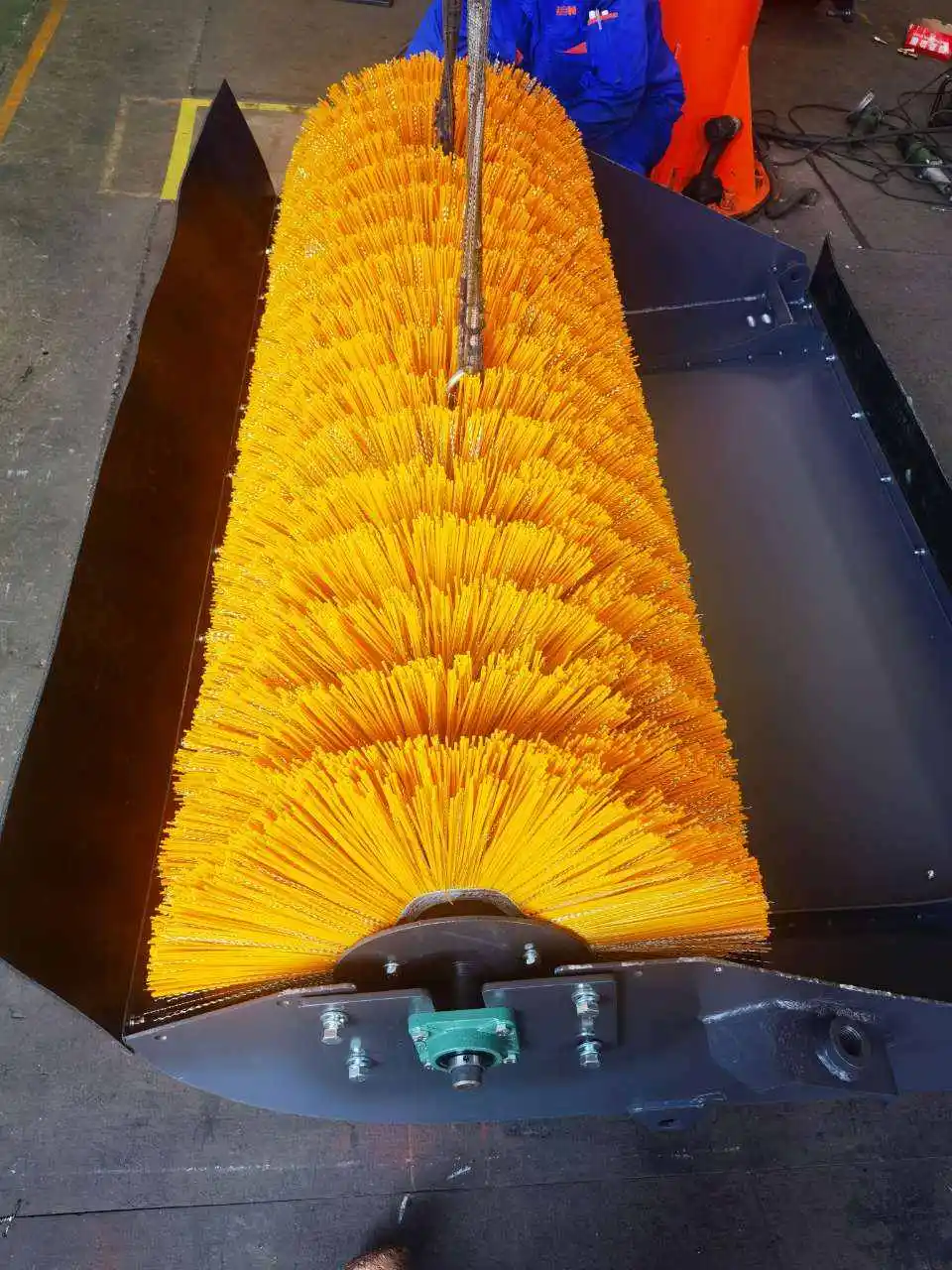

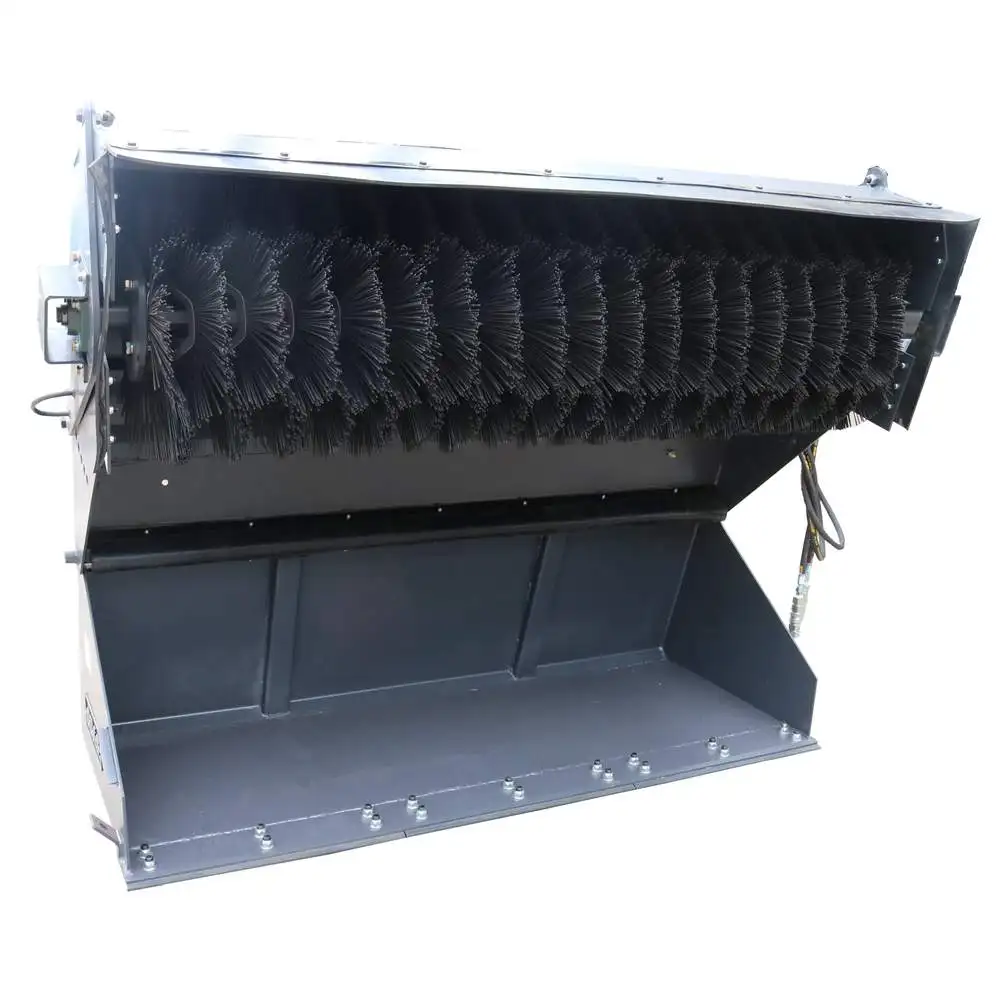

The HCN’ skid steer pick-up broom sweeper is a practical attachment for sweeping, collecting, and dumping dirt and other job sitedebris. Equipped with 26’’ diameter poly/steel wire mix bristles and kept with sufficient room for the bristles to collect dirtdebris toward the attached bucket, this sweeper is designed to work efficiently and is long-lasting. Other features includethe bolt-on replaceable cut edge, protective rubber skirting, durable hydraulic motor, height-adjustable metal shroud, and more!
FEATURES AT A GLANCE
Specifications:
* Working width: 72"
* Number of wafer: 41
* Wafer diameter: 26"
* Core diameter: 8”
* Bucket capacity: 0.6 cubic yards
* Hydraulic flow: 10-25 GPM
* Skid steer loader power recommended: 45-75 HP
* Working width: 72"
* Number of wafer: 41
* Wafer diameter: 26"
* Core diameter: 8”
* Bucket capacity: 0.6 cubic yards
* Hydraulic flow: 10-25 GPM
* Skid steer loader power recommended: 45-75 HP

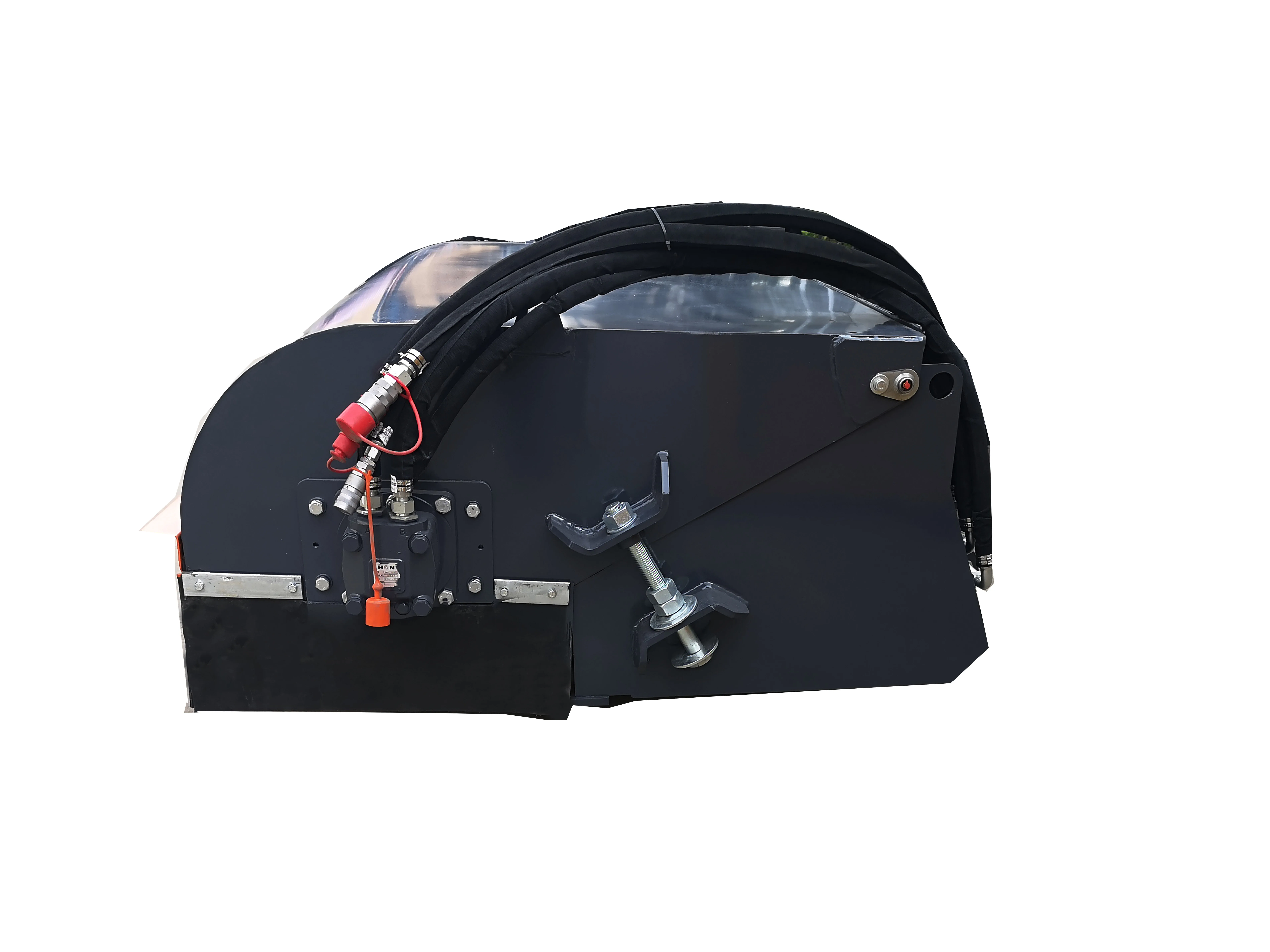

Right elevation
Left elevation

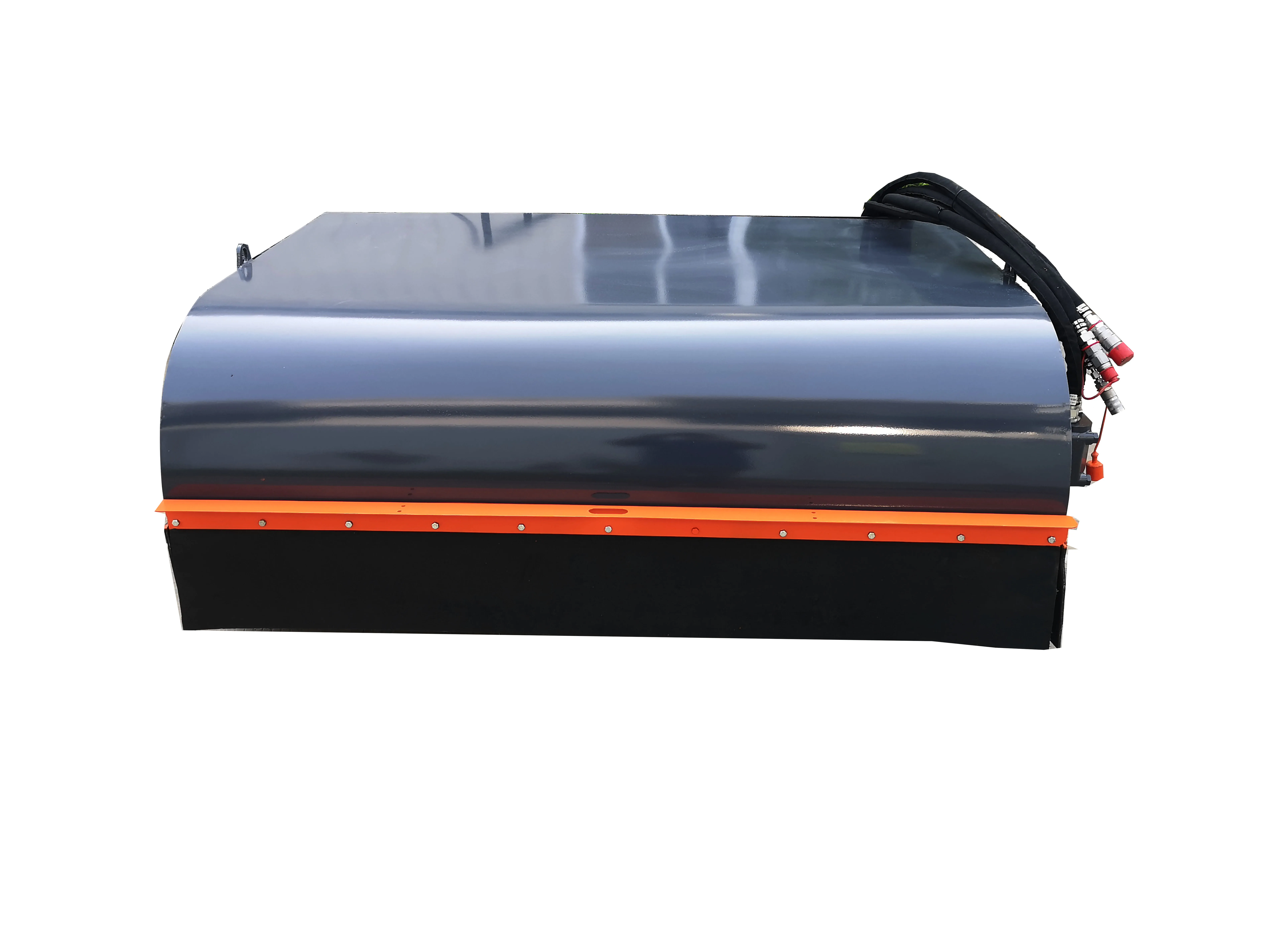

Front elevation
PRODUCT SPECIFICATIONS
Model | Mini020245 | 020260Ⅰ | 020272Ⅰ | 020284Ⅰ |
Over length (mm) | 1220 | 1450 | 1450 | 1450 |
Over width (mm) | 865 | 1817 | 2117 | 2466 |
Over height (mm) | 405 | 926 | 926 | 926 |
Height product (without support spring) (mm) | 405 | 680 | 680 | 680 |
Over weight（kg） | 180 | 456 | 480 | 540 |
Bucket capacity (m3) | 0.1 | 0.39 | 0.46 | 0.56 |
Working width (mm) | 990 | 1530 | 1830 | 2130 |
Brush Dia. (mm) | φ400 | φ660 | φ660 | φ660 |
Allow maximum pressure (Mpa) | 20 | 21 | 21 | 21 |
Flow（L/min） | 30-40 | 60-80 | 60-80 | 80-90 |
