900 1.2G 1.5G 2.4G 5.2G 5.8G 11 17dbi Spiral Antenna For Anti Drone
- Category: >>>
- Supplier: Shenzhen Rongxin Communication Co. Ltd
Share on (1600985607173):
Product Overview
Description
Product Description

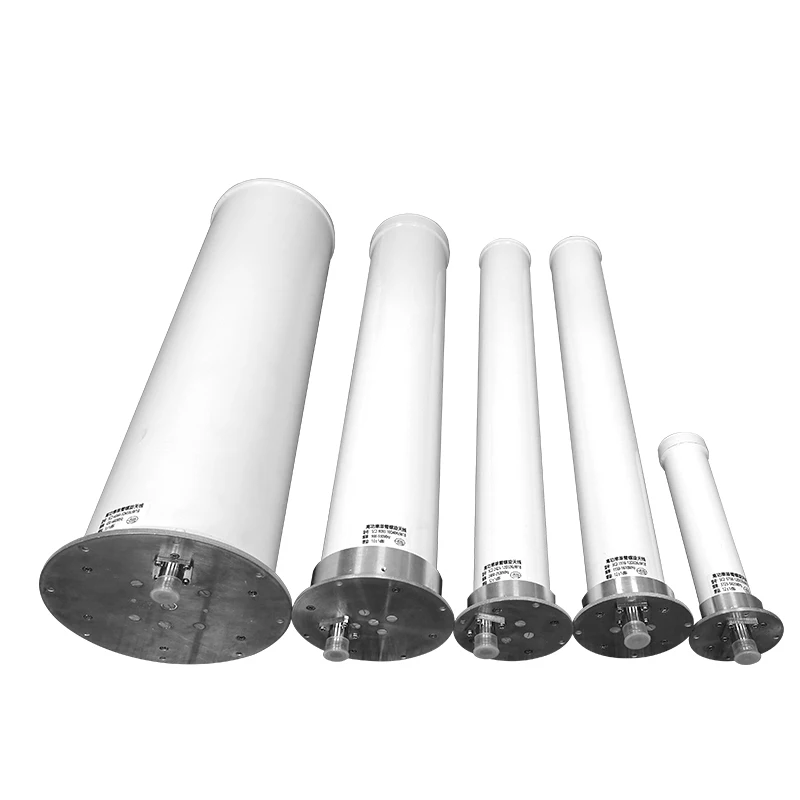

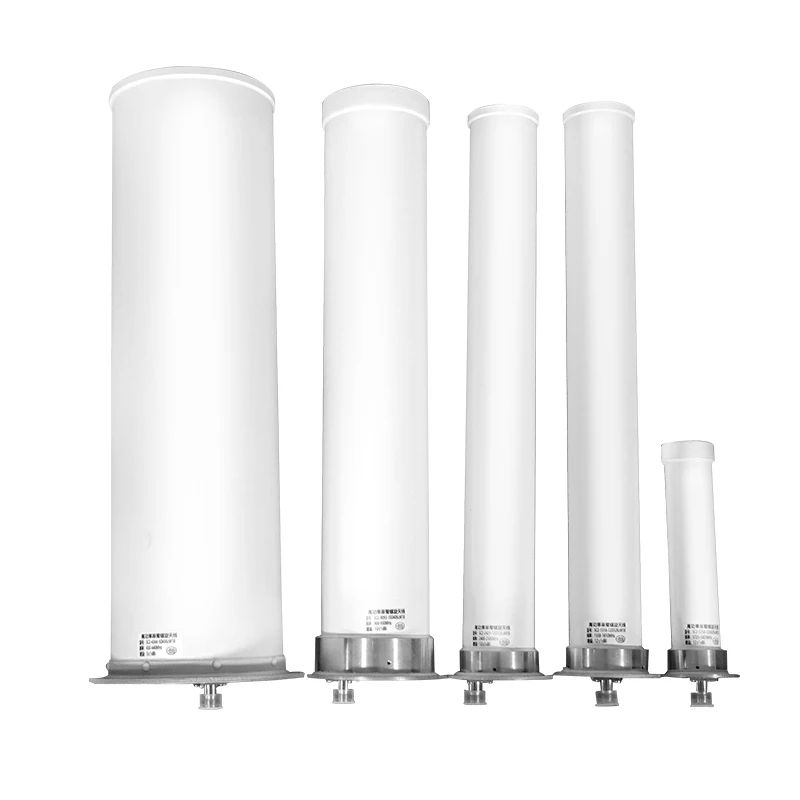

900 1.2G 1.5G 2.4G 5.2G 5.8G 11-17dbi Spiral Antenna For Anti Drone
Specification
█电气参数Electrical Specifications | ||
频率范围FrequencyRange | 1560-1620MHz | |
增益Gain(dBi) | 14±1dBi | |
驻波比VSWR | ≤1.8 | |
极化方式Polarization | 右旋Right-handed | |
水平波瓣宽度Horizontal Beamwidth(0º) | ≥45º ±5° | |
垂直波瓣宽度Vertical Beamwidth(0º) | ≥45º ±5° | |
前后辐射比Front-to-back ratio(dB) | ≥12 | |
输入阻抗Input Impedance（Ω） | 50Ω | |
最大功率Maximum input power(W) | 100W | |
接头类型 Inpur connector type | N-K | |
防雷保护Lightning Protection | 直流接地DC Ground | |
█机械参数Mechanical Specifications | ||
天线尺寸Dimensionsmm(Height/Width/Depth) | Ø75*500mm | |
包装尺寸Packing size(mm) | 160*160*575mm | |
天线重量Antenna weight(kg) | 1.3Kg | |
极限风速Rated Wind Velocity（m/s) | 60m/s | |
工作湿度Operational Humidity(％) | 10- 95 | |
天线罩颜色Radome Color | 白色White | |
天线罩材料 Radome material | UPVC | |
工作温度Operating temperature(ºC) | -40～55 º | |
安装方式Installution Method | 机台安装 | |
机械可调倾角Mechanical tilt(º) | / | |
