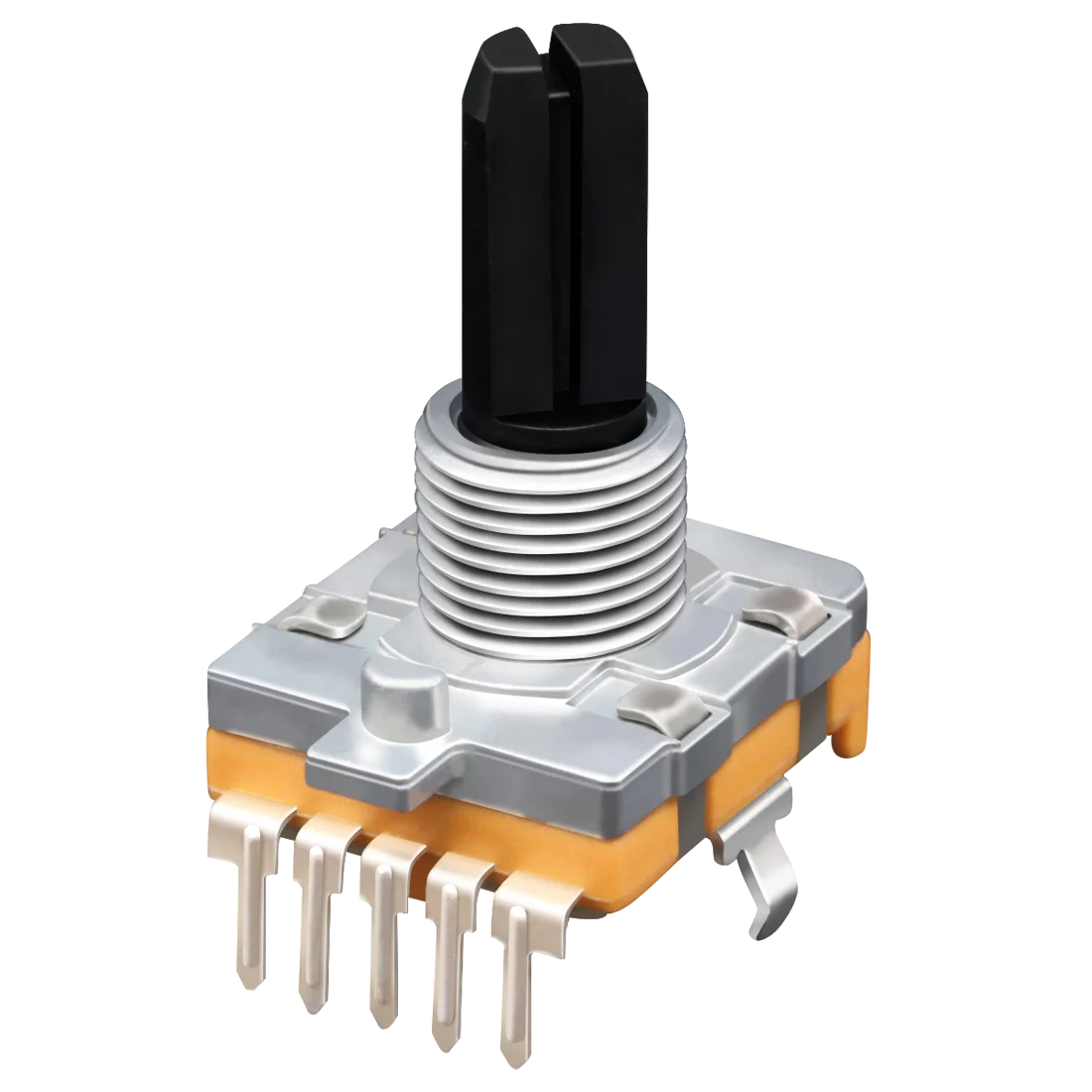

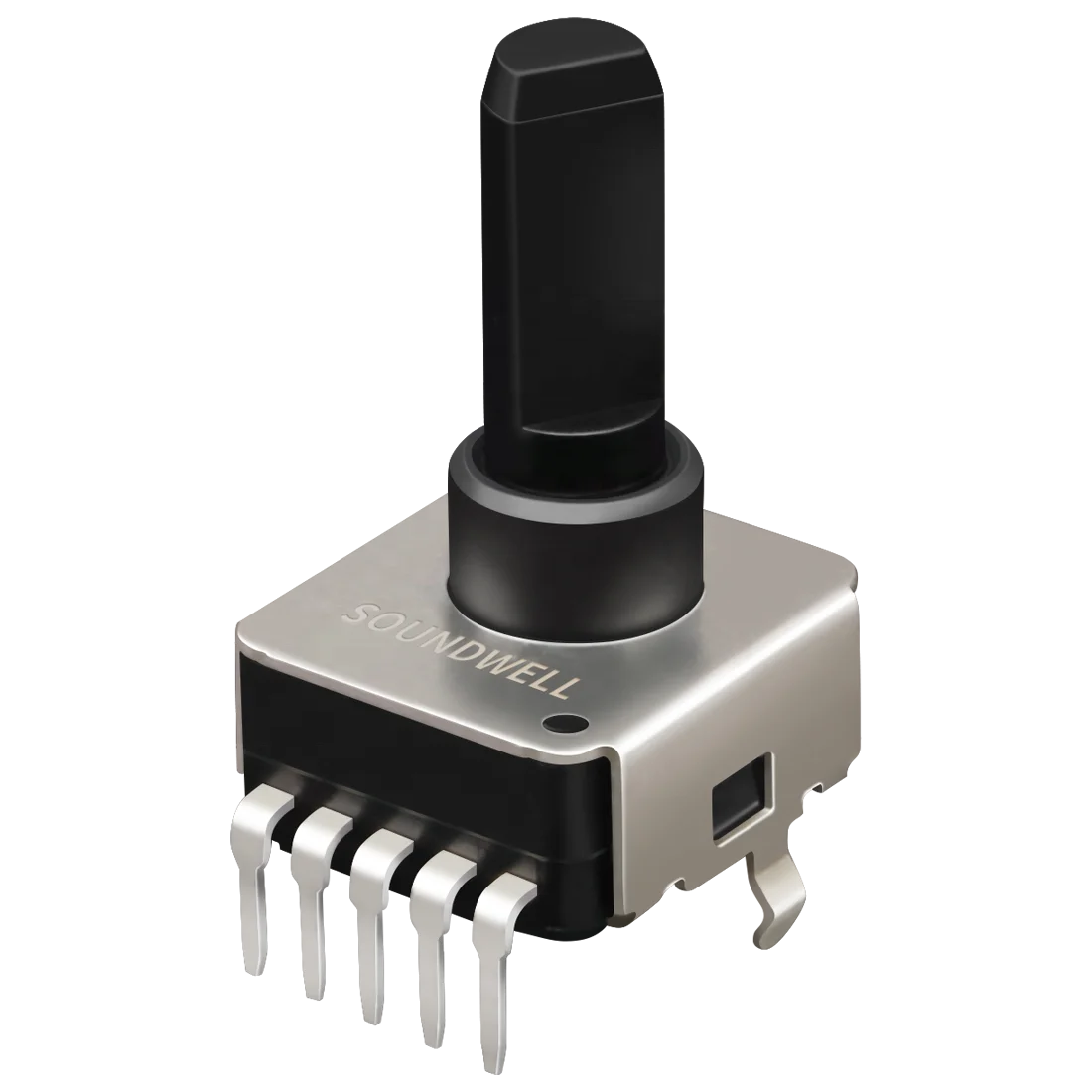

Soundwell ES16 Absolute Rotary Encoder
- Category: >>>
- Supplier: Soundwell Electronic Products Guangdong Co. Ltd.
Share on (1600986401637):
Product Overview
Description
Absolute Encoder Model | ES16 series |
Number of detent | 12/16 |
Rotational life | 30,000 cycles Min |
Rotational angel | 360° |
Working temperature | -40℃~85℃ |
ES16 Absolute Encoder Main Specifications
Dimensions | 16mm | ||||||
Rated power | DC12V 4mA | ||||||
Number of detent | 12/16 | ||||||
Working temperature | -10℃～70℃ | ||||||
Rotational life | 30,000 cycles Min | ||||||
Applications | Household appliances like ovens and washing machines, also other related electronic devices; | ||||||
Product Features | Sealed design with reliable performance. Available in top-adjust and side-adjust versions. | ||||||
Functions | Mainly used to timer switch, adjust temperature, and function switching. | ||||||
ES16 Absolute Encoder Specifications
One、MECHANICAL CHARACTERISTIC
1. Rotational torque: 30~200gf.cm
2. Rotational angel: 360°
3. Number of detent: 12/16
Two、ELECTRICAL CHARACTERISTIC
1. Resolution: 12/16 pulses/360°
2. Contact resistance: ＜100mΩ
3. Power rating: DC 12V, 4mA
4. Insulation resistance: 10MΩ 1 Minute at DC 50V
5. Dielectric voltage: 1 Minute at AC 50V
Three、ENDURANCE CHARACTERISTIC
1. Rotational life : 30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
