High Brightness 850cd/m2 out door use 1.69 inch TFT LCD Module 240*280 Full IPS SPI Interface tft lcd display module
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Technology Co. Ltd.
Share on (1600986472174):
Product Overview
Description
Display General Description

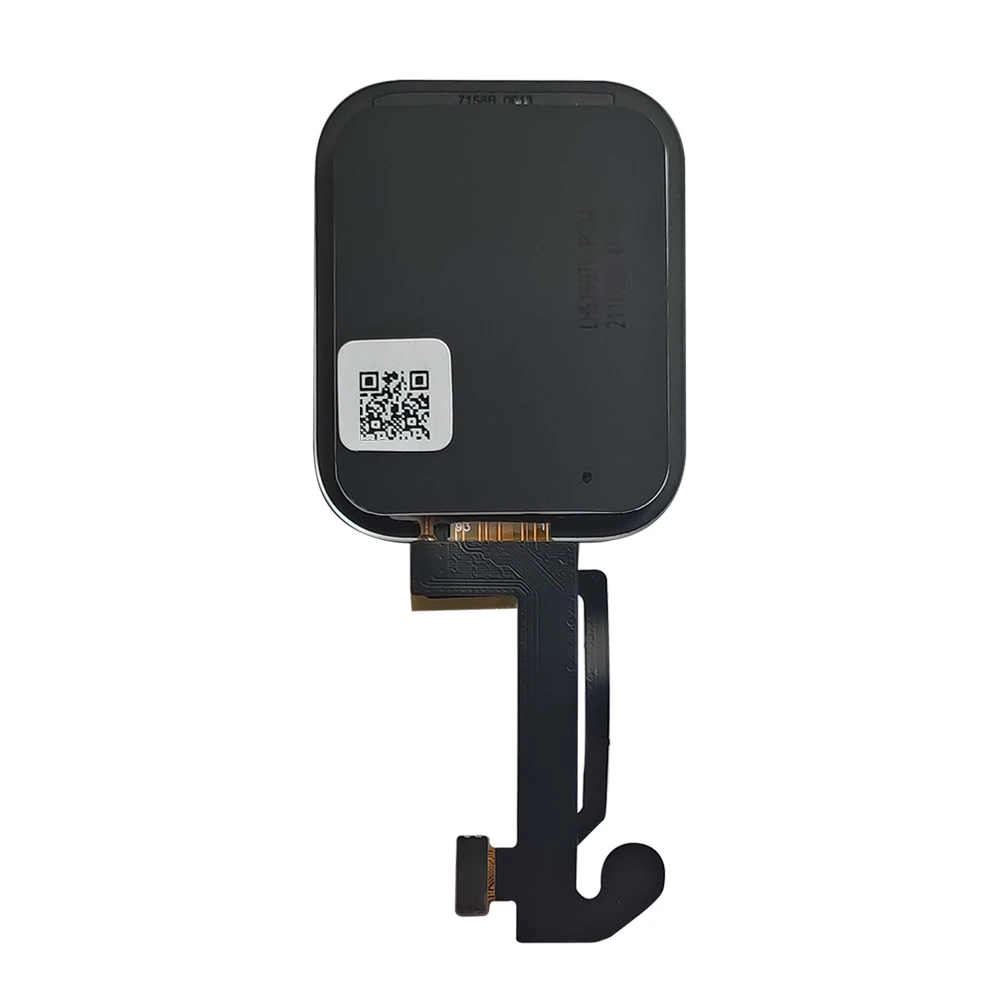

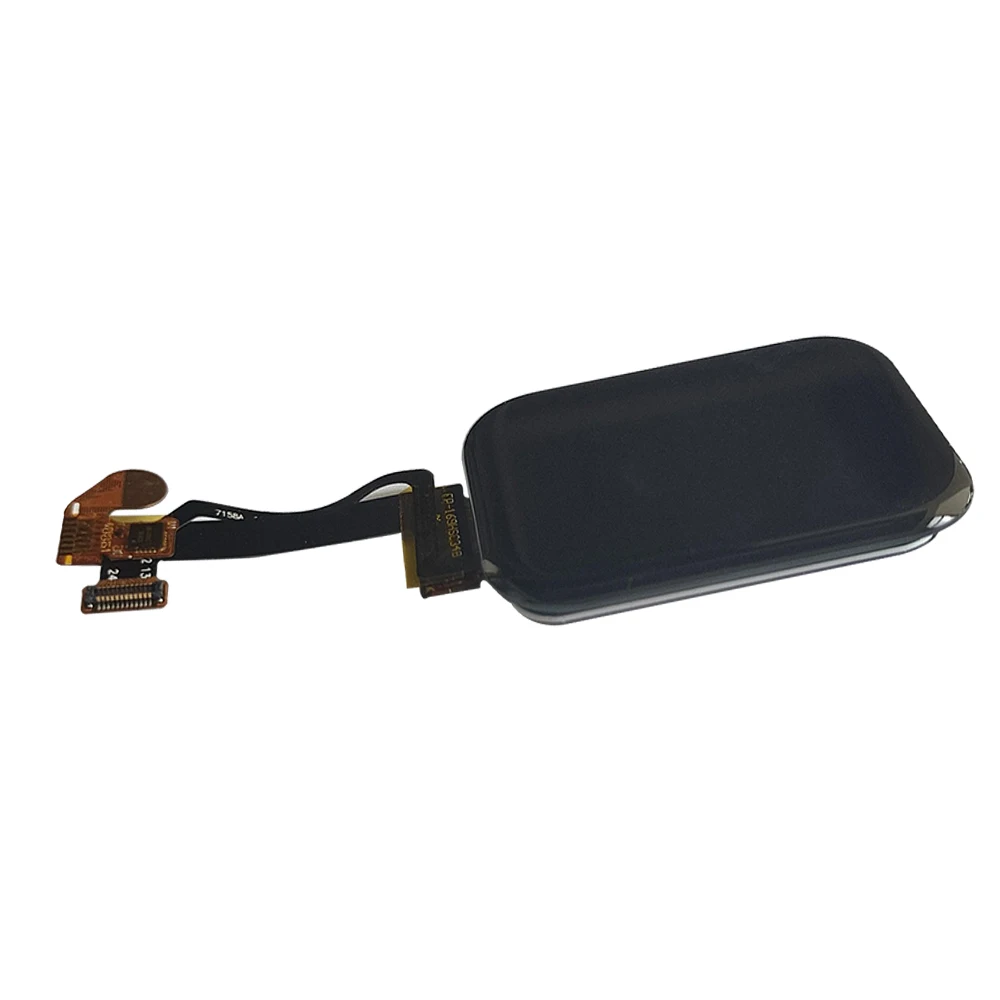

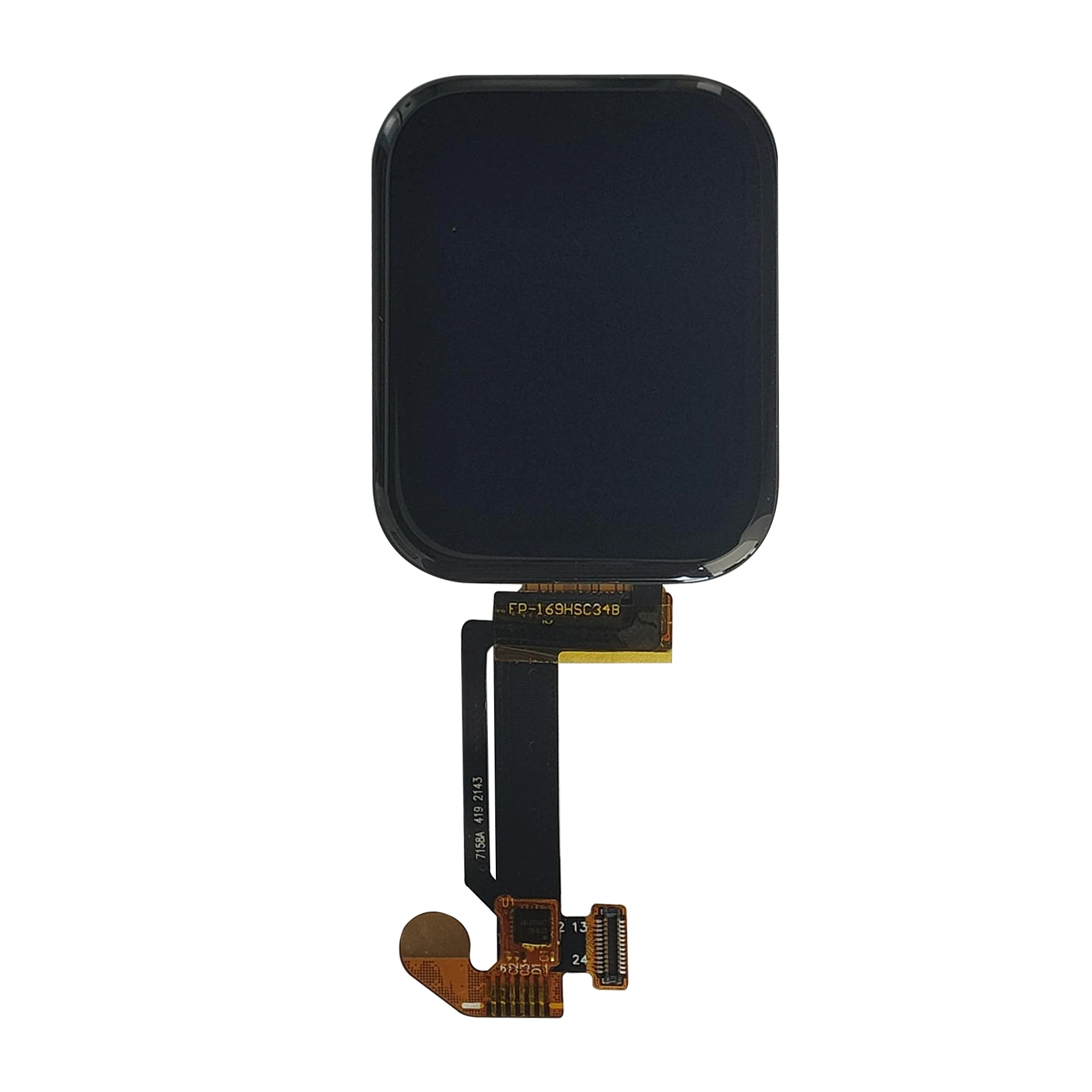

The LHS169TC-PC34-TP by SWICN is a rectangle with arc corners 1.69-inch round IPS TFT LCD module with a capacitive touchscreen. It includes a TFT panel, TFT driver IC (ST7789V3), flexible printed circuit (FPC), backlight, capacitive touch panel (CTP), and CTP driver IC (CST816S), providing a comprehensive and compact solution.

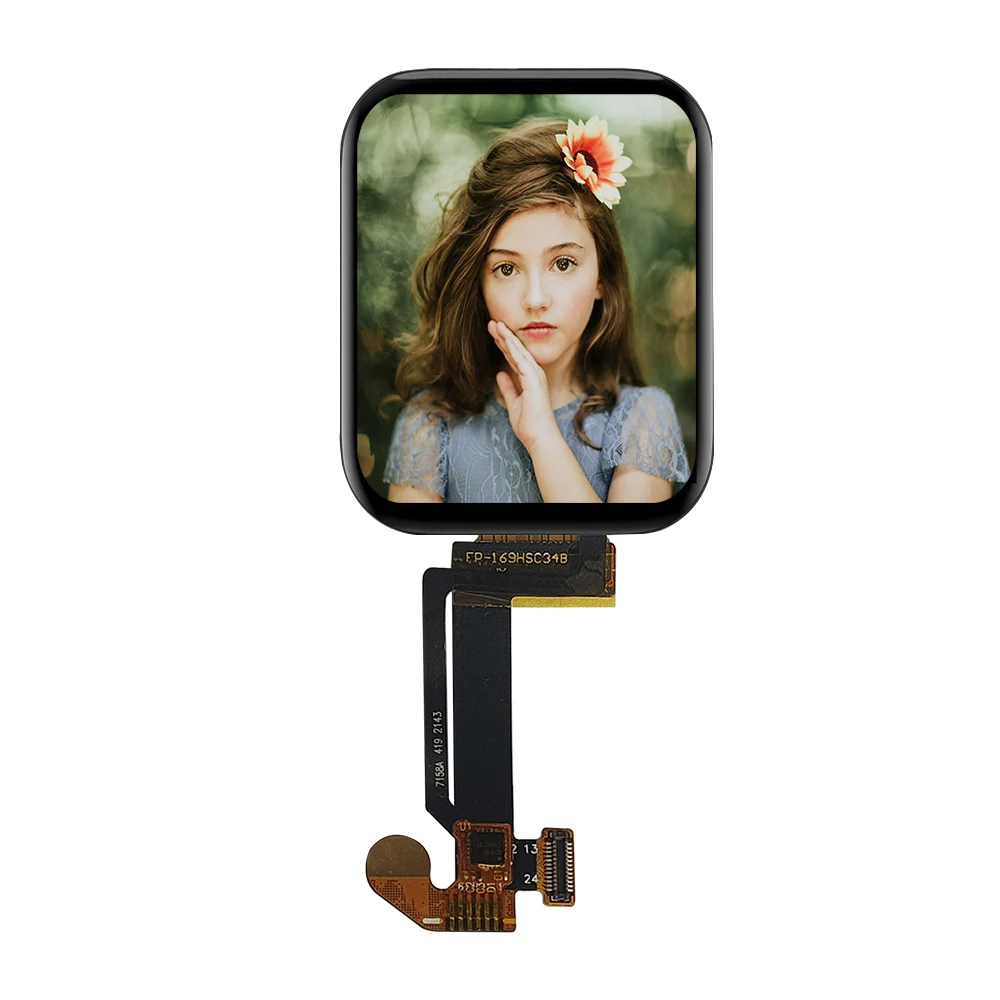

With a resolution of 240x280 RGB pixels on a black background and a typical brightness of 850cd/m2, this module delivers sharp and vibrant visuals. The capacitive touchscreen adds a responsive touch function, enabling seamless user interaction, making it ideal for applications that require a user-friendly interface.
The LHS169TC-PC34-TP is designed for versatility, featuring an 8 Bit 8080 MCU interface for the TFT and an I2C interface for the touch panel. This design ensures compatibility with various MCUs, such as 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi, and a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.
The module's FPC is designed with 2 Board to Board (B2B) connectors, enabling easy and direct connection to the B2B connector on your PCB. This simplifies integration and ensures a secure and reliable connection.
Shineworld Innovations Limited offers tailored solutions that allow customers to customize the FPC, integrate cover lenses, add touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, SWI provides customized demo kits, offering a hands-on experience with the products to facilitate the evaluation and decision-making processes.
With a resolution of 240x280 RGB pixels on a black background and a typical brightness of 850cd/m2, this module delivers sharp and vibrant visuals. The capacitive touchscreen adds a responsive touch function, enabling seamless user interaction, making it ideal for applications that require a user-friendly interface.
The LHS169TC-PC34-TP is designed for versatility, featuring an 8 Bit 8080 MCU interface for the TFT and an I2C interface for the touch panel. This design ensures compatibility with various MCUs, such as 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi, and a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, and handheld devices.
The module's FPC is designed with 2 Board to Board (B2B) connectors, enabling easy and direct connection to the B2B connector on your PCB. This simplifies integration and ensures a secure and reliable connection.
Shineworld Innovations Limited offers tailored solutions that allow customers to customize the FPC, integrate cover lenses, add touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, SWI provides customized demo kits, offering a hands-on experience with the products to facilitate the evaluation and decision-making processes.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT |
1 | Display Mode | TFT+CTP (G+F) | - |
2 | Diagonal Size | 1.69 | Inch |
3 | Resolution | 240(RGB)x280 | Dots |
4 | Active Area | 27.97(H) x 32.63(V) | mm |
5 | TP Outline Dimension | 34.2(H) x 41(V) | mm |
6 | Thickness(TFT+TP) | 3.59±0.15 | mm |
7 | Pixel Pitch | 0.1165 (W) x 0.1165 (H) | mm |
8 | Pixel Size | 0.1165 (W) x 0.1165 (H) | mm |
9 | Display Driver IC | ST7789V3 | - |
10 | Touch Driver IC | CST816T | - |
11 | Display Color | 262K | - |
12 | Gray Scale | 8 | Bit |
13 | Brightness | 850 (Typ.) | cd/m2 |
14 | Contrast Ratio | 800:1 (Typ.) | - |
15 | Display Interface | 8 Bit 8080 MCU | - |
16 | TP Interface | I2C | - |
17 | Module Connecting Type | FPC-BTB | - |
18 | IC Package Type | COG | - |
19 | Display Pins | 24 | Pins |
20 | TP Pins | 6 | Pins |
21 | Operating Temperature | -20~60 | ℃ |
22 | Storage Temperature | -30~80 | ℃ |

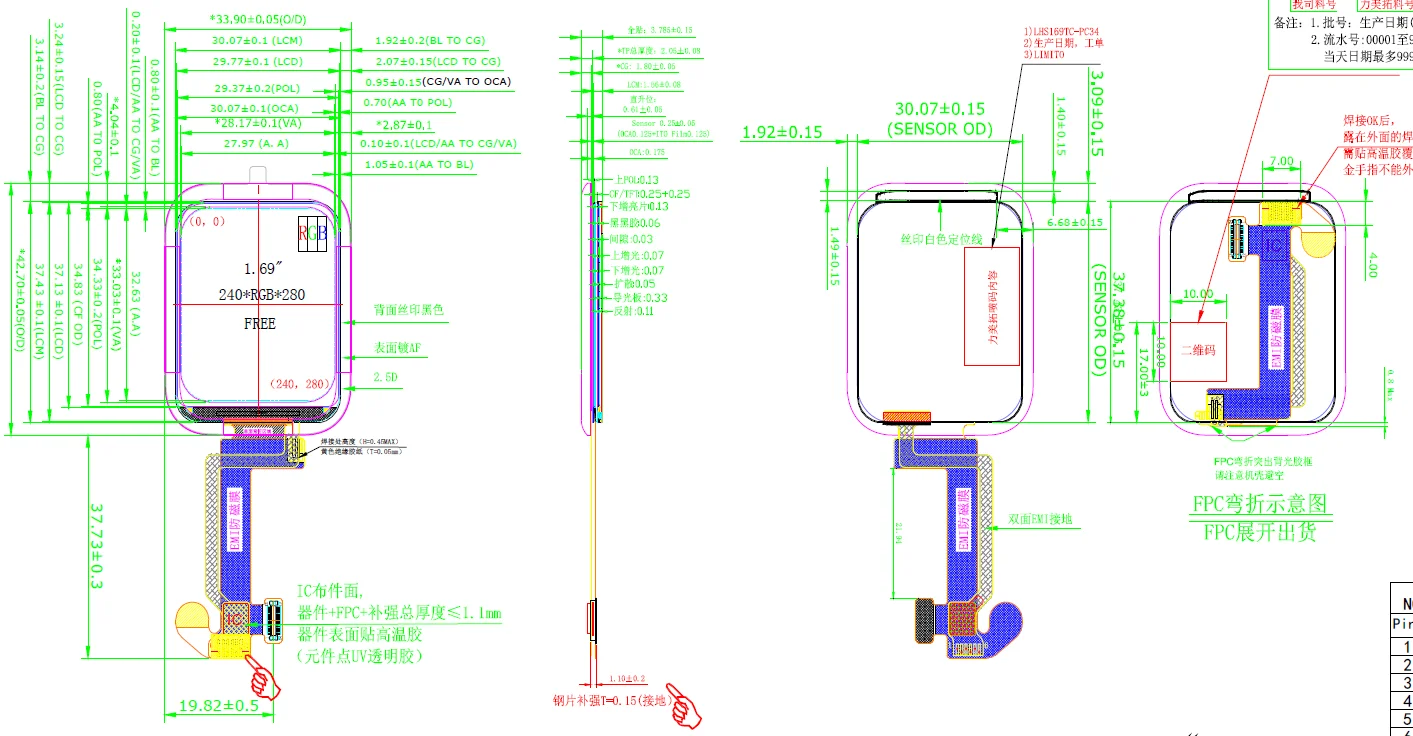

Drawings
Product Details
About Optical Bonding
Optical Bonding Service
SWI provides optical bonding of touch panel products, displays, glass cover plates or any types of we produced or customer supplied display materials in various sizes from 0.4” up to 110″. This provides customers with the flexibility to optically bond a wide variety of display applications. We work with a wide variety of glass, acrylic polycarbonate, and film types to achieve optimal results.
Flat | Curved | Glass Sensor |Film
OCA | SCA | OCR Lamination
Cover Lens:
Glass | Acrylic | Film, AG| AR | AF
CTP :
0.4” - 86” Sizes, G+G | G+F,
Flat | Curved | Glass Sensor |Film
Direct Bonding:
0.4”-110”, G+F | G+G | G+P, OCA | SCA | OCR Lamination
What’s optical bonding?
Optical bonding is a process that involves bonding a cover lens or touch panel to the front of a display screen. The main purpose of this process is to enhance the performance of the display by eliminating the gap between the cover lens or touch panel and the display.
What type of cover lens to choose?
Tempered glass cover lenses are commonly used because they are durable and scratch resistant. Plastic cover lenses are lighter and easier to machine, but are with higher expansion coefficient and not as durable as tempered glass.
What type of sensor to choose?
ITO Glass is thickest. It provides excellent touch sensitivity and accuracy, but is thicker and heavier. Thickness: ITO Glass
0.5–1.3mm, ITO Film: 0.225–0.25mm, Metal Mesh: 0.15-0.25mm. ITO Film is most popular. It is flexible and lightweight, but have slightly lower optical performance. Metal Mesh is most expensive. It provides good touch sensitivity and is flexible and lightweight, and can have better transparency than ITO Film, but the copper mesh is relatively fragile and easy to break during production.
What type of adhesive to choose?
Acrylic Acid OCA is a dry adhesive film. It’s simple and easy for production. It’s more popular and cost effective. Silicone LOCA is liquid optical clear adhesive. It’s more resistant to high temperature and yellowing, so it is mostly used for outdoor
products. It’s more complicated forproduction and more expensive.
Optical bonding is a process that involves bonding a cover lens or touch panel to the front of a display screen. The main purpose of this process is to enhance the performance of the display by eliminating the gap between the cover lens or touch panel and the display.
What type of cover lens to choose?
Tempered glass cover lenses are commonly used because they are durable and scratch resistant. Plastic cover lenses are lighter and easier to machine, but are with higher expansion coefficient and not as durable as tempered glass.
What type of sensor to choose?
ITO Glass is thickest. It provides excellent touch sensitivity and accuracy, but is thicker and heavier. Thickness: ITO Glass
0.5–1.3mm, ITO Film: 0.225–0.25mm, Metal Mesh: 0.15-0.25mm. ITO Film is most popular. It is flexible and lightweight, but have slightly lower optical performance. Metal Mesh is most expensive. It provides good touch sensitivity and is flexible and lightweight, and can have better transparency than ITO Film, but the copper mesh is relatively fragile and easy to break during production.
What type of adhesive to choose?
Acrylic Acid OCA is a dry adhesive film. It’s simple and easy for production. It’s more popular and cost effective. Silicone LOCA is liquid optical clear adhesive. It’s more resistant to high temperature and yellowing, so it is mostly used for outdoor
products. It’s more complicated forproduction and more expensive.
What type of display to choose?
Display Mode | Emissive (OLED) | Transmissive (TFT) | Transflective (TFT) | Reflective (TFT, EPD) |
Display Operation | Self-illuminating | Requires Backlighting | Uses Backlighting and Ambient Light | Uses Ambient Light |
Visibility | Good Indoors | Good Indoors | Good Indoors and Outdoors | Good Outdoors |
Power Efficiency | Higher | Lower | Moderate | Higher |
Display Quality | Good Color Contrast | Good Color Contrast | Moderate Color Contrast Indoors | Good Color Contrast Indoors |
Ambient Light | Less Visible in Bright Environments | Less Visible in Bright Environments | Visible in Various Lighting Conditions | Visible in Bright Environments |
Outdoor Performance | Poor | Poor | Moderate | Excellent |
Major Applications | Indoor Display Devices, Wearables | Indoor Display Devices, Wearables | Portable Devices, Outdoor Wearables | E-tags, Wearables, Outdoor Displays |
