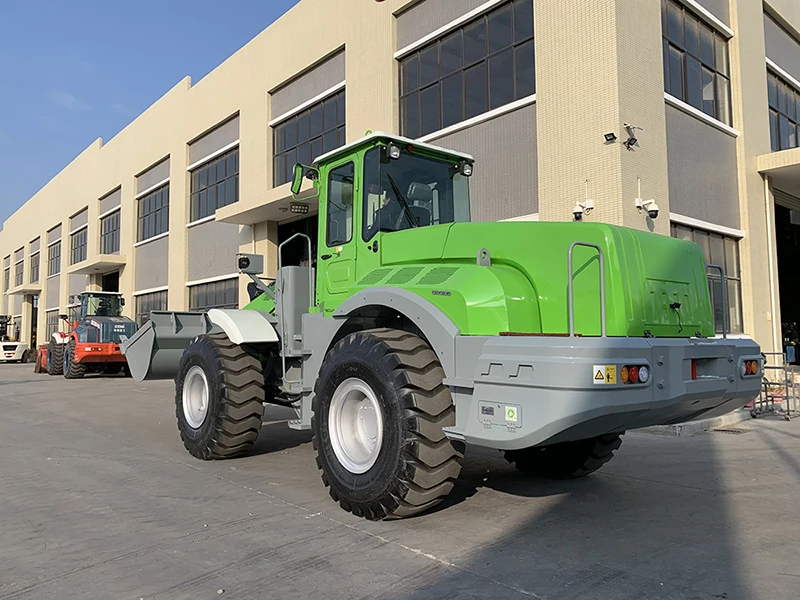

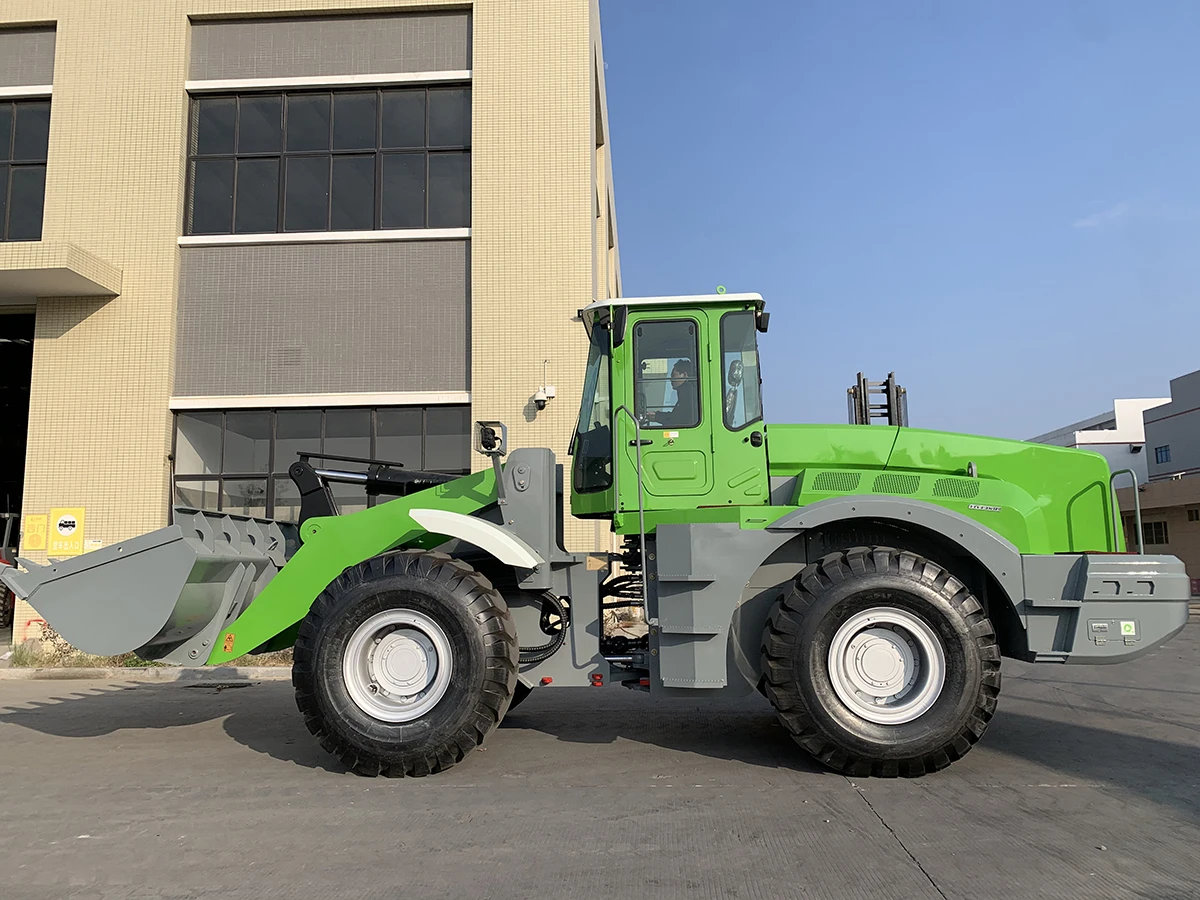

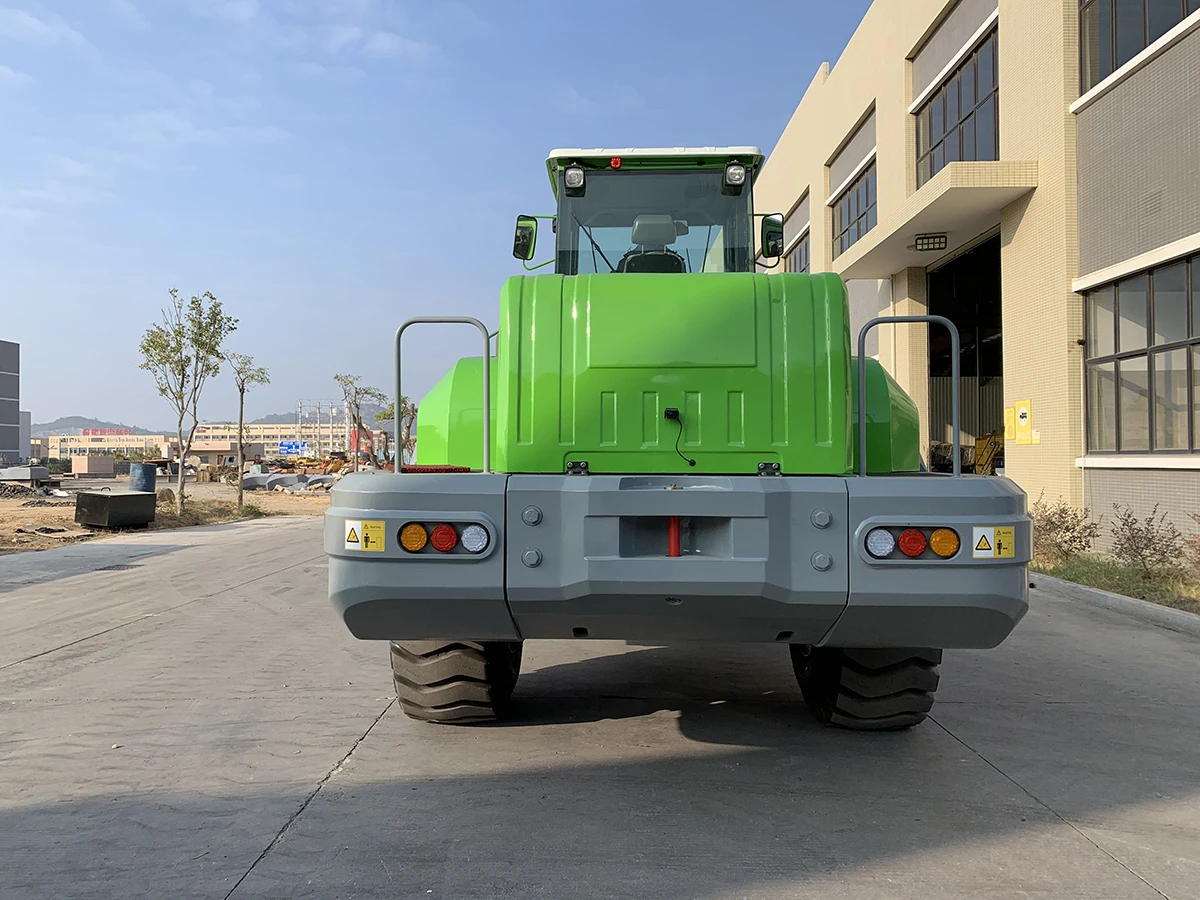

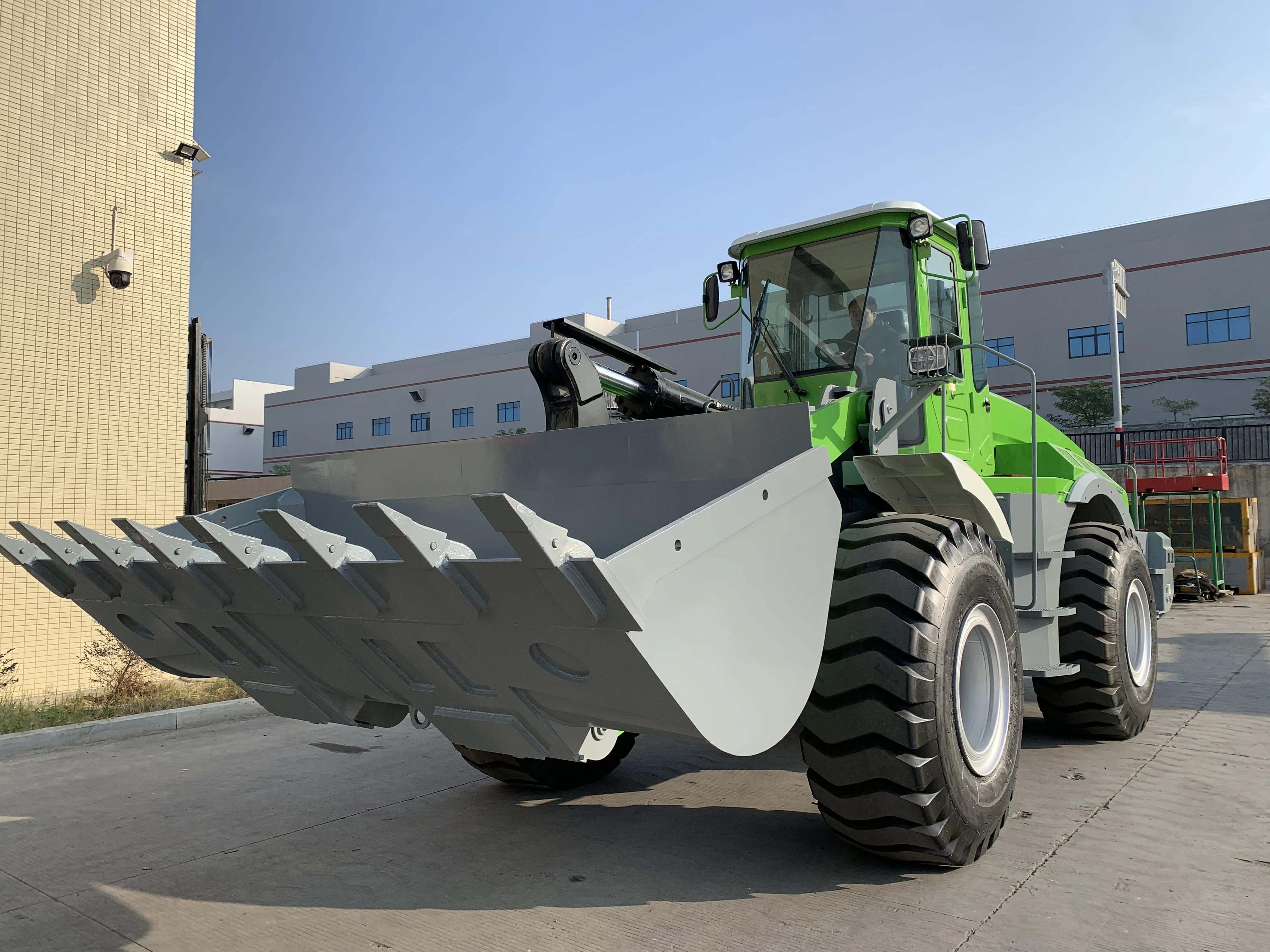

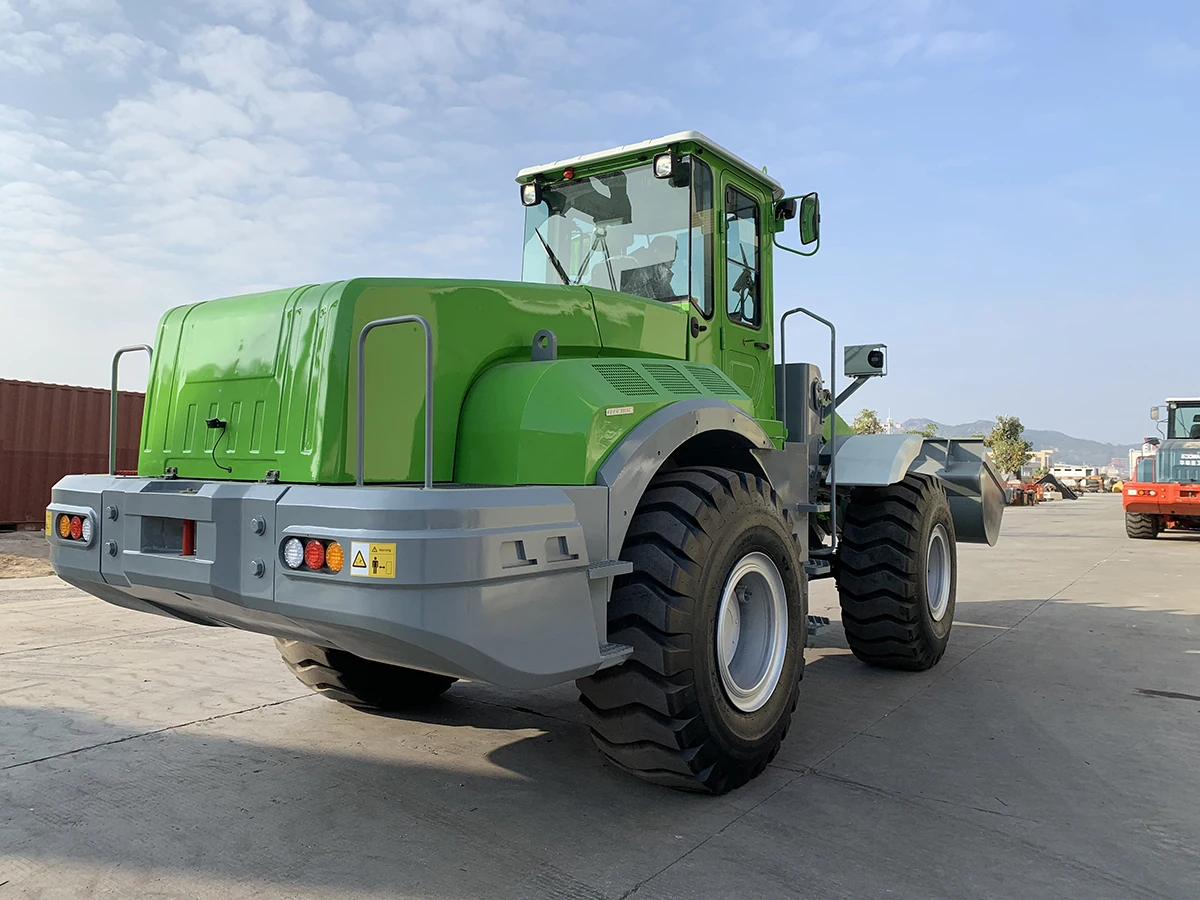

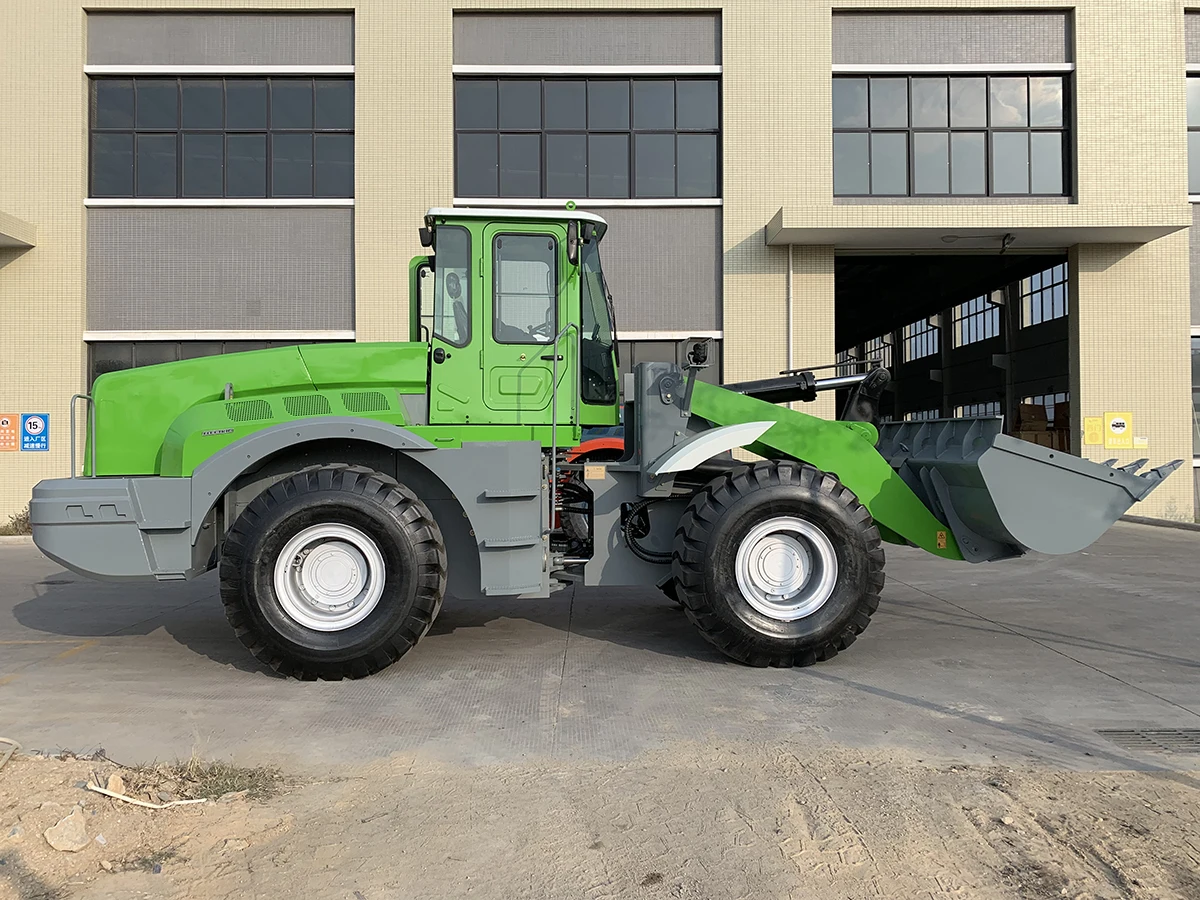

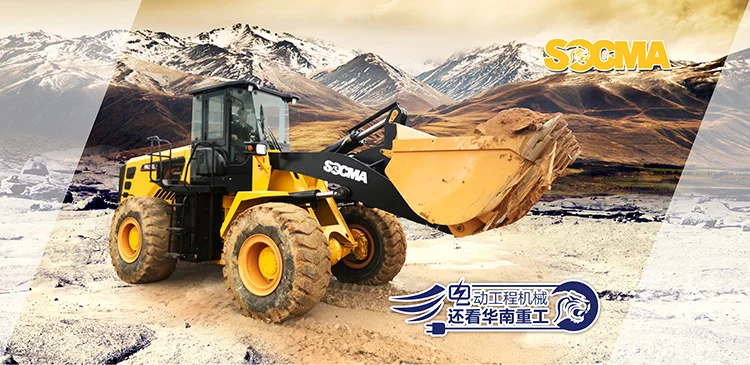

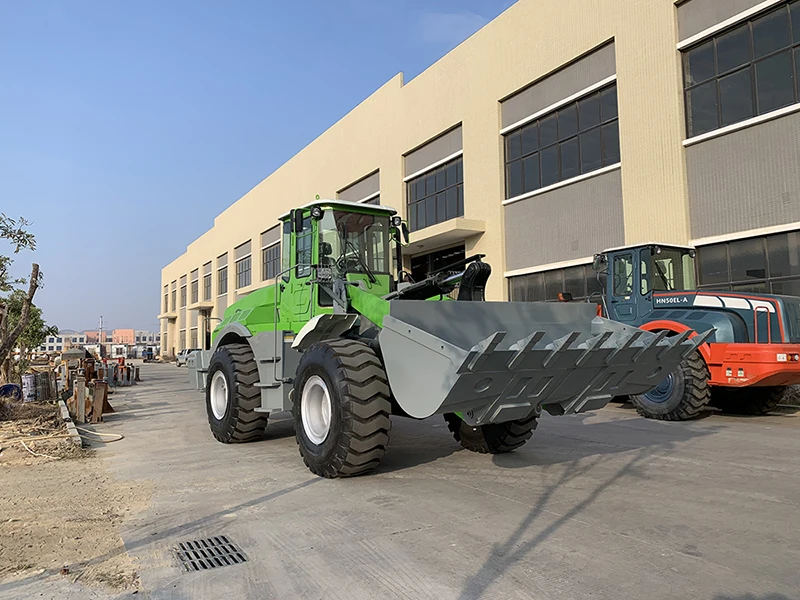

SOCMA Pure Lithium Electric Wheel Loader Capacity 5t

Basic Parameter

Electric Consumption Rate

35-40( variance   with working condition)

Loading Rate

5000kg

Bucket Capacity

2.7-5m³

Up digging Force

>170KN

Operating Weight

17000kg

Max. Dumping Height

3062/3362mm

Dumping  Distance 45°Angle

1276/1230mm

Transmission System

Transmission

Mechanical Transmission

Transmission Gear

Front 4 /Rear 2

Max. Speed of Forward low speed I

7km/h

Max. Speed of Forward low speed II

14km/h

Max. Speed of Forward high speed I

28km/h

Max. Speed of Forward high speedlI

36km/h

Max. Speed of Rear low speed I

7km/h

Max. Speed of Rear high speed I

28km/h

Grade ability

53%

Traction

155kN

Parameter of Travel Motor

Motor Type

Permanent Magnet Synchronous Motor

Motor Rated

100kW

Motor operating efficiency range

86%-98%

Parameter of Main Pump Motor

Motor Type

Permanent Magnet Synchronous Motor

Motor Rated

90kW

Motor operating efficiency range

86%-98%

Battery

Type

LiFePO

Battery rated storage capacity

282Kwh

Rated Capacity of Battery

456AH

Rated Voltage

618V

Rounds of full charge and discharge cycles

4000 up

Theoretical Service Life

over 8 years

Charge time

1.2-2.5

Hydraulic System

Pressure

16MPa

Flow Rate

400 L/min

Raising Time

5.5 s

Total cycle time

10 .5s

Steering System

Steering gear Model

TLF1-E1000C

Pressure

15 MPa

Steering Type

Articulated frame steering

Steering Angle

±35°

Brake Mode

Travel brake

Clamp disc brake

brake air pressure

10-14 MPa

Parking Brake

Flexible shaft operated drum brake

Overall Height

3380mm

Overall Width

3000mm

Overall Length

8015mm

Wheel base

3230mm

Wheel Tread

2240mm

Bucket with

3000mm

Ground Clearance

408mm

Turning Radius( External)

≥7230mm

Driver position

Central

Driver seat

Sited

Standard Tires (Pneumatically)

Nos. of Wheels

2/2

Driving  Wheel

4 wheels Driving

Size of Tire

23.5-25-16PR
