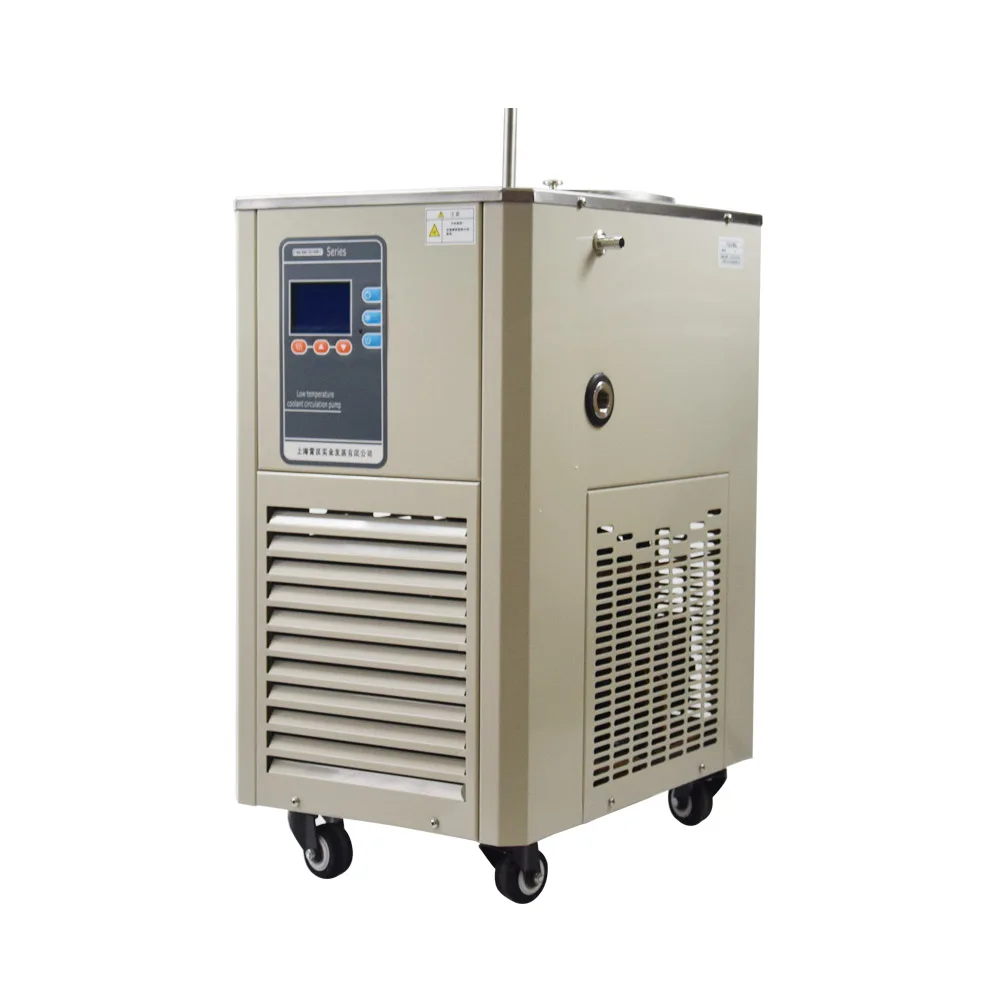

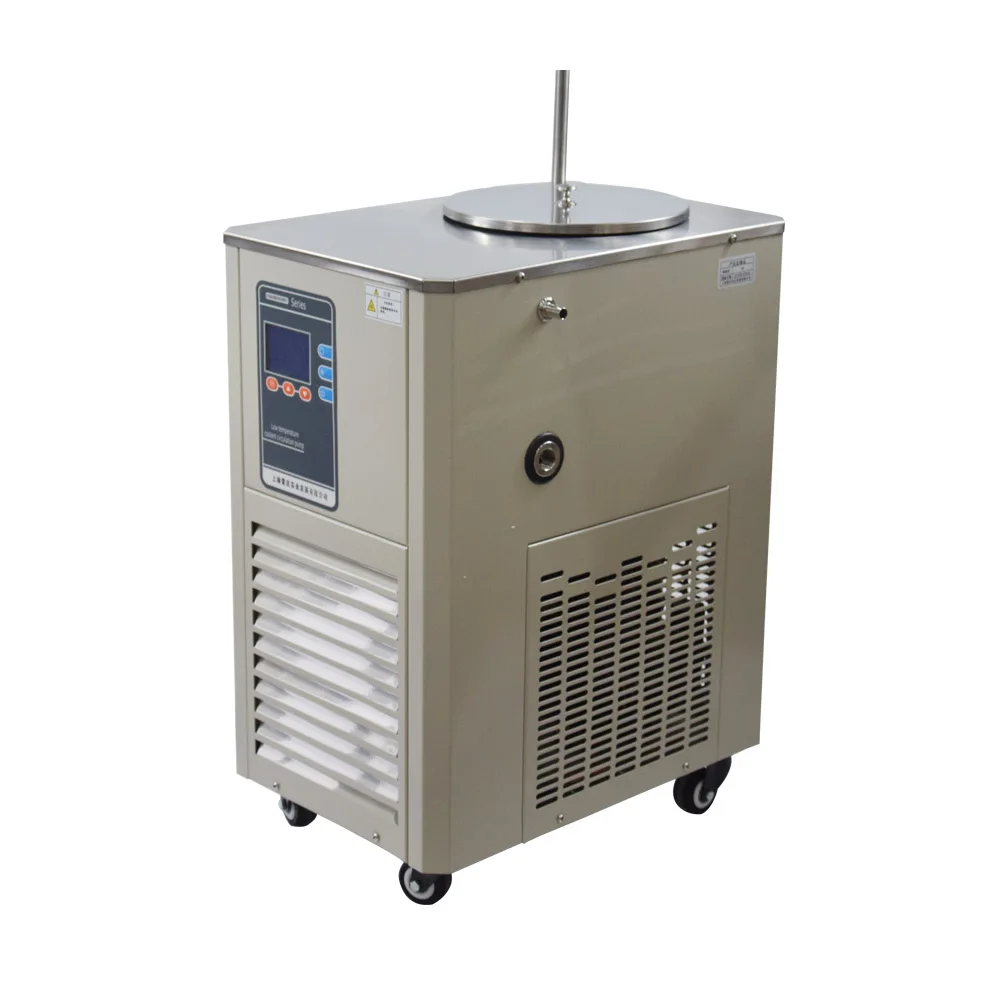

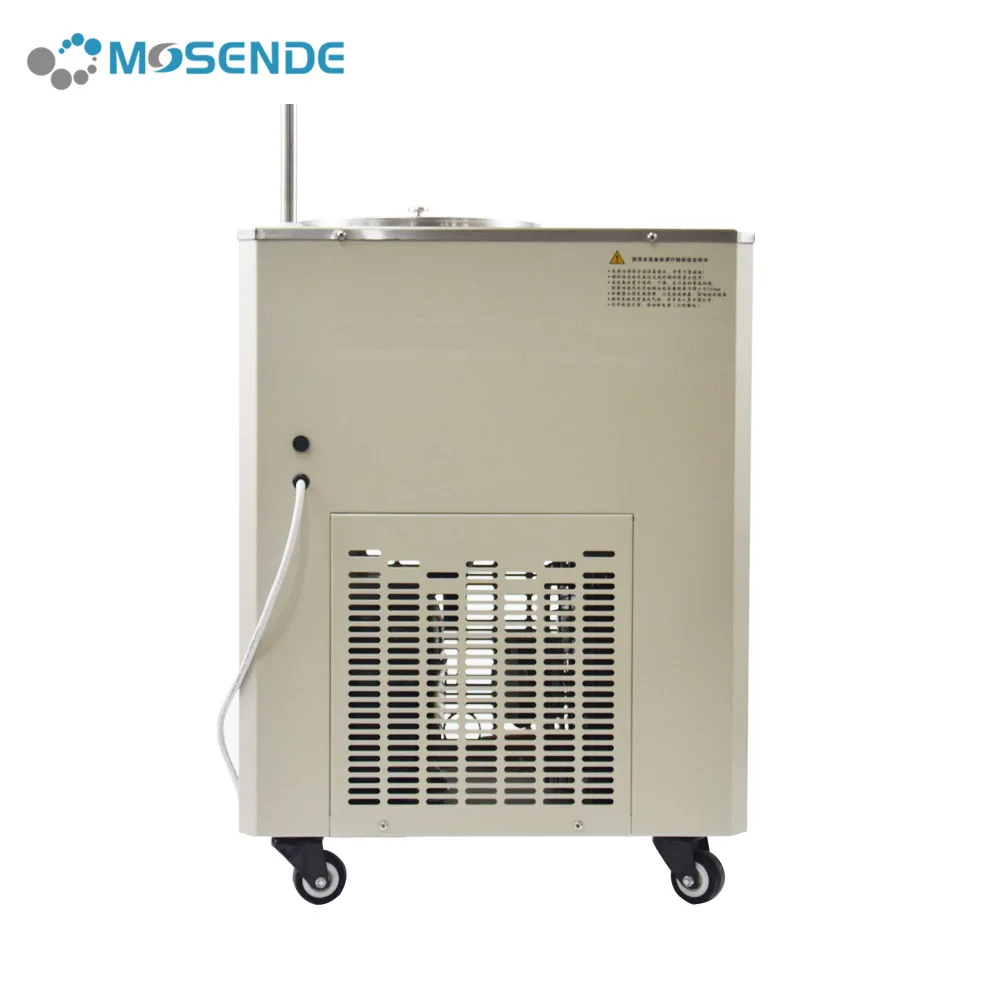

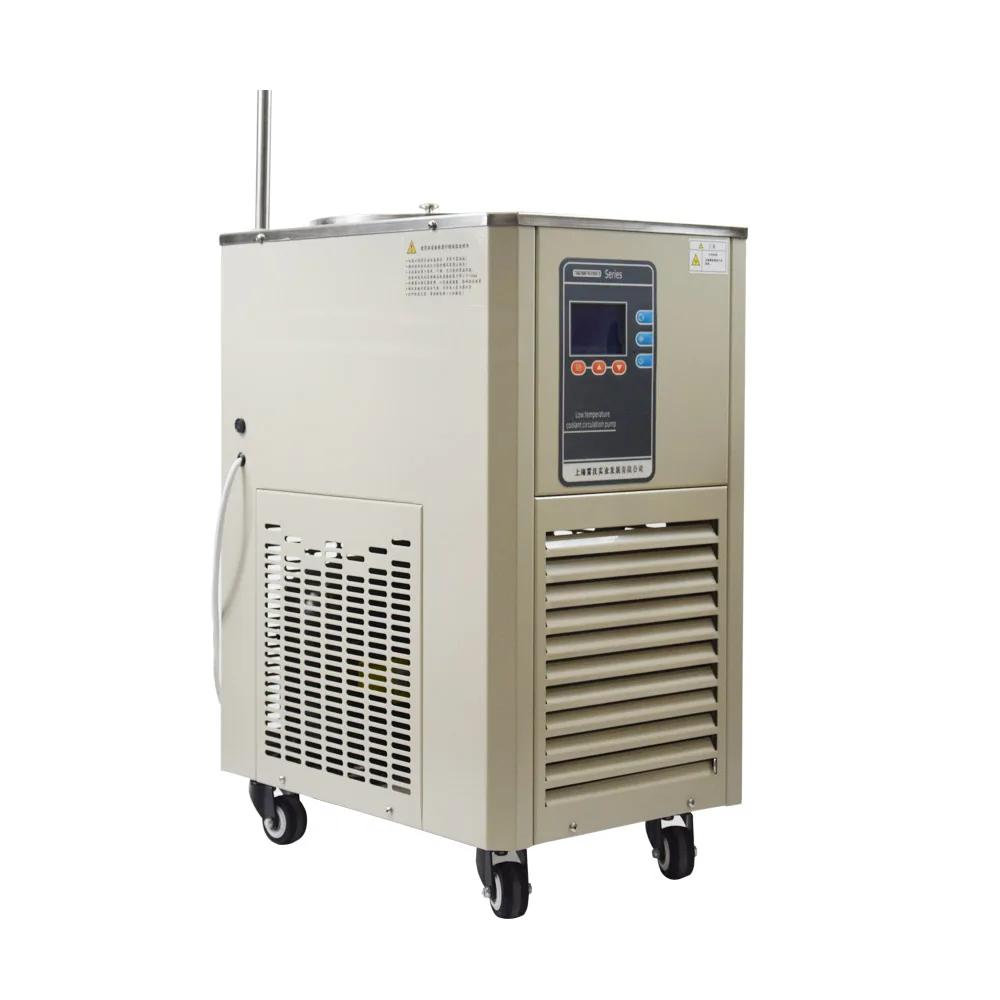

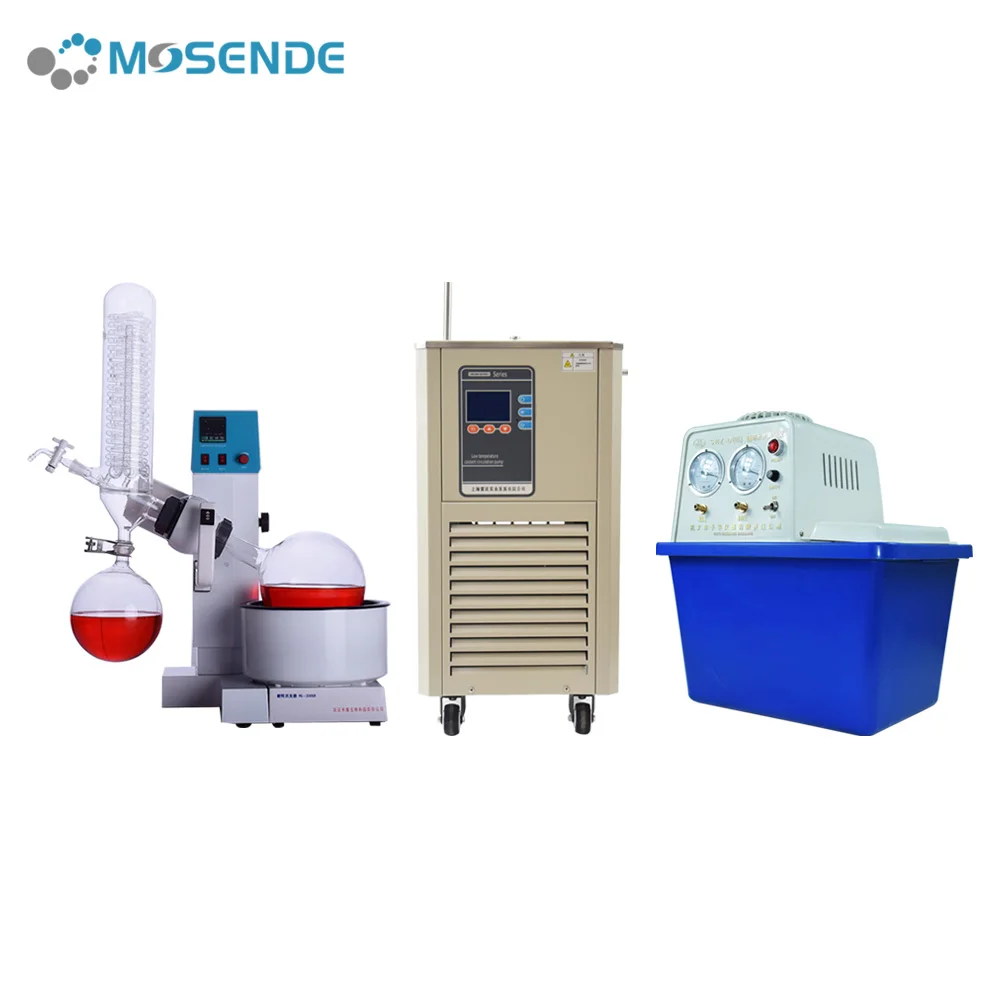

XHDLSB 10/60 Glycol Chiller Low Temperature Coolant Circulation Pump for Rotary Evaporator

Share on (1600986745152):


Price:$4,240.00

Quantity:


Product Overview

Description

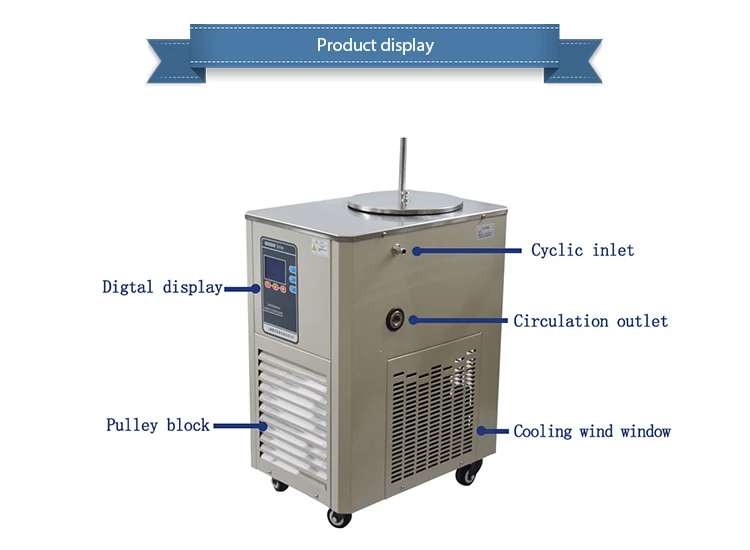

XHDLSB-10/60 Glycol Chiller Low Temperature Coolant Circulation Pump for Rotary Evaporator









 XHDLSB-series cryogenic coolant circulating pump is a kind of cryogenic liquid circulating equipment which adopts mechanical refrigeration. The utility model has the functions of providing low-temperature liquid and low-temperature water bath. Combined with rotary evaporator, vacuum freeze-drying oven, circulating water multipurpose vacuum pump, magnetic stirrer and other instruments, multi-functional low temperature chemical reaction operation and drug storage were carried out.




















































































































Product Specification


Model


XHDLSB-10/60


Volume of reservoir (L)


10


No-load minimum temperature (℃)


-60


Refrigeration unit


Two-stage, air-cooled


Working conditions


Operating Temperature Range (℃)


-60~20


Optimum ambient temperature (℃)


≤25


Ambient relative humidity (%)


≤60


Power Supply


220V±10% 50Hz


Main Performance and Components


Temperature control


Display Mode


Digital


Temperature control accuracy (℃)


±2


Sensor indexing number


Pt100


Display mode



Setting Method


Arbitrary setting within operating temperature range


Safety protection


Overload, delay, overcurrent, overheat


Circulating pump


Power (W)


160 (Optional booster pump: 0-3bar/0-4bar adjustable pump pressure)


Flow (L/min)


20


Lift (m)


5~7


External loop interface


Silk connection 1/2 inch Material: 304


Liquid reservoir


Inner diameter and height (mm)


280×180


Material


1Cr18Ni9Ti


Maximum flask capacity(ml)


5000(Self-matching)


Supply Voltage


220V / 50Hz


Dimensions of the whole machine (mm)


665×510×880


Whole machine weight (kg)


110
