Manufacturers cutting insert CNC turning tool lathe tools accessories Tungsten carbide inserts for stainless steel

CNC Carbide Inserts

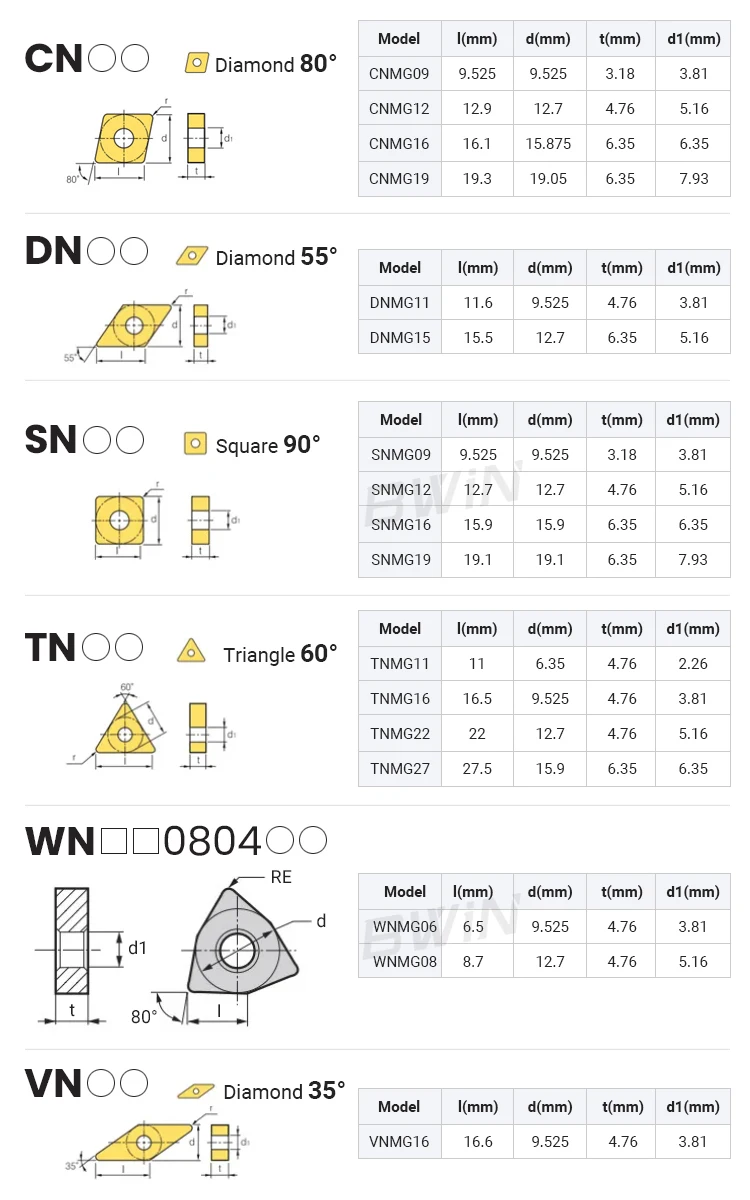

CNMG DNMG TNMG WNMG VNMG SNMG CCMT DCMT VBMT LNMU

Tungsten Carbide

Finishing, Semi-finishing and roughing

External Turning Tool / Internal Turning Tool

PVD, CVD coating

100%

Standard

OEM/ODM

Stainless steel, Steel, Hardened steel, Mould steel,  Alloy steel, cast iron, aluminum, copper

10 pieces

10pcs / box

◆ Carbide inserts

◆ Drills & Reamers & Thread Cutters & Burrs
◆ Thread Tapper Tool
◆ CNC Chuck & Adapter
◆ Precision Tool Vise
◆ Other Accessories

Medium cobalt content, and high cubic content carbide substrate combine with strong texture TiCN and Al₂O₃ coating. After special treatment , it has wonderful abrasion resistance. Suitable for general steel turning.

High cubic content gradient carbide substrate, gives good anti- deformation resistance and excellent high temperature performance.
MT-TiCN+Al₂O₃+TiN coating has very good surface quality, and easy to recognize wear. Suitable for semi-finishing to finishing
steel machining.

Low Cobalt content, and high cubic content carbide substrate combine with thick TiCN and Al₂O₃, treated special after coating
treatment, which gives insert wonder wearing resistance. Preferred grade for semi-finishing to finishing steel machining.

Gradient cemented carbide substra with excellent high temperture resistance and plastic deformace resistance, uniform and dense strong textured CVD alumina coating, with excellent wear resistance. Yellow coating appearance, also wear identification.

The uniform dense and fine-grained coating has excellent wear resitance, and the special transition layer, structure ensures the anti-peeling performance of the coating; The unique post-processing technology realizes a two-color marking layer uniform compressive stress distribution, ensuring higher wear resistance and stability.

High Co content and ultra fine WC grain substrate, gives wonderful cutting edge strength, combines with PVD AlTiN coating, it has outstanding wearing resistance. Suitable for steel and cast iron slight milling.

High Co content and ultra fine WC grain substrate, gives wonderful cutting edge strength, combines with good thermal stability silicon coating, it has very small coefficient of friction, and good nano hardness. Suitable for steel and stainless steel
continue turning and threading.

New material substrate has good anti wear resistance and anti impact resistance. Combining with multiple layers AlTiN coating, it has excellent adhesion between coating and substrate which improves tool life significantly. Suitable for general steel, and
stainless steel milling.

High Co content and fine WC grain substrate, gives wonderful cutting edge strength, combines with good thermal stability silicon coating, it has very small coefficient of friction, and good nano hardness. Good at stainless steel semi-finishing turning, parting and grooving processing, preferred grade for steel and stainless steel milling and drilling.

High Co content and fine WC grain subtrate, gives wonderful cutting edge strength, combines with new AlTiN coating, it has very small coefficient of friction, high antioxidant temperature, and good nano hardness. Preferred grade for steel and stainless
milling and drilling.

Newly upgraded coating technology, the new king of steel milling; Enhanced tip design, excellent impact resistance.

Mild-coarse grain substrate combines with hard-wearing and ultra thick alumina CVD coating, treated by special after coating
treatment, which as good roughness and wear resistance. Suitable grade for semi-finishing to slight interrupted cast iron
machining.
