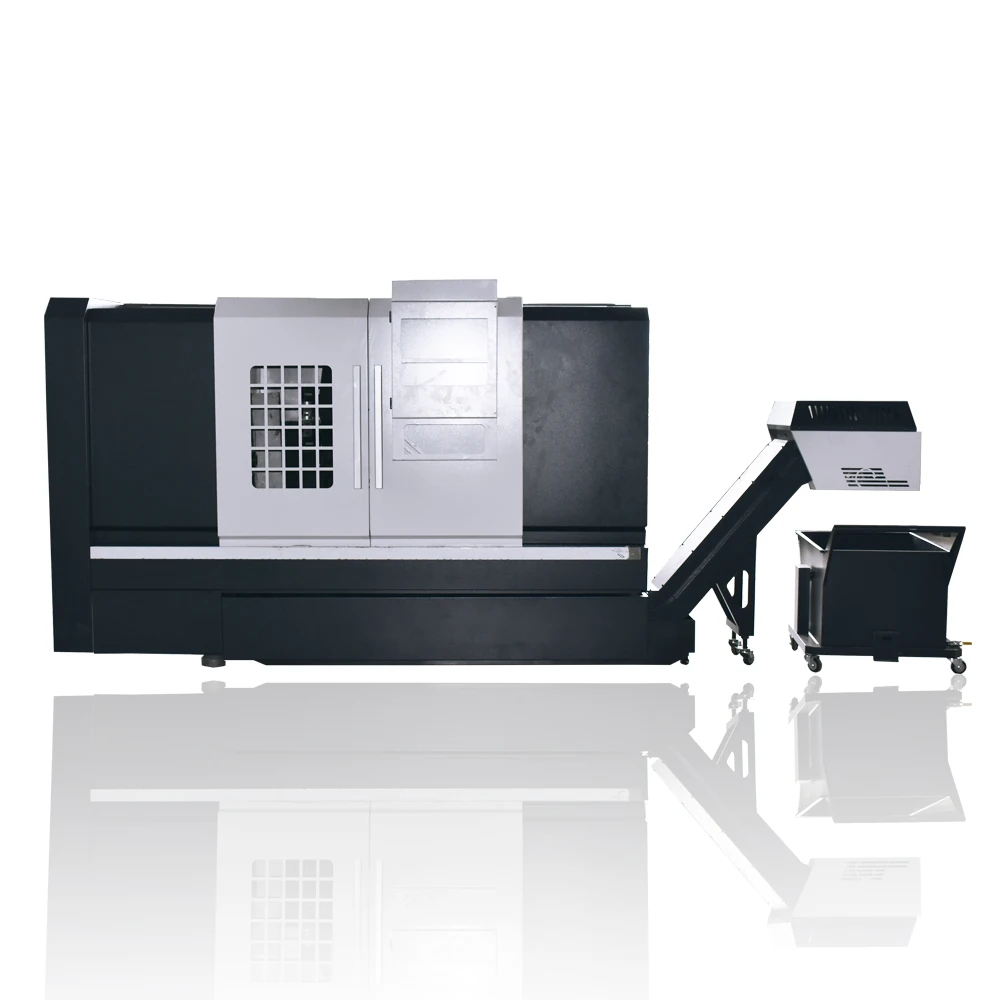

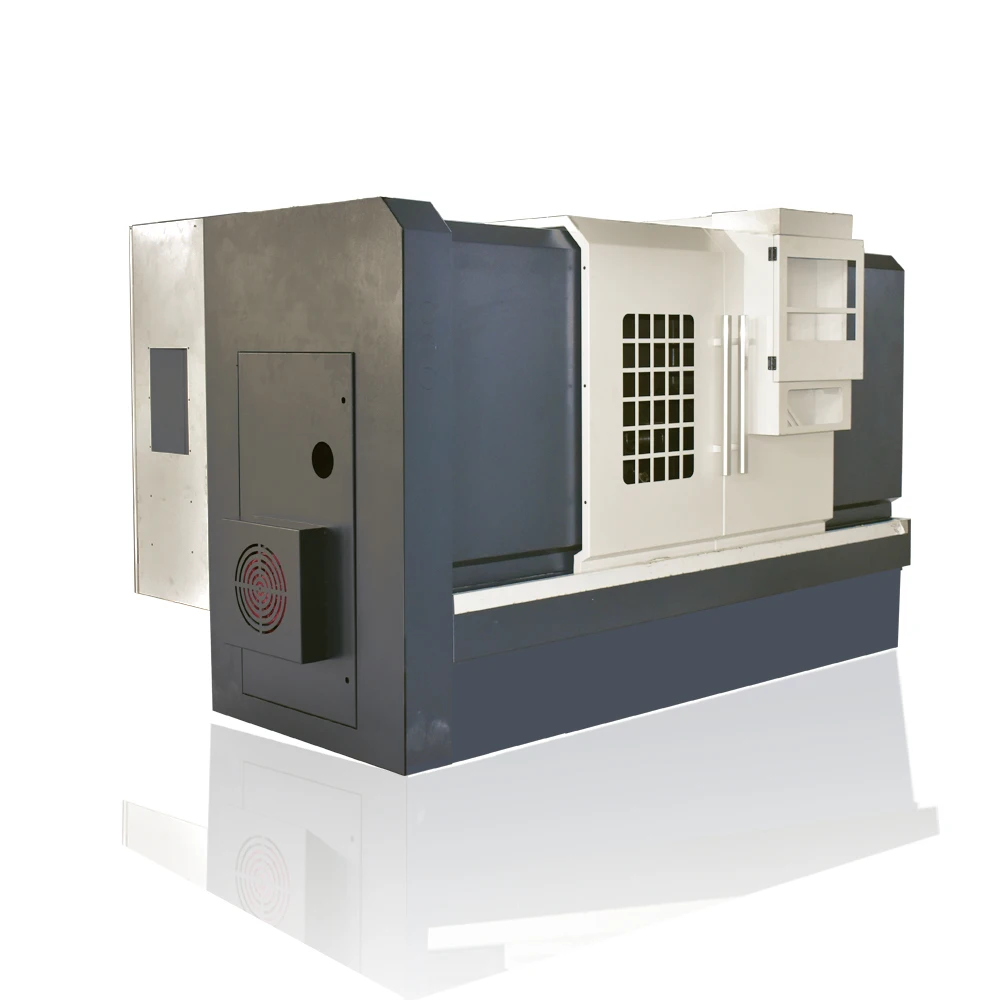

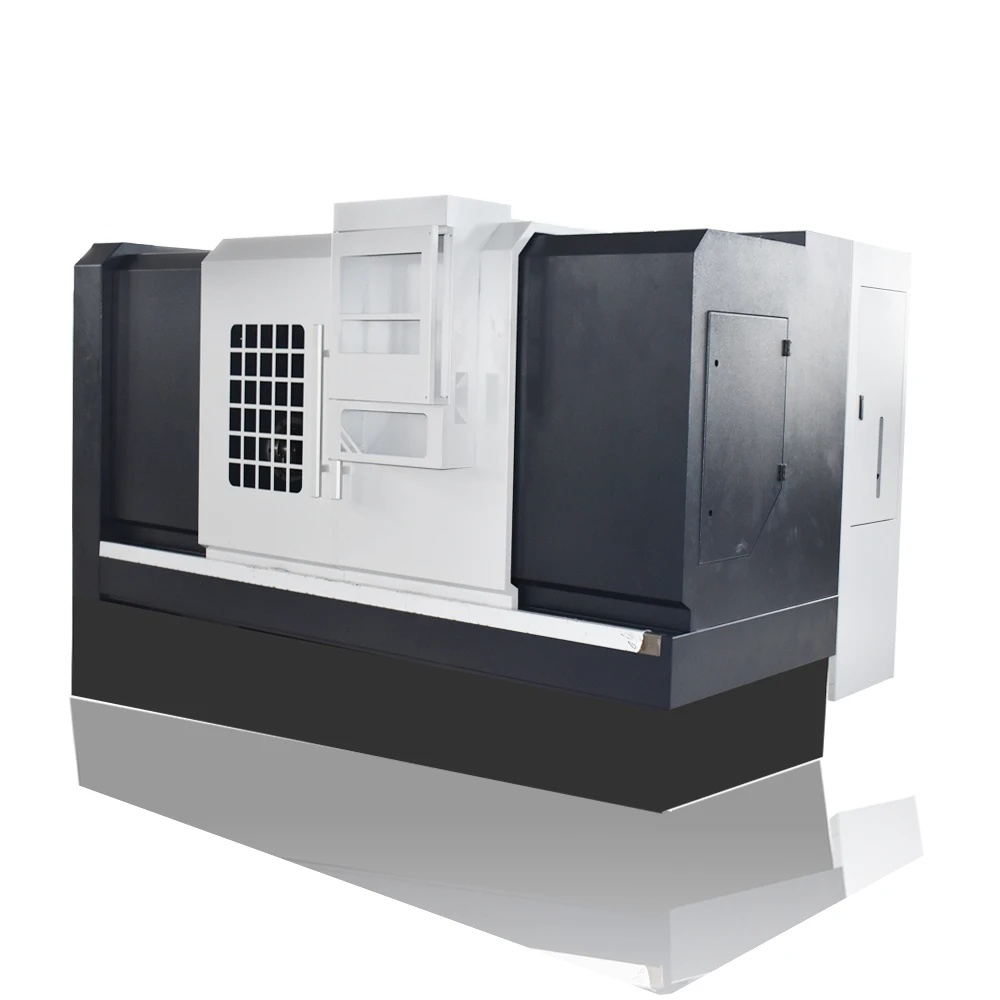

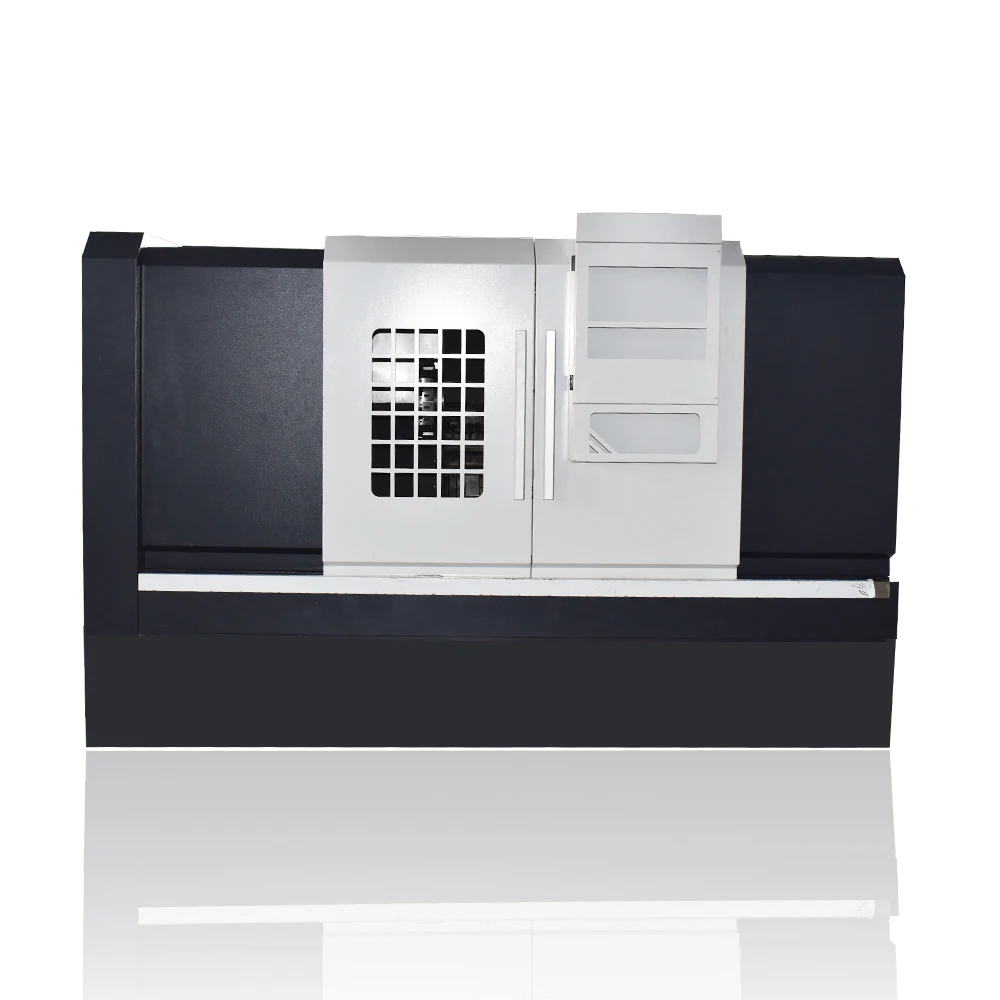

low cost cnc lathe axis automation cnc turn mill CK50L computer desktop cnc lathe machine manufacturer
- Category: >>>
- Supplier: Jinan Shangneng CNC Equipment Co. Ltd.
Share on (1600986842006):
Product Overview
Description
Application

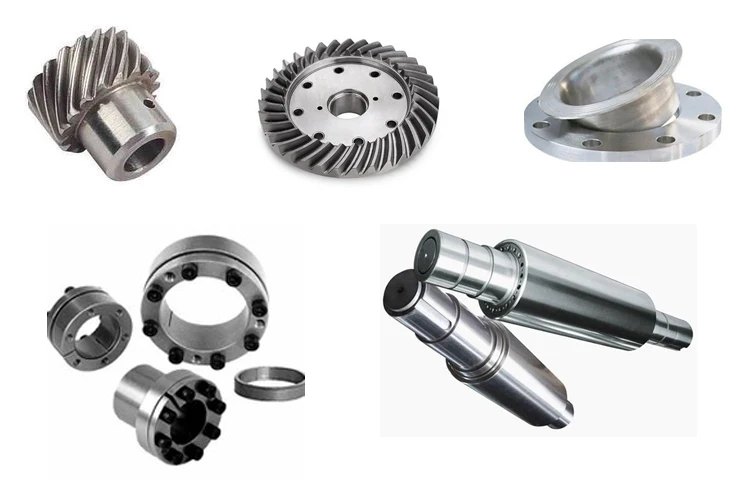

It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.
Product Description
Standard configuration:
1) 7.5kw servo motor, max. spindle speed 2500rpm, spindle taper A2-8, spindle hole Φ86mm;
2) 8 station hydraulic tool turret, hollow 10" hydraulic chuck, with tailstock;
2) 8 station hydraulic tool turret, hollow 10" hydraulic chuck, with tailstock;
Optional configuration:
1) 8 station servo VDI(live tool) turret;
2) tool head,if more tool heads needed;
3) Servo 8 station tool turret;
4) Chain chip conveyor;
5) 12 station hydraulic tool turret;
2) tool head,if more tool heads needed;
3) Servo 8 station tool turret;
4) Chain chip conveyor;
5) 12 station hydraulic tool turret;
Specification

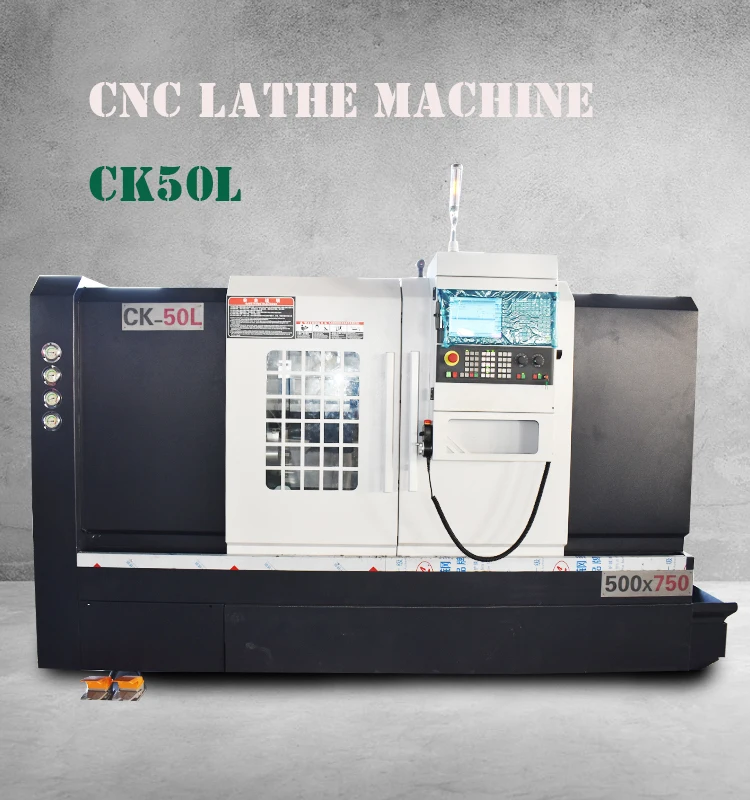

Item | CK50L |
Max.swing over bed | 500mm |
Max.swing over slide | 320mm |
Max.processing length | 550mm |
Max.cutting Dia. | 420mm |
Max.bar Dia | 86mm |
Spindle Speed | 2500rpm |
Spindle Nose ISO form | A2-8 |
Thru-hole Dia. | 86mm |
Chuck Dia. | 250mm(10") |
Motor power | 5.5/7.5/11KW (servo) |
Body Structure | 30° integrated |
X axis travel | 260mm |
Z axis travel | 550mm |
X/Z axis Rapid Speed | 24/24 m/min |
Type | 100-8T |
Tool size | 25*25mm |
Tailstock sleeve Dia | 75mm |
Tailstock sleeve Travel | 100mm |
Tailstock sleeve Tapper | MT5 |
Procssing precision | IT6 |
Re-Procssing precision | X0.006 Z0.01 |
Roughness | Ra≤1.25 |
Machine N.W | 3500kgs |
Dimension | 3100*1800*1800mm |
Main feature
standard one:
8 station hydraulic tool turret
Option one:
① 8/12 station servo VDI(live tool) turret;
② Servo 8 station tool turret;
③ 12 station hydraulic tool turret;
standard one:

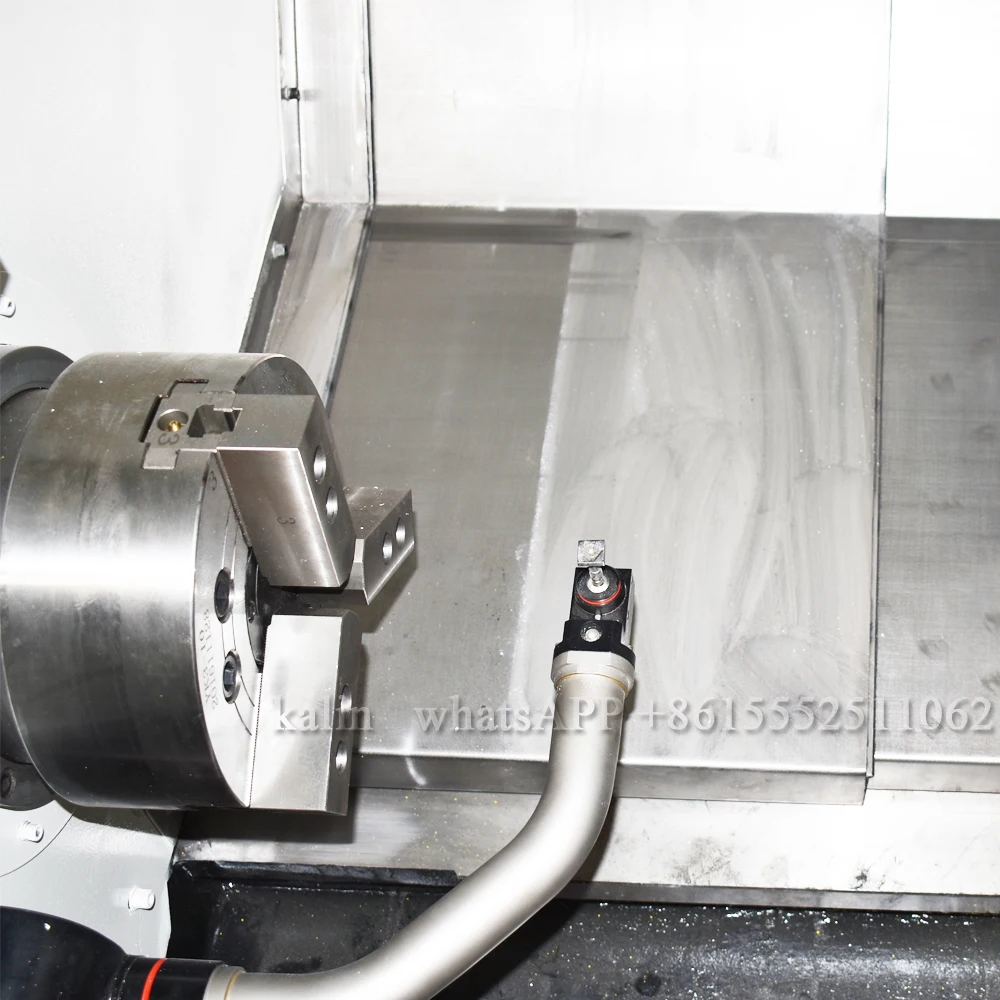

hollow 10" hydraulic chuck, with tailstock;
Certifications
Packing & Delivery
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep
your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
