Cylindrical tank shell pressure vessel dish end seal head surface polishing machine equipment
- Category: >>>
- Supplier: Anhui Jotun Import & Export Co. Ltd.
Share on (1600986923000):
Product Overview
Description
Products Description

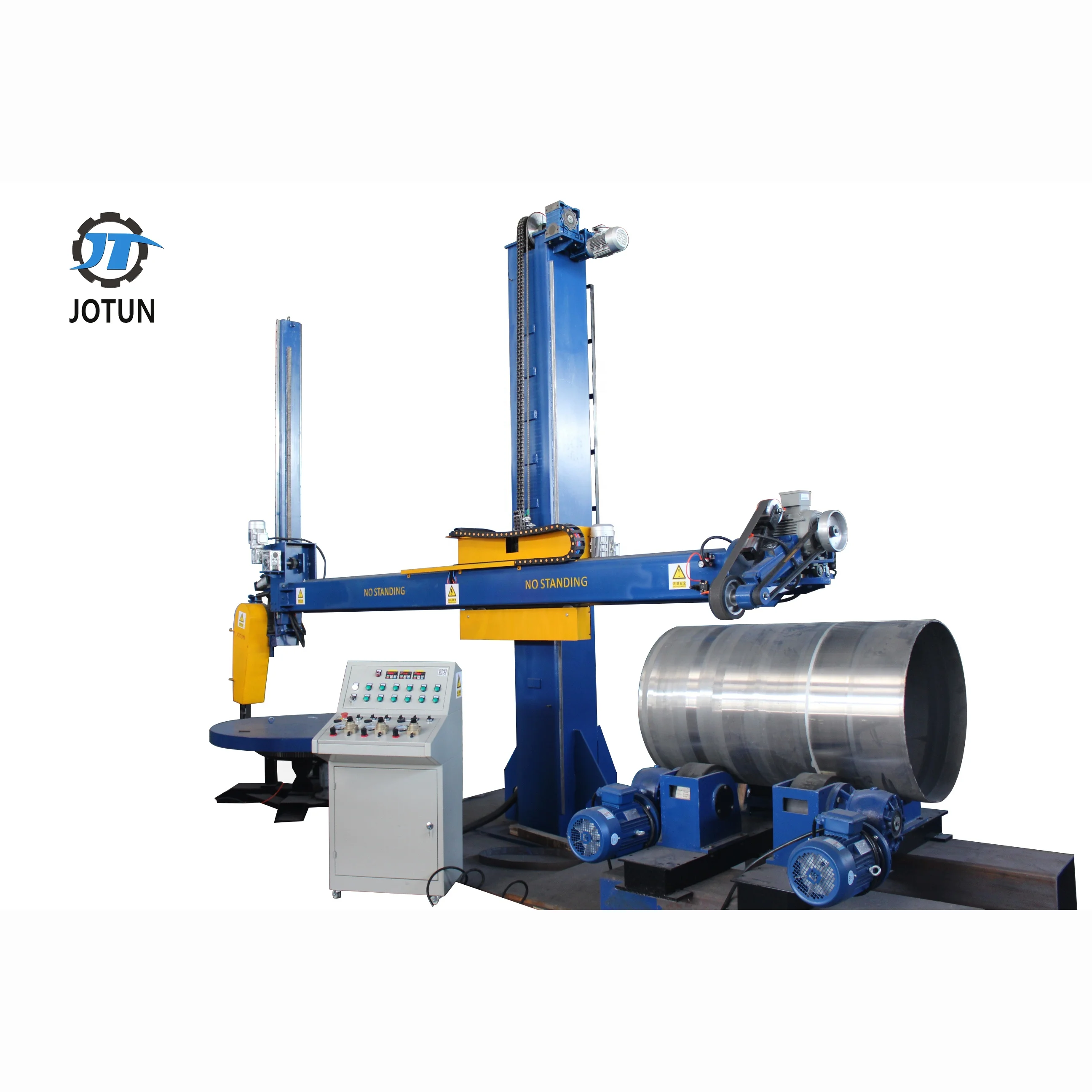

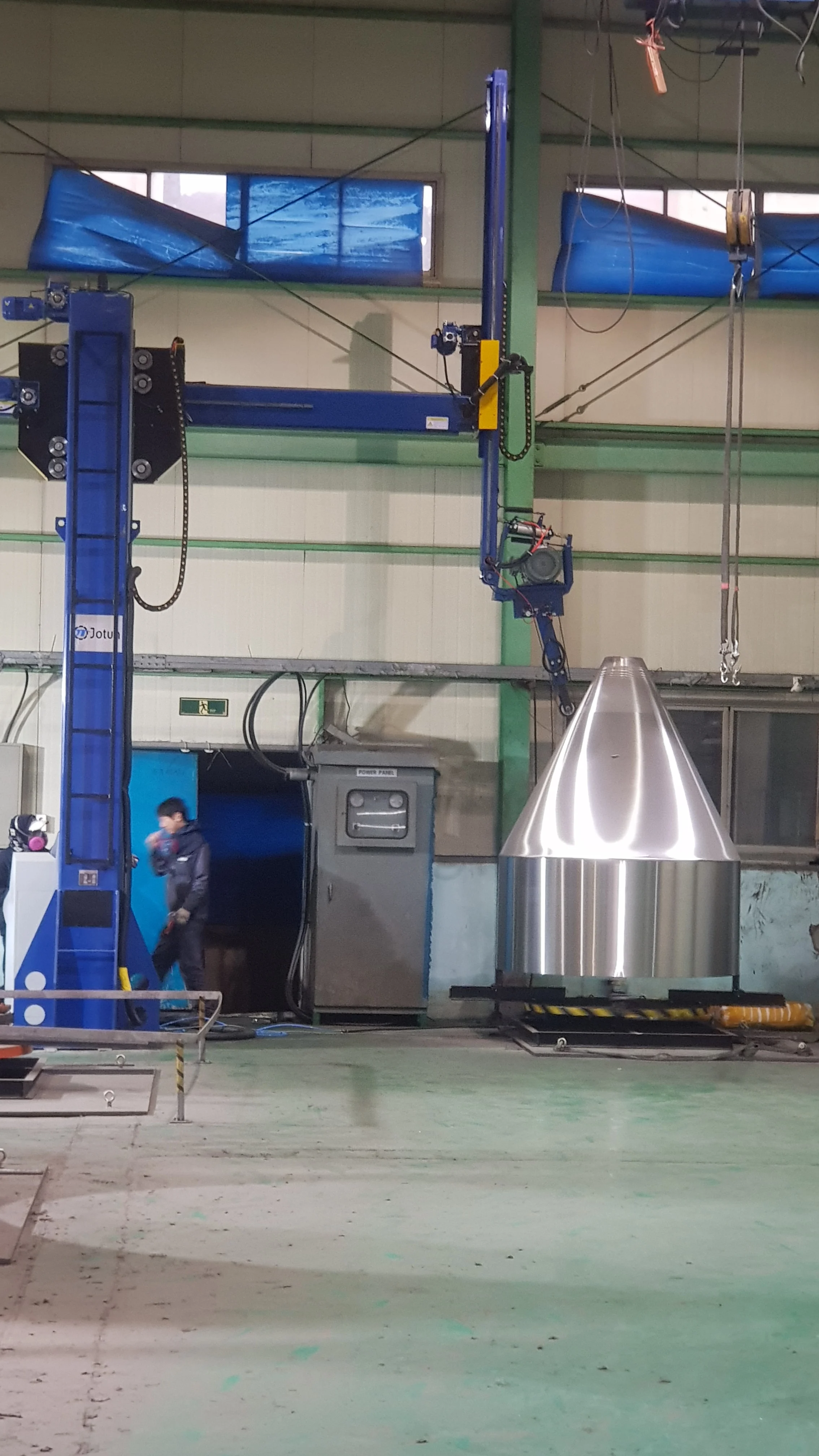

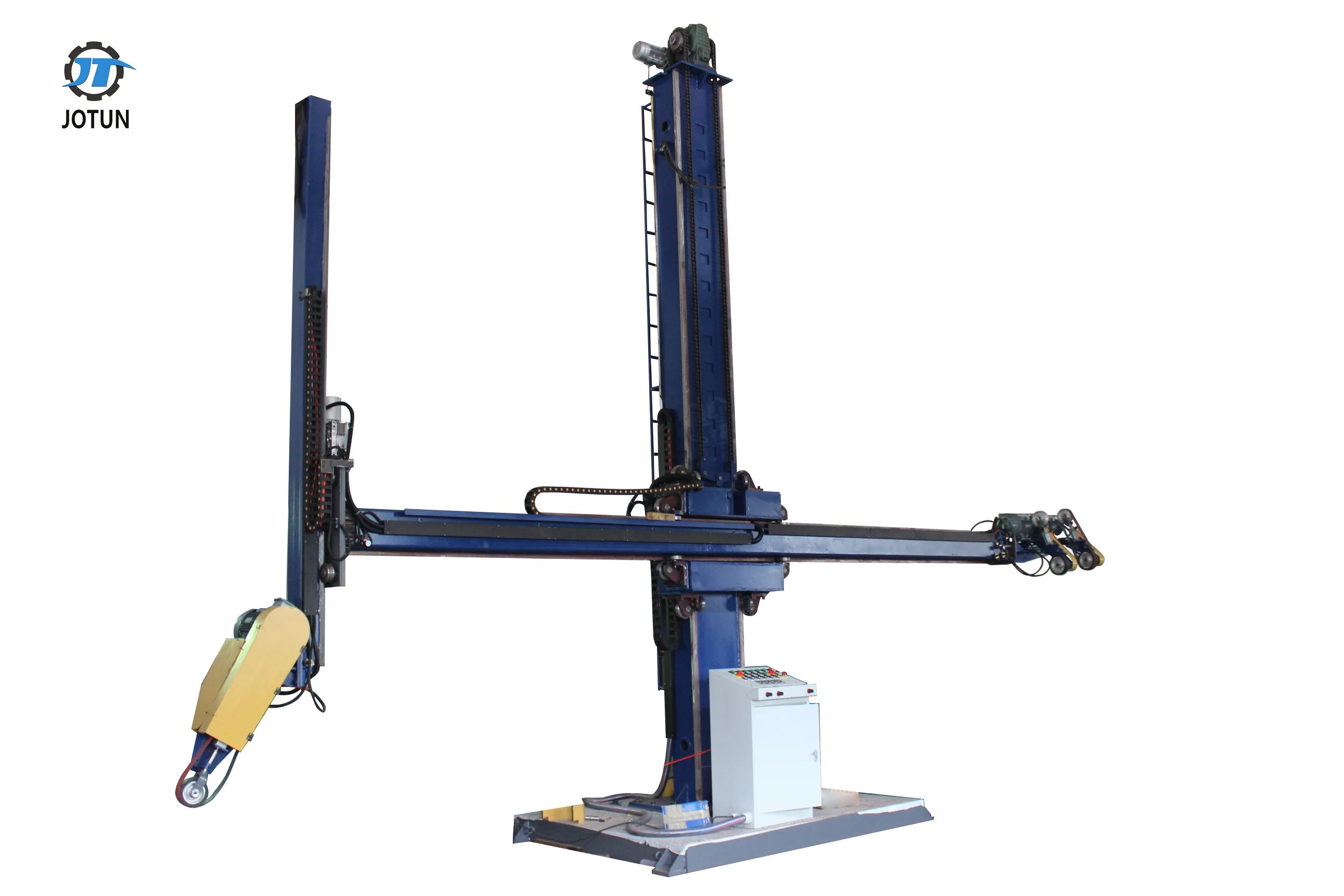

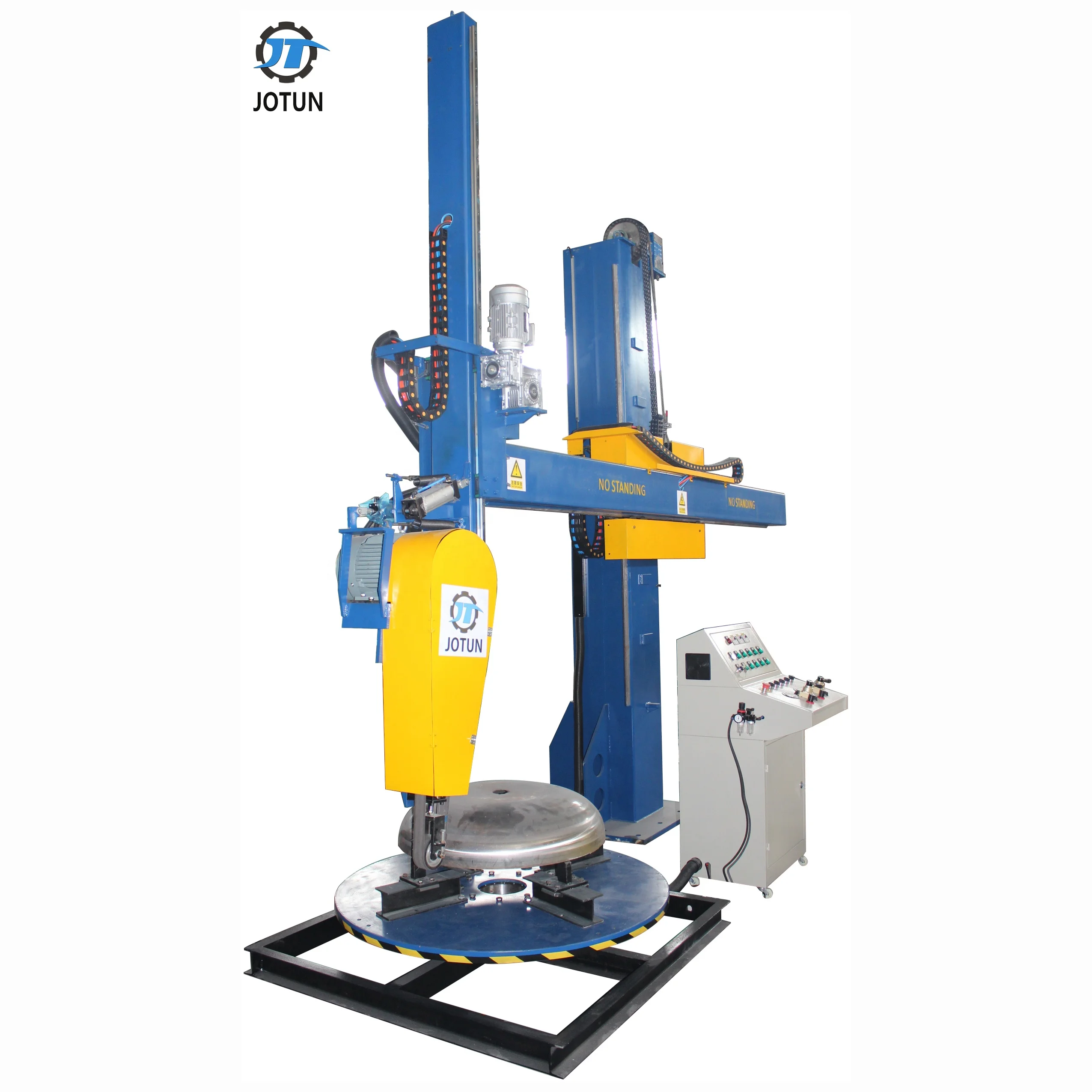

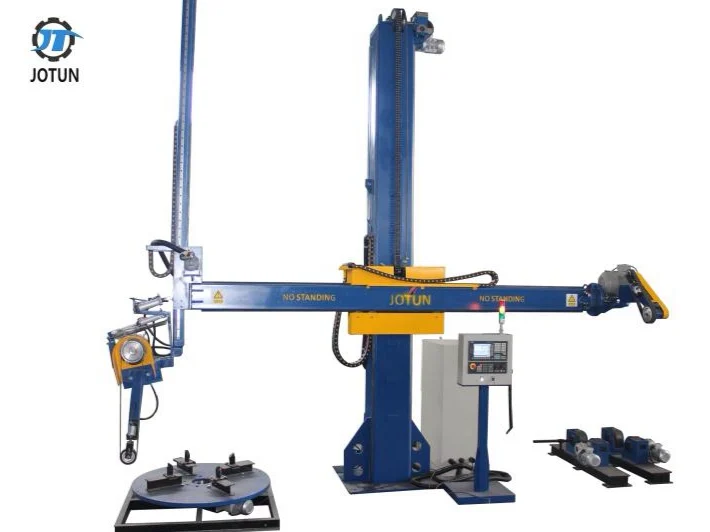

JT-CZJ Heavy Tank And Dished End Surface Polishing buffing Machine
1.This model can polish and grind for the different work piece of tank and grinding head through the different the grinding head of impeller then to meet the demand of polishing.the head polishing machine is extensive apply for the polishing of work piece in the range of medical,chemical,environmental purification,food,and beverage,water filtration,etc.
2.The lifting of the working arm adopts the turbine-vortex reducer and the sprocket, and the chain mechanism drives. Through the use of the counterweight, the lifting operation is stable, the vibration is small, and the mechanical wear is not easy. Since the reducer has a certain self-locking property, and the lift motor uses a brake motor, the work arm can be stopped and locked by lifting it to any position
Product Parameters
Model | JT-CZJ | ||||||
Machine dimension | 5500*1600*5000mm | ||||||
Machine weight | 3000kgs | ||||||
Total power | 10KW | ||||||
Grinding head motor | 5.5KW * 2 | ||||||
Tankrollers motor | 3KW *2 | ||||||
Turntable motor | 3KW | ||||||
Column motor | 0.55KW | ||||||
Beam motor | 0.37KW | ||||||
Abrasive belt size | 1600*50mm for tank shell ; 2500*50mm for dish head | ||||||
Main motor brand | WANNAN,CHINA | ||||||
VFD/Driven brand | DELTA,CHINA | ||||||
Polishing materials | abrasive belt,flap wheel,hemp wheel,cloth wheel,etc. | ||||||
Nothed | Our products all Non-Standard Customization(the above data for reference only) | ||||||
Specifications of Working Pieces | 800mm | 1000mm | ||||
Material | stainless steel,carbon steel, copper,aluminum | |||||
Work piece size | max diameter | 200-6000mm | ||||
max length | 10meters | |||||
Abraseive belt motor power | max weight | 10tons | ||||
Sanding belt + Universal rollers | max diameter | 400-6000mm | ||||
Conveying motor power | 1.5KW | max depth | 3000mm | |||
Lift Motor Power | 0.37KW | max weight | 010tons | |||
Surface Roughness | Ra ≤ 0.25 μm (Mirror Finished) | 1920*1400*2100 mm | 2100*1700*2100 mm | |||
Product efficiency | 8-10 square meters per hour | 1400kgs | 1600kgs | |||

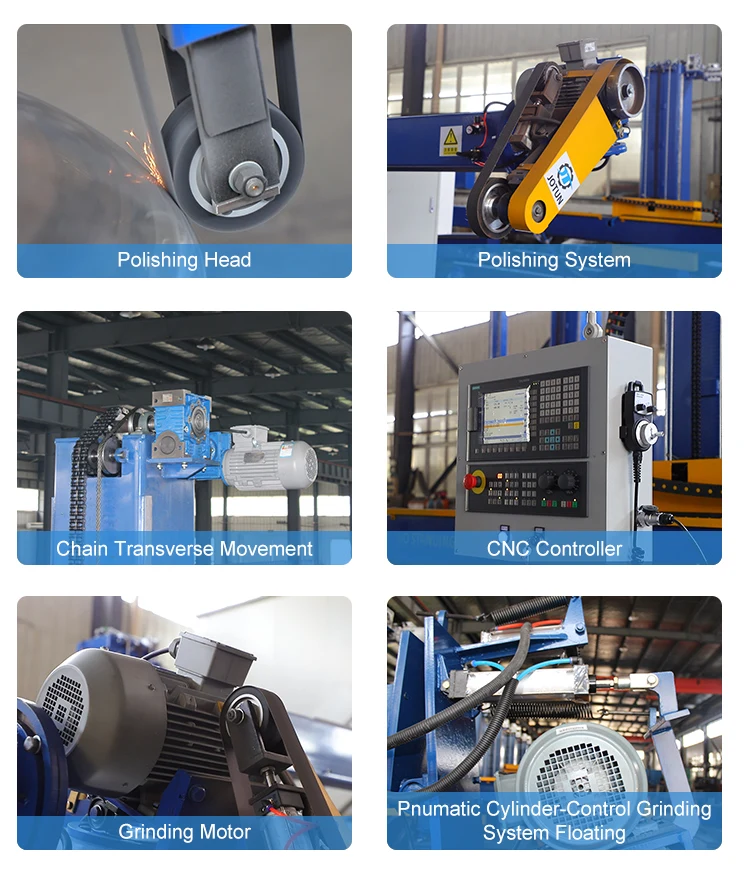

Details Images
Company Profile
China Jotun Polishing Machine supply professional
automatic grinding machine,polishing machine,deburring machine.
Main products are tank and dished end polishing machine, tube polishing machine,sheet deburring machine,weldseam polishing machine,etc.
Main Application Filed,
1,Pressure vessel industry. 2,Beverage & Brewery.
3,Chemical & Cosmetic. 4, Food & Dairy.
5,Pharmaceutical/CIP Plant 6,petrochemical industry
7, Truck tankers etc 8,Organic fuel production etc.
automatic grinding machine,polishing machine,deburring machine.
Main products are tank and dished end polishing machine, tube polishing machine,sheet deburring machine,weldseam polishing machine,etc.
Main Application Filed,
1,Pressure vessel industry. 2,Beverage & Brewery.
3,Chemical & Cosmetic. 4, Food & Dairy.
5,Pharmaceutical/CIP Plant 6,petrochemical industry
7, Truck tankers etc 8,Organic fuel production etc.
Related Products
Why Choose Us
Packing&Delivery
FAQ
Q:Why choose our machine?
A:We are polishing machine equipment MANUFACTURER, So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Can the machine be customized according to the special requirements of customers?
A:We are polishing machine equipment MANUFACTURER, So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Can the machine be customized according to the special requirements of customers?
A: We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.Please tell me your requirements first, then we can designed the suitable machine to you.
Q:How about delivery time?
A: 20-35days
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email.
A: 20-35days
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email.
Q: Do
Currently, we have service partners in Portugal, Tukey and India.
Currently, we have service partners in Portugal, Tukey and India.
Portugal and Turkey partners provide service for the European area.
In other areas, if needed, we will arrange an engineer from China.
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE,
At first we will show you after shipped we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs
clearance. If need, We can do other clearance documents, such as Certificate of Origin.
Q: How about warranty?
A: We provide a FREE ONE YEAR WARRANTY for machine parts. (Non-human factors) Lifetime technical support
and service, and consumables at the lowest price.
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE,
At first we will show you after shipped we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs
clearance. If need, We can do other clearance documents, such as Certificate of Origin.
Q: How about warranty?
A: We provide a FREE ONE YEAR WARRANTY for machine parts. (Non-human factors) Lifetime technical support
and service, and consumables at the lowest price.
