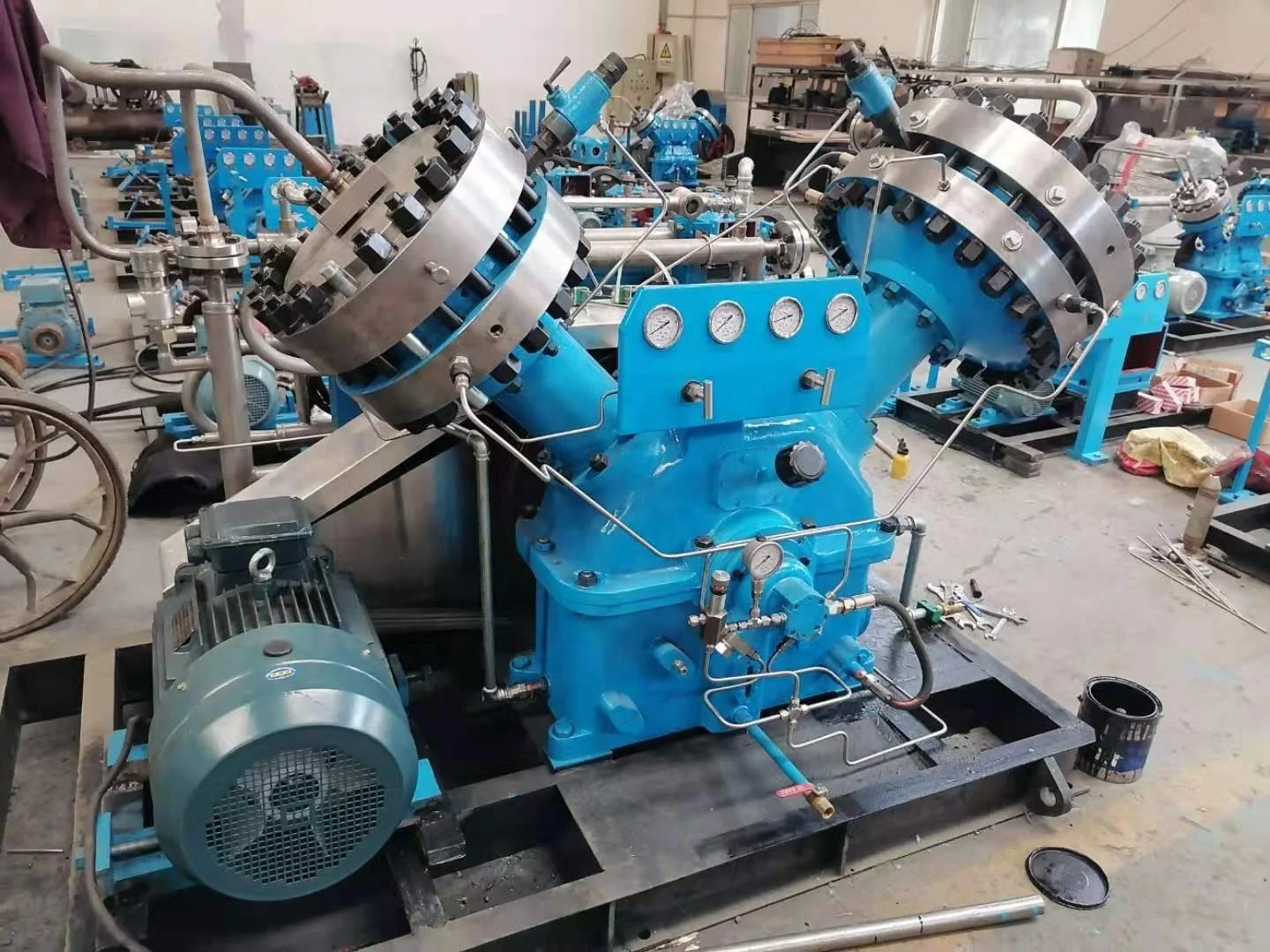

absolutely oil free high pressure 30mpa oxygen diaphragm compressor for oxygen cylinder filling
- Category: >>>
- Supplier: Henan Yuanju Machinery Equipment Co. Ltd.
Share on (1600986925876):
Product Overview
Description
Company Profile
Yuanju diaphragm compressor
Thanks to decades years of the rapid industry development in china ,the reciprocating technology is propelled and our clients can benefit from the competitive price, and diverse range of standardized
compressor , highly quality compressed process gas is achieved including ,but not limited to :air ,
oxygen ,nitrogen ,hydrogen,natural gas ,mixed gas.
Product Description

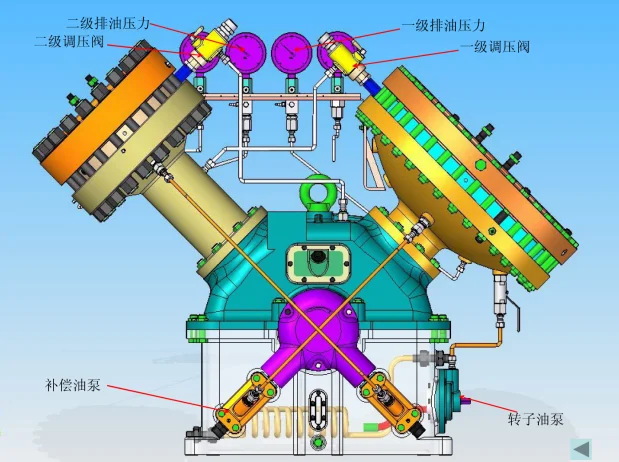

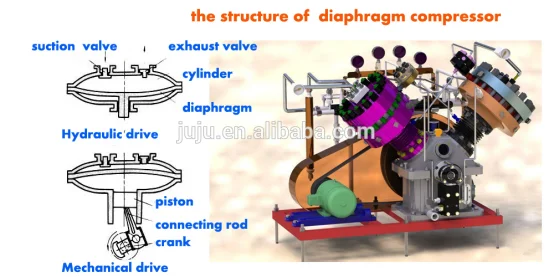

diaphragm compressor consist of compression system , membrane system, hydraulic lubrication system.
Continuously reciprocating piston movement drive the hydraulic oil ,thus which push metallic diaphragm set to compress the Gaseous in the cylinder of compressor. Membrane compressor consist of compression system and hydraulic lubrication system , also the two systems be completely separated by a set of metal diaphragm plates base on the static seal.
In view of the special structure design of diaphragm compressor different from common piston compressor,
it is suitable for small flow,Compression of flammable, explosive, corrosive and high outlet pressure gas.
Specification
Feature
---High purity of gas
----High discharge pressure
----High pressure ratio
-----No gas leakage
----low noise and low power of motor
-----Media gas can’t include water.
-----Max power be up to 160kw
-----0.5mm thickness of diaphragm
-----Splash and pressurized lubrication
----High discharge pressure
----High pressure ratio
-----No gas leakage
----low noise and low power of motor
-----Media gas can’t include water.
-----Max power be up to 160kw
-----0.5mm thickness of diaphragm
-----Splash and pressurized lubrication
High purity
Good quality compressed gas can be obtained for medical
and food industry.No any dust particles will make the gas
being pollutes in gas compression membrane chamber
due to the wear of sliding parts, which absolutely ensures
the gas before and after compression with the same purity.
Therefore, this kind of compressor is suitable for the press-
urization and transportation of high purity gas (such as elec-
tronic gas),breathing gas, and hydrogen in fuel cell technology.
High discharge pressure and pressure ratio
- Wide range of discharge pressure, the max pressure can be
up to 50MPa.
- During the compression the special structure brings good
heat dissipationand small clearance volume in chamber,
so the high pressure ratio is easily be achieved.
No gas leakage
- The gas compression chamber of compressor is sealed
- The gas compression chamber of compressor is sealed
through a metal static seal.

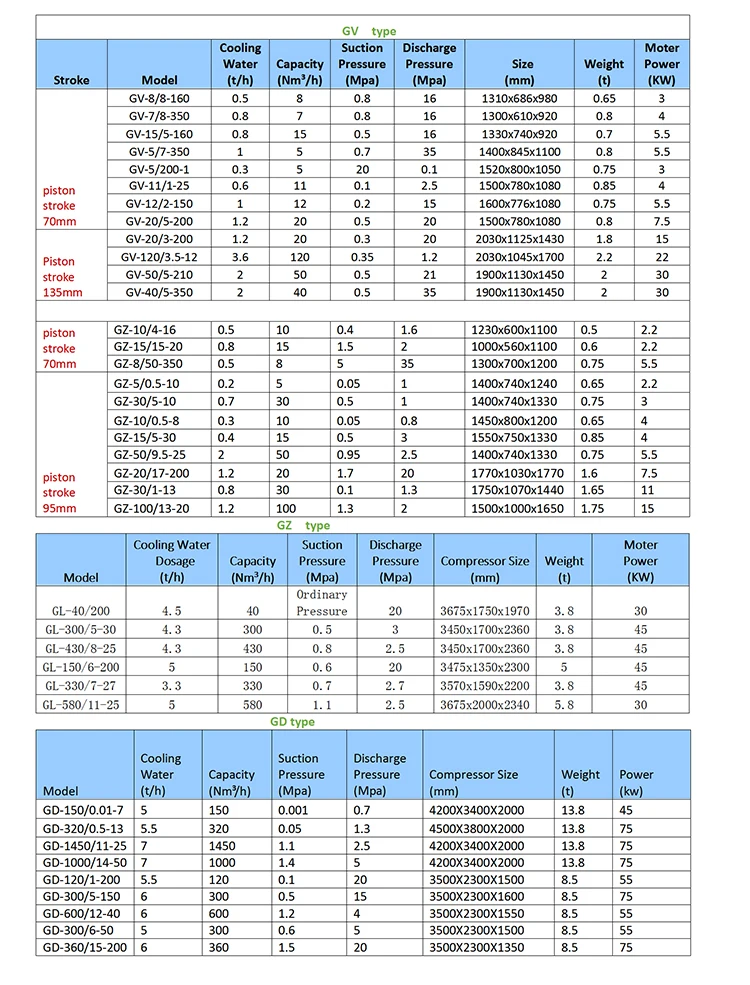

Product Paramenters
Diaphragm compressor | vertical type /balance type |
Power range | max power 160kw |
Cooled way | air cooled/water cooled |
Piston stoke | 50mm.70mm,90mm,135mm |
Piston force | max 16000KN |

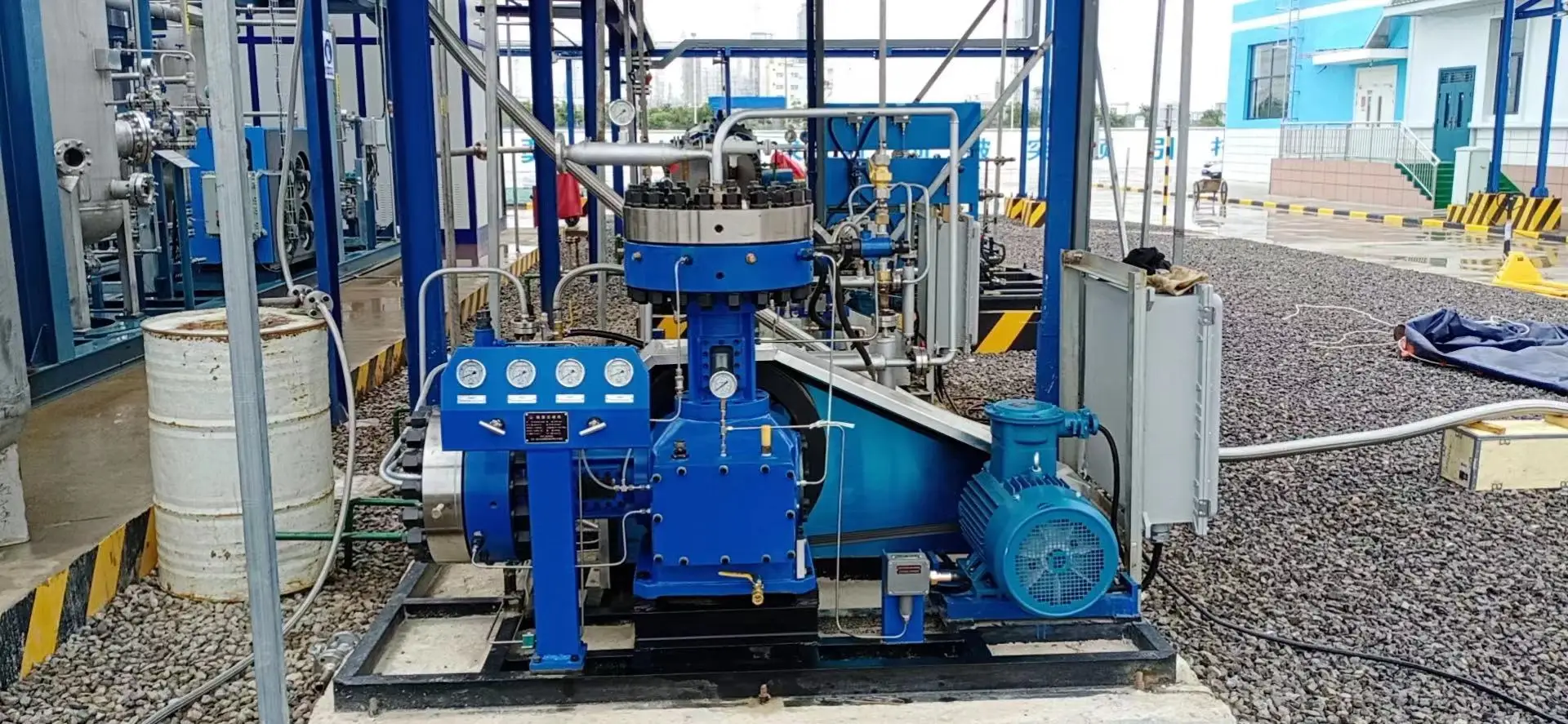

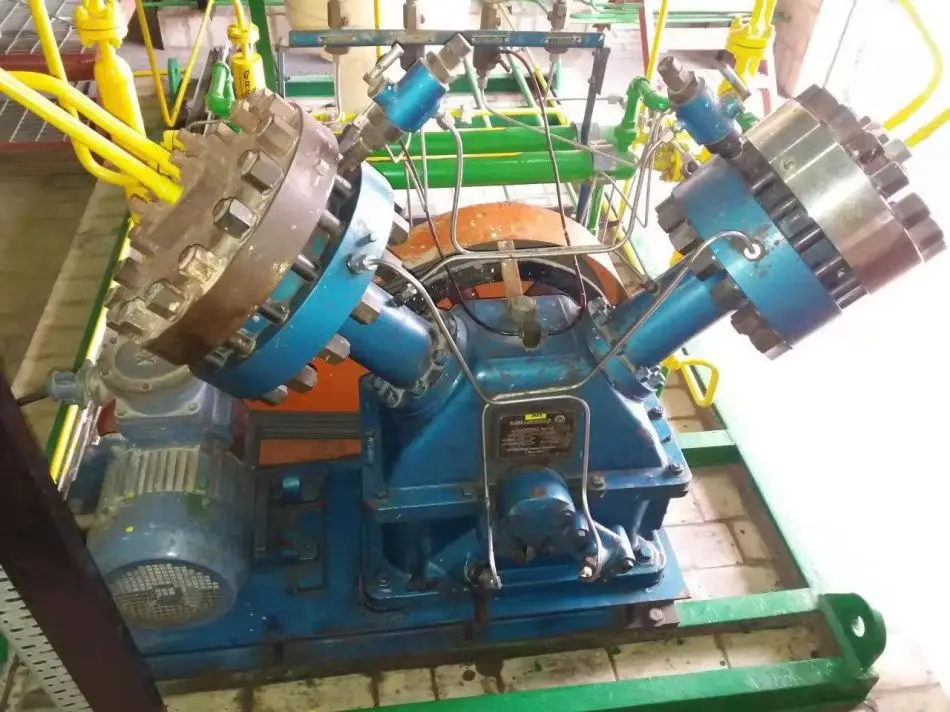

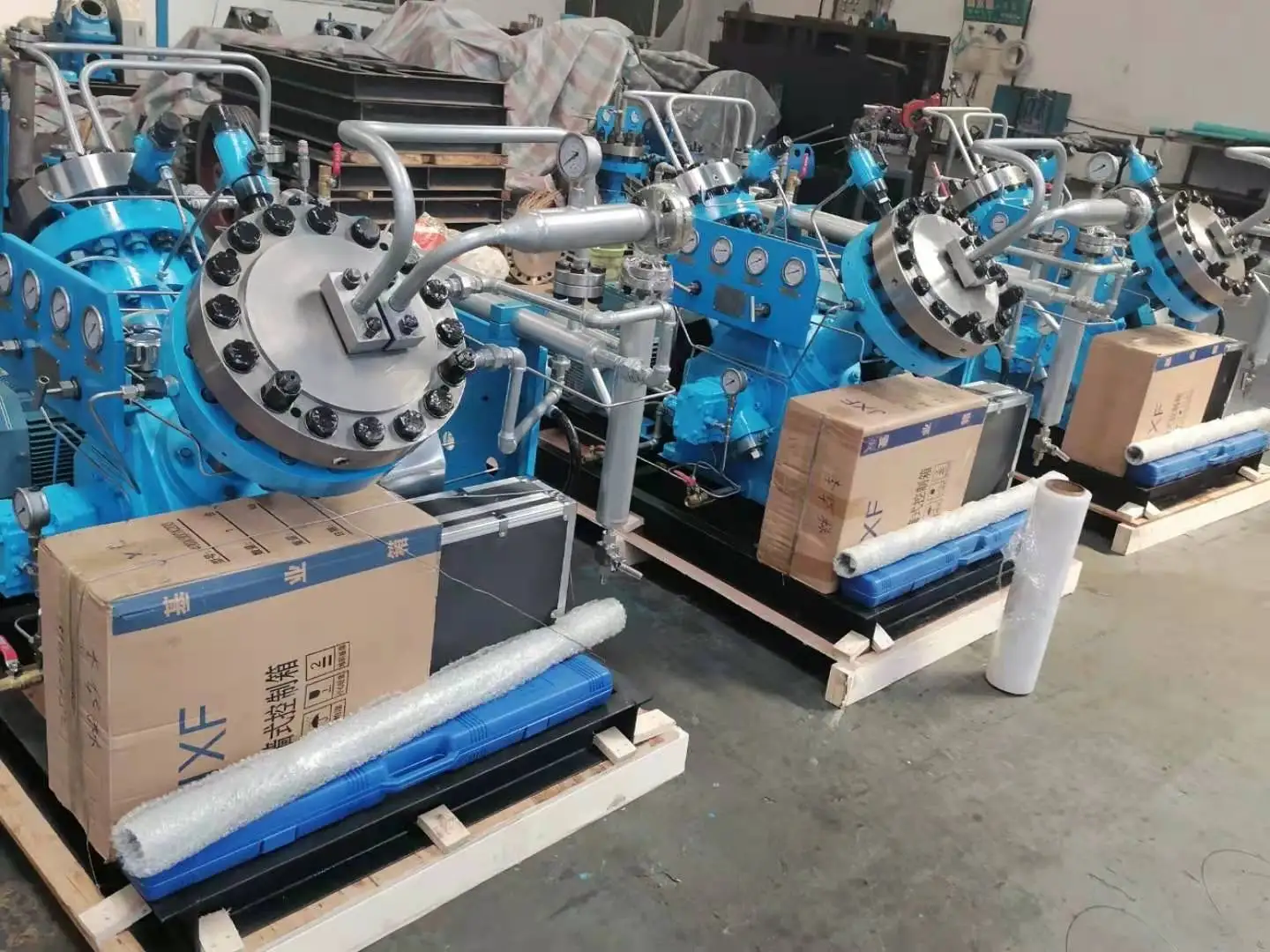

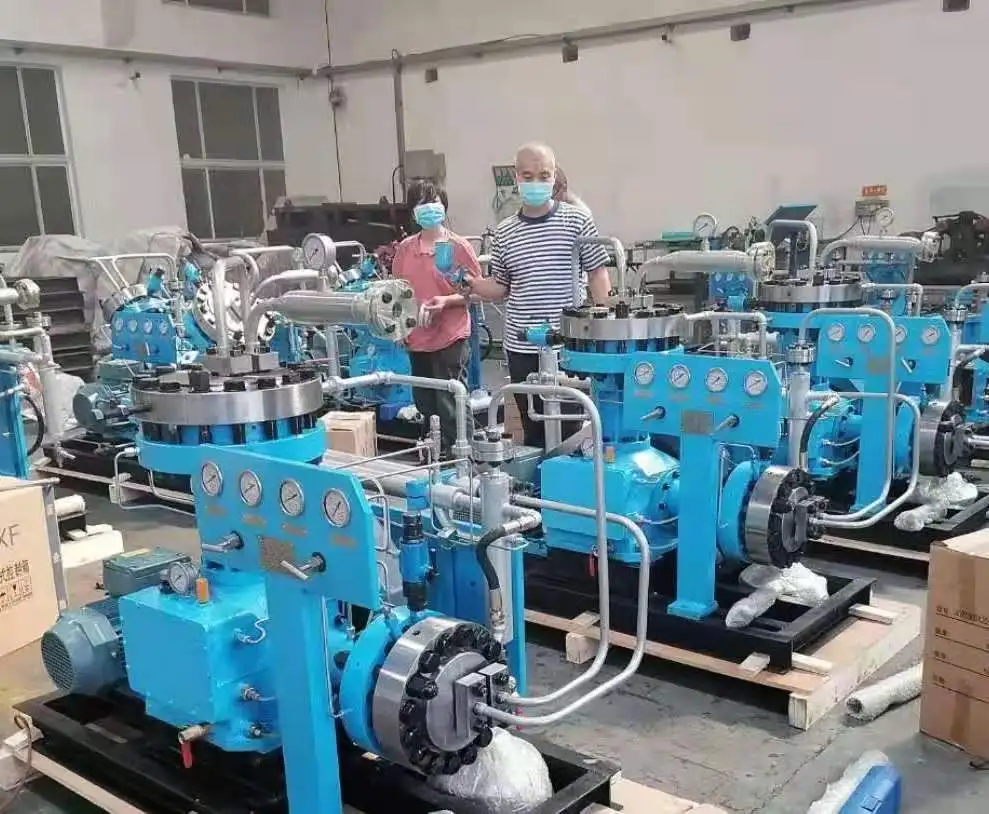

Case Show
wear parts replacement cycle
Excellent technical support
We provide a complete service from the first customer contact ,designing,manufacturing
to installation and commissioning,as well as the excellent after sales support.

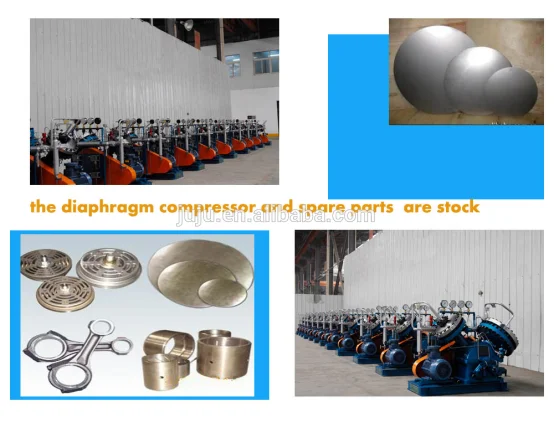

we have kept a large stock of compressor and spare parts.
low maintenance costs,just need to replace
the diaphragm.
