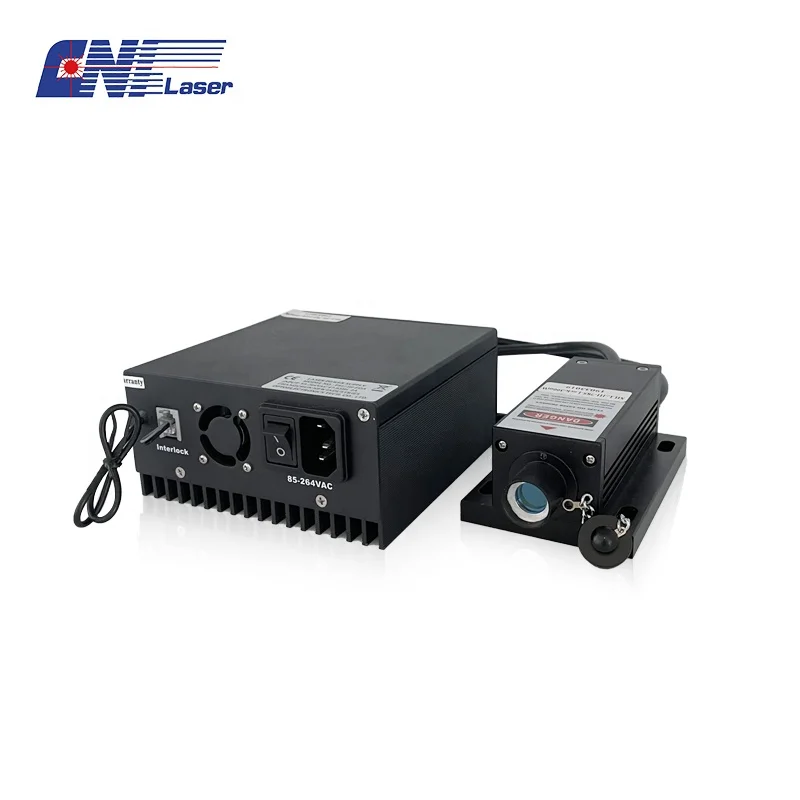

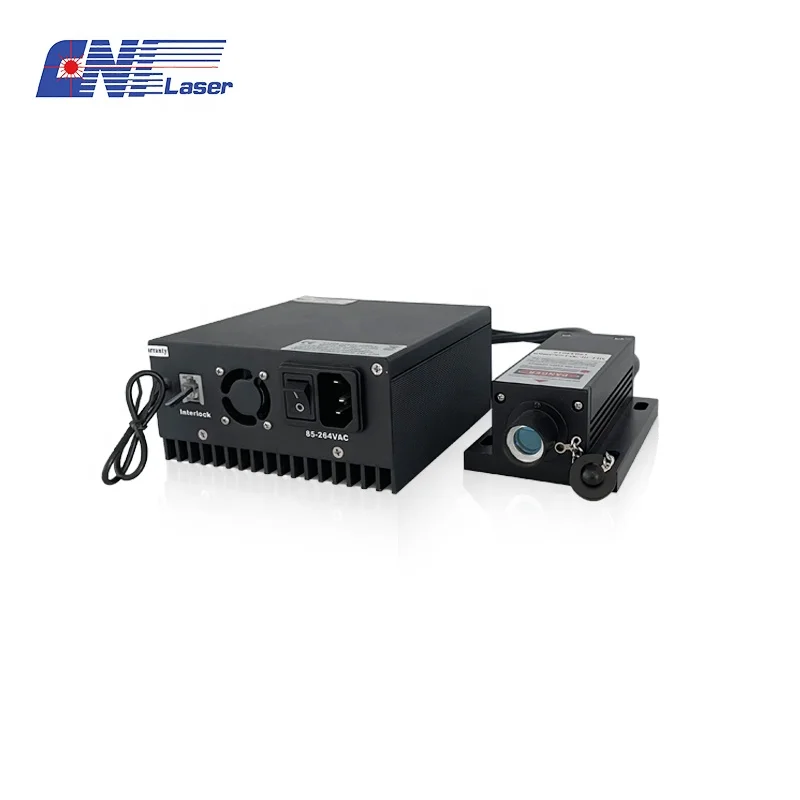

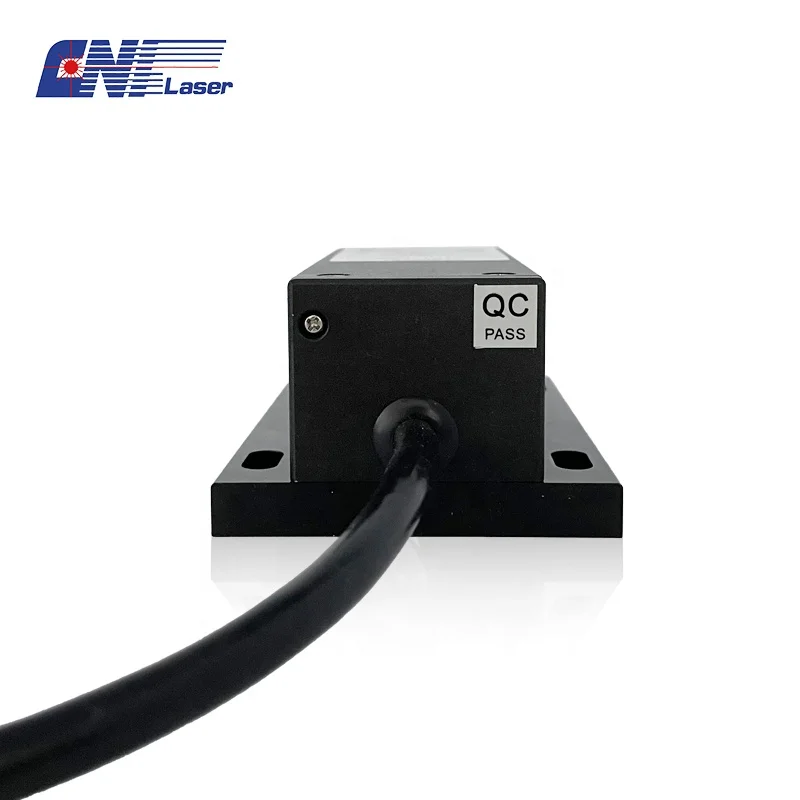

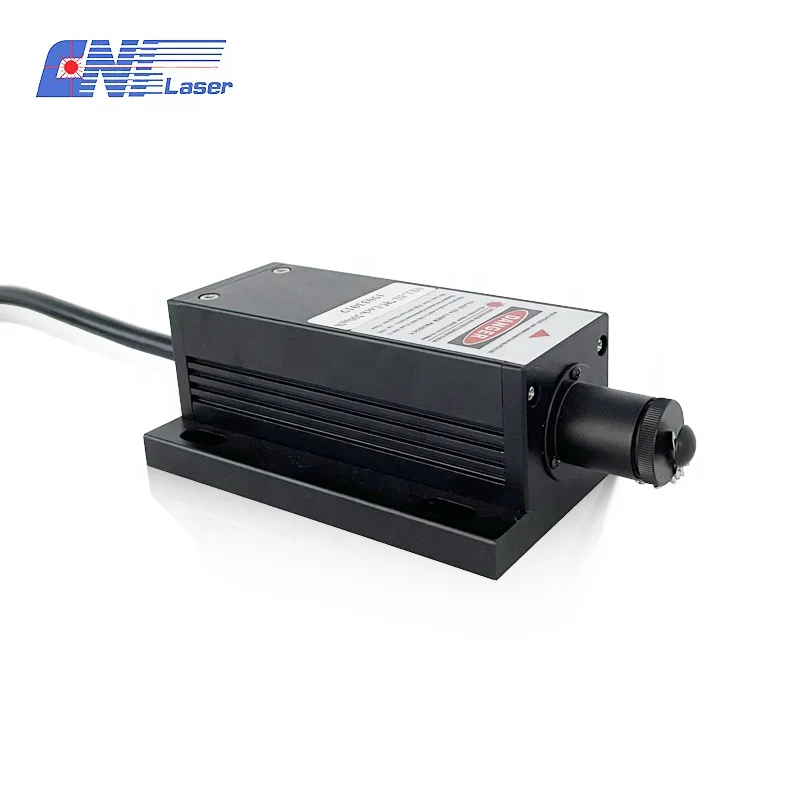

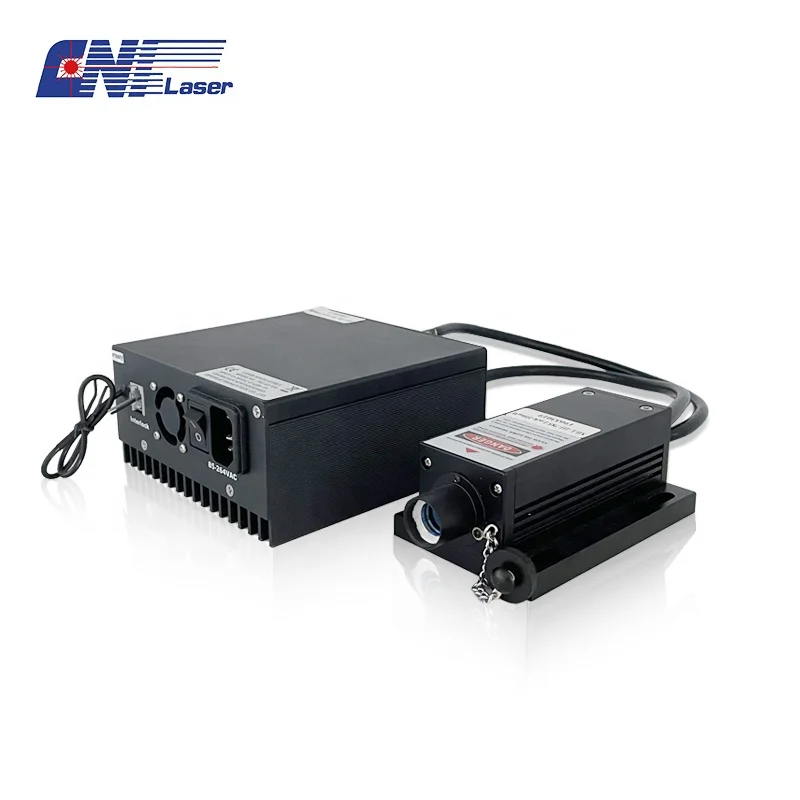

655nm long life convenient operation red laser diode module for measuring spectrum analyzer laser lighting show
- Category: >>>
- Supplier: Changchun New Industries Optoelectronics Tech Co. Ltd.
Share on (1600986935953):
Product Overview
Description
Product Description
Central wavelength (nm) | 650+ 13/-5 | 655± 10 | |||
Operating mode | CW | ||||
Output power (mW) | > 1, 10,20, … , 180 | ||||
Power stability (rms, over 4 hours) | < 1%, <2%, <3% (<0.5%, optional) | ||||
Transverse mode | Near TEM00 | ||||
M2 factor | < 1.5 (<1.2, optional) | ||||
Beam diameter at the aperture ( 1/e2,mm) | ~3.0 (~ 1.2, optional) | ||||
Beam divergence, full angle (mrad) | < 1.0 | ||||
Polarization ratio | >50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional) | ||||
Warm-up time (minutes) | <5 | ||||
Pointing stability after warm-up (mrad) | <0.05 | ||||
Beam height from base plate (mm) | 24. 8 | ||||
Operating temperature (C) | 10~35 | ||||
Power supply | 85-264VAC | PSU-III-LED/ PSU-III-FDA (Frequency for 1Hz-30kHz) | |||
100-240VAC | PSU-A-D (Frequency for 30kHz - 100kHz) | ||||
TTL / Analog modulation | TTL or Analog with 1Hz- 1kHz 1kHz- 10kHz, 10kHz-30kHz, 30kHz- 100kHz optional | ||||
Expected lifetime (hours) | 10000 | ||||
Warranty | 1 year | ||||
