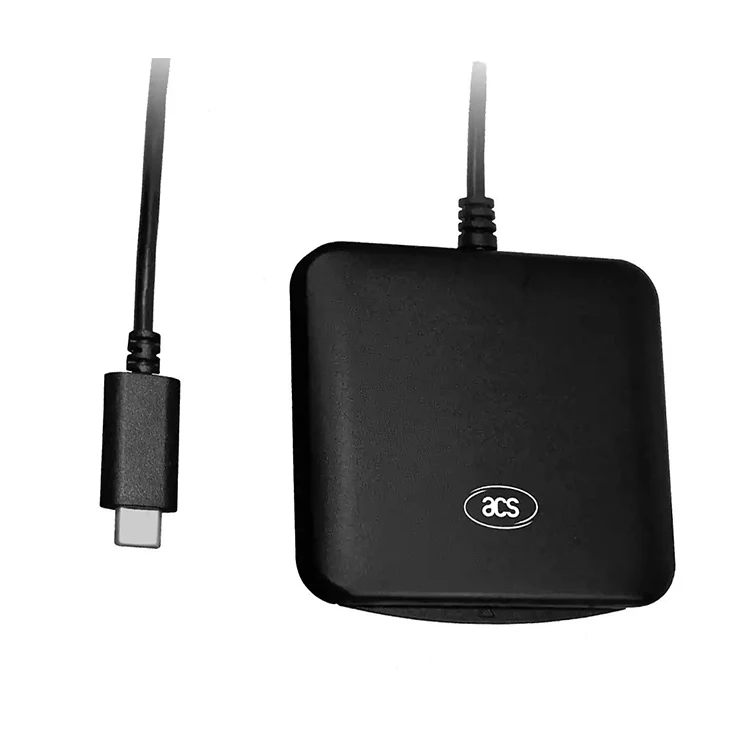

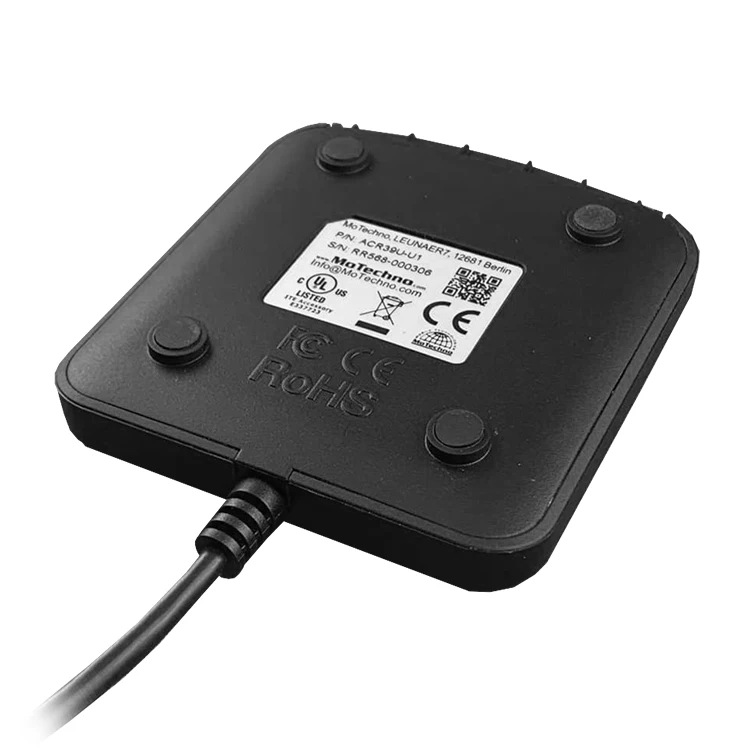

ISO 7816 IC Chip 13.56MHz Card Reader For Banking Payment ACR39U U1
- Category: >>>
- Supplier: Shenzhen Zhonghuanlian Technology Co. Ltd.
Share on (1600986979892):
Product Overview
Description
Product information

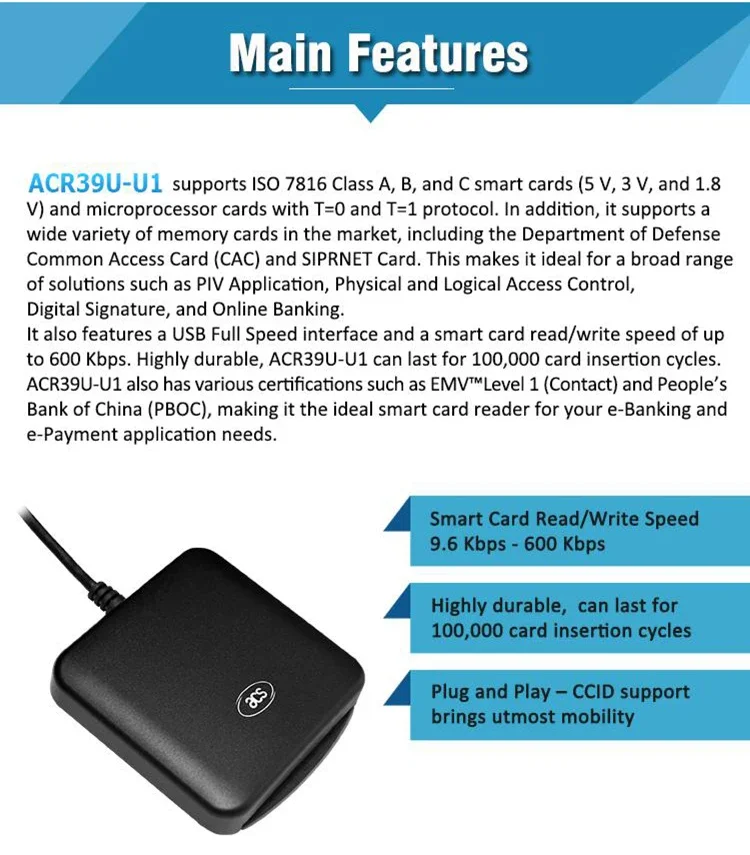

The ACR39U-U1 hails new and modern technology in the world of smart card readers. It is a compact and stylish smart card reader that brings together sophisticated technology with modern design to meet rigorous requirements in various smart card–based applications.
Cable Length | 1.5 m (Fixed) | Number of Slot | 1 Full-sized Card Slot | ||
Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) | Protocol | T=0; T=1; Memory Card Support | ||
Supply Current | Max. 50mA | Smart Card Read/Write Speed | 9.6 Kbps – 600 Kbps | ||
Short Circuit Protection | (+5) V/GND on all pins | Clock Frequency | 4.8 MHz | ||
Card Connector Type | Contact | Card Insertion Cycles | Min.100,000 | ||
LED | Green | PC-linked Mode | PC/SC CT-API (through wrapper on top of PC/SC) | ||
Temperature | 0 °C – 60 °C | Humidity | Max. 90% (non-condensing) | ||
MTBF | 500,000 hrs | Certifications/Compliance | EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL | ||

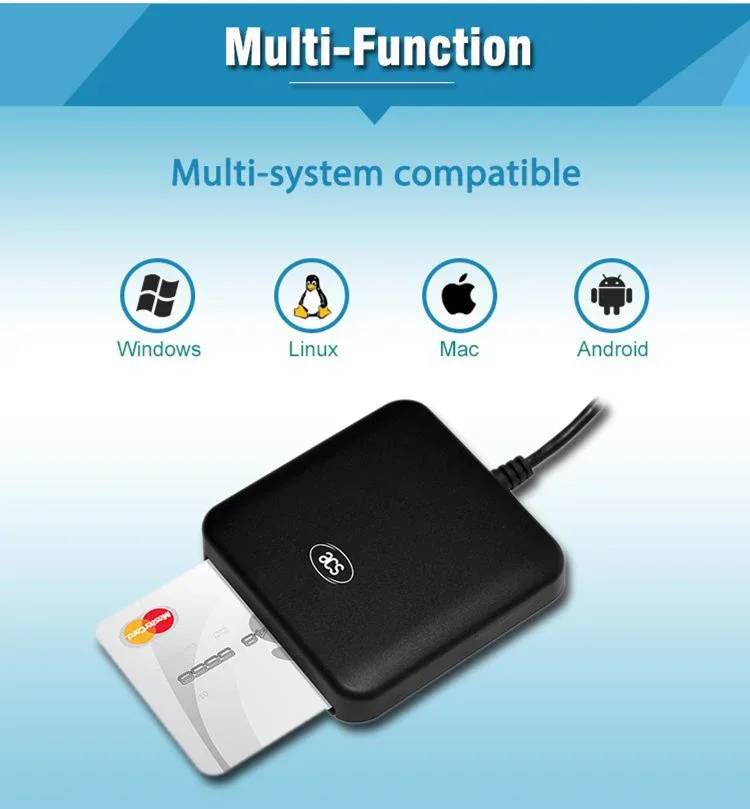

Device Driver Operating System Support | Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 LINUX/MAC/ANDROID | ||||
