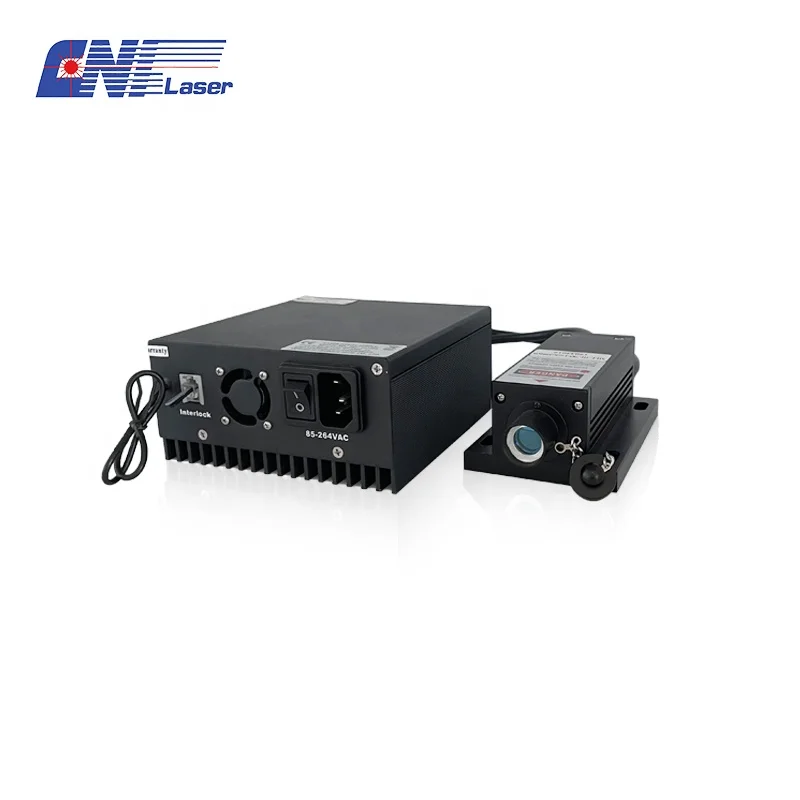

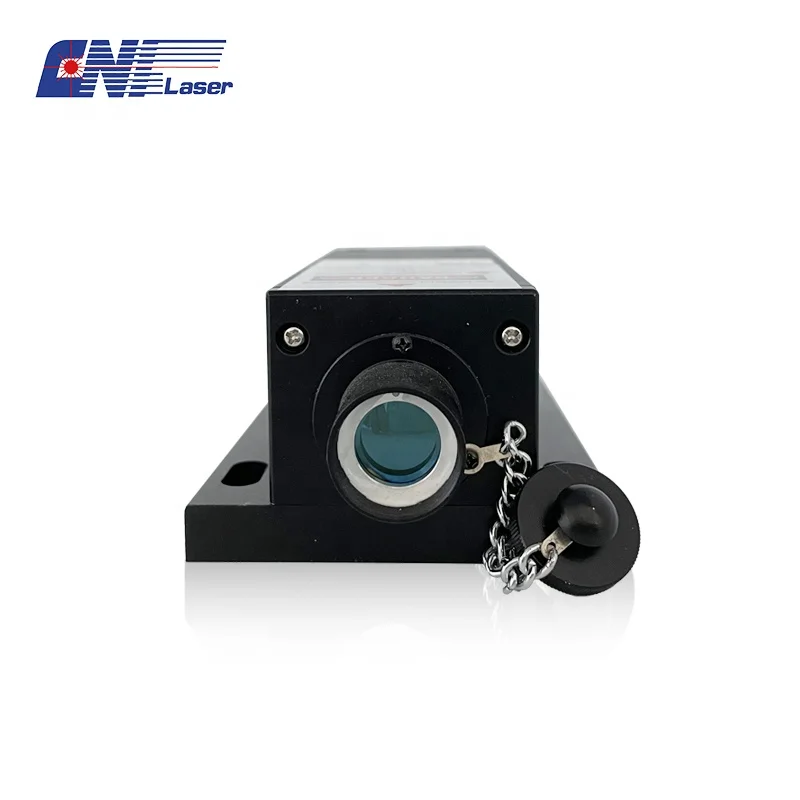

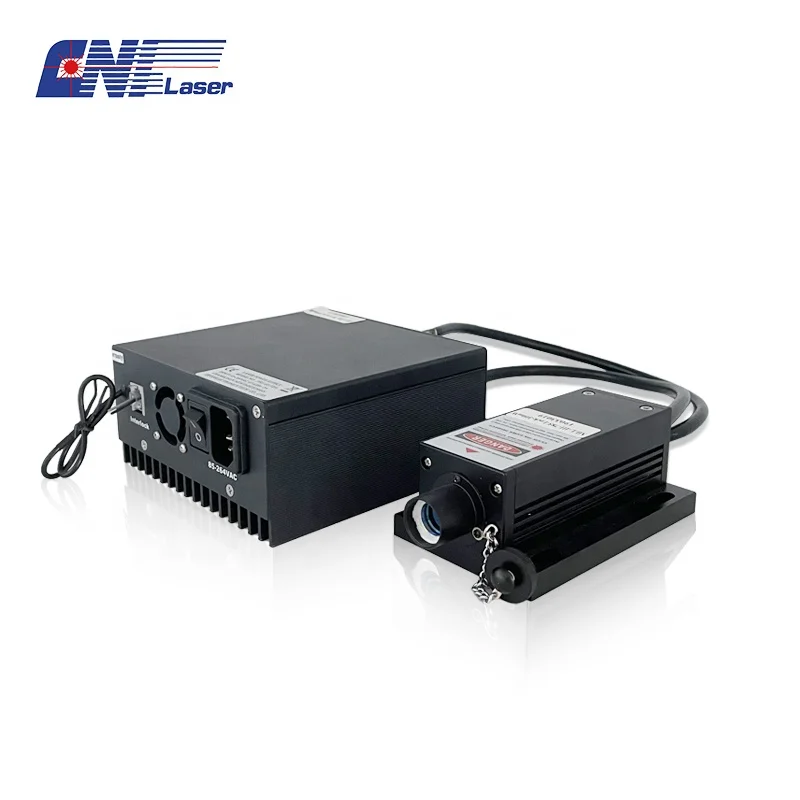

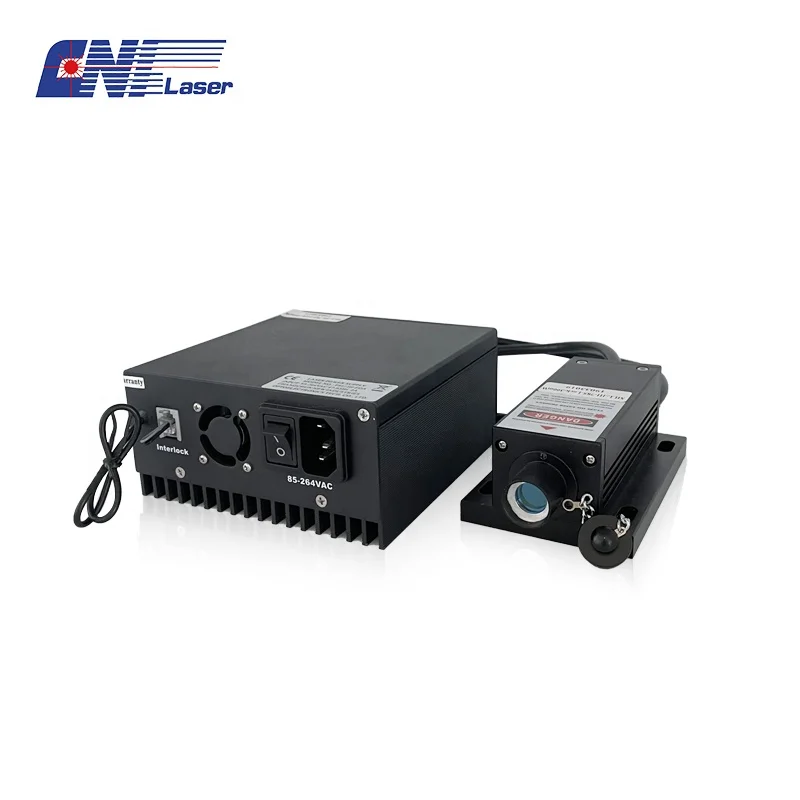

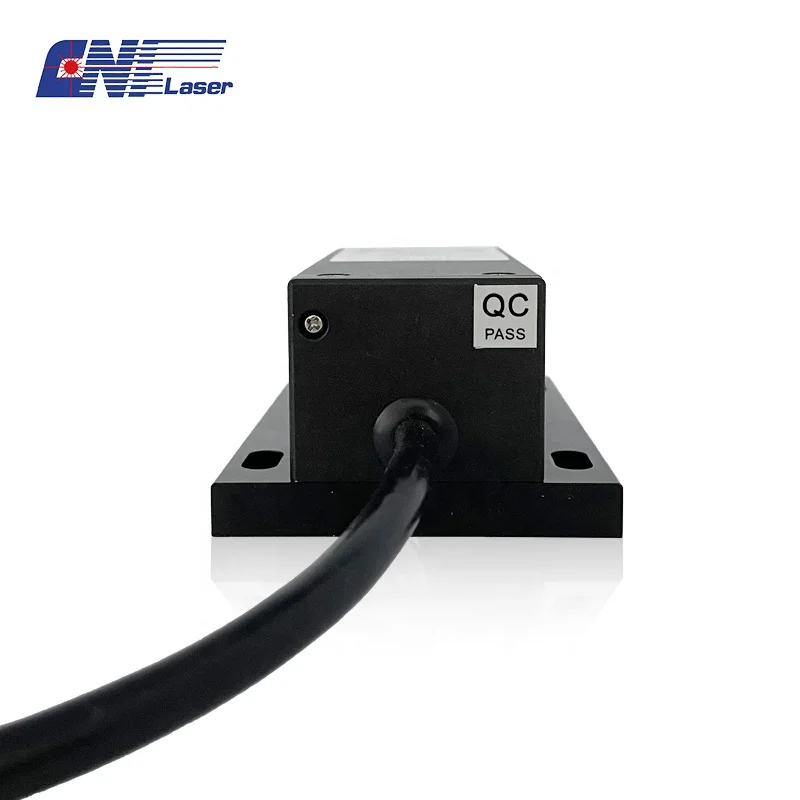

690nm long life convenient operation red laser diode module for measuring spectrum analyzer laser lighting show
- Category: >>>
- Supplier: Changchun New Industries Optoelectronics Tech Co. Ltd.
Share on (1600987051310):
Product Overview
Description
Product Description
Central wavelength (nm) | 690±5 | ||
Operating mode | CW | ||
Output power (mW) | > 1, 100, 200, … , 1300 | ||
Power stability (rms, over 4 hours) | < 1%, <2%, <3% (<0.5%, optional) | ||
Transverse mode | Multimode | ||
Beam diameter at the aperture (mm) | ~5×8 | ||
Beam divergence, full angle (mrad) | <3. 0 | ||
Warm-up time (minutes) | <5 | ||
Beam height from base plate (mm) | 24. 8 | ||
Operating temperature (C) | 10~35 | ||
Power supply | 85-264VAC | PSU-III-LED/ PSU-III-FDA (Frequency for 1Hz-30kHz) | |
100-240VAC | PSU-A-D (Frequency for 30kHz - 100kHz) | ||
TTL / Analog modulation | TTL or Analog with 1Hz- 1kHz 1kHz- 10kHz, 10kHz-30kHz, 30kHz- 100kHz optional | ||
Expected lifetime (hours) | 10000 | ||
Warranty | 1 year | ||
