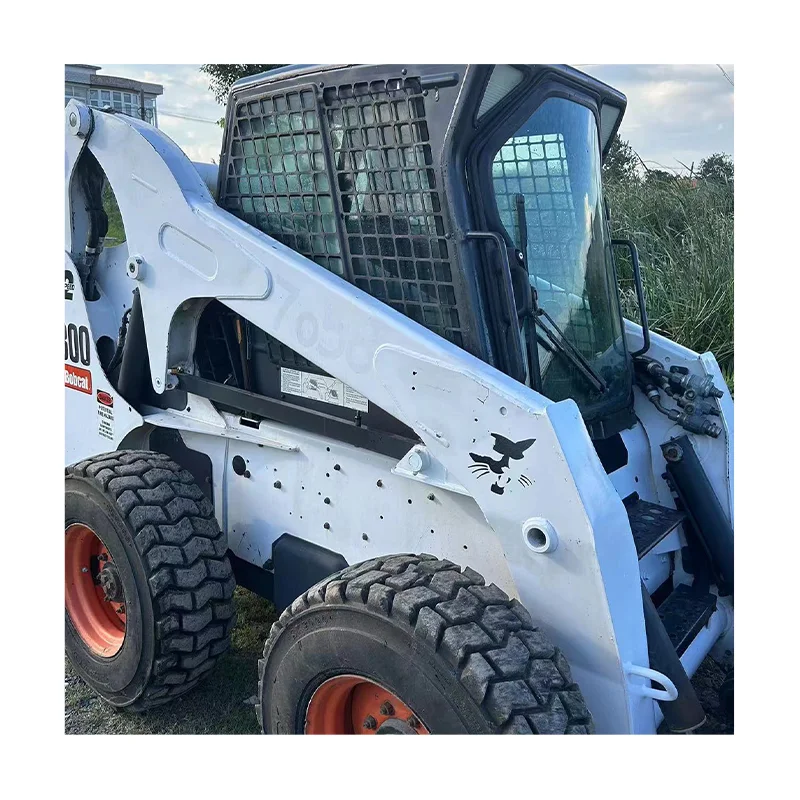

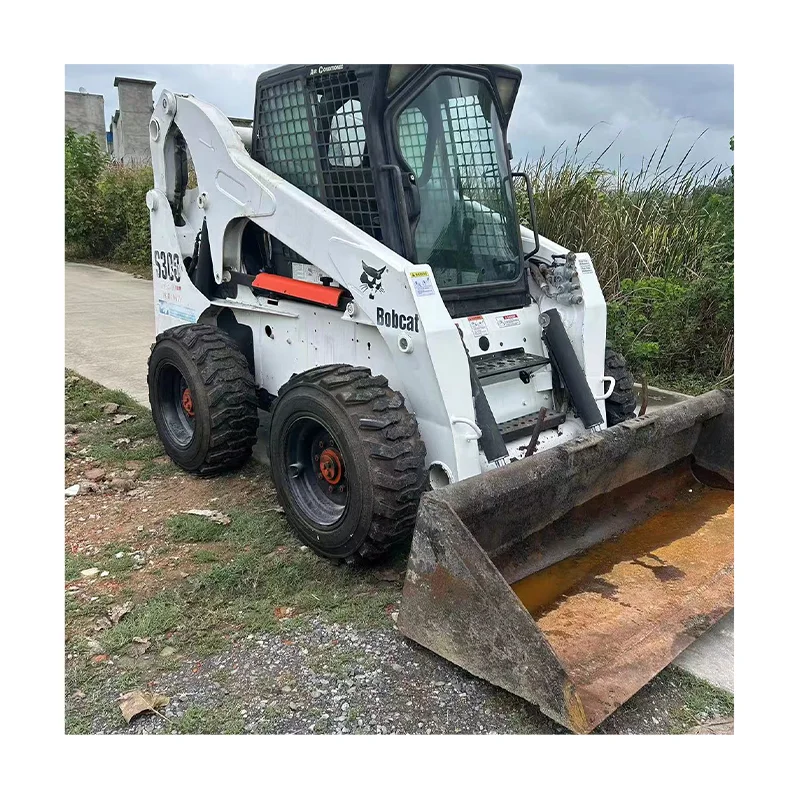

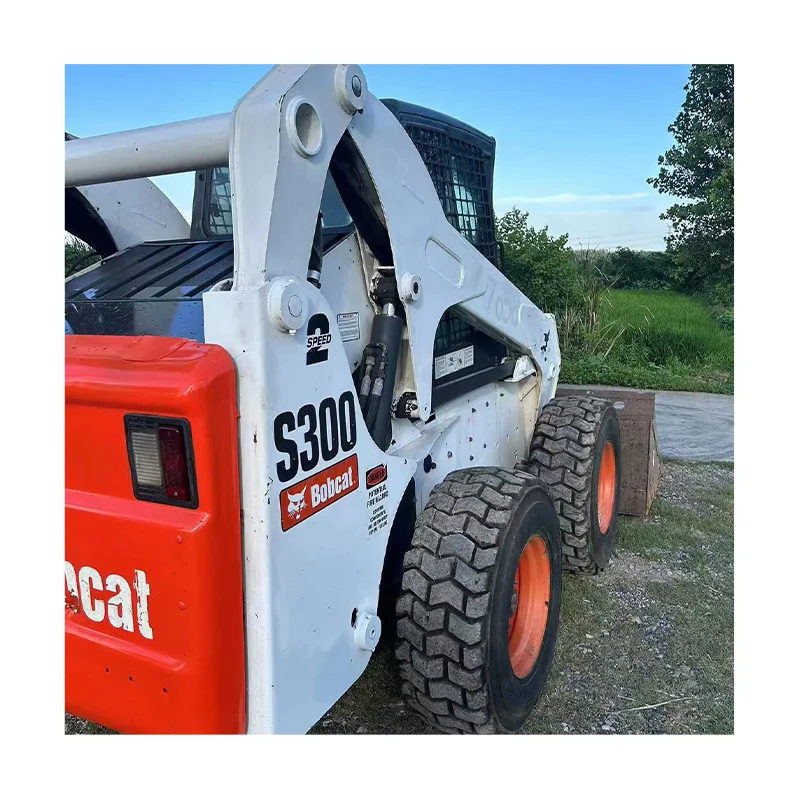

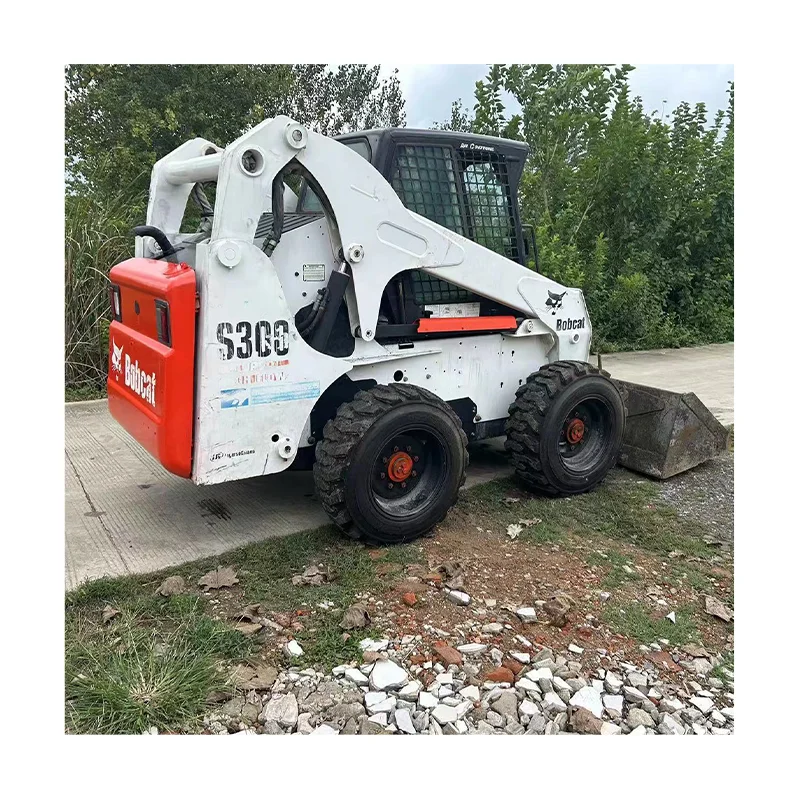

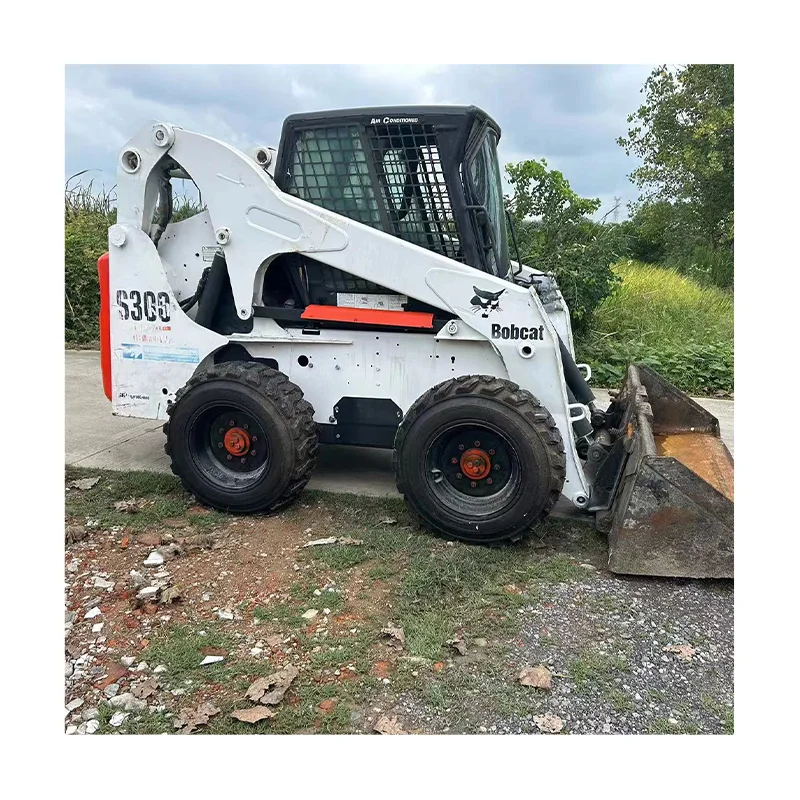

High Quality cat S300/S185 Second Hand Wheel Loader Machine Original Paint Mini Used Loader for Sale
- Category: >>>
- Supplier: Shanghai Shenhu Packaging Machinery Equipment Co. Ltd.
Share on (1600987052478):
Product Overview
Description
Products Description
Basic performance | Rated load (kg): | 1386 |
Overturning load (kg): | 2772 | |
Machine weight (kg): | 3750/3770 (high flow configuration) | |
Lifting mechanism form: | Vertical lifting | |
Engine | Engine type: | Kubota V3800-DI-TE3 |
Working form: | Turbocharging; Diesel direct injection | |
Rated power (kw/rpm): | 60kw（81 HP） | |
Maximum torque (N.m/rpm): | 295/1600 | |
Displacement (L): | 3.7 | |
Number of cylinders: | 4 | |
Through performance | Maximum driving speed (km/h): | 11.1/19.1 (dual speed option) |
Tire Size: | 12×16.5 | |
Front turning radius (with bucket) (mm): | 2139 | |
Departure Angle (°): | 26 | |
Hydraulic System | System Safety pressure (bar): | 228 |
System rated flow (L/min): | 78.4/140 (high flow configuration, optional) | |
Oil capacity | Fuel tank (L): | 87.1 |
Scope of work | Maximum unloading height (mm): | 2586 |
Unloading distance (at maximum height) (mm): | 864 | |
Bucket pin maximum height (mm): | 3272 | |
Unloading Angle (°) at maximum unloading height: | 41.9 | |
Scoop Angle at highest (°): | 96.1 | |
Bucket take-up Angle on the ground (°): | 30 | |
Machine specifications | Full length (no accessories) (mm): | 2934 |
Full length (with bucket) (mm): | 3630 | |
Full width (tire rim) (mm): | 1819 | |
Full width (bucket edge) (mm): | 2032 | |
Full height (to cab top) (mm): | 2055 | |
Wheelbase (mm): | 1227 | |
Minimum ground clearance (mm): | 213 |

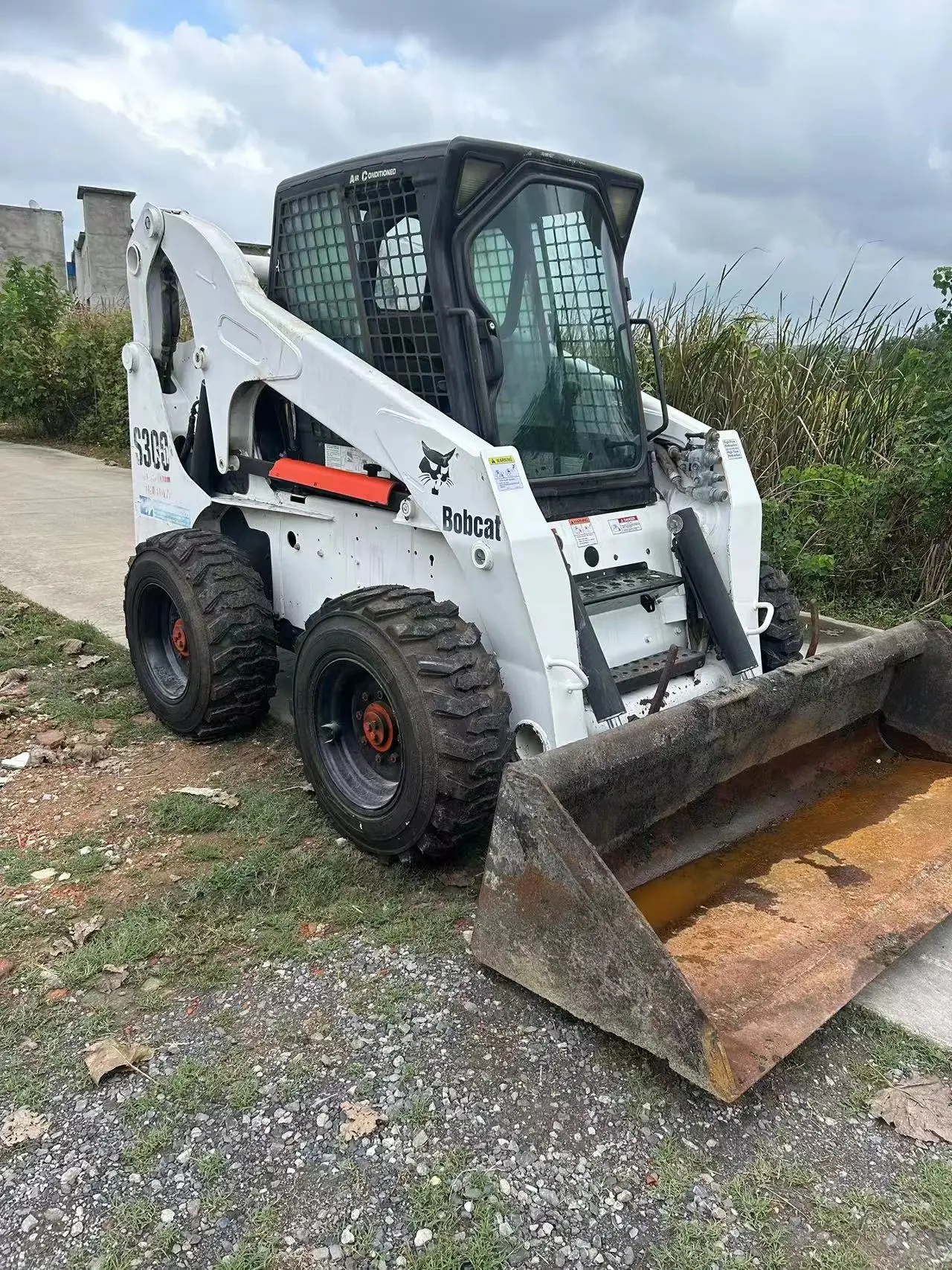

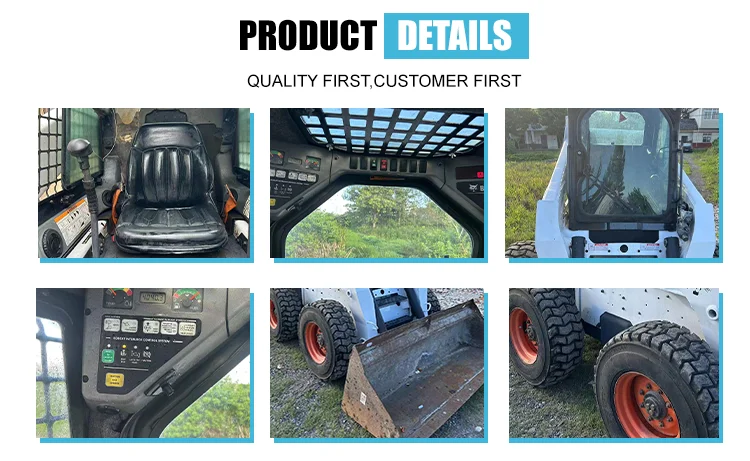

Details Images
