SC3013XM Machine Vision OCR Defect Detection 1.3 MP Deep Learning Mono CMOS Vision Sensor GigE Network Smart Industrial Camera
- Category: >>>
- Supplier: Hangzhou Huicui Intelligent Technology Co. Ltd.
Share on (1600987135017):
Product Overview
Description
Product Description
SC3000 Series
Integrated with imaging, processing, and communication functions, the SC3000 series has a more compact size, and the vision detection tools lead to better performance. Equipped with a new SCMVS for on-site deployment and lower debugging requirements, bringing a more comprehensive and cost-effective choice for visual inspection!

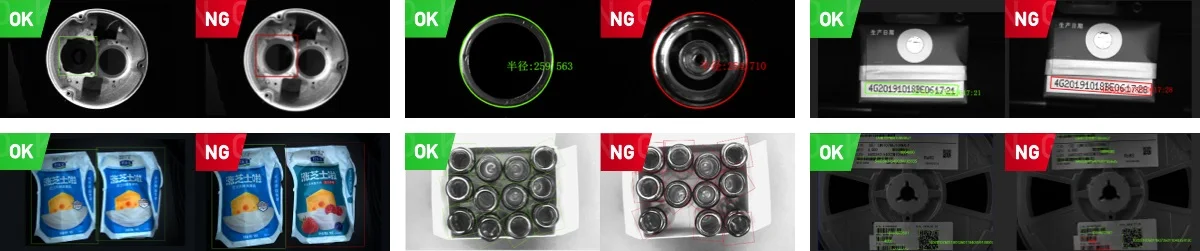

Comprehensive Error-proofing Detection Algorithm
Inspection solutions such as presence/absence, U/D, Positioning, counting, etc. are often used for error-proof inspection. More visual inspection tools can provide the optimal solution for parts of different shapes on the production line, making visual application easier.

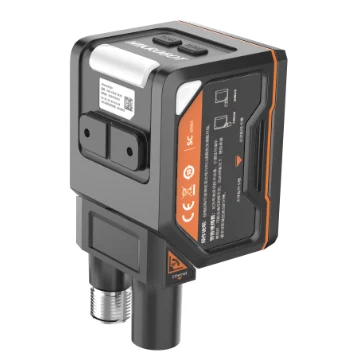

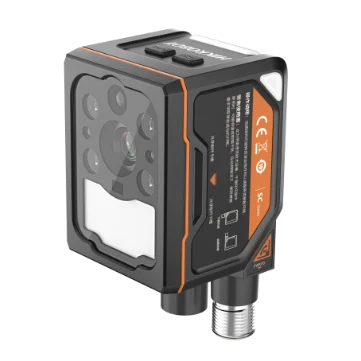

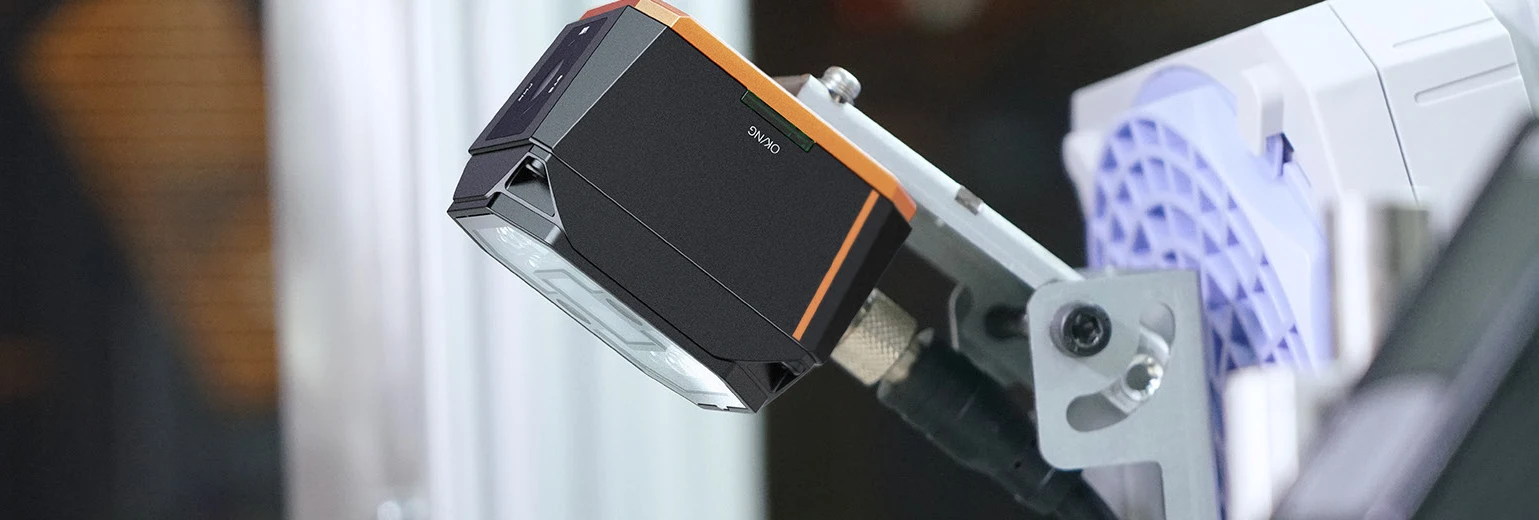

MV-SC3013XM
1.3 MP Mono Vision Sensor
Introduction
With built-in high-precision vision algorithms, MV-SC3013XM vision sensor can realize counting, existence, measurement, recognition, and other functions. It can be easily configured and operated via the SCMVS client software, and it uses RS-232 and Ethernet to output vision tool results and customized results.
Applicable Industry
Consumer electronics, food and pharmaceuticals, automobiles, etc.
Available Model
- 8 mm focal length: MV-SC3013XM-08M-WBN
- 12 mm focal length: MV-SC3013XM-12M-WBN
- 16 mm focal length: MV-SC3013XM-16M-WBN
Key Feature
- Adopts embedded hardware platform to realize high-speed image processing.
- Built-in high-precision positioning, measurement, and recognition algorithms for counting, defects, existence, positioning, and other functions.
- Supports RS-232, TCP, UDP, FTP, ModBus, PROFINET, EtherNet/IP, and other communication modes.
- Adopts multiple IO interfaces for input and output signals.
- Supports viewing the device’s status in real-time via 360° visual indicator, convenient for debugging and maintenance.
- Rotatable cable tail design, suitable for narrow spaces.
- Adopts polarized, diffused, and full-transparent multiple optical lighting with good environmental adaptability.
- IP67 protection without fear of harsh industrial application environments.
Easy-to-use Software

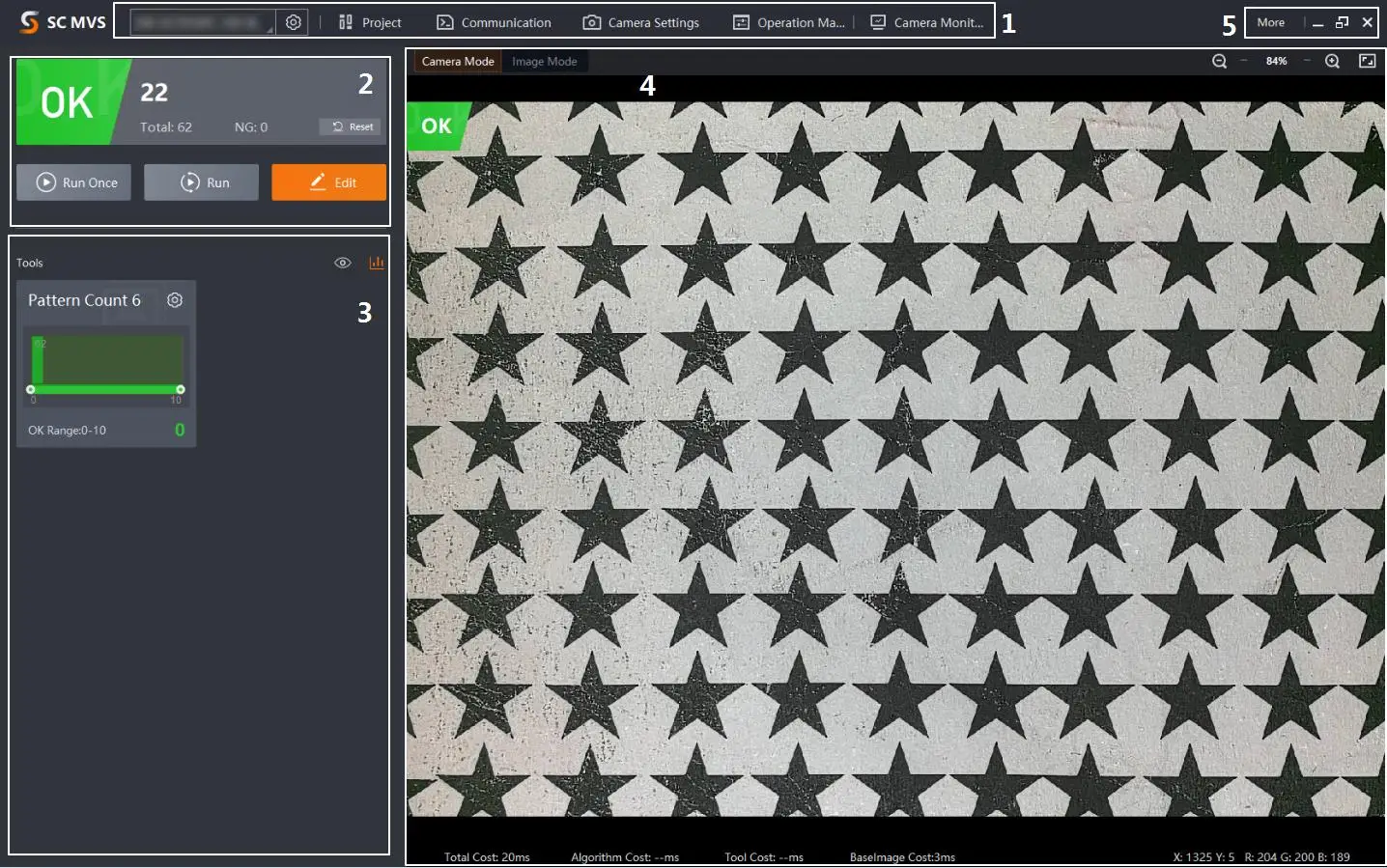

The SCMVS software equipped for SC3000 debugging shares a well-designed interface and useful vison tools, requiring less professionalism for engineers. It can also quickly filter suitable tools in the visualized display interface, and help to deploy real-time applications on site.
Parameters
| Model | Product Model | MV-SC3013XM-08M-WBN |
| Type | SC3000X series vision sensor,08mm focal length,1.3MP,Mono | |
| Tool | Vision tool | Count: Spot count, edge count, pattern count, contour count Defect detection: Exception detection Existence: Circle existence, line existence, spot existence, edge existence, pattern existence, contour existence Location: Match calibration, match location, position fixture Logic tool: If module, condition judge, logic judge, combination judge, string comparison, calculator Measurement: L2L angle, diameter measurement, brightness analysis, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurement Recognition: OCR, code recognition, classification registration, object detection registration Deep learning: DL object detection, DL classification |
| Solution capacity | Supports importing and exporting projects, up to 32 projects can be stored. | |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV | |
| Camera | Sensor type | CMOS, global shutter |
| Pixel size | 6.9 µm × 6.9 µm | |
| Sensor size | 1/1.45" | |
| Resolution | 1216 × 1024 | |
| Max. frame rate | 60 fps | |
| Dynamic range | 77.8 dB | |
| SNR | 43 dB | |
| Gain | 0 dB to 15 dB | |
| Exposure time | 6 μs to 1 sec | |
| Pixel format | Mono 8 | |
| Mono/color | Mono | |
| Electrical feature | Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including Opto-isolated input (LINE 0/1/2) × 3, Opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1 Supports triggering device via pressing top trigger button | |
| Power supply | 24 VDC | |
| Power consumption | Approx. 6.5 W@24 VDC | |
| Mechanical | Lens mount | M12-mount, mechanical autofocus supported |
| Focal length | 8 mm (0.3") | |
| Lens cap | Polarized + diffused + full-transparent lens cap | |
| Light source | White spot light source. Red/blue/IR point light source is optional | |
| Aiming system | Orange LED | |
| Indicator | 360° visual indicator | |
| Dimension | Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6") | |
| Weight | Approx. 190 g (0.4 lb.) | |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | SCMVS |
| Certification | CE, KC |

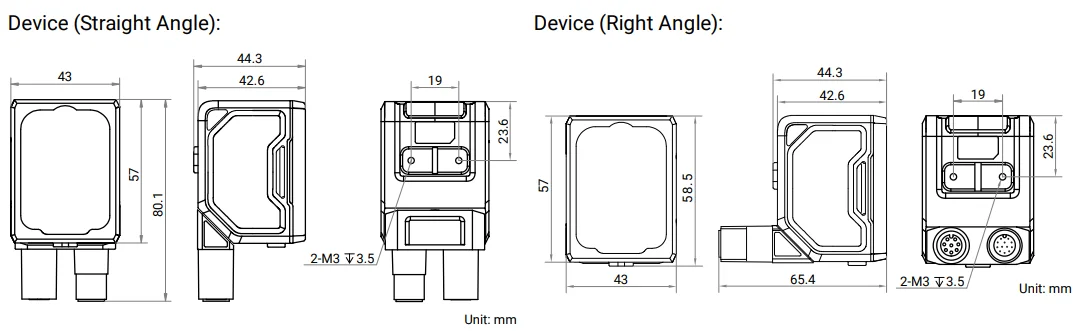

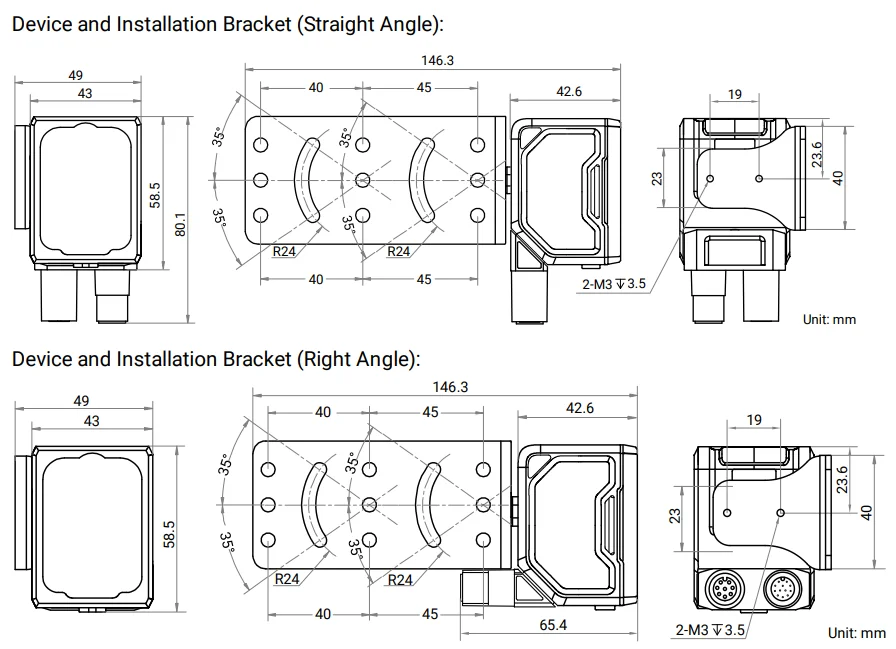

Dimension

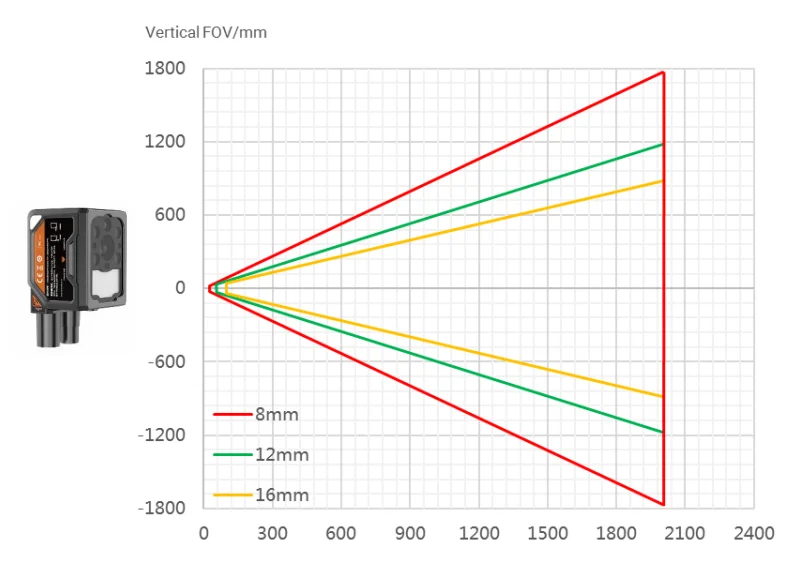

Detection Range
| Lens focal length | Installation distance | Field of view | Single pixel accuracy |
| 8 mm | 25 mm | 26.22 mm × 22.08 mm | 0.0215625 mm |
| 2000 mm | 2097.6 mm × 1766.4 mm | 1.725 mm | |
| 12 mm | 60 mm | 41.952 mm × 35.328 mm | 0.0345 mm |
| 2000 mm | 1398.4 mm × 1177.6 mm | 1.15 mm | |
| 16 mm | 100 mm | 52.44 mm × 44.16 mm | 0.043125 mm |
| 2000 mm | 1048.8 mm × 883.2 mm | 0.8625 mm |

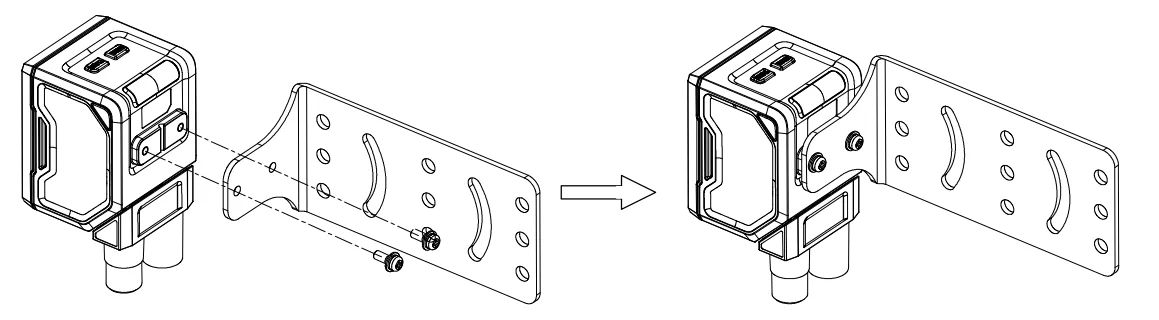

Fix Installation Bracket

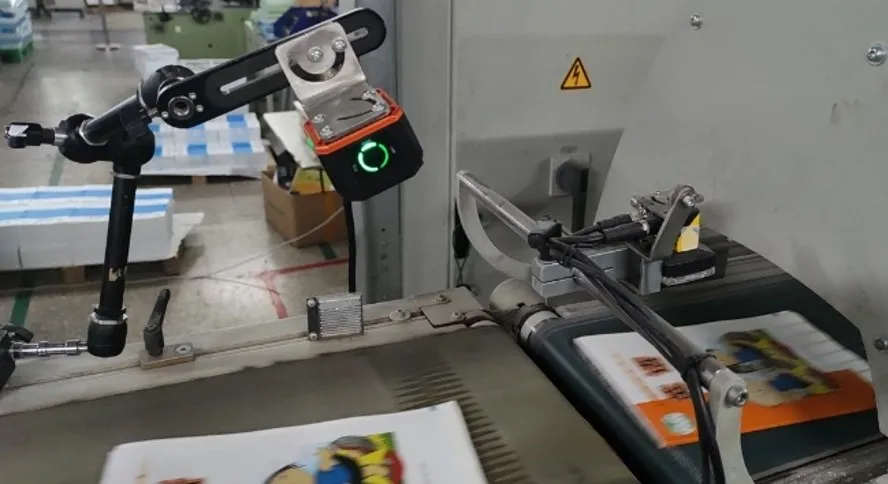

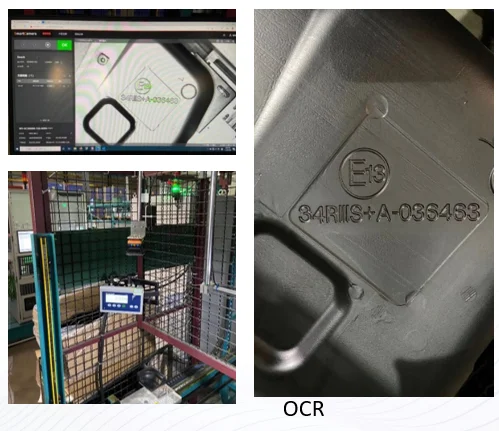

Applications

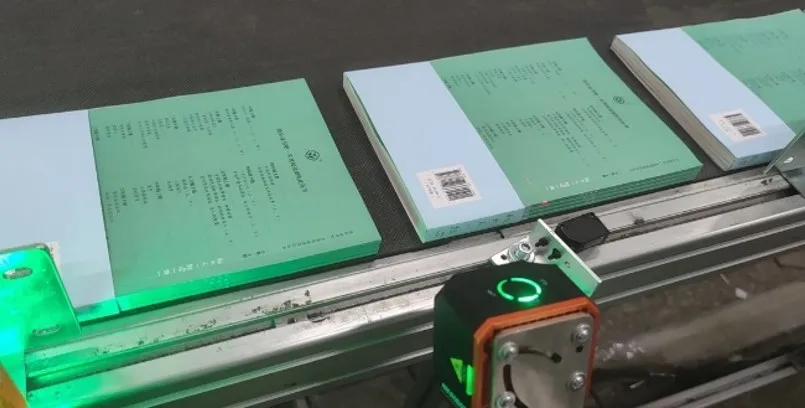

Count

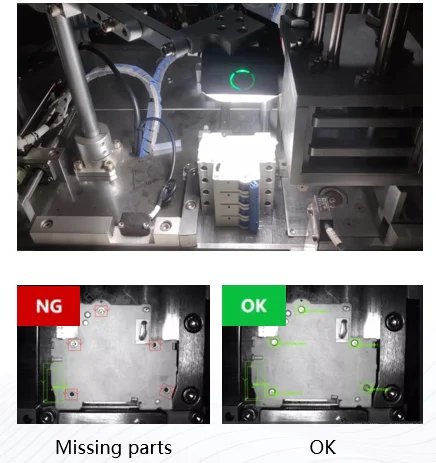

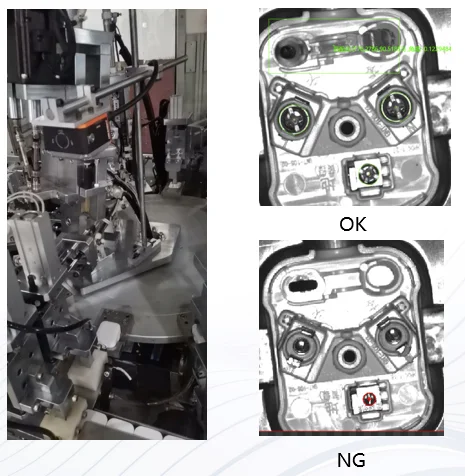

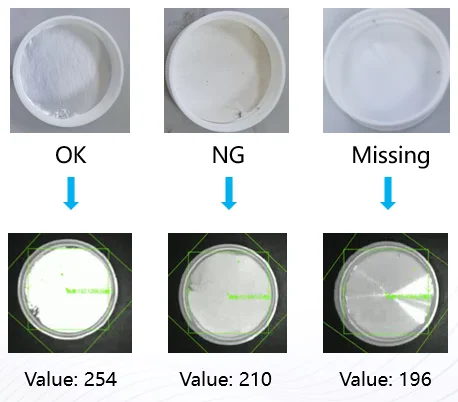

Presence Detection
FAQ
1. When will you ship my order?
Generally, once we get confirmation for payment, we will ship the order within 7-10 days. The specific delivery time depends on the items and the quantity of your order.
2. Does OEM/ODM available?
Yes, just let us know your details, then we can help you to design and put it into production.
3. The sample request is ok? if so, for free?
Re: MOQ is needed for a factory but one sample for testing is acceptable. We'd like to see our customer having a try on our products. But sorry, it's not for free, you need to pay for it.
4. Driver and SDK problems?
Re: We will provide the SDK with the camera for free. And if you meet any problems when using it, just feel free to let us know.
5. Payment Term Credit card, VISA card, e-checking, PayPal, Western Union, TT.
6. Could I print our logo or company name on our products?
Re: Of course, we could print your logo or company name as your requirements, but you need to send us your logo certification and the certificate of authorization.
