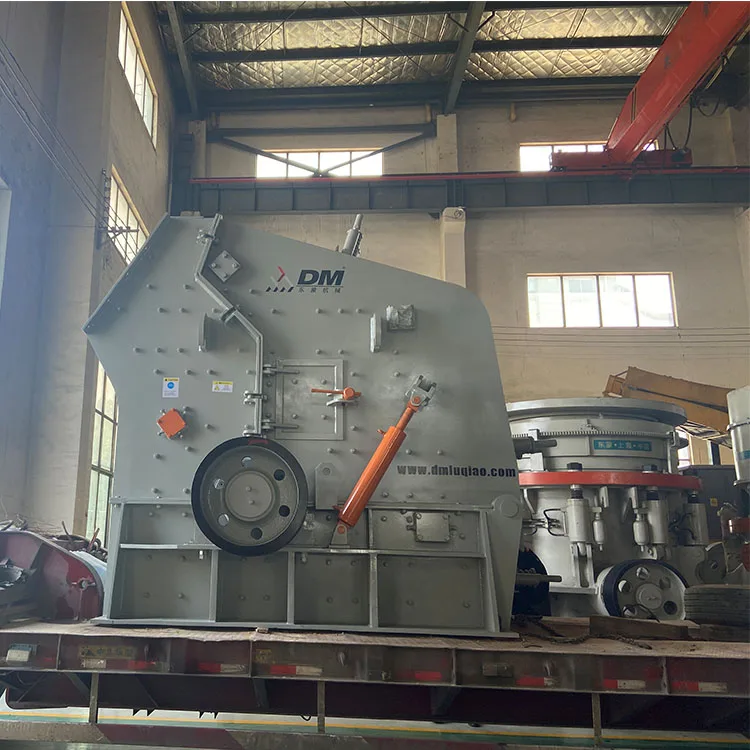

Impact crusher factory price
- Category: >>>
- Supplier: Shanghai Dongmeng Road & Bridge Machinery Co. Ltd.
Share on (1600987176906):
Product Overview
Description
Products Description
Mining Hard Granite Dolomite Stone Crushing plant price Basalt Concrete Crusher machine
Main Products We Offer:
1.Vibrating feeder, two types of ZSW and GZD to meet user’s different processing capacity;2.First crushing: Jaw crusher, or Impact crusher, or cone crusher depends on your materials;
3.Secondary crushing: impact crusher, cone crusher(spring type, spring and hydraulic type, hydraulic type) or VSI crusher;
4.Vibrating screen, YK series, linear series, DF series;
5.Belt conveyor, stationary type, or mobile type;
6.Steel structures, such as feed-in and discharge hoppers, stairways, guardrails, maintenance board, steel channel, etc;
7.Electric control cabinet.

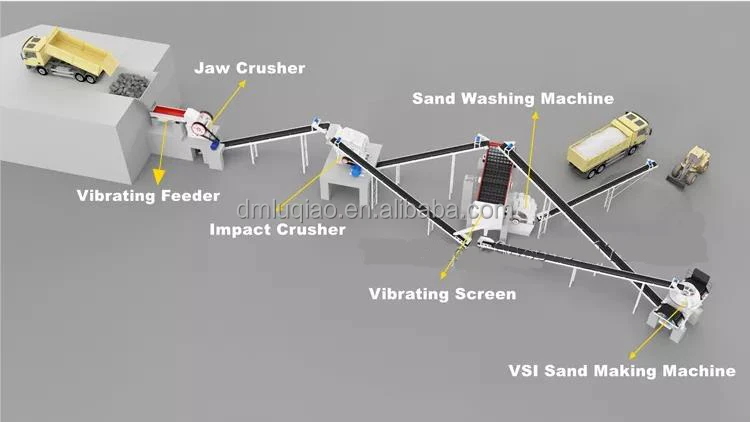

Solutions for General Projects
1.For Hard Stone:
Quartzite,basalt,Granite, quartz porphyry, siliceous schist, quartzite, sandstone, Conglomerate, iron
ore,Marble, dolomite, and pyrite,et:
Quartzite,basalt,Granite, quartz porphyry, siliceous schist, quartzite, sandstone, Conglomerate, iron
ore,Marble, dolomite, and pyrite,et:
Raw material | Capacity(t/h) | Feeder | Primary crushing | Secondary crushing | Screen |
Stone/ Granite | 30-50 | GZD2500*750 | PE250x750 | PYB600 | 3YK1548 |
Stone/ Granite | 50-80 | ZSW3800*960 | PE500*750 | DMC1000 | 3YK1548 |
Stone/ Granite | 80-120 | ZSW3800*960 | PE600*900 | DMC1160 | 3YK1854 |
Stone/ Granite | 120-200 | ZSW4900*1100 | PEW750*1060 | DMC1300 | 3YK2160 |
Stone/ Granite | 200-300 | ZSW4900*1100 | PEW900*1200 | DMC1650 | 3YK2460 |
Stone/ Granite | 300-400 | ZSW6000*1300 | PEW1000*1200 | 2*DMC1300 | 2*3YK2460 |
Stone/ Granite | 400-500 | ZSW6000*1300 | PEW1200*1500 | 2*DMC1650 | 2*3YK2460 |
2.For Soft Stone and Medium hard stone:
Limestone, chalk, gypsum, anthracite,broken sandstone and rocky soil,etc:
Limestone, chalk, gypsum, anthracite,broken sandstone and rocky soil,etc:
Raw material | Capacity(t/h) | Feeder | Primary crushing | Secondary crushing | Screen |
Stone/limestone | 40-60 | GZD3000*700 | PE400*600 | PF1010 | 3YK1230 |
Stone/limestone | 50-80 | ZSW3800*960 | PE500*750 | PF1210 | 3YK1548 |
Stone/limestone | 80-120 | ZSW3800*960 | PE600*900 | PF1214 | 3YK1854 |
Stone/limestone | 120-200 | ZSW4900*1100 | PEW750*1060 | 2*PF1214 | 3YK2160 |
Stone/limestone | 200-300 | ZSW4900*1100 | PEW1000*1200 | 2*PF1315 | 3YK2460 |
Stone/limestone | 300-400 | ZSW6000*1300 | PEW1000*1200 | 2*PF1315 | 2*3YK2460 |
Stone/limestone | 400-500 | ZSW6000*1300 | PEW1200*1500 | 2*PF1315+2*PF1315 | 2*3YK2460 |
Product Paramenters

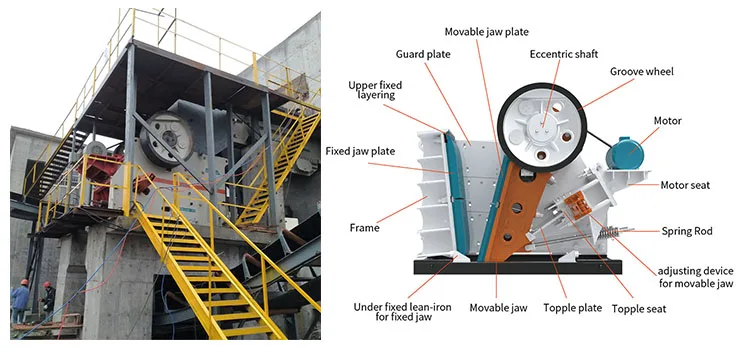

Model | Size of feed opening (mm×mm) | Max.feed size (mm) | Capacity(t/h) | Eccentric shaft rotate speed (r/min) | Motor power (kw) | Closed side setting (mm) | Weight(t) |
DC75 | 500×750 | 420 | 61-198 | 320 | 55-75 | 50-150 | 9.5 |
DC90 | 600×900 | 500 | 120-291 | 306 | 90 | 70-175 | 12.5 |
DC106 | 750×1060 | 630 | 199-446 | 270 | 132 | 90-200 | 23.5 |
DC125 | 950×1250 | 800 | 327-728 | 240 | 160 | 100-250 | 42.8 |
DC160 | 1200×1600 | 1000 | 581-1204 | 220 | 250 | 150-300 | 75 |

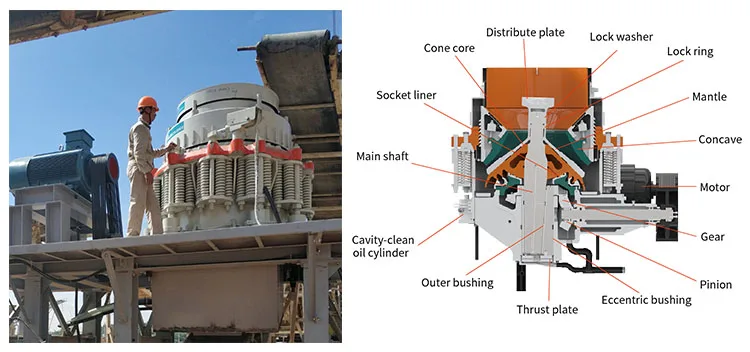

Model | Chamber | Max.feed size(mm) | Min discharge opening(mm) | Motor power (kw） | Capacity(th) | Weight |
DMC1000 | C/M/F/EF | 160/115/80/50 | 13/10/8/6 | 110 | 50-235 | 10.8/10.51 |
DMC1160 | C/M/F/EF | 180/130/90/60 | 13/10/10/6 | 132 | 60-260 | 15.5 |
DMC1300 | C/M/F/EF | 200/150/102/70 | 16/13/10/8 | 200 | 88-390 | 22.3 |
DMC1380 | C/M/F/EF | 215/160/115/76 | 19/16/13/8 | 220 | 11-440 | 26.3 |
DMC1650 | C/M/F/EF | 235/175/130/90 | 22/19/13/10 | 250 | 148-580 | 36.5 |
DMC1950 | C/M/F/EF | 350/203/140/95 | 22/16/13/10 | 280-315 | 180-725 | 44.3 |
Model | Size of feed opening(mm) | Max.feed size(mm) | Capacity(t/h) | Motor Power(kw) | Weight(t) | Dimension(mm) |
PF-1007 | 820x700 | 300 | 24-45 | 55 | 9.5 | 2400x1558x2660 |
PF-1010 | 1170x720 | 350 | 50-80 | 75 | 10 | 2532x1985x2196 |
PF-1210 | 1090x465 | 350 | 80-130 | 110 | 14 | 2638x2037x2713 |
PF-1214 | 1440x465 | 350 | 100-160 | 132 | 18 | 2580x2400x2810 |
PF-1315 | 1532x560 | 500 | 140-200 | 200 | 19.3 | 2840x2748x2556 |
PF-1316 | 1690x859 | 500 | 150-220 | 200 | 19.5 | 3096x2850x2667 |
PF-1515 | 1580x696 | 500 | 220-280 | 280 | 28.5 | 3553x2835x3277 |
PF-1620 | 1240x2000 | 500 | 300-500 | 280x2 | 50 | 4000x3750x3950 |
PF-1820 | 1500x2050 | 500 | 550-860 | 630 | 90 | 4260x3550x3640 |

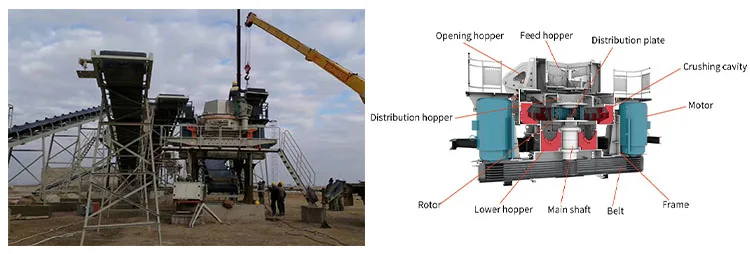

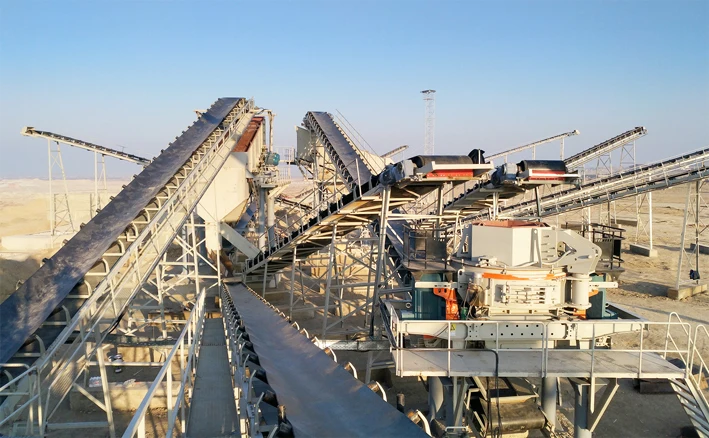

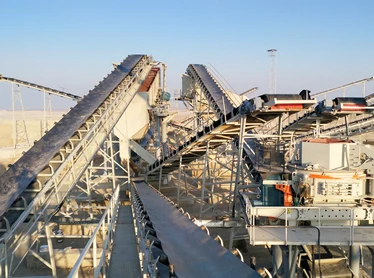

Sand Making Production Line
Sand making plant produces the crushed sand as an alternative of river sand. We have the special sand making machine like VSI crusher, sand screening machine like vibrating screen. These sand crushing and screening equipment are for maximum productivity. We, Sand Plant Manufacturer also supply individual crushers and screens, as well as key components and wearing parts.
Model | Rotor Speed(R/Min) | Rotor Diameter | Max.feed size(mm) | Motor Power(kw) | Capacity(t/h) | Weight(t) | Overall Dimension(mm) |
DVSI75 | 1740 | 730 | 40 | 200 | 100-180 | 9.7 | 4180×2180×2690 |
DVSI80 | 1740 | 730 | 40 | 250 | 150-220 | 9.8 | 4180×2180×2690 |
DVSI85 | 1630 | 850 | 40 | 160×2 | 250-350 | 16.5 | 5200×2620×3040 |
DVSI95 | 1630 | 850 | 40 | 200×2 | 300-450 | 17.5 | 5200×2620×3040 |
DVSI110 | 1400 | 1000 | 40 | 250×2 | 400-500 | 19.5 | 5200×2620×3040 |
DVSI120 | 1200 | 1200 | 50 | 315x2 | 450-580 | 23.1 | 5700X2980X4190 |
Sand making production line adopts a high level of automation and low operation cost, featuring features high crushing efficiency, energy conservation, great productivity, less pollution and easy maintenance. Stone products produced by the line get excellent shape, meeting the national standard for high- speed feeding materials.
Wide Range of Applications, suitable for more than 200 kinds of Stones:
It can be used in crushing various stone and ore,such as iron ore,copper ore,gold ore,Marble,pebbles,blue stone crushing plant and building waste, road material crushing,bricks,concrete, etc.
Company Profile
Shanghai Dongmeng Road&Bridge Machinery Co., Ltd. is a high technology company specializing in R&D and manufacturing large crusher, screen and crawler mobile crushing and screening
plants for more than ten years.We have more than 200 employees, 30 technical staff, with factory area of more than 20,000 square meters.
plants for more than ten years.We have more than 200 employees, 30 technical staff, with factory area of more than 20,000 square meters.
Our Service:
1) Pre-sale service:Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export.
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
Service supervision:
Any dissatisfaction on service attitude, service skills, quality and morality of our technical staff, please feel free to contact us by dialing 24 hours hot line :0086-021-68911957.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export.
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
Service supervision:
Any dissatisfaction on service attitude, service skills, quality and morality of our technical staff, please feel free to contact us by dialing 24 hours hot line :0086-021-68911957.
Packing&Shipping
Exhibition&Visitors
Certifications
FAQ
Q1:Installation?
Answer:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. Travel and accommodation costs.
Q2:Payment?
Answer:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory.
Q3:What about Warranty? what will we do if the machine is broken down?
Answer:The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q4:What should we need to do for if we want to get a best quotation?
Answer:Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )?
2).output size?
3).Max.Input Size?
4).stone type?
Q5:What could you help me to do for the business?
Answer:Many thanks for your trust , we can provide you with proposal chart for complete production lines ,
spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on .
Q6:What's your After sales Service?
Answer:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of notice by the client.
Q7:Delivery time?
Answer:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
Answer:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. Travel and accommodation costs.
Q2:Payment?
Answer:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory.
Q3:What about Warranty? what will we do if the machine is broken down?
Answer:The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.
Q4:What should we need to do for if we want to get a best quotation?
Answer:Hi, if you want us recommend a suitable type for you ,please let us know as follows:
1).the capacity (tons per hour )?
2).output size?
3).Max.Input Size?
4).stone type?
Q5:What could you help me to do for the business?
Answer:Many thanks for your trust , we can provide you with proposal chart for complete production lines ,
spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on .
Q6:What's your After sales Service?
Answer:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of notice by the client.
Q7:Delivery time?
Answer:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit,the mobile crusher plant is 45 days.
