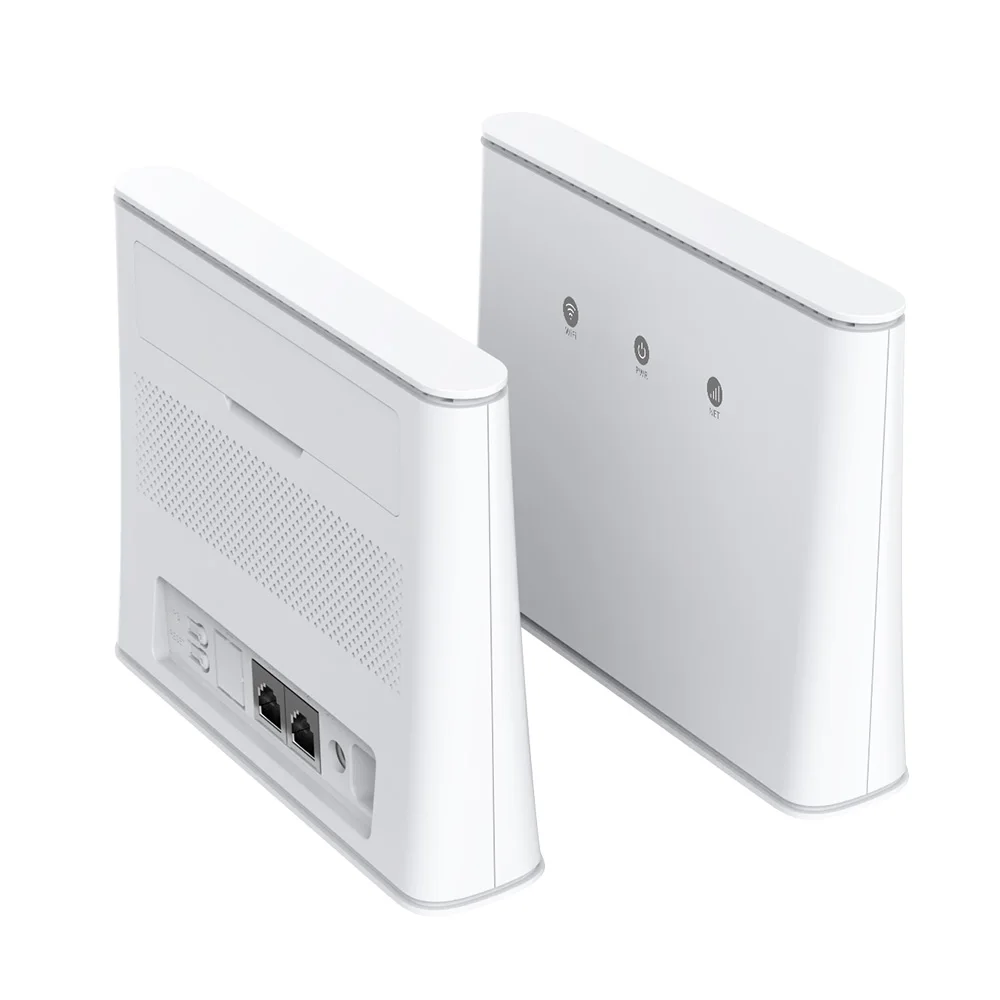

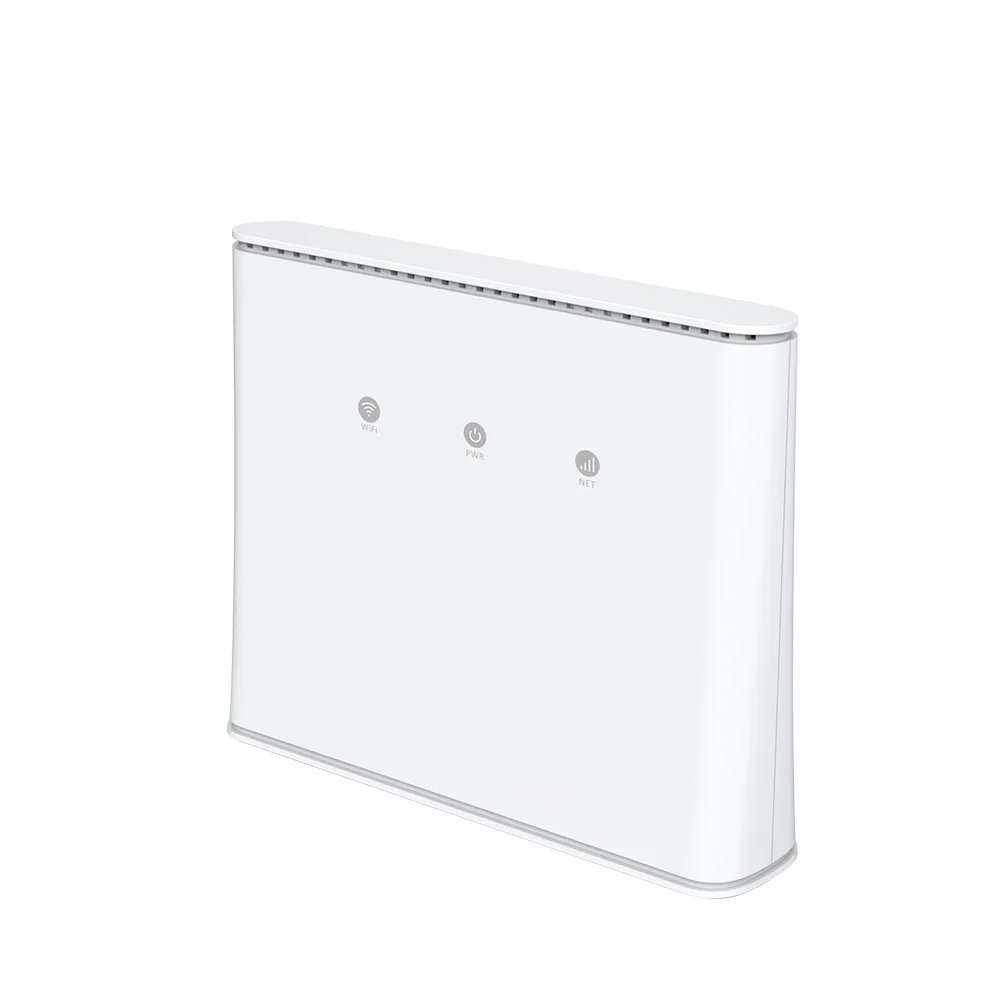

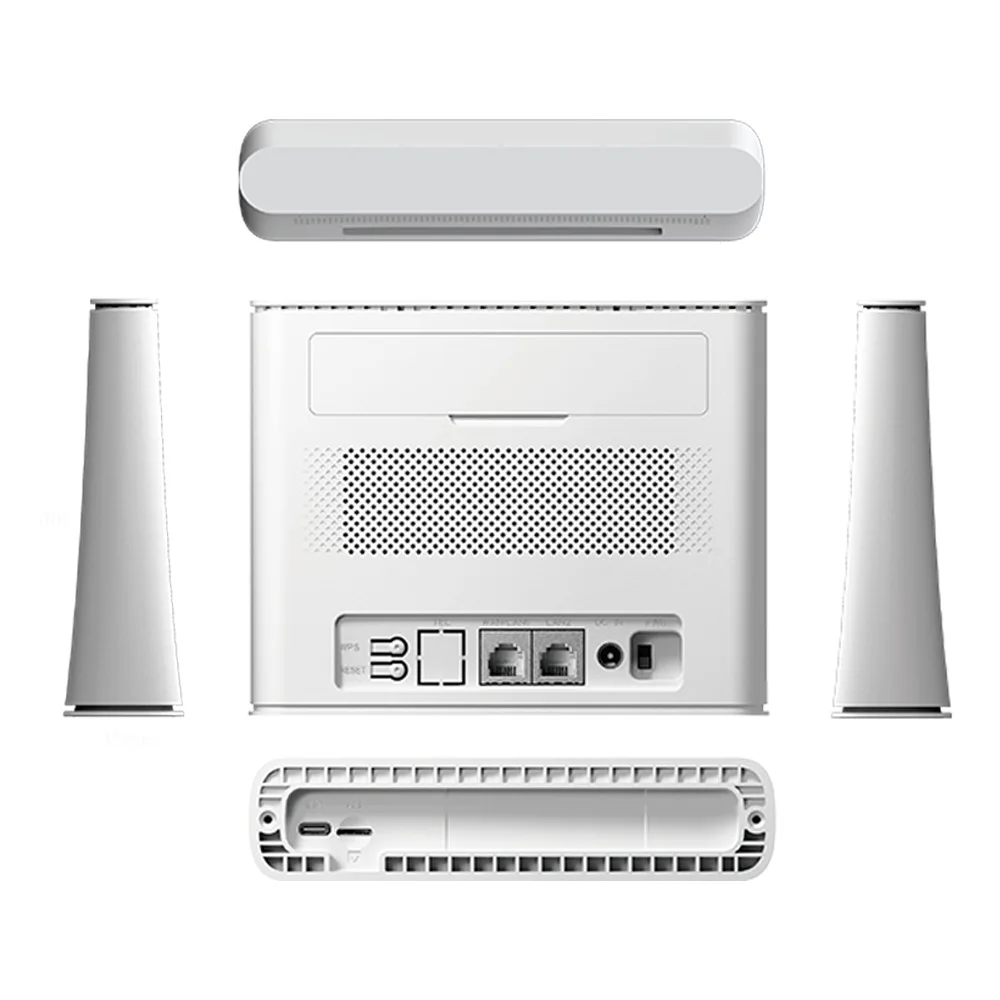

1200Mbps Qualcomm CAT6 CAT12 4G CPE wifi router 2 * Gigabit LAN Openwrt dual band LTE 4G CPE RJ11 optional
- Category: >>>
- Supplier: Shenzhen Hooolink Technology Co. Limited
Share on (1600987229147):
Product Overview
Description
1200Mbps Qualcomm CAT6 CAT12 4G CPE wifi router 2 * Gigabit LAN Openwrt dual band LTE 4G CPE RJ11 optional
Why choose our 4G CPE
1. CAT6 / CAT 12 4G CPE, 4G downlink speed up to 300Mbps / 600Mbps
2. Dual band 1200Mbps 2.4G+5.8G
3. 2* 1000Mbps Gigabit LAN port
4. ESIM / Battery / RJ11 VOLTE optional,
5. Support for Openwrt
6. The functions and interfaces are very rich, which can meet various scenarios
7. Strong technical team, very suitable for operator promotion
8. We believe that there is no need for point 8 or more, as these 7 points are sufficient for you to choose our excellent 4G CPE
8. We believe that there is no need for point 8 or more, as these 7 points are sufficient for you to choose our excellent 4G CPE
HL-WR204 wireless router is a wireless communication product developed based on 4G network requirements. Support 4G LTE global frequency band. Support 4G LTE CAT 6 or CAT 12 high speed access to the Internet. It can realize the maximum downlink bandwidth of 300Mbps~600Mbps and the maximum uplink bandwidth of 50Mbps~150Mbps. It supports 2 Gigabit Ethernet ports, providing stable and high-speed wireless broadband access for home and business users. Support for WIFI 2.4GHz/5GHz dual-band function to meet the access and sharing needs of more than 60 users' WIFI hotspots.
Product features.
◆ Power supply. DC +12V/1A .
◆ Supports 2*2 MIMO or 4*4 MIMO internal antenna or external antenna.
◆ Wireless Mobile Broadband 3G / 4G LTE connection. Support 3G/4G LTE global frequency bands.
◆ System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.
◆ Supports Multiple VPN tunnels for data encryption .
◆ Simple and beautiful, fashionable shell.
Easy to use and easy maintenance
Easy to use and easy maintenance
◆ User friendly web interface for user interaction.
◆ Supports Remote Management Platform.
◆ Supports local web UI and remote FOTA update firmware.
Operating system
Operating system
◆ Built-in OpenWRT 18.06 operating system. Support user secondary application development.
Cellular feature | ||
3G/4G LTE data connectivity | It provides data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks. | |
3G/4G LTE Frequency bands | Version E. LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD: B38/B40/B41/B42(Optional) /B43(Optional) WCDMA: B1/B3/B5/B8 Verison A. LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 LTE-TDD: B41/B48 Version LA. LTE-FDD: B2/B4/B5/B7/B8/B28/B66 LTE-TDD: B42(Optional) /B43(Optional) WCDMA: B2/B4/B5/B8 Version GL. LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B46 (LAA)/B48 (CBRS) WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 Remarks. More Bands Demands please contact with us. | |
3G/4G LTE Data rates | 4G LTE--CAT 6 LTE-FDD Max 300M(DL) , Max 50Mbps (UL) LTE-TDD Max 226M (DL) , Max 28Mbps (UL). 4G LTE-CAT 12 LTE-FDD. Max 600Mbps (DL)，Max 150Mbps (UL) . LTE-TDD. Max 430Mbps (DL)，Max 90Mbps (UL). HSPA+. DL 42Mbps, UL 11.2Mbps. WCDMA. DL 384Kbps, UL 384Kbps | |
3G/4G LTE Transmitting Power | ◆ Class 3 (23 dBm±2 dB) for LTE-TDD bands ◆ Class 3 (23 dBm±2 dB) for LTE-FDD bands ◆ Class 3 (24 dBm+ 1/-3 dB) for WCDMA bands | |
3G/4G LTE Receiving Sensitivity | WCDMA B1 , -106.7 dBm WCDMA B2 , -104.7 dBm WCDMA B3 , -103.7 dBm WCDMA B4 , -106.7 dBm WCDMA B5 , -104.7 dBm WCDMA B6 , -106.7 dBm WCDMA B8 , -103.7 dBm WCDMA B19 , -106.7 dBm LTE-FDD B1(10MHz) , -96.3 dBm LTE-FDD B2(10MHz) , -94.3 dBm LTE-FDD B3(10MHz) , -93.3 dBm LTE-FDD B4(10MHz) , -96.3 dBm LTE-FDD B5(10MHz) , -94.3 dBm LTE-FDD B7(10MHz) , -94.3 dBm LTE-FDD B8(10MHz) , -93.3 dBm LTE-FDD B12(10MHz) , -93.3 dBm LTE-FDD B13(10MHz) , -93.3 dBm LTE-FDD B14(10MHz) , -93.3 dBm LTE-FDD B17(10MHz) , -93.3 dBm LTE-FDD B18(10MHz) , -96.3 dBm LTE-FDD B19(10MHz) , -96.3 dBm LTE-FDD B20(10MHz) , -96.3 dBm LTE-FDD B25(10MHz) , -92.8 dBm LTE-FDD B26(10MHz) , -93.8 dBm LTE-FDD B28(10MHz) , -94.8 dBm LTE-FDD B30(10MHz) , -95.3 dBm LTE-FDD B32(10MHz) , -96.3 dBm LTE-FDD B66(10MHz) , -95.8 dBm LTE-FDD B71(10MHz) , -94.3 dBm LTE-TDD B38(10MHz) , -96.3 dBm LTE-TDD B39(10MHz) , -96.3 dBm LTE-TDD B40(10MHz) , -96.3 dBm LTE-TDD B41(10MHz) , -94.3 dBm LTE-TDD B42(10MHz) , -95 dBm LTE-TDD B43(10MHz) , -95 dBm LTE-TDD B46(20MHz) , -88.5 dBm LTE-TDD B48(10MHz) , -95 dBm | |
LTE features | CAT 6 version. ◆ Supports 3GPP Rel-12 CAT 6 FDD and TDD ◆ Supports uplink QPSK and 16 QAM modulation. ◆ Supports downlink QPSK , 16 QAM and 64 QAM. ◆ Supports 1.4MHz to 40MHz (2 CA) RF bandwidth. CAT 12 version. ◆ Supports 3GPPRel-12 CAT 12 FDD and TDD. ◆ Supports uplink QPSK ,16 QAM and 64 QAM modulation. ◆ Supports downlink QPSK , 16 QAM ,64 QAM and 256 QAM. ◆ Supports 1.4MHz to 60MHz (3 CA) RF bandwidth. | |
UMTS features | ◆ Supports 3GPP Rel-9 DC-HSDPA,DC-HSUPA,HSPA+,HSDPA,HSUPA and WACDMA ◆ Supports QPSK ,16 QAM and 64 QAM modulation. | |
Antennas | Supports 2*2 MIMO or 4*4 MIMO internal antenna or external antenna with 50 Ω impedance. | |
SIM card feature | ||
SIM card | Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional ) | |
Hardware feature | ||
CPU | MTK7621A, MIPS1004KC, 880Mbps,Dual-core. | |
MEMORY | FLASH 16MByte, DDR3 64 MByte | |

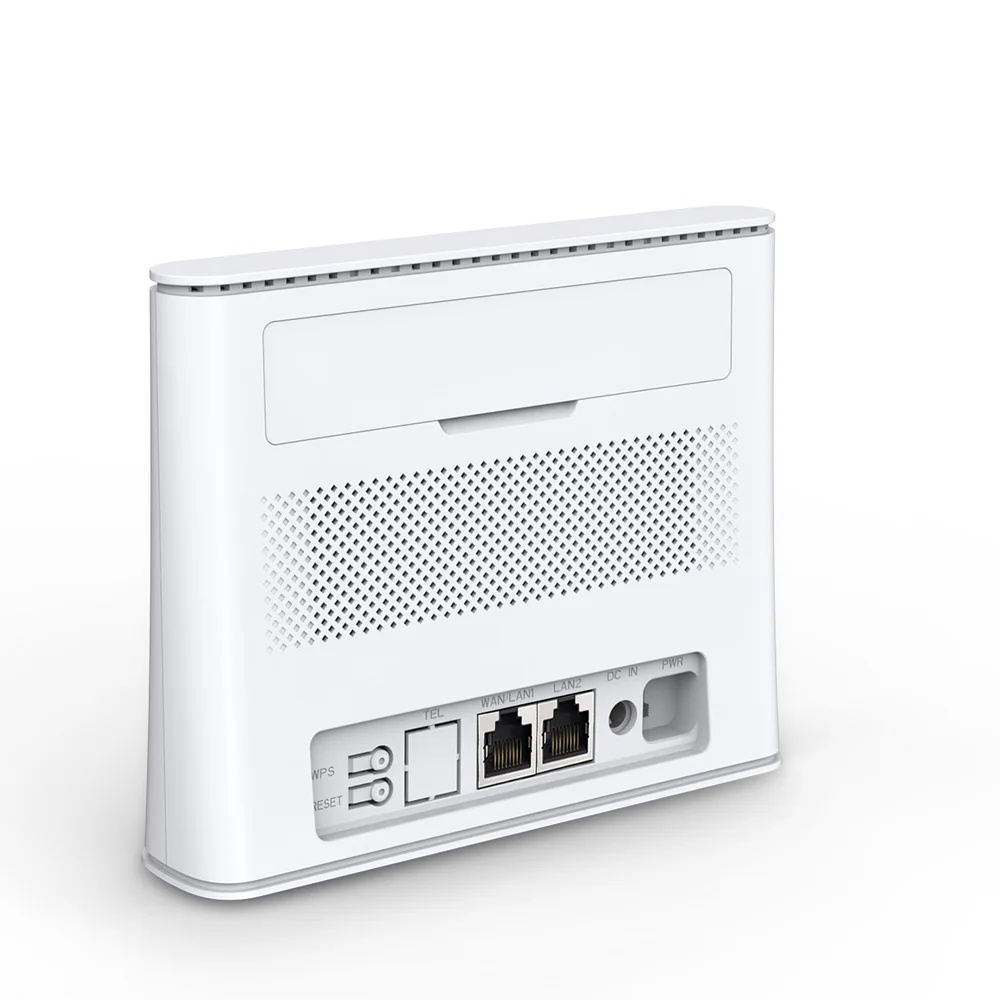

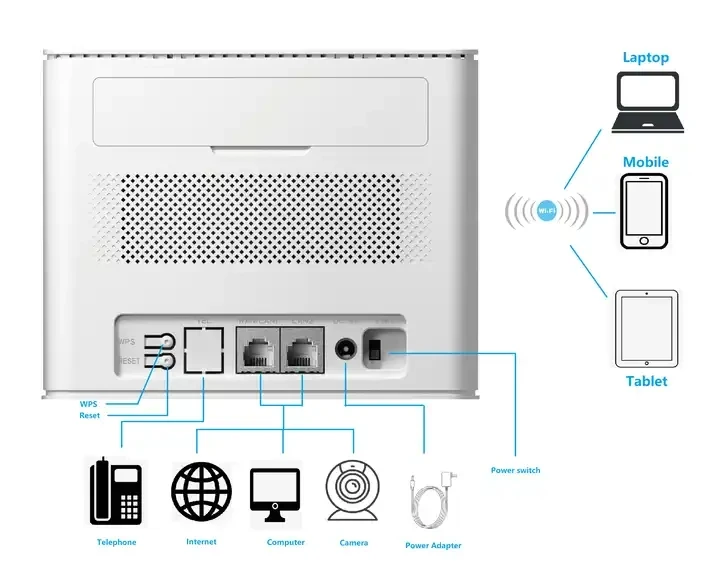

Hardware interface | 1*WAN/1* LAN gigabit Ethernet port. 1*USB2.0 port.1*RJ11 telephone port,VOLTE (Optional). | |
Watchdog | Built-in watchdog feature. | |
Key button | Power,Reset,WPS | |
Protection level | Ethernet port , Contact electric shock, +/-4KV, air discharge: +/-8KV. | |
LED Indicator | PWR ,WIFI, Net, WAN, LAN | |
Standard Power | DC input. DC +12V/1A | |
Power Supply | DC input. DC +9/1.5A~12V/1A | |
Peak current | Max current. 1A/12V | |
Working current | Max 360 mA,4.32W @12 V | |
Power Consumption | Idle. 80mA, 0.96W @12 V Data link. Max 360 mA, 4.32W @12 V Peak. Max 470mA , 5.64W @12V | |
Temperature | Operating Temperature 0ºC ~ +50ºC, Storage Temperature -10ºC ~ +60ºC | |
Environment humidty | 5%~95% ,no condensation. | |
Ingress Protection | IP30 | |
Housing | ABS Plastic shell | |
Dimensions | 155mm * 125mm * 36mm | |
Installations | Desktop mounted. | |
Weight | 219g | |
Wi-Fi | ||
WLAN | ◆ IEEE 802.11b/g/n/ac. ◆ Supports 20MHz,40MHz,80MHz in 5GHz band, and 20MHz,40MHz bandwidth in 2.4GHz band. ◆ Max bandwidth 300Mbps in 2.4GHz band. Max bandwidth 867Mbps in 5GHz band. | |
Wireless Mode | Access Point (AP), Client | |
WLAN Speed | 300 Mbps @2.4GHz, 867Mbps @5GHz. | |
Wireless Security | Supports WPA, WPA2,WPAI, WEP, TKIP encryption. | |
Frequency Bands | 2.4 GHz/5GHz | |
WIFI transmit power | 2.4GHz Tx power. TX CCK, 11Mbps @ -20dBm HT40,MCS 8 @ -20dBm HT40,MCS 15 @ -17dBm 5GHz Tx power. 6Mbps OFDM @ -19.5dBm 54Mbps OFDM @ -18dBm HT20,MCS 0 @ -18.5dBm HT20,MCS 7 @ -17dBm HT40,MCS 0 @ -18.5dBm HT40,MCS 7 @ -17dBm VHT80,MCS 0 @ -18.5dBm VHT80,MCS 9 @ -16dBm | |
WIFI Rx Sensitivity | 2.4GHz Rx sensitivity. 1Mbps CCK @ -98dBm 2Mbps CCK @ -94dBm 5.5Mbps CCK @ -92dBm 11Mbps CCK @ -89dBm 5GHz Rx sensitivity. 6Mbps OFDM @ -93.5dBm 9Mbps OFDM @ -91.5dBm 12Mbps OFDM @ -91dBm 18Mbps OFDM @ -88.5dBm 24Mbps OFDM @ -84.5dBm 36Mbps OFDM @ -82dBm 48Mbps OFDM @ -77dBm 54Mbps OFDM @ -76dBm | |
Antennas | 2*2 MIMO internal antennas. | |
WIFI hotspot sharing | Supports more than 60 users to share WIFI access to the Internet. | |
Software feature | ||
Parameter settings | Supports automatic detection of MNC and MCC parameters of global operators. Built-in global operator APN, user name, password and other network parameters. At the same time, manual setting of network parameters is supported. | |
Dial method | After the device is powered on, the system automatically dials up to connect to the network. | |
Protocol | Supports PPTP,L2TP,IPSEC VPN,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH,SNMP etc protocol. | |
Routing | Supports static routing, multiple routing tables. | |
Bridge | Supports 4G/5G bridge feature. | |
Multiple APN | Supports multiple APN access network. | |
System Assurance | Supports system automatic detection mechanism, automatic recovery of system abnormality or crash. | |
Data Link Assurance | Built-in data link maintenance and self-recovery mechanism. | |
Firewall | Supports flexible access control of TCP, UDP, ICMP packets. Supports port Mapping, NAT etc feature. | |
DDNS | Supported some service providers, others can be configured manually. | |
Firmware update | Supports local WebUI and remote OTA update firmware. | |
VLAN | Supports VLAN feature. | |
Embedded system | OpenWRT 18.06 | |
Application development | Supports secondary development of application functions based on our device motherboard software. | |
VPN | ||
VPN Feature | Supports OpenVPN, IPSEC VPN,PPTP,L2TP etc VPN feature. | |
MONITORING & MANAGEMENT | ||
Web GUI | HTTP, Firmware Upgrade | |
Command Line Interface | SSHv2 ,Telnet. | |
Management platform | Remote Management Platform | |
