3 ton 5 ton wheel loader for sale in good condition
- Category: >>>
- Supplier: Shanghai Gather Power Industry Co. Ltd.
Share on (1600987250086):
Product Overview
Description
Product Description
Specification
Model | ZL18 | ZL20 | ZL28 | ZL30 | ZL30A |
Rated weight | 1800kg | 2000kg | 2800kg | 3000kg | 3000kg |
Rated capacity | 1.03m3 | 1.3m3 | 1.6m3 | 1.7m3 | 1.7m3 |
Operating weight | 4000kg | 7480kg | 6000kg | 9500kg | 9500kg |
Rated power | 50kw/47kw | 45kw | 55kw | 85kw | 92kw |
Rated speed | 2400rpm | 2400rpm | 2400rpm | 2600rpm | 2600rpm |
Max.dump height | 3200mm | 3200mm | 3200mm | 3100mm | 3100mm |
Max.dump reach | 930mm | 885mm | 1084mm | 1200mm | 1200mm |
Min.ground clearance | 310mm | 310mm | 310mm | 380mm | 380mm |
Wheel base | 2160mm | 2150mm | 2470mm | 2760mm | 2760mm |
Tread | 1080mm | 1440mm | 1380mm | 1800mm | 1800mm |
Lifting time | 4s | Total time:9.8 | |||
Lowering time | 3s | ||||
Unloading time | 2s | ||||
Max.breakout force | 32KN | 48.87KN | 70KN | 138KN | 138KN |
Min.turning tadius | 3500mm | 4239mm | 4500mm | 5700mm | 5700mm |
Overall dimensions | 5800*1730*2800 | 5910*1910*2810 | 6150*1970*3000 | 7050*2430*3120 | 7050*2430*3120 |

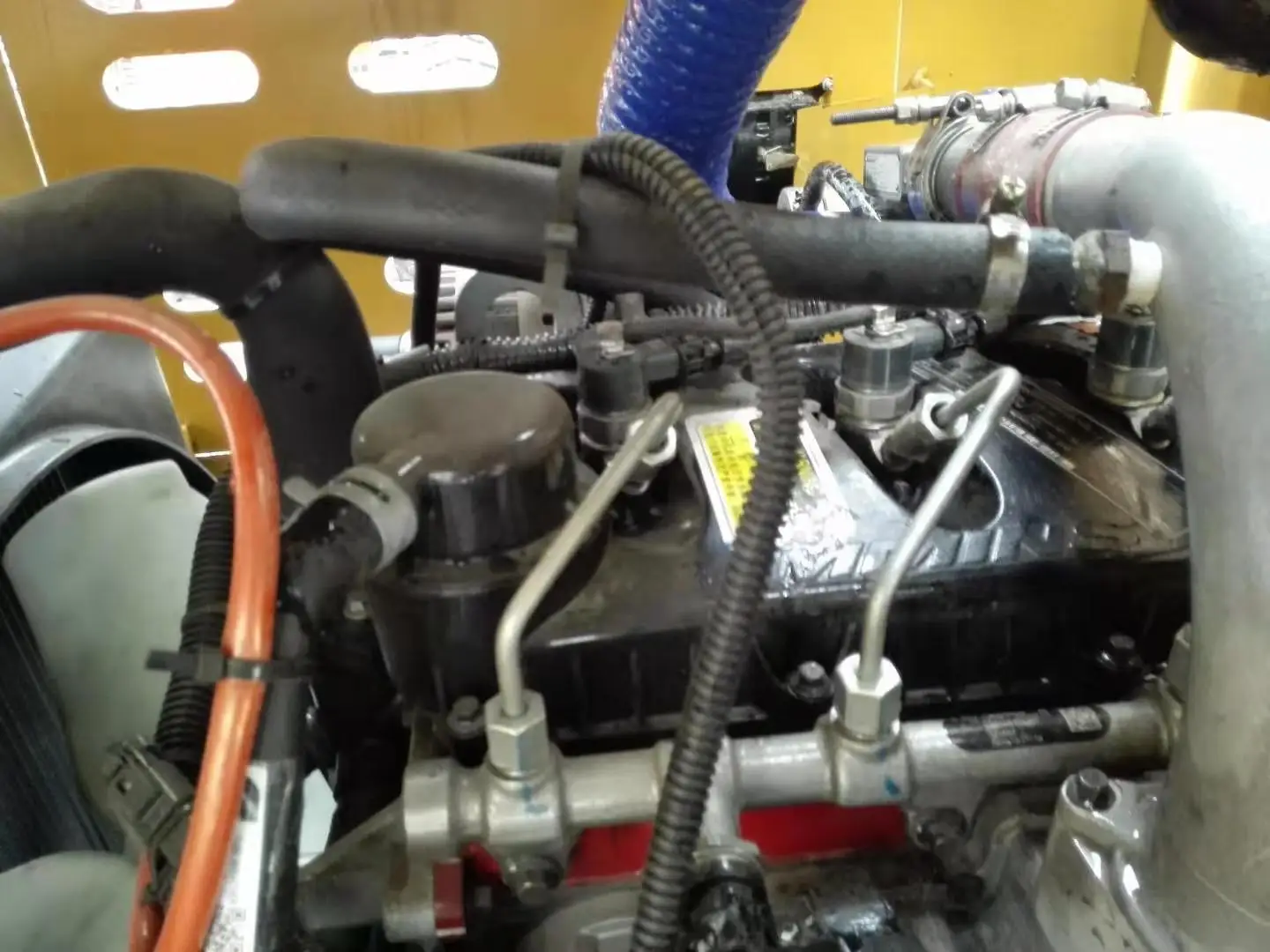

Engine option | 1.WeiFang 2.WeiChaiHuaFengZH402GG41 | 1.WeiFang 2.WeiChaiHuaFengZH402GG41 | 1.Luo TuoYTR4180 2.XiChai4105 3.Cummins4BT3.9 | 1.XiChai3110 2.Cummins6BT 5.9 | 1.XiChai6110 2.WeiChai6105 3.Cummins6BT5.9 4.Deutz TD226B |

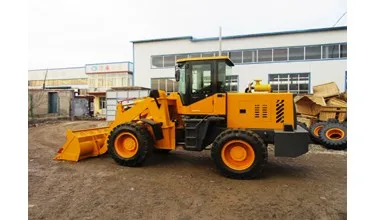

Detailed Images
Machine Parts
Name: ZL18-30
Brand: GP
Original: China
Hangzhou Advance Gear group WG180 torque converter and fix-shaft gearbox,with ZF technology.
Main Features
Name: ZL18-30
Brand: GP
Original: China

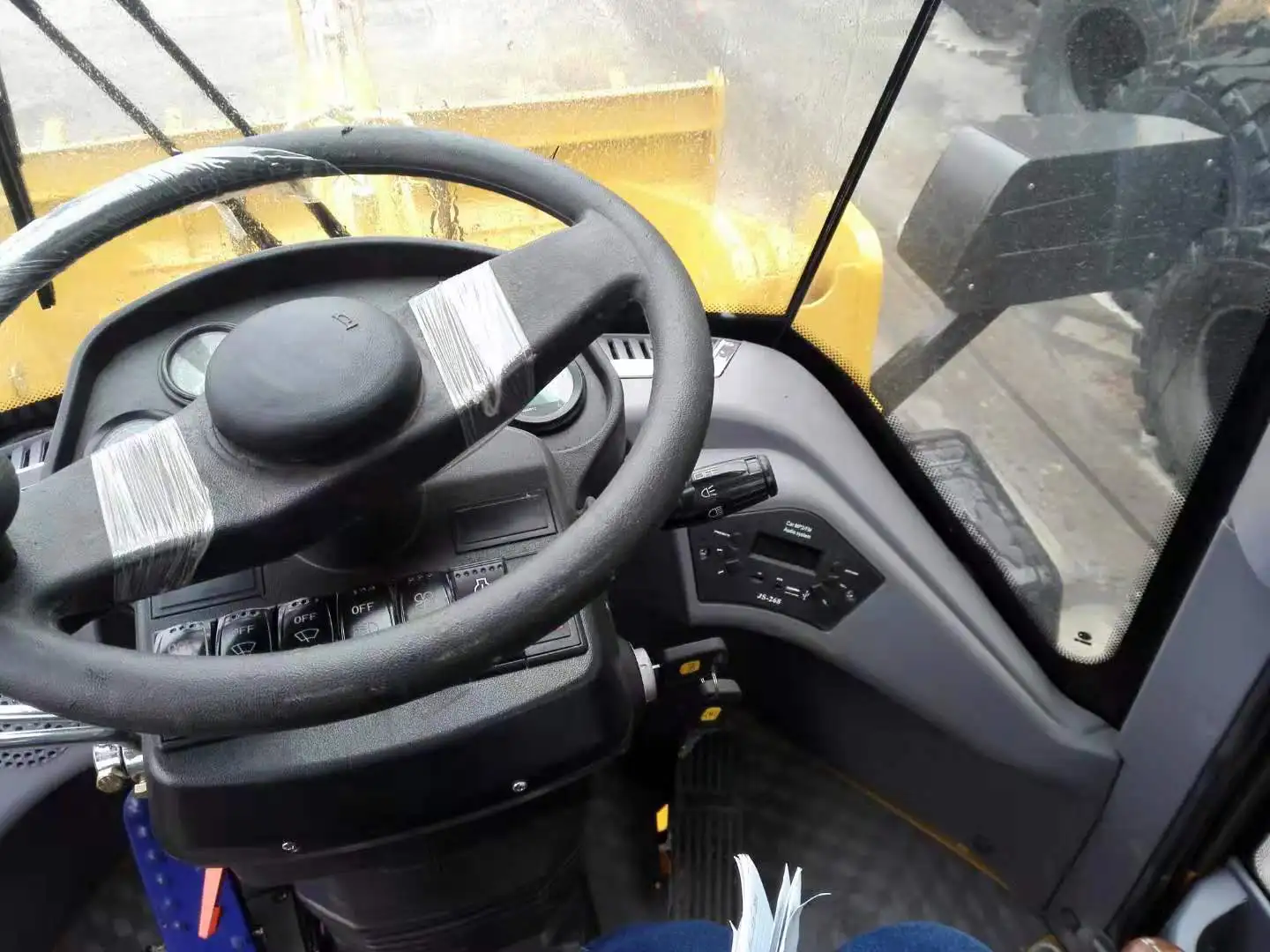

Single lever pilot control system makes operation easy and comfortable.Strengthened axles owns large bearing capacities and high reliability.
Machine Parts
Name: ZL18-30
Brand: GP
Original:China
Twin pump merging hrdraulic compensated steering makes opration easy and performance reliable.
Main Features
Name: ZL18-30
Brand: GP
Original:China
Air over hydraulic brake system;eight caliper disc brakes.Main articulated points take sealed,lubricated,dust-proof layers,which owns good durability.
Advantage
1.Low noise to operate in quiet work.
2.Steady moving ,efficient energy saving.
3.Excellent maneuverability
4.Utilize work space effectively
Contact us
Name | Position | Tel | Webside |
Hannah | Sales | 15295128632 | //www.gpforklift.cn |
Our Team
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
