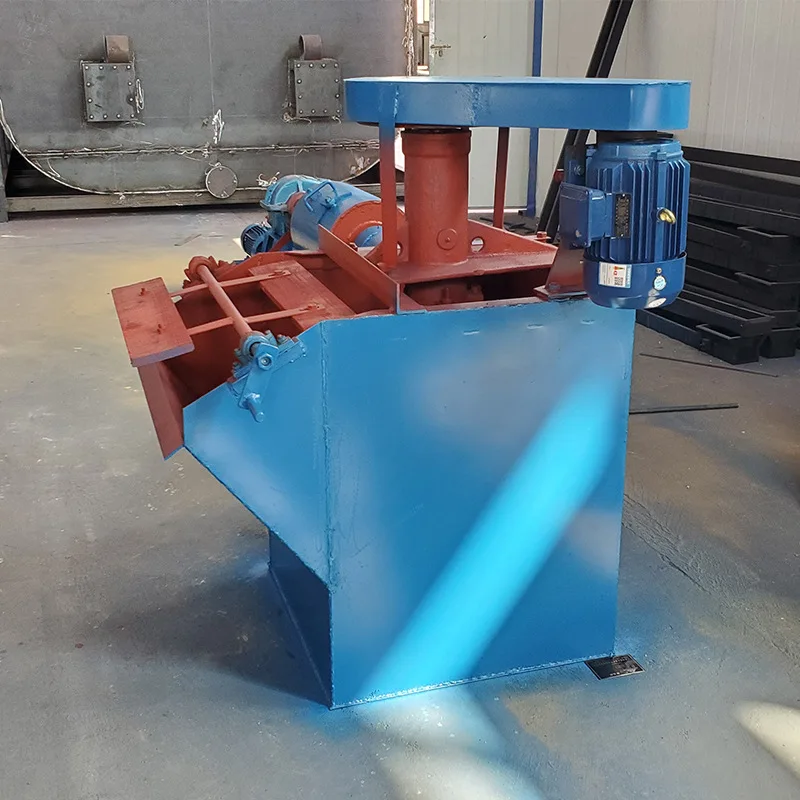

High effective Flotation Cell Machine Separation, Copper Froth Flotation Process Machine
- Category: >>>
- Supplier: Jiangxi Weida Mineral Processing Equipment Co. Ltd.
Share on (1600987287246):
Product Overview
Description

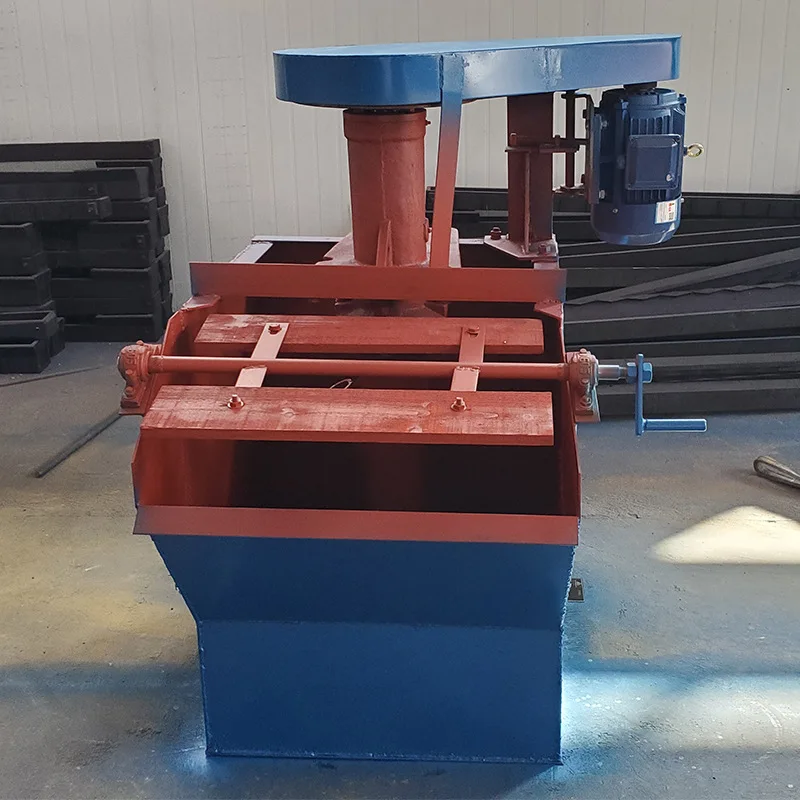

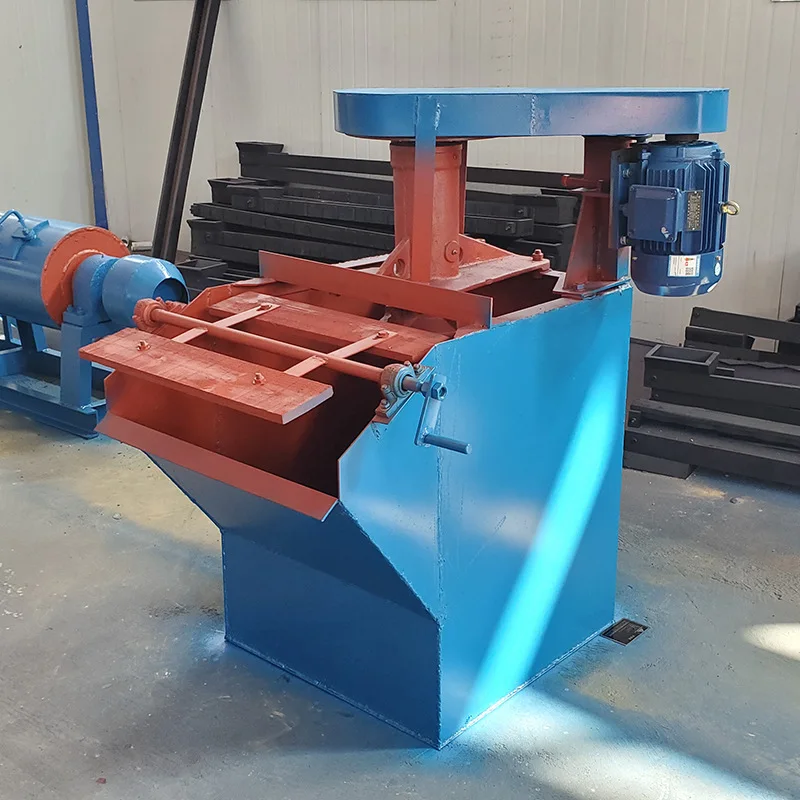

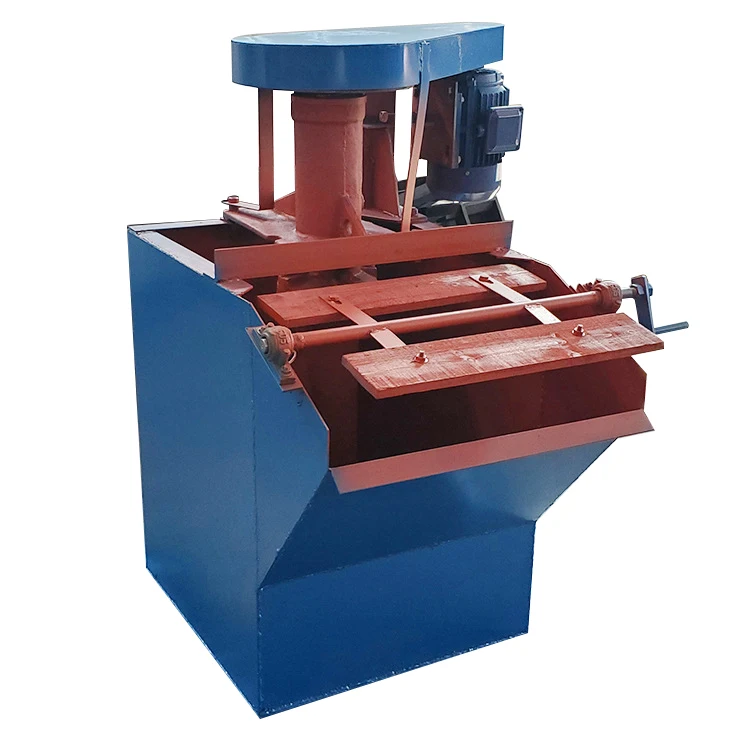

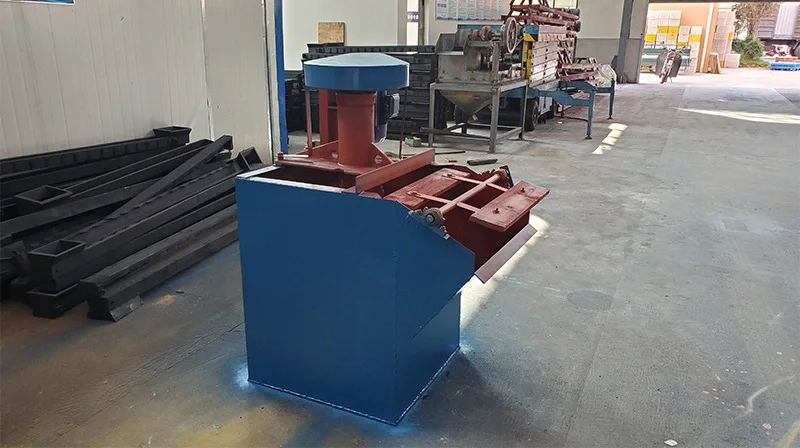

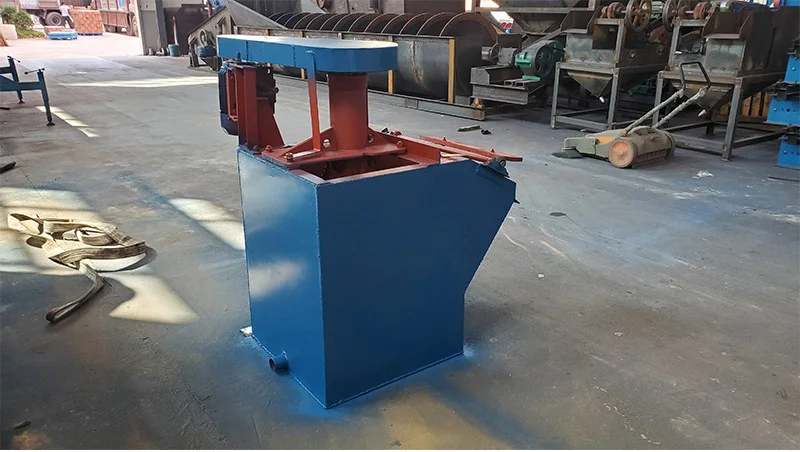

FLOTATION MACHINE
The flotation machine is mainly used for sorting non-ferrous metals such as copper, zinc, lead nickel and gold, and can also be used for rough selection and selection of ferrous and non-metal.It is subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.

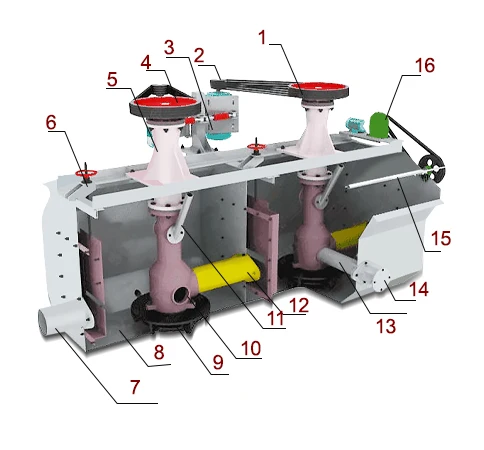

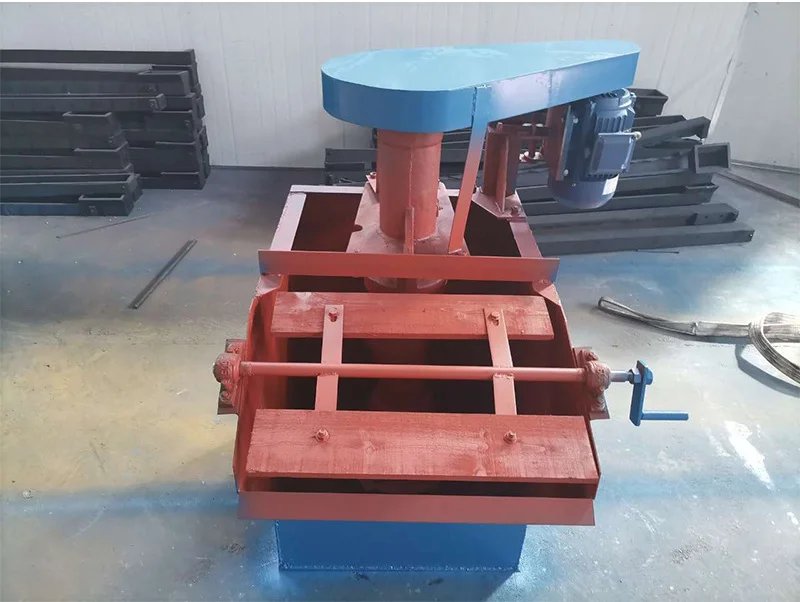

PRODUCT DETAILS
1. Belt

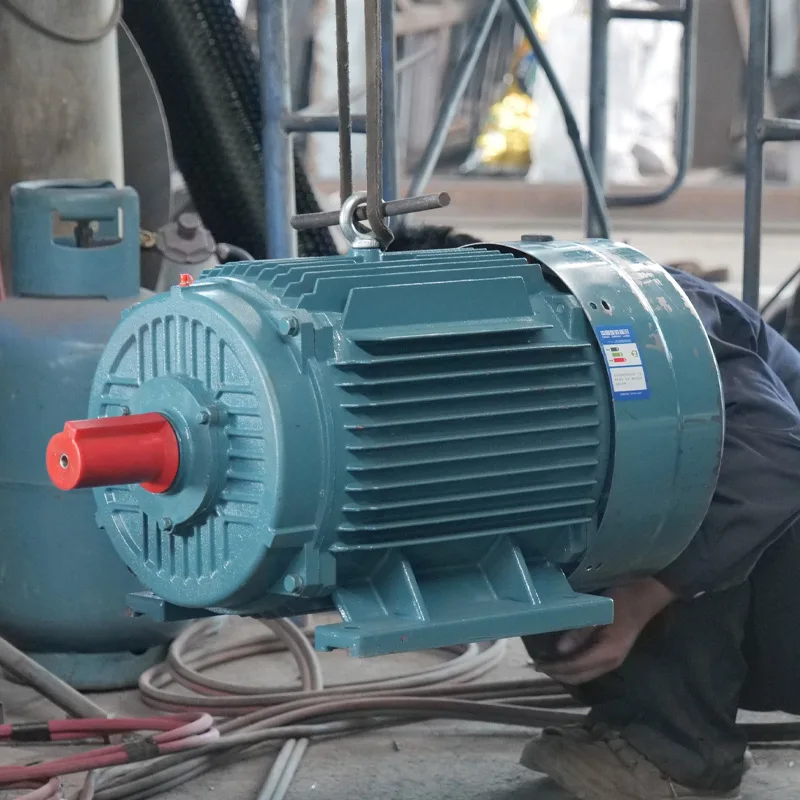

2.Motor
3.Pulley
4. Bearing Seat
5.Motor
6. Screw Lifter
7.outlet
8.Flotation Cell

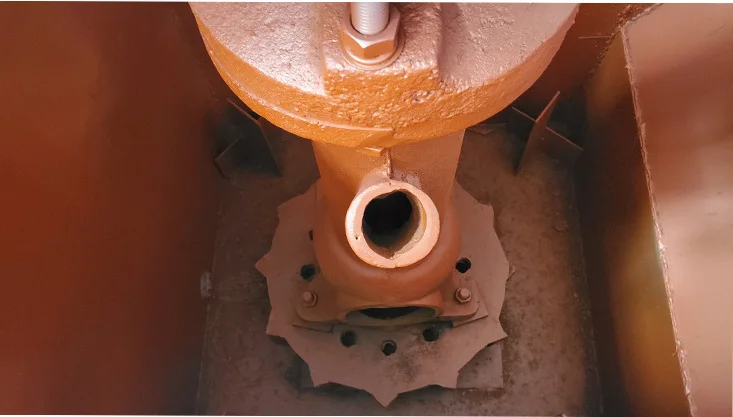

9.Rotor
10.Flotation Column
11.Air Inlet Pipe
12.Feeding Pipe
13.Feeding Branch Pipe
14.Branch Inlet
15.Scraper Device
16.Scraper Blade
SCOPE OF APPLICATION
TECHNICAL PARAMETERS
SF Model | Diameter (mm) | Rotational Speed (r/min) | Capacity (m³/min) | Main Motor | Scraper Motor | Size (mm) | ||||
Model | Power (kw) | Model | Power(kw) | |||||||
SF0.15 | 200 | 536 | 0.06-0.18 | Y100-6 | 1.5 | Y80L-4 | 0.55 | 500×500× 600 | ||
SF0.37 | 296 | 386 | 0.2-0.4 | Y90L-4 | 1.5 | Y80L-4 | 0.55 | 700×700× 750 | ||
SF-1.2 | 450 | 312 | 0.6-1.2 | Y32M-6 | 5.5 | 90S-4 | 1.1 | 1100×1100× 1100 | ||
SF-2.8 | 550 | 268 | 1.5-3.5 | Y180L-6 | 11 | Y100L6 | 1.5 | 1700×1600× 1150 | ||
SF-4 | 650 | 220 | 2-4 | Y200L-8 | 15 | Y100L6 | 1.5 | 1850×2050× 1200 | ||
SF-8 | 760 | 191 | 4-8 | Y250M8 | 30 | Y100L6 | 1.5 | 2200×2900× 1400 | ||
SF-10 | 760 | 191 | 5-10 | Y250M8 | 30 | Y100L6 | 2.2 | 2200×2900× 1700 | ||
JIF-4 | 410 | 305 | 2-5 | Y160L-6 | 11 | Y100L6 | 1.5 | 1600×2150× 1250 | ||
JIF-8 | 540 | 233 | 4-10 | Y200L26 | 22 | Y100L6 | 1.5 | 2200×2900× 1400 | ||
JIF-10 | 540 | 233 | 4-12 | Y200L26 | 22 | Y100L6 | 2.2 | 2200×2900× 1700 | ||

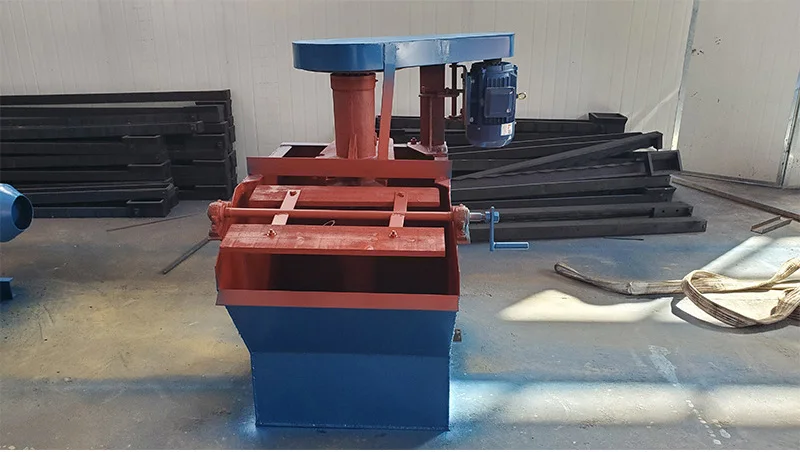

AVAILABLE FROM STOCK
Contact Us
COMPANNY INFORMATION
Jiangxi Weida Mining Machinery Co., Ltd. is a large professional company producing non-ferrous metal and non-metallic separation and treatment equipment. The company covers an area of 25,000 square meters, with fixed assets of 60 million yuan, modern processing workshop 18,000 square meters, more than 40 large processing equipment, mainly producing processing and mineral processing equipment, including ore feeding, crushing, screening, grinding, classification, mixing, flotation, cyanidation and other varieties.

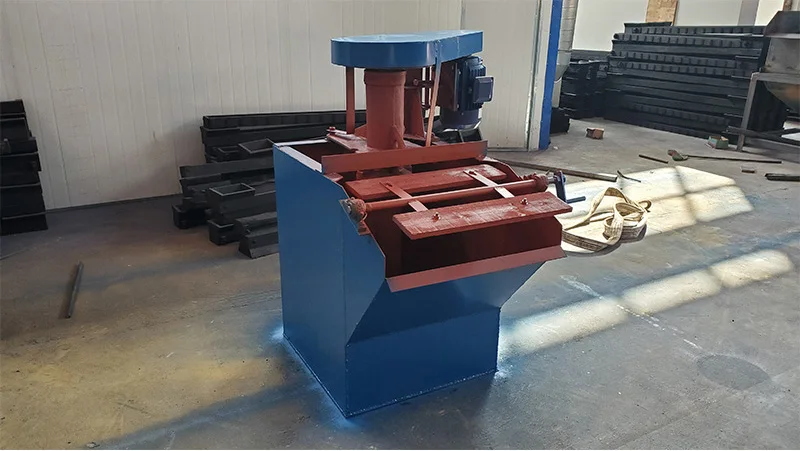

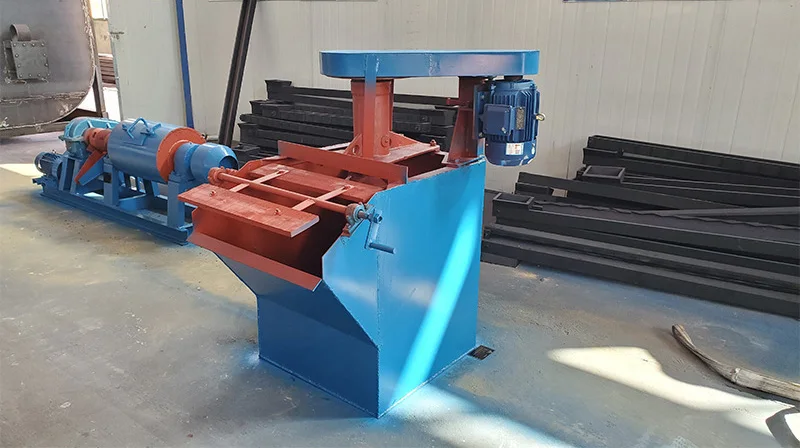

AVAILABLE FROM STOCK
CASE PRESENTATION
DELIVERY SITE
