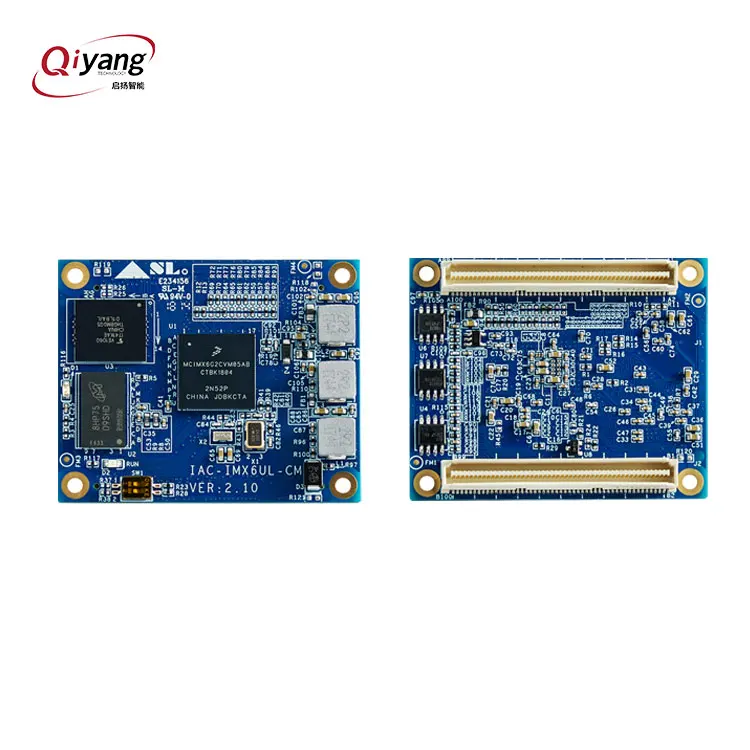

Qiyang Low cost and efficient I.MX6UL processor SOM board with mini pcie function System On Module
Qiyang Low cost and efficient I.MX6UL processor SOM board with mini pcie function System On Module
Qiyang Low cost and efficient I.MX6UL processor SOM board with mini pcie function System On Module
Qiyang Low cost and efficient I.MX6UL processor SOM board with mini pcie function System On Module
Qiyang Low cost and efficient I.MX6UL processor SOM board with mini pcie function System On Module
Qiyang Low cost and efficient I.MX6UL processor SOM board with mini pcie function System On Module
Qiyang Low cost and efficient I.MX6UL processor SOM board with mini pcie function System On Module

Qiyang Low cost and efficient I.MX6UL processor SOM board with mini pcie function System On Module

Share on (1600987308269):


Price:

Quantity:


Product Overview

Description



Product Description




CPU

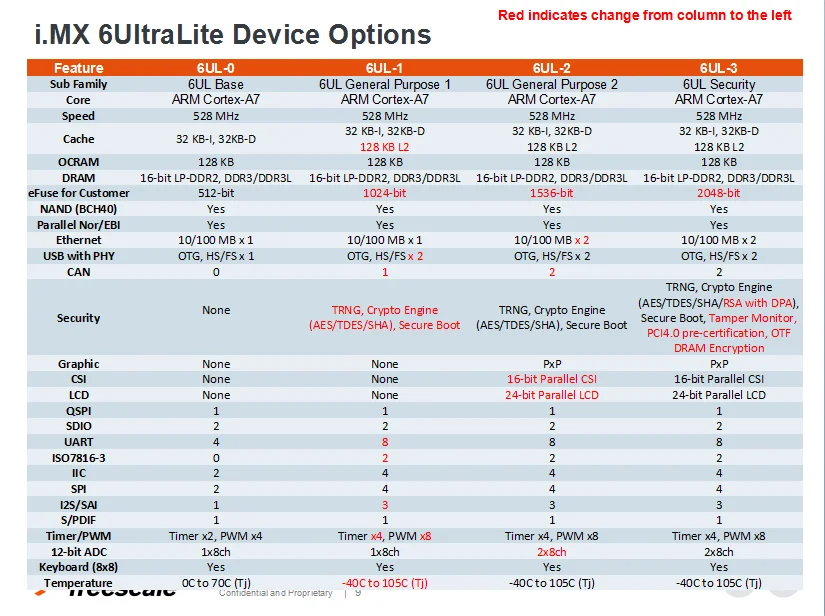

Freescale i.MX6UL-2, ARM® Cortex™-A7 kernel
Frequency
1-ch DDR3 SDRAM, 512MB
Flash

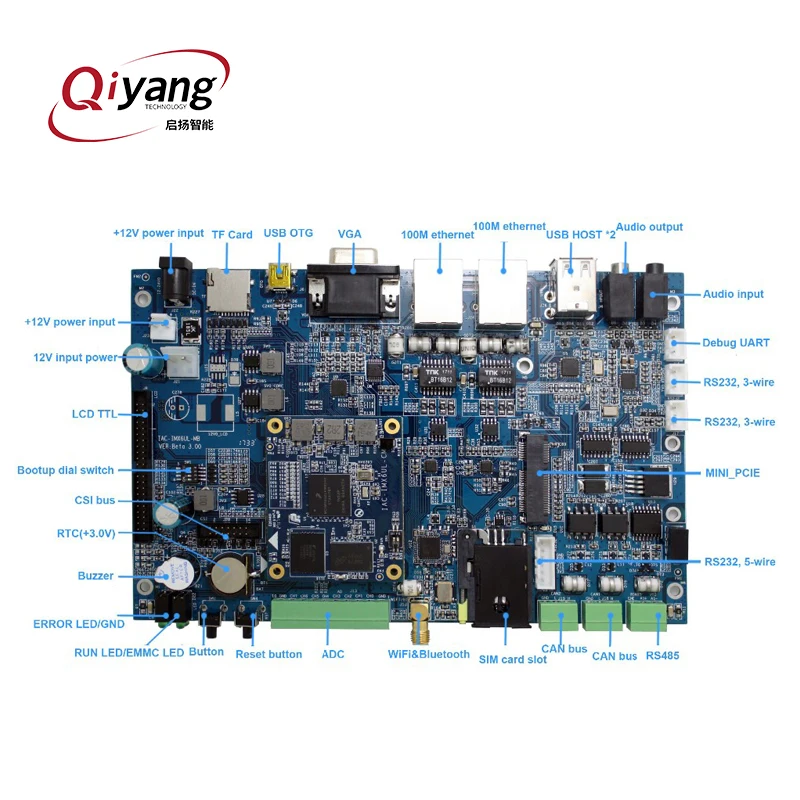

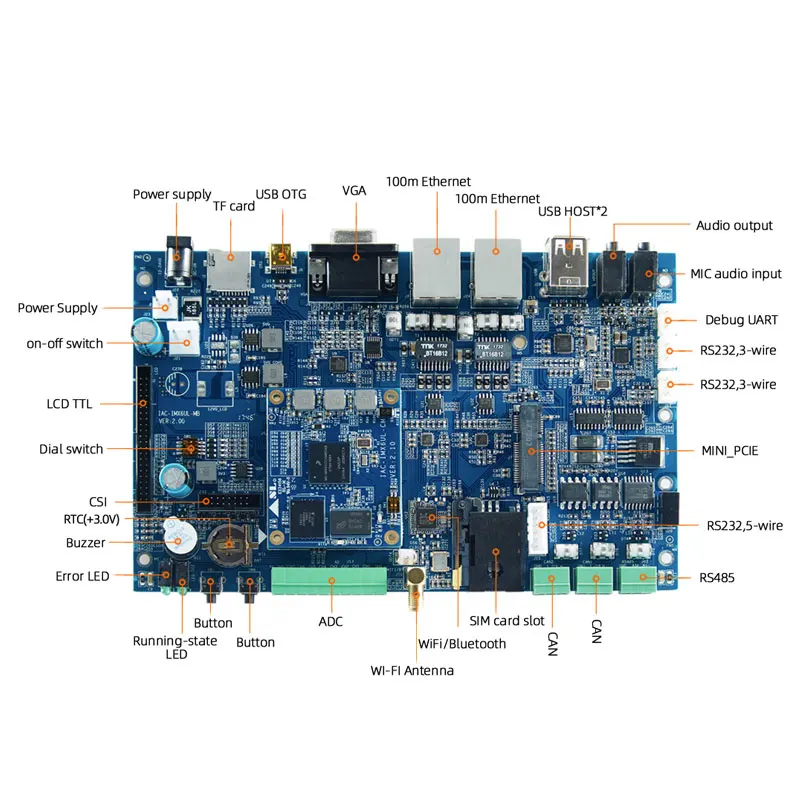

UART, USB, CAN, MINI-PCIE, Ethernet, GPIO, ADC, I2C, SPI, CSI, etc.
Display
LVDS, TTL, VGA
Audio
McASP audio interface, stereo output, MIC audio input
Storage
SD card port
B to B Connector
2*40 pin B to B (the connectors are 350℃ high temperature-tested and seismic-tested)
OS Support
Linux
Other Onboard Resources
Single 5V power input; It outputs all voltage core board needs

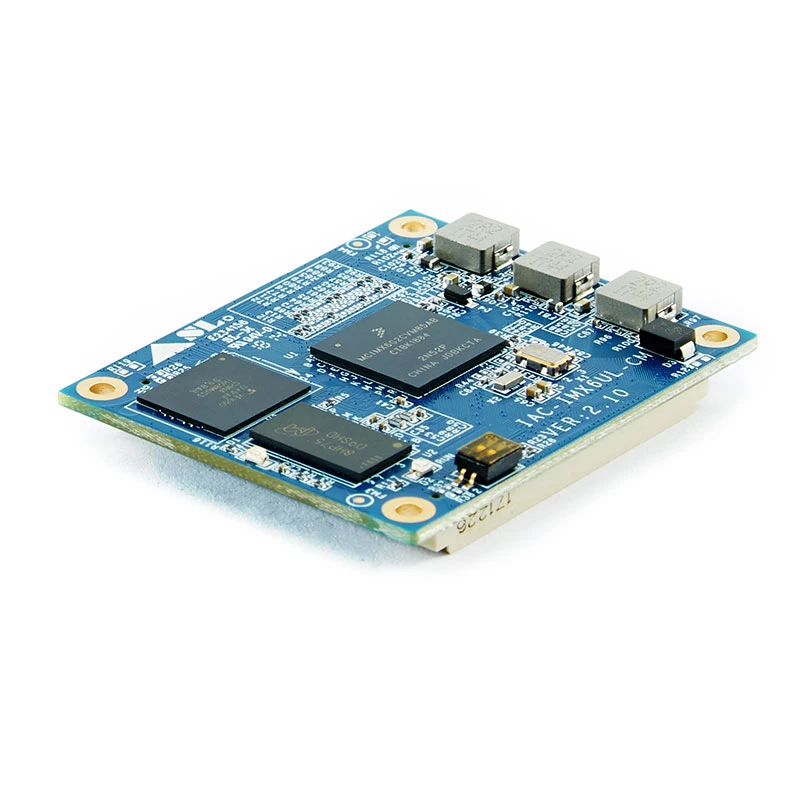

PCB Specification & Size
Using 6-layer PCB high precision process with immersion gold technology
55mm x 46mm x 1.5mm
Working Parameters
Working temperature: -20°C~ 70°C. (Batch order could be customized to -40°C~ 85°C)
Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
5V DC power supply, low power consumption: <2W
Form Factor

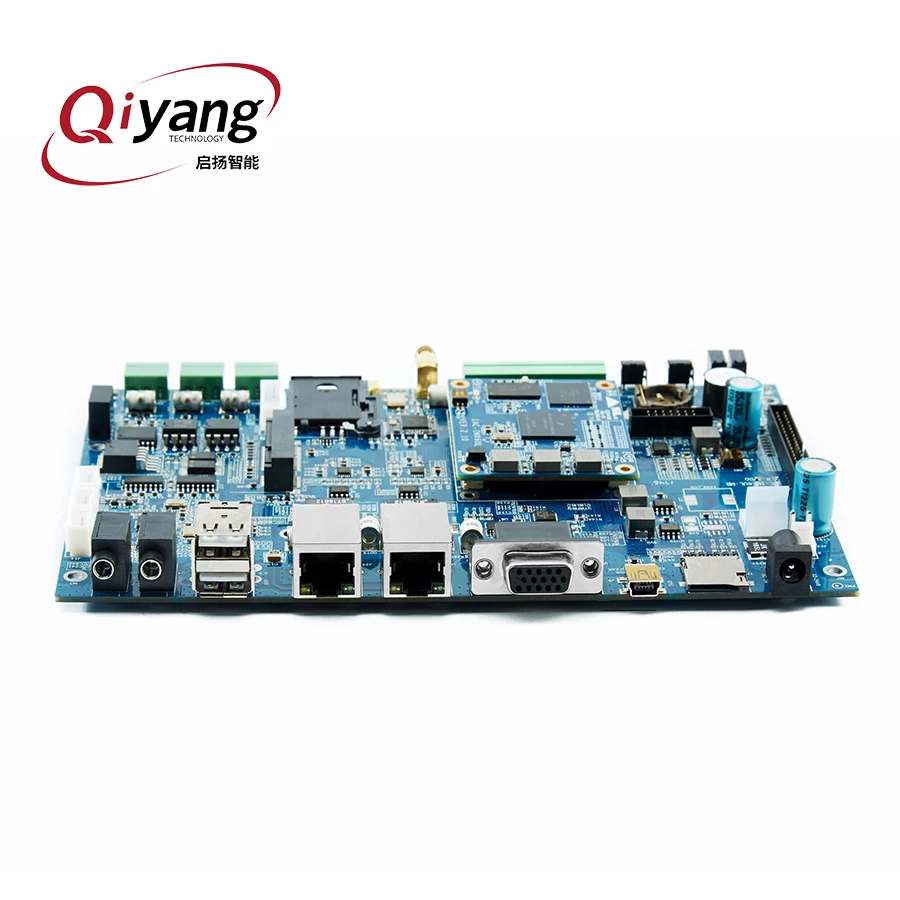

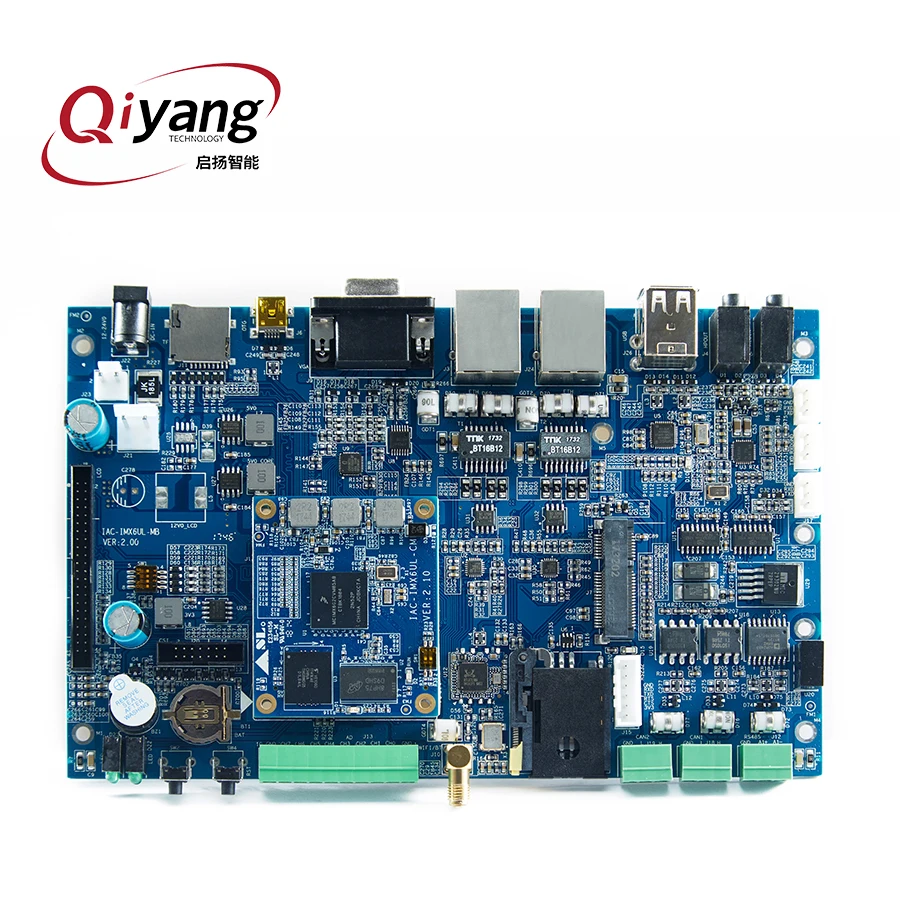

System on Module+ Carrier Board

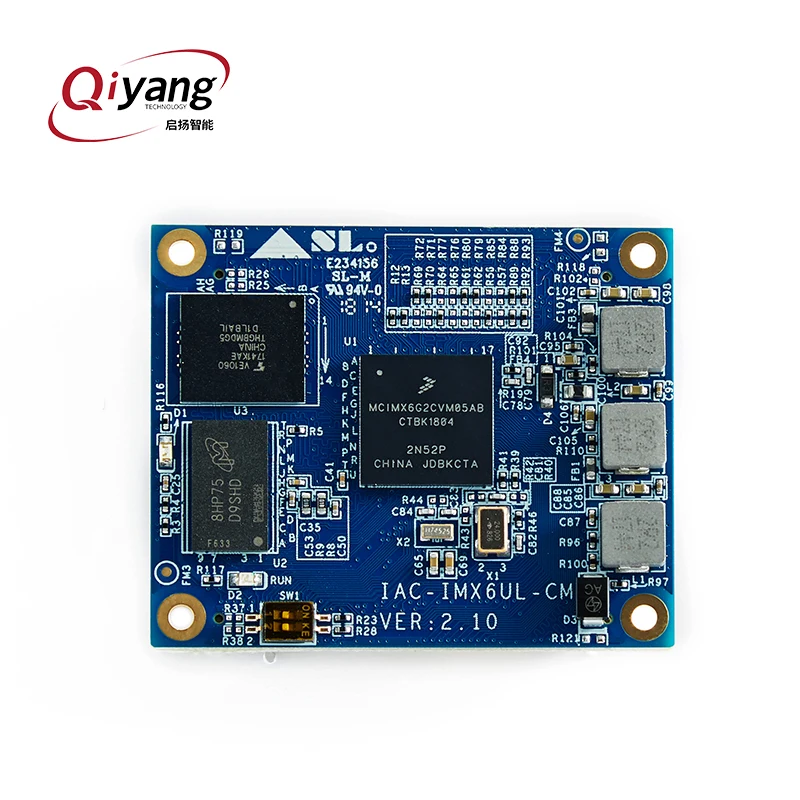

1. CPU: i.MX 6UL-2 CPU, ARM Cortex A7 core, basic frequency reaches 528MHZ
2. RAM: One DDR3 SDRAM, standard: 512MB
3. Flash: 4GB EMMC flash
4. Interface: FCI 2*100 B to B connectors





Our Service


1. Sample order with unlimited technical support

2. Customization service
Provide device selection, design suggestions, plate type design;
Principle diagram design, PCB design/modification, driver debug, driver source code, test source code, secondary development document writing, prototype;
Provide upper development, and the follow-up with long-term technical support, quality tracking service.



Our Company


We are a high and new technology enterprise which is specializing in R&D, manufacture and sell embedded computer, new brand bulk buy motherboard with high performance, low power consumption, low cost, small volume, and provides embedded hardware solutions. Over ten years we focused on the development and services of embedded ARM industrial control products, which provides an easy-to-use development tools, reference design platform, product solutions of volume production for embedded development engineers. It helps customers to shorten the time from embedded board to products, and improves product quality. Our company is dedicated to become a leading embedded hardware and software supplier.











Certifications




Packing & Delivery




Related Products




FAQ


Q1. What is your terms of delivery?
A: FOB

Q2. How about your delivery time?
A: Generally, it will take 5 to 7 working days after receiving your payment. The specific delivery time depends
on the items and the quantity of your order.


Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We provide the unlimited technical support to help our clients testing and developing their project more efficiently.
