1. FPC+PCB camera, it can be installed in many type of machine

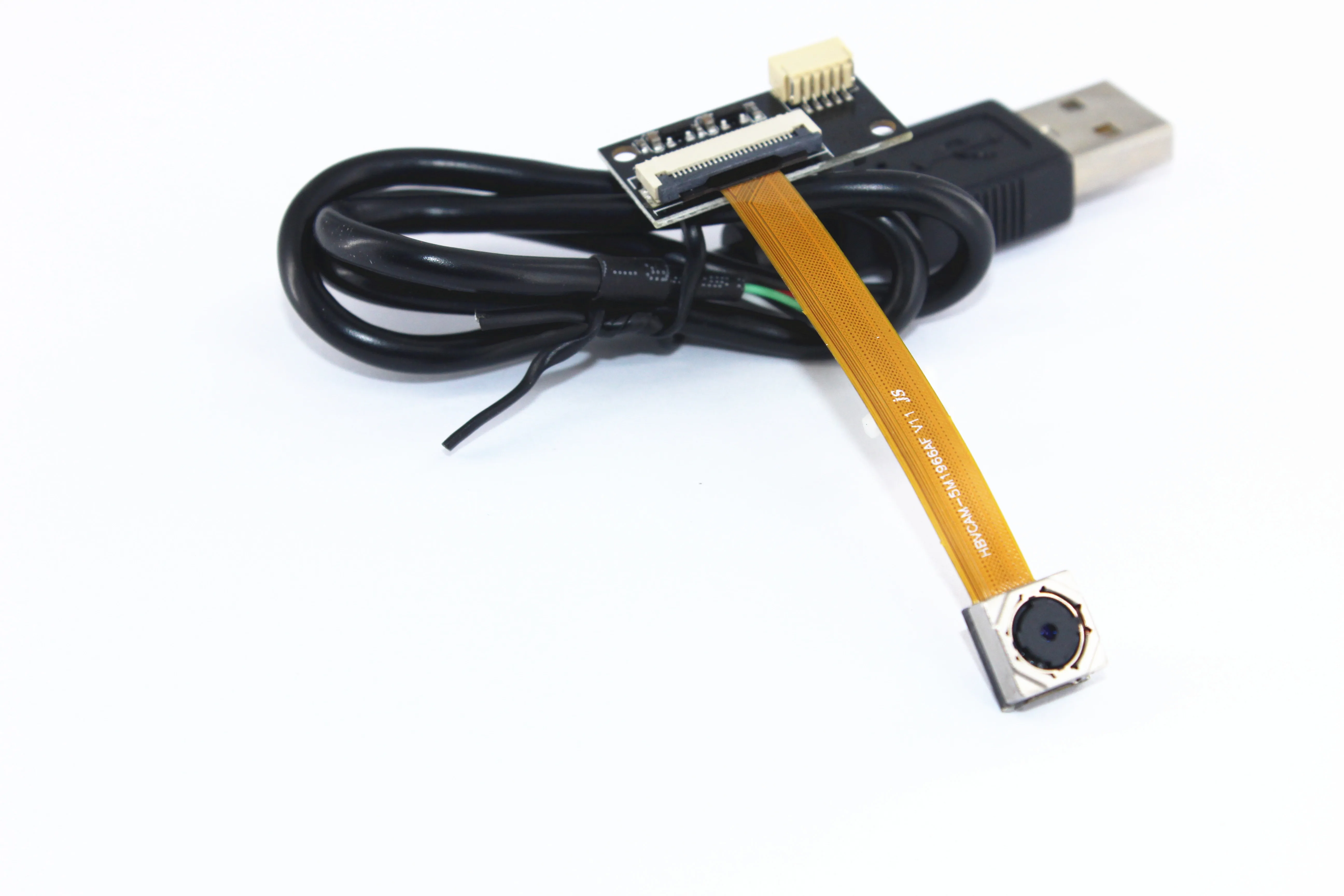

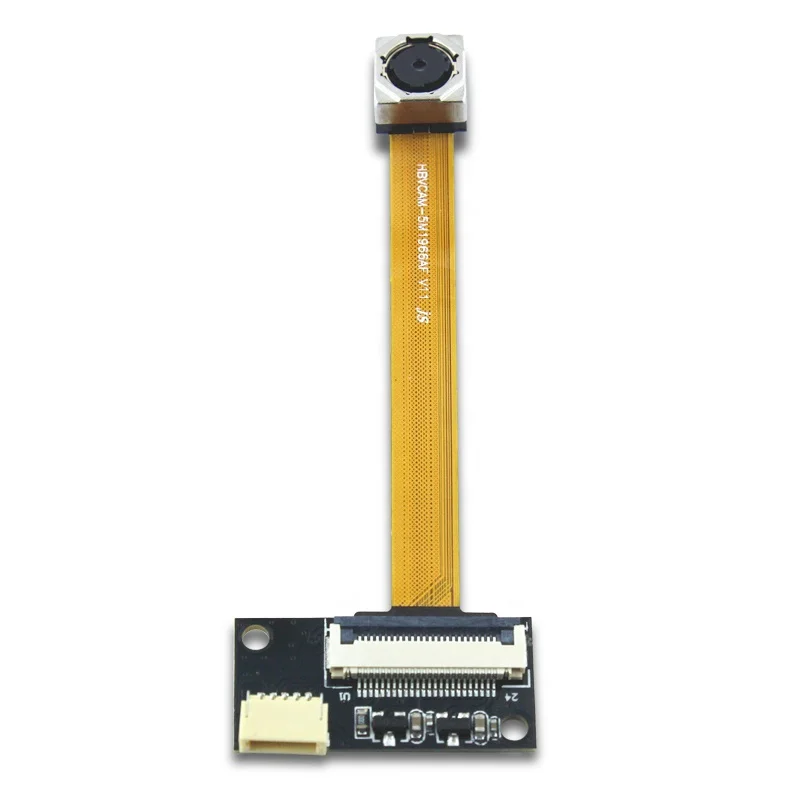

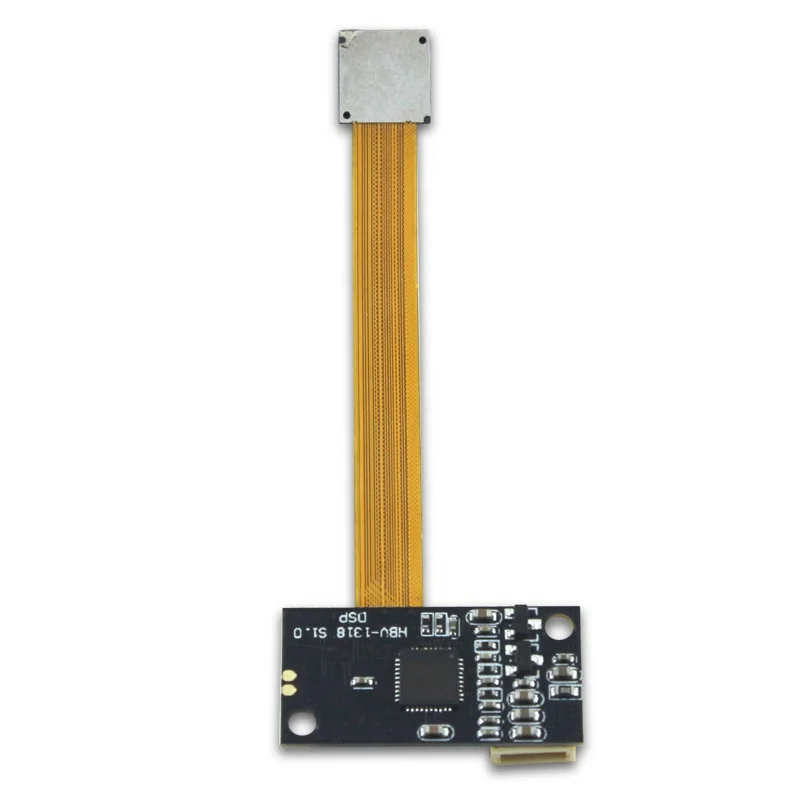

Custom 5MP Cmos Sensor OV5640 Auto Focus FPC Camera Module With Flex Cable For ATM Machine Camera
- Category: >>>
- Supplier: Shenzhen Huiber Vision Technology Co. Ltd.
Share on (1600987323098):
Product Overview
Description
Product Description
| Module No. | HBV-1466AF S1.0 |
| Module Size | 68.2mm × 26mm × 5.0mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | AUTO |
| Object distance | 30CM-infinity |
| Resolution | 800LW/PH (Center) |
| PCB printing ink | black |
| interface | USB 2.0 |
| Power suuply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 800 mW |
| Operating system request | Win XP/win 78 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV5640 (1/4” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 2592*1944 |
| Sensitivity | 7500e /lux-sec |
| Pixel Size | 1.4µm x 1.4µm |
| Maximum Image Transfer Rate | MJPEG 1024x768 40FPS / YUY2 160x120 30FPS MJPEG 1280x720 40FPS / YUY2 320x240 30FPS MJPEG 1600x1200 15FPS / YUY2 640x480 30FPS MJPEG 2048x1536 15FPS / YUY2 800x600 30FPS MJPEG 1920x1080 15FPS / YUY2 1024x768 15FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 3FPS |
| S/N Ratio | 38 db |
| Max Dynamic Range | 66 db |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 4P |
| F/No | 2.8 |
| EFL | 2.7 mm |
| FOV | 65° |
| TV Distortion | <0.24% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |
-

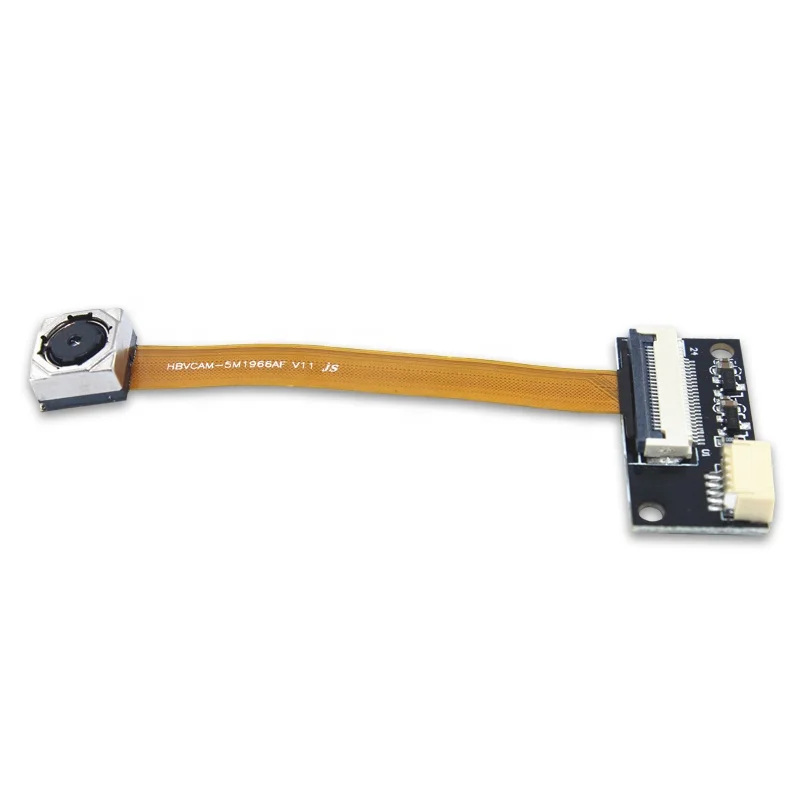

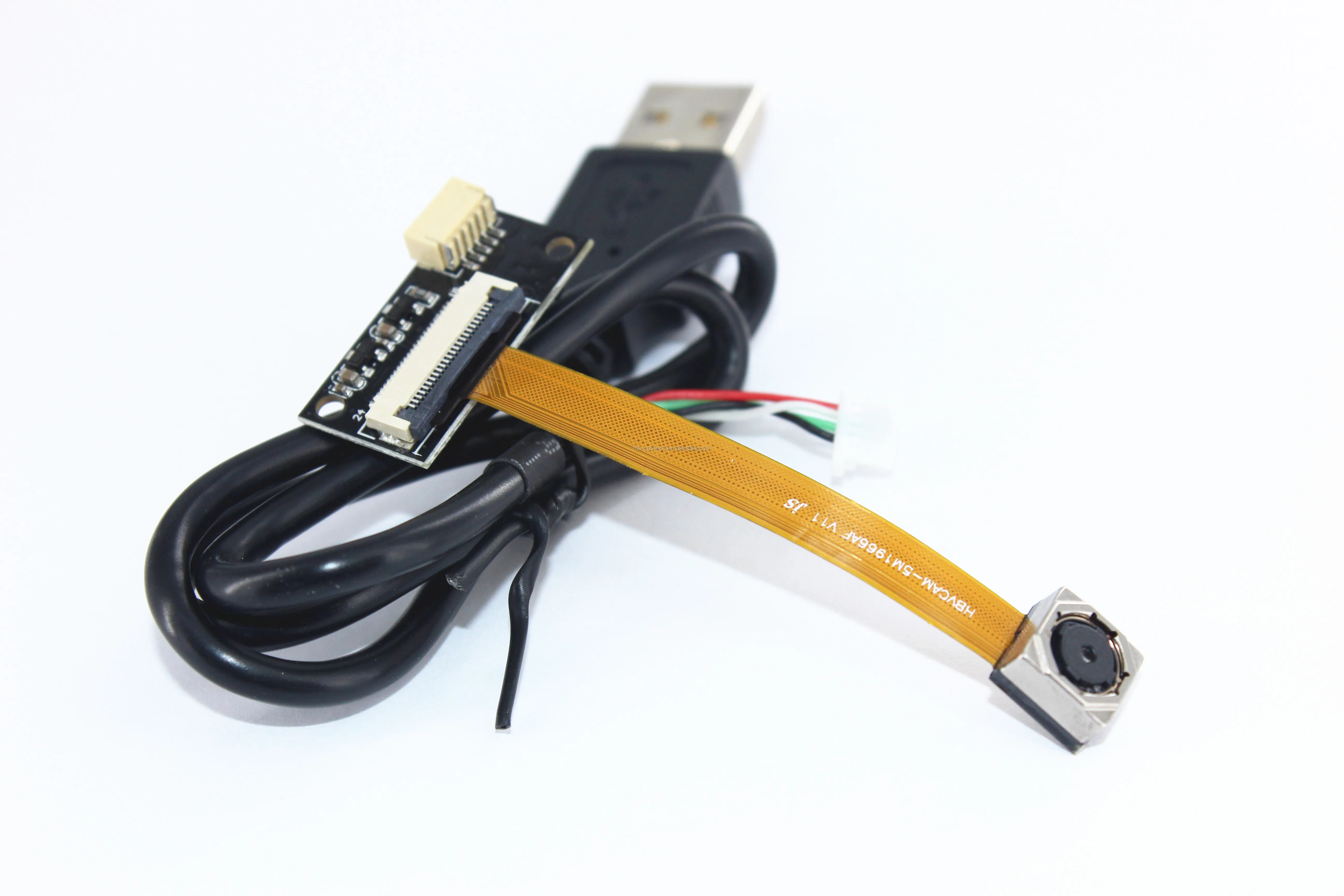

5MP FPC+PCB camera with auto focus lens

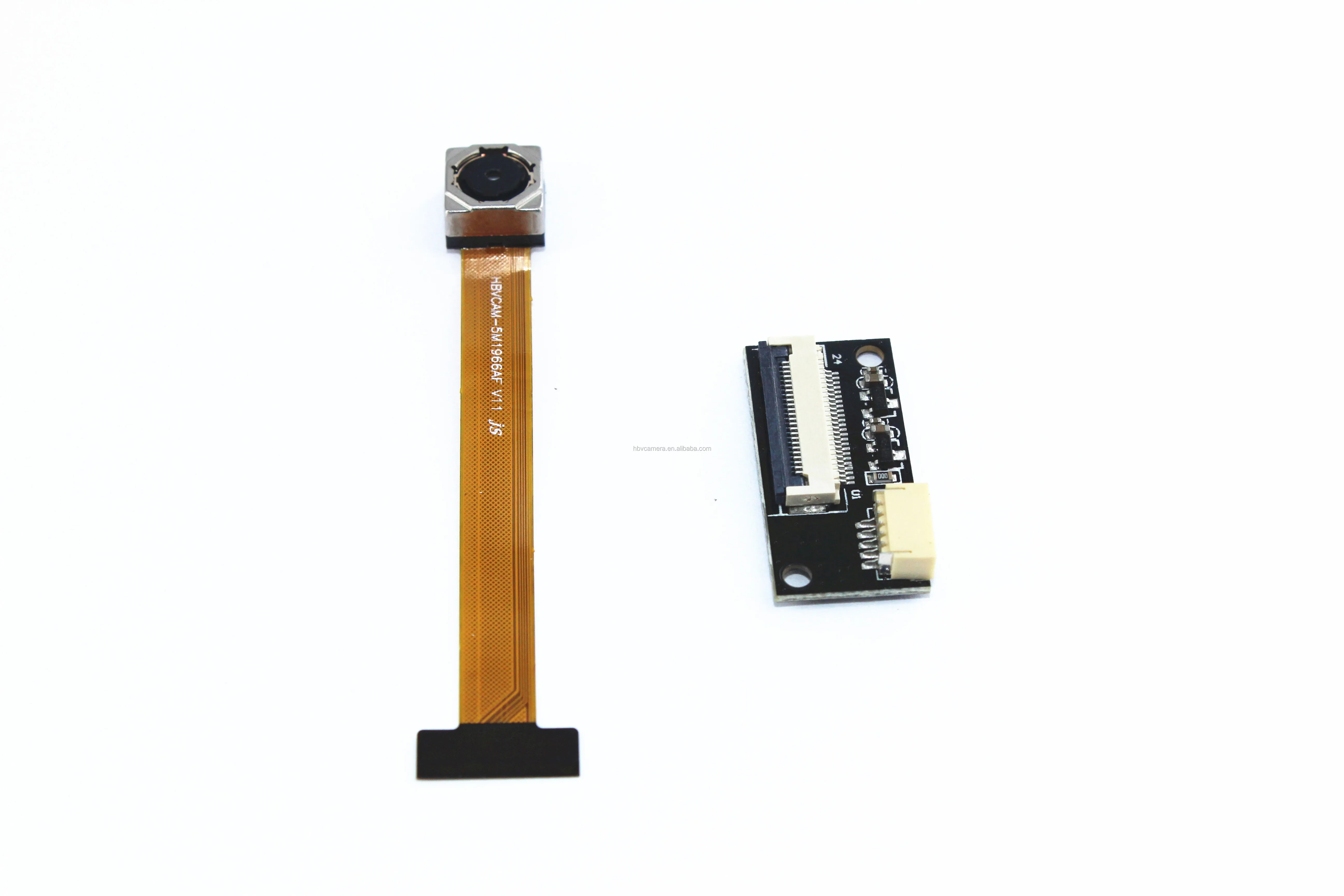

1. FPC+PCB camera, it can be installed in many type of machine
Product Usage
-
-
Product usage introduction
-
1.this camera can be installed in ATM Machine, High speed document scanner, Gate machine and so on
-
Description of product use effect
with good effect image
1. Do you camera module manufacturer?
A: Yes, we are a professional USB camera module manufacturer and our company was established in 2013.
2. Do you supply OEM/ODM service?
A: Yes, we can supply OEM/ODM service, we also can customize the camera module according to your
requirement.
3. Do you supply SDK?
A: Sorry, we can not supply SDK.
4. Does the camera module can work with Windows/Android/Linux system?
A: Usually the camera can work with Windows system with freedriver, it is a play and plug camera module, it can also work with some Andorid and Linux system with standard UVC protocol, it need to be tested whether work with Android and Linux system.
