Product Overview

Description

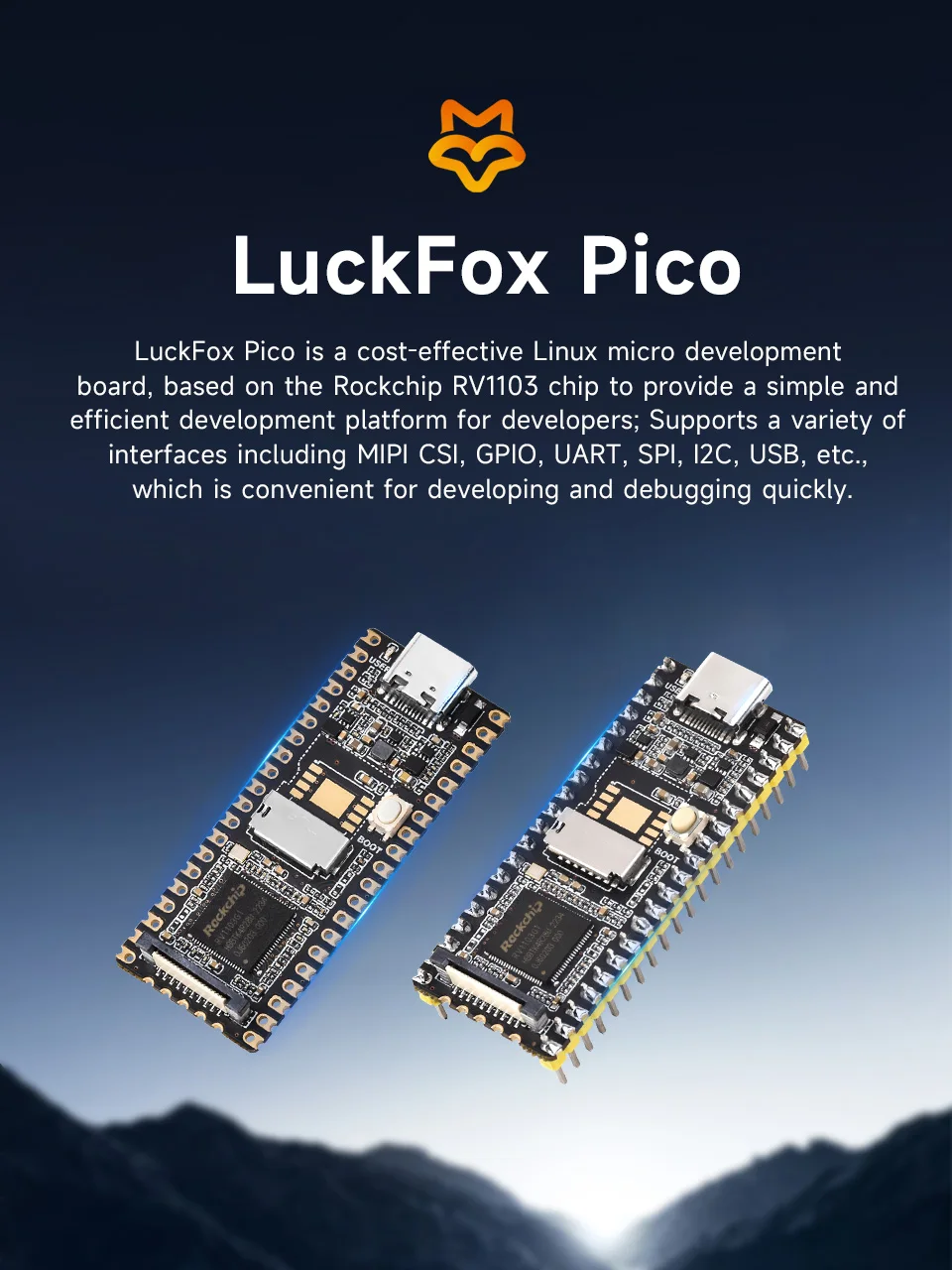

LuckFox Pico RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors





Specifications








































ProcessorCortex A7 @ 1.2GHz + RISC-V
NPU0.5TOPS, supports int4, int8 and int16
ISPInput 4M @30fps (Max)
Memory512Mb DDR2
USBUSB 2.0 Host/Device
CameraMIPI CSI 2-lane
GPIO24 × GPIO pins
Ethernet port10/100M Ethernet controller and embedded PHY
Default StorageTF card (Not included)



Pinheader Options

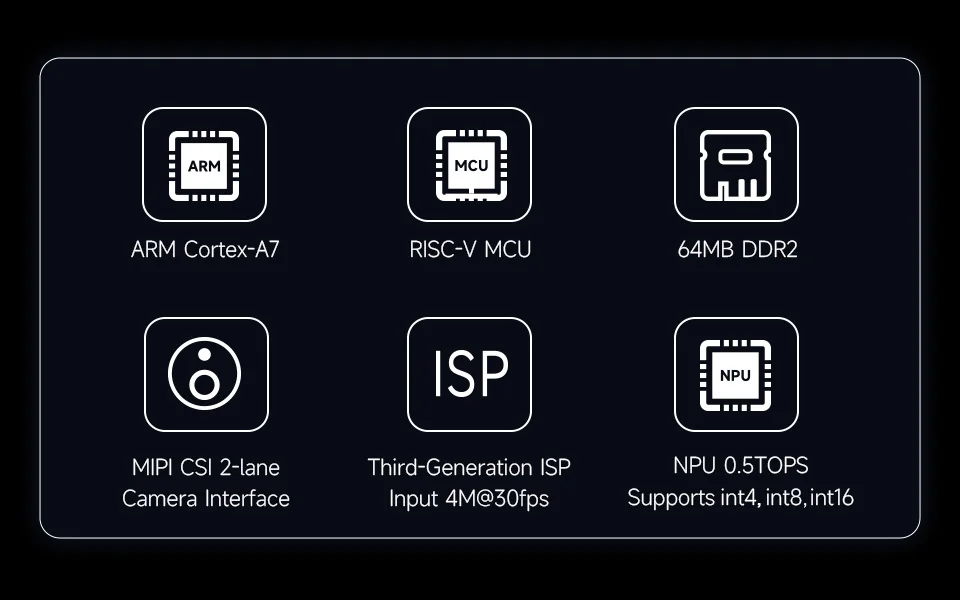

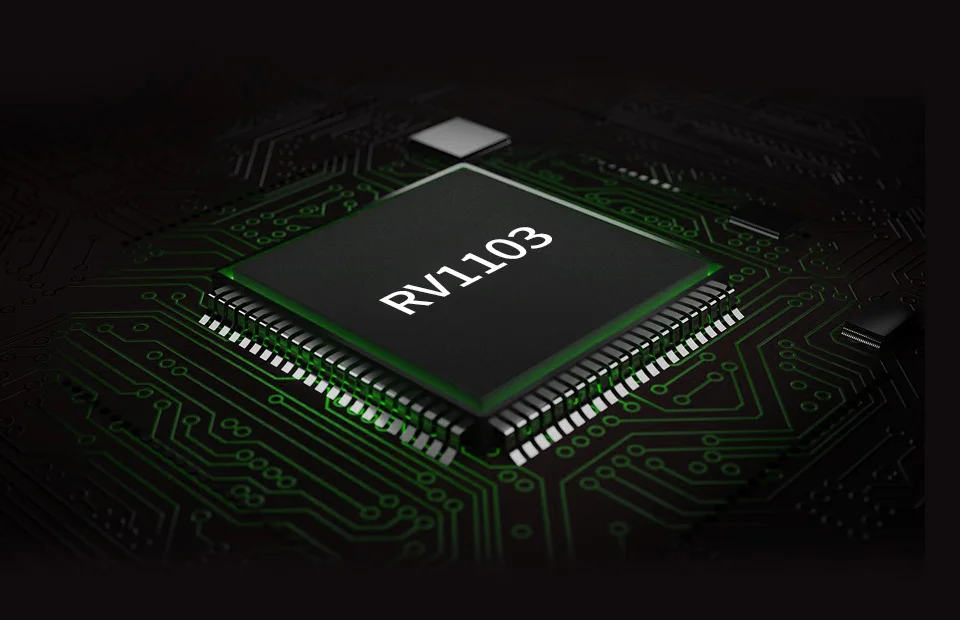

Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors





  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU

  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4

  • Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.

  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space

  • Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"

  • Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths

  • Integrated with built-in POR, audio codec and MAC PHY





Easier To Develop

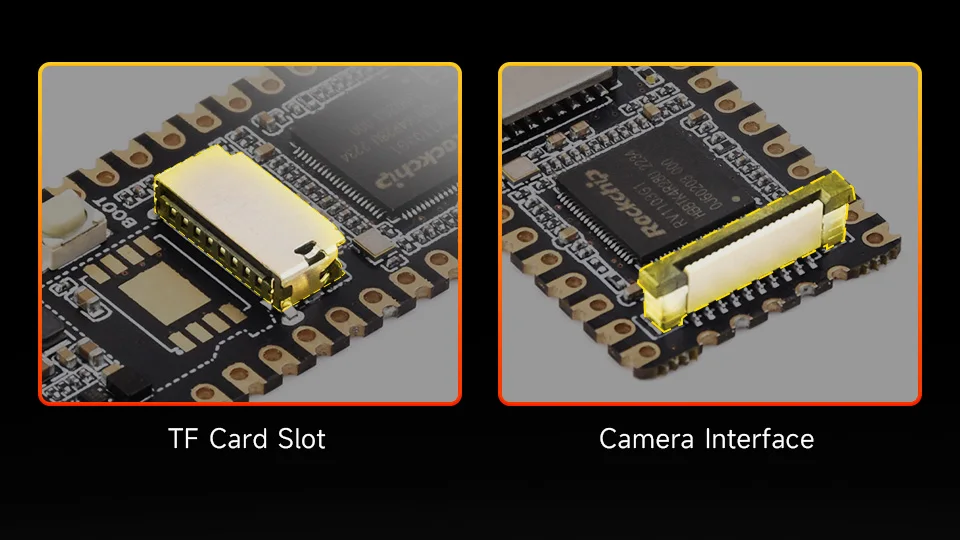

Integrates TF Card Slot And Camera Interface

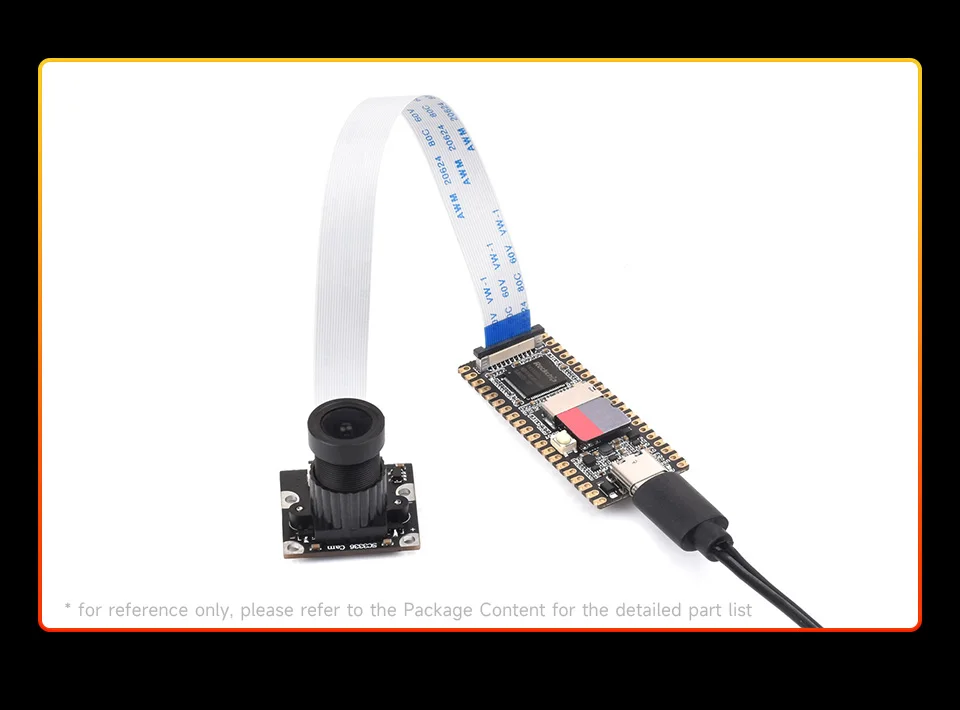

Application Example



Suitable For More Application Examples

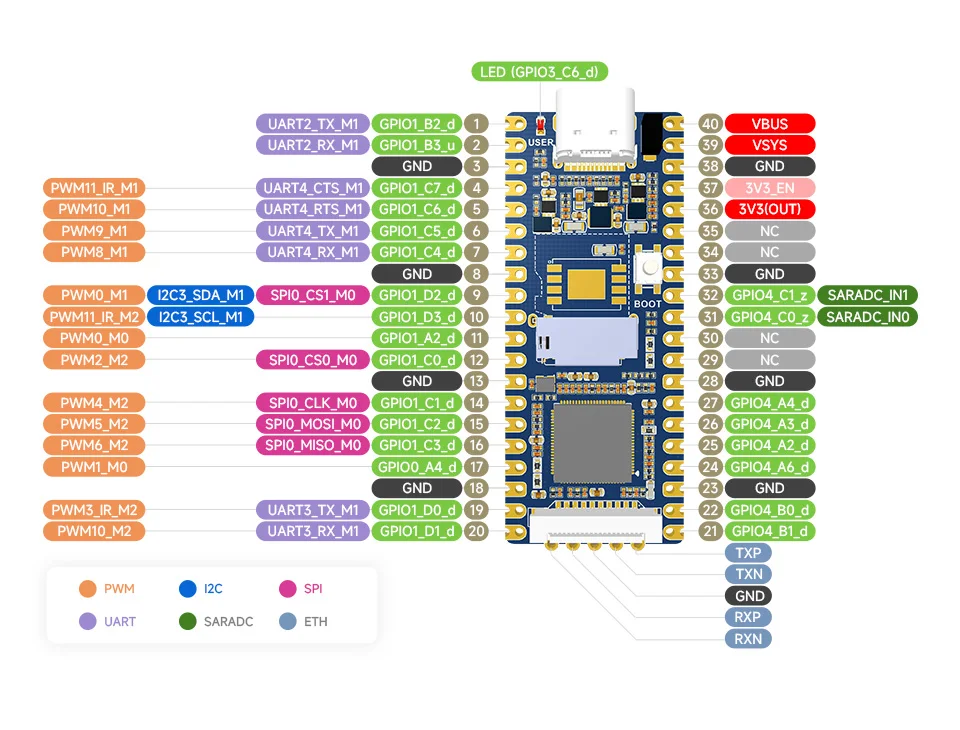

Pin Definition

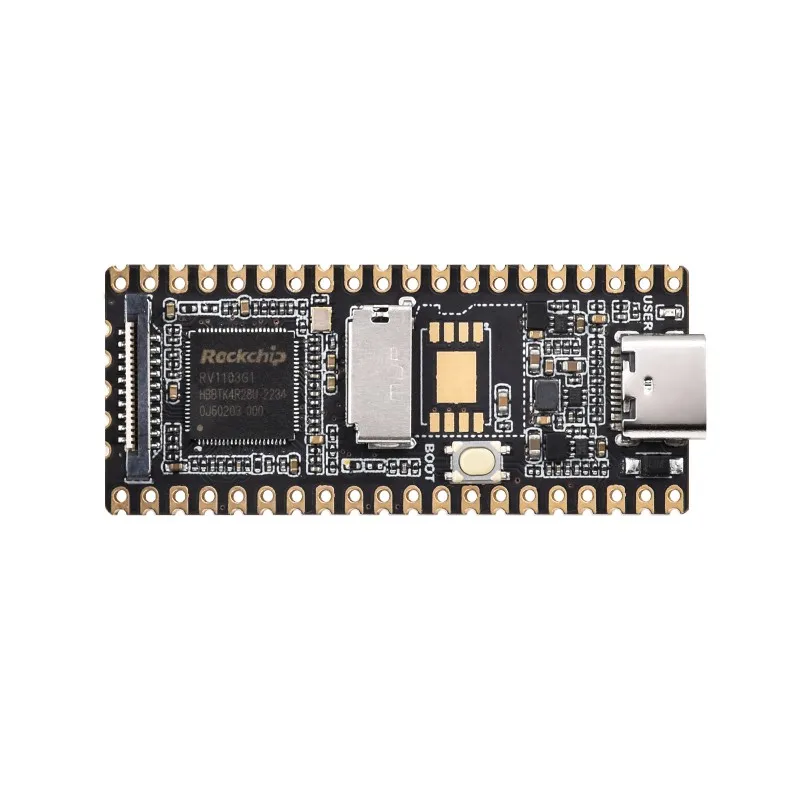

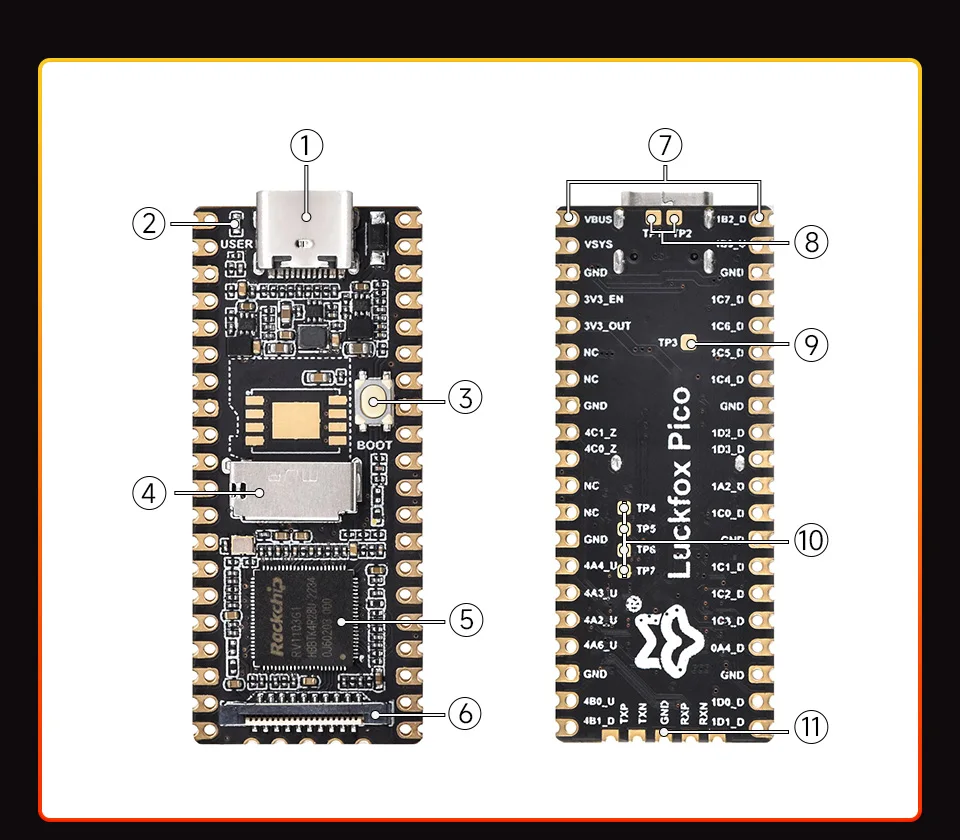

What's On Board





  1. USB Type-C connector

  2. ACT-LED

  3. BOOT button
    Press it when powering on to enter download mode

  4. TF card slot

  5. RV1103
    Vision processor SoC with built-in ARM Cortex-A7 core






  1. CSI camera interface
    MIPI CSI 2-lane

  2. GPIO header

  3. USB test pads

  4. BOOT test pad

  5. Microphone test pads

  6. Ethernet interface pads

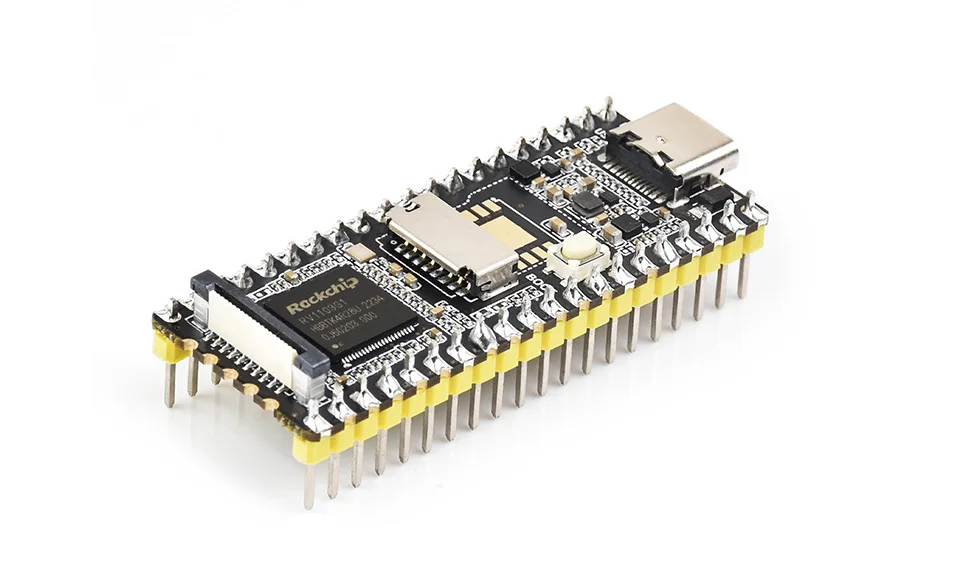

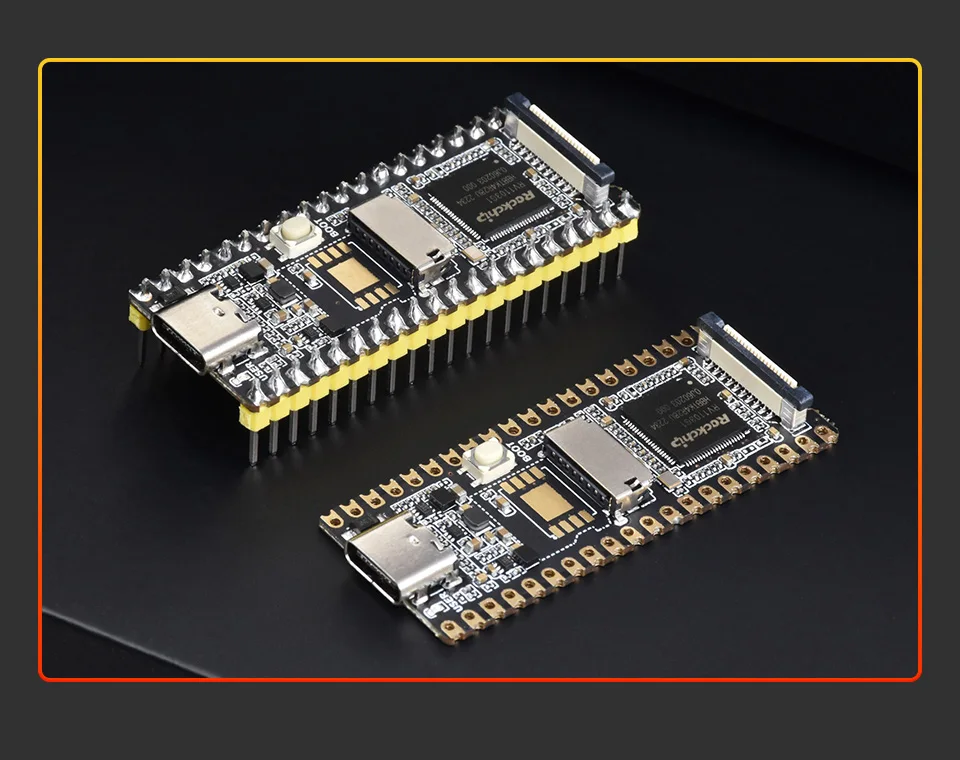

Product Show

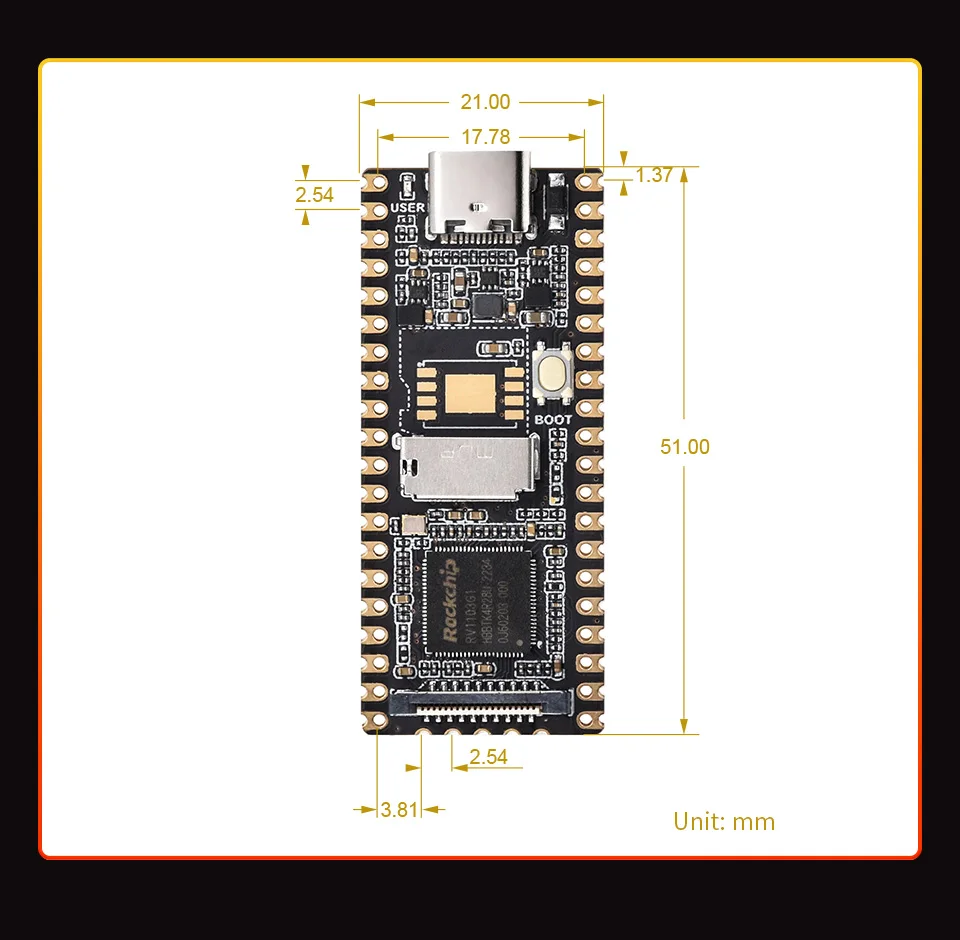

Outline Dimensions



Weight: 0.006 kg

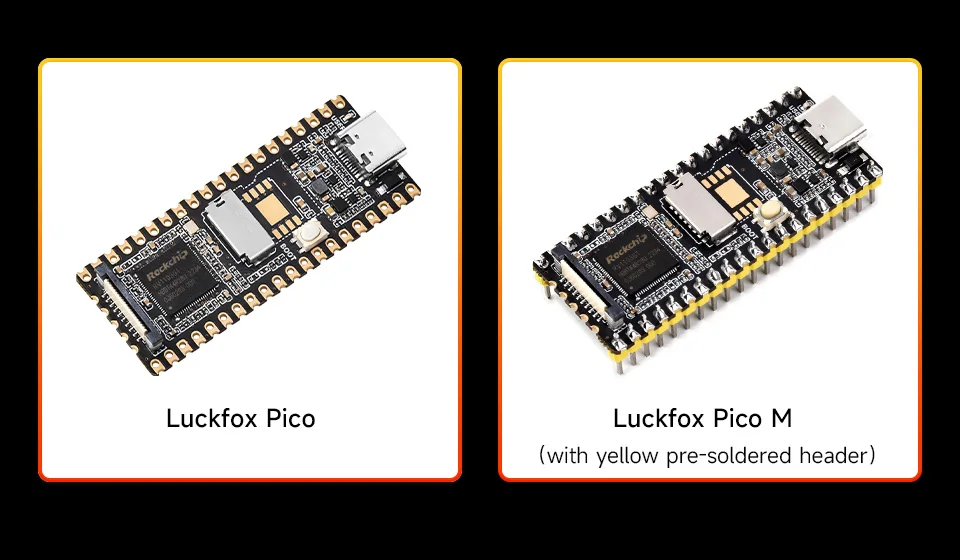

 Luckfox Pico


Luckfox Pico x1



 Luckfox Pico M


Luckfox Pico with pre-soldered header x1
