Product Overview
Description
Display General Description

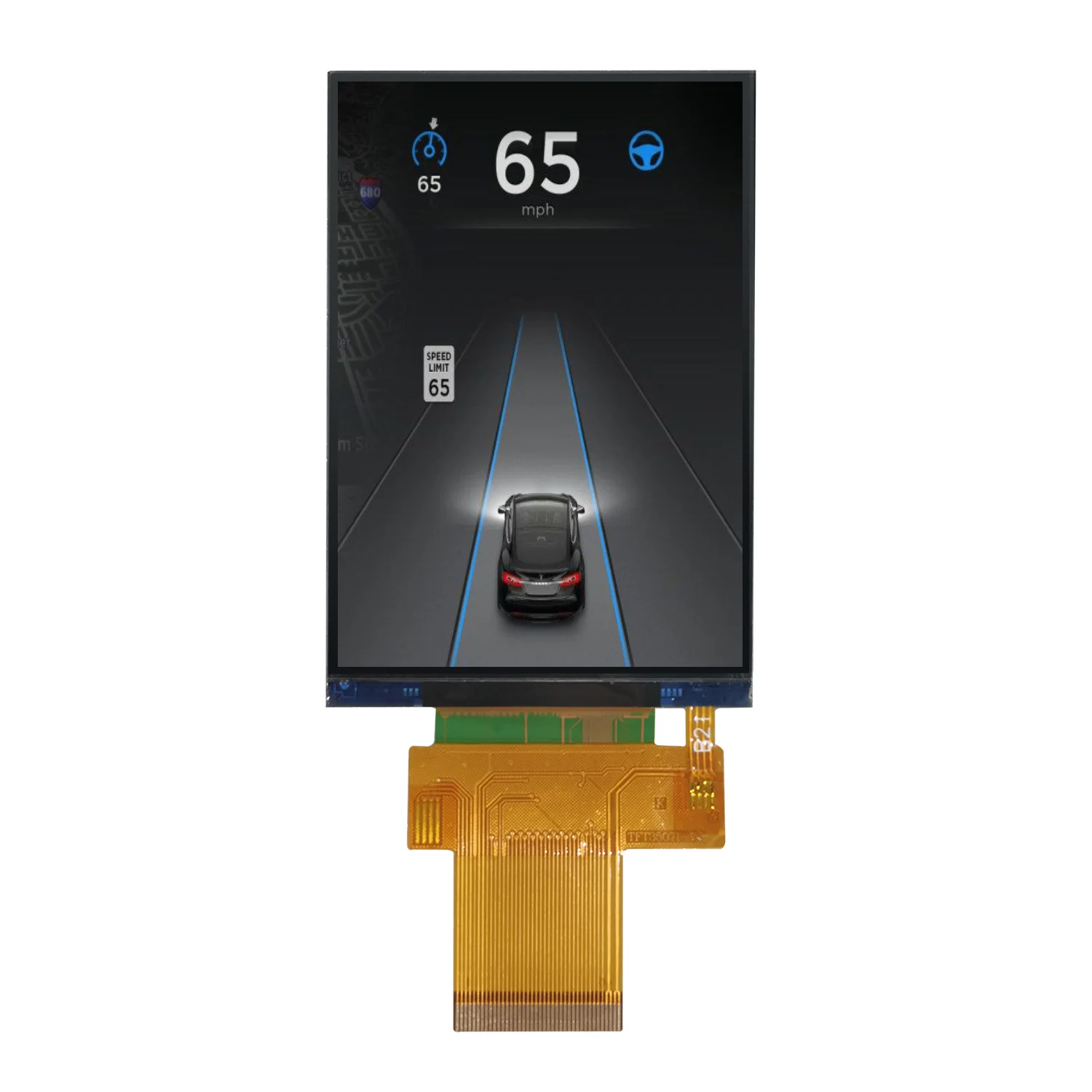

The TFT35071A-T by SWICN is a 3.5-inch IPS TFT LCD module with a capacitive touchscreen. It features a TFT panel, TFT driver IC (ST7796S), FPC, backlight, capacitive touch panel (CTP), and CTP driver IC (FT5436). The module displays a Resolution of 320x480 RGB pixels on a black background, ensuring sharp and vibrant visuals. The capacitive touchscreen provides a responsive touch function, making it ideal for applications that require a user-friendly interface.
This module by SWI is highly compatible with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This broad compatibility allows for seamless integration into different projects, catering to diverse application needs across various industries. The module is designed for versatility, featuring 18 Bit RGB interface for the TFT and an I2C interface for the touch panel. This design ensures compatibility with a wide range of applications, including embedded systems, industrial devices, wearables, MP3 players, security systems, medical equipment, consumer electronics, banking devices, and handheld devices.
With its Flexible Printed Circuit (FPC) and FPC-connector mode, the TFT35071A-T simplifies the integration process by easily connecting to your PCB's ZIF connector. This ensures a secure and reliable link, saving you valuable time and effort.
Shineworld Innovations Limited (SWI) offers customized solutions, enabling customers to personalize the FPC, incorporate cover lenses, include touch screens, and even customize driver boards. This adaptability ensures that customers receive a display solution optimized to their specific requirements and preferences. In addition, SWICN provides customized displaying demo kits upon customer request, assisting with the product demonstrations and exhibitions.
With its Flexible Printed Circuit (FPC) and FPC-connector mode, the TFT35071A-T simplifies the integration process by easily connecting to your PCB's ZIF connector. This ensures a secure and reliable link, saving you valuable time and effort.
Shineworld Innovations Limited (SWI) offers customized solutions, enabling customers to personalize the FPC, incorporate cover lenses, include touch screens, and even customize driver boards. This adaptability ensures that customers receive a display solution optimized to their specific requirements and preferences. In addition, SWICN provides customized displaying demo kits upon customer request, assisting with the product demonstrations and exhibitions.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT |
1 | Display Mode | TFT+CTP (G+F) | - |
2 | Diagonal Size | 3.5 | Inch |
3 | Resolution | 320(RGB)x480 | Dots |
4 | Active Area | 48.96(H) x 73.44(V) | mm |
5 | TP Outline Dimension | 54.5(H) x 83(V) | mm |
6 | Thickness(TFT+TP) | 2.0±0.15 | mm |
7 | Pixel Pitch | 0.153 (W) x 0.153 (H) | mm |
8 | Pixel Size | 0.153 (W) x 0.153 (H) | mm |
9 | Display Driver IC | ST7796S | - |
10 | Touch Driver IC | FT5436 | - |
11 | Display Color | 262K | - |
12 | Gray Scale | 8 | Bit |
13 | Brightness | 300 (Typ.) | cd/m2 |
14 | Contrast Ratio | 800:1 (Typ.) | - |
15 | Display Interface | 18 Bit RGB | - |
16 | TP Interface | I2C | - |
17 | Module Connecting Type | FPC-ZIF | - |
18 | IC Package Type | COG | - |
19 | Display Pins | 40 | Pins |
20 | TP Pins | 6 | Pins |
21 | Operating Temperature | -20~60 | ℃ |
22 | Storage Temperature | -30~80 | ℃ |

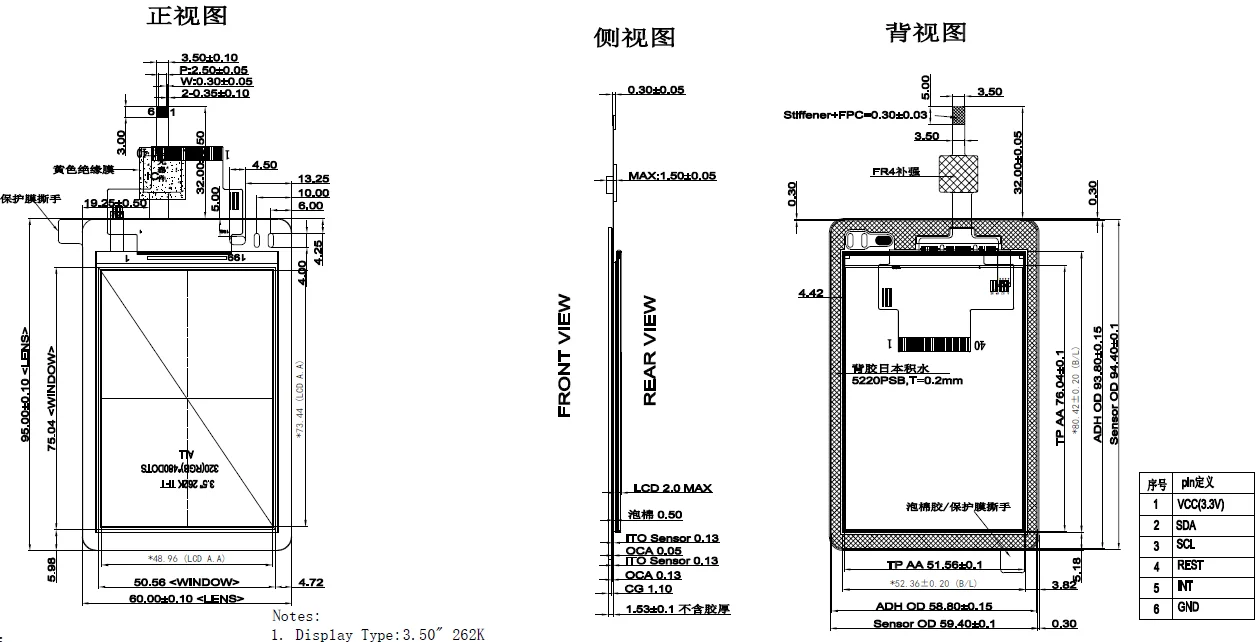

Drawings

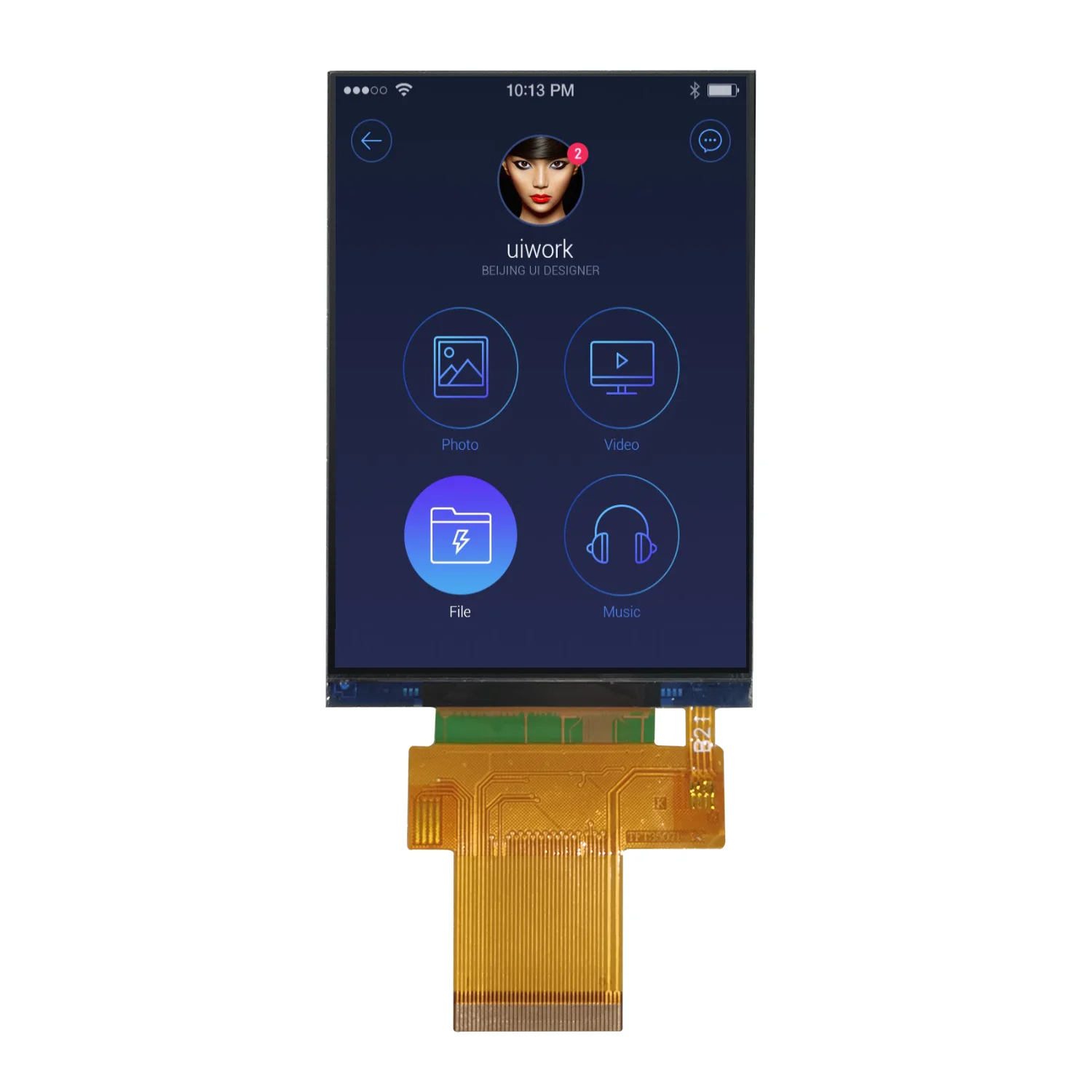

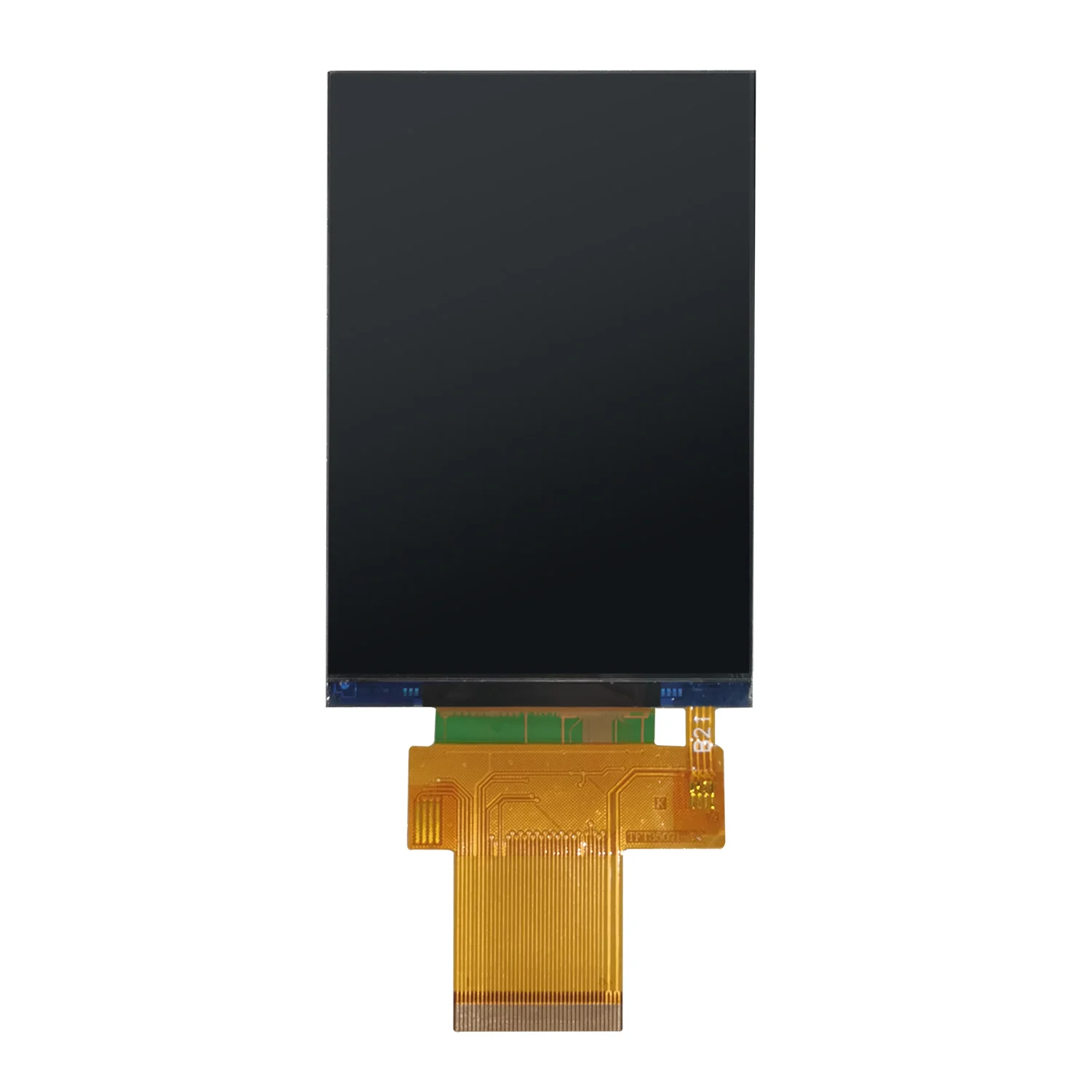

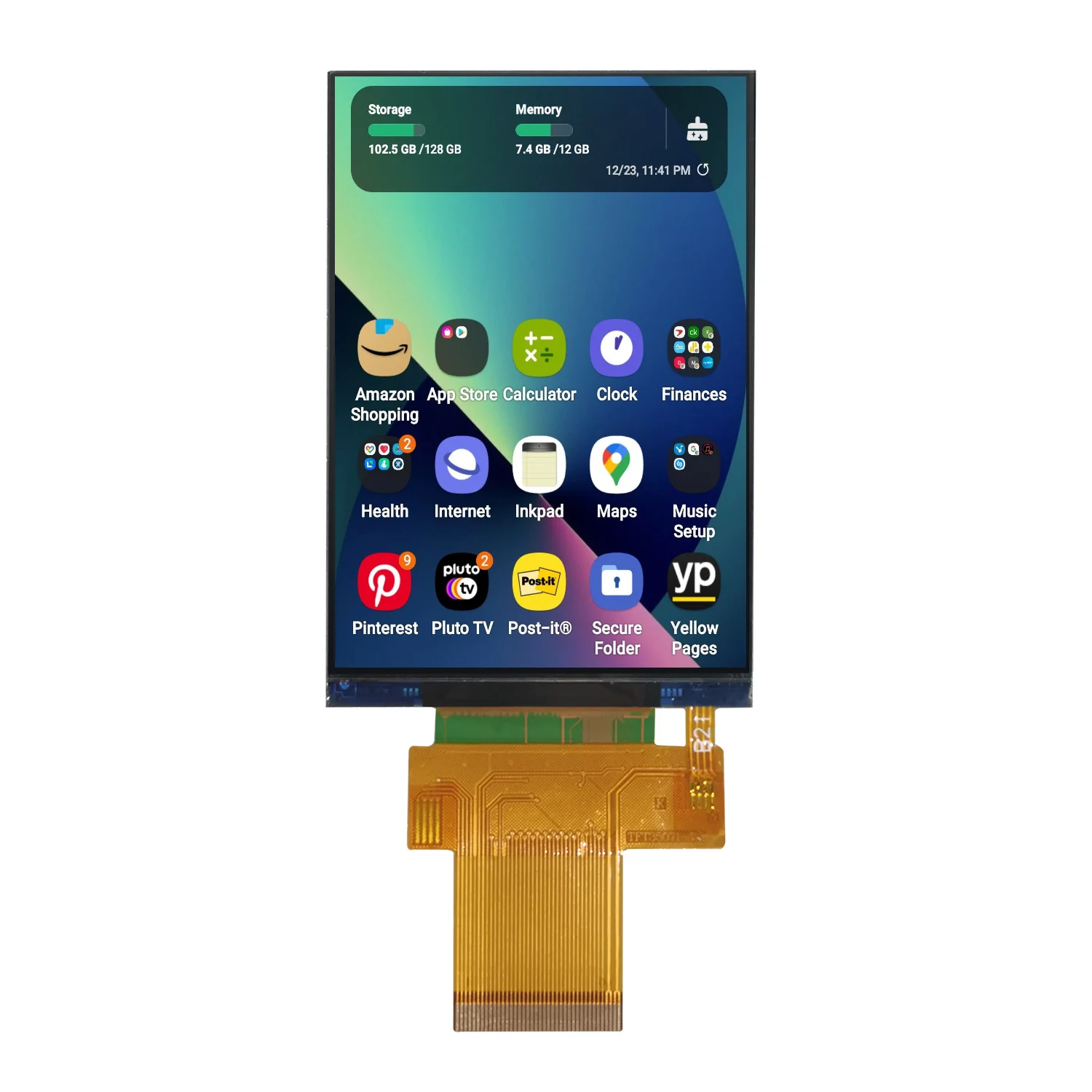

Product Details

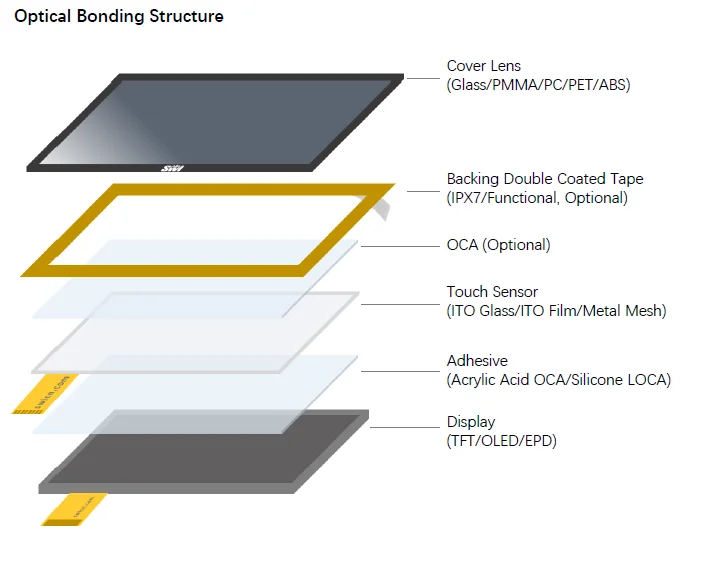

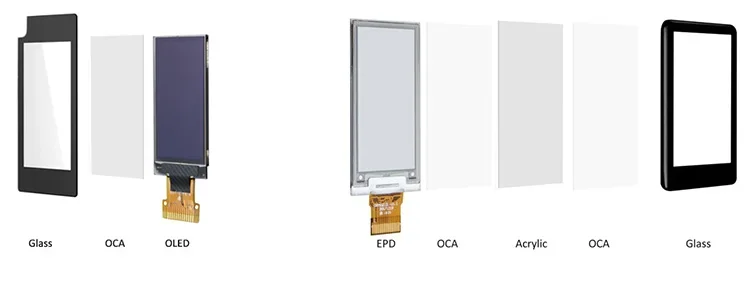

About Optical Bonding
Optical Bonding Service
SWI provides optical bonding of touch panel products, displays, glass cover plates or any types of we produced or customer supplied display materials in various sizes from 0.4” up to 110″. This provides customers with the flexibility to optically bond a wide variety of display applications. We work with a wide variety of glass, acrylic polycarbonate, and film types to achieve optimal results.
Flat | Curved | Glass Sensor |Film
OCA | SCA | OCR Lamination
Cover Lens:
Glass | Acrylic | Film, AG| AR | AF
CTP :
0.4” - 86” Sizes, G+G | G+F,
Flat | Curved | Glass Sensor |Film
Direct Bonding:
0.4”-110”, G+F | G+G | G+P, OCA | SCA | OCR Lamination
What’s optical bonding?
Optical bonding is a process that involves bonding a cover lens or touch panel to the front of a display screen. The main purpose of this process is to enhance the performance of the display by eliminating the gap between the cover lens or touch panel and the display.
What type of cover lens to choose?
Tempered glass cover lenses are commonly used because they are durable and scratch resistant. Plastic cover lenses are lighter and easier to machine, but are with higher expansion coefficient and not as durable as tempered glass.
What type of sensor to choose?
ITO Glass is thickest. It provides excellent touch sensitivity and accuracy, but is thicker and heavier. Thickness: ITO Glass
0.5–1.3mm, ITO Film: 0.225–0.25mm, Metal Mesh: 0.15-0.25mm. ITO Film is most popular. It is flexible and lightweight, but have slightly lower optical performance. Metal Mesh is most expensive. It provides good touch sensitivity and is flexible and lightweight, and can have better transparency than ITO Film, but the copper mesh is relatively fragile and easy to break during production.
What type of adhesive to choose?
Acrylic Acid OCA is a dry adhesive film. It’s simple and easy for production. It’s more popular and cost effective. Silicone LOCA is liquid optical clear adhesive. It’s more resistant to high temperature and yellowing, so it is mostly used for outdoor
products. It’s more complicated forproduction and more expensive.
Optical bonding is a process that involves bonding a cover lens or touch panel to the front of a display screen. The main purpose of this process is to enhance the performance of the display by eliminating the gap between the cover lens or touch panel and the display.
What type of cover lens to choose?
Tempered glass cover lenses are commonly used because they are durable and scratch resistant. Plastic cover lenses are lighter and easier to machine, but are with higher expansion coefficient and not as durable as tempered glass.
What type of sensor to choose?
ITO Glass is thickest. It provides excellent touch sensitivity and accuracy, but is thicker and heavier. Thickness: ITO Glass
0.5–1.3mm, ITO Film: 0.225–0.25mm, Metal Mesh: 0.15-0.25mm. ITO Film is most popular. It is flexible and lightweight, but have slightly lower optical performance. Metal Mesh is most expensive. It provides good touch sensitivity and is flexible and lightweight, and can have better transparency than ITO Film, but the copper mesh is relatively fragile and easy to break during production.
What type of adhesive to choose?
Acrylic Acid OCA is a dry adhesive film. It’s simple and easy for production. It’s more popular and cost effective. Silicone LOCA is liquid optical clear adhesive. It’s more resistant to high temperature and yellowing, so it is mostly used for outdoor
products. It’s more complicated forproduction and more expensive.
What type of display to choose?
Display Mode | Emissive (OLED) | Transmissive (TFT) | Transflective (TFT) | Reflective (TFT, EPD) |
Display Operation | Self-illuminating | Requires Backlighting | Uses Backlighting and Ambient Light | Uses Ambient Light |
Visibility | Good Indoors | Good Indoors | Good Indoors and Outdoors | Good Outdoors |
Power Efficiency | Higher | Lower | Moderate | Higher |
Display Quality | Good Color Contrast | Good Color Contrast | Moderate Color Contrast Indoors | Good Color Contrast Indoors |
Ambient Light | Less Visible in Bright Environments | Less Visible in Bright Environments | Visible in Various Lighting Conditions | Visible in Bright Environments |
Outdoor Performance | Poor | Poor | Moderate | Excellent |
Major Applications | Indoor Display Devices, Wearables | Indoor Display Devices, Wearables | Portable Devices, Outdoor Wearables | E-tags, Wearables, Outdoor Displays |
Customization Solutions
We offer a range of customization options tailored to your specific requirements. Whether you need a customized FPC, integrated cover lenses, touch screens, or driver boards, we've got you covered. Our goal is to provide you with an optimized display solution that perfectly aligns with your unique needs and preferences
We offer a range of customization options tailored to your specific requirements. Whether you need a customized FPC, integrated cover lenses, touch screens, or driver boards, we've got you covered. Our goal is to provide you with an optimized display solution that perfectly aligns with your unique needs and preferences
