Learning Function Remote Control Switch 220 380V 30A Relay Universal Motor Led Lamp Barrier Electric Door Remote Control Set
- Category: >>>
- Supplier: Shenzhen Century Aoke Electronics Co. Ltd.
Share on (1600987462452):
Product Overview
Description
Remote controller switch AC220V 1CH Delay RF remote controller set transmitter and receiver module for motor
Remote controller switch AC220V 1CH Delay RF remote controller set transmitter and receiver module for motor
Remote controller switch AC220V 1CH Delay RF remote controller set transmitter and receiver module for motor
Specification
Certification | RoHS | |
Customized support | Software reengineering | |
Whether the smart | Yes | |
Place of Origin | China | |
Brand Name | AOKE | |
Remote Control(Transmitter) | ||
Model Number | AK-3000-2 | |
Control distance | 2000-3000M(Opening area) | |
Working voltage | DC9V | |
standby current | 0mA | |
Frequency | 315/433.92MHz(Customized) | |
Shell material | ABS | |
Modulation | ASK | |
Size | 136*42.2*25mm(With shell) | |
Button | 2 | |

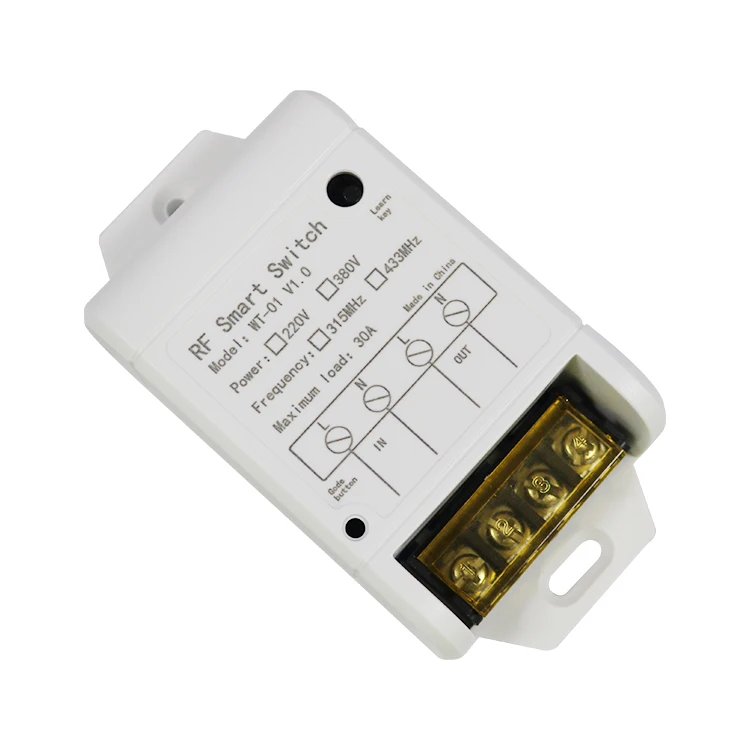

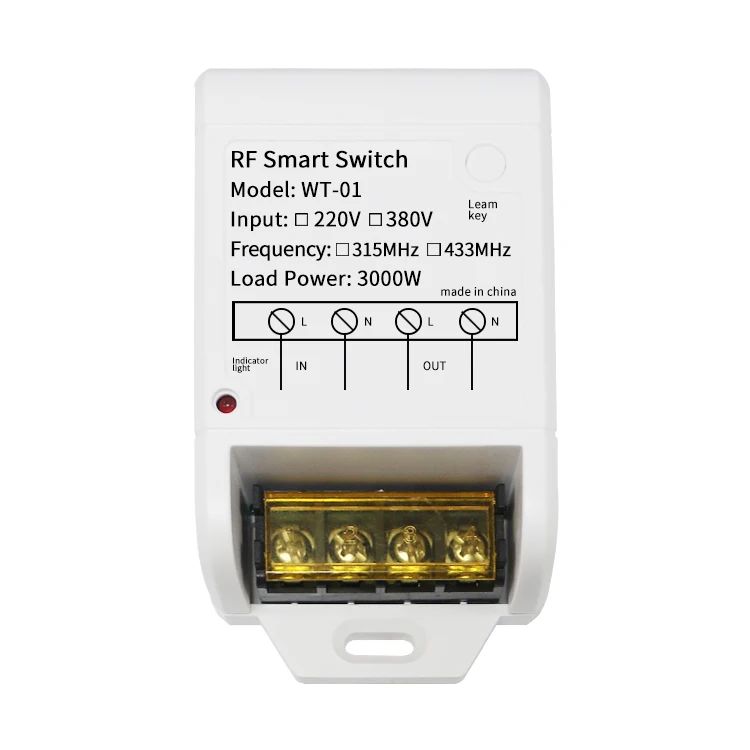

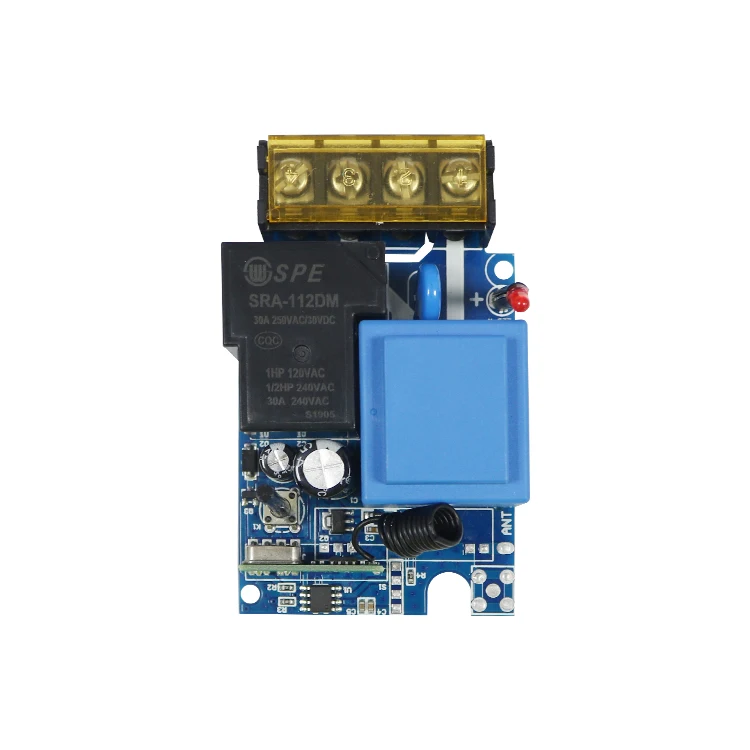

Receiver | ||

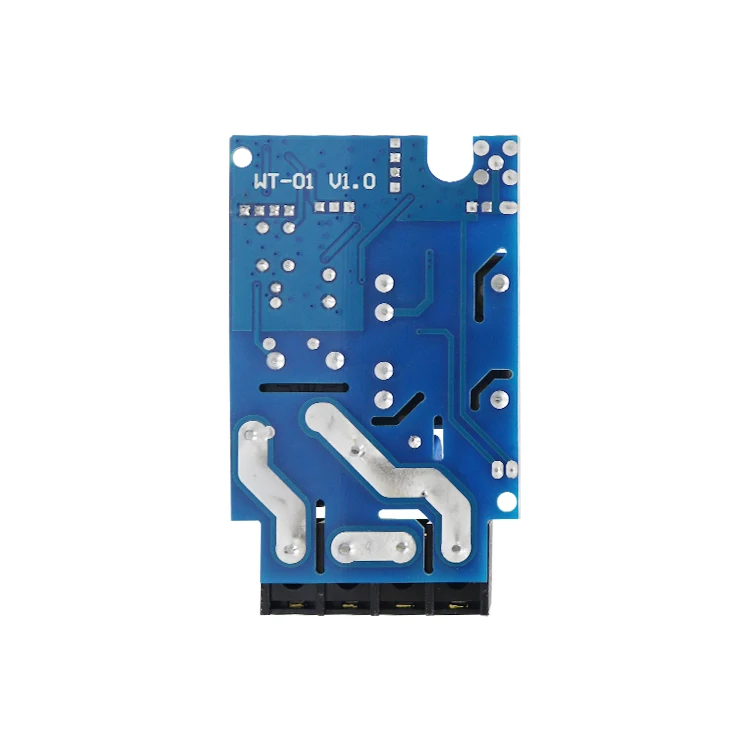

Product model | AK-WT-01 | |
Working voltage | AC220V(Optional) | |
Size | 55*110*35MM | |
Frequency | 315/433MHz(Customized) | |
Modulation | ASK | |
Operating mode | Momentary/Latching mode/Toggle mode (Optional) | |
Working mode：
* Momentary:Press the learned key of the remote control, the controller relay is closed, and release the key to open the
* Momentary:Press the learned key of the remote control, the controller relay is closed, and release the key to open the
controller relay.
* Toggle mode:Press button A of remote controll once, the controller relay will be closed, and then press button B of
* Toggle mode:Press button A of remote controll once, the controller relay will be closed, and then press button B of
remote controll, the controller relay will be opened.
* Latching mode: Press the learned key of the remote controller,the controller relay, is closed, press the key again,the
controller relay open.
Learning ways：
Clear code: Keep press the learning key of the controller for 8 seconds, and the indicator light of the controller will flash from on to off, indicating successful code clearing.
Code of momentary:Keep press the learning button on the controller, release the button when the indicator light is on,
and enter the learning state. At this time, Keep press any key on the remote control, and the controller indicator light flashes slowly for 5 times, indicating that the learning is successful.
Clear code: Keep press the learning key of the controller for 8 seconds, and the indicator light of the controller will flash from on to off, indicating successful code clearing.
Code of momentary:Keep press the learning button on the controller, release the button when the indicator light is on,
and enter the learning state. At this time, Keep press any key on the remote control, and the controller indicator light flashes slowly for 5 times, indicating that the learning is successful.
Latching mode:Keep press the learning button on the controller, release the button when the indicator light is on,and enter the learning state. At this time, press learning key once, and the controller indicator light flashes once to enter latching learning status,press any key on the remote control, and the controller indicator light flashes slowly for 5 times,indicating that the learning is successful.
Toggle mode:Keep press the learning button on the controller for a long time, and release the button when the indicator light is on. At this time, press the learning button twice, and the indicator light will flash slowly twice to enter toggle learning state. Press any key on the remote control once, and the indicator light will flash slowly for 5 times, indicating
that the code learning is successful.
Toggle mode:Keep press the learning button on the controller for a long time, and release the button when the indicator light is on. At this time, press the learning button twice, and the indicator light will flash slowly twice to enter toggle learning state. Press any key on the remote control once, and the indicator light will flash slowly for 5 times, indicating
that the code learning is successful.
