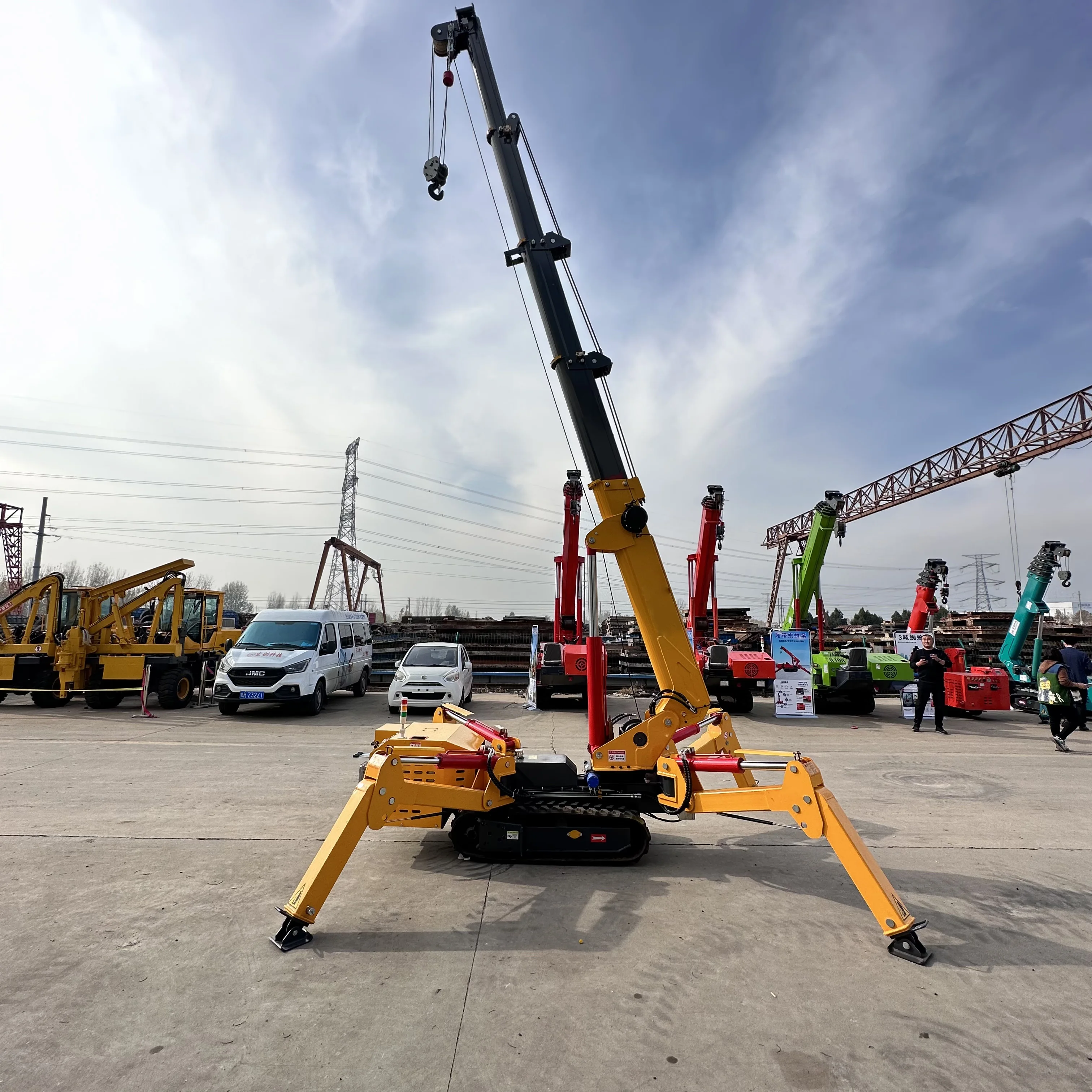

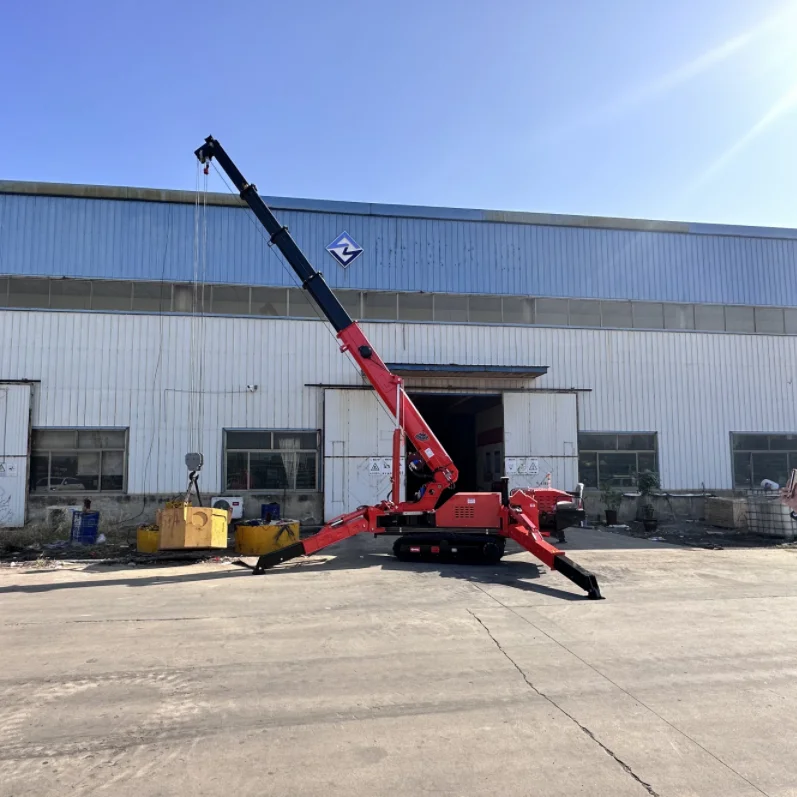

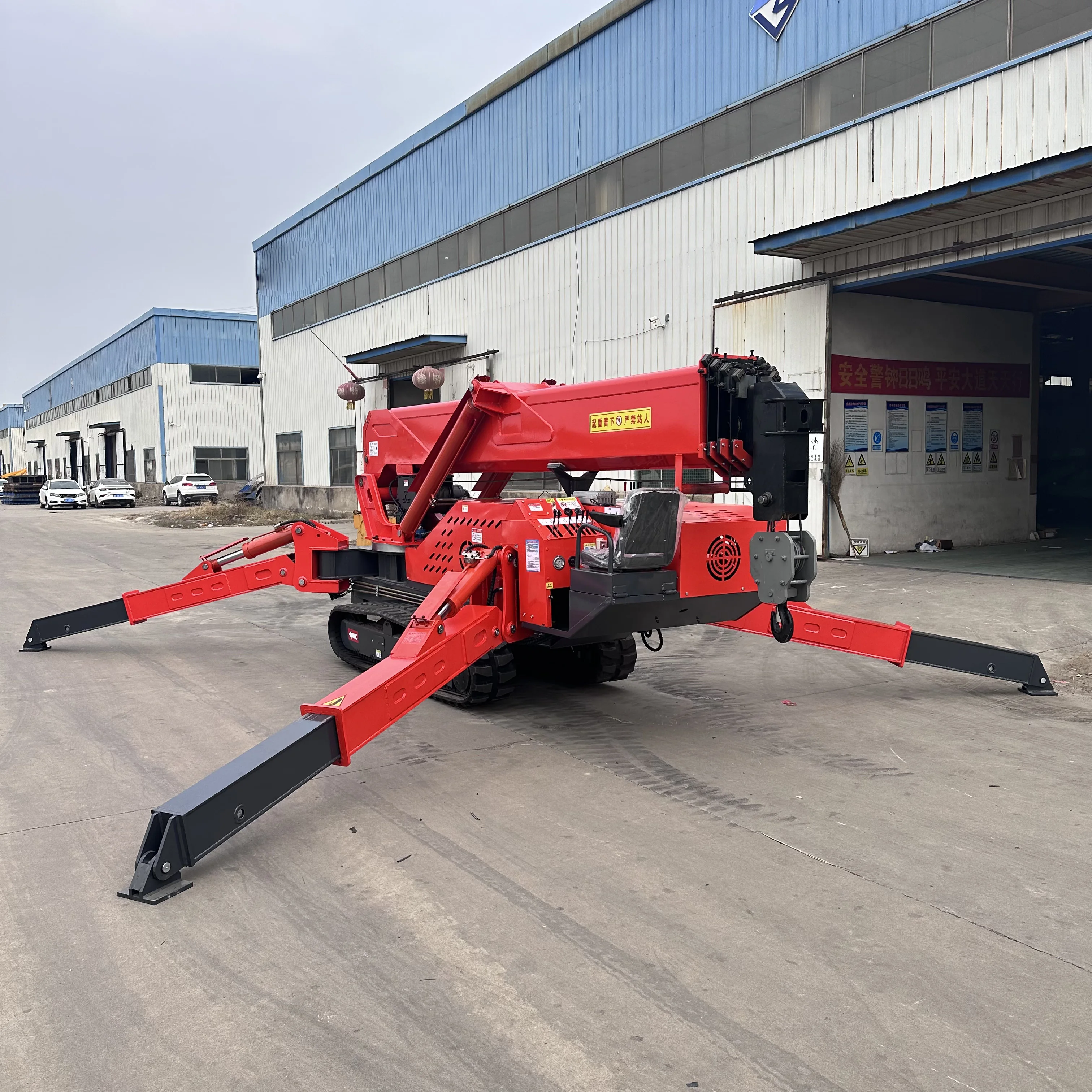

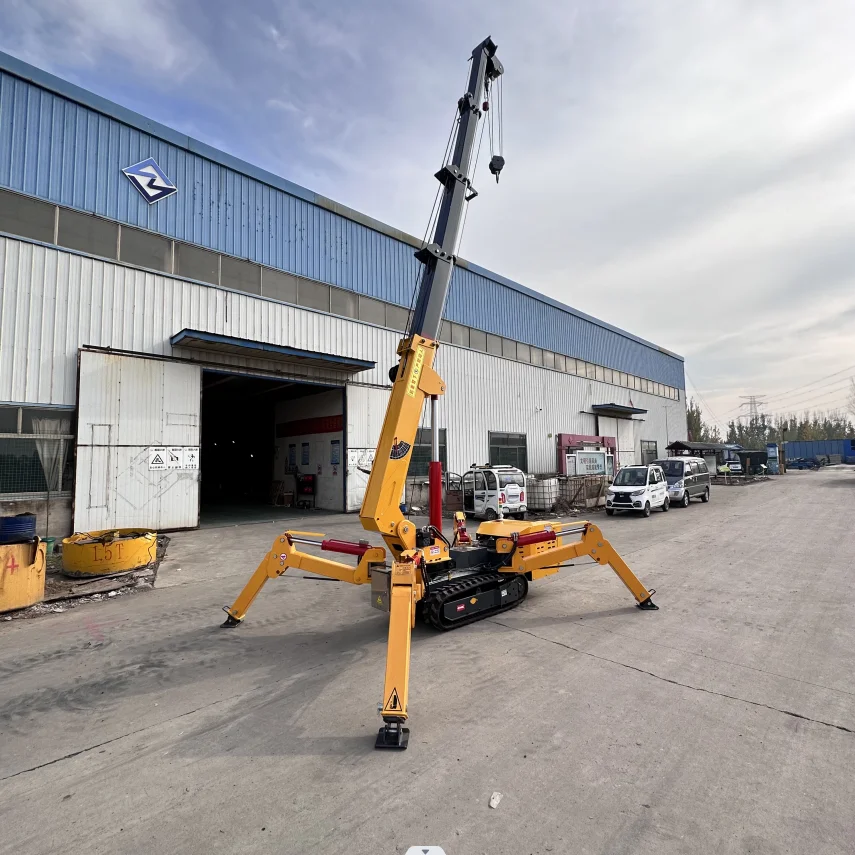

Suizhong portable small mobile construction gantry crane 8 tons mini spider crane
Suizhong portable small mobile construction gantry crane 8 tons mini spider crane
Suizhong portable small mobile construction gantry crane 8 tons mini spider crane
Suizhong portable small mobile construction gantry crane 8 tons mini spider crane
Suizhong portable small mobile construction gantry crane 8 tons mini spider crane
Suizhong portable small mobile construction gantry crane 8 tons mini spider crane
Suizhong portable small mobile construction gantry crane 8 tons mini spider crane

Suizhong portable small mobile construction gantry crane 8 tons mini spider crane

Share on (1600987650599):


Price:$21,780.00-22,230.00

Quantity:


Product Overview

Description



Maximum Working Radius
16m × 0.2t _
Maximum Ground Lift
17mX 0.9t _ _
Winch
Hook up speed
0- 10 m/min
Wire Rope Specifications
Φ10mm × 120m _ _
Telescopic Device
Boom form
5 -stage boom
Boom length
4.5m-16m
Undulating Device
Boom angle/time
0-7 5 °/13sec
Gyratory Device
Rotation angle/speed
0-360° (continuous)/60sec

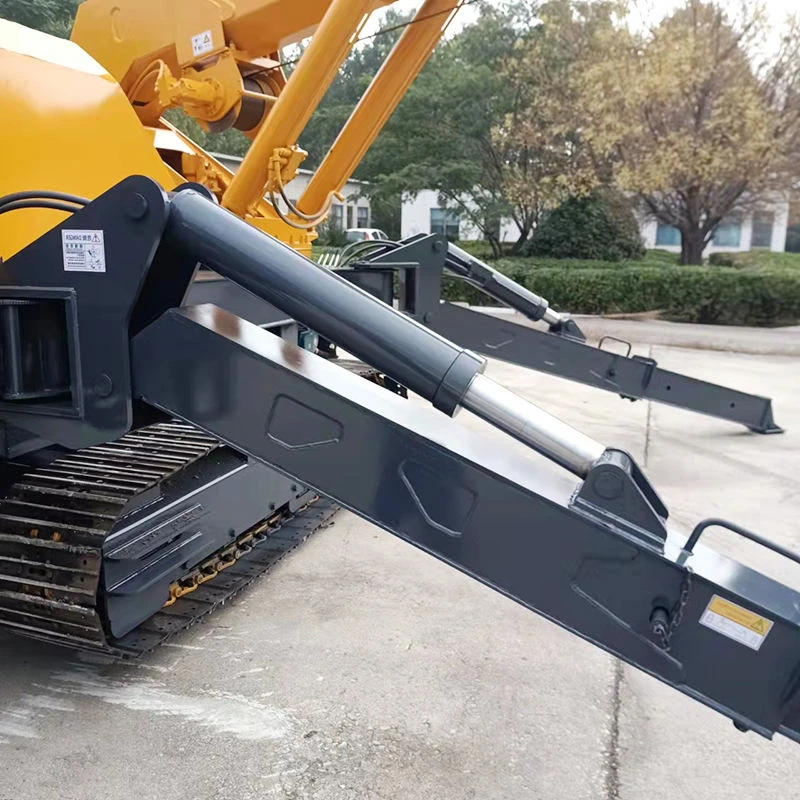

Outrigger
Outrigger Action Form
Hydraulic automatic support + manual unscrewing
Maximum extension (mm)
6300 (L) X 4600 (Rear) 、 (Front)
Walking Device
way of walking
Hydraulic motor drive, two-speed ( rubber track )
Walking speed
0-5.5 km /h
Gradeability
20° (36%)
Motor
Voltage
AC380V
Engine
Producer
Yunnei
Type/displacement
YN27GBZ/2.7L
Start method
Electric start
Startup performance
-5°C~40°C
fuel/volume
Diesel / 45 L
battery capacity
24v 45AH
Fuel consumption
230 g/kW-h
noise level
Rated speed≤81.5dBA (1m)
Operating System
Type of operation (jib/outrigger), manual travel
Manual operation, manual walking + remote control (optional)
The Standard Configuration
Diesel engine and electric motor (dual power)
Vehicle Size
Length 4950*width 1560*height 2235
Craftsmanship
Paint assembly process


Products Description
















Company Profile




Jiangsu Suizhong
Jiangsu Suizhong Heavy Industry Technology Co., Ltd. is engaged in developing, manufacturing andexporting construction machines in the areas of building, mining, energy andlogistic engineering. Offering 8 major categories, 38 product line and morethan 1000 models,able to provide complete equipment package to theclients from all walks of life.We are a wholesaler of many brands in China, a professional exporter of construction machinery and a one-stop solution provider. Our team has over 15 years of experience in this field.












Certifications




Product packaging








FAQ


1.Q: How can I get a precise crane offer?
A:To providing you a precise crane offer efficiently, please kindly provide details as flowing:
a).Lifting capacity,. material weight(unit as tonnage)
b).Lifting height; (unit as meter)
c).Crane span, the width of inquired crane(unit as meter)
d).Crane traveling length; when rail track/runway beam needed, traveling length shall be provided
e) Working power; power source at site(unit as voltage, phase and Hz)with red is mean necessary for offering solution
2.Q: Can I get your crane products with customized personalized service?
A: Yes, Promise customized personalized products are available for our clients all the time. Just freely let us know
your special demands about the products, our engineering team will work on that.
3.Q: What should I do if l'm not able to install the crane after buying?
A:Freely contact us. Our engineering team available for oversea service with crane installation, inspection and commissioning.
4.Q: How long I can receive my crane products after my order placed?
A:Our production will be started once the payment confirmed. Customization can usually be completed within a month
