China Factory Galvanized Pear Shaped Hinged Pipe Clamp With Zinc Plating For Loop Hanger
China Factory Galvanized Pear Shaped Hinged Pipe Clamp With Zinc Plating For Loop Hanger
China Factory Galvanized Pear Shaped Hinged Pipe Clamp With Zinc Plating For Loop Hanger
China Factory Galvanized Pear Shaped Hinged Pipe Clamp With Zinc Plating For Loop Hanger
China Factory Galvanized Pear Shaped Hinged Pipe Clamp With Zinc Plating For Loop Hanger
China Factory Galvanized Pear Shaped Hinged Pipe Clamp With Zinc Plating For Loop Hanger
China Factory Galvanized Pear Shaped Hinged Pipe Clamp With Zinc Plating For Loop Hanger

China Factory Galvanized Pear Shaped Hinged Pipe Clamp With Zinc Plating For Loop Hanger

Share on (1600987678688):


Price:

Quantity:


Product Overview

Description





Why choose us? What can we do for you?
♦ Founded in 1992 and experienced in the field of exhaust system and industrial pipe for 30 years.
♦ We have large capacity, over 350000pcs/month.
♦ Management system certification:ISO9001.ISO14001.TSI16949.
♦ We have our own technical and mould deparmtent, ready for any customized products.
♦ Sales network expands from over domestic sales to all over the world.


Product Description

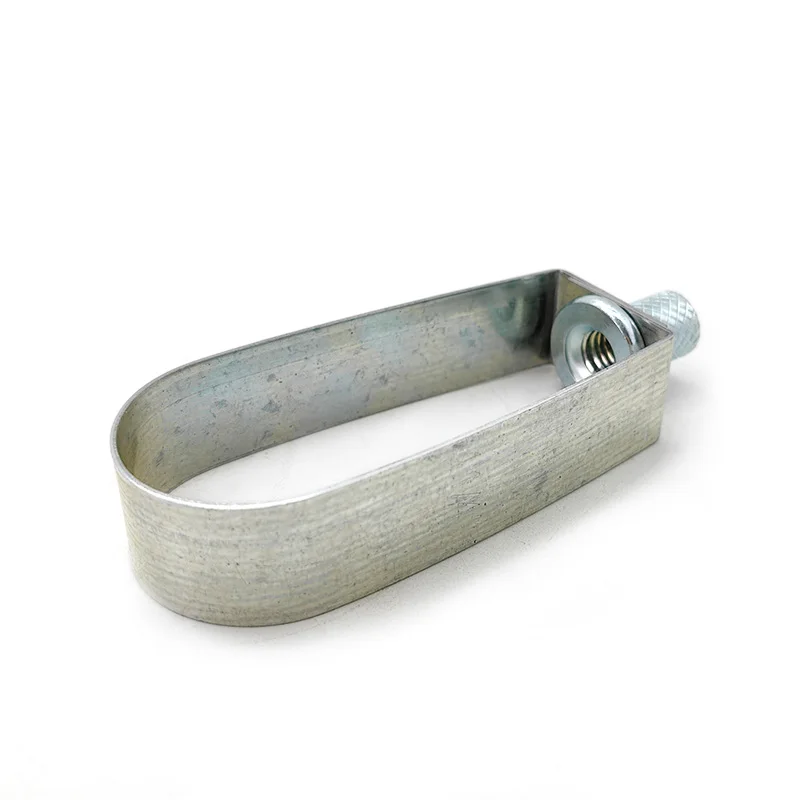

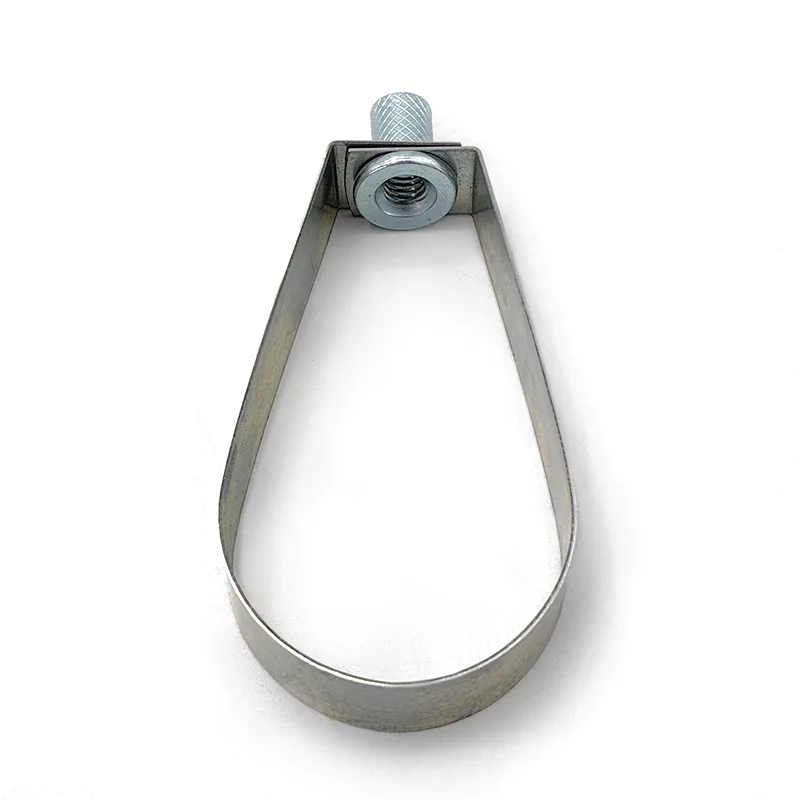

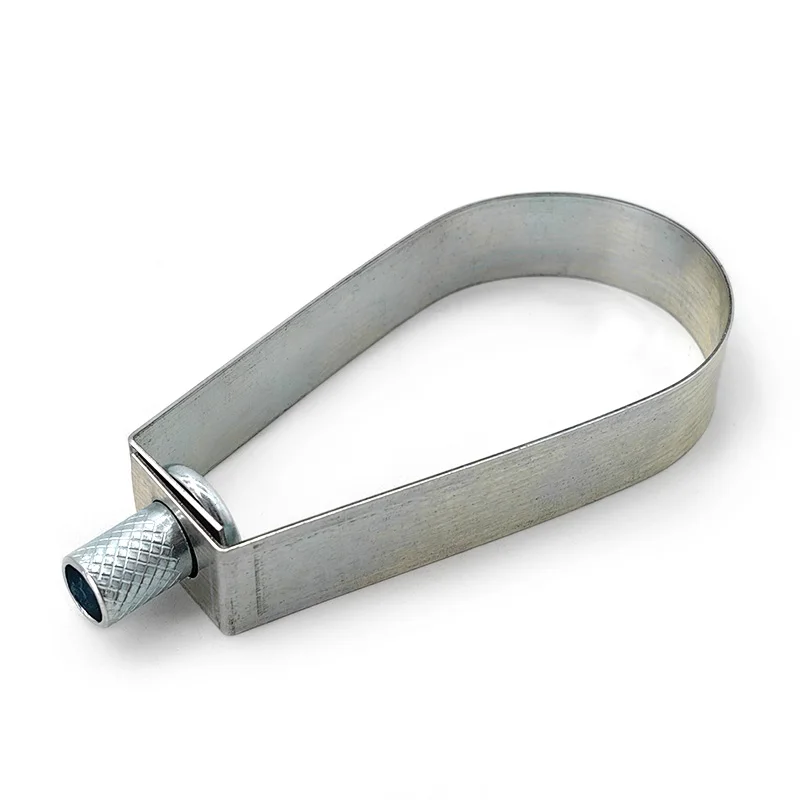

The Loop Hanger Hose Clamp is with firmly anchors non-insulated, stationery, copper pipe to overhead structure by attaching to threaded rod of desire length. It is rust resistant, corrosion resistant.
Advantages:
Rust Resistant;
Corrosion Resistant;
Indoor and Outdoor Applications;
Highly Durable Galvanized Steel Construction;

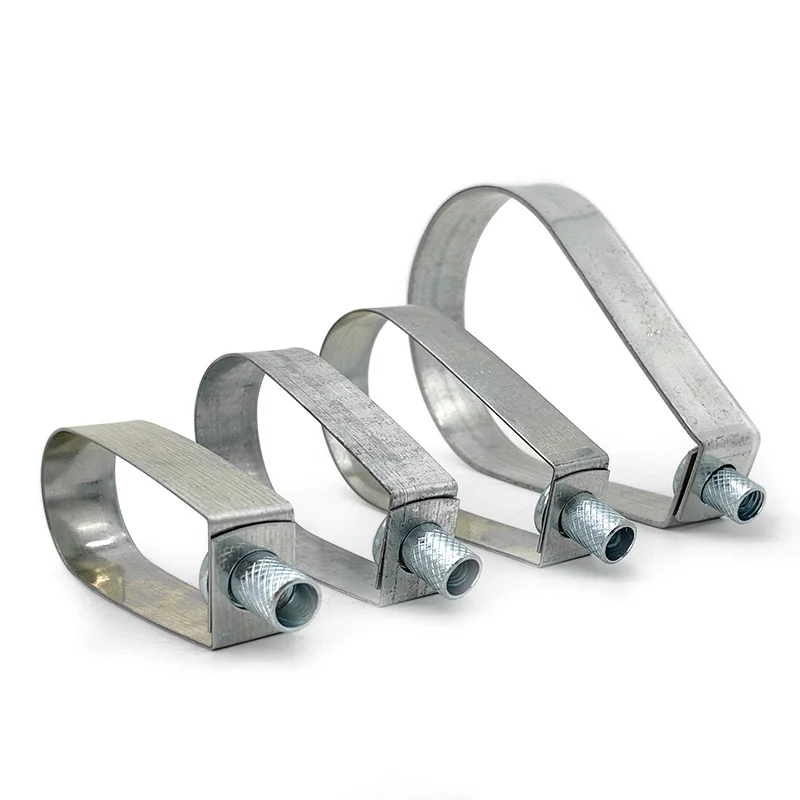

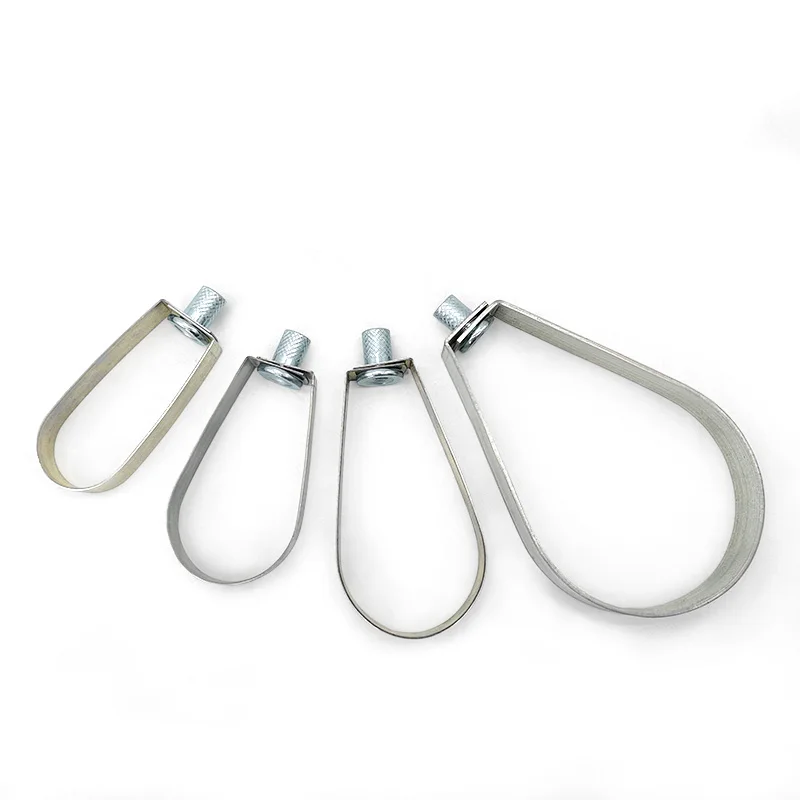

Size [inch]
Diameter Range[mm]
Installation Torque[Nm]
Width[mm]
Thickness[mm]
1/2"
12
9
20
0.9
3/4"
20
9
20
0.9
1"
25
9
20
0.9
1-1/4"
32
9
20
0.9
1-1/2"
40
9
20
0.9
2"
50
9
20
0.9
2-1/2"
65
9
25
1.5
3"
80
9
25
1.5
3-1/2"
90
9
25
1.5
4"
110
9
25
2
5"
125
9
30
2
6"
160
9
30
2
8"
200
9
30
2

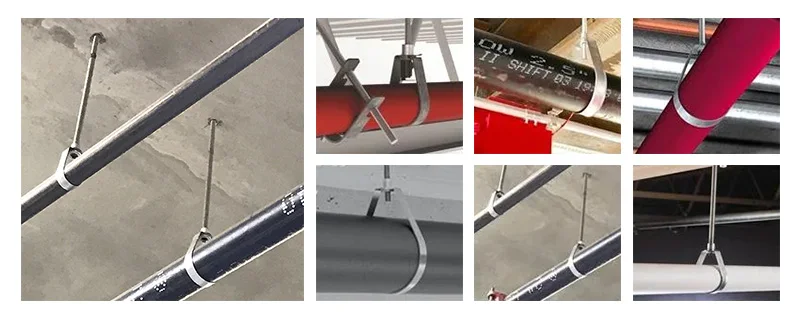

Application

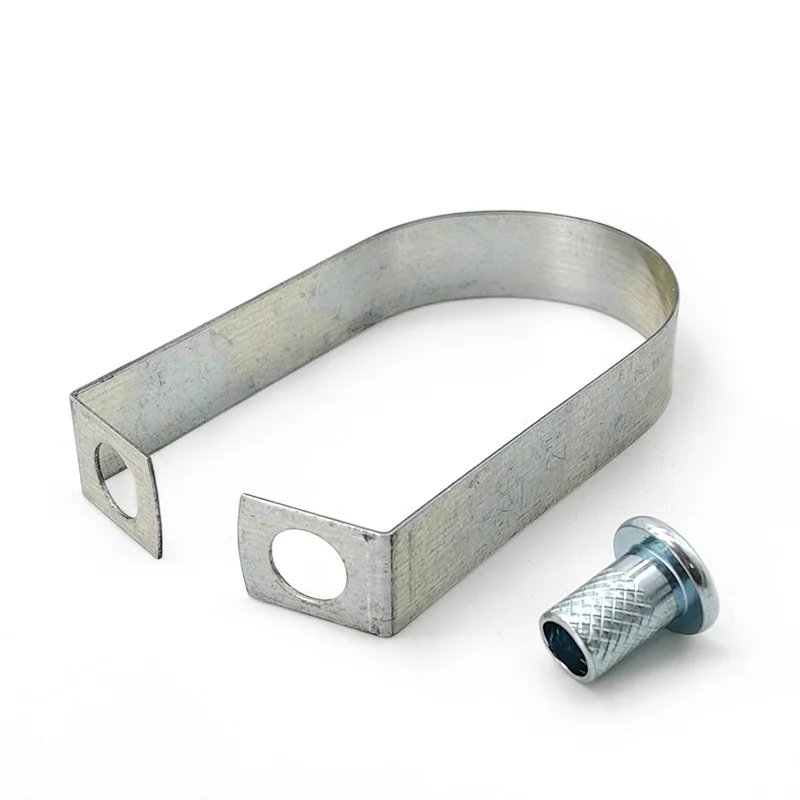

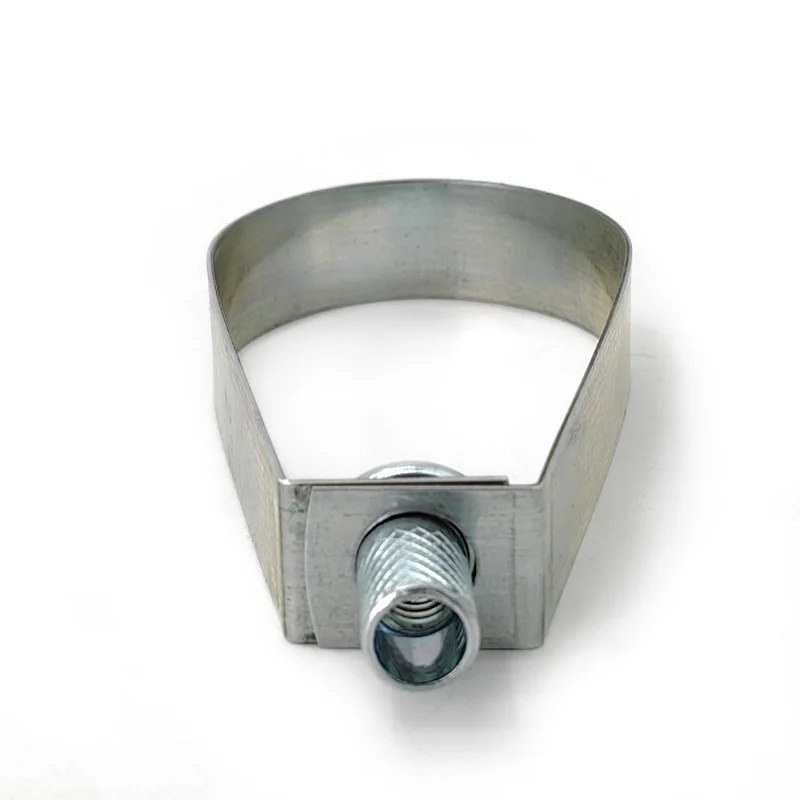

Loop hanger pipe clamp is recommended for suspension of stationary non-insulated pipelines. It features a retained insert nut that helps to keep the loop hanger and insert nut together. Swivel, heavy-duty adjustable band. hanger swivels side to side to accommodate necessary piping movement / knurled insert nut allows for vertical adjustment after installation (nut is included).

Instructions for easy installation: install rod anchor in ceiling / attach threaded rod to anchor / insert rod into the knurled nut on top of the swivel hanger.






Packing & Delivery




Why Choose Us




About Us


Our company
ZheJiang YueDing company produce quality products and work to provide constant communication with our clients. Our dedication to excellence allows us to be a stable solution in the marketplace with a quick lead time. We primarily focus on exhaust pipes, including metal hoses and other pipes that are used within the automotive industry . We have designers, engineers, and others who are involved in the process of manufacturing parts. We explore the top materials to use as well as continuously add more technology and innovation to produce higher quality parts.




Exhibitions
Every year we john 4-5 oversea fairs to meet our customers.What we show is our ability, and what you feel will be our profession .We take the time to answer questions and ensure that our clients understand all there is to know about our products. Further, we work with all of our clients to help find the right products that will meet both needs and budget. We work hard to provide good customer service and ensure that it is never just about sales, but about building a relationship.




Our customers
As a reliable partner and aftermarket supplier, we offer advanced products and have large stock. Our product are sold to many country,have been exported to North America,Western Europe,Southeast Asia,South America,Northern Europe,Mid East,Southern Europe,Africa and many other countries. We
would like to cooperate with global customers and make the good protection project in world market.






FAQ
1. Q: How about the payment terms?
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 350,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Any requirements or question,welcome to "Send" us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon.
