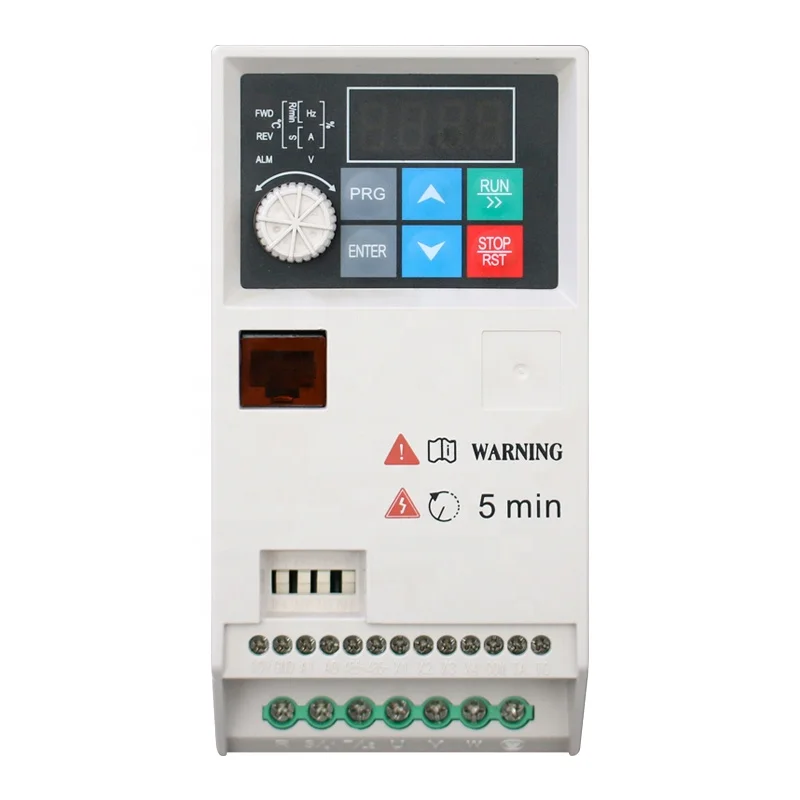

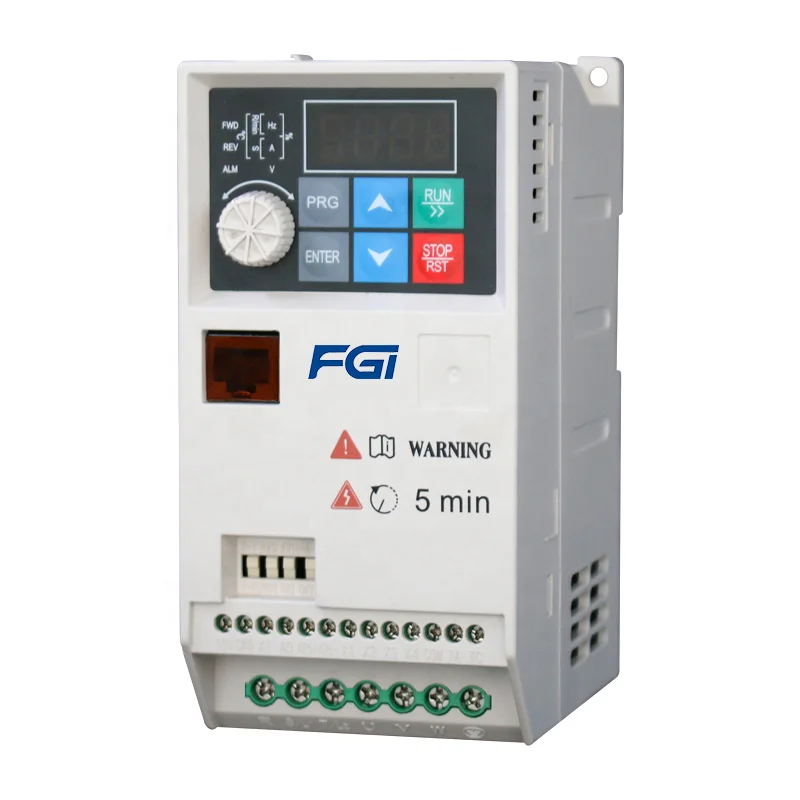

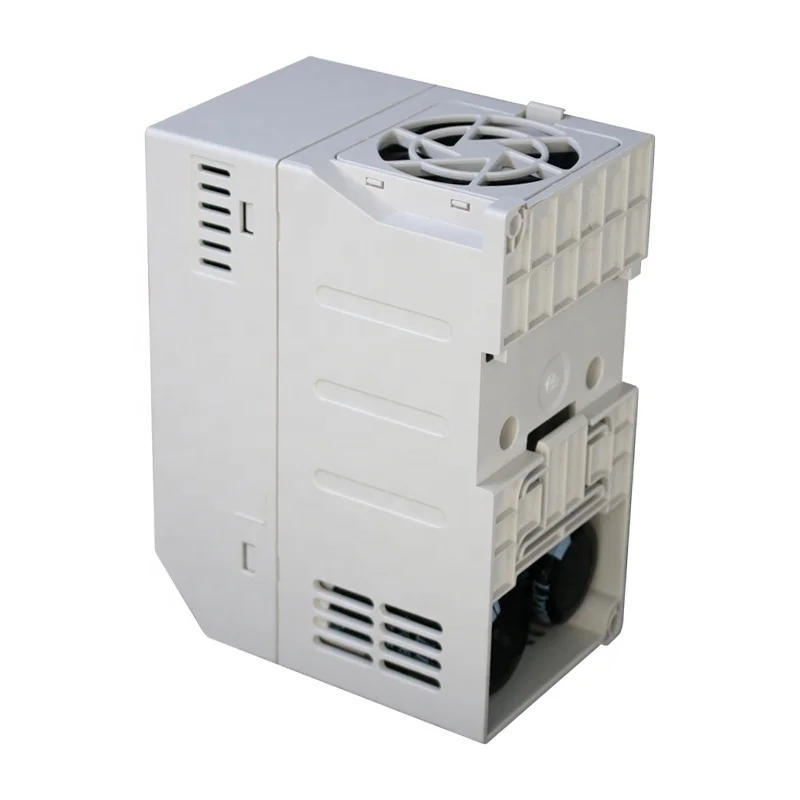

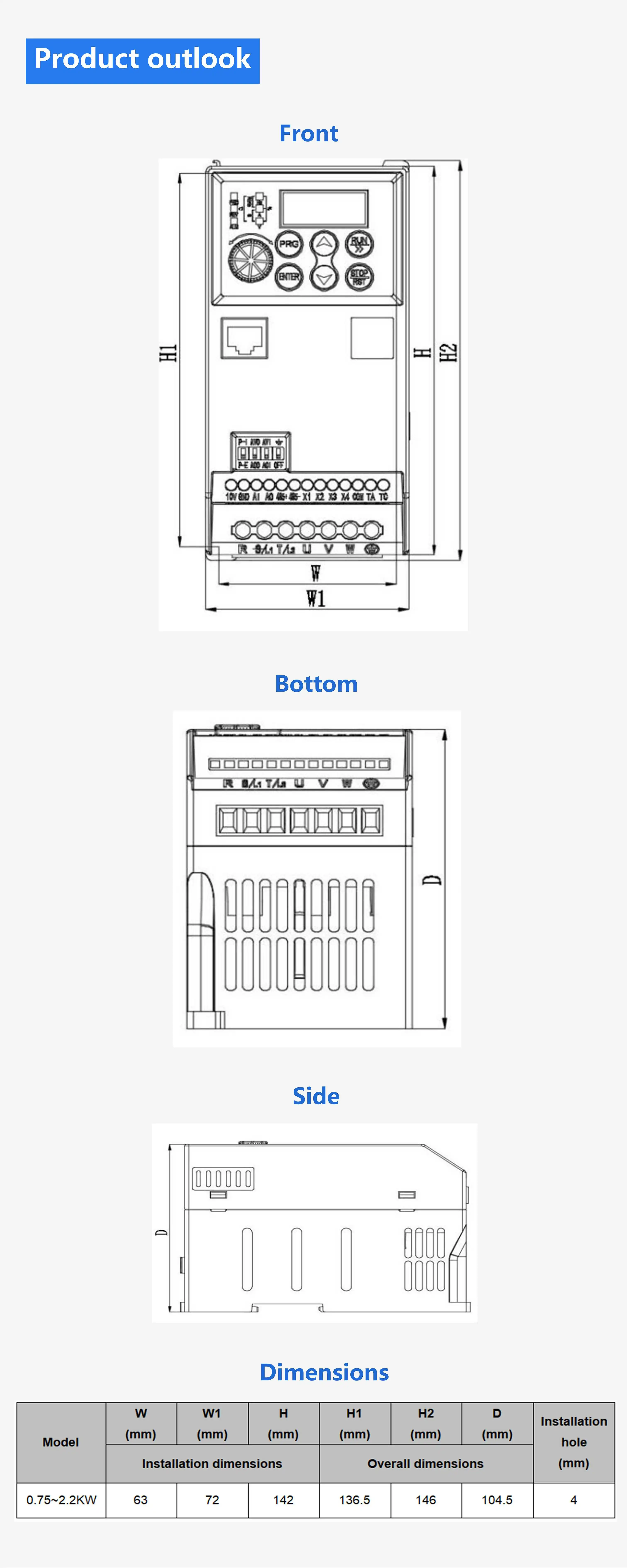

2.2KW 220V Motor Speed Vector Control Inverter 1 Phase Input 3 Phase Output 3HP VFD Variable Frequency Drive Converter Variator

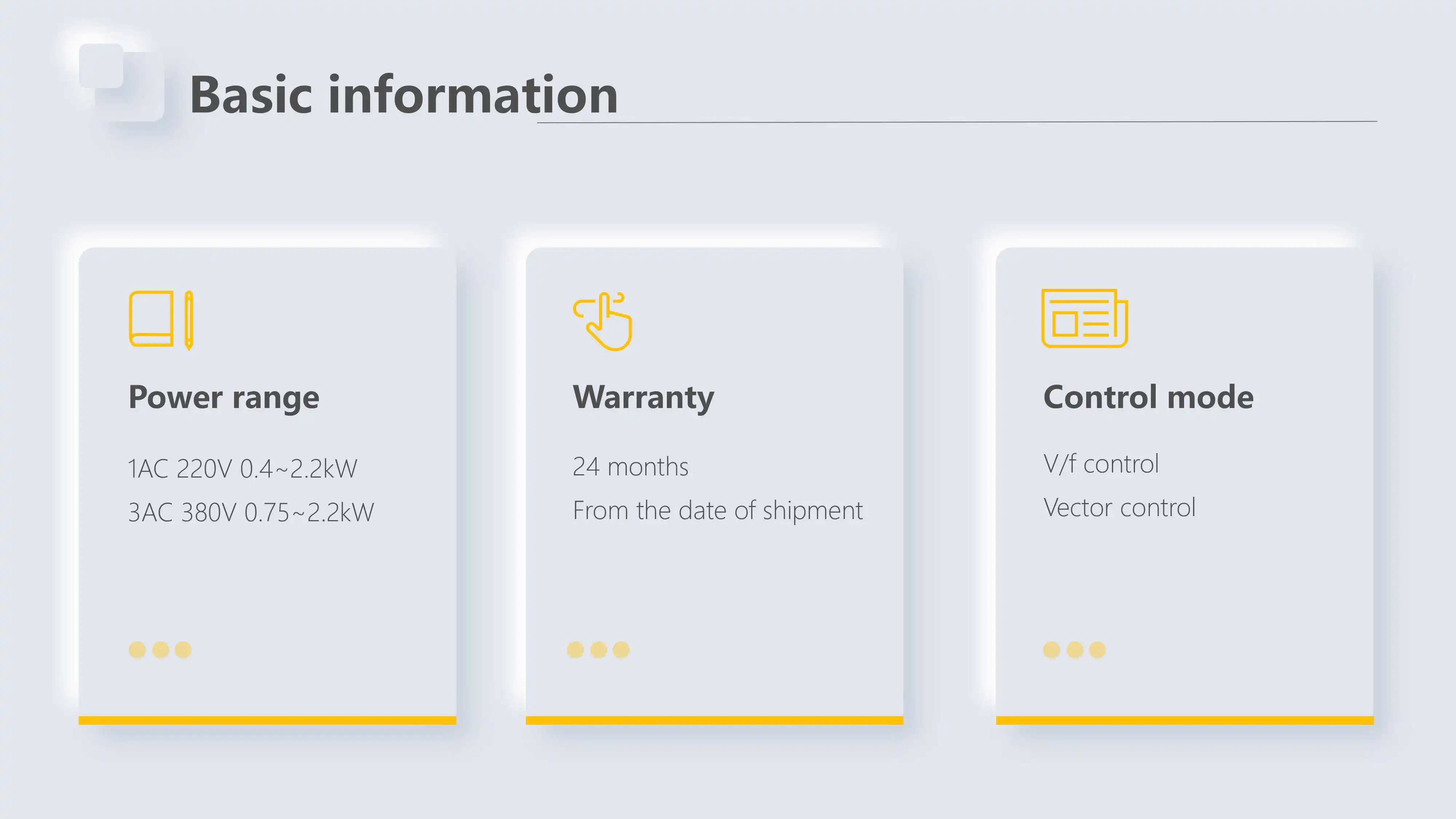

1AC 220V±15%
3AC 380V±15%

Input frequency

50/60Hz±5%

Output voltage

0～rated input voltage

Output frequency

0.00~999.9Hz

Control mode

V/f control
Sensorless vector control
Torque control

Keypad control
Terminal control
Serial communication control (Modbus)

Frequency setting mode

Digital setting, analog setting, Modbus communication setting, multi-step speed setting & simple PLC, PID setting, etc. These
frequency settings can be combined & switched in various modes.

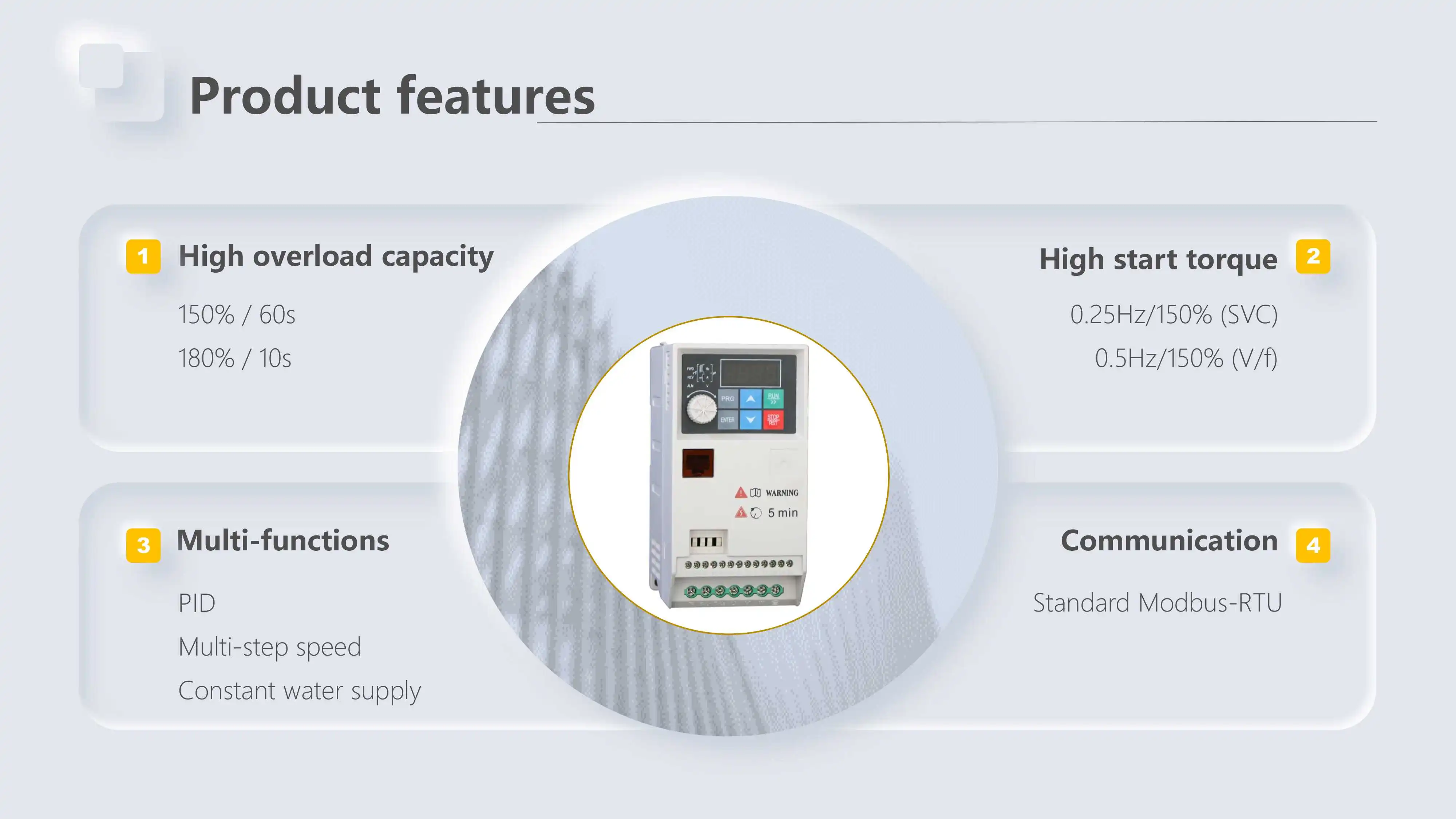

Overload capacity

150% / 60s, 180% / 10s

Starting torque

0.25Hz/150% (SVC); 0.5Hz/150% (V/f)

Speed control precision

±0.5% (V/f), ±0.2% (SVC),

Carrier frequency

2.0~16.0kHz

Frequency accuracy

Digital setting: 0.01Hz
Analog setting: maximum frequency ×0.05%

Torque boost

Automatically torque boost; manually torque boost: 0.1%~30.0%

V/f curve

Three types: linear, multiple point and square type

Acceleration/deceleration mode

Two groups of acceleration/deceleration time, range: 0.1s~999.9s

DC braking

DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~25.0s

Jog operation

Jog operation frequency: 0.0Hz~maximum frequency
Jog acceleration/deceleration time: 0.1s~3600.0s

Simple PLC & multi-step speed operation

It can realize a maximum of 16 multi-step speeds running via the built-in PLC or control terminal.

PID

Standard PID function build-in

Over-voltage & over-current stall control

Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping

Fault protection function

Comprehensive protections include over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc.,
can record the detailed running status during failure & has fault automatic reset function

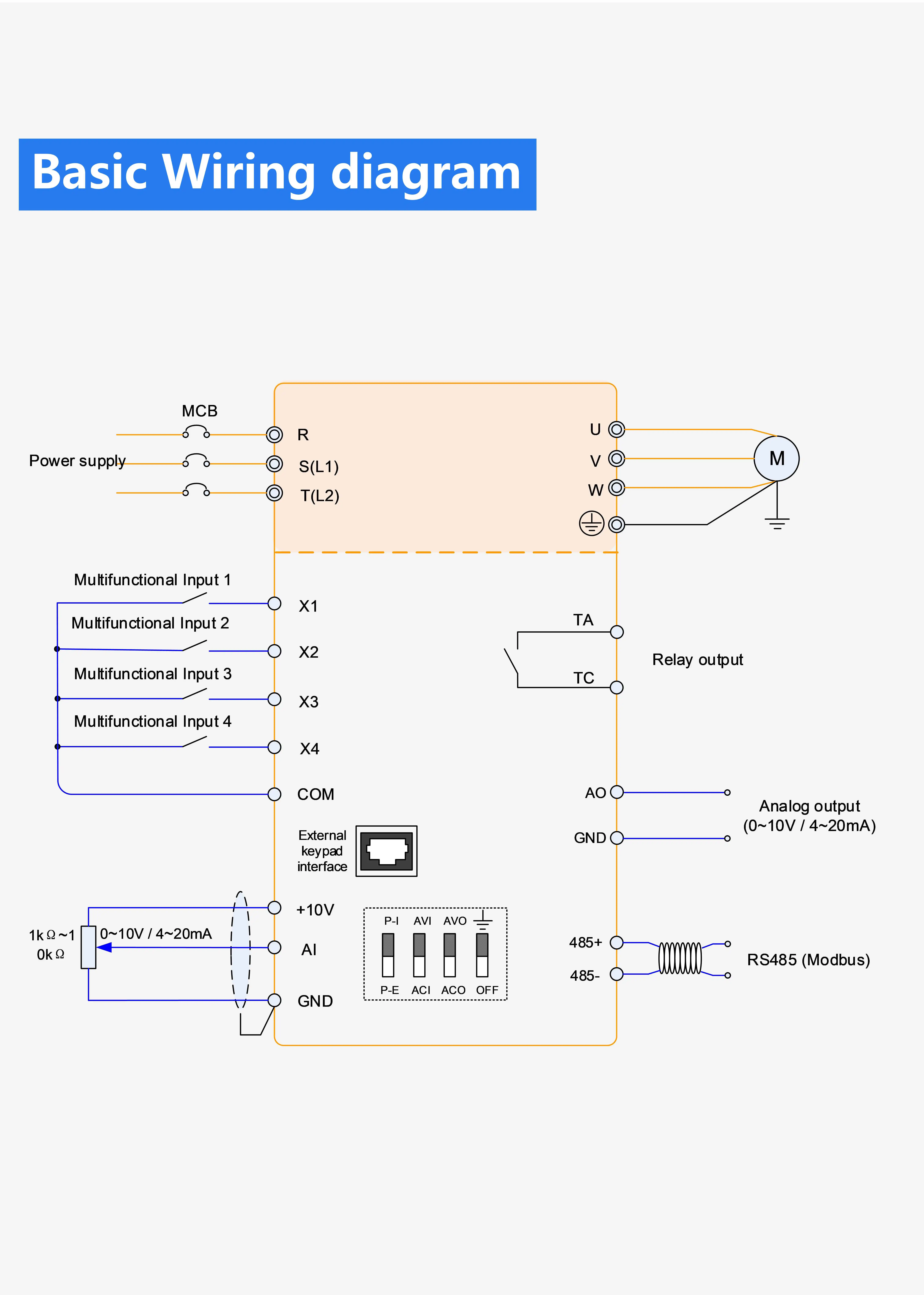

Input terminals

4 multifunctional programmable digital input;
1 analog input AI: 0~10V / 4～20mA

Output terminals

1 normal open relay output (TA, TC)
1 analog output AO: 0~10V / 4～20mA

Communication

RS485 interface, MODBUS-RTU communication protocol

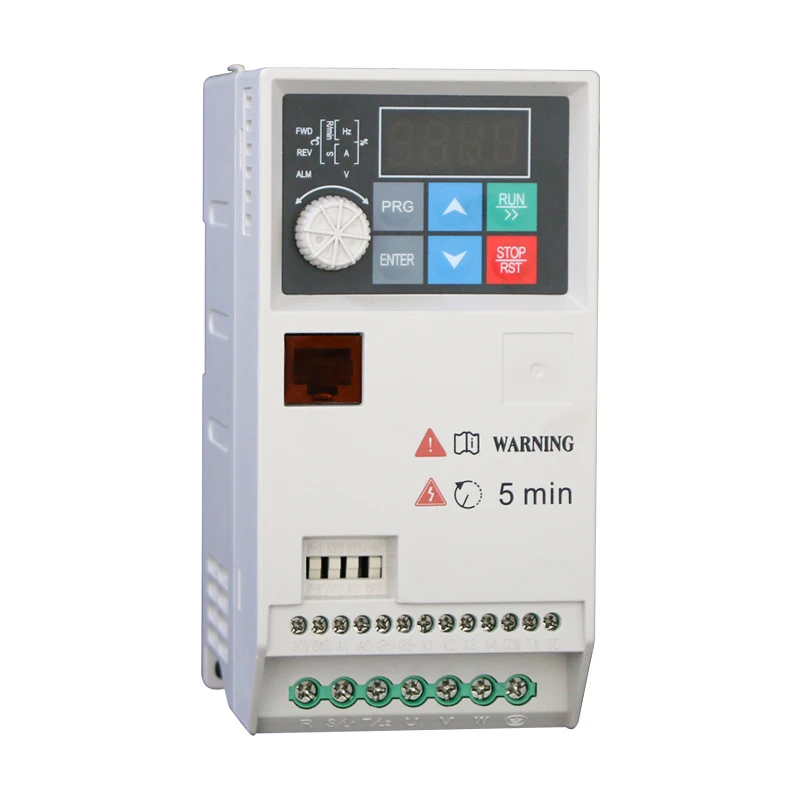

LED display

Display frequency setting, output frequency, output voltage, output

Multifunction key

QUICK/JOG key, can be used as multifunction key

Ambient temperature

-10℃～40℃, without direct sunshine.

Humidity

90%RH or less (non-condensing)

Altitude

≤1000M: output rated power, ＞1000M: output derated

Storage temperature

-20℃～60℃
