Product Overview
Description
Product Description
Product Name | TEC1-12715 |
Material | Sponge |
Height tolerance | +0.1mm or +0.03mm |
Condition | 100%new |
Size | 40*40mm |
Weight | 30g |
Package | Original paper box,An-ti Plastic bag |
Product performance description

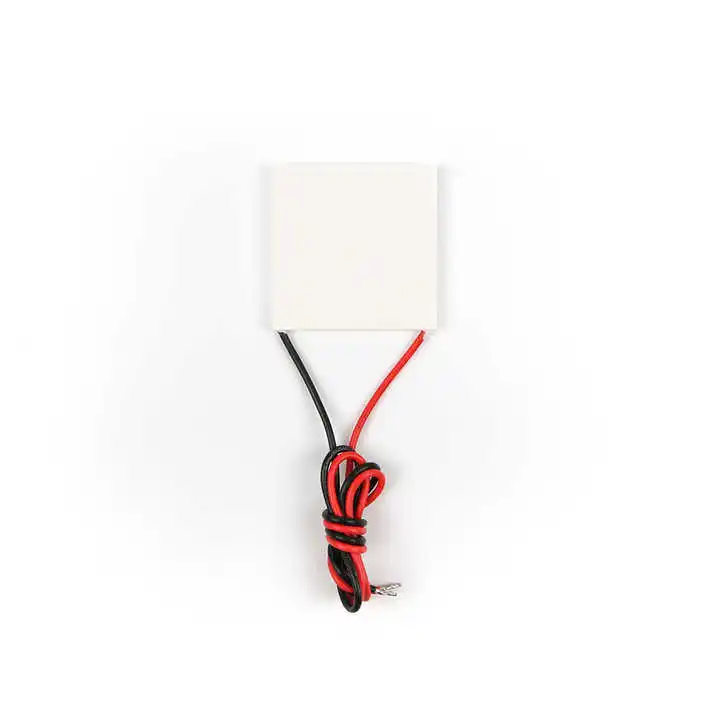

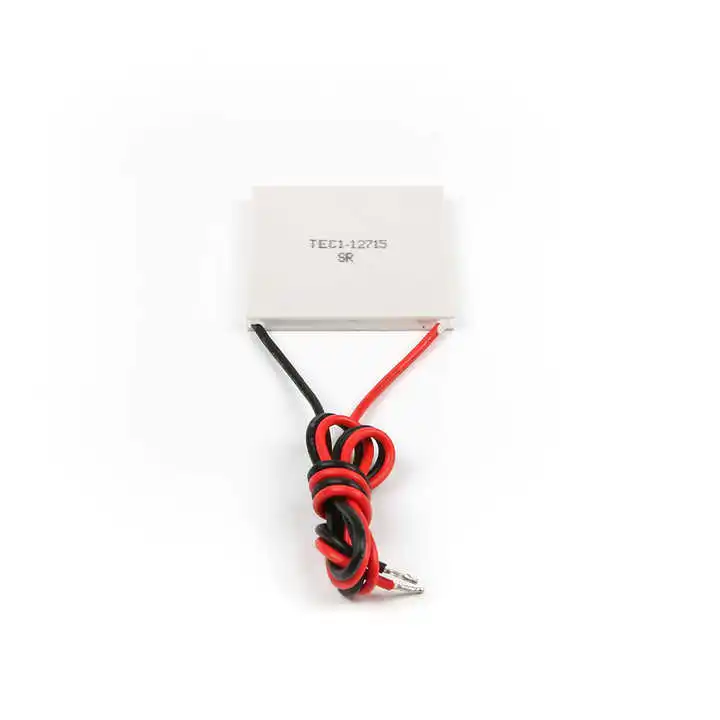

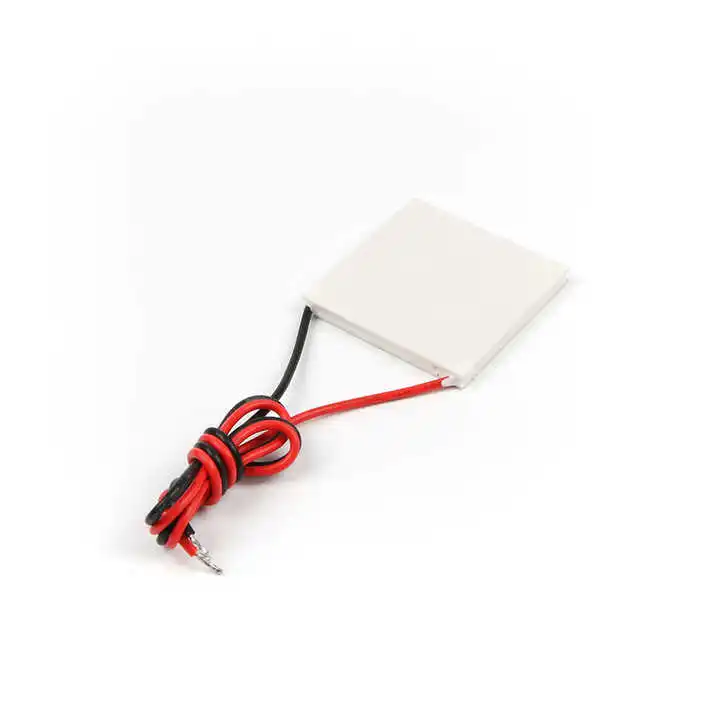

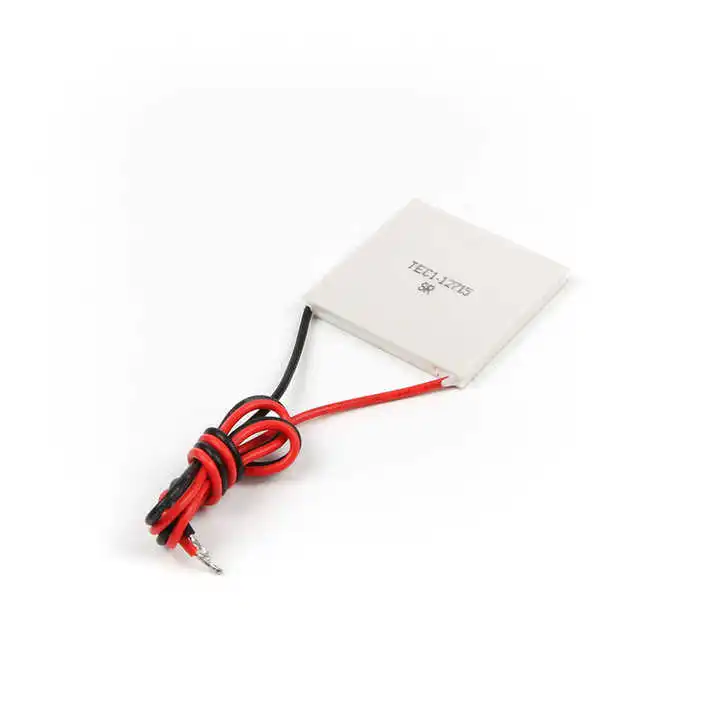

TEC1-12715 TEC 1 12715 136.8W 12V-15.4V 15A TEC Thermoelectric Cooler Peltier
Model: TEC1-12715
Couples: 127
Size: 40mm x 40mm x 3.1mm
Operates from 0~15.4V DC and 0~15A
Rated Voltage: 12V
Rated Current: 15A
Operates Temperature: -40degree to 90degree
Maximum Cooling Power: 164.1 W (Th=50degree), 147.8 W (Th=27degree)
Maximum Temperature Difference: 75 Cel (Th=50degree), 68 Cel (Th=27degree)
Color: White
Features:
1. Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to
alternate power sources, or even for your own custom car drink warmer/cooler. Since they consist primarily of semiconductor
material sandwiched between ceramic plates and have no moving parts
2. These devices must be used in conjunction with a heat sink to avoid burned
3. Each device is full inspected and tested
4. Fitted with 6-inch insulated leads
1. Industry market conditions and original factory price fluctuation dynamic videos are numerous, the specific price and business
confirmation shall prevail 2. The original factory packs the package, the specific price involves unpacking and repacking
according to the required quantity,the specific price and business confirmation shall prevail
Couples: 127
Size: 40mm x 40mm x 3.1mm
Operates from 0~15.4V DC and 0~15A
Rated Voltage: 12V
Rated Current: 15A
Operates Temperature: -40degree to 90degree
Maximum Cooling Power: 164.1 W (Th=50degree), 147.8 W (Th=27degree)
Maximum Temperature Difference: 75 Cel (Th=50degree), 68 Cel (Th=27degree)
Color: White
Features:
1. Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to
alternate power sources, or even for your own custom car drink warmer/cooler. Since they consist primarily of semiconductor
material sandwiched between ceramic plates and have no moving parts
2. These devices must be used in conjunction with a heat sink to avoid burned
3. Each device is full inspected and tested
4. Fitted with 6-inch insulated leads
1. Industry market conditions and original factory price fluctuation dynamic videos are numerous, the specific price and business
confirmation shall prevail 2. The original factory packs the package, the specific price involves unpacking and repacking
according to the required quantity,the specific price and business confirmation shall prevail
