NFM H1080 Auto Pilot Large Format 25inch Cold Laminator Machine
- Category: >>>
- Supplier: Ruian Great Printing And Packaging Machinery Co. Ltd.
Share on (1600987841998):
Product Overview
Description
VR
Product Apperance
Products Description
NFM-H fully Automatic Vertical High-precision and multi-duty laminator as a professional equipment used for plastic film laminating on the surface of paper printed matter.
Widely applicable for laminating in packaging, paper box, books, magazines, calendars, and commercial cards fields, Improving the printing matter grades, and achieve the purpose of dustproof, waterproof, oil proof.
it’s the best choice for printing and laminating enterprises of all scales.
Specifications for NFM-H1080 Auto Pilot Large Format 25inch Cold Laminator Machine
Model | NFM-H1080 |
Max Paper Size | 1080*880mm |
Min Paper Size | 360*320mm |
Speed | 10-110m/min |
Paper Thickness (Round Knife) | 80-500gsm (Above 100gsm easy to adjust, E type corrugated paper) |
Paper Thickness (Hot Knife) | ≥157gms |
Overlap Precision | ≤±1.5mm |
Film Thickness | 10/12/15 micrometer |
Common Glue Thickness | 4-10g/m2 |
Pre-Gluing Film Thickness | 1005,1006,1206g/m2 (1508 和1208 suit deep embossing paper) |
Non-Stop Feeding Height | 1300mm |
Collector Paper Height(incl. pallet) | 1300mm |
Main motor power | 5kw |
Whole machine power | 70kw |
Working power | 30-45kw |
Power | 380V-50Hz-3P |
working Pressure | 15Mpa |
Air consumption | 80m³/h |
Cable Thickness | 25mm2 |
Weight | 7800kgs |
Dimension (layout) | 8120*1995*3170mm |
Loading | 40HQ |
Details Images

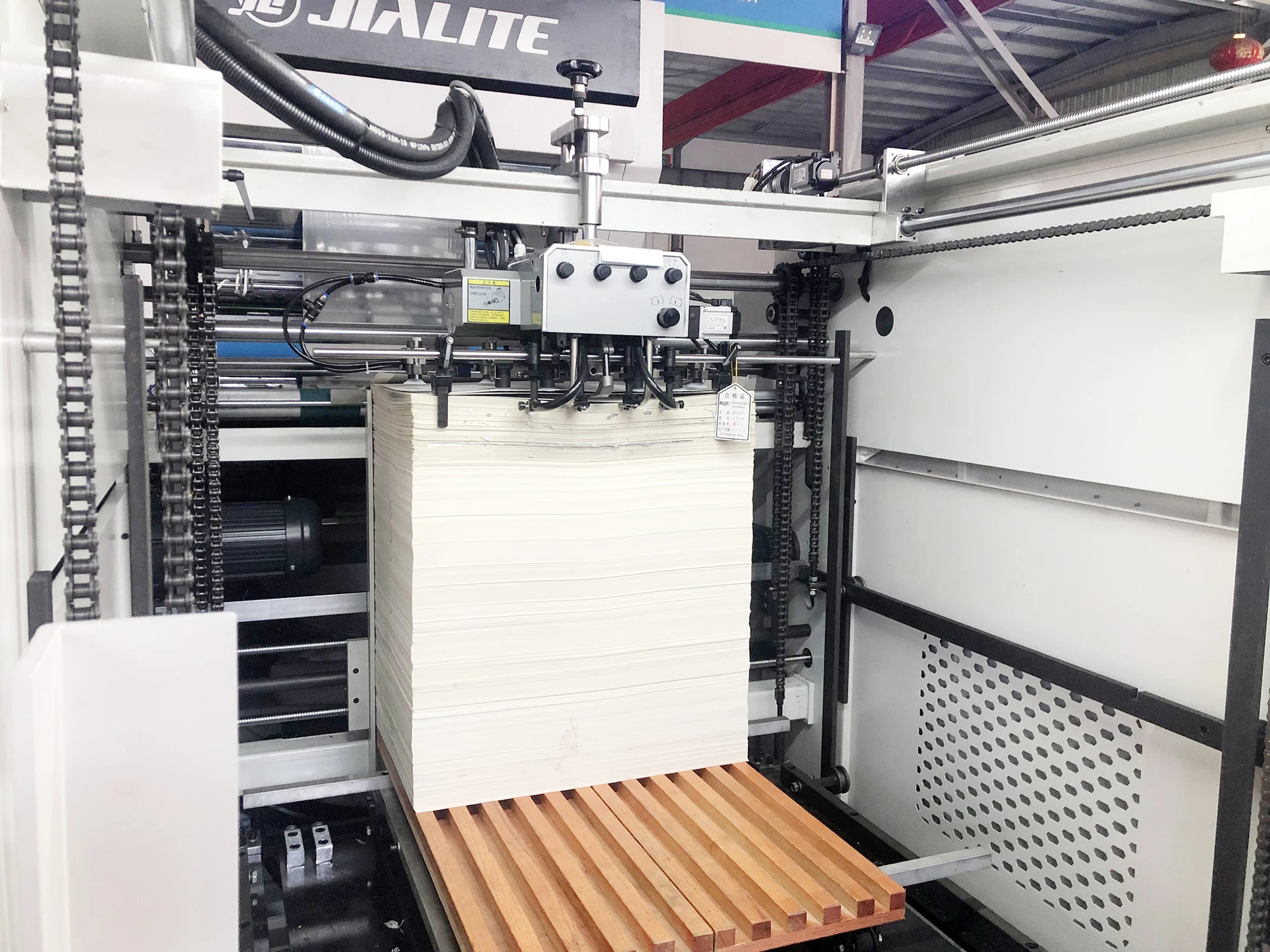

FEEDING UNIT
1.Servo Motor Feeder, 4 suckers for lifting and 4 suckers for conveying structure. Max Speed 12000 sheets/h
2.The paper feeding table has upper and lower over-limit protection
3.The height of non-stop feeding can reach 1300mm, pre-stacking device, non-stop feeding
4.Intelligent adjustment of front and rear positions of Feeder, just input product data on the control panel
2.The paper feeding table has upper and lower over-limit protection
3.The height of non-stop feeding can reach 1300mm, pre-stacking device, non-stop feeding
4.Intelligent adjustment of front and rear positions of Feeder, just input product data on the control panel

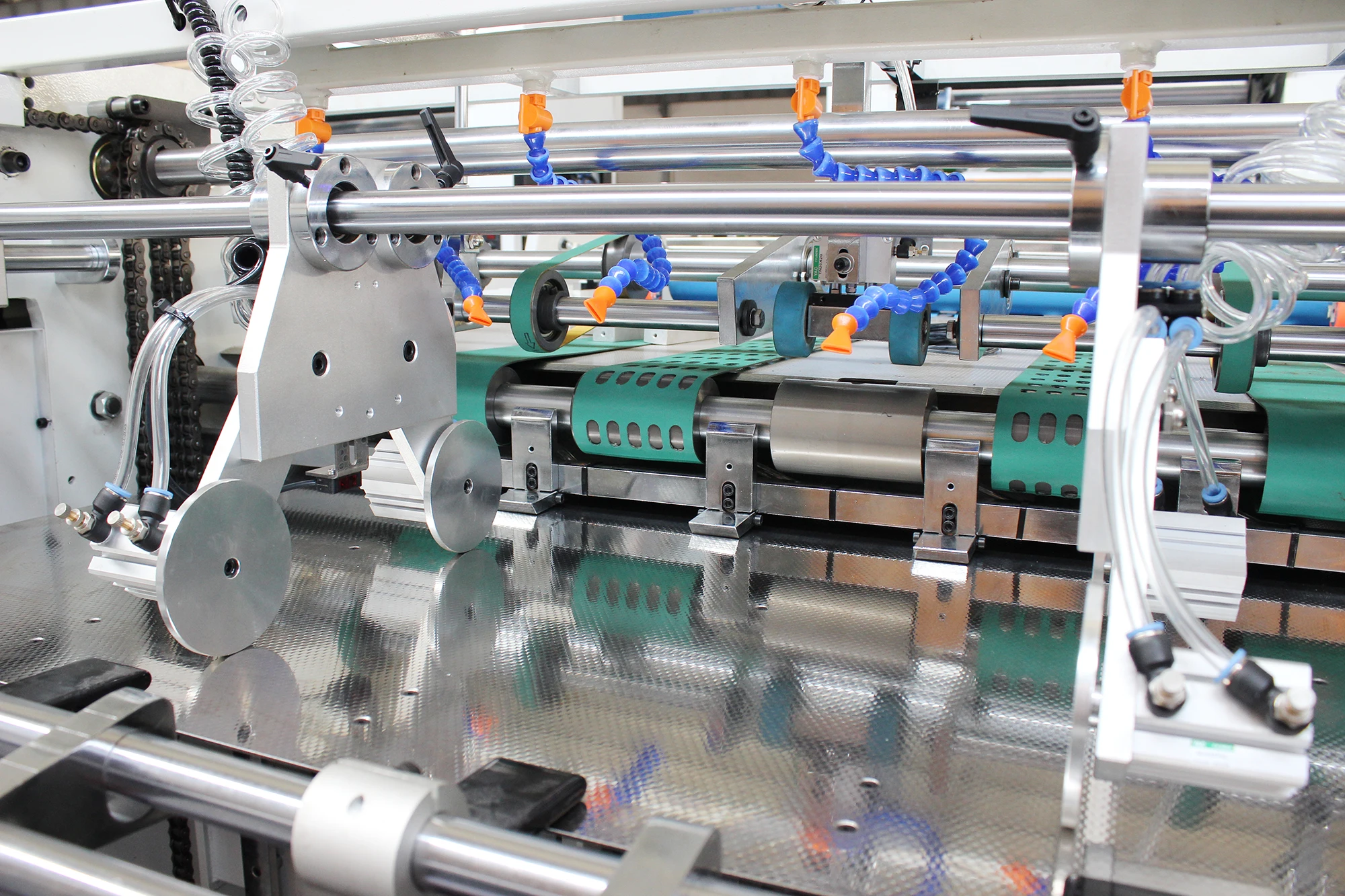

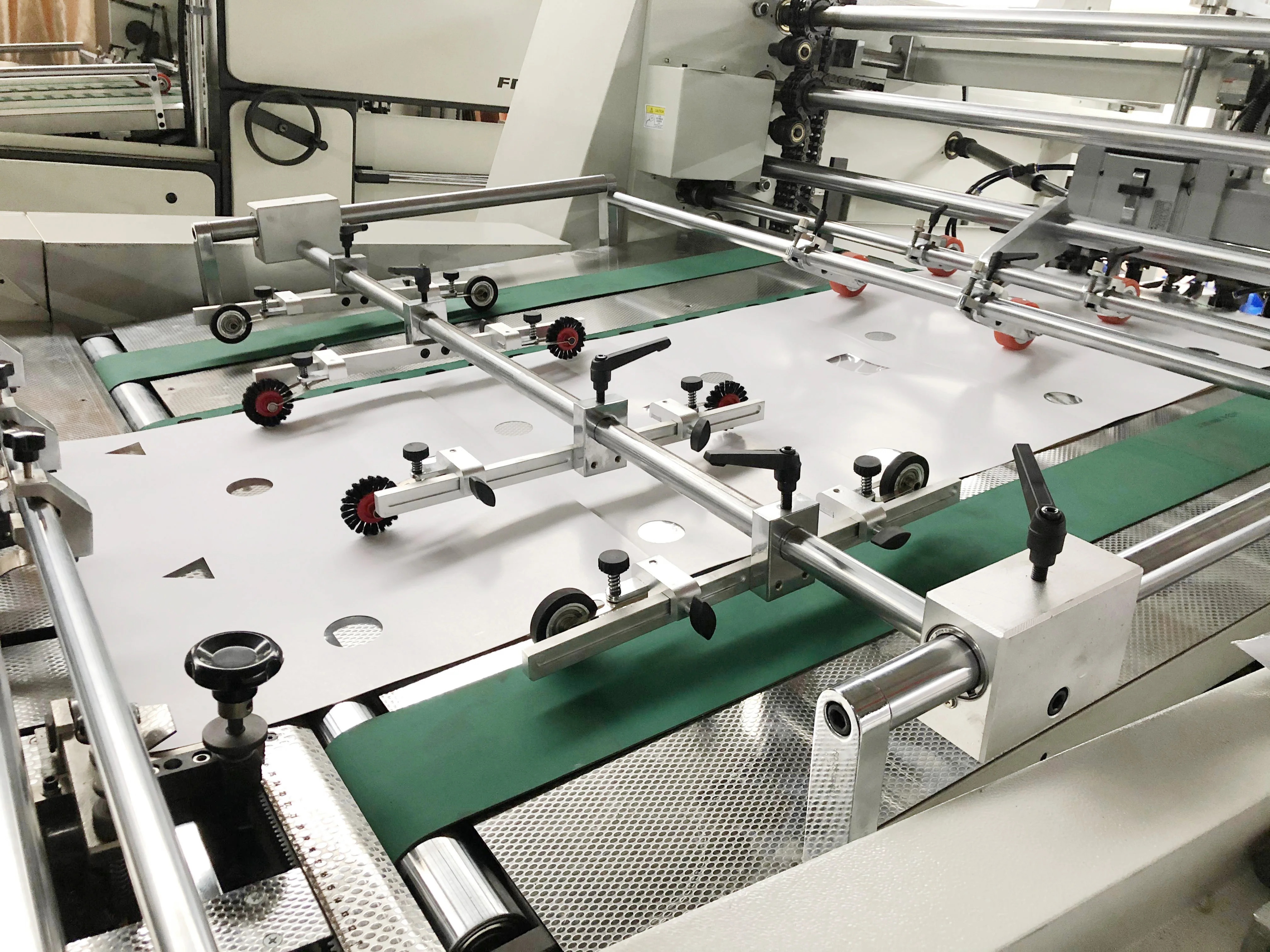

CONVEYING TABLE
1.The conveying table adopts customized stainless steel corrugated board
2.The brush wheel and rubber pressing wheel move smoothly
2.The brush wheel and rubber pressing wheel move smoothly

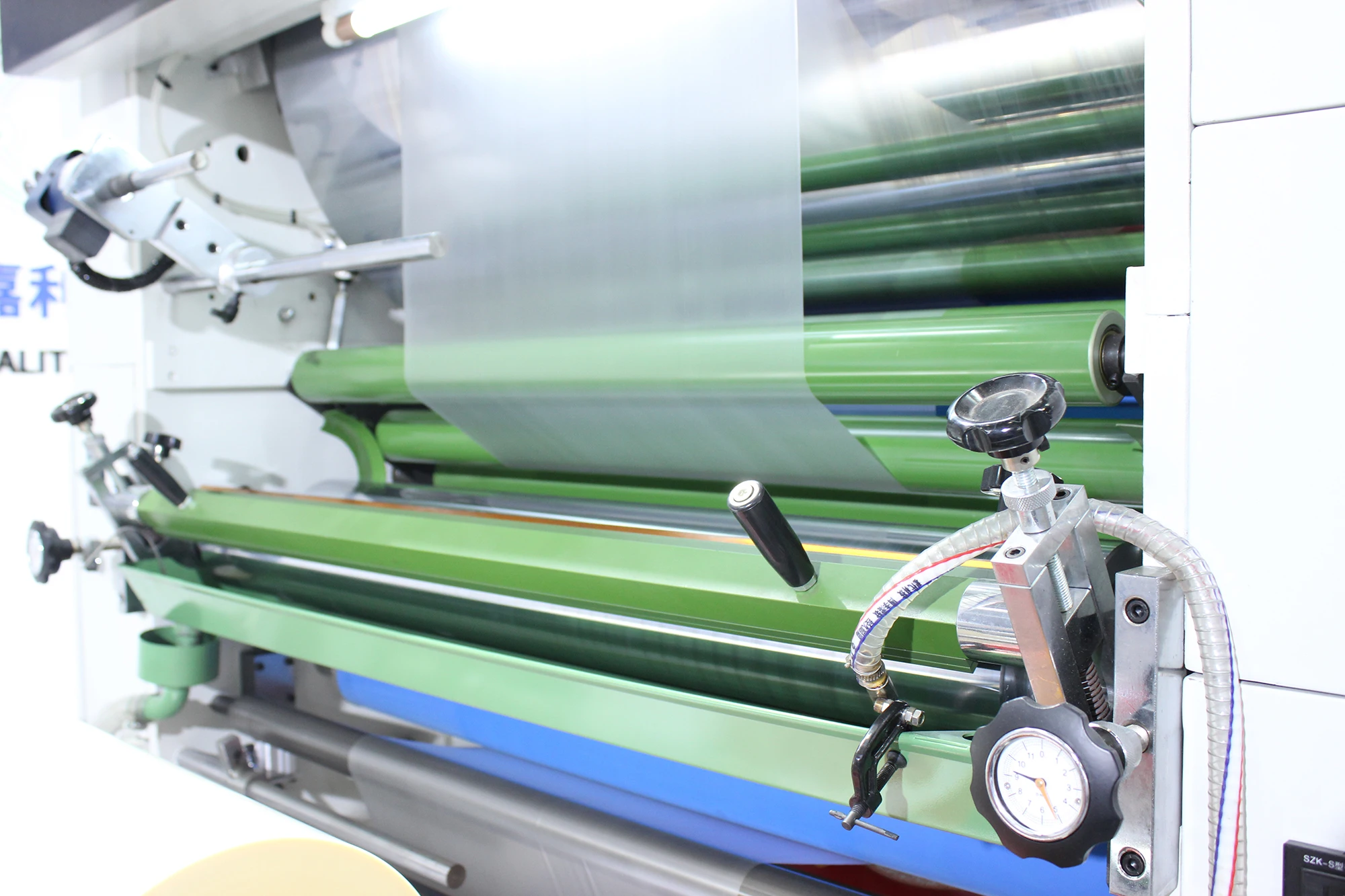

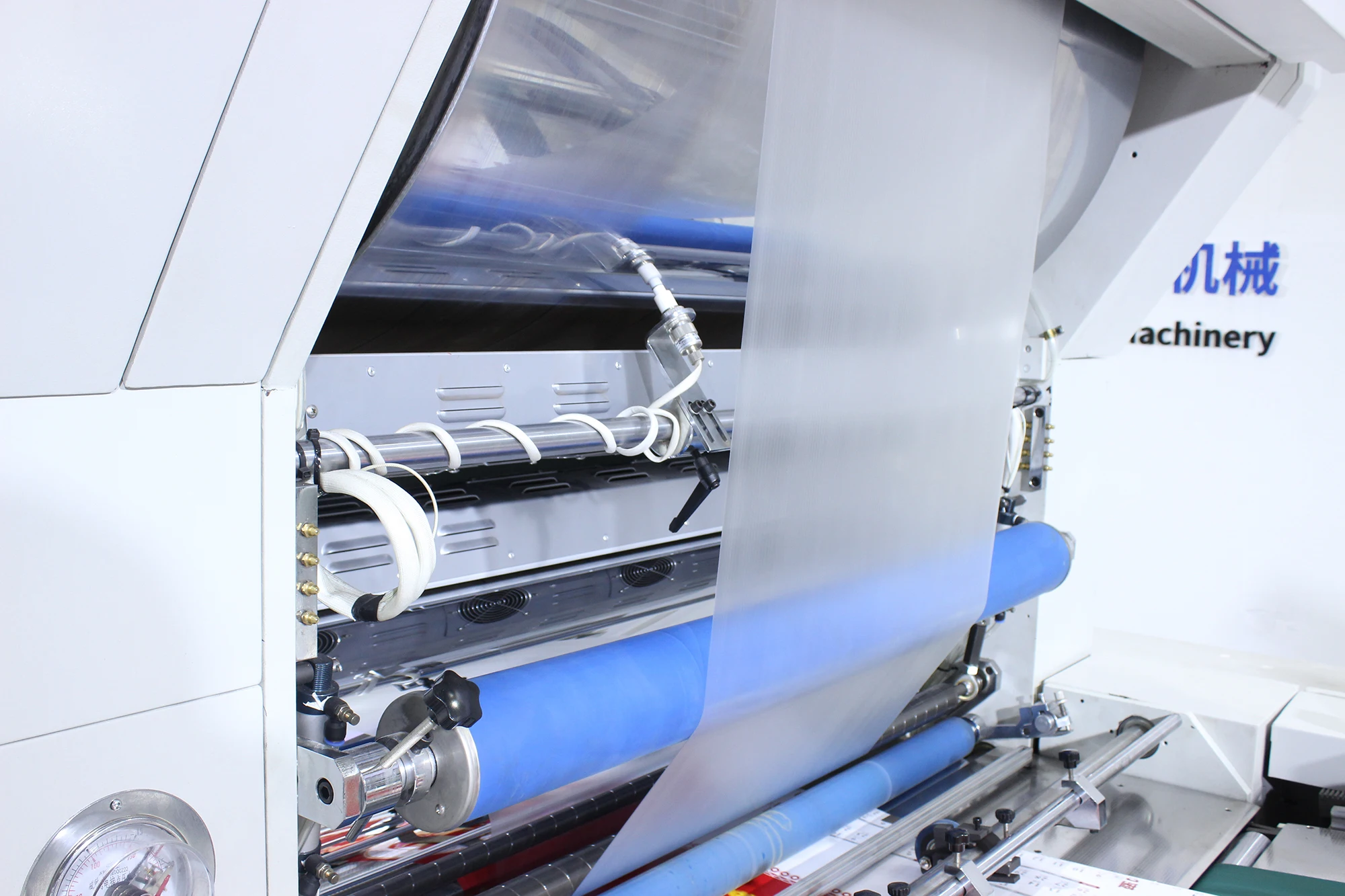

LAMINATOR HOST
1.Drying roller diameter is 1000mm, fill liquid into the roller and seal it. Electromagnetic heating control system is adopted for
drying, the film is heated evenly, and the drying speed is more faster, lower energy consumption. The stainless steel fin electric
heating tubes are built in the auxiliary oven.
2.Heating roller adopt electromagnetic heating system, heating up and cooling down fast, Built-in temperature measurement probe for
accurate temperature reading.
3.The diameter of the pressure rubber roller is 380mm, and the pressure can be up to 15T.
drying, the film is heated evenly, and the drying speed is more faster, lower energy consumption. The stainless steel fin electric
heating tubes are built in the auxiliary oven.
2.Heating roller adopt electromagnetic heating system, heating up and cooling down fast, Built-in temperature measurement probe for
accurate temperature reading.
3.The diameter of the pressure rubber roller is 380mm, and the pressure can be up to 15T.

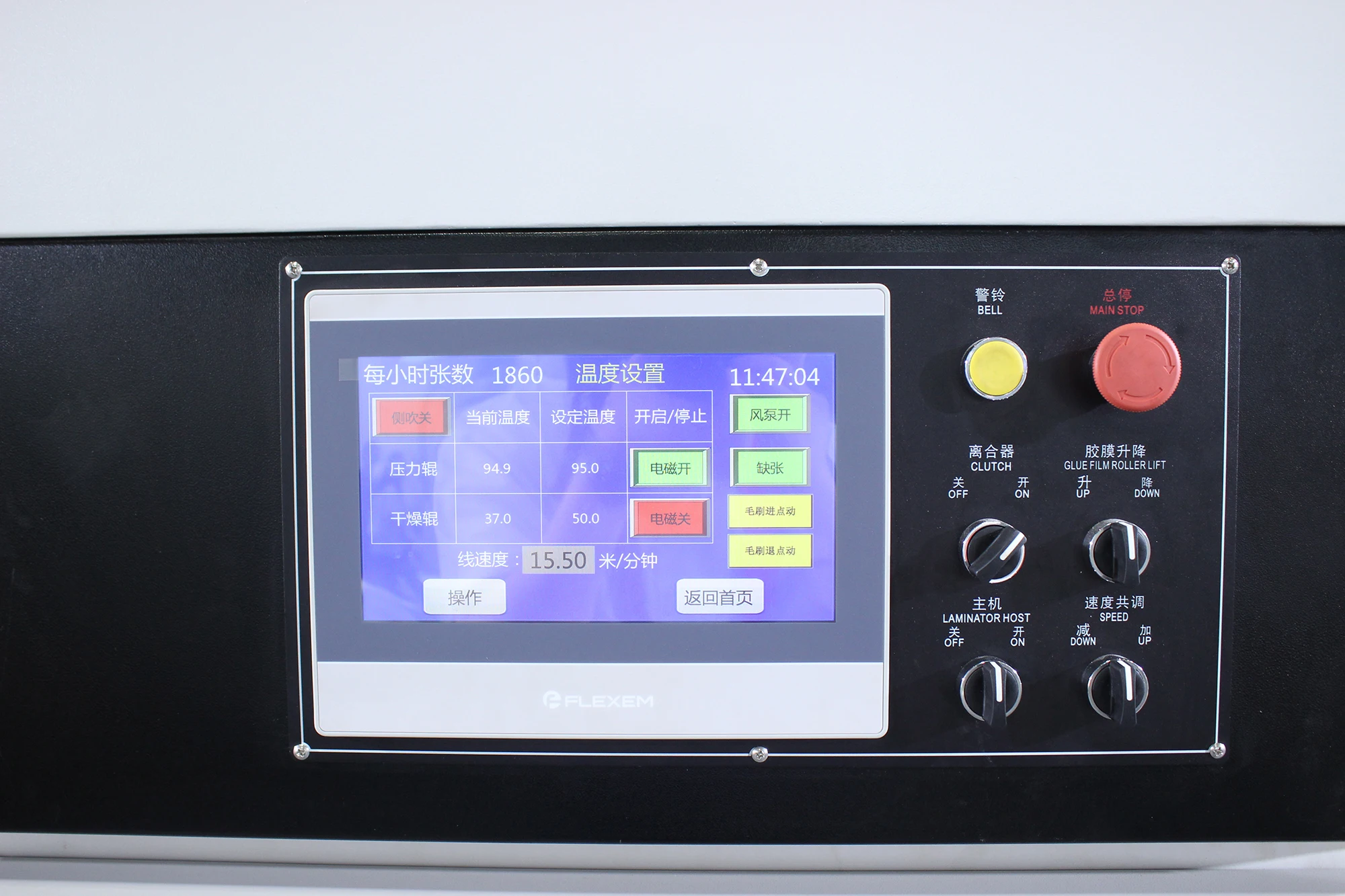

TOUCH SCREEN
1.Simple design of total control touch screen.2.Support Internet of things remote control, after-sales service more convenient.
3.Language customized
4.one-click activation of multiple units.
3.Language customized
4.one-click activation of multiple units.

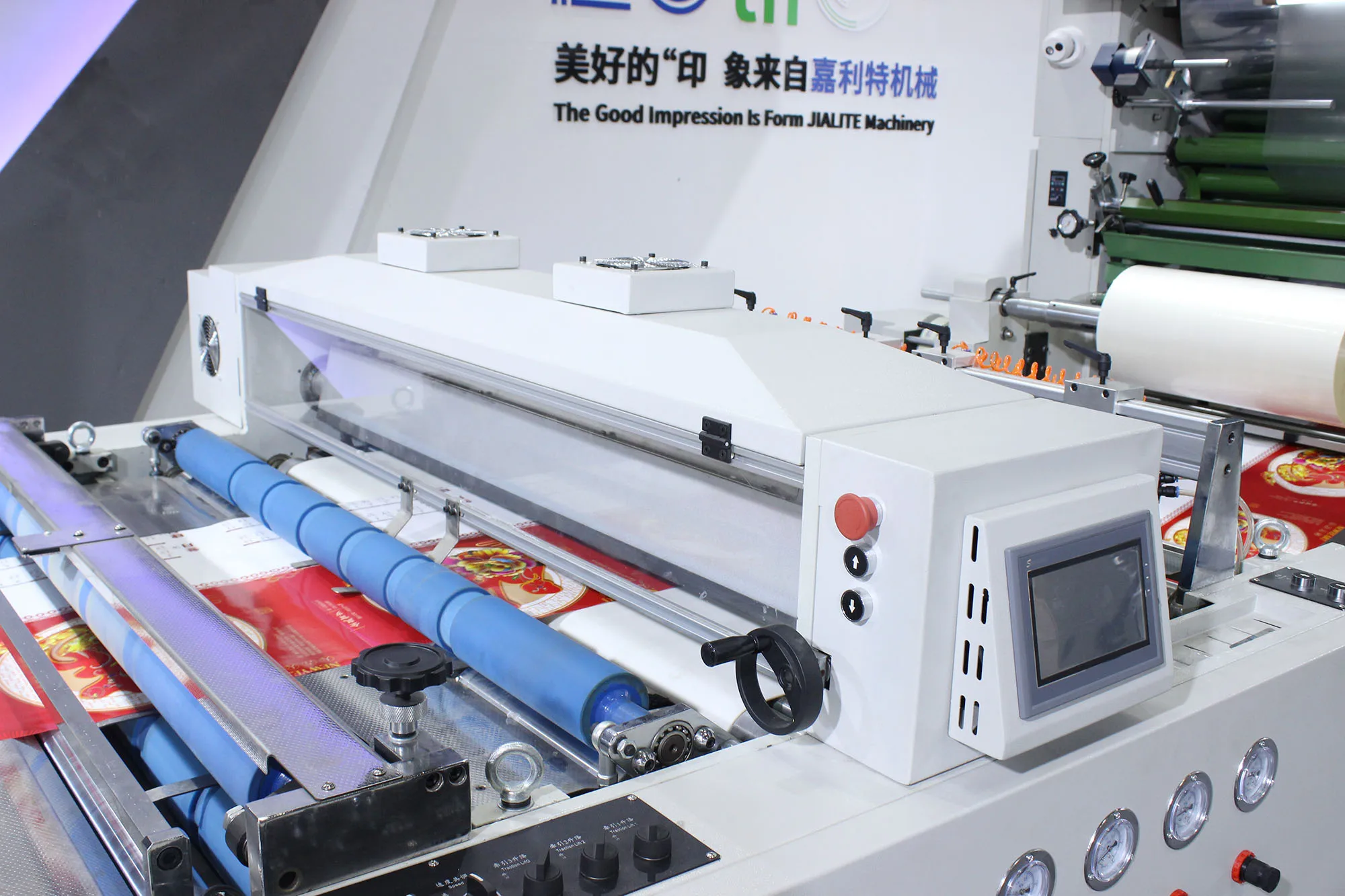

GLUING SYSTEM
1.The gluing roller and the measuring roller drive controlled by independent motors, More uniform glue control.
2.The machine stops in an emergency and the pressure film frame rises automatically, so that the film is not contaminated by glue.
The gluing system Teflon process treatment, easy to clean and non-sticky. When machine stop.
2.The machine stops in an emergency and the pressure film frame rises automatically, so that the film is not contaminated by glue.
The gluing system Teflon process treatment, easy to clean and non-sticky. When machine stop.
HOT KNIFE CUTTING
1.The paper cutter is equipped with a tension controller, the an anti-curl device to ensure that the thin paper flat and not curled.
2.The paper cutting part contains grinding wheel, disc knife and hot knife for slitting, meeting customers' requirements for slitting films of different materials
3.Hot knife with 24V low voltage direct heating the blade, then slitting plastic film, after slittling the paper without film. The hot knife system is controlled by servo motor, determines the position of the cut point by detecting the change of the thickness of the paper overlap, which is precise and efficient.
4. The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference
2.The paper cutting part contains grinding wheel, disc knife and hot knife for slitting, meeting customers' requirements for slitting films of different materials
3.Hot knife with 24V low voltage direct heating the blade, then slitting plastic film, after slittling the paper without film. The hot knife system is controlled by servo motor, determines the position of the cut point by detecting the change of the thickness of the paper overlap, which is precise and efficient.
4. The bounce roller is controlled by an independent motor, and the paper can be separated by using the speed difference
COLLECTOR UNIT
1.The non-stop collector height can reach 1300mm. When the stack is almost full, the delivery conveyor belt will automatically extend to accept the paper. The collector platform will drop. After the tray is replaced, the platform will recycle and complete the non-stop collector.
2.Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process
3.with a reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle
4.Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated
5.Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and kick out the paper
2.Adopt pneumatic paper sorting structure to ensure the neatness of the paper and facilitate the next process
3.with a reduction wheel to prevent the paper from being damaged due to too fast hitting the baffle
4.Counting electric eye, the number of running paper is displayed on the display screen at the take-up machine, which can be cleared and accumulated
5.Induction electric eye, sensing the length of the paper, if the length of the paper changes, the belt will accelerate, and the baffle of the take-up machine will overturn and kick out the paper
Company Profile

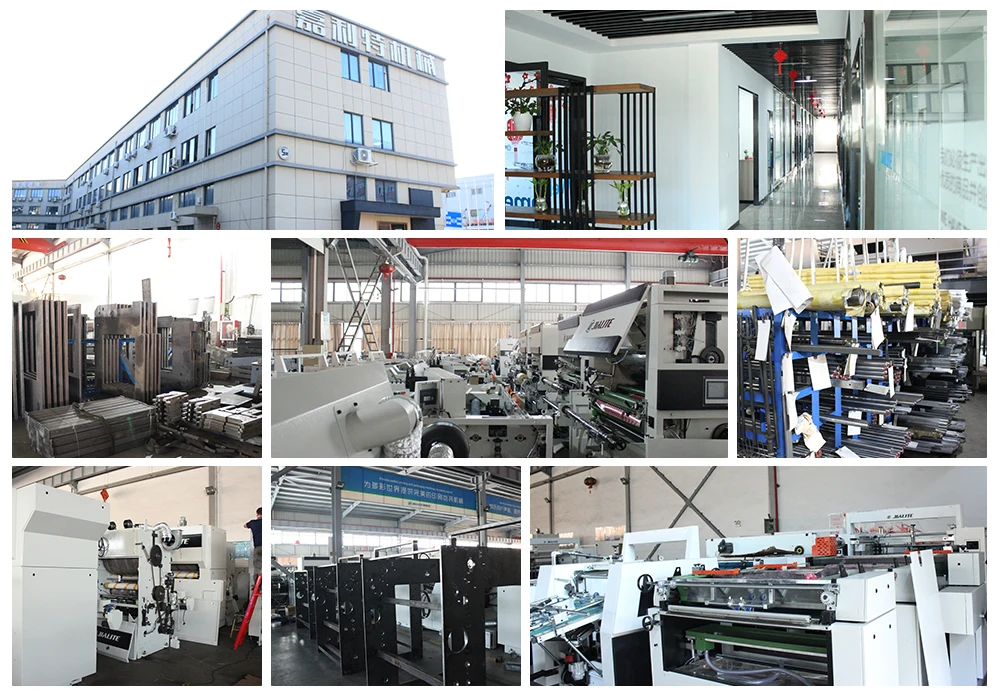

JIALITE since from 1995. Continuous introduction the European concept of equipment manufacturing, based on more than 20 years experience, we focus on the development and innovation of laminating machine and UV coating machine, GREAT provide efficiencyproducts and reasonable post press solution to every user.
Company structure is scientific and reasonable with humanized management mechanism. The ERP management system and 6S standard are used to ensure the strict system of development, procurement, processing, production and assembly, factory inspection, packaging and logistics.
Mature customer service system, the domestic First-tier and second-tier cities have direct selling and service branch, technical engineers team at any time provide after-sale consultation and arrangement installation and troubleshooting service for foreign customers.
Company structure is scientific and reasonable with humanized management mechanism. The ERP management system and 6S standard are used to ensure the strict system of development, procurement, processing, production and assembly, factory inspection, packaging and logistics.
Mature customer service system, the domestic First-tier and second-tier cities have direct selling and service branch, technical engineers team at any time provide after-sale consultation and arrangement installation and troubleshooting service for foreign customers.

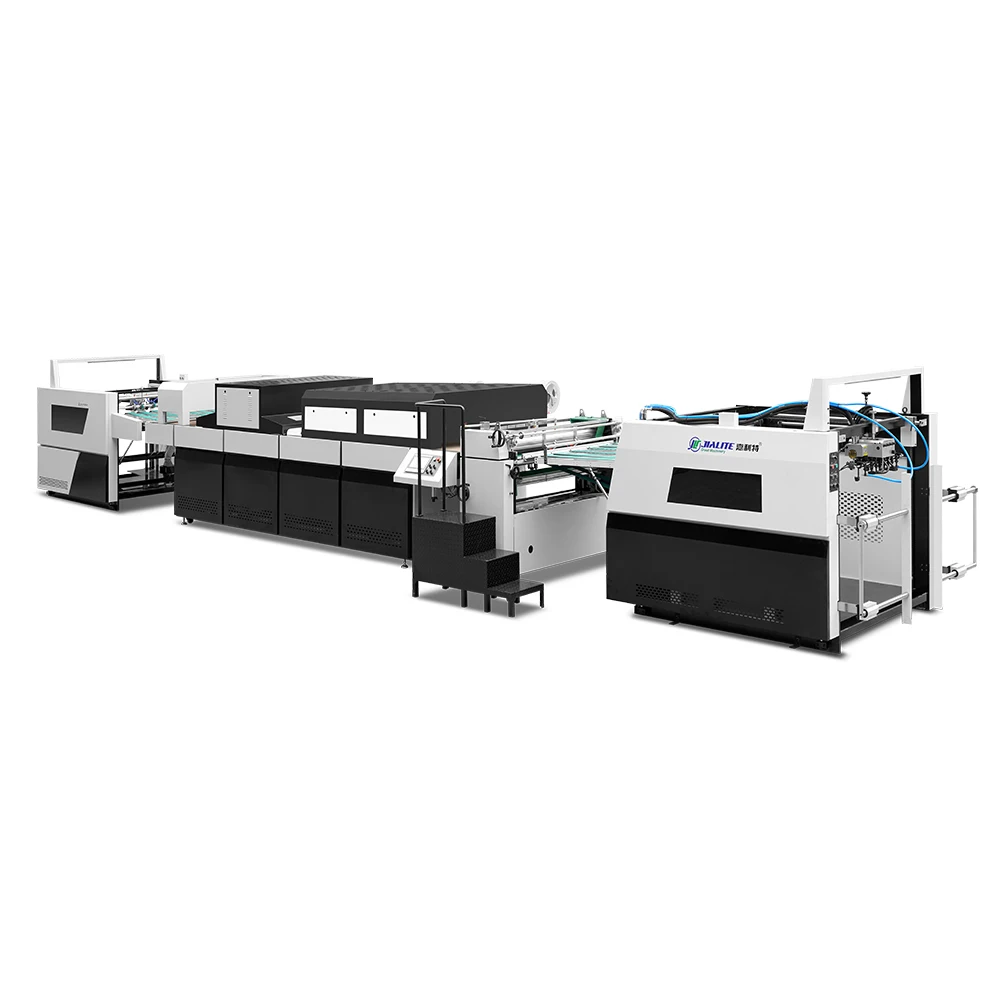

WATER BASED AND UV OIL VARNISHING MACHINE
Automatic Feeder+Conveying Table+Coating Head Unit+IR Drying Oven+UV Drying Oven+Cooling Fan+Automatic Collector
THERMAL LAMINATING MACHINE
Automatic Feeder+Conveying Table+Thermal Laminating Host+Disc Knife Slitting+Automatic Collector
