New product Off Road 4X4 Trailer RV Caravan Motorhome Camper Trailer for Sale Galvanized sheet/Profile steel structure
- Category: >>>
- Supplier: Wuhan Falave Automotive Technology Co. Ltd.
Share on (1600988144500):
Product Overview
Description
Products Description

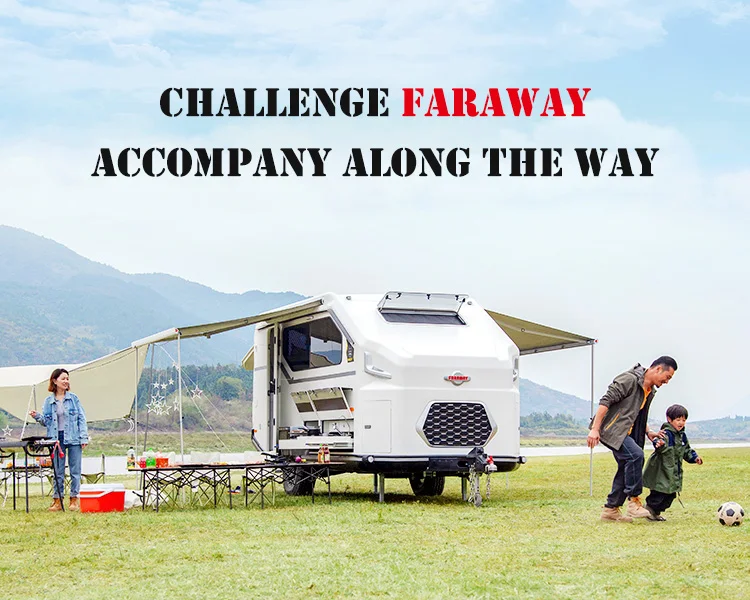

CHALLENGE FARAWAY ACCOMPANY ALONG THE WAY
Dare to dream. Do you have your perfect place? We all have a dream, that ultimate holiday home by the lake, next to the beach or in the mountains, away from it all, yet cocooned in your own private luxury.
The new caravans from Faraway, inspired by dreams. Our aim? To create something like no other.
Outdoor tranquility and private luxury, excellent off-road performance and elegant comfort, caravans and mobile homes,it’s both.
Details Images
Product Paramenters

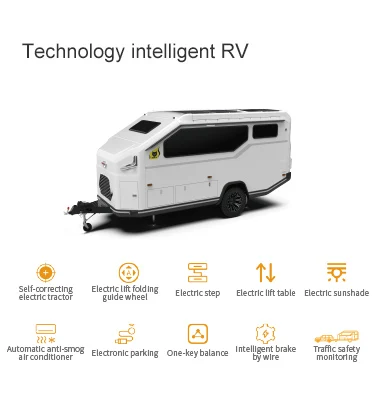

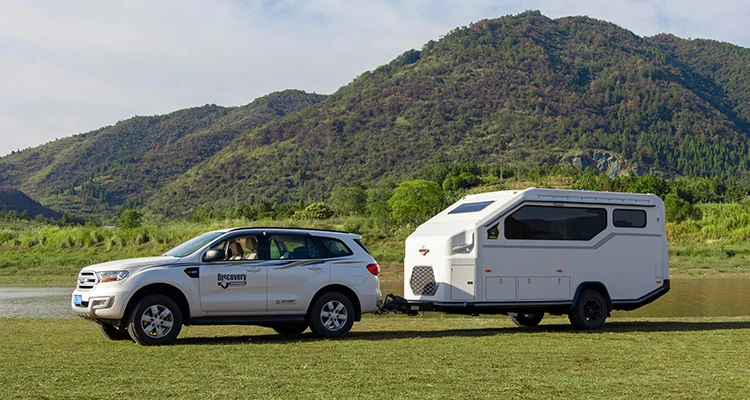

Faraway off-road travel trailers
Standard Configuration List | ||
Size | L*W*H:5995*2200*2630mm | |
Rim | R16 Forged aluminum alloy wheels | |
Tire | 265/75 R16 AT | |
Track width | 1850mm | |
Wheelbase | 3920mm | |
Ground Clearance | 290mm | |
Departure angle | 18~21° | |
UVW | 1800Kg | |
ATM | 2400Kg | |
Towball tare | 150~190Kg | |
Maximum safe speed | 100（km/h） | |
Maximum allowable wading depth | 500mm | |

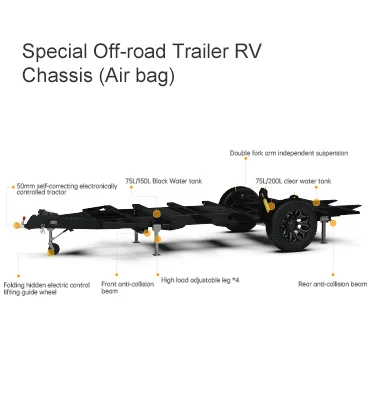

Chassis | Special high-strength off-road RV chassis | |
Suspension | Double wishbone independent suspension with air bag | |
Shock Absorber | 9-section adjustable damping shock absorber * 4 | |

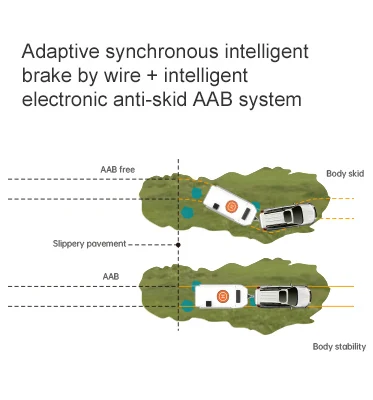

Brake | Adaptive synchronized hydraulic brakes | |
Parking brake | EPB，2 motors | |
Emergency protection | Brake protector & 2 stainless steel anti detachment chains | |
Hitch | Self correcting electric traction connection for 50mm Tow Ball | |
Jockey wheel | Electrically controlled adjustable and foldable | |
Trailer Jack | Towing jack stand stabilizer legs * 4 | |
Parking radar | Parking radar probe * 4 & LCD screen | |
Chassis electrical protection | IP67 | |
Anti-collision beam | 2 chassis anti-collision beams & 5 rear anti-collision beams | |
Step | 1 electric step | |

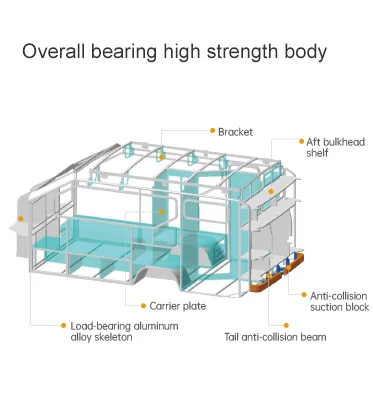

Body frame | ntegral high-strength aluminum alloy body frame | |
Carriage board | Aluminum alloy, aluminum honeycomb, fiberglass, XPS composite plate | |
Roof | High load-bearing integrated roof,Load capacity≥100KG/㎡ | |
Trap-door | 500*500 mm Can be manually operated | |
Reserved anchor points for roof tent | 12 Reserved anchor points | |
Door | H 1750*W 600 mm ,with screen door | |
Front window | Acrylic front sliding window with screen and sunshade | |
Side window | 2 Acrylic side sliding windows with screen and sunshade | |
Awning | 1 electric awning L2500*W2000 | |
Rain proof expansion tent | R2000 mm | |

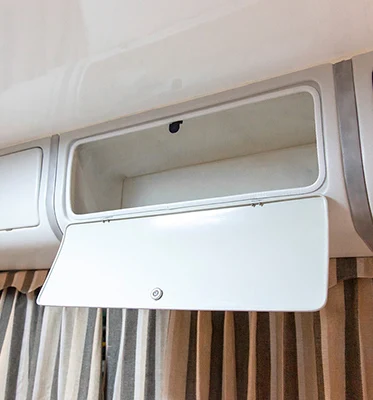

Trunk | Partition storage box with Automatic lighting | |
Spare tire | 1 Full size spare tire | |

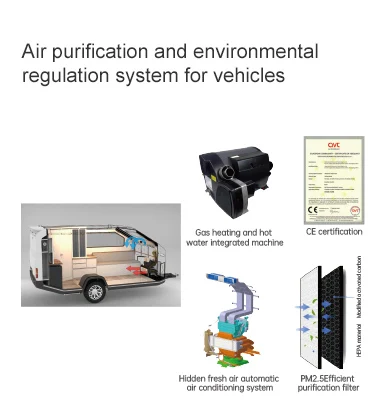

Aircon | Built-in fresh air automatic air conditioning system with PM2.5 dust proof filter element | |
Heater & Hot Water | Electric and gas fired heater with hot water function | |

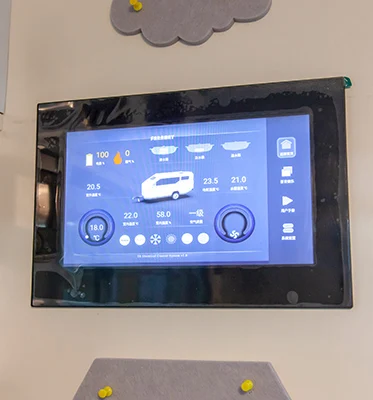

Car PCs | 10 inch LCD Touch Screen，control Aircon ，display water 、battery volume and temperature | |
Fridge | 95L，Refrigeration and freezing | |

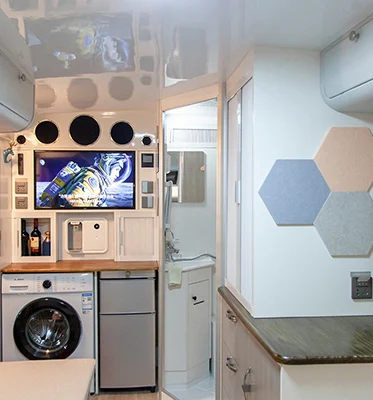

Washing machine | 3kg automatic washing machine | |

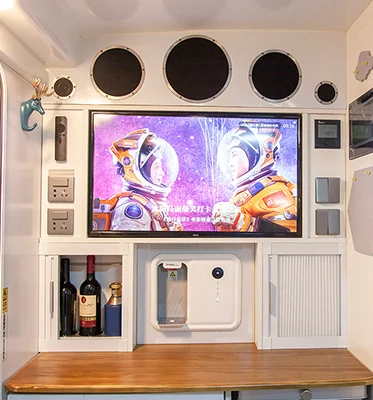

TV | 32 inch LCD TV | |
HiFi bluetooth audio | 9 channels，HiFi，Bluetooth | |
Water purifier | RO reverse osmosis water purification | |

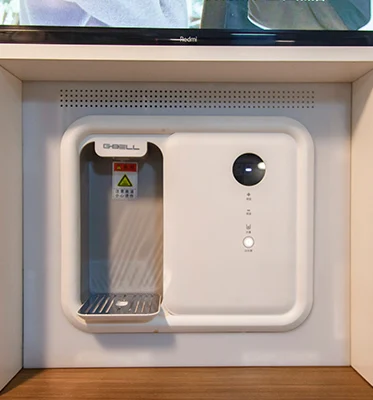

Water cooler | Multiple adjustable water temperature and quantity | |

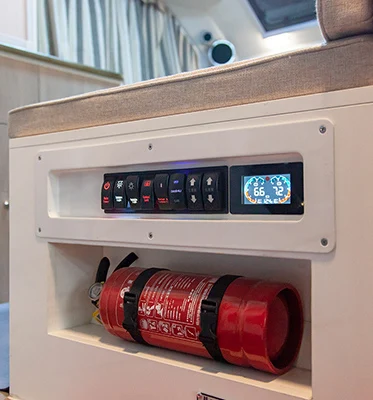

Safety monitoring device | 1 smoke alarm，1 gas leakage alarm，2Kg dry powder fire extinguisher for vehicles，1 emergency hammer | |
Storage capacity inside | 1975 L | |

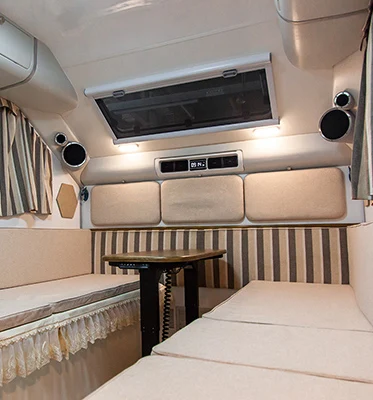

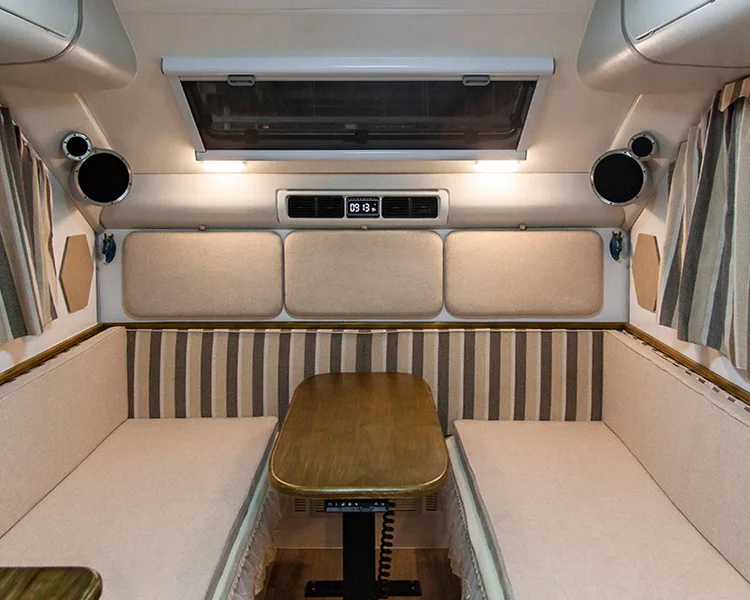

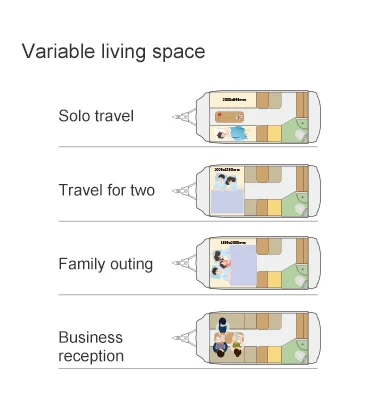

Bed | 1 combined sofa bed，1800*2000mm | |
Table | 1 electric lifting table,1100*460mm | |

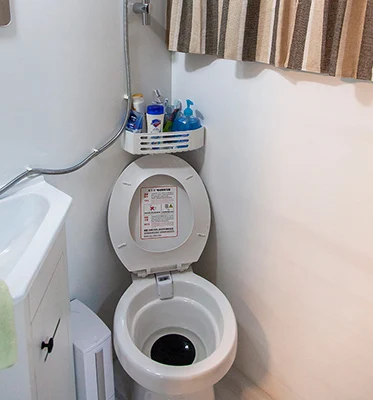

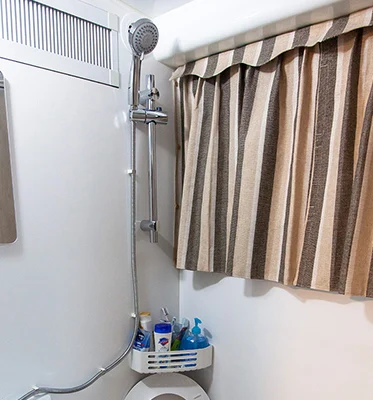

Bathroom | Electric shredded straight row toilet，corner basin with faucet and shower，1 ventilator | |
Bathroom daily necessities | 1 towel rack,1 toilet brush，1 mop，1 toilet paper fixture，1 waste basket | |
Kitchen | Outdoor pull-out kitchen；2 gas stoves，1 microwave oven，2 stainless steel sinks ，2 foldable faucets | |
Gas tank | 9kg gas tank | |
Storage capacity outside | 805 L | |

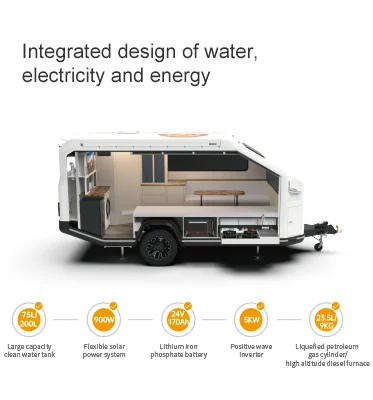

Water Tanks | Clean 200L & Grey 150L | |
Water injection | 9mm water inlet with pre filter | |
Water pump | Booster diaphragm pump，7.6L/min，24V | |
Battery | 25.6V 300AH lithium iron phosphate battery | |
Solar power | 24V 900W Flexible solar power | |
Inverter | 5Kw sine wave inverter & charging machine | |
Main power switch | 300A mechanical type main power switch | |
Circuit Protector | 10 circuit leakage and overload protectors | |
Charge port | 220-250V，10A | |
Power socket | 5 sockets with USB,220-250V，10A, | |
Annexe | Simple maintenance tools | |
Optional and customized
In addition to standard configurations, we also offer many options for everyone to choose according to their usage habits.According to your needs and budget, we will matchthe most suitable configuration for you.
We can also redesign your travel trailer according to your ideas and completely customize it for you.
Optional Configuration List | ||
Interior Style | Can choose between "Warm Autumn" or "Nordic" | |
Monitor system | 4 cameras for reverse imaging, parking monitoring, and driving records | |
Vehicle automatic leveling system | One click leveling of vehicle within ±75mm | |
Double Awning | 2 electric awnings L2500*W2000 | |
Water tank antifreeze | Water tank heating，Heat preservation of piping | |
Water injection pump | Submersible pump | |
Battery | Increase to 25.6V 470AH lithium iron phosphate battery | |
Rims & Tyres | R17 Aluminum alloy wheels 265/70R17 AT | |
Rear expansion rack | Rear expansion spare tire rack, motorcycle frame | |
Indoor oven | Built-in 20L steam oven | |
Camping equipment | 1 table , 4 chairs，1 Aluminum alloy ladder，1 barbecue bonfire platform，all be folded | |
Our Advantages
Unleash your wanderlust with our customizable off-road trailer, the ultimate adventure companion. Explore rugged terrain with ease, while enjoying clever space utilization. Get ready to elevate your camping experience.
Start your outdoor adventure trip, we've got you all covered：
* Double wishbone independent suspension
* Intelligent synchronised brakes
* Electronically controlled traction hitch
* Height adjustable air suspension
* One-touch body levelling
* Integral fusion design
* Integral load-bearing body
* Concealed air-conditioning and heating
* Nine-channel stereo
* Integrated LCD control system

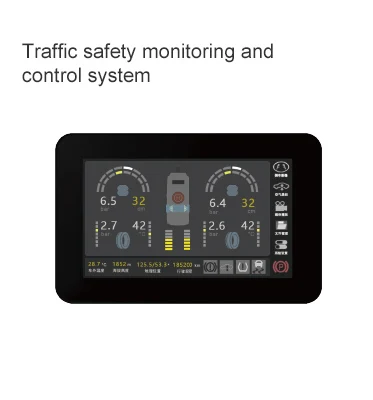

* Driving safety monitoring system\t\t\t\t\t\t\t\t\t\t\t
Company Profile
Wuhan Faraway Automotive Tech Co., Ltd. was set up in 2020. We focus on RV R&D, manufacturing and sales, serving global customers with RV ODM, trailer and parts manufacturing.

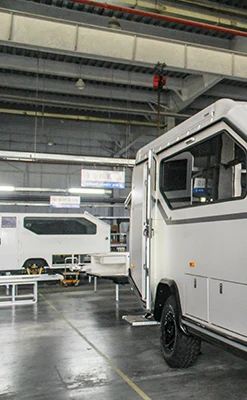

Our RV design, pre-production, testing and production workshops are of the highest standard. We've got two production lines for RVs that assemble modularly, with an annual production and sales volume of over 500 types of RVs and parts.
