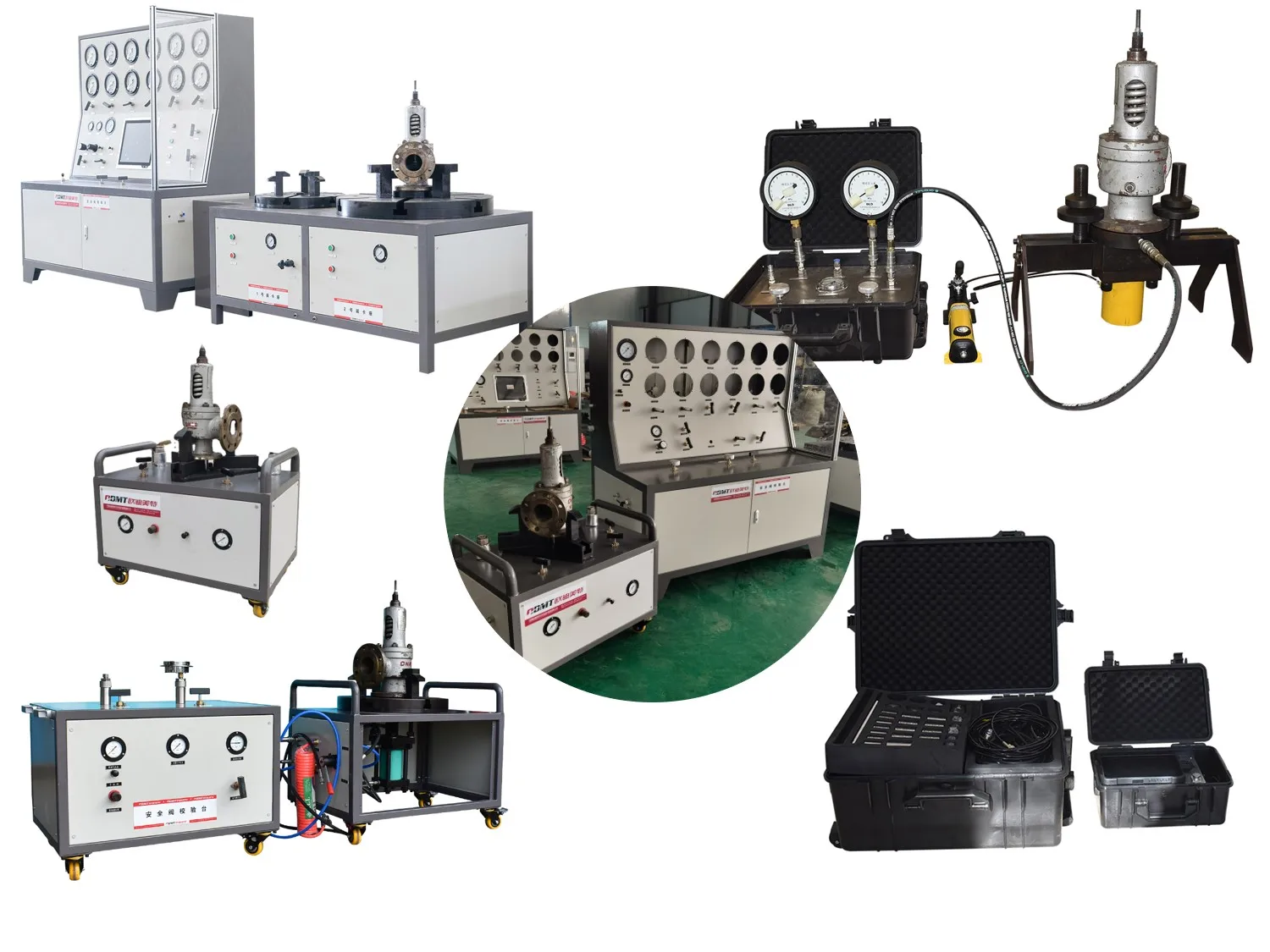

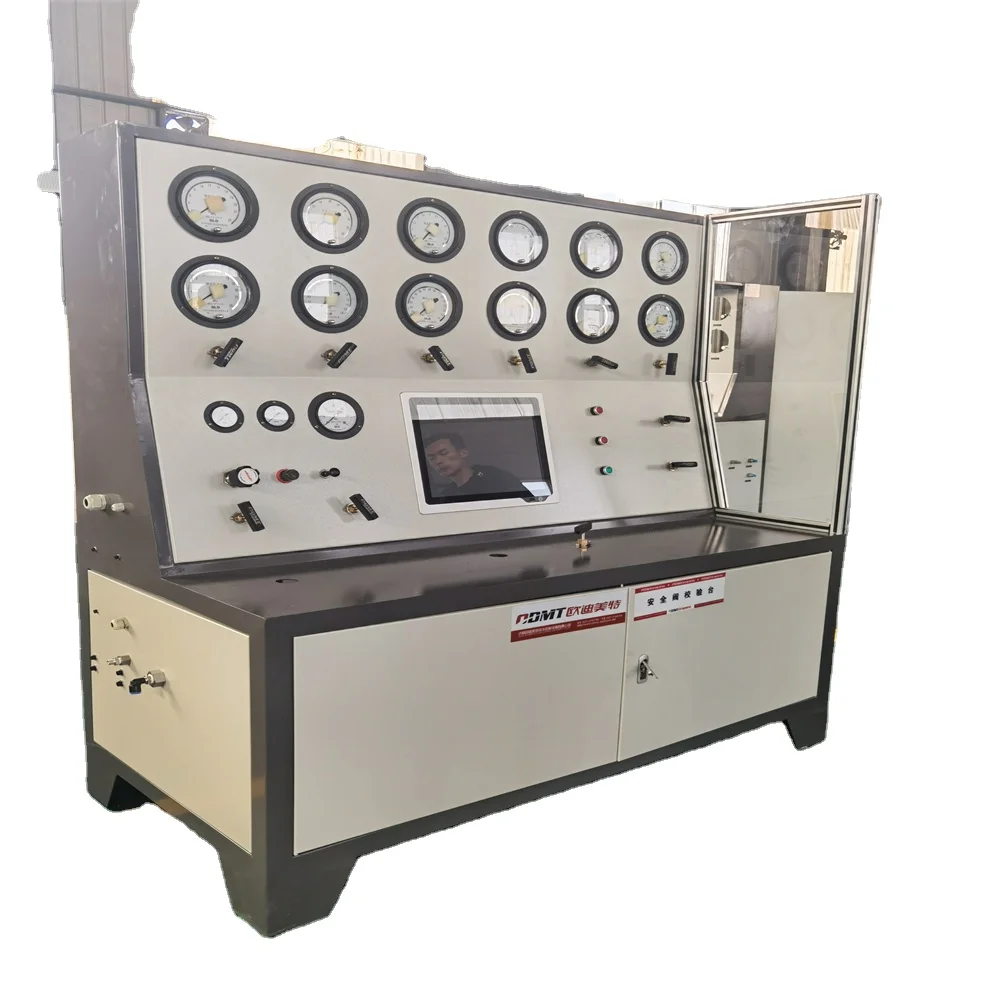

  • ODMT PSV Hydraulic Pumps and Safety Valves Test Bench and Test Stand with clamp station
ODMT PSV Hydraulic Pumps and Safety Valves Test Bench and Test Stand with clamp station
ODMT PSV Hydraulic Pumps and Safety Valves Test Bench and Test Stand with clamp station
ODMT PSV Hydraulic Pumps and Safety Valves Test Bench and Test Stand with clamp station
ODMT PSV Hydraulic Pumps and Safety Valves Test Bench and Test Stand with clamp station
ODMT PSV Hydraulic Pumps and Safety Valves Test Bench and Test Stand with clamp station
ODMT PSV Hydraulic Pumps and Safety Valves Test Bench and Test Stand with clamp station
ODMT PSV Hydraulic Pumps and Safety Valves Test Bench and Test Stand with clamp station

ODMT PSV Hydraulic Pumps and Safety Valves Test Bench and Test Stand with clamp station

Share on (1600988215871):


Price:

Quantity:


Product Overview

Description



Product Description




Check the diameter range:flange type DN25~200mm safety valve,A27W-10T safety valve with inch thread type 1/2~ 2 1/2, M27*1.5,M30*1.5, M33*1.5 metric thread safety valve.
The highest calibration pressure: 32MPa, two-way air intake, high-pressure air source prepared by the user (can be equipped with a booster system)


Specification


Clamping plate
specifications
Clamped safety valve caliber
Bore of cylinder or oil cylinder
Clamping force
(air pressure=6bar)
Medium clamping plate
Φ15-Φ100
Oil cylinder bore: 80mm
1.8T-12T


P/PN/DN
≤32
40
50
65
80
100
150
200
100KN
32
32
32
25
20
12
5.5
3
80KN
32
32
32
20
15
10
4
2.5
50KN
32
32
20
15
10
6
2.7
1.5
35KN
32
25
15
10
5
4
1.8
0.8


Machine Name

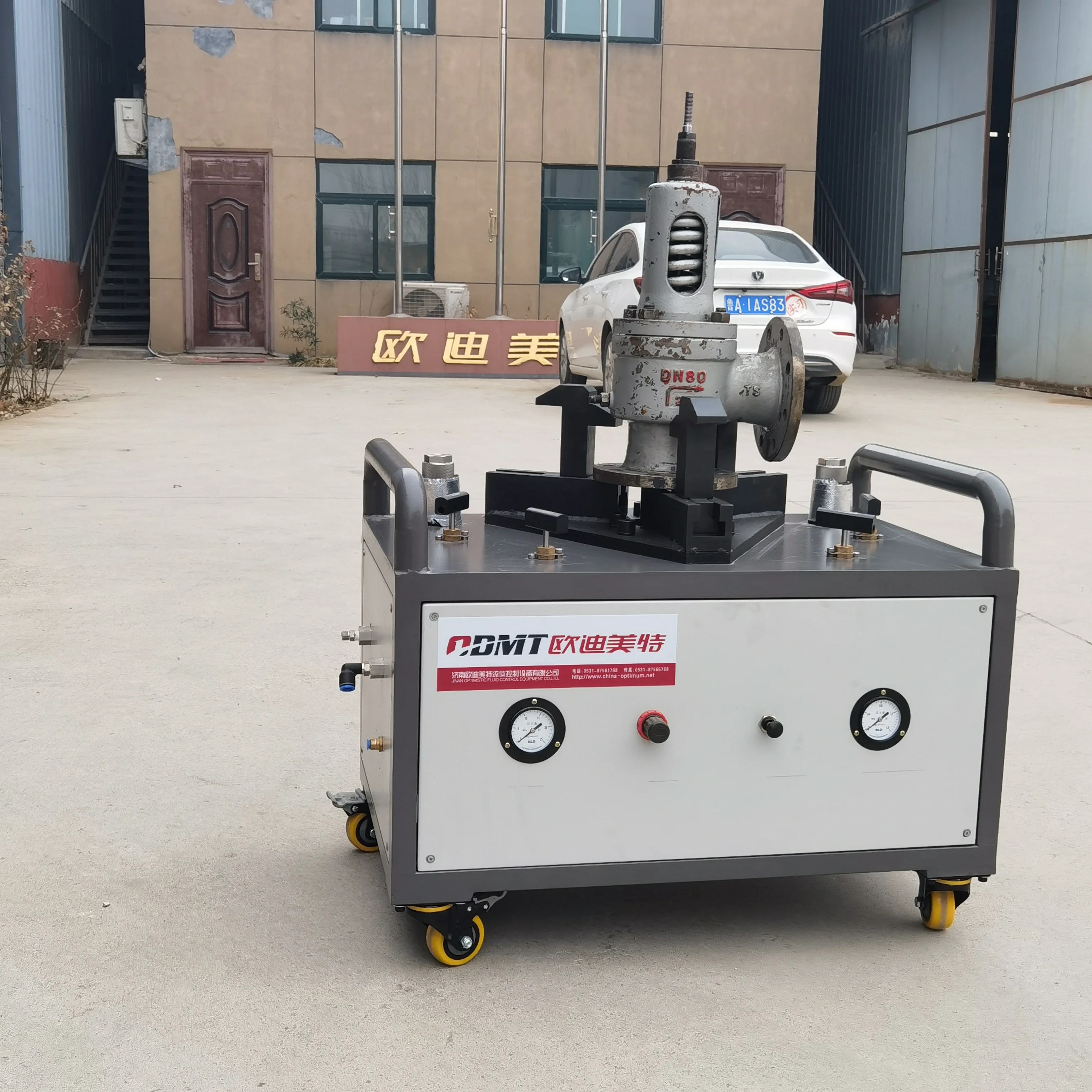

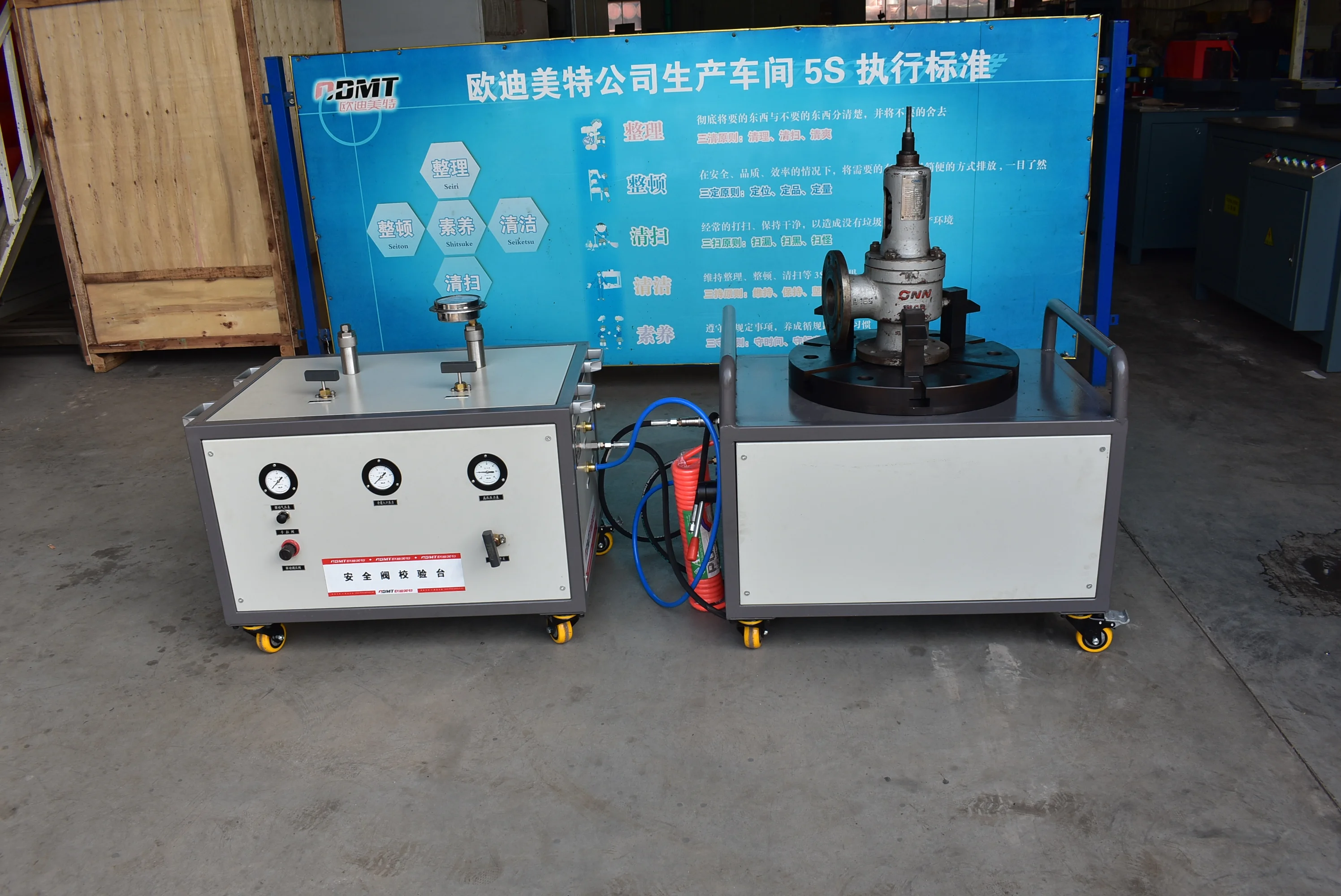

Portable Relief Valve Test Bench
Model
MBAQ-160/08BA
Tested object
Safety valve
Features
Safety valve take-off pressure seal test
Test medium
Water
Maximum test pressure
200 Bar
Maximum proof path
200mm/DN15-DN200
Calibration accuracy
±0.4%
Medium temperature
Room temperature +10-80℃
Ambient temperature
Room temperature
Simultaneous test pieces
1 piece
Dimension
1000mm x 1270mm x 900mm
Gross Weight
320KGS
Wooden Cases
Export standard fumigation wooden cases


Machine Features


1.The hydraulic clamping device of the hand pump hydraulic pump is used, the clamping force is adjustable, and a pressure gauge is provided to display the corresponding clamping force, and a comparison table of pressure and clamping force is provided to facilitate the operator to verify the pressure according to the safety valve And diameter to select the appropriate clamping force.
2.Liquid test: Use water as the test medium, pressurized by the pneumatic liquid booster pump, and used for the test test.
Equipped with an air-driven liquid booster pump,the booster medium is water, the driving air source is 2-8bar,.
3. All valves, fittings and joints are made of stainless steel.
4.One set of test calibration seats, one set is used for DN15-DN200 test.
5.Equipped with multiple test fixtures to meet the test requirements of using grid series safety valves.
6.The test bed adopts box-shaped overall structure, integrated power station, no external leakage, clean and beautiful appearance.
7. All pipelines of the test bench adopt highly reliable sealing methods to prevent running and dripping.


The main components
Detailed composition
Clamping system

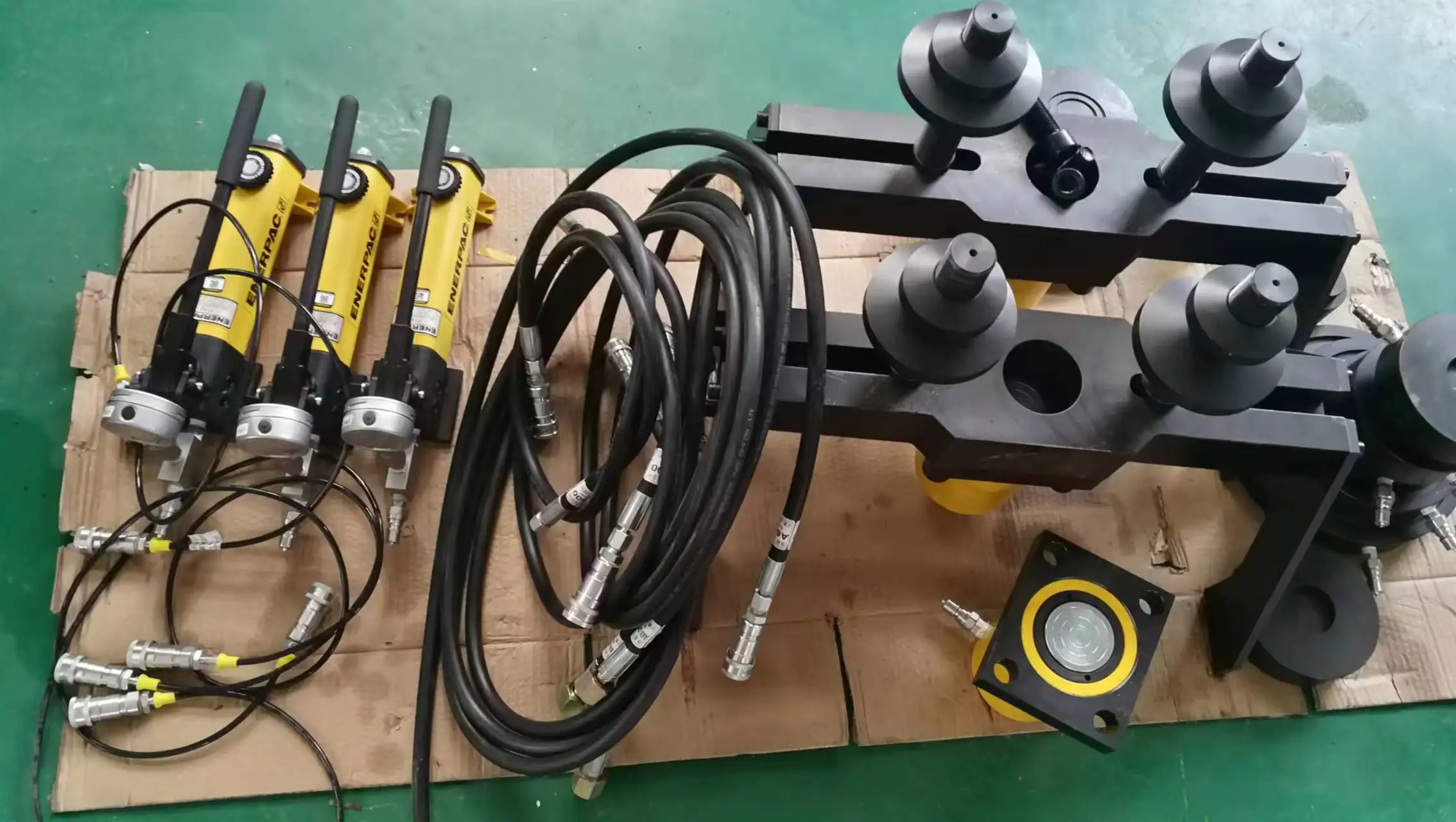

Hydraulic tightening: composed of manual reversing valve, manual hydraulic pump, oil cylinder, check seat, movable feet.

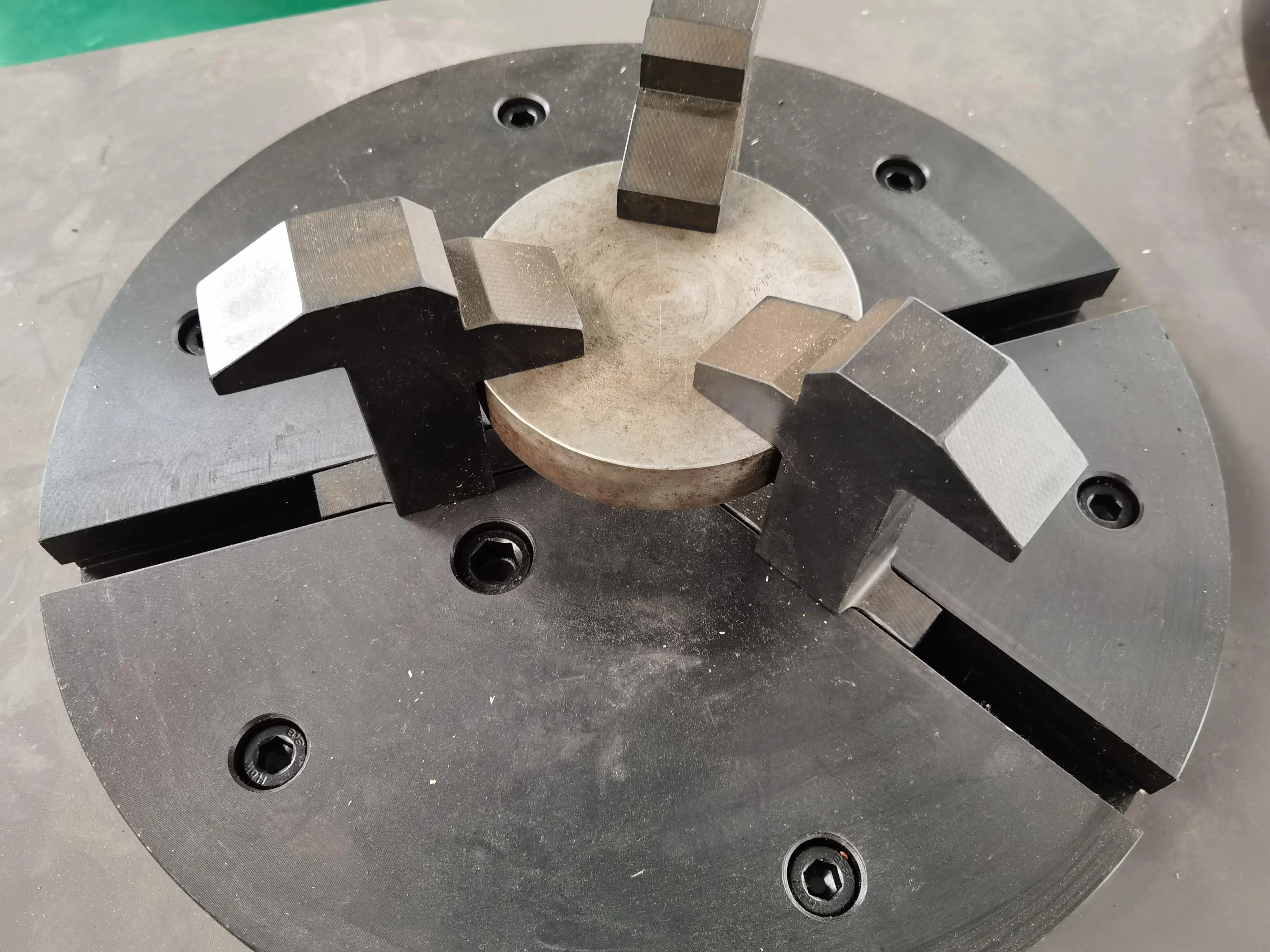

Using new bidirectional high and low clamping feet, with three pairs of jaws, can meet different safety valve clamping requirements.
Test cabinet
Made of welded steel plates.
Test system
Composed of high-pressure needle valve, high-pressure pressure gauge connector, high-pressure pipeline, etc.
It can check all kinds of full-open, micro-open, metric, inch, threaded and domestic and imported safety valves


Details Images












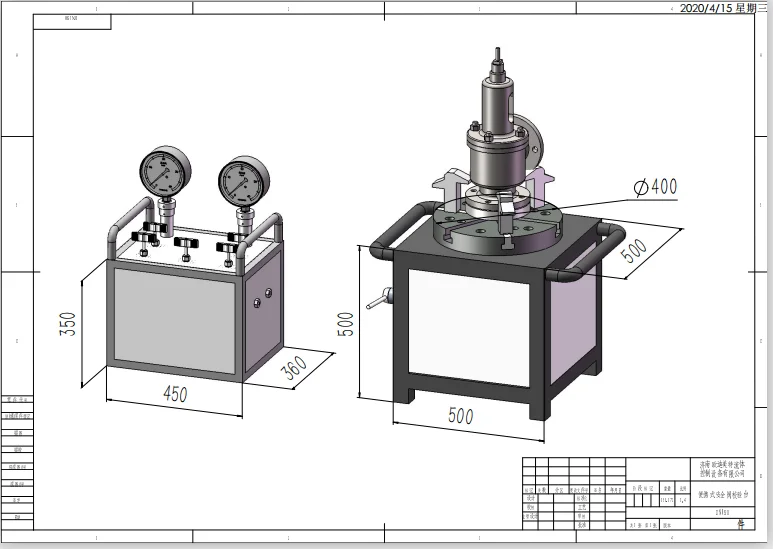

Test Bench Structure


The main components
Detailed composition
Clamping system

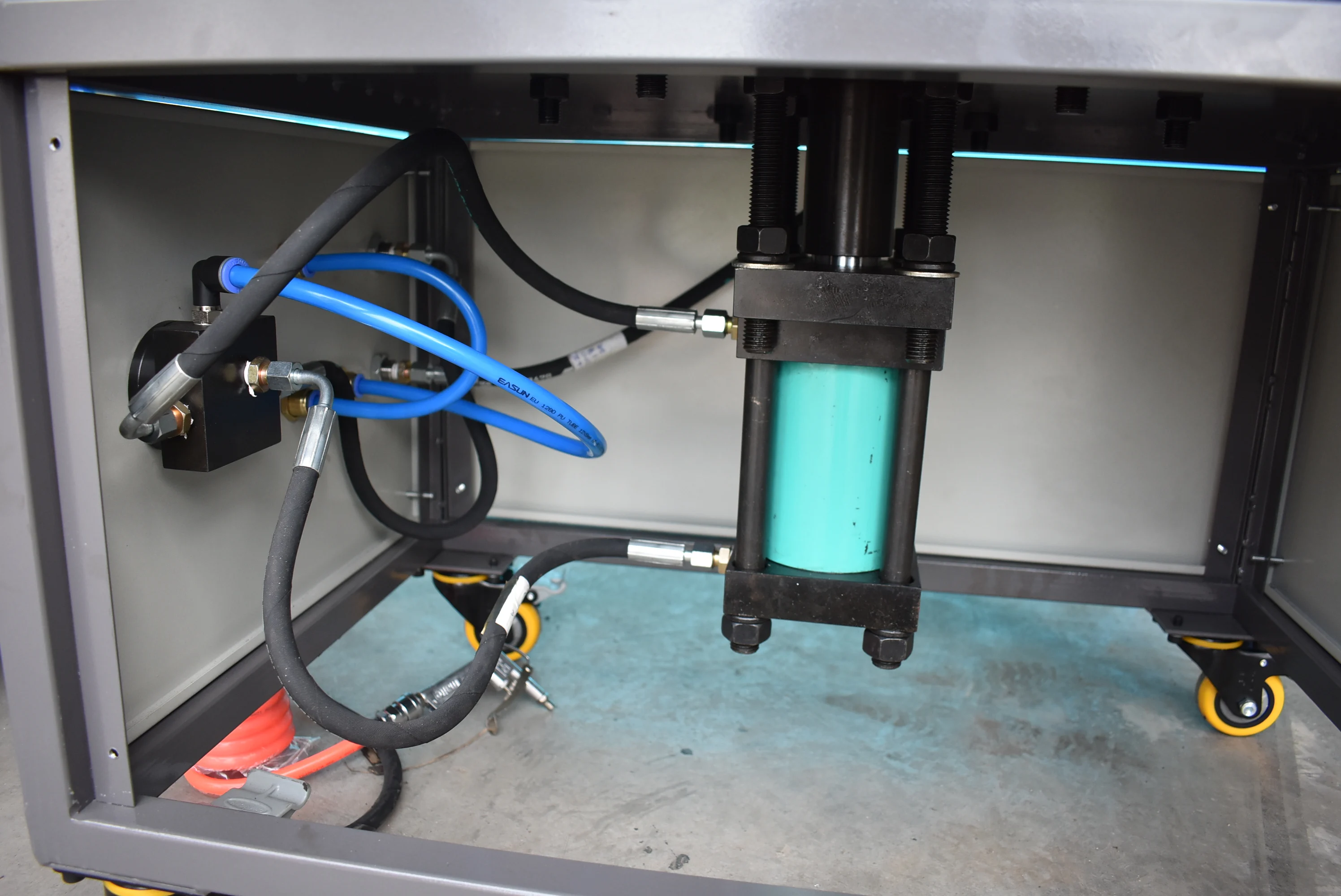

Hydraulic tightening: consists of reversing valve, oil cylinder, pneumatic hydraulic system, check seat and movable clamp feet
./Start the clamping device after the pin is in place, and reset the clamping device after the verification is completed
Test cabinet
The main cabinet is made of Q235 and sprayed

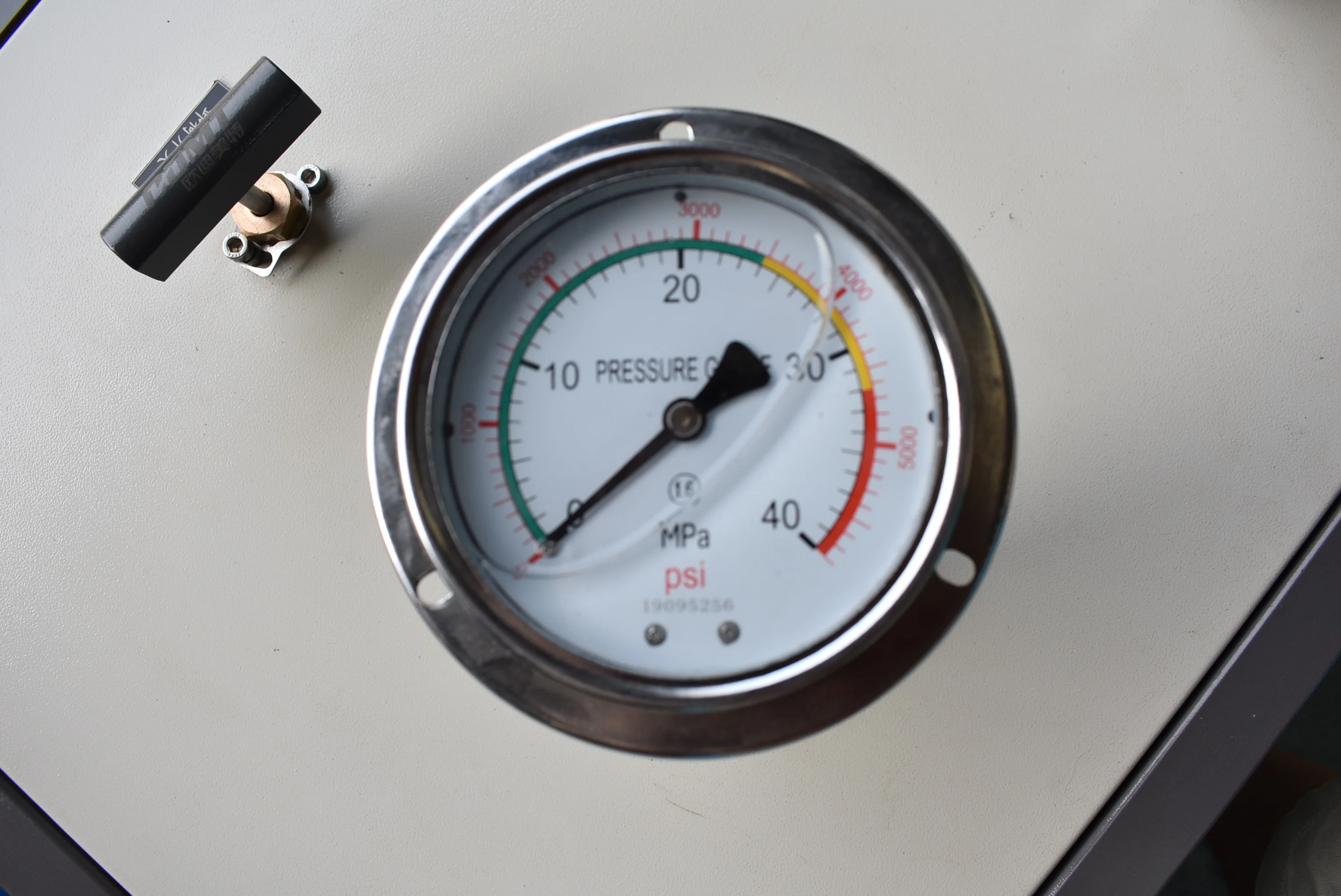

Test system
It is composed of high-pressure valve, high-precision pressure gauge, pressure reducing valve, booster system, etc. Equipped with
precision pressure and pressure sensors ./The pneumatic dual body and solenoid valve are made by Airtac from Taiwan, the pressure
sensor is made by IFM in Germany, and the booster pump is made by ODMT. The sealing parts of the booster pump are all imported
from the United Kingdom. , Micro lift, metric, inch, threaded and domestic and imported safety valves
Measuring system

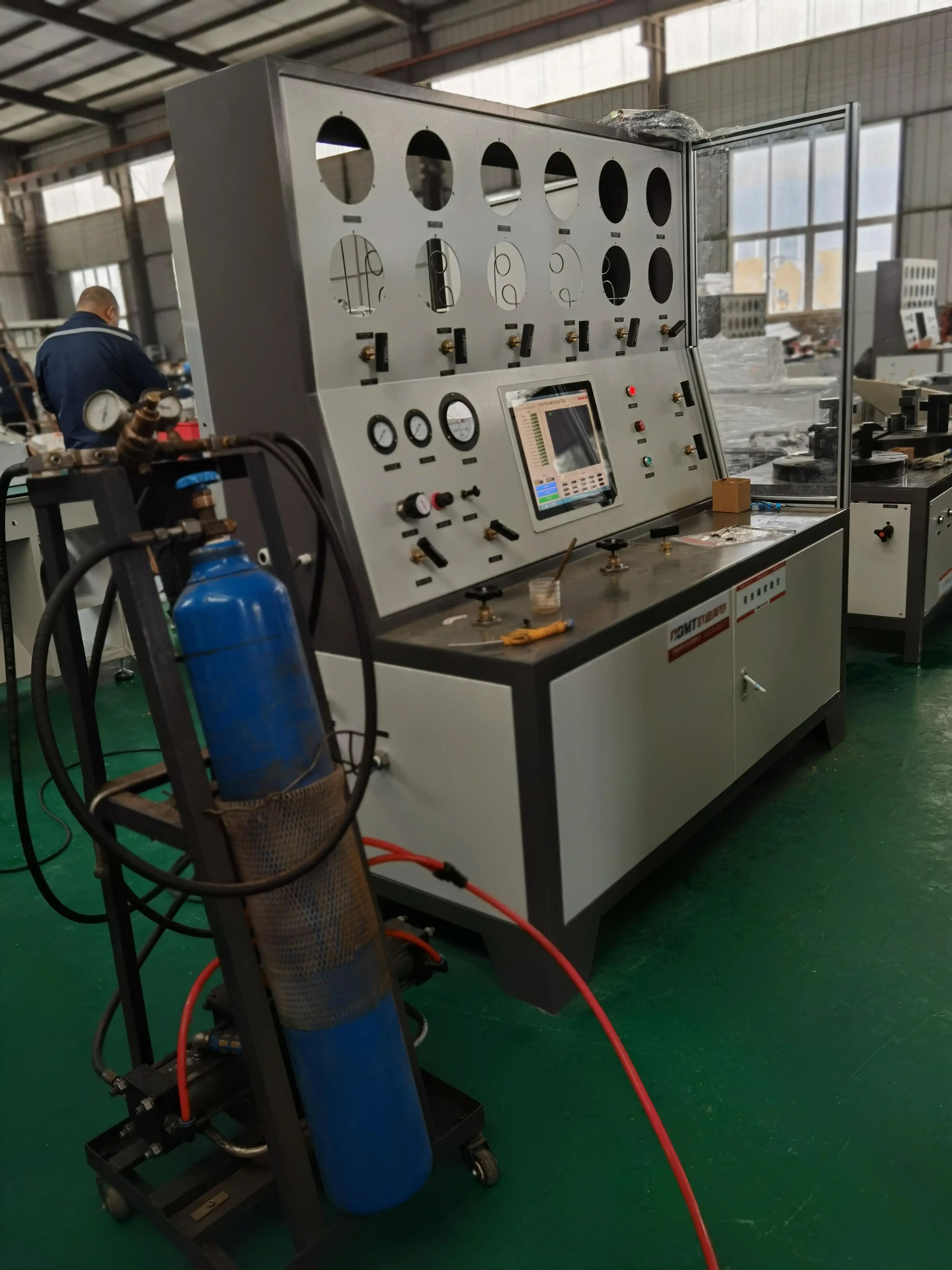

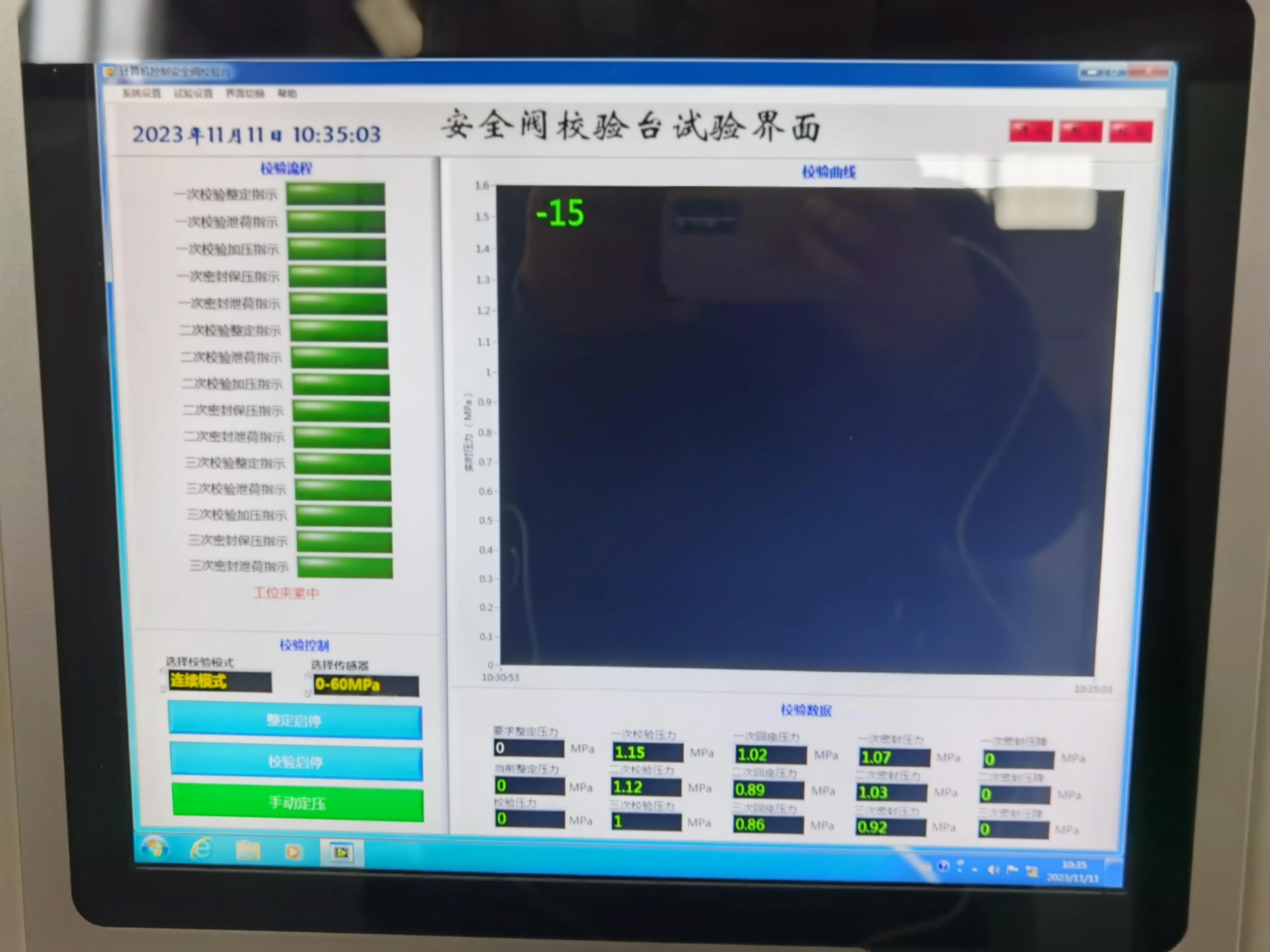

Using the most advanced programming software and data acquisition system, Lenovo business computer./Computer real-time display of
the test process, LABBIEW programming software, NI acquisition card
Control
Computer control
Related accessories
Center pad or inch diameter outer joint: 1 sets are specified by the customer.
“O” type seal: There are 30 specifications in total.




Packing & Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
