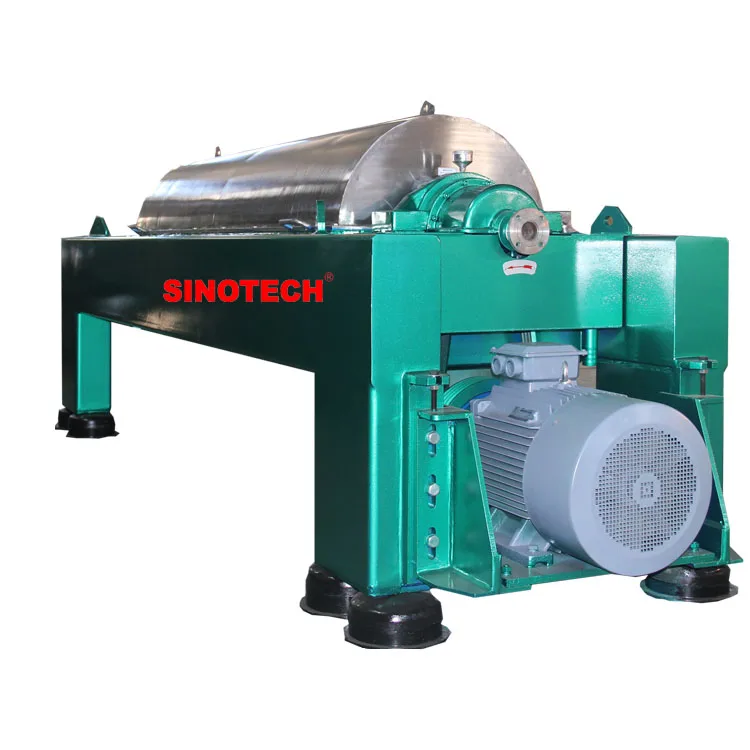

Decanter Centrifuge for Sludge Dewatering
- Category: >>>
- Supplier: Liaoyang Sinotech Technology Development Co. Ltd.
Share on (1600988447368):
Product Overview
Description
LW Series Horizontal Type Spiral Discharge Decanter Centrifuge Extractor
Product Description
Application Scope:
The decanter centrifuge is suitable for solid-phase dewatering, liquid-phase clarification and separation, liquid-liquid-solid three phase separation and size-grading of various suspensions with solid-phase particle sizes of 0.005-15mm, consistency of 1-40% and temperature of ≤ 100°C, esp. for separating the suspensions whose consistency and particle size vary greatly and for which recovery of filter cloth is difficult, such as treatment of PVC resins, ammonium sulfite, barrium carbonate, strontium sulphate, lithopone,starch, diatomite, plaster, bauxite, soybean protein, peanut protein, fruit juice, drinks, vegetable oil, citric acid, powder of blood, powder of titanium white, kaolin clay and drilling mud, etc., and dewatering of washed coal and fine coal, purification of waste oil, treatment of grain stillage liquid waste and municipal sewage and mineral classification. Besides, it is suitable for waste water treatment of electric power plant sludge, printing and dyeing sludge, paper manufacture sludge.
Working Principle:
Two Phases Separation Principle:
The feed suspension is introduced through an inlet pipe into the feed zone of the conveyor where it is accelerated and directed into the interior of the bowl. The settled solids are conveyed axially towards the small end of the bowl by means of the screw conveyor, which rotates at a slightly different speed than the bowl. On the way to the discharge ports the solids are lifted out of the pond up along the dry beach. The solids are finally discharged from the bowl through the discharge ports into the collecting chamber of the casing that surrounds the bowl. From there the solids are removed by gravity through the outlet funnel. The liquid phase forming a hollow cylinder due to the centrifugal force, and flows towards the large end of the bowl. There the liquid overflows adjustable plate dams into the centrate chamber of the casing and is discharged by gravity.
Structures and properties:
This machine is horizontal spiral discharging settling centrifuge, the main machine has a column-cone bowl, spiral stoker,
differential system, bearing seat, base, cover, main motor,vice motor, and electric control chamber. With the high speed rotatingof bowl, form strong centrifugal force, making the sludge dehydrate continuously in 24 hours a day. The main motor through the triangle belt make the bowl rotating, through the planetary gear differential, make the vice motor and spiral differential speed different, realize sludge dewatering and pushing material function, That means differential rotating speed control and torque control. because containing solid rate of sludge may have wave motion, by differential speed control system is the guarantee for speed stability, achieve solid content in sludge is constant, the constant torque control make decanter load in a stable state, the separation effect and flocculation is the best state, so as to ensure the safe operation of the centrifuge. This machine has good seal performance (guarantee without material leak in the process of operation), sludge dewatering work in full seal state,makes the environment clean. This machine adopts the mos advanced international special structural design, especially the spiral stoker, make the sludge concentration dehydration integration characteristics. It has better performance than ordinary centrifuge,more high capacity, better separation effect, save energy and manual work.
differential system, bearing seat, base, cover, main motor,vice motor, and electric control chamber. With the high speed rotatingof bowl, form strong centrifugal force, making the sludge dehydrate continuously in 24 hours a day. The main motor through the triangle belt make the bowl rotating, through the planetary gear differential, make the vice motor and spiral differential speed different, realize sludge dewatering and pushing material function, That means differential rotating speed control and torque control. because containing solid rate of sludge may have wave motion, by differential speed control system is the guarantee for speed stability, achieve solid content in sludge is constant, the constant torque control make decanter load in a stable state, the separation effect and flocculation is the best state, so as to ensure the safe operation of the centrifuge. This machine has good seal performance (guarantee without material leak in the process of operation), sludge dewatering work in full seal state,makes the environment clean. This machine adopts the mos advanced international special structural design, especially the spiral stoker, make the sludge concentration dehydration integration characteristics. It has better performance than ordinary centrifuge,more high capacity, better separation effect, save energy and manual work.
Three Phases Separation Principle:
The light liquid phase is discharged into the casing through radial holes in the large end hub. The heavy liquid phase is discharged through axial holes in the large end hub. The liquid radius for the light liquid phase is smaller than the radius for the heavy liquid phase. The liquid level is controlled by plate dams. In order to prevent the light liquid phase from leaving the bowl through the heavy liquid phase outlet, a separating plate is placed on the inside of the large end hub. The heavy liquid phase has to pass under the separating plate before being discharged into the casing. The liquid radius for the heavy liquid phase is controlled by plate dams. The solids are discharged in the normal way.
Technical parameter
Bowl Diameter (mm) | Bowl Speed (rpm) | L / D | G - Force | Capacity (m3/h) | Primary Motor (Kw) | Weight (Kg) | Dimension (mm) |
250 | 4500~4600 | 3.0~5.0 | 2000~3500 | 3~5 | 11 | 760 | 1600×1100×850 |
300 | 4000~4600 | 3.0~5.0 | 2000~3500 | 3~15 | 11~15 | 1500 | 2470×1230×850 |
360 | 3200~4200 | 3.0~5.0 | 2000~3500 | 5~20 | 15~22 | 2000 | 2790×1300×880 |
400 | 3200~3900 | 3.0~4.8 | 2000~3500 | 5~30 | 18.5~30 | 2600 | 2950×1400×850 |
450 | 3000~3700 | 3.0~5.0 | 2000~3500 | 5~45 | 22~37 | 3200 | 3300×1500×920 |
500 | 2700~3450 | 3.0~5.0 | 2000~3500 | 10~80 | 30~55 | 5200 | 3730×1600×1100 |
550 | 2600~3300 | 3.0~5.0 | 2000~3500 | 10~90 | 45~75 | 6900 | 4000×1400×1600 |
600 | 2500~3200 | 3.0~5.0 | 2000~3500 | 20~95 | 37~90 | 7900 | 4200×1800×1350 |
650 | 2400~3100 | 3.0~5.0 | 2000~3500 | 20~105 | 37~90 | 8200 | 4300×1900×1350 |
750 | 2200~2900 | 3.0~5.0 | 2000~3500 | 30~120 | 55~135 | 12000 | 5000×2500×1500 |
900 | 1800~2600 | 3.0~5.0 | 2000~3500 | 40~180 | 75~160 | 18000 | 6500×2700×1500 |

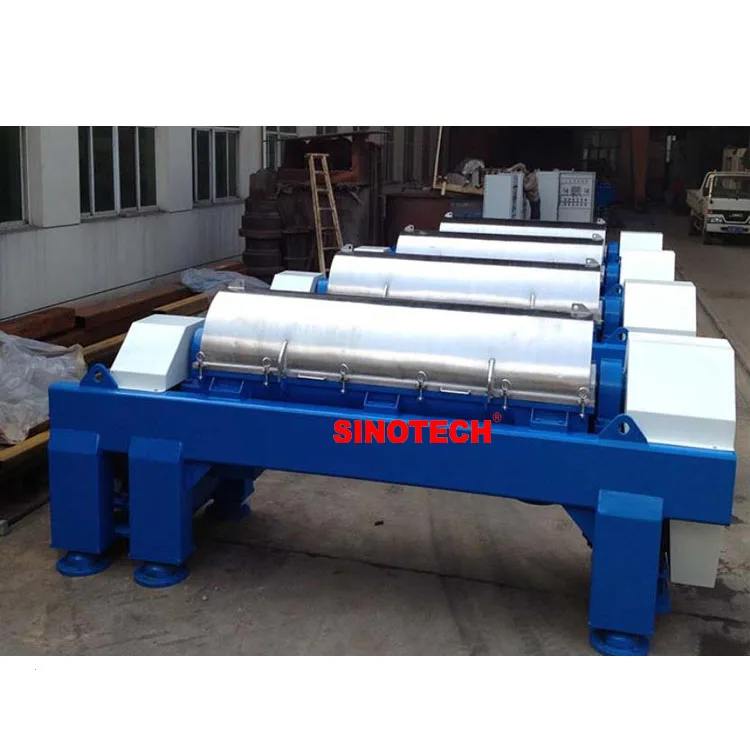

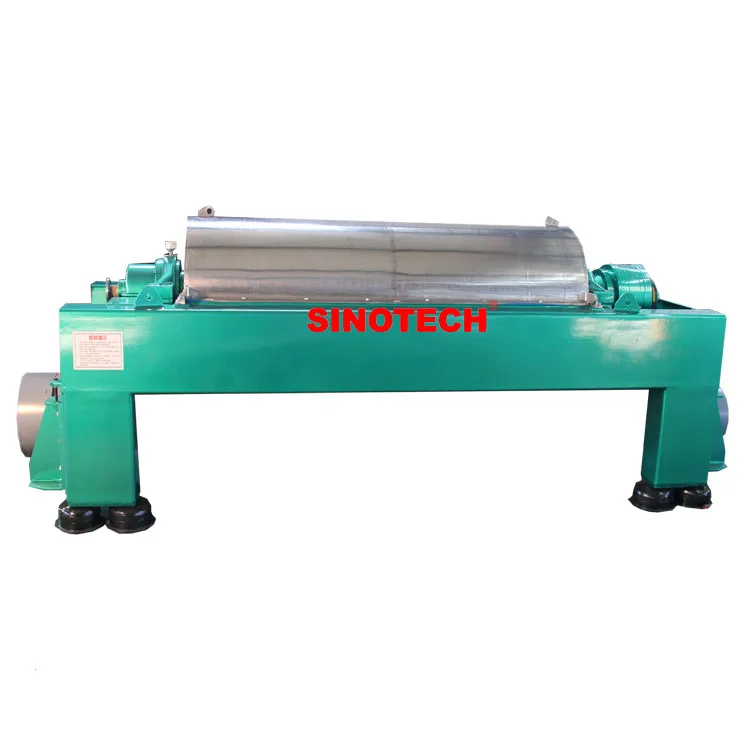

Detailed Images
Manufacturing Technique
Packing&Shipping
Fumigation wooden case package
Our company
FAQ
1. What data is required to confirm the model?
(1) Materials to be separated (2) Treatment capacity per hour (3) Solid content percentage
2. What certificates do you have?
We can provide CE, ISO 9001, etc
3. What is the warranty period of the equipment?
Normally 1 year warranty
4. Can we visit your factory?
Sure, we sincerely invite you to visit
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
Sure, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
Phone/Whatsapp/Wechat: +86 15140990256
(1) Materials to be separated (2) Treatment capacity per hour (3) Solid content percentage
2. What certificates do you have?
We can provide CE, ISO 9001, etc
3. What is the warranty period of the equipment?
Normally 1 year warranty
4. Can we visit your factory?
Sure, we sincerely invite you to visit
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
Sure, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
Phone/Whatsapp/Wechat: +86 15140990256
