Good Quality Flexible Duct Manufacturer Black Color 8 Inch Flexible Air Duct hvac insulation ducts
- Category: >>>
- Supplier: Shanghai Qianjing Ducting Co. Ltd.
Share on (1600988515268):
Product Overview
Description
Products Description

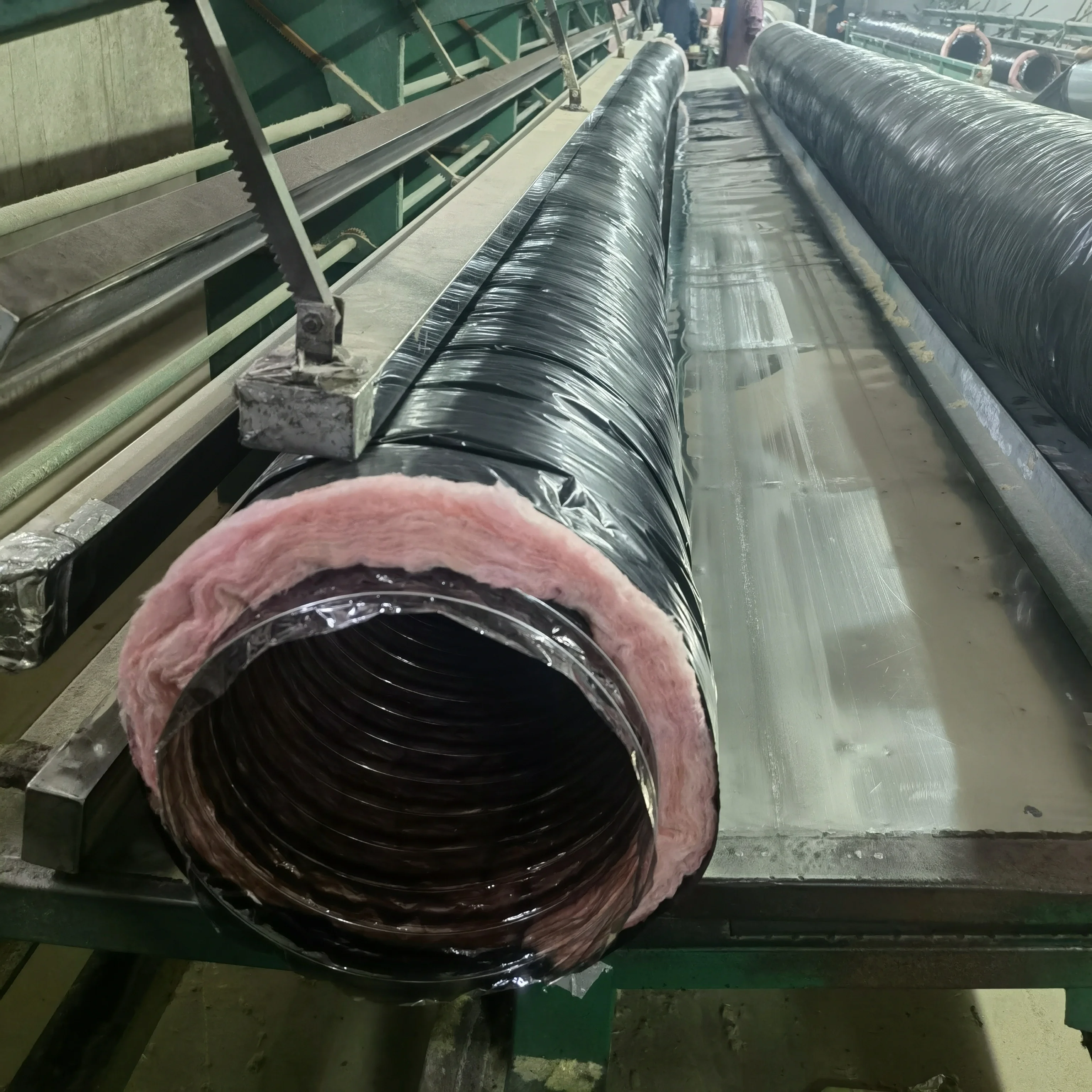

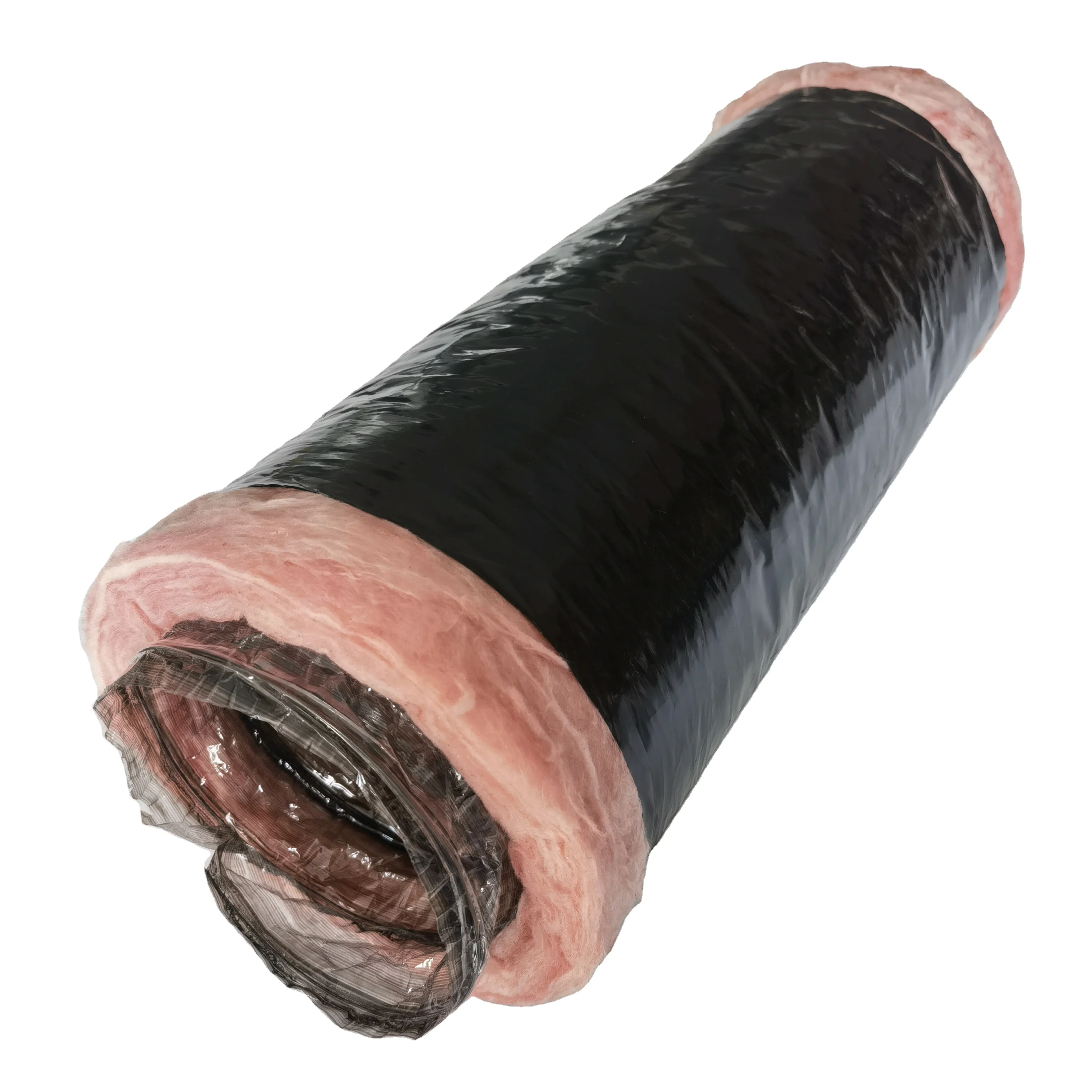

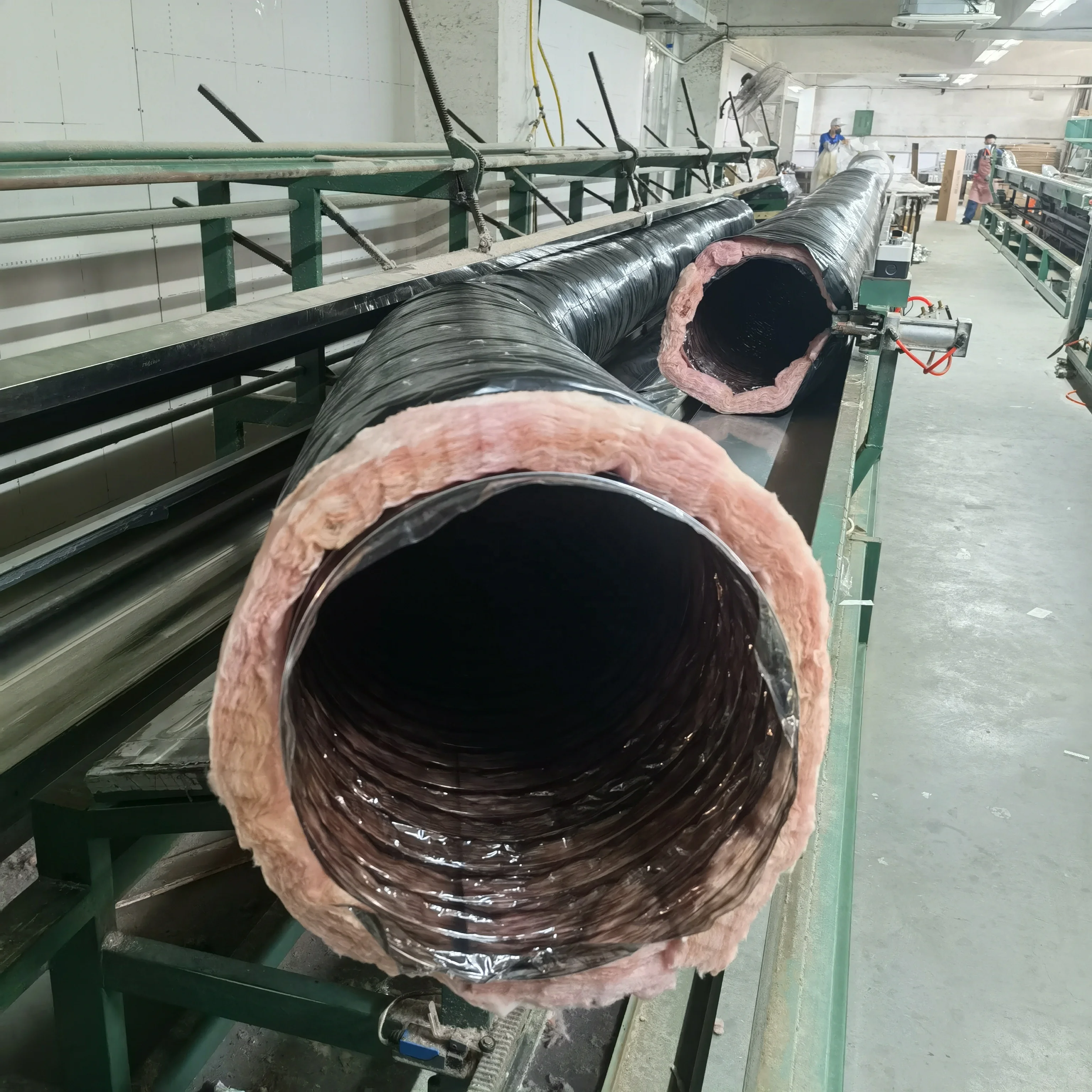

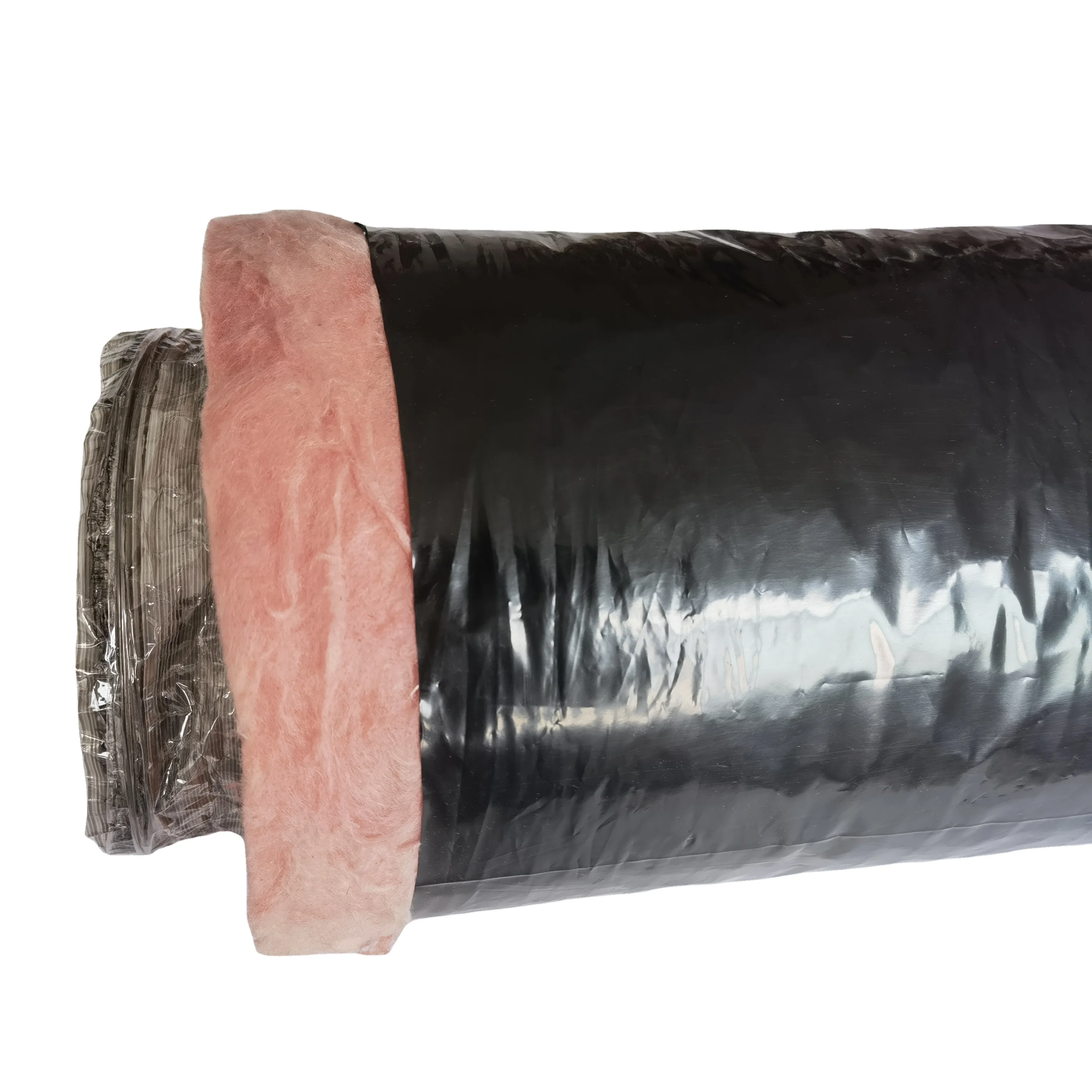

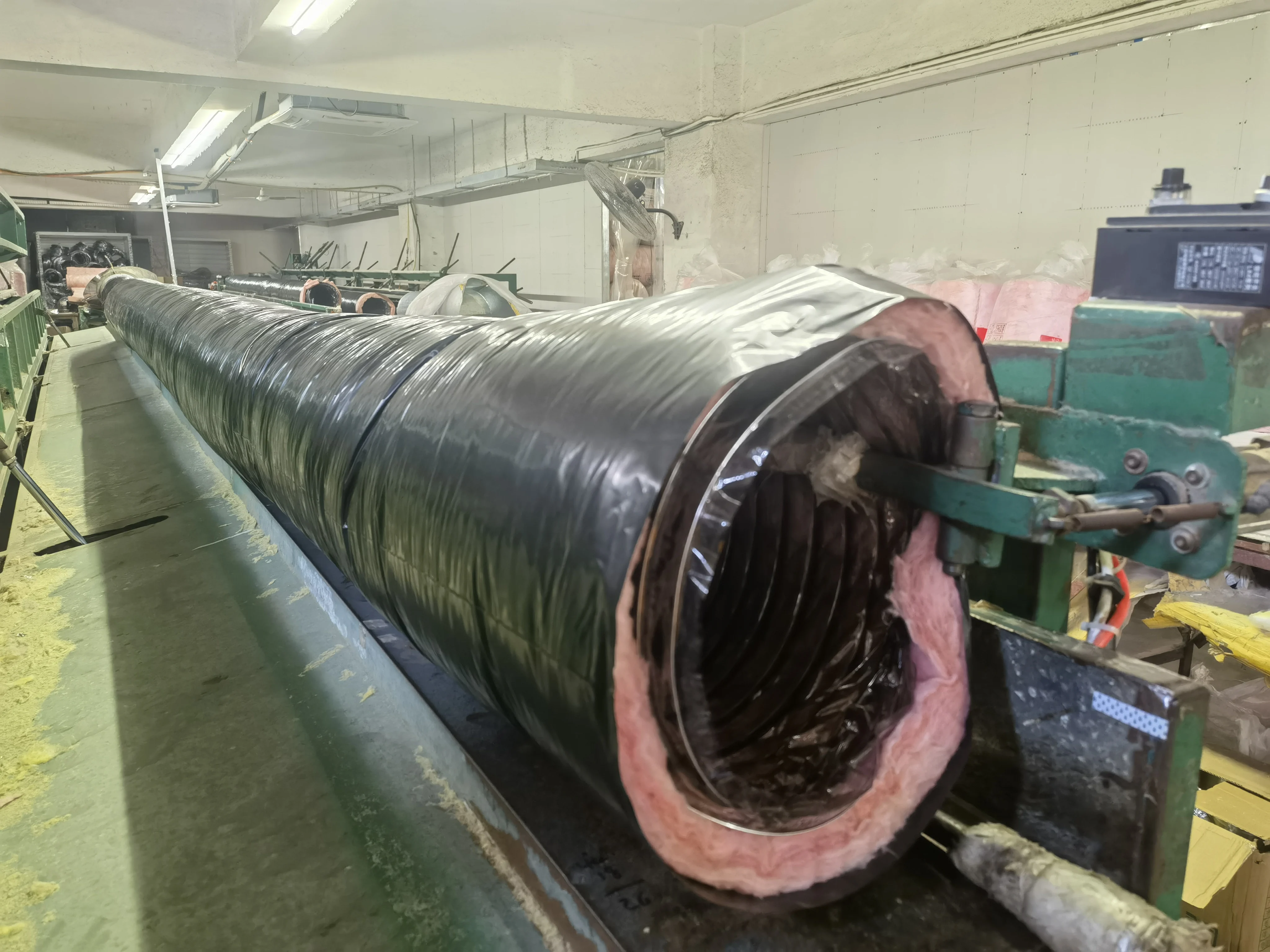

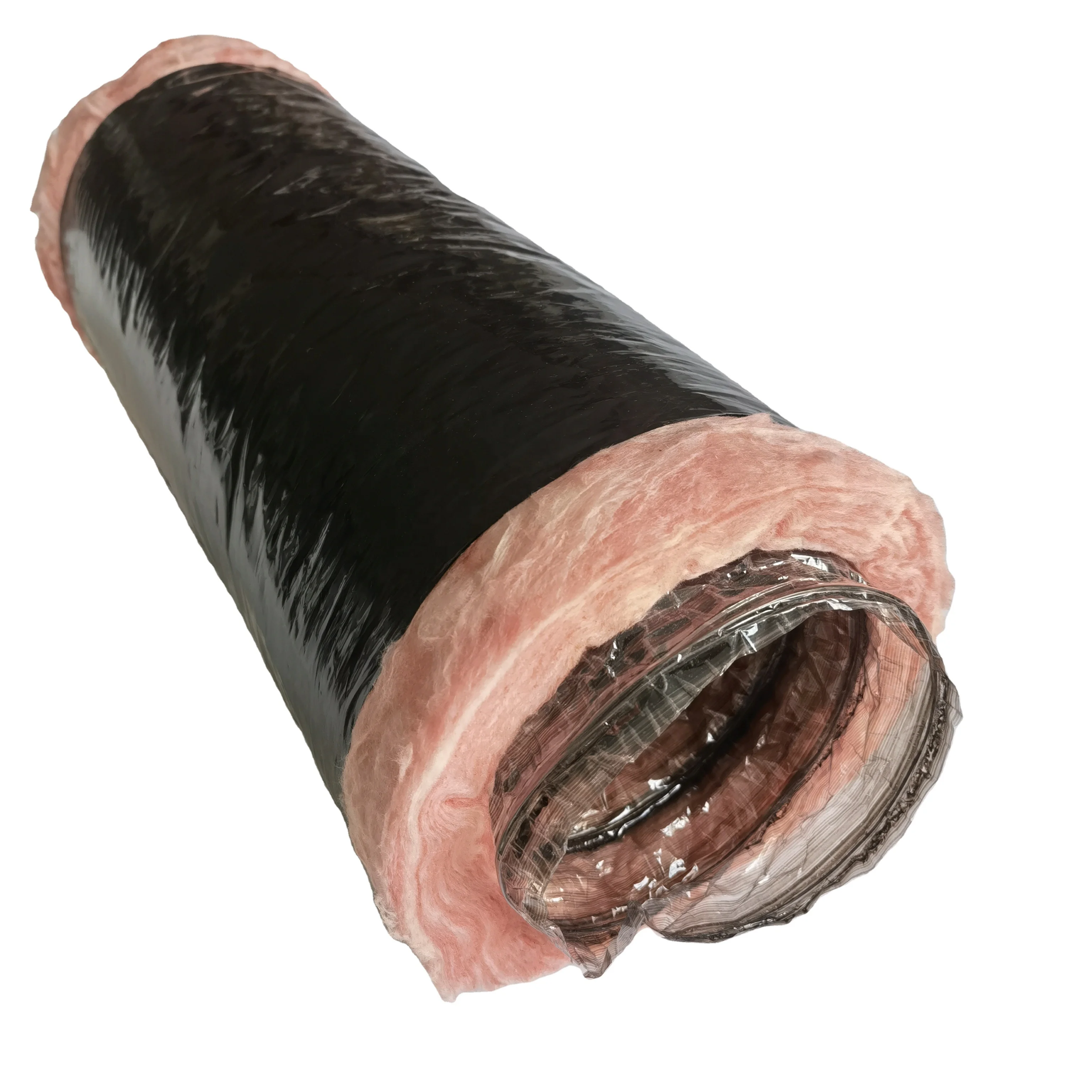

Fiberglass Insulated Flexible Duct
1.Fiberglass insulated duct is made by black PE jacket,fiberglass and inner black PET duct.2.No need special tools for cutting and it is easy to connect to ducting.
3.In case of fire no toxic gas are emitted, excellent resistance to chemicals.
4.The product has been successfully tested for fire resistance.
5.The product has been successfully tested for pressure.
6.Can be bent in any direction.(Small bending radius)
7.Standard length is 10 meters or as customized request.
8.Space saving, compress rate 10:1.
9.Easy installation with long service life. Ideal for using in general purpose exhaust applications.
Production Paramenters
Product Name | Fiberglass Insulated Flexible Duct | |||||||
Product Code | XY-601-C | |||||||
Out Sleeve | Black PE | |||||||
Middle Fiberglass | 12kk/50mm,12k/75mm,16k/50mm | |||||||
Inner Duct | Aluminum Duct | |||||||
Available Duct Dia. | 50mm-650mm(2"-25") | |||||||
Available Carbon Steel Wire Dia. | 0.6mm-2.5mm | |||||||
Length | 10m(Max) | |||||||
Fire Resistance | Class A2(Max) | |||||||
Compress Ratio | 1:10 | |||||||
Temperature Range | -30℃/+150℃ | |||||||
Operating Pressure | 2000Pa-3000Pa | |||||||
Maximum Air Velocity | 30m/s | |||||||
Standard Parameter of QianJing Company | ||||||||
Duct Diameter | Steel Wire Dia. (mm) | Steel Wire Spacing (mm) | Carton Size for 25FT Length(mm) | |||||
Inch | mm | |||||||
4" | 102 | 0.9 | 30 | 200*200*910 | ||||
5" | 125 | 0.9 | 30 | 200*200*910 | ||||
6" | 152 | 1 | 37 | 230*230*910 | ||||
6.5" | 165 | 1 | 37 | 240*240*910 | ||||
7" | 180 | 1.1 | 40 | 260*260*910 | ||||
8" | 203 | 1.1 | 40 | 280*280*910 | ||||
10" | 254 | 1.2 | 45 | 330*330*910 | ||||
12" | 305 | 1.2 | 45 | 380*380*910 | ||||
12.5" | 315 | 1.2 | 45 | 390*390*910 | ||||
14" | 355 | 1.2 | 45 | 430*430*910 | ||||
16" | 405 | 1.2 | 45 | 480*480*910 | ||||
18" | 455 | 1.2 | 45 | 530*530*910 | ||||
20" | 505 | 1.2 | 45 | 580*580*910 | ||||
