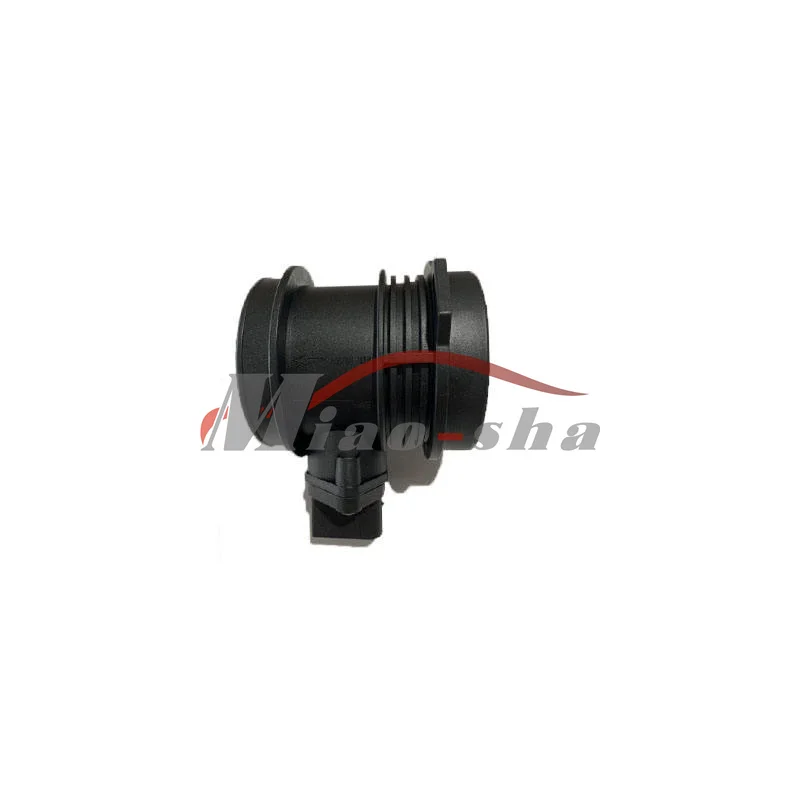

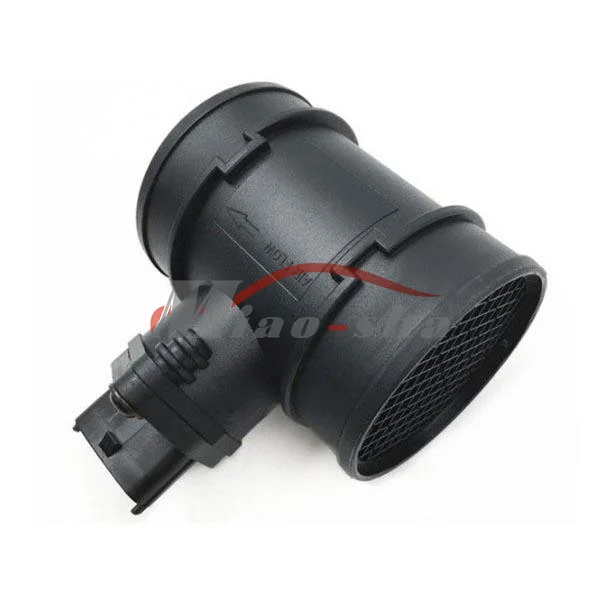

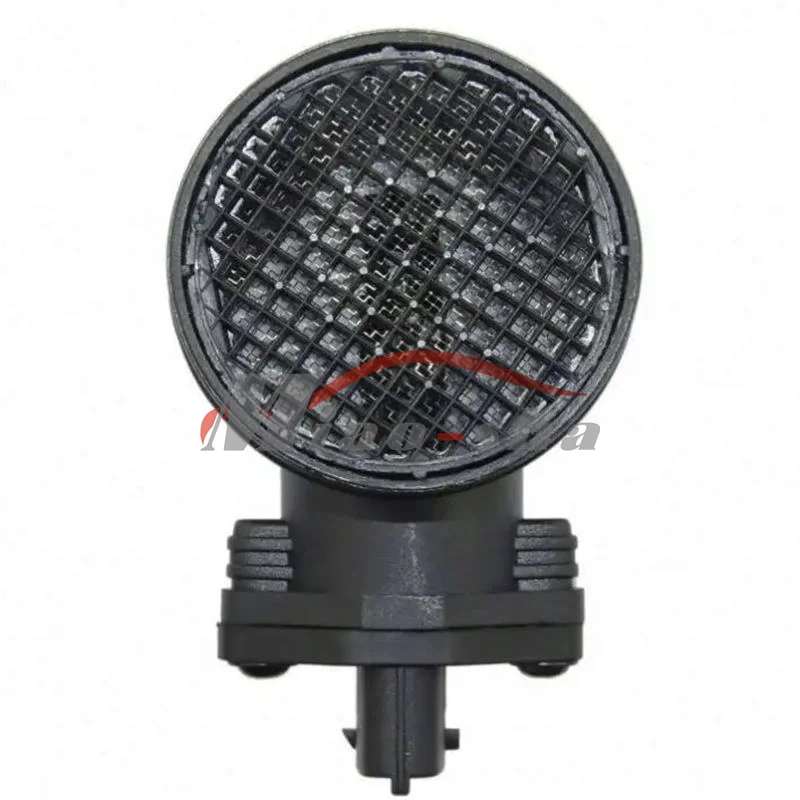

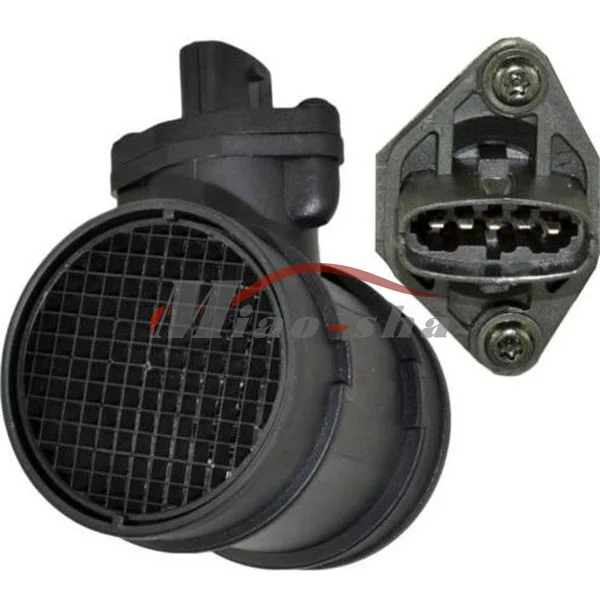

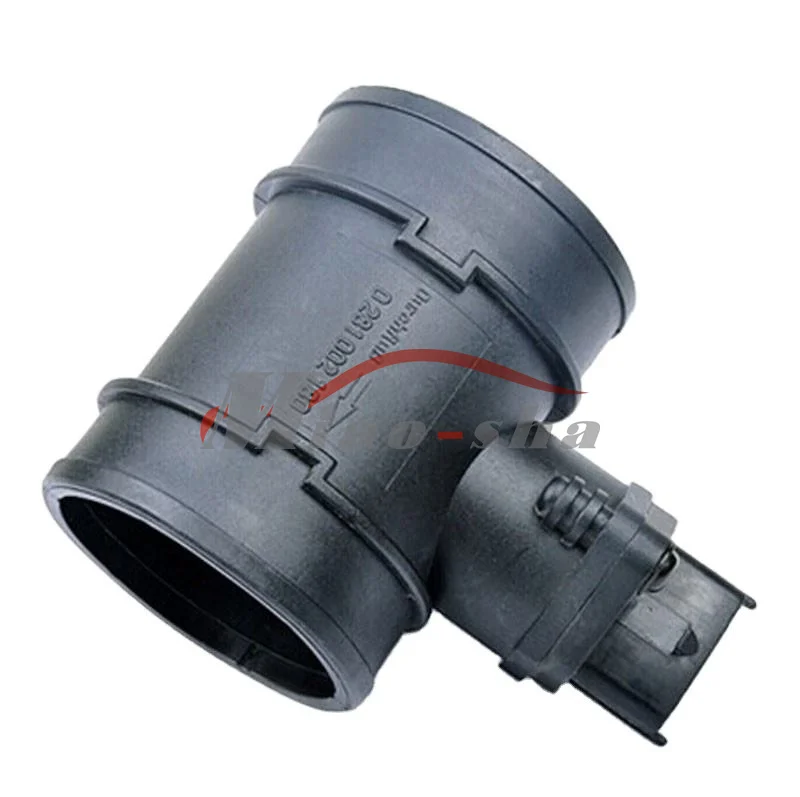

Cheap mass air flow sensor for CITROEN/PEUGEOT/ FIAT/OPEL/VAUXHALL 0281002184 1192.W5 1192W5 90528435 1324369080 717359980
- Category: >>>
- Supplier: Ruian Miaosha Auto Parts Co. Ltd.
Share on (1600988526685):
Product Overview
Description

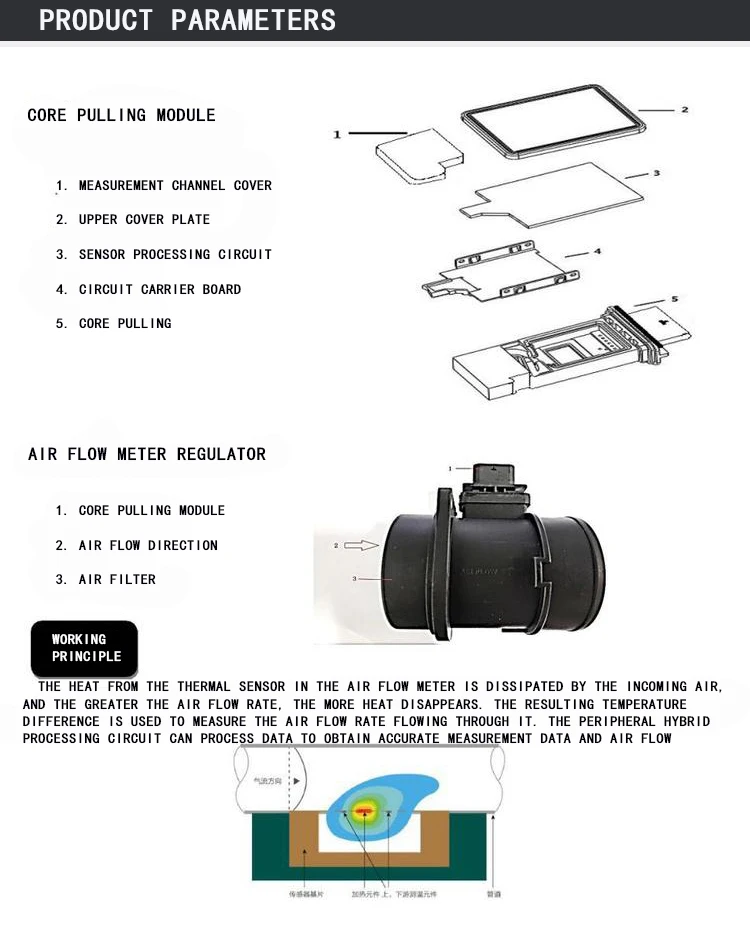

Core pulling module
1. Measurement channel cover
2. Upper cover plate
3. Sensor processing circuit
4. Circuit carrier board
5. Core pulling
Air flow meter regulator
1. Core pulling module
2. Air flow direction
3. Air filter
Working principle
The heat from the thermal sensor in the air flow meter is dissipated by the incoming air, and the greater the air flow rate, the more heat disappears. The resulting temperature difference is used to measure the air flow rate flowing through it. The peripheral hybrid processing circuit can process data to obtain accurate measurement data and air flow direction
1. Measurement channel cover
2. Upper cover plate
3. Sensor processing circuit
4. Circuit carrier board
5. Core pulling
Air flow meter regulator
1. Core pulling module
2. Air flow direction
3. Air filter
Working principle
The heat from the thermal sensor in the air flow meter is dissipated by the incoming air, and the greater the air flow rate, the more heat disappears. The resulting temperature difference is used to measure the air flow rate flowing through it. The peripheral hybrid processing circuit can process data to obtain accurate measurement data and air flow direction

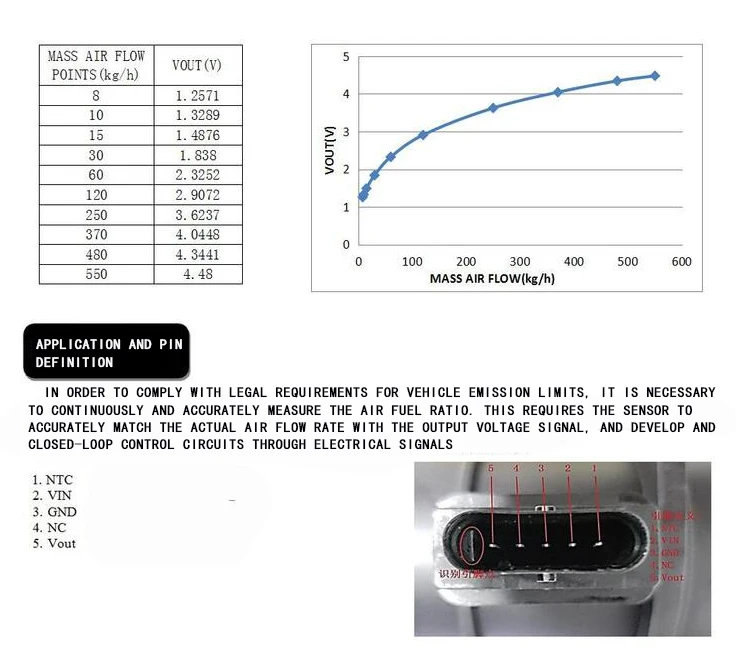

Application and pin definition
In order to comply with legal requirements for vehicle emission limits, it is necessary to continuously and accurately measure the air fuel ratio. This requires the sensor to accurately match the actual air flow rate with the output voltage signal, and develop and closed-loop control circuits through electrical signals
In order to comply with legal requirements for vehicle emission limits, it is necessary to continuously and accurately measure the air fuel ratio. This requires the sensor to accurately match the actual air flow rate with the output voltage signal, and develop and closed-loop control circuits through electrical signals
Product name | Air flow sensor | Quality | High-quality |
Payment Terms | T/T, L/C | Size | OEM standard size |
Brand | MIAOSHA | Condition | 100% brand new |
Port | shanghai/ningbo | Warranty | 1 Year |
