Customized Medium Pocket Filter F5 F6 F7 F8 F9 Efficiency Bag Filter Air HVAC System MERV 4 8 Pocket Air Filter
- Category: >>>
- Supplier: Dongguan Yaning Purification Equipment Co. Ltd.Dongguan Ltd.
Share on (1600988542062):
Product Overview
Description
Product Description

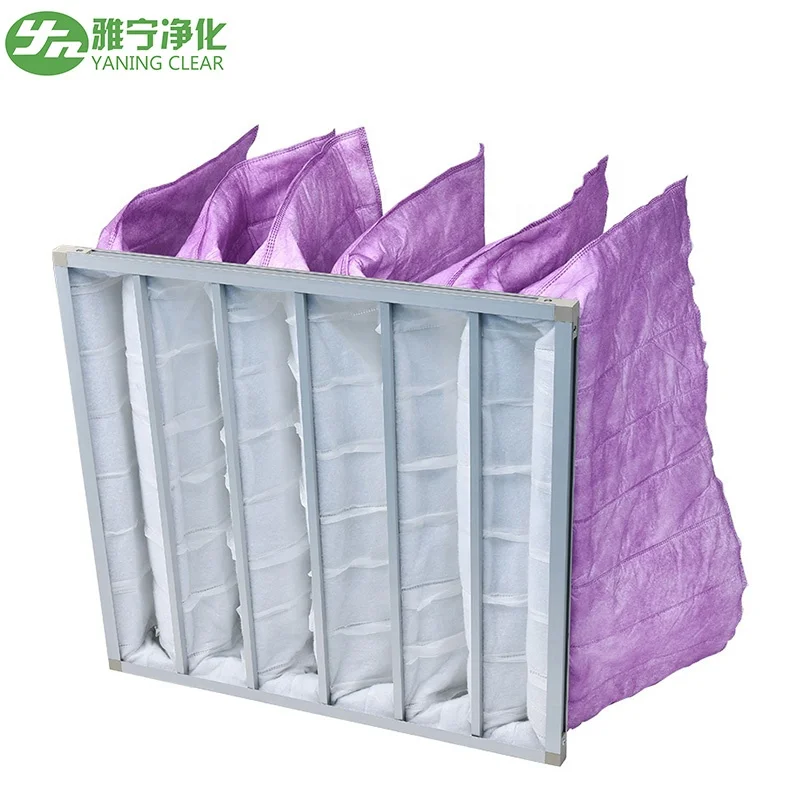

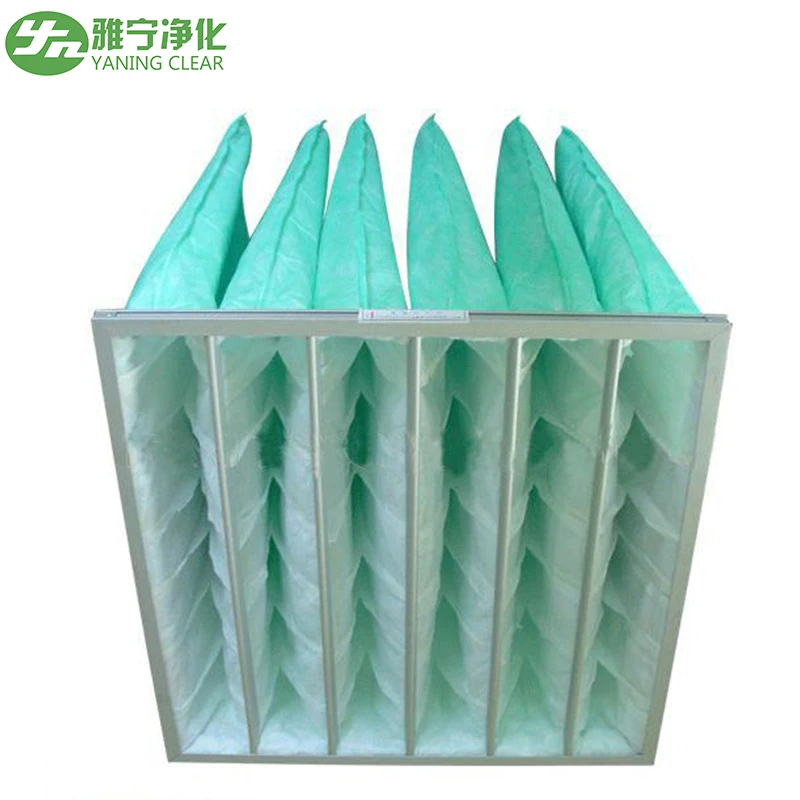

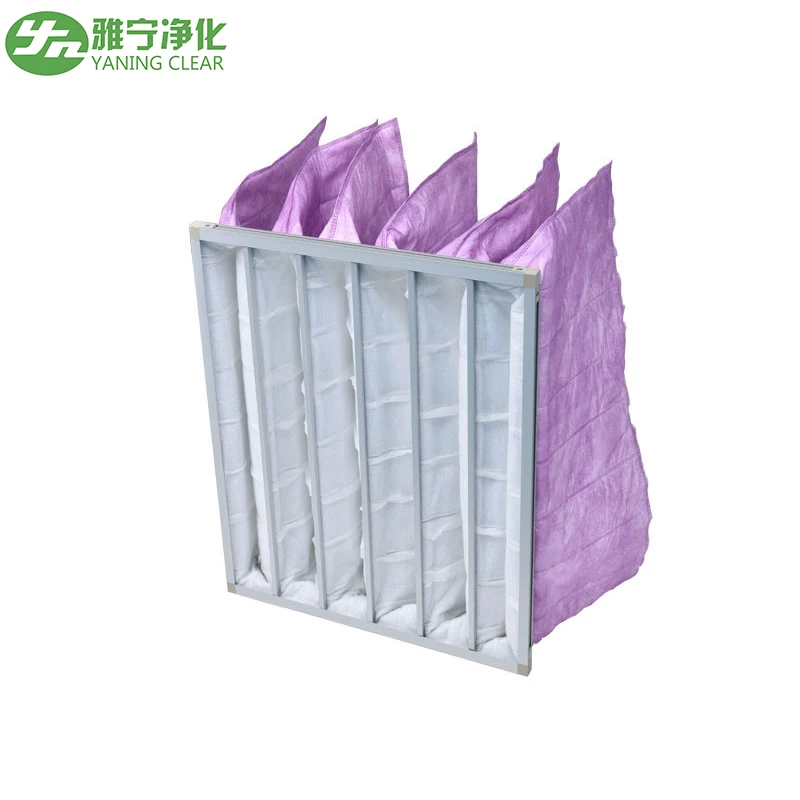

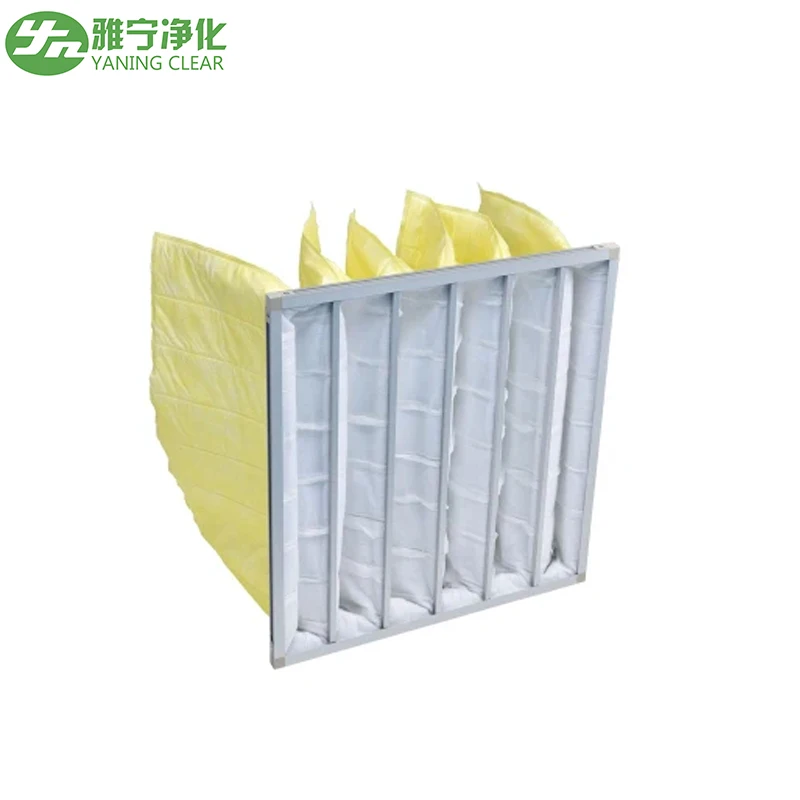

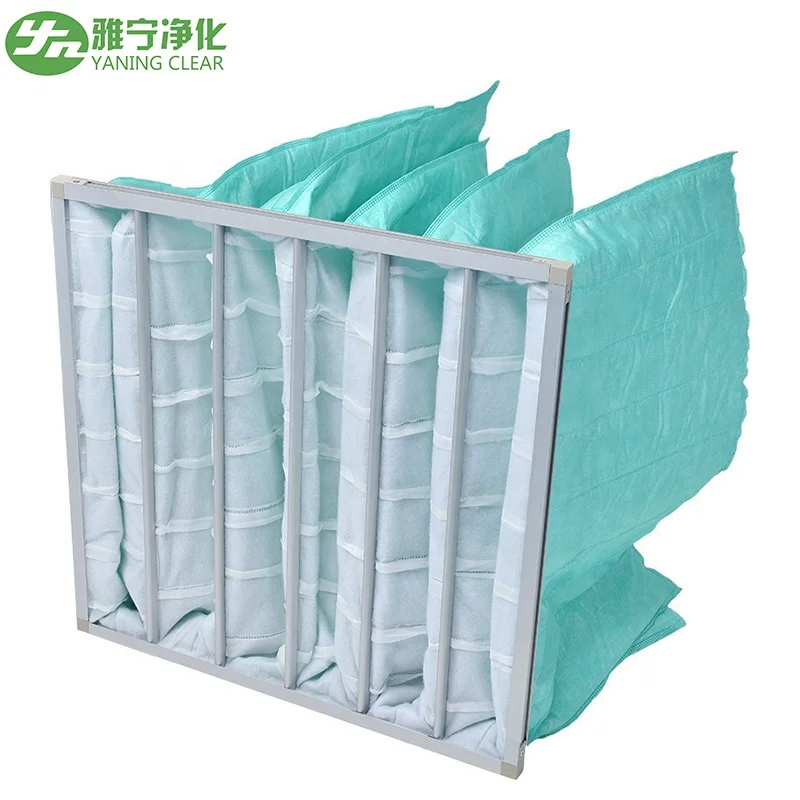

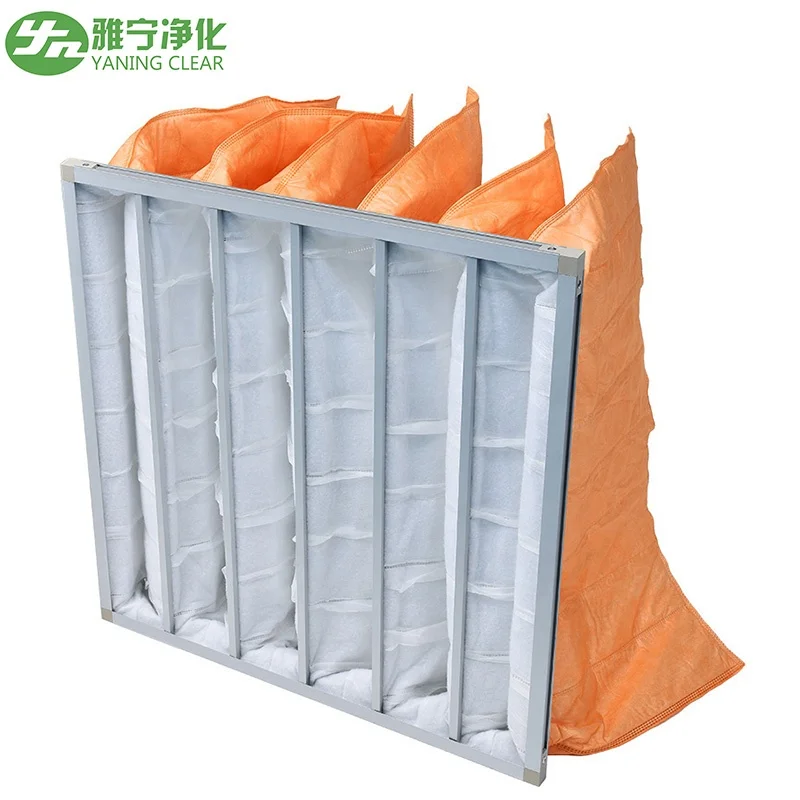

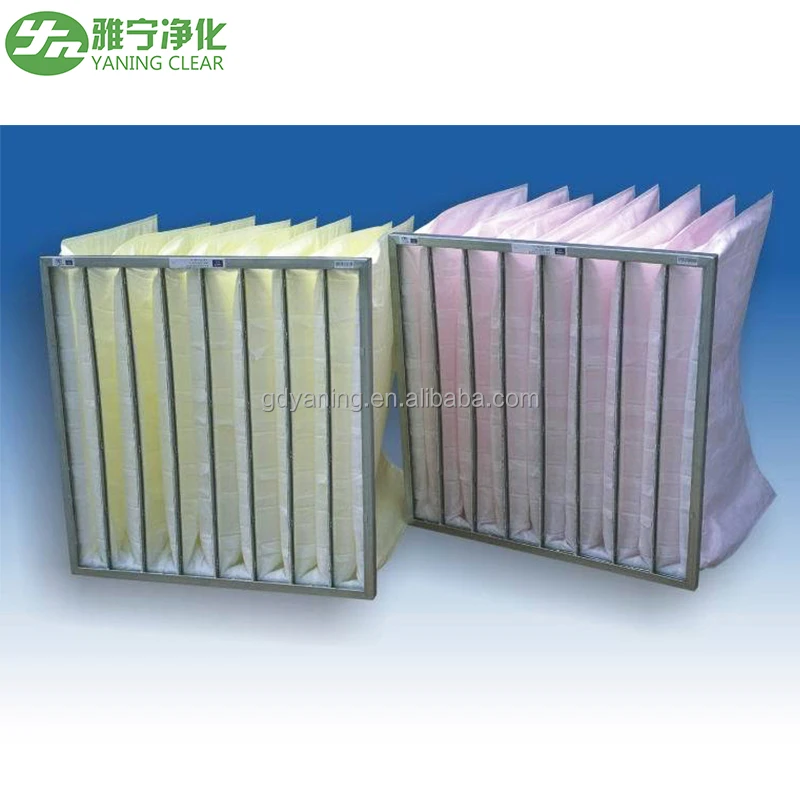

YANING Medium Efficient Pocket Filter F5 Cotton Bag Filter Media for Industrial Air Filtration
F9 Medium Efficiency Pocket Bag Filter is mainly used in central air-conditioning and centralized air supply systems, and can be used for intermediate-level filtration of air-conditioning systems to protect the next-level filter and the system itself in places where air purification is not strictly required. The air processed by the medium efficiency filter can be sent directly to the user.
Bag-type medium effect filter, frame with cold plate spray, galvanized sheet and other forms, filter material, non-woven fabric, glass fiber, etc.
Bag-type medium efficiency filters are widely used in industrial air purification systems, hospitals, electronics, food and other industrial purification, and can also be used as front-end filtration of high-efficiency air filters to reduce the load of high-efficiency air filters and extend their use. life. Due to the large windward surface of the bag filter, it has a large dust holding capacity and a low wind speed, and is considered to be the best medium-efficiency filter structure at present.
Bag-type medium effect filter, frame with cold plate spray, galvanized sheet and other forms, filter material, non-woven fabric, glass fiber, etc.
Bag-type medium efficiency filters are widely used in industrial air purification systems, hospitals, electronics, food and other industrial purification, and can also be used as front-end filtration of high-efficiency air filters to reduce the load of high-efficiency air filters and extend their use. life. Due to the large windward surface of the bag filter, it has a large dust holding capacity and a low wind speed, and is considered to be the best medium-efficiency filter structure at present.
Product Detail

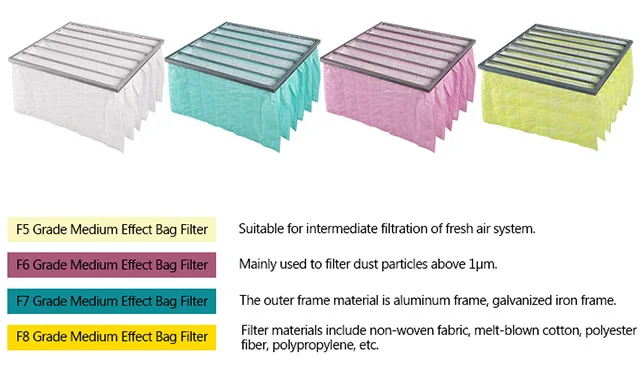

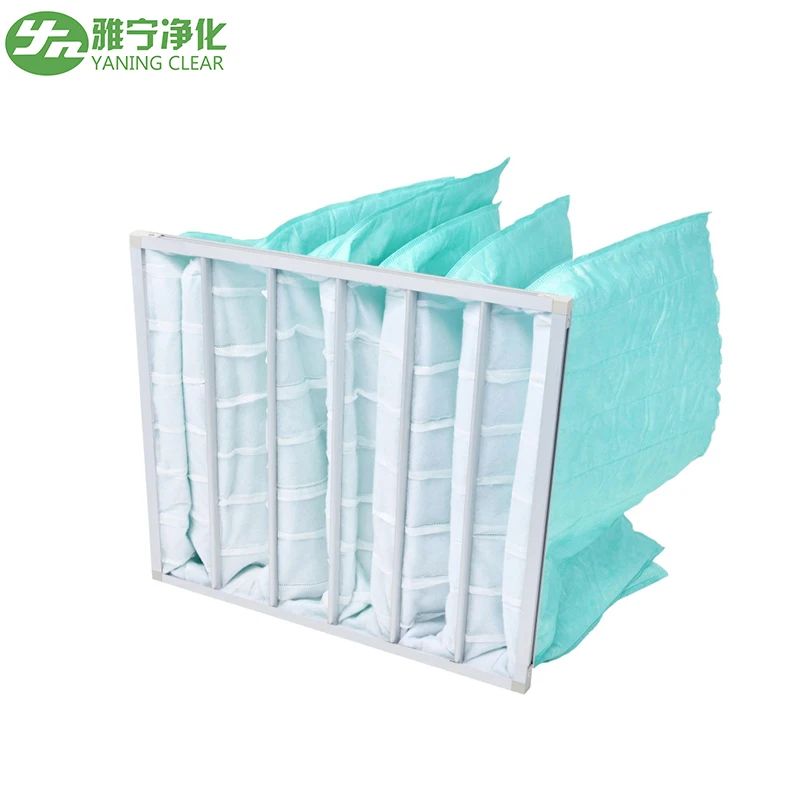

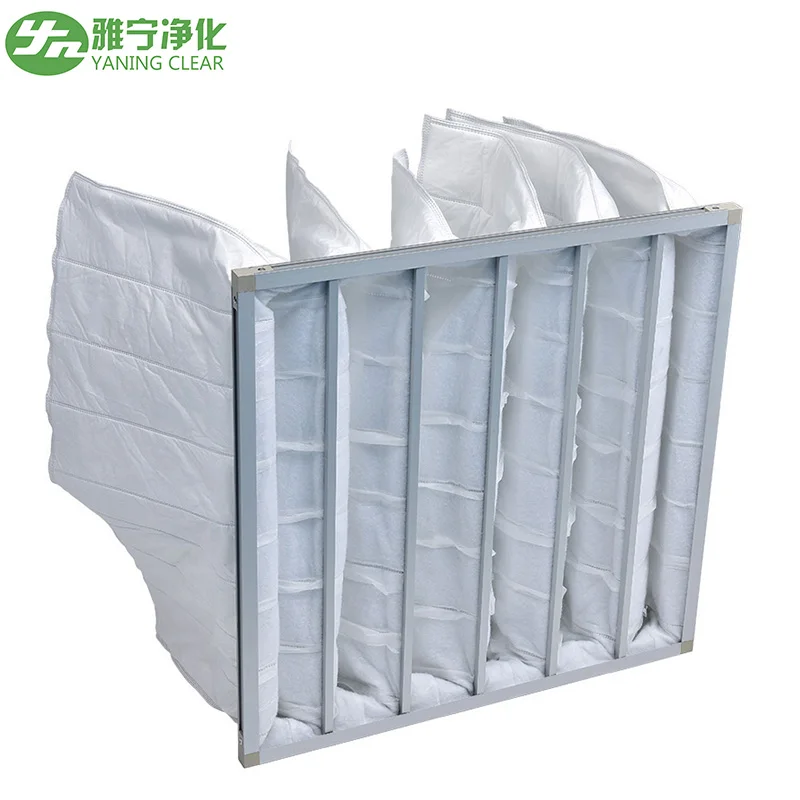

F5 Grade Medium Effect Bag Filter
Suitable for intermediate fitration of fresh air system.
F6 Grade Medium Effect Bag Filter
Mainly used to fiiter dust particles above lum.
F7 Grade Medium Effect Bag Filter
The outer frame material is aluminum frame, galvanized iron frame.
F8 Grade Medium Effect Bag Filter
Filter materials include non-woven fabric, melt-blown cotton, polyester fiber, polypropylene, etc.
Features:
1) Function: Capturing 1-5um of dust particles
4) Efficiency: 60%~95%@1~5um (colorimetric method)
1) Function: Capturing 1-5um of dust particles
2) Type: frameless and framed bag
3) Filter Media: Special non-woven or glass fiber4) Efficiency: 60%~95%@1~5um (colorimetric method)
Various color can be customized
Structure
*Bag-style medium-efficiency filter with its unique bag structure ensures that the air flow is evenly filled with the entire bag.
*The unique hot-melt technology prevents over-squeezing or leakage between the bags, which reduces resistance and maximizes dust
holding capacity. The reinforced "bag support grille" prevents the filter from shrinking or bending under extreme operating conditions.
*The medium-efficiency bag filter can be used as an ideal medium-efficiency filter for use in environments with high humidity, high airflow, and high dust loads.
*The unique hot-melt technology prevents over-squeezing or leakage between the bags, which reduces resistance and maximizes dust
holding capacity. The reinforced "bag support grille" prevents the filter from shrinking or bending under extreme operating conditions.
*The medium-efficiency bag filter can be used as an ideal medium-efficiency filter for use in environments with high humidity, high airflow, and high dust loads.
Product Parameter
Model | Dimension (W*D*H) | Bag Qty | Rated Air Volume(m3/h) | Initial pressure(pa) | Efficiency (class)% Colorimetry | Material | ||
Frame | Media | Wrapper | ||||||
YN-F5(F6,F7,F8,F9)-01 | 595*595*600mm | 6 | 3200 | F5 50 F6 55 F7 110 F8 120 F9 120 | F5 40~50 F6 60~70 F7 80-85 F8 90-95 F9 98-98 | Aluminum/Galvanized sheet | F5-F9 Non Woven fabric | |
YN-F5(F6,F7,F8,F9)-02 | 595*595*600mm | 5 | 2700 | |||||
YN-F5(F6,F7,F8,F9)-03 | 595*495*600mm | 6 | 2500 | |||||
YN-F5(F6,F7,F8,F9)-04 | 495*295*600mm | 6 | 1600 | |||||
YN-F5(F6,F7,F8,F9)-05 | 495*295*600mm | 4 | 1300 | |||||
Specification
item | Pocket Filter / Bag Filter |
Applicable Industries | Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Other |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Warranty of core components | 1 Year |
Core Components | Pocket Filter |
Condition | New |
Efficiency | medium efficency |
Construction | Bag Filter |
Place of Origin | China |
Brand Name | YN |
Dimension(L*W*H) | 495x295x600mm |
Weight | 10KG |
Warranty | 1 Year |
Product name: | Medium Pocket Filter |
Style: | F5 |
Efficency(Class %): | From 40%-98% as the filter style |
Bag Qty: | 4-8 pieces as Customized |
Media: | Aluminum Galvanized Sheet |
Wrapper: | Grade F5 Non woven |
