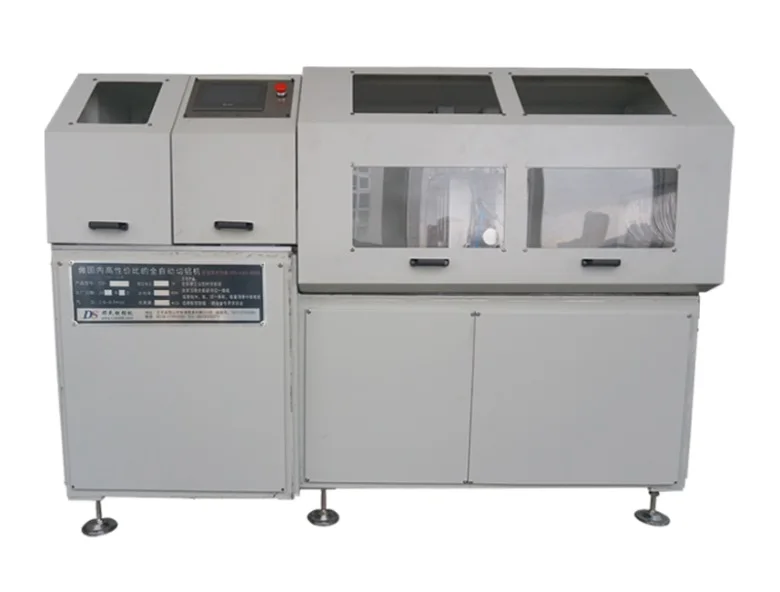

CNC Square Pipe Cutting Automatic Tube Sawing Cutting Machine
- Category: >>>
- Supplier: Kunshan DS Precision Machinery Co. Ltd.
Share on (1600988569622):
Product Overview
Description
Product Description
Product Name:
Square pipe cutting machine CNC pipe sawing automatic tube cutting machine
Power Supply:
380V/50Hz or Customized
Cutting Height: 140mm
Cutting Width: 320mm
Cutting Width: 320mm
Cutting Precision: within ±0.1mm
Feeding Length: 6-800mm
Main Features

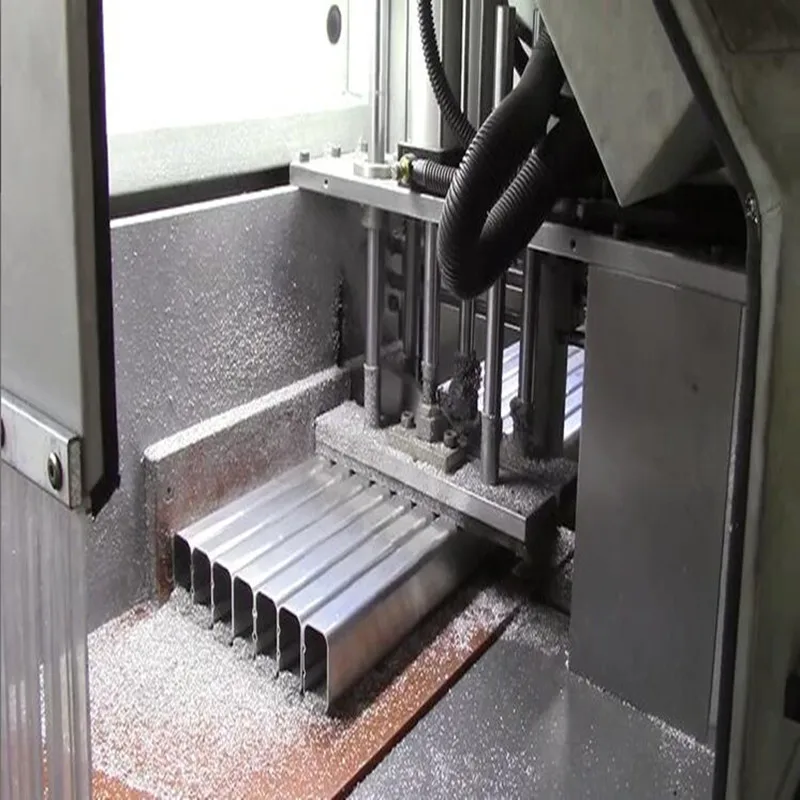

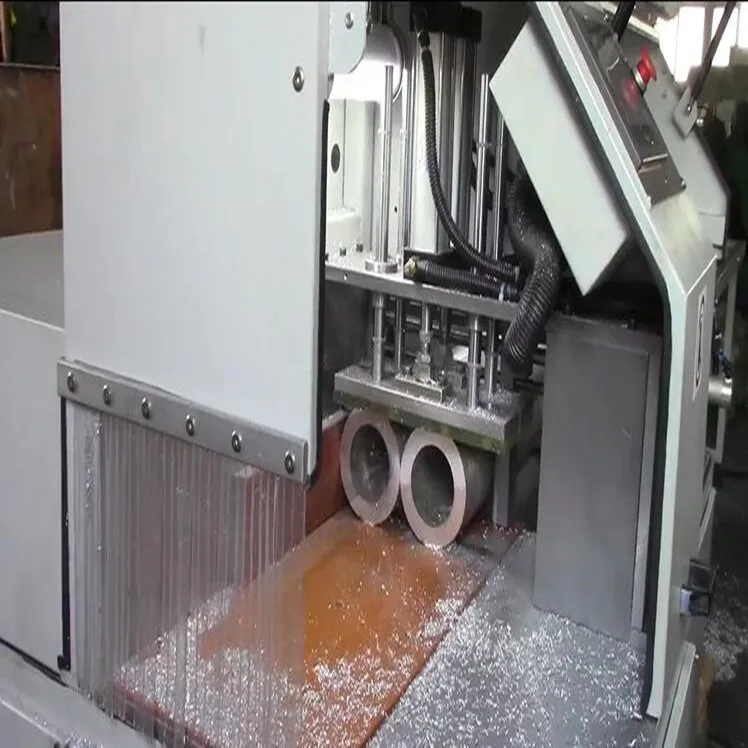

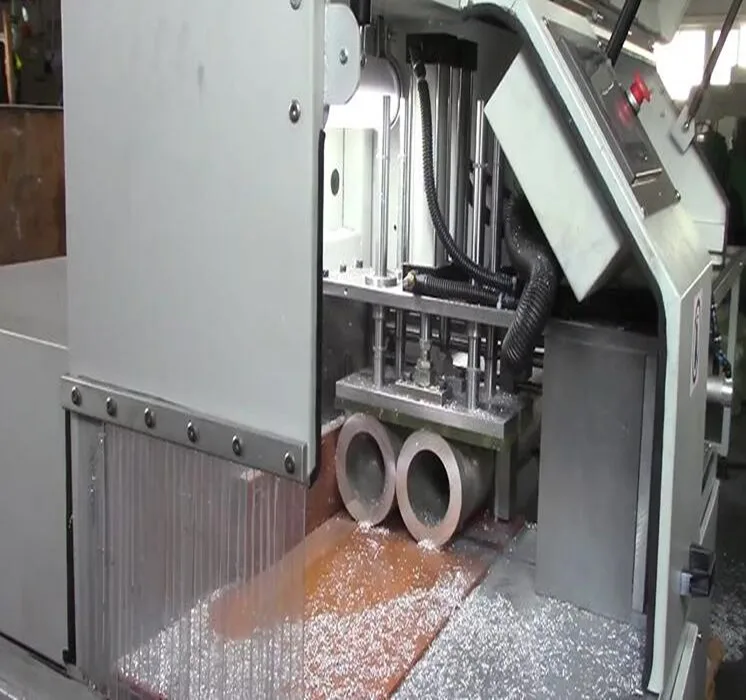

1. Single or multiple cutting depending on the size of the material which can increase capacity effectively.
2. Stable control of workpiece cutting accuracy within ±0.1mm, spindle accuracy within 0.01mm.
3. Stepper motor pushing forward blade cross feed for greater stability, combined with ultra-thin saw blades, can save you hundreds of dollars per day.
4. With a micro-lubrication device and special cutting oil for aluminium alloys to increase the service life of the saw blade.

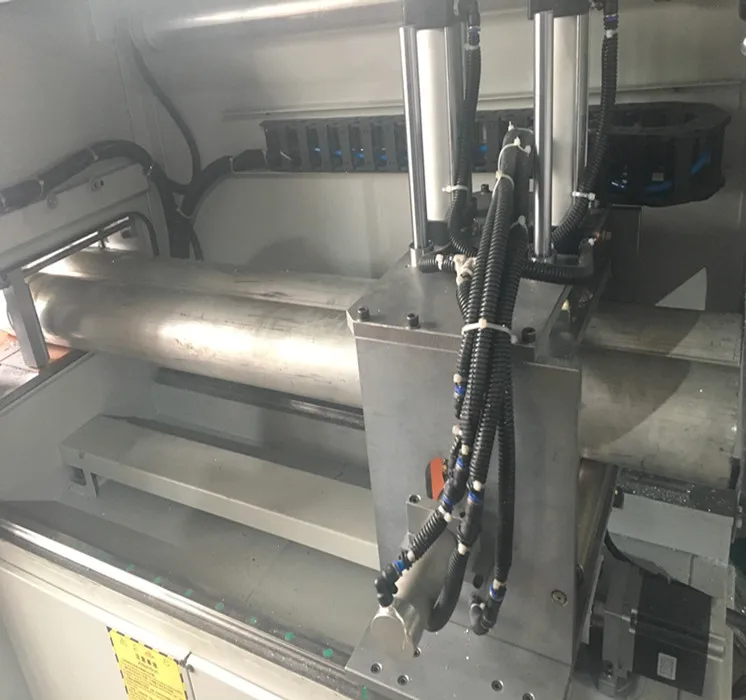

5. Square linear guide rails and screw bars are used for feed and cutting feeding, ensuring stability in the sawing process.

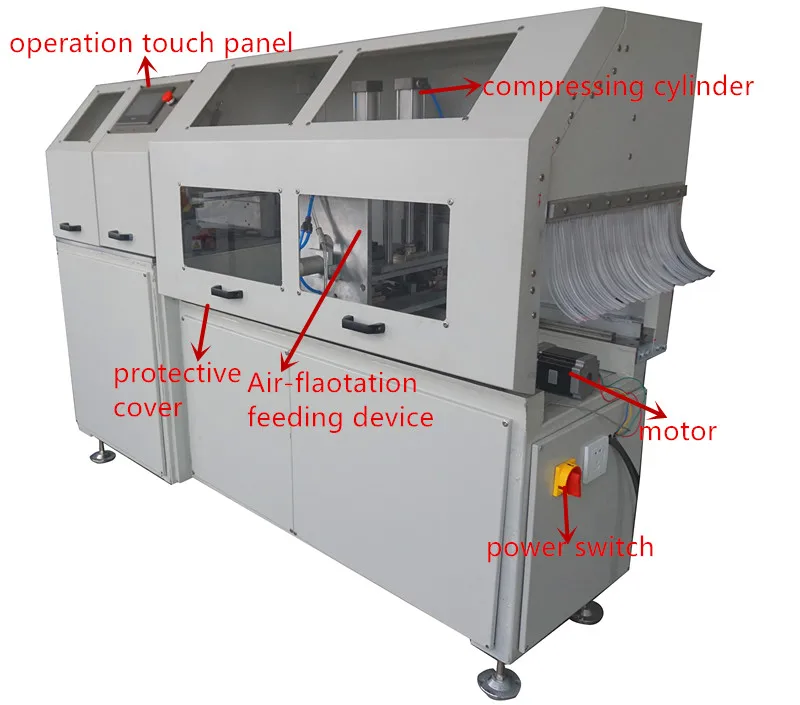

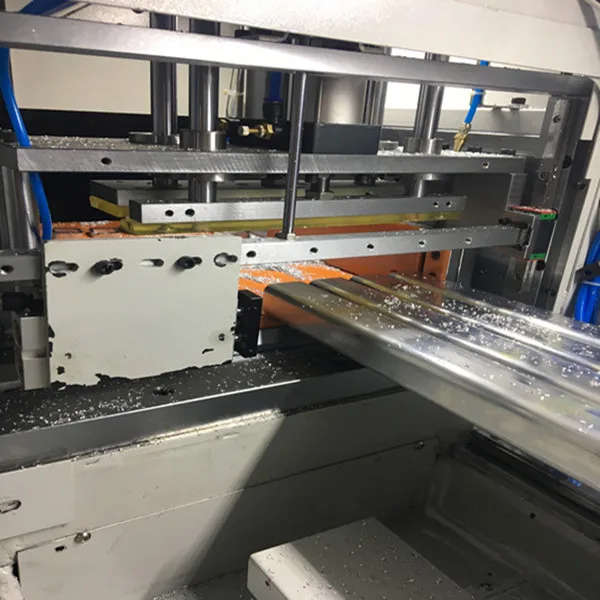

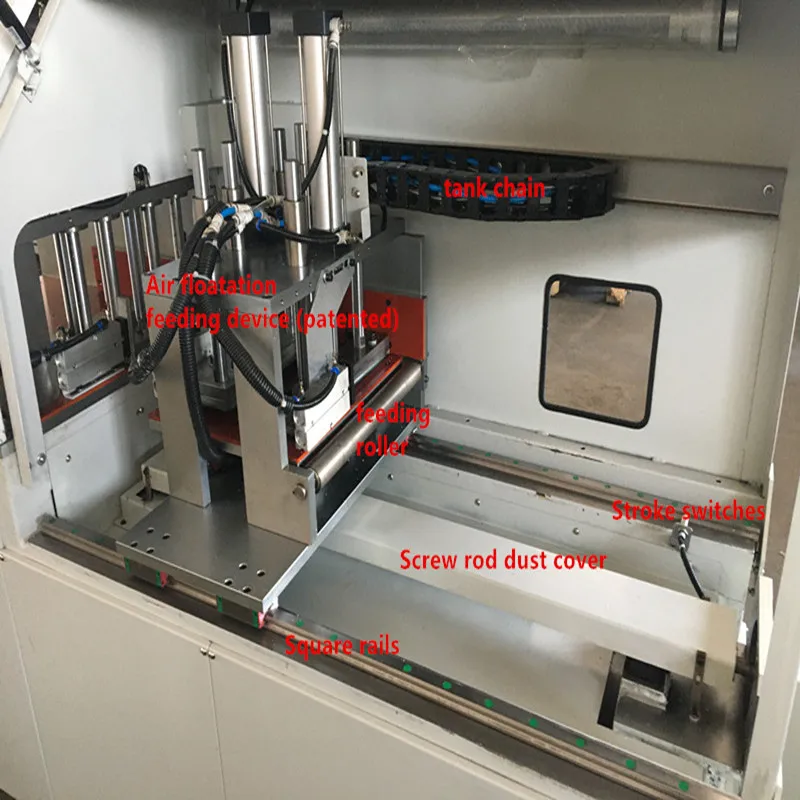

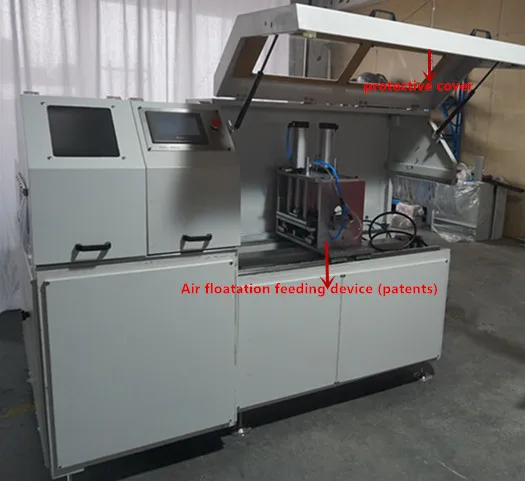

6. The use of self-developed lift-off air-floatation feeding device (Patents)ensures the accuracy of the machined parts and prevents scratching of the material surface.
7. Two-way vacuuming with a fully enclosed protective cover for better collection of aluminium chips for 7S management.

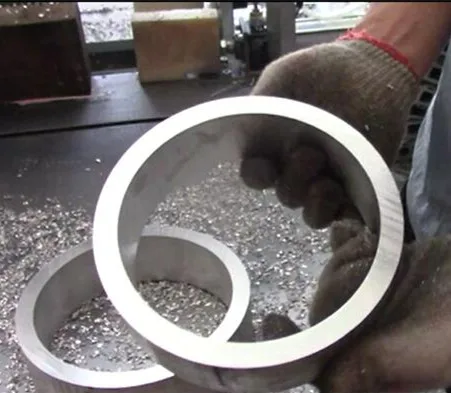

Cutting Materials
Specification
Power Supply | 380V/50Hz or Customized | Model | DS-A450-2 |
Motor RPM | 3900r/min | Sizing Scale Precision | ±0.1mm |
Cutting Height | 140mm | Cutting Width | 320mm |
Power | 4kw | Cutting Flatness | 0.1mm |
Working Pressure | 0.6-0.8MPa | Cutting Verticality | 0.1mm |
Spindle Diameter | 25.4mm | Blade Diameter | 250-450mm |
Cooling Device | Micro-lubrication | Sawing Direction | Cross Feed |
Feeding force | Stepper Motor | Automatic Feed Length | 6-800mm |
Spindle Precison | 0.01mm | Dimension(L*W*H) | 2600*1500*1350mm |

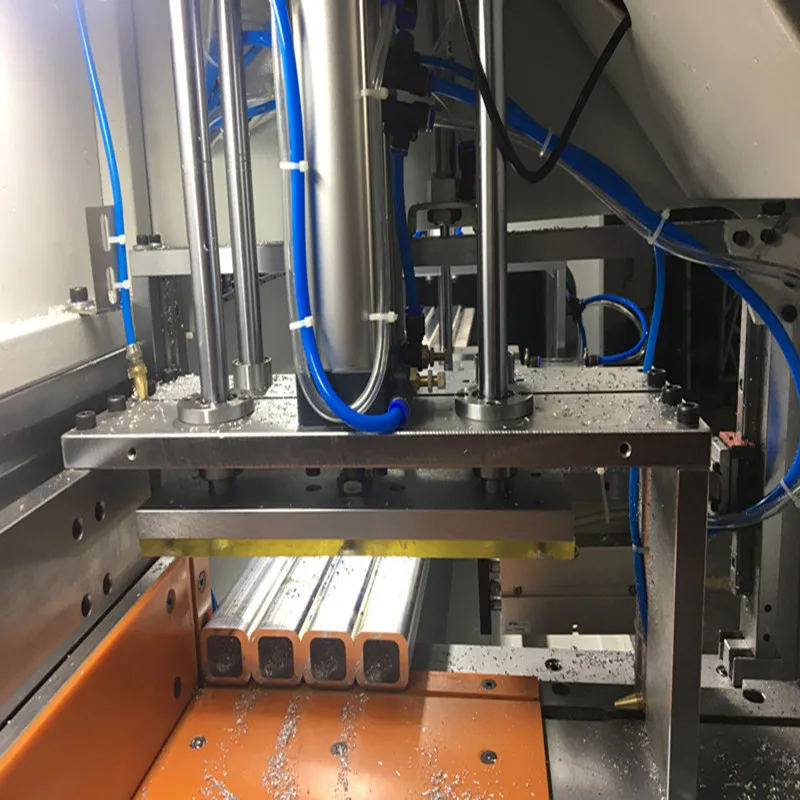

Details Images
Why Choose Us
1. After nearly two decades of hard work and precipitation, DS Machinery has obtained more than 30 inventions, utility models and appearance patents and a number of software copyrights.
2. During the period, it obtained ISO9001: 2015 quality system certification, and at the same time obtained the honors of high-tech enterprises, private technology enterprises in Jiangsu Province, and Suzhou City for abiding by contracts and keeping promises, issued by the government.
3. DS owns 3,500 square meters of workshops, and has established two R&D centers in Huzhou, Zhejiang and Kunshan, Jiangsu, and three service bases in Jiangsu, Zhejiang, and Guangdong.
4. The products are exported to Southeast Asia, the Middle East, Europe, Africa and other places, and more than 3,800 customers have been served worldwide.
2. During the period, it obtained ISO9001: 2015 quality system certification, and at the same time obtained the honors of high-tech enterprises, private technology enterprises in Jiangsu Province, and Suzhou City for abiding by contracts and keeping promises, issued by the government.
3. DS owns 3,500 square meters of workshops, and has established two R&D centers in Huzhou, Zhejiang and Kunshan, Jiangsu, and three service bases in Jiangsu, Zhejiang, and Guangdong.
4. The products are exported to Southeast Asia, the Middle East, Europe, Africa and other places, and more than 3,800 customers have been served worldwide.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Are you manufacturer or trading company?
A: We are a professional manufacturer dedicated to the research and producing of high quality aluminum cutting machines and saw blades for 20 years.
Q: Can I have your quotation?
A: First, please offer us the information of your cutting material and its size,without these parameter, we are not able to recommend you the suitable machine.
Q: Do you have overseas service? How to provide after-sales service？
A: We normally help our customers to solve the problems through phone, Email, skype, internet video. Very high efficiency.
Q: How long is the equipment warranty？
A: We offer one year guarantee, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paid by client.
Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50Hz, we can change the voltage and Hertz according to your requirement.
Q: What is the delivery lead-time?
A: Aluminum cutting machine: normally 5-30 days upon receipt of your orders and its deposit. Saw blade: 5-30 days(depending on availability of saw blade stock or material stock) upon receipt of your order and deposit.
Q: What is your payment terms?
A: We accept L/C, T/T, D/P, Western Union and PayPal. As T/T, 30% deposit, 70% of balance paid before shipment.
Q: Can you customize for us?
A: Yes.
Q: Can you OEM/ODM for us?
A: Yes
Q:Can I get a discount?
A:Yes, for the yearly order quantity of more than 3 sets, please contact us to get the best price.
Q:Do you inspect the finished products?
A:Yes, each step of production and finished products will be coming out inspection by the QC department before shipping.
Q: Do you provide equipment operation training? Do you have the operation instruction book in English?
A: Currently we can do on-line technical operation training for customer's staff. Yes, we have English version operation instruction book for each cutting machine.
Q: Can I have your quotation?
A: First, please offer us the information of your cutting material and its size,without these parameter, we are not able to recommend you the suitable machine.
Q: Do you have overseas service? How to provide after-sales service？
A: We normally help our customers to solve the problems through phone, Email, skype, internet video. Very high efficiency.
Q: How long is the equipment warranty？
A: We offer one year guarantee, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paid by client.
Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50Hz, we can change the voltage and Hertz according to your requirement.
Q: What is the delivery lead-time?
A: Aluminum cutting machine: normally 5-30 days upon receipt of your orders and its deposit. Saw blade: 5-30 days(depending on availability of saw blade stock or material stock) upon receipt of your order and deposit.
Q: What is your payment terms?
A: We accept L/C, T/T, D/P, Western Union and PayPal. As T/T, 30% deposit, 70% of balance paid before shipment.
Q: Can you customize for us?
A: Yes.
Q: Can you OEM/ODM for us?
A: Yes
Q:Can I get a discount?
A:Yes, for the yearly order quantity of more than 3 sets, please contact us to get the best price.
Q:Do you inspect the finished products?
A:Yes, each step of production and finished products will be coming out inspection by the QC department before shipping.
Q: Do you provide equipment operation training? Do you have the operation instruction book in English?
A: Currently we can do on-line technical operation training for customer's staff. Yes, we have English version operation instruction book for each cutting machine.
