Product Description

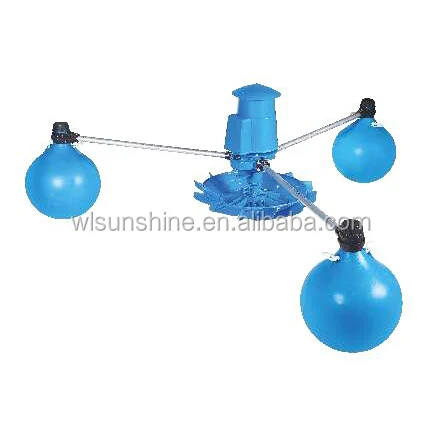

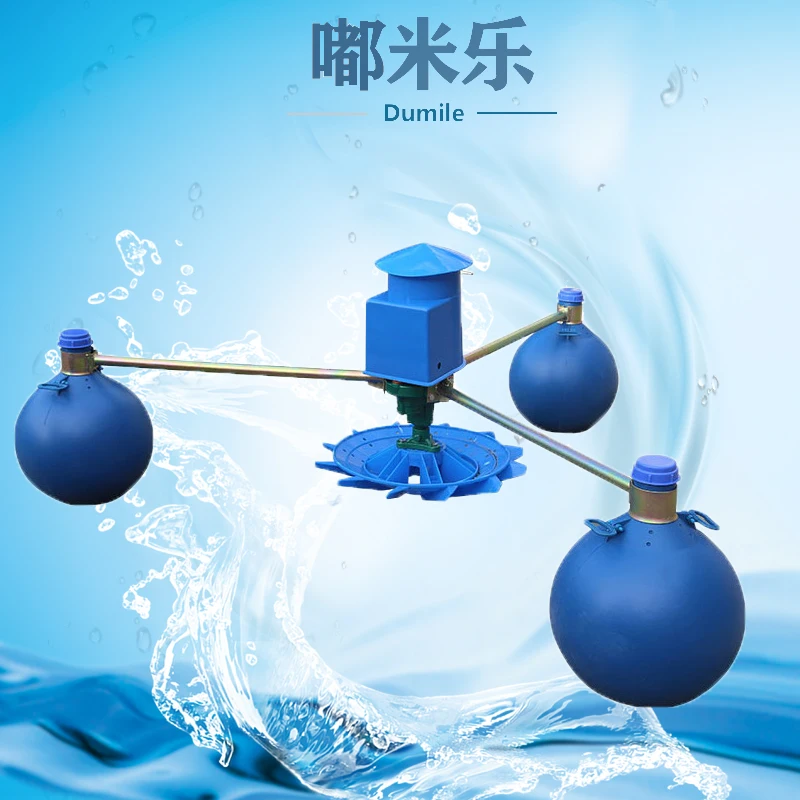

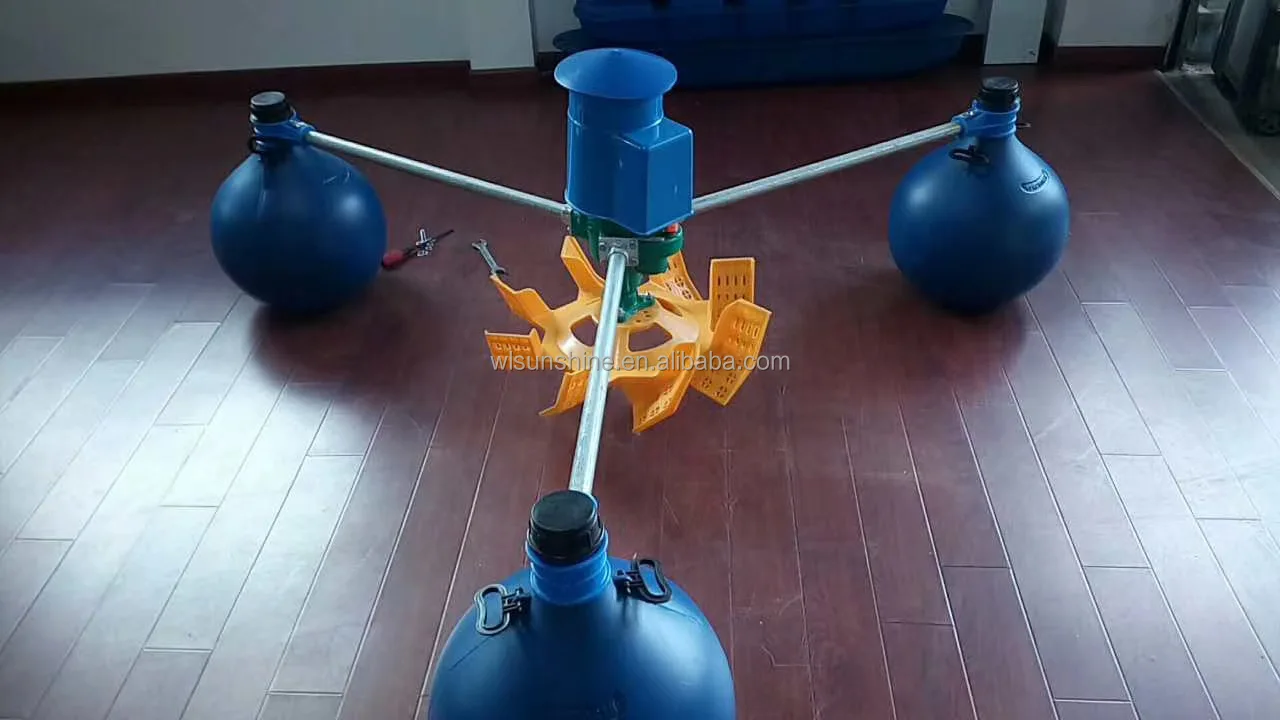

IMPLLER AERATOR /FLOATING BALL AERATOR

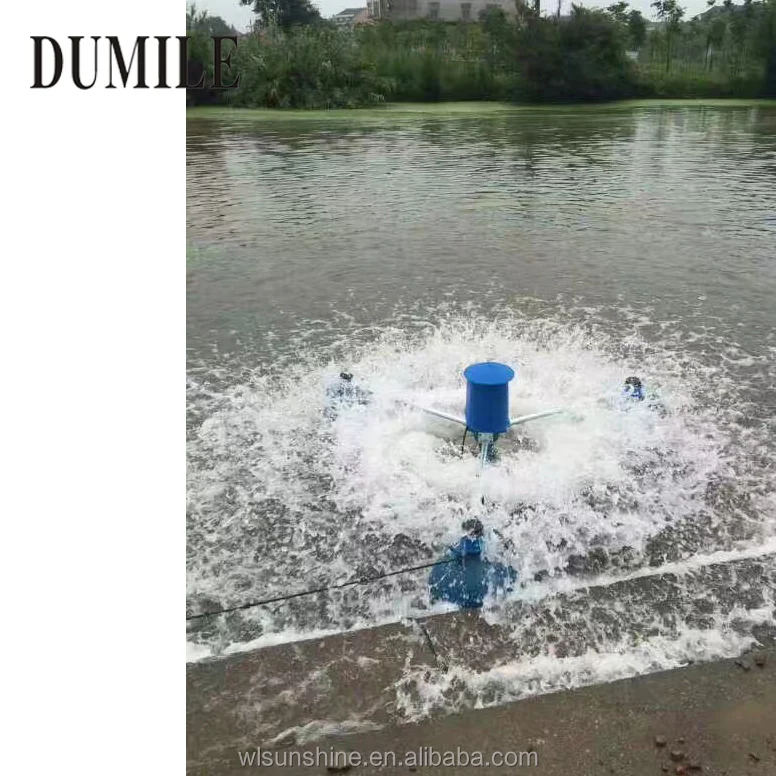

The impeller type aerator is composed of six main parts: motor, reducer, impeller, floating body, support and cover. The water surface is agitated by means of mechanical aeration and by means of motor-driven impeller rotation. The gas-liquid contact area is increased by stirring the gas-liquid model and night-mold. The concentration gradient of oxygen in water is enlarged and the speed of oxygen transfer and diffusion from air to water is increased.
MAIN FEATURES
1.High oxygenation rate: 2.6kgs/h.
2.Mechanical seal is available to against oil leak pollution.
3.Built-in protector is available to avoid motor being burnt accidentally.
4.The floating boat produced by us is made of good engineering plastic HDPE. It has great buoyancy and high strength.
5.The impeller is made of New PP. The spoke and vane is shaped with plastic only one time.

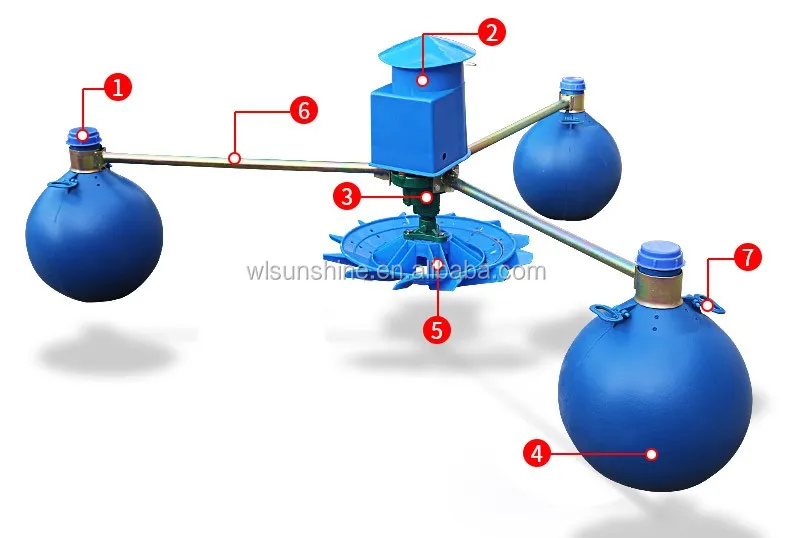

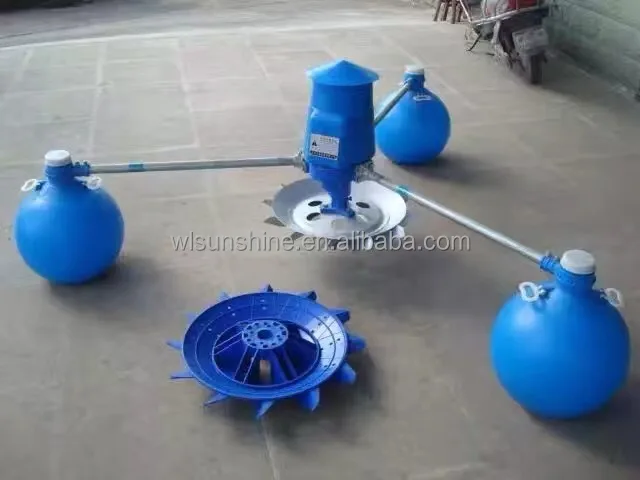

Detailed Images
1.Inside and outside cover of floating ball (loading and unloading water)
2.Motor hood motor cap (waterproof, sunscreen, sealed)

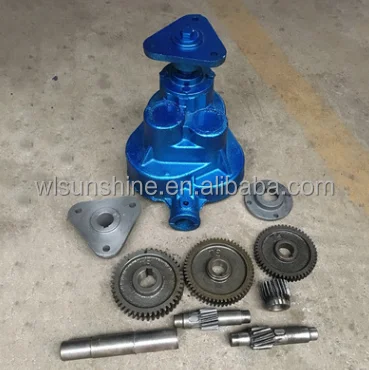

3.Gear box reducer (to ensure the normal operation of the machine)

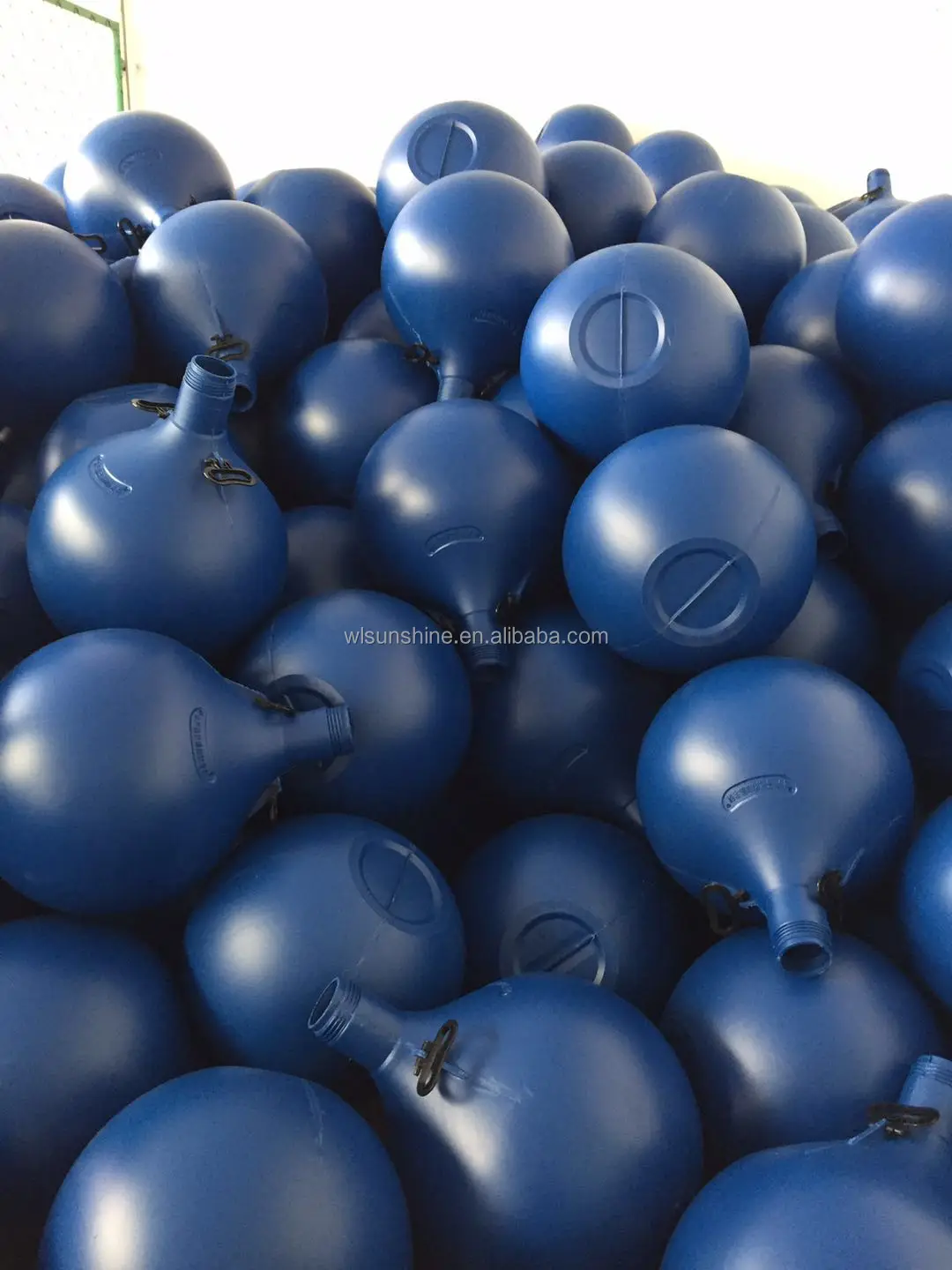

4.Floating ball (adjusting the level of aerator)

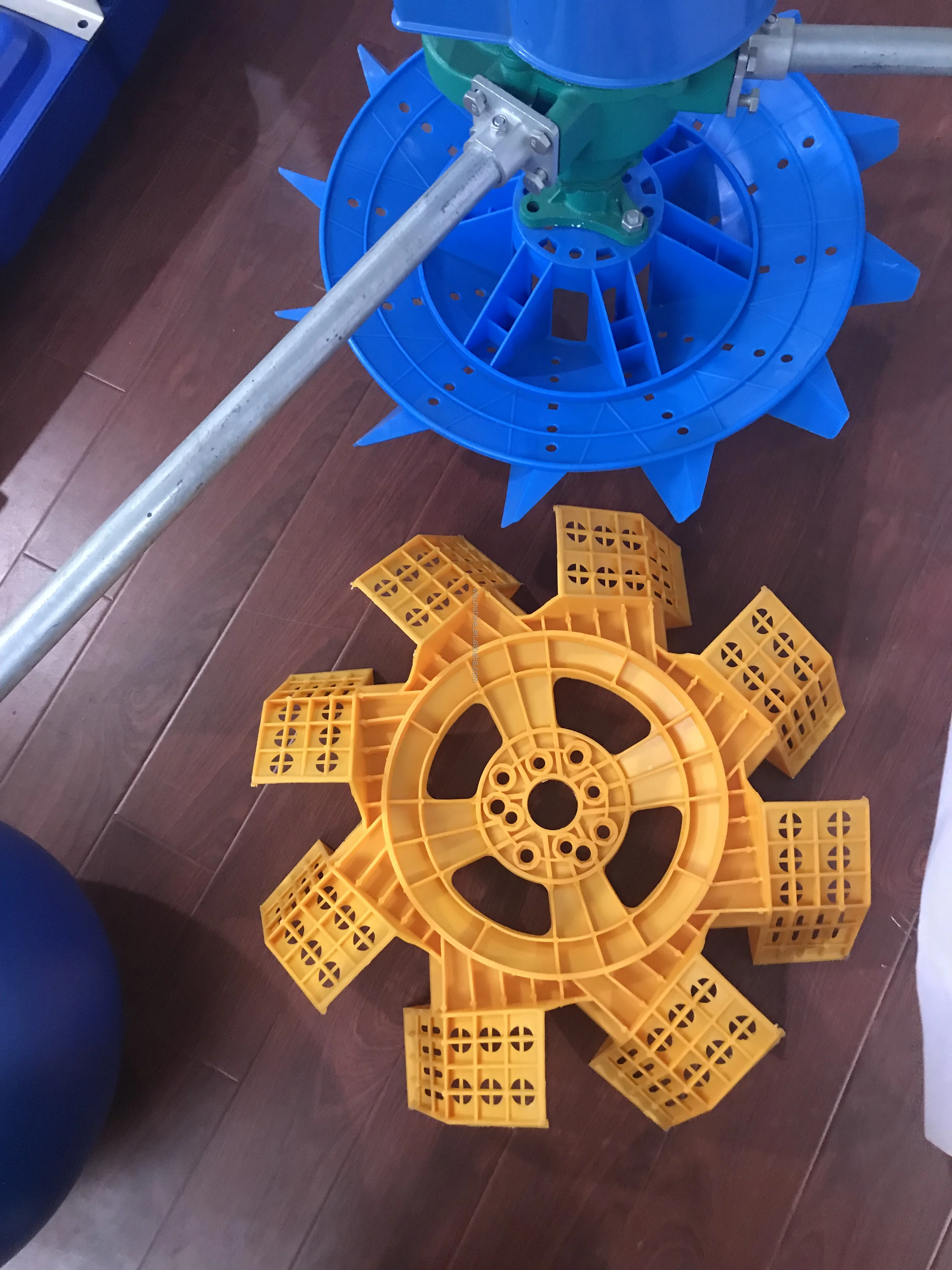

5.Plastic impeller / spray impeller / hot plating impeller (high strength, long life)
6.Support rod (screw fastening welding connection to ensure normal operation of machine)

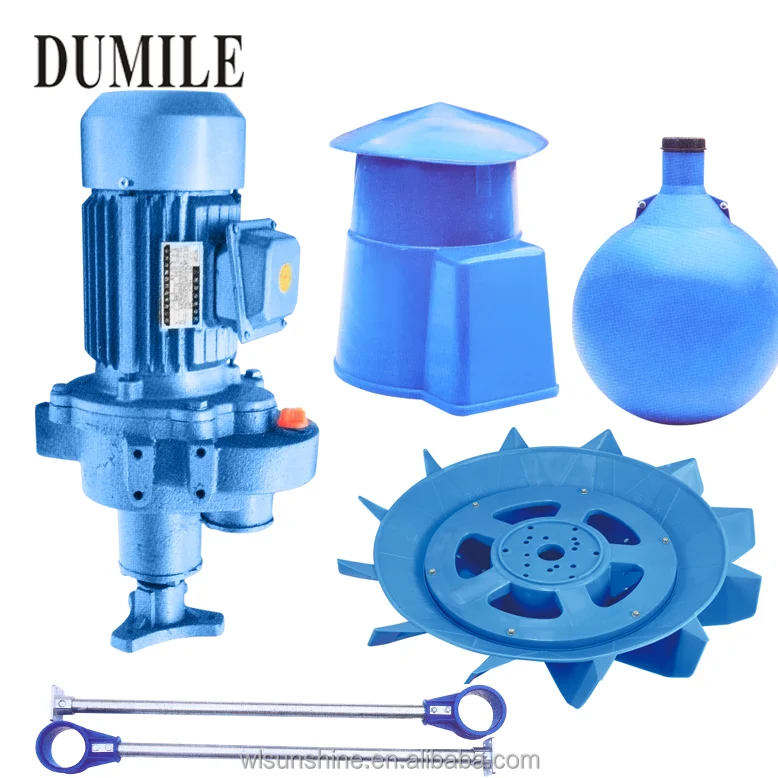

No. | Item Name | Quantity | Details | Functions |
1 | Motor | 1 set | 1HP-3HP , 3 phase, cast iron body | Provide the power |
2 | Reducer | 1 set | Gear material: chrome-manganese-titanium alloy steel with nitrocementation surface , cast iron body | Change the motor output rate |
3 | Impeller | 1 pcs | Engineering plastic | Splash the water and make oxygen into the water, provide enough oxygen |
4 | Floating Ball | 3 pcs | 100% New material | Support the whole impeller aerator on the water surface |
5 | Impeller Bracket | 3 pcs | 304 stainless steel | Fix the Reducer and floating ball |
6 | Cover | 1 pcs | 100% New material | Protect the motor |

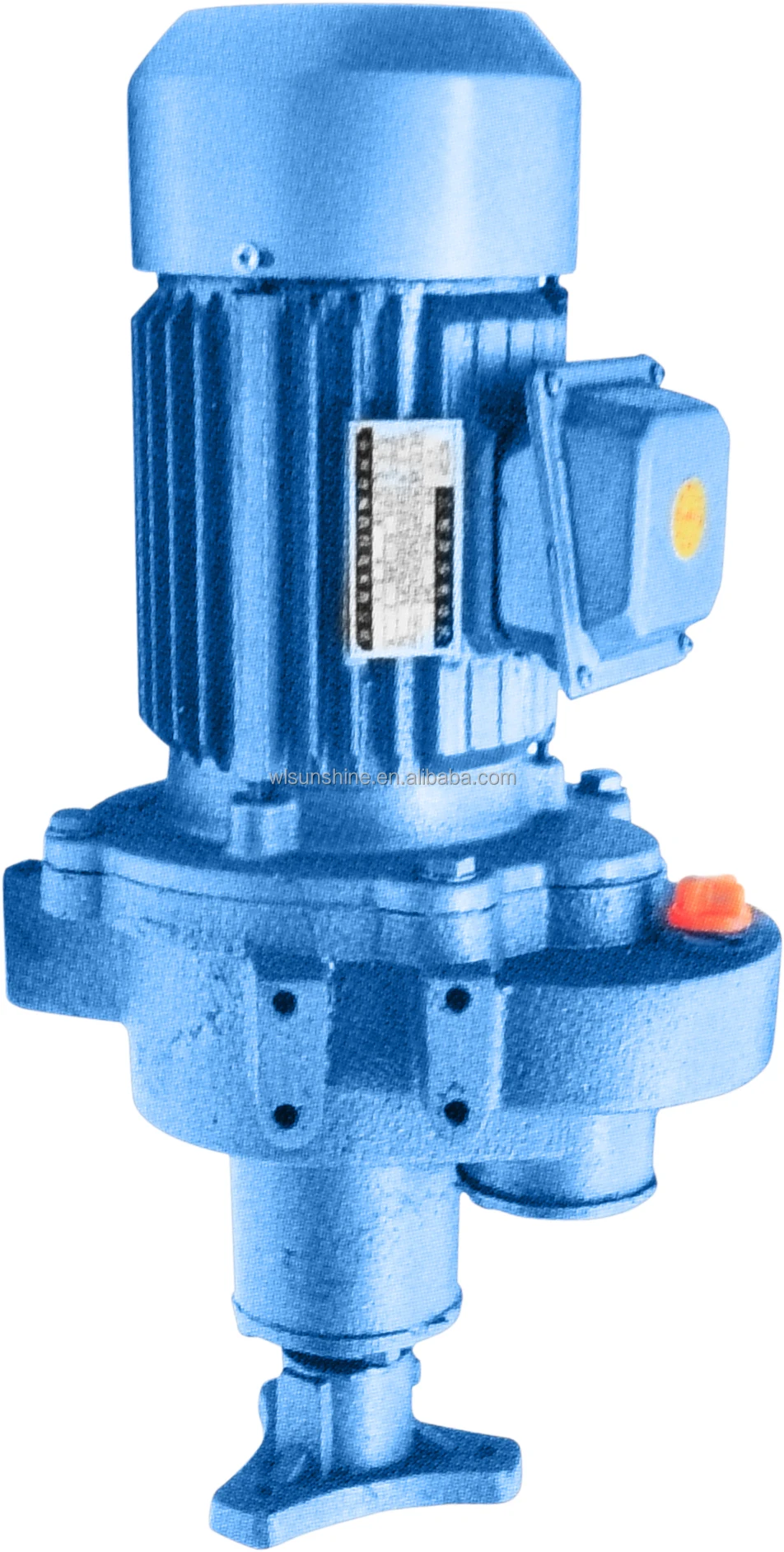

Motor
All copper coil with overload overheat protector to prevent the motor from overload overheat or leakage in the case of automatic power failure

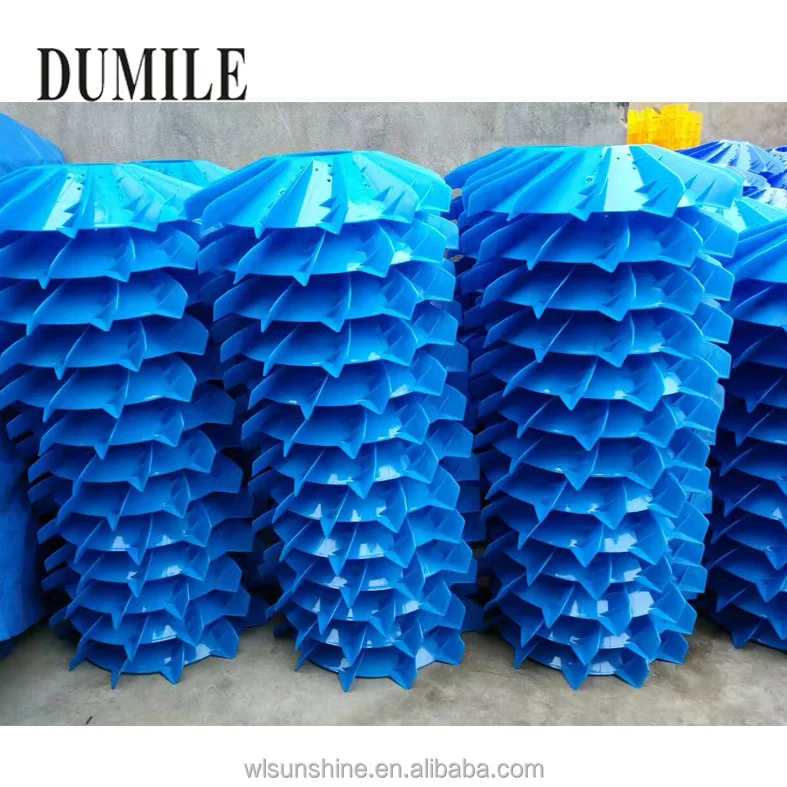

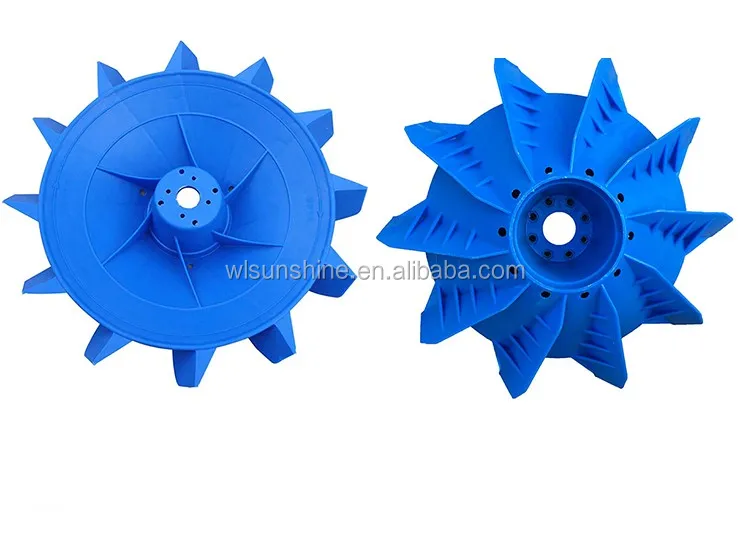

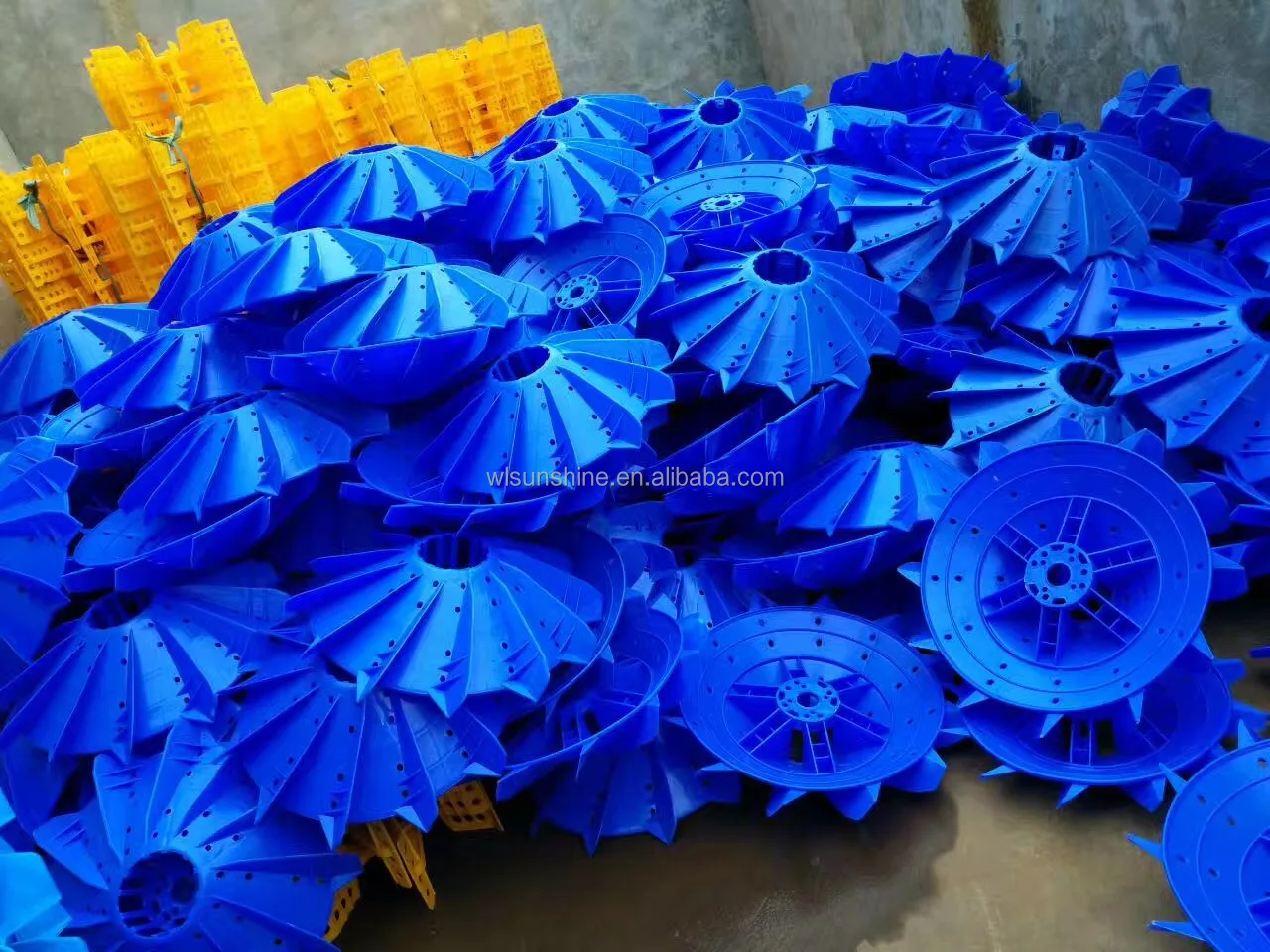

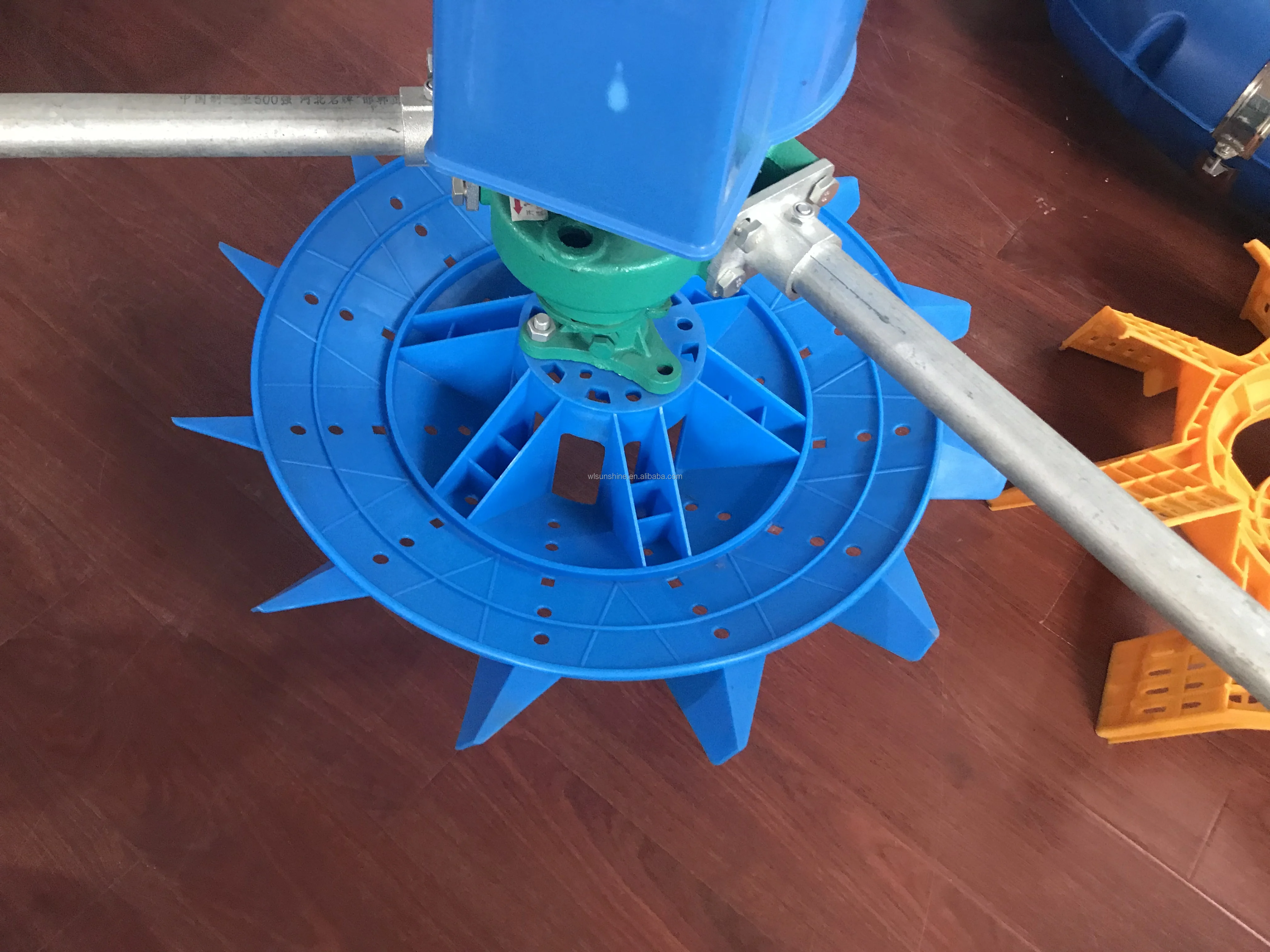

Impeller
Features:
* New Design
*Integrated Impeller
*Can Play Big Splash
* Strong Aeration Ability
*Longer Life

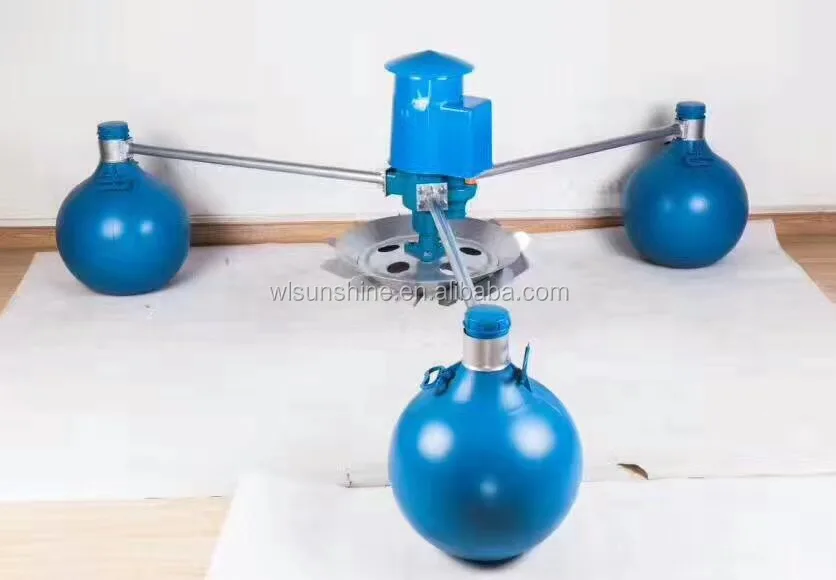

Show Photos
Our Service
Pre-sale
2. Can provide samples first, samples are packaged by wooden box.
3. Can provide any accessories parts on aerator for any quantity.
4. Many different models and different quality level for customer to choose.
5. Warranty: Different warranty for different quality level.
6. Whole Life free technical guidance, follow up after use situation
After-sale
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
Packing & Delivery
Before Delivery, All of the products tested strickly include pressure test, Amp test,noise, leakage , no-load test and so on.
There are carton and wooden cases packing stypes to option according different requires.
There are carton and wooden cases packing stypes to option according different requires.
