Growatt 10kw 12kw 15kw 17kw 20kw 25kw 30kw 33kw 36kw 40kw 50kw 10 15 20 30 40 50 kw 3 phase 380v 400v on grid tie solar inverter
- Category: >>>
- Supplier: Whayo Energy Technology Co. Ltd.Whayo Ltd.
Share on (1600988634484):
Product Overview
Description
Products Description
Specifications

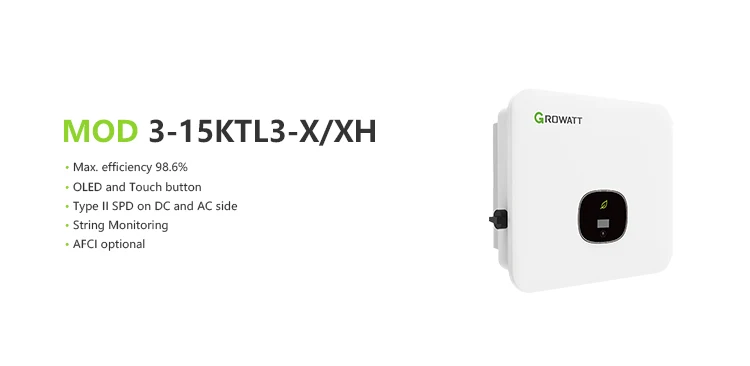

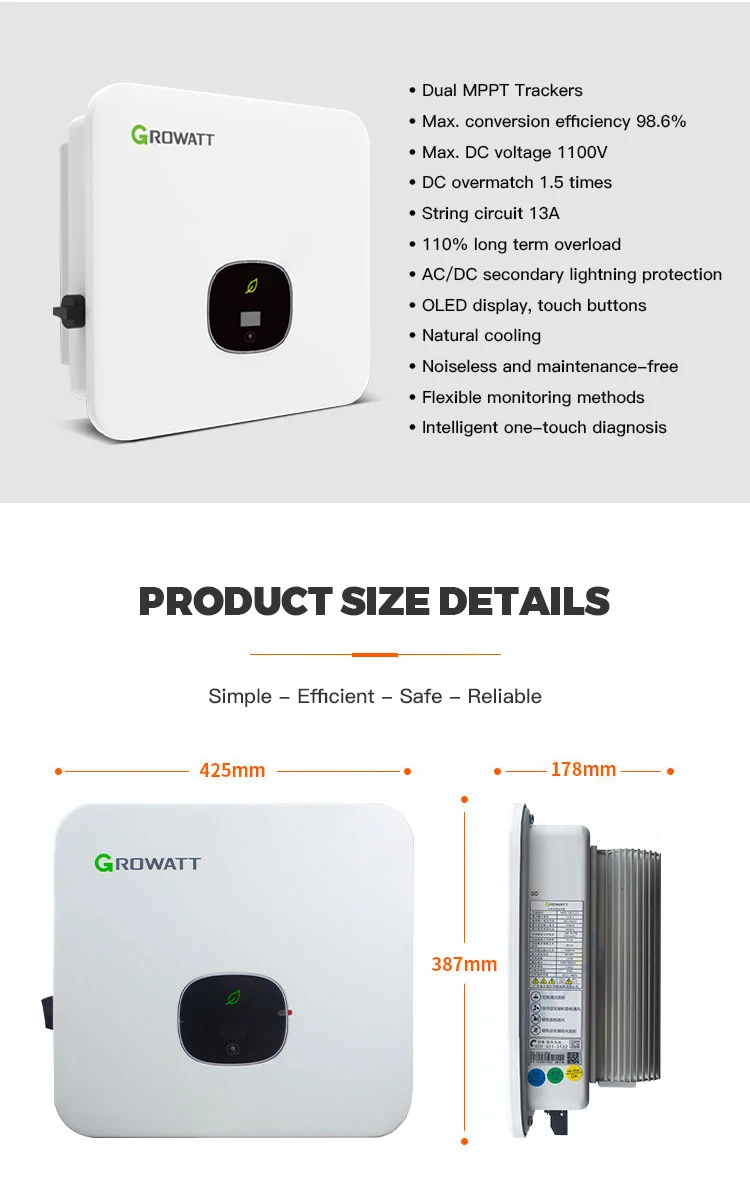

The Growatt MOD inverters have 2 MPPT, Type II SPD on DC and AC side, string monitoring, and Arc-Fault Circuit Interrupter (AFCI)function. The Growatt MOD inverters have a 10 years product warranty.

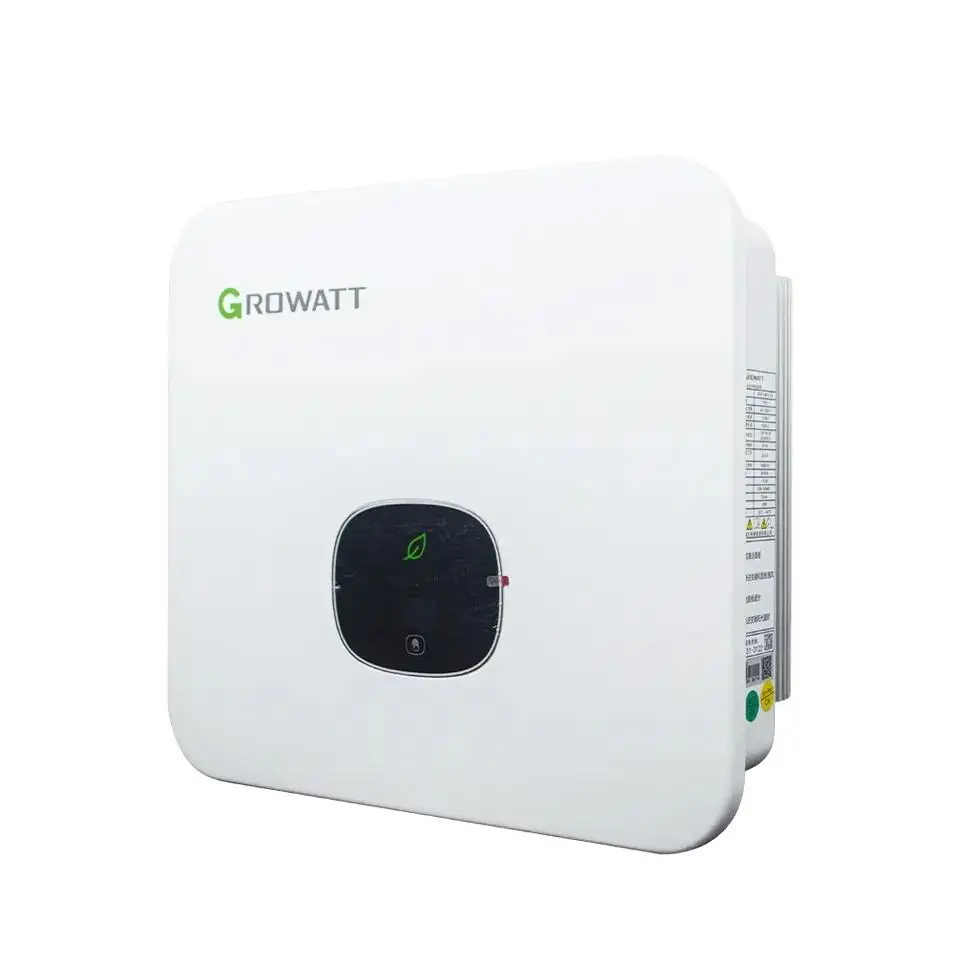

The Growatt MOD series is the latest 3-phase inverter solution designed specifically for residential use. The MOD series features an aesthetically pleasing, compact design that will add visual appeal to your home. With an outstanding efficiency of up to 98.3%,the Growatt MOD 3-phase inverter is a smart choice that offers great performance at an excellent price point.
The Growatt MOD series is the latest 3-phase inverter solution designed specifically for residential use. The MOD series features an aesthetically pleasing, compact design that will add visual appeal to your home. With an outstanding efficiency of up to 98.3%,the Growatt MOD 3-phase inverter is a smart choice that offers great performance at an excellent price point.
Datasheet | MOD 3000TL3-X | MOD 5000TL3-X | MOD 7000TL3-X | MOD 9000TL3-X | MOD 10000TL3-X | MOD 13000TL3-X | MOD 15000TL3-X | |||||||
Input data (DC) | ||||||||||||||
Max. recommended PV power (for module STC) | 4500W | 7500W | 10500W | 13500W | 15000W | 19500W | 22500W | |||||||
Max. DC voltage | 1100V | |||||||||||||
Start voltage | 160V | |||||||||||||
Nominal voltage | 580V | |||||||||||||
MPPT voltage range | 140V-1000V | |||||||||||||
Output data (AC) | ||||||||||||||
AC nominal power | 3000W | 5000W | 7000W | 9000W | 10000W | 13000W | 15000W | |||||||
Max. AC apparent power | 3300W | 5500W | 7700W | 9900W | 11000W | 14300W | 16500W | |||||||
Nominal AC voltage（range*） | 220V/380V, 230V/400V (340-440V) | |||||||||||||
AC grid frequency（range*） | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||||||
Max. output current | 5.0A | 8.3A | 11.7A | 15.0A | 16.7A | 21.7A | 25.0A | |||||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||||||||
Efficiency | ||||||||||||||
MAX. efficiency | 98.3% | 98.3% | 98.6% | 98.6% | 98.6% | 98.6% | 98.6% | |||||||
European efficiency | 97.5% | 97.5% | 98.1% | 98.1% | 98.1% | 98.2% | 98.2% | |||||||
MPPT efficiency | 99.9% | |||||||||||||
General data | ||||||||||||||
Dimensions (W / H / D) | 425/387/147mm | 425/387/147mm | 425/387/178mm | 425/387/178mm | 425/387/178mm | 425/387/178mm | 425/387/178mm | |||||||
Weight | 12.5kg | 12.5kg | 14kg | 14kg | 14kg | 16kg | 16kg | |||||||
Operating temperature range | –25°C ... +60°C | |||||||||||||
Protection degree | IP66 | |||||||||||||
Relative humidity | 0~100% | |||||||||||||
Altitude | 4000m | |||||||||||||
Display | OLED+LED/WIFI+APP | |||||||||||||

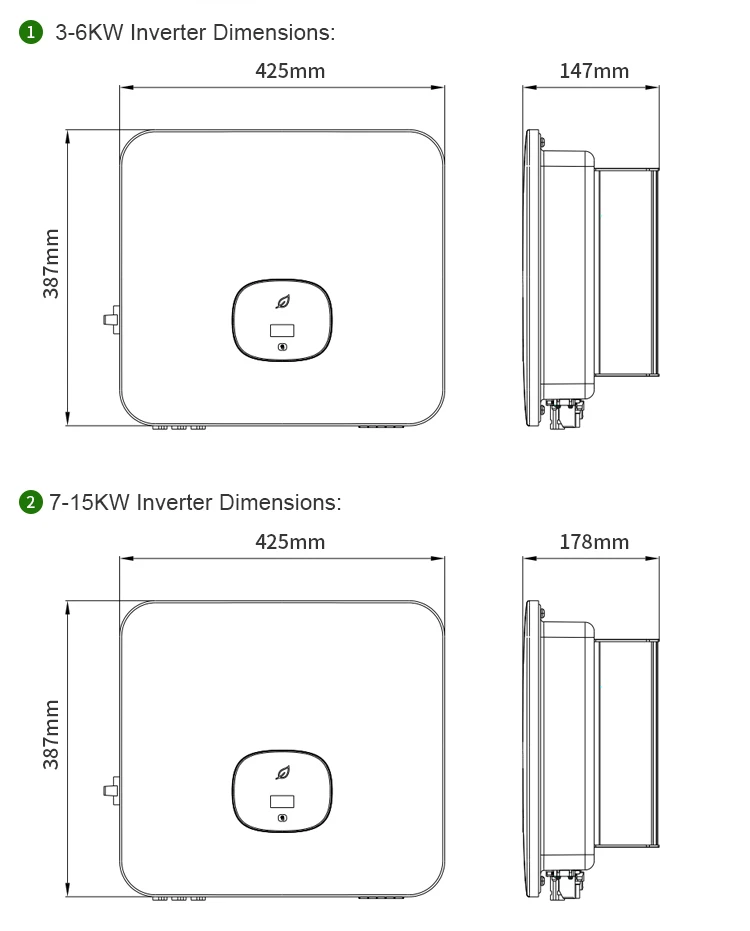

Size and weight | ||||||||
Model | Height (H) | Width (W) | Depth (D) | Weight | ||||
MOD 3-6KTL3-X | 387mm | 425mm | 147mm | 12.5kg | ||||
MOD 7-11KTL3-X | 387mm | 425mm | 178mm | 14kg | ||||
MOD 12 - 15KTL3 - X & MOD 7- 11KTL3-X-AU | 387mm | 425mm | 178mm | 16.0kg | ||||

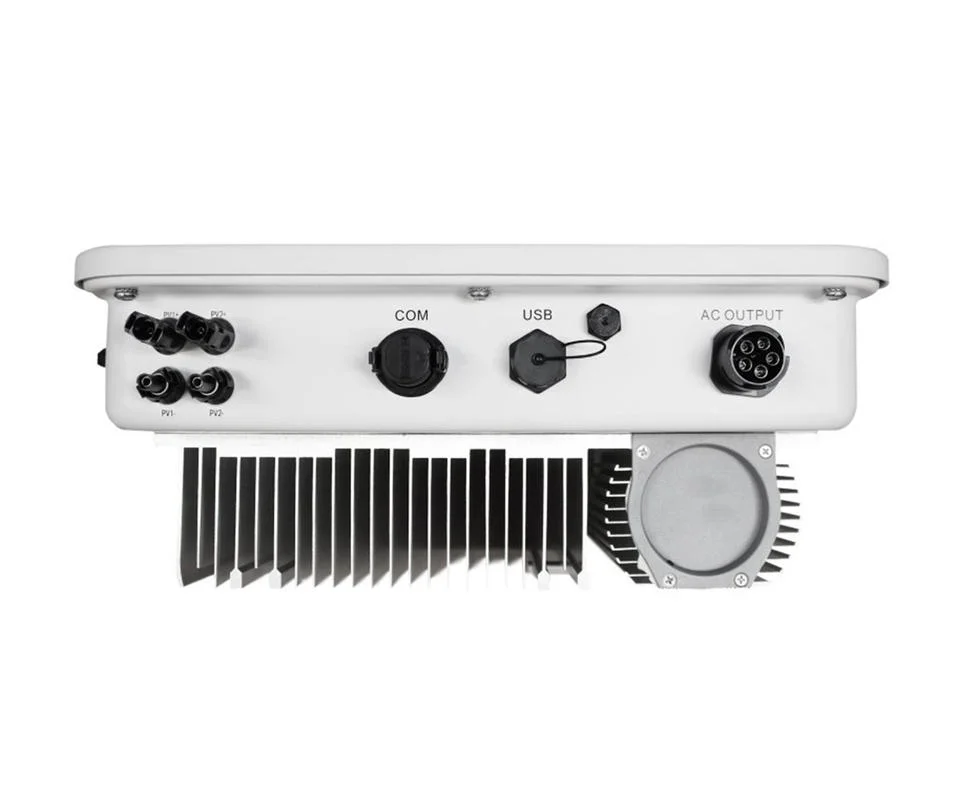

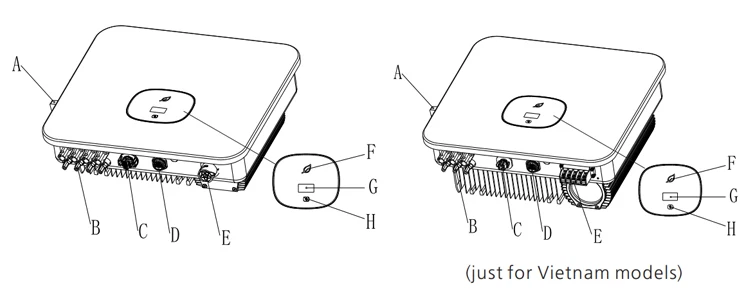

The appearance instructions are as follows: | |||||||
No. | Name | No. | Name | ||||
A | DC switch | E | AC terminal | ||||
B | PV terminal | F | LED indicator | ||||
C | RS485 port | G | LCD screen | ||||
D | USB port | H | Touch button | ||||
Product Details
Company Profile
FAQ
Q1: How to install and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q8:What can you provide?
A8:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.
Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.
Q3:Can you provide the free shipping to sea port ?
A3:Yes, we provide the free shipping to your convenient sea port.If you have agent in China, we can also ship it to them for free.
Q4: How is your technical support?
A4: We provide online service through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Q5: How can I make sure it's a secure transaction ?
A5: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will release us the money.
Q6: Can you get the the solar inverter customized for us ?
A6: Of course, brand name, machine color, designed unique patterns available for customization.
Q7:How to become your agent?
A7:Contact us through Alibaba, we will give you the best price and look forward to your greetings.
Q8:What can you provide?
A8:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
