The following items can be customized | ||||||
◆Seats | ◆Container size | ◆Air-conditioning | ◆Load capacity | |||
◆Fuel type | ◆Tire brand | ◆Colors | ||||
*If you have any other customization inquiry, Click Here to contact our sales consultant to get free design | ||||||
Announcement model: | BJ1020V2JV5-05 |
Driving form: | 4X2 |
Wheelbase: | 3070mm |
Case length level: | 2700mm |
Engine: | DK12C |
Gearbox: | LD513MR |
Rear axle speed ratio: | 5.125 |
Body length: | 4805mm |
Body width: | 1610mm |
Body height: | 1860mm |
Front wheel base: | 1338mm |
Rear wheel base: | 1375mm |
Vehicle weight: | 1.025T |
Rated load: | 0.74T |
Total mass: | 1.895T |
Maximum speed: | 110KM/h |
Approach Angle: | 32 degrees |
Departure Angle: | 28 degrees |
Front/rear overhang: | 605/1150mm |
Engine type: | DK12C |
Engine commonly known as: | DK 1.2L |
Number of cylinders: | 4 |
Fuel Type: | gasoline |
Displacement: | 1.24L |
Maximum output power: | 67kw |
Maximum horsepower: | 91hp |
Maximum torque: | 115N·m |
Maximum torque speed: | 4400RPM |
Rated speed: | 6000RPM |

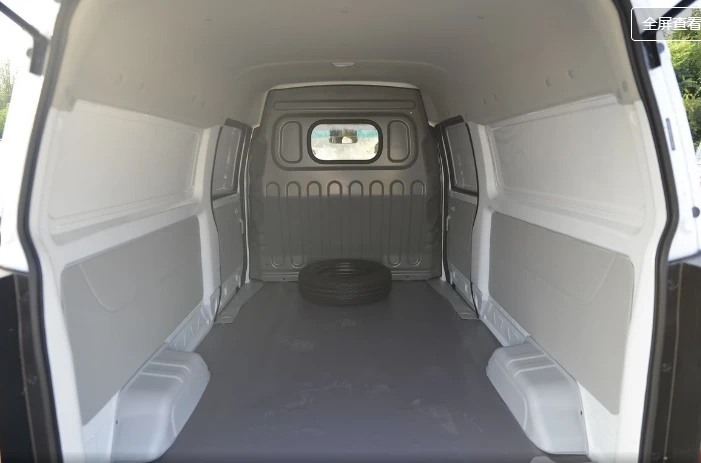

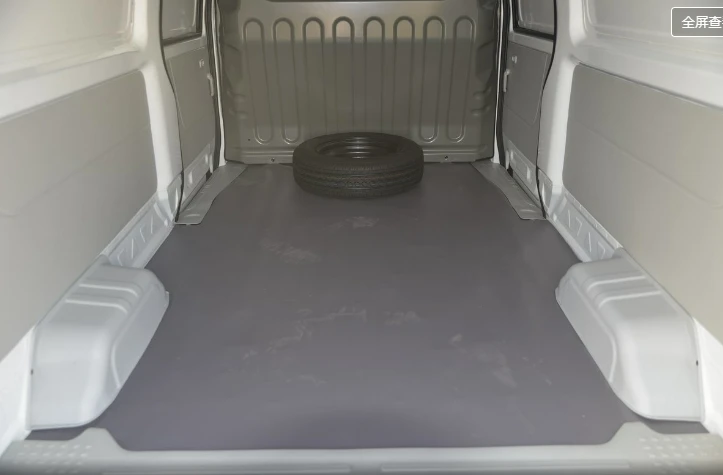

Container length: | 2700mm |
Container width: | 1510mm |
Container height: | 320mm |
Number of permitted passengers: | 2pcs |
Number of seats: | Single row |
Transmission model: | LD513MR |
Shift mode: | Manual operation |
Forward gear: | 5 |
Number of reversals: | 1pcs |
Front axle allowable load: | 695KG |
Rear axle description: | 110 rear bridge |
Rear axle allowable load: | 1200KG |
Speed Ratio: | 5.125 |
Number of spring pieces: | -/5 |
Tire Specifications: | 165/70R14LT 8PR |
