hospital Nurse Call System Patient doctor Call for medical Center
- Category: >>>
- Supplier: Amcaremed Technology Co. Limited
Share on (1600988700673):
Product Overview
Description
Product Description
The nurse call system is an important communication system between medical care personal and patients. In addition to meeting the basic needs of calling and intercom, it also needs rich information display and stable interactive application. Using advanced network technology to provide convenient services for both medical care personal and patients has become an important part of hospitals to create superior care.
AmcareMed nurse call system is based on LAN and WAN transmission technology, designed for hospitals, enabling call-to-call between patients, nurses, doctors, and two-way high-definition video intercom between ward hosts. The system can update the display of the ward bed list and patient information through the terminal equipment, aiming at improving the information level of hospital nursing work and services.
The nurse call system adopts the internationally popular surface mounted technology (SMT), which is produced by a complete set of imported placement machine and hot air reflow soldering. The product has the characteristics of high consistency, high quality and stability, and completely solves the echo and howling of the network intercom. It can be widely used in hospitals, sanitariums, social welfare homes, rest places and other places needing nursing care.

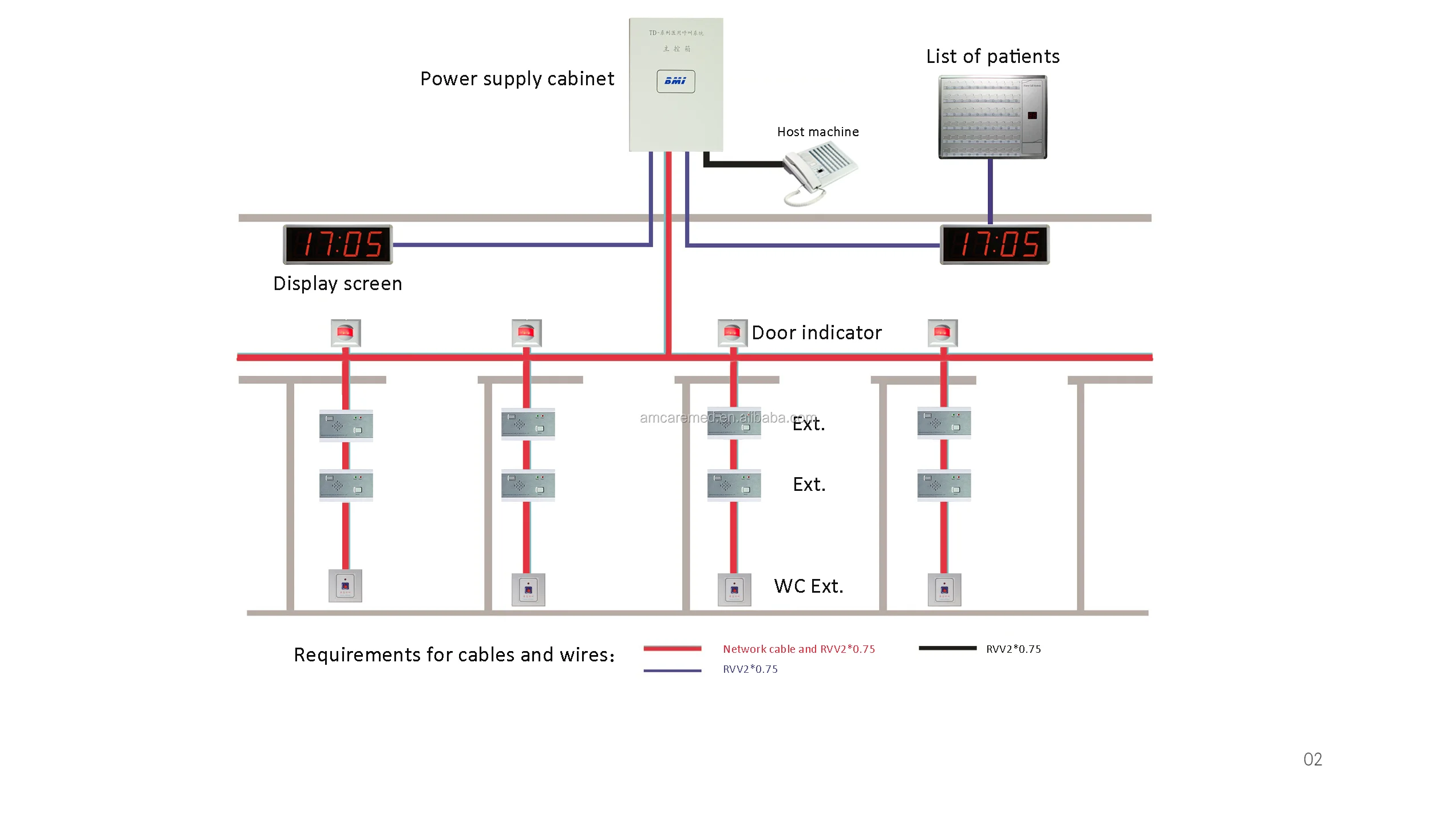

Wiring Diagram
The intelligent nurse call system meets the requirements of most hospital call requirements, each bed has an extension, and the bathroom is equipped with a waterproof extension.
Functions
Ø Two-way calling and intercom function
Ø Two-wire and non-polar connectivity
Ø Extension could call consistently without interruption store and automatically queue the number of extension when calling
Ø Short circuit alarm
Ø Function of intensive care priority
Ø The volume of ringing is adjustable with 16 levels
Ø Host machine hand-free
Ø Broadcast function
Ø Can be connected to a computer
Ø The calling system has many different chord music as cue music
Ø The extension numbers can be changed online
Ø Two-wire and non-polar connectivity
Ø Extension could call consistently without interruption store and automatically queue the number of extension when calling
Ø Short circuit alarm
Ø Function of intensive care priority
Ø The volume of ringing is adjustable with 16 levels
Ø Host machine hand-free
Ø Broadcast function
Ø Can be connected to a computer
Ø The calling system has many different chord music as cue music
Ø The extension numbers can be changed online

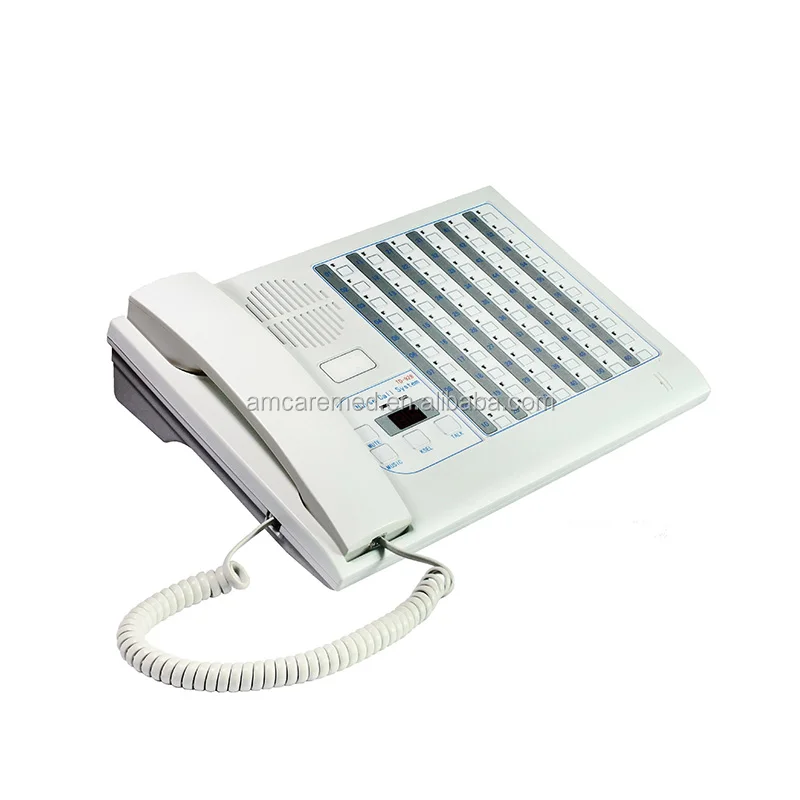

Host Machine
Ø Size: 31X21X5.5CM
Ø Two-way calling and intercom function
Ø 60 LED lights on the panel which can show several calling numbers at the same time
Ø Equipped with two-brightness LED digital tube, which cam automatically and orderly show the calling numbers, and information is shown clearly
Ø Bus connection, call without interruption, call storage, short circuit alarm, intensive care priority, multilevel volume adjustment, handfree intercom.
Ø Can be used with cordless phones or connected to a computer, optional ring music.
Ø Two-way calling and intercom function
Ø 60 LED lights on the panel which can show several calling numbers at the same time
Ø Equipped with two-brightness LED digital tube, which cam automatically and orderly show the calling numbers, and information is shown clearly
Ø Bus connection, call without interruption, call storage, short circuit alarm, intensive care priority, multilevel volume adjustment, handfree intercom.
Ø Can be used with cordless phones or connected to a computer, optional ring music.

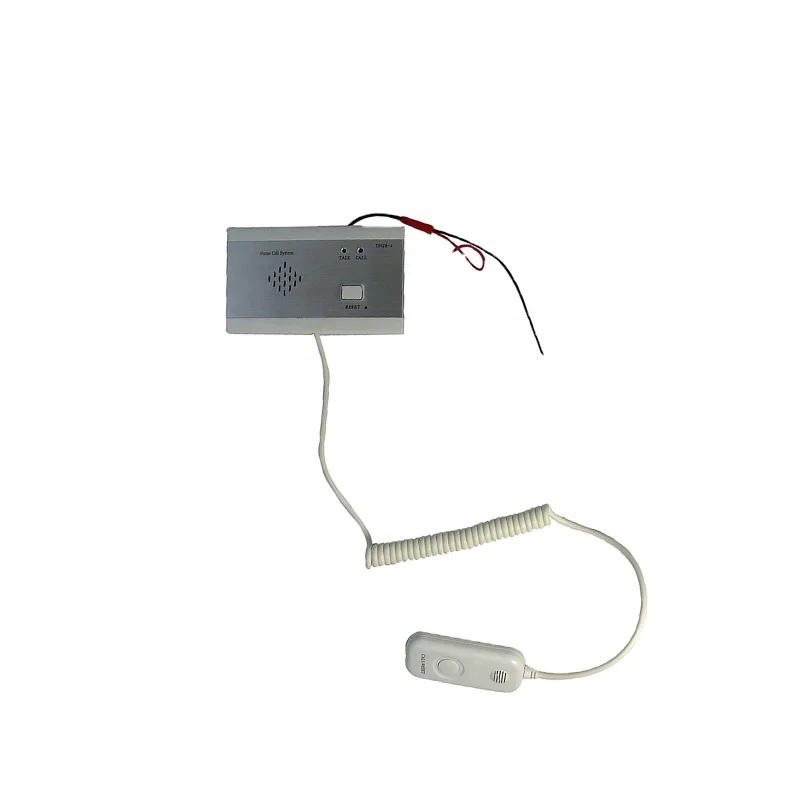

Extension
Ø Size:13X7.8CM
Ø Two-way intercom, call indication, call clearing
Ø Metal wiredrawing panel
Ø Installation method wall-mounted or
surface-mounted type
surface-mounted type
Ø Changing numbers on line
Ø With extension cords
Power supply cabinet
Ø Size:28X8X20CM
Ø Power supply: 220v
Ø Equipped with the interfaces for Ext. screen, door indicators and vice machine

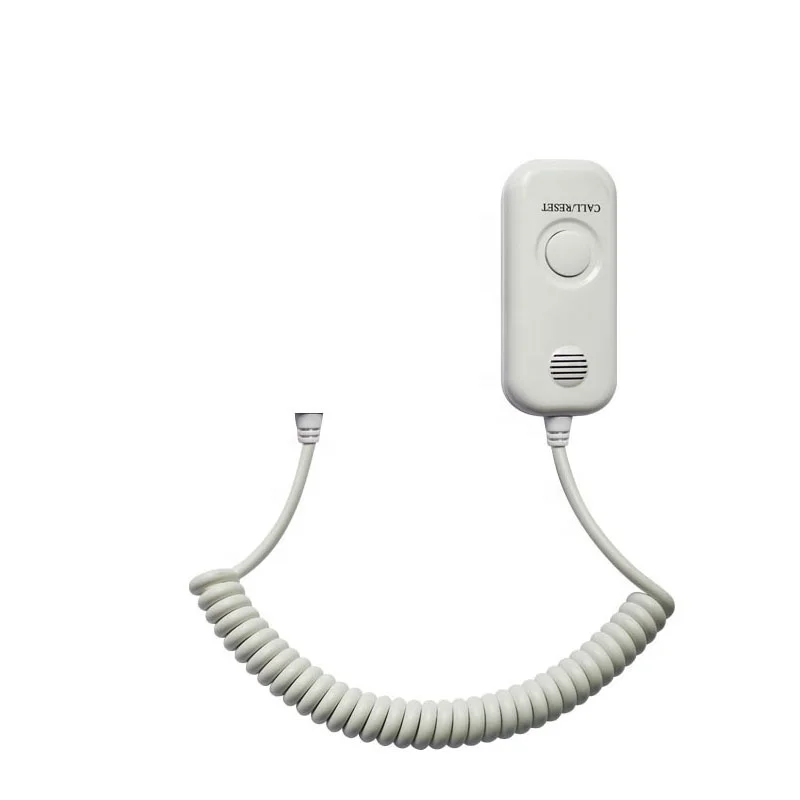

Call handle
Ø Hanging line size: 70cm in length
Ø It is in fixed connection with extensions
Ø Calling, talk-back, cancellation and reset
Ø Pull-resistant wire with curved buffer
Ø Contains a highly sensitive MIC that actively captures the patient's weak voice
Ø It is in fixed connection with extensions
Ø Calling, talk-back, cancellation and reset
Ø Pull-resistant wire with curved buffer
Ø Contains a highly sensitive MIC that actively captures the patient's weak voice
Display screen
Ø Size: 61X19X6CM
Ø Double-sided display
Ø Two-wire connectivity
Ø High precision clock display
Ø Double-sided display
Ø Two-wire connectivity
Ø High precision clock display
Door indicator
Ø Size: 8.6X8.6CM
Ø Installed at the door of the hospital ward
Ø Embedded installation using 86 box
Ø Installed at the door of the hospital ward
Ø Embedded installation using 86 box

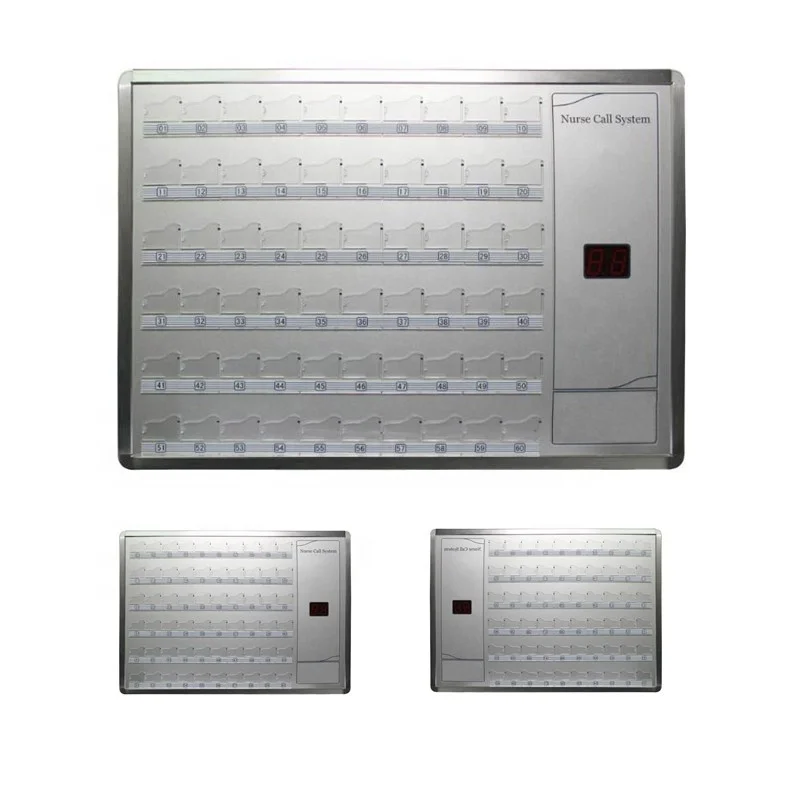

List of patients
Ø Size·57X74X2.5CM
Ø Used for inserting patient information cards
Ø With bed numbers
Ø Used for inserting patient information cards
Ø With bed numbers
