Refractory Brand New Melt Aluminum Porous Alumina Ceramic Foam Filter Plate Price for Aluminum casting
- Category: >>>
- Supplier: Adtech Metallurigical Materials Co. Ltd.
Share on (1600988750106):
Product Overview
Description
Products Description

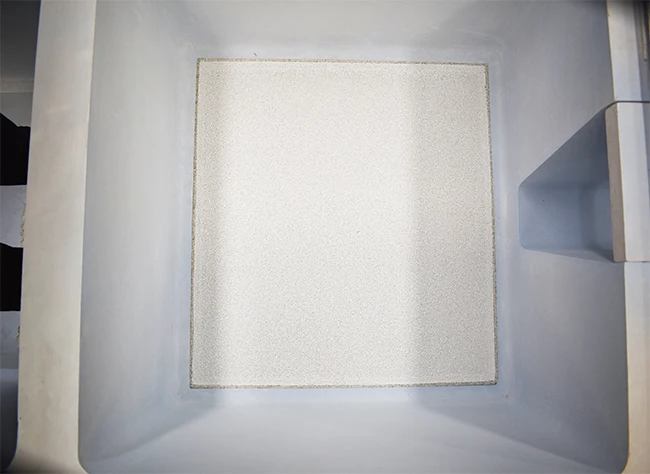

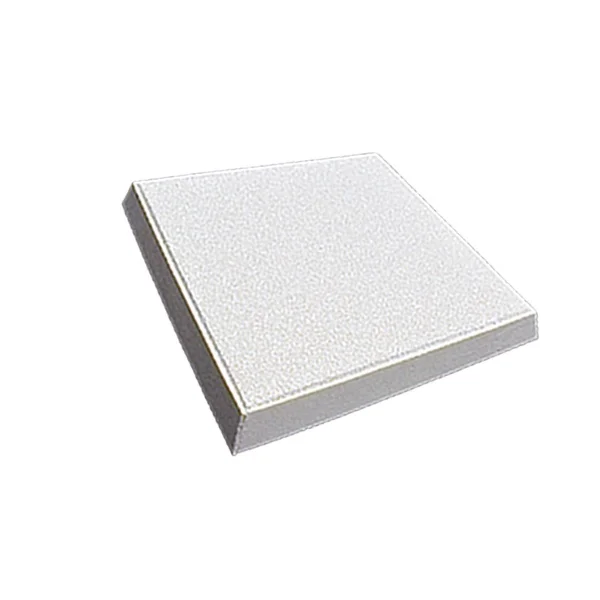

Al2O3 Ceramic Foam Filter for aluminum foundry

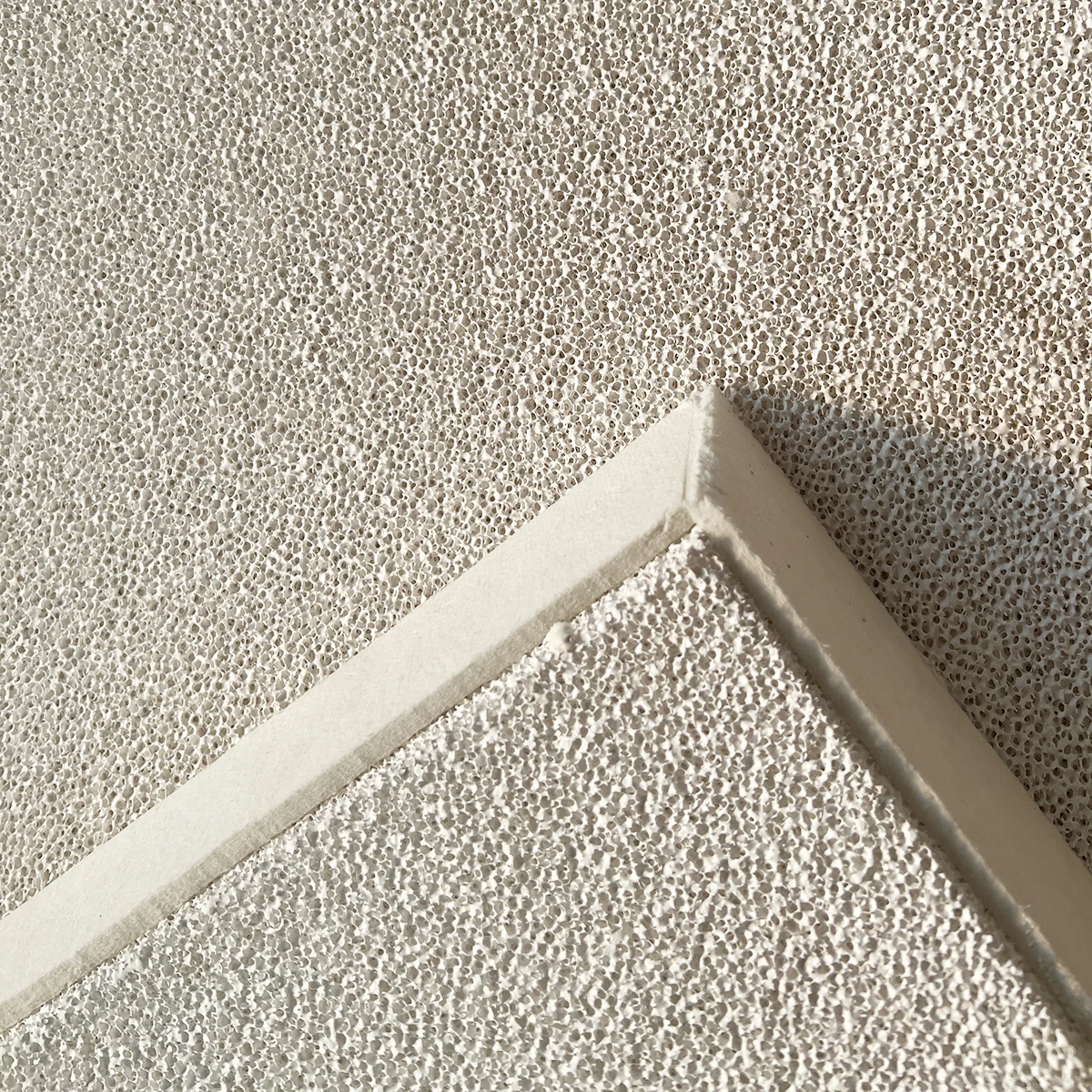

1. Ceramic Foam Filter is a high-temperature sintered three-dimensional network structure,
2. Ceramic Foam Filter has strong adsorption capacity and can remove tiny inclusions in aluminum liquid,
3.Ceramic Foam Filter is widely used in the production of aluminum foil coil billets,aluminum materials and automobile wheel hub billets,
4. Higher applicability and economy.
5.Ceramic foam filters are silicon carbide ceramic foam filters, alumina foam ceramic filters, and zirconia foam ceramic filters.
Our Advantage
♦ Applied to improve the quality of aluminum alloy and other non-ferrous alloy casting
♦ Improve metallurgical structure
♦ Enhance mechanical properties
♦ Change turbulence into laminar flow
♦ The surrounding of the filter is sealed with expanded gasket. When the temperature is above 450°C, 200% expansion of the gasket will happen to prevent floating and leakage of liquid aluminum through interface.
♦ The filter can effectively remove big piece inclusions in molten aluminum, and effectively adsorb tiny inclusions.
♦ Improve metallurgical structure
♦ Enhance mechanical properties
♦ Change turbulence into laminar flow
♦ The surrounding of the filter is sealed with expanded gasket. When the temperature is above 450°C, 200% expansion of the gasket will happen to prevent floating and leakage of liquid aluminum through interface.
♦ The filter can effectively remove big piece inclusions in molten aluminum, and effectively adsorb tiny inclusions.
Ceramic foam filter Specification
Specifications (mm) | Effective filtration area (%) | Filtration flow range (kg/min) |
7in(178*178*50) | 75 | 22-56 |
9in(229*229*50) | 75 | 25-80 |
12in(305*305*50) | 80 | 50-156 |
15in(381*381*50) | 85 | 85-252 |
17in(432*432*50) | 86 | 110-335 |
20in(508*508*50) | 88 | 160-478 |
23in(584*584*50) | 89 | 210-640 |
26in(660*660*50) | 90 | 276-830 |

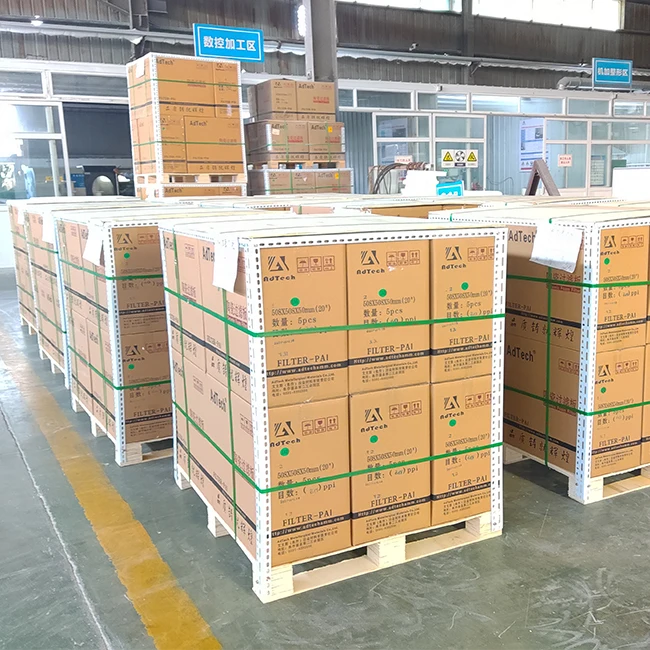

Product packaging
Company Profile
AdTech produces materials and provides services for high-temperature filtration and purification with muscular technical strength and managment system.AdTech was founded in 2012, and the China plant has been put into production by the end of 2013. AdTech is an international enterprise concentrating on R & D and manufacturing online degassing and filtrating equipment, ceramic foam filter, hot-top casting materials, nozzle board, repair coating materials and flux. AdTech products are mainly used in aluminum casting to isolate and adsorb impurities and back-flow protection.AdTech China factory has acquired the ISO 9001,ISO 14001,CEand SGS.
AdTech serves customers from dozens of countries and regions including Europe(Hydro/Rusal),Middle East(Aluminum Bahrain,Dubai Aluminum,Midal Cables,EGA),Southeast Asia(Press Metal,GVA,Jindal),China(Chinese Aluminum Industry,Zhongwang China, Weiqiao,Midas),ect.
AdTech serves customers from dozens of countries and regions including Europe(Hydro/Rusal),Middle East(Aluminum Bahrain,Dubai Aluminum,Midal Cables,EGA),Southeast Asia(Press Metal,GVA,Jindal),China(Chinese Aluminum Industry,Zhongwang China, Weiqiao,Midas),ect.
FAQ
1.Q:Are u the factory or trading company?
A: We are factory who was founded in 2012 .
2.Q:What's your main products?
A:We are making Online degassing, Filtrating equipment, Ceramic foam filter, Hot-top casting materials, Nozzle board, Repair coating material and Flux to overseas for many years.
3.Q:How can you control your quality?
A:For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and we have the quality certificates with ISO9001/ISO14001/SGS.
4.Q:What's the payment term that you can accept?
A: We can accetp T/T , L/C , Western Union ,Cash ect.
5.Q: How can I get samples?
A: We are honor to offer you the samples.
6. Q:Does your company accept customization?
A:We accept OEM service.
7.Q:Can we visit your company?
A:Yes, for sure, you are welcome to visit our company.
A: We are factory who was founded in 2012 .
2.Q:What's your main products?
A:We are making Online degassing, Filtrating equipment, Ceramic foam filter, Hot-top casting materials, Nozzle board, Repair coating material and Flux to overseas for many years.
3.Q:How can you control your quality?
A:For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and we have the quality certificates with ISO9001/ISO14001/SGS.
4.Q:What's the payment term that you can accept?
A: We can accetp T/T , L/C , Western Union ,Cash ect.
5.Q: How can I get samples?
A: We are honor to offer you the samples.
6. Q:Does your company accept customization?
A:We accept OEM service.
7.Q:Can we visit your company?
A:Yes, for sure, you are welcome to visit our company.
