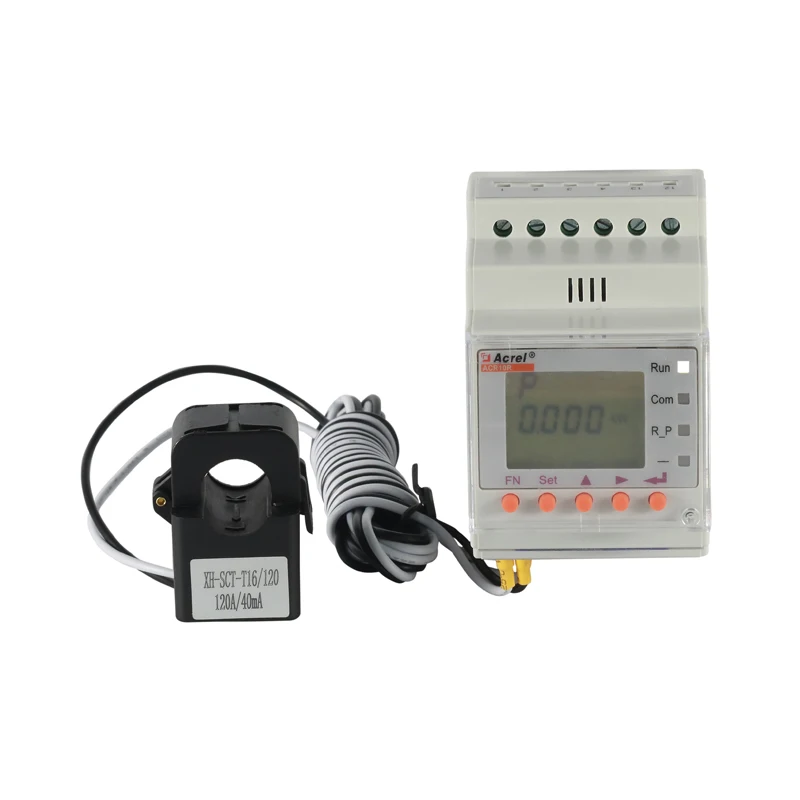

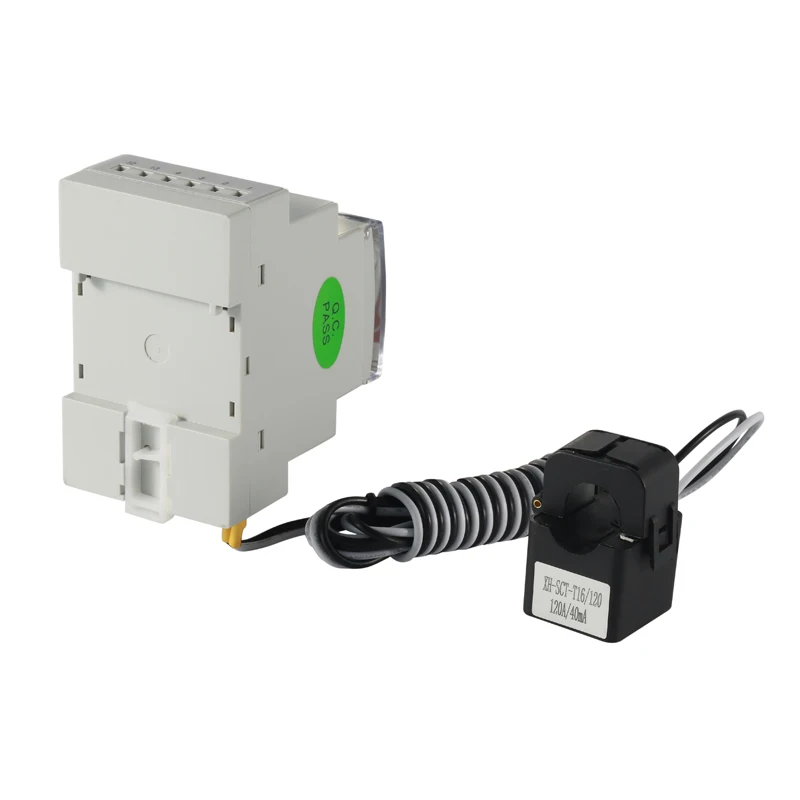

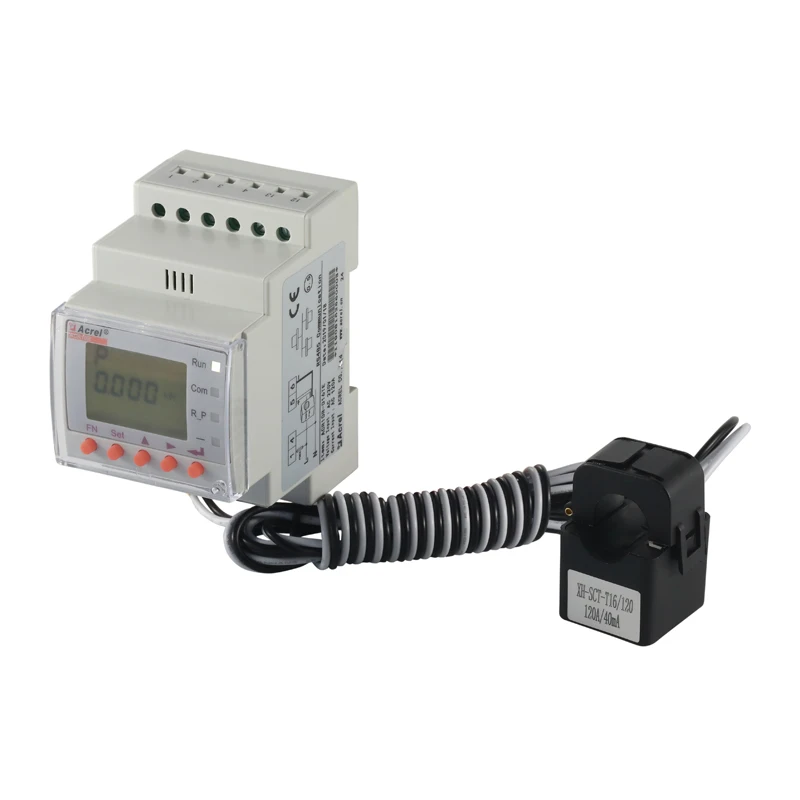

ACR10R D16TE Zero export smart meter with RS485 including one Ct solar power monitoring
- Category: >>>
- Supplier: Shanghai Royal Machinery Co. Ltd.
Share on (1600988757898):
Product Overview
Description
Overview

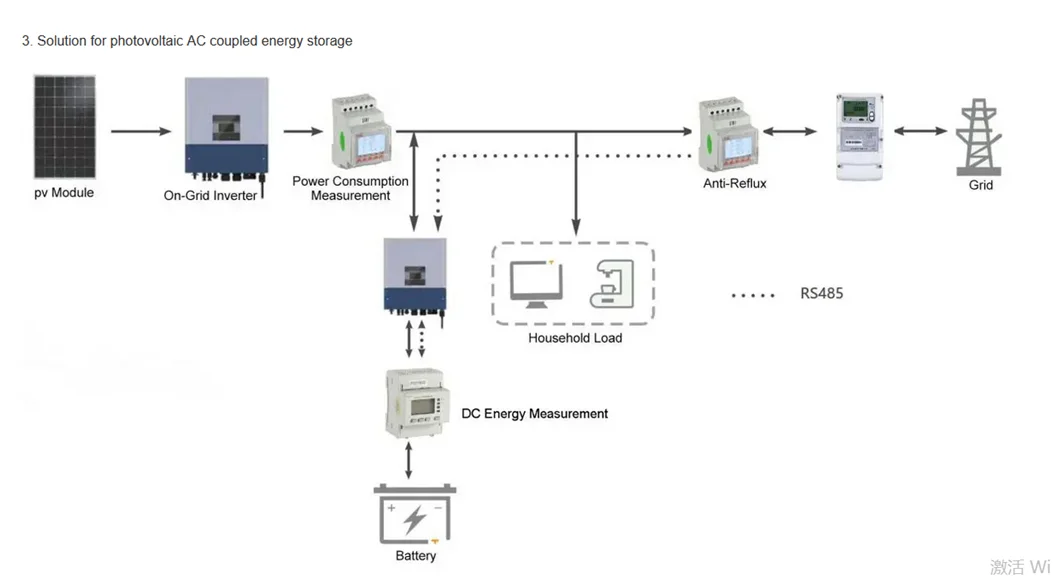

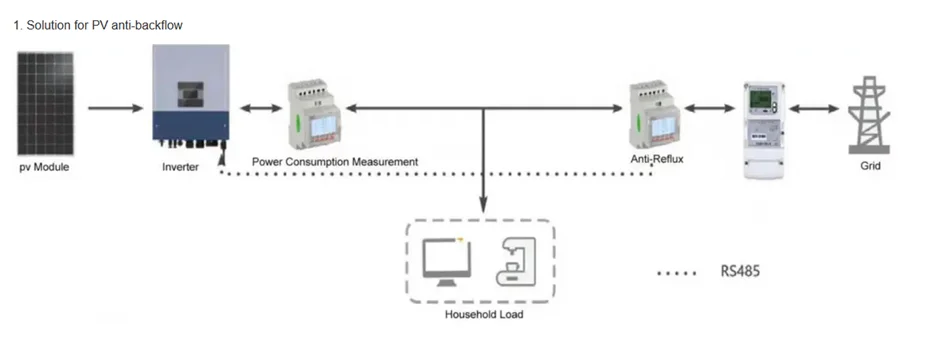

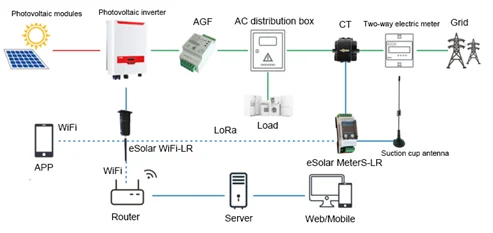

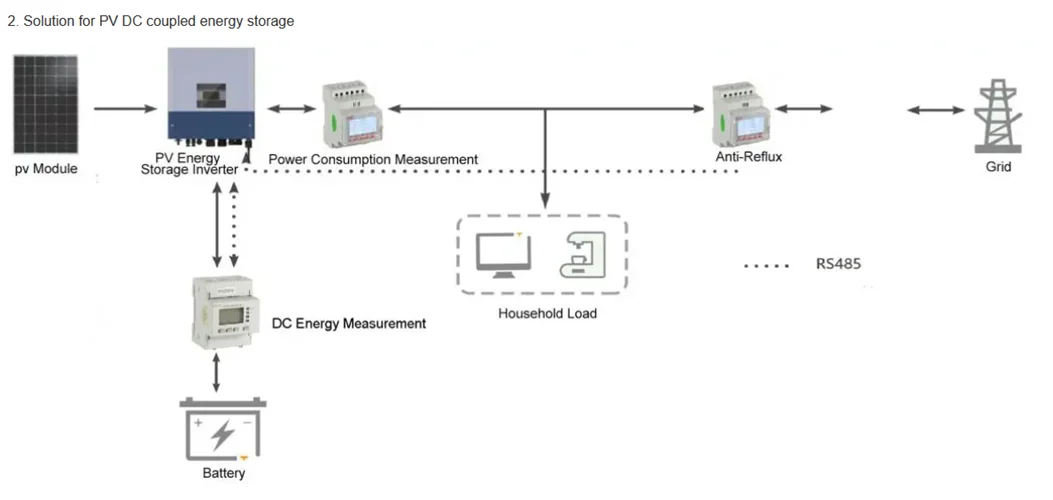

The rail-type multifunction electrical instrument with external Rogowski coil and split-core current transformer is applicable for the energy-saving reconstruction project in high energy consumption industries . It is suitable for applications such as the power monitoring of grid-connected cabinet for distributed photovoltaic power cabinet and energy demand management. It boasts of no need of bus removal, easy connection and safe construction, saving reconstruction cost and raising efficiency for the user.
It integrates the measurements of all electric parameters (including single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency and power factor) and comprehensive energy monitoring and examination management. Meanwhile, it also has various peripheral interfaces for the user to choose: the RS485 communication interface with MODBUS-RTU protocol can meet the need of online communication management; the interfaces with switch input and relay output can realize the remote signaling and remote control of the circuit breaker switch. It is very suitable for real-time power monitoring system with an LCD display and the panel buttons to realize the setting and control of parameters.
It integrates the measurements of all electric parameters (including single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency and power factor) and comprehensive energy monitoring and examination management. Meanwhile, it also has various peripheral interfaces for the user to choose: the RS485 communication interface with MODBUS-RTU protocol can meet the need of online communication management; the interfaces with switch input and relay output can realize the remote signaling and remote control of the circuit breaker switch. It is very suitable for real-time power monitoring system with an LCD display and the panel buttons to realize the setting and control of parameters.

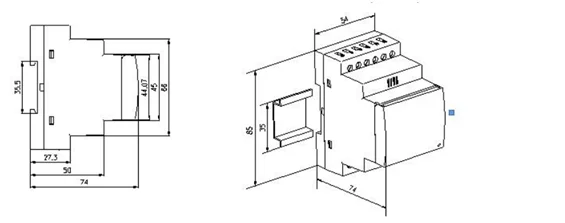

Technical parameter
Model | ACR10R-D10TE | ||
Input | Phase | Single phase | |
Frequency | 45~65Hz | ||
Voltage | Rated voltage：AC 100V 400V | ||
Overload：1.2 times the rated voltag（continuous）；2 times the rated voltage lasting for 1 second | |||
Power consumption：less then 0.2VA | |||
Current | Max current: 80A | ||
Overload：1.2 times the rated current（continuous）；10 times the rated current lasting for 1second | |||
Power consumption：less then 0.2VA | |||
Output | Communication | RS485 interface，Modbus—RTU | |
Display | LCD | ||
Measurement precision | Voltage:0.2 level,current,power Active energy：0.5 level，0.01Hz frequency,Reactive energy:1 level | ||

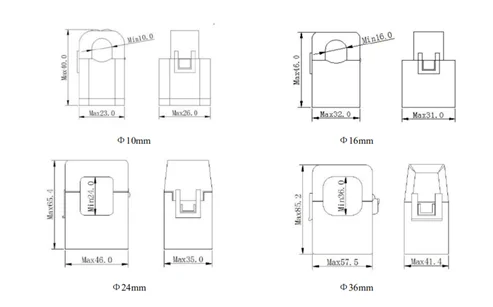

Split CT size | Through size 10mm | ||
Power supply | AC 85~265V or DC 100~350V;power consumption≤10VA | ||
Safety | Power frequency withstand voltage | AC2kV 1min between power supply，current input ，voltage input and communication | |
AC2kV 1 min between each pair of combinations among power supply，current input and voltage input | |||
Insulation resistor | Input，output terminal to housing＞100MΩ | ||
Environment | Working temperature | -10℃~55℃ | |
Storage temperature | -20℃~70℃ | ||
Relative humidity | 5%~95%，non-condensing | ||
Altitude | ≤2500m | ||

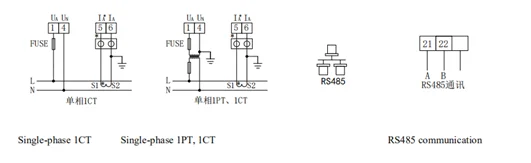

wiring and installing
